The Ultimate Brother PE800 “White Paper”: From Unboxing to Selling Kidswear Without Tears

If you just bought a Brother PE800 and you’re staring at a pile of supplies thinking, “Okay… what do I do first so I don’t wreck a onesie?”—you’re in the right place.

I spent 20 years on the production floor, but I’ve also taught hundreds of beginners who started exactly where you are: excited, overwhelmed, and terrified of pressing "Start." The biggest mistake I see isn’t a lack of talent; it’s a lack of workflow. Beginners often buy stuff, but they don’t build a system.

The video you watched covers a solid beginner haul. My job today is to restructure that haul into a professional-grade Standard Operating Procedure (SOP). We will focus on control, safety, and scalable habits—especially if your goal is to eventually sell what you make.

1. Calm First: The Unboxing & “Baby Steps” Setup

The Brother PE800 is a fantastic "gateway" machine. It offers a 5x7 embroidery field, which is the industry standard for most logo and chest-sized designs. However, it is still a machine with moving parts, needles, and momentum.

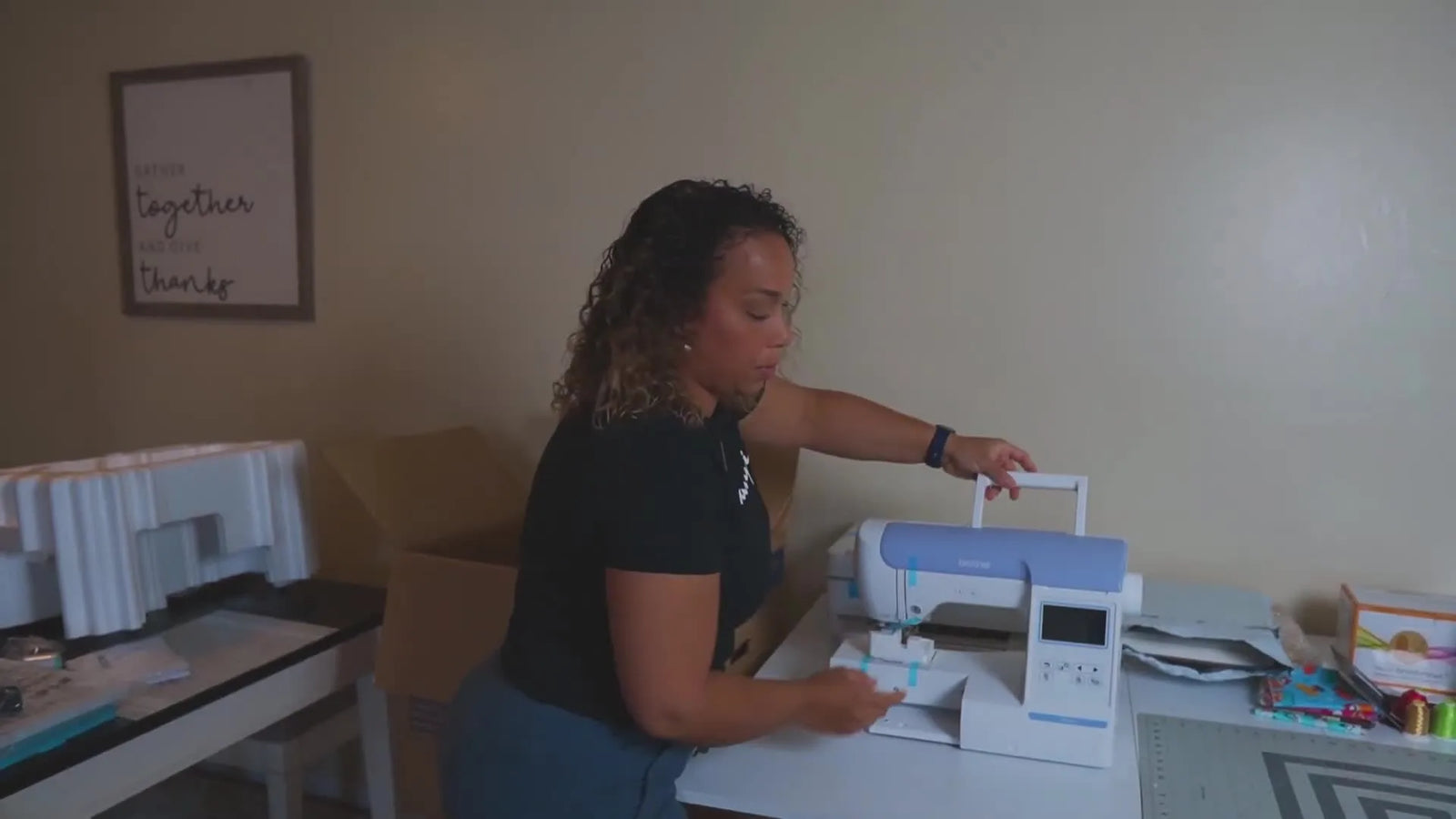

When you take the machine out of the box (as shown in the video), you’ll see the main body and the embroidery unit. Listen for a distinct, solid “click” when you slide the embroidery unit onto the machine. If you don’t hear that mechanical lock, the carriage won’t calibrate correctly.

The “Sweet Spot” Speed Rule

Your machine can go fast, but you shouldn’t—yet.

• The Trap: Cranking the speed slider to Max (650 SPM) immediately.
• The Fix: For your first week, and especially on knit fabrics like onesies, keep your speed slider at medium (approx. 400-450 stitches per minute).
• The Why: At lower speeds, friction is reduced, thread tension is more forgiving, and if a mistake happens, you can stop it before it ruins the garment.

Two quick “new machine” habits that save headaches:

1. Treat the factory needle as a “dummy” needle. Shipping vibrations can dull or bend the pre-installed needle. Change it before your first "real" project.
2. Start with "Flat," not "Tubular." Don't start with a onesie. Start with a flat piece of quilting cotton or the interlock knit scrap mentioned in the video.


Warning: Sharp Object Protocol
Rotary cutters, embroidery needles, and applique scissors are not “craft cute”—they are industrial-grade sharps.
* Always cap rotary blades immediately after a cut.
* Never place your hands inside the hoop area while the machine is paused; always traverse the needle up first.
* Keep a "sharps jar" (an old pill bottle) for broken needles; never throw them loose in the trash.

2. The “Hidden” Prep: Stabilizer, Needles, and The Physics of Support

This is where beginners either set themselves up for professional results or for puckering, shifting, and "donut" effects.

Stabilizer: The Foundation (Tearaway vs. Cutaway)

The video creator bought a roll of tearaway stabilizer and cutaway sheets. This is your toolkit, but you need to know the physics behind them.

• Tearaway (Paper-like): Best for stable fabrics (towels, denim, quilting cotton). Imagine it like a scaffold that you remove after construction.
• Cutaway (Fabric-like): Mandatory for knits (T-shirts, onesies). Knits stretch; cutaway does not. It stays forever to support the stitches so they don't distort in the wash.

Skin Comfort: Sulky Tender Touch

The video correctly identifies Sulky Tender Touch as a finishing layer.

• Sensory Check: Run your finger over the back of a finished design. Feel those knots? A baby’s skin is 10x more sensitive.
• Protocol: Iron Tender Touch (or a similar fusible tricot) over the back of the stitches after the embroidery is done. This is non-negotiable for kidswear businesses.


Needles: The Organ 75/11 Standard

The video highlights Organ 75/11 needles. This is the industry standard "Ballpoint" or "Universal" size for general embroidery.

• The "Sound" of a Bad Needle: A sharp, fresh needle makes a rhythmic thump-thump-thump sound. A dull needle makes a loud pop-pop-pop sound as it punches through fabric. If you hear popping, change the needl immediately.


Bobbins & Adhesives

• Bobbins: Use pre-wound bobbins (usually 60wt or 90wt polyester). They are wound tighter and more evenly than you can do at home, ensuring consistent tension.
• Adhesives (Spray n Bond): Use this for "floating" (sticking fabric to stabilizer without hooping the fabric). Caution: If you use too much spray, your needle will get sticky and cause thread breaks. Use a "light mist" from 12 inches away, not a heavy coat.


Prep Checklist (Pass/Fail)

• Correct Needle: Installed a fresh Organ 75/11 (or 75/11 Ballpoint for knits).
• Stabilizer Match: Selected Cutaway for T-shirts/Onesies OR Tearaway for Towels/Wovens.
• Bobbin Check: Pre-wound bobbin installed? Pull the tail—does it unwind smoothly clockwise?
• Consumables: Have Spray n Bond and Tender Touch within arm's reach.

3. Threads & Sourcing: Avoiding the "Bird's Nest"

The video contrasts local store thread (Coats & Clark) with bulk Amazon sets (New brothread).

Here is the "Cognitive Upgrade" regarding thread:

• Consistency is King: Beginners often blame the machine for tension issues when the real culprit is switching between a thin 50wt thread and a thick 30wt thread without adjusting tension.
• The Dental Floss Test: When you thread your machine, pull the thread through the needle eye before you start. It should feel like pulling dental floss—smooth, with slight, consistent resistance. If it jerks, re-thread.

If you plan to sell, I highly recommend standardizing on a reliable polyester thread brand (like the extensive color palettes available from SEWTECH or similar professional suppliers). Polyester is colorfast (bleach resistant) and handles high-speed stitching better than rayon.

Applique Tools

For applique, sharp scissors (like the Fiskars shown) are vital. The trick to clean applique is trimming very close to the tack-down stitch without cutting it. This requires dexterity and good lighting.

4. Hooping & Centering: The "make or Break" Skill

The PE800 includes a standard 5x7 plastic hoop. This is the hardest physical skill to master.

The "Hoop Burn" & Stretching Problem

On small garments like onesies, you often have to stretch the fabric slightly to fit it into the inner/outer ring of a traditional hoop.

• The Risk: If you stretch a knit fabric and then embroider it, the fabric will "snap back" when you remove the hoop, causing the design to pucker.
• The "Drum Skin" Myth: You want the stabilizer tight like a drum, but the fabric should be relaxed, lying flat on top.


The Upgrade Path: Magnetic Hoops

This is where tool selection changes your business. If you are struggling with "hoop burn" (shiny rings left on fabric) or wrist pain from tightening screws, you are essentially hitting the limit of stock plastic hoops.

Many professionals eventually search for a magnetic hoop for brother pe800. These hoops use powerful magnets to clamp the fabric without forcing it into a ring.

• Why Upgrade? It allows you to "float" delicate onesies easily. You hoop the backing, lay the onesie on top, and snap the magnets down. Zero fabric distortion.
• Efficiency: It reduces hooping time by 30-50%, which is critical if you are doing a batch of 10 shirts.

Warning: Magnetic Force Safety
Magnetic hoops are industrial tools. They carry a pinch hazard.
* Do not place fingers between the magnets.
* Do not use if you have a pacemaker (consult your doctor).
* Keep credit cards and hard drives away from the hooping area.

5. Workspace Setup: Stability & Practice

The video shows a folding craft table. Stability is crucial.

• Vibration Check: Place a glass of water on your table while the machine runs. If the water ripples violently, your table is too wobbly. Vibration causes the needle to enter the fabric at slightly different angles, reducing stitch quality.


The Interlock Knit Strategy

The creator bought interlock knit fabric to practice. This is brilliant.

• Day 1-3: Do not stitch on a finished onesie.
• Drill: Hoop your practice knit with cutaway stabilizer. Run a standard monogram. Inspect the back. Repeat until perfect.


If you plan to scale, you will eventually look into hooping stations. A station holds the hoop in a fixed position, allowing you to slide the garment on perfectly straight every time. This solves the "crooked logo" problem.

Setup Checklist (Pass/Fail)

• Stable Table: Machine does not bounce at 400 SPM.
• Clearance: Nothing obstructing the embroidery arm movement.
• Lighting: Task lamp pointed directly at the needle bar.
• Practice Material: Interlock knit scraps ready for "scratch test."

6. Decision Tree: Stabilizer Selection Guide

Stop guessing. Use this logic flow for every project.

Project Type: Knit / Stretchy (Onesies, T-Shirts, Hoodies)

• Stabilizer: Cutaway (2.5oz or 3.0oz).
• Hooping: Hoop the specific stabilizer compatible with your frame; "float" the garment if using spray, or hoop gently.
• Needle: Ballpoint 75/11.
• Finishing: Tender Touch on the back.

Project Type: Woven / Stable (Towels, Denim, Aprons)

• Stabilizer: Tearaway (Medium weight).
• Hooping: Can be hooped tight.
• Needle: Sharp or Universal 75/11.
• Finishing: Optional.

Project Type: High Pile (Fleece, Minky)

• Stabilizer: Cutaway or Tearaway (depending on stretch).
• Topper: Water Soluble Topper (Solvy) is required on top to keep stitches from sinking into the fluff. Note: Add this to your shopping list.

7. Operation: The "No-Drama" Stitch Out

Let's turn the haul into a repeatable workflow.

1) Load & Orient

Load your design via USB.

• Check: Is the design rotated correctly? The PE800 screen is small; double-check up vs. down.

2) The Placement Check

Use the plastic grid template supplied with your brother 5x7 hoop to mark your center point on the fabric with a water-soluble pen or chalk. Match the needle drop to this center point.

3) The Trace (Pre-Flight)

Always run the "Trace" function on the PE800 screen.

• Visual Check: Watch the foot move. Does it hit the edge of the plastic hoop? Does it run over a thick seam or a button? If yes, move the design or re-hoop.

4) Monitor the Start

Press the Green button. Hold the thread tail for the first 3-4 stitches, then trim it.

• Sound Check: Listen for that rhythmic "thump-thump." If it sounds like a jackhammer, STOP immediately.

If you are using third-party embroidex hoops, ensure the attachment clips click firmly into the carriage. A loose hoop connection leads to "layer shifting" (where the outline doesn't match the fill).

Operation Checklist (Pass/Fail)

• Trace Complete: Verified needle won't hit the frame.
• Thread Path: Thread is seated in the tension disks (felt resistance).
• Obstruction Check: No excess fabric is tucked under the hoop (don't sew the sleeve to the chest!).
• Speed: Set to Medium for the first layer.

8. Troubleshooting: The "Big Three" Beginners Face

Symptom A: "Bird Nests" (Huge knot of thread under the throat plate)

• Real Cause: 90% of the time, this happens because the top thread has zero tension. You likely threaded the machine with the presser foot down.
• The Fix: Raise presser foot. Re-thread. Ensure thread snaps into tension disks.

Symptom B: Needle Breaks constantly

• Likely Cause: Needle is bent, or the design is too dense (too many stitches in one spot).
• The Fix: Change needle. If it persists, check if you are hitting a zipper or hoop edge.

Symptom C: Design Outline is "Off" (Gaps between color and outline)

• Likely Cause: Poor stabilization. The fabric shifted while sewing.
• The Fix: Switch from Tearaway to Cutaway. Use a magnetic hoop for brother pe800 to hold the fabric more securely without distortion.

9. The Growth Path: From Hobby to Production

The creator’s goal is to start an Etsy shop. This is a viable path, but be aware of the "Single-Needle Tax"—the time you spend changing threads.

Here is your tool upgrade roadmap based on volume:

Level 1: The "Smart Hobbyist" (0-10 shirts/week)

• Focus: Perfecting technique.
• Tools: High-quality stabilizers (SEWTECH backing), consistent thread brands, Tender Touch.

Level 2: The "Etsy Starter" (10-50 shirts/week)

• Pain Point: Hooping takes too long; difficult items (bags, hats) are rejected.
• Upgrade: Invest in a hoopmaster hooping station or a generic hoop master embroidery hooping station equivalent. More importantly, switch to Magnetic Hoops (like the SEWTECH MaggieFrame series compatible with Brother). This allows you to hoop a shirt in 10 seconds vs. 60 seconds.

Level 3: The "Volume Seller" (50+ shirts/week)

• Pain Point: You are babysitting the machine for thread changes instead of packing orders.
• Upgrade: This is when you move to a multi-needle machine (like the SEWTECH 15-needle systems). You set the colors once, press start, and walk away.

Final Word

The Brother PE800 supplies in the video—stabilizers, needles, and adhesives—are the raw materials. But you are the engineer.

Don't rush to the first finished garment. Spend your first week mastering the Prep Checklist and the Hooping Technique. If you can control the fabric, the machine will do the rest.

Welcome to the embroidery world. It’s loud, it’s technical, but when that final satin stitch lays down perfectly? It’s magic.

FAQ

• Q: How do I set a safe starting embroidery speed on a Brother PE800 for onesies and other knit kidswear?
  A: Use the Brother PE800 speed slider at medium (about 400–450 SPM) for the first week, especially on knits.
  • Set the speed to medium before starting the first color.
  • Stitch a simple monogram on interlock knit scrap with cutaway stabilizer before touching a real onesie.
  • Success check: the machine sound stays rhythmic “thump-thump,” not a loud “jackhammer” or harsh popping.
  • If it still fails, stop and check needle freshness and fabric stabilization before changing any tension settings.
• Q: How do I prevent bird’s nests (thread knots under the fabric) on a Brother PE800 during the first stitches?
  A: Re-thread the Brother PE800 with the presser foot UP so the top thread seats into the tension discs—this fixes most bird’s nests.
  • Raise the presser foot, completely re-thread the top path, then rethread the needle.
  • Hold the thread tail for the first 3–4 stitches after pressing Start, then trim the tail.
  • Success check: the underside shows neat bobbin lines, not a wad of top thread under the throat plate area.
  • If it still fails, do the “dental floss test” by pulling the thread through the needle eye—if it jerks, re-thread again.
• Q: How do I choose tearaway stabilizer vs cutaway stabilizer for a Brother PE800 when embroidering onesies, T-shirts, towels, and denim?
  A: Use cutaway stabilizer for knits (onesies/T-shirts) and tearaway stabilizer for stable wovens (towels/denim/quilt cotton).
  • Pick cutaway for anything stretchy so the stitches stay supported after washing.
  • Pick tearaway for stable fabrics where you want the backing removed cleanly.
  • Success check: after removing the hoop, the design stays flat without a “donut” pucker ring around the stitches.
  • If it still fails, upgrade stabilization first (switch from tearaway to cutaway on knits) before blaming the machine.
• Q: How can Brother PE800 beginners avoid hoop burn and fabric distortion when hooping knit onesies with the standard 5x7 plastic hoop?
  A: Hoop the stabilizer firmly but keep the knit fabric relaxed—do not stretch the onesie to “drum tight” in the plastic hoop.
  • Hoop the backing tight like a drum, then lay the knit garment smoothly without pulling it.
  • Avoid forcing small garments into the inner/outer ring if it requires stretching.
  • Success check: after unhooping, the knit does not “snap back” and the embroidery does not ripple or pucker.
  • If it still fails, consider floating the garment with a light mist of adhesive (used sparingly) or upgrading to a magnetic hoop to reduce distortion.
• Q: What needle should I use on a Brother PE800 for kidswear embroidery, and how do I know the needle is dull or damaged?
  A: Start with a fresh Organ 75/11 (ballpoint for knits), and replace the factory-installed needle before the first real project.
  • Install a new needle immediately after unboxing (shipping vibration can dull/bend needles).
  • Listen while stitching: popping sounds often mean a dull needle; switch needles right away.
  • Success check: a good needle produces a consistent rhythmic “thump-thump,” not repeated “pop-pop-pop.”
  • If it still fails, check for dense designs, hoop edge strikes, or sewing into thick seams/closures.
• Q: What safety rules should Brother PE800 users follow around the needle area when the machine is paused or threading?
  A: Keep hands out of the hoop area and always move the needle to the up position before reaching in—treat the needle area like an industrial sharp zone.
  • Traverse the needle up before touching fabric, thread tails, or the hoop area.
  • Never place fingers inside the hoop area even if the machine is paused.
  • Success check: hands never cross the needle path, and adjustments happen only after the needle is fully up and movement has stopped.
  • If it still fails, stop the machine, power down if needed, and restart with a calmer “pre-flight” routine (trace first, then stitch).
• Q: What magnetic hoop safety precautions should be used when operating magnetic hoops compatible with a Brother PE800?
  A: Treat magnetic hoops as pinch-hazard tools and keep fingers, cards, and sensitive devices away from the magnet clamp zone.
  • Snap magnets down carefully and keep fingertips out from between magnet blocks and the frame.
  • Avoid use if a pacemaker is involved (a safe starting point is to consult a doctor before using strong magnets).
  • Success check: magnets clamp securely without finger pinches and fabric lays flat with no forced stretching.
  • If it still fails, slow down the hooping motion and reposition fabric—never fight the magnets with fingers in the gap.
• Q: When should a Brother PE800 owner upgrade from technique fixes to magnetic hoops, and when is it time to move to a multi-needle embroidery machine for selling?
  A: Use a three-level path: optimize technique first, add magnetic hoops when hooping becomes the bottleneck, and consider a multi-needle machine when thread changes dominate production time.
  • Level 1 (technique): standardize stabilizer + thread, use medium speed, and practice on interlock knit until results repeat reliably.
  • Level 2 (tool): move to magnetic hoops when hoop burn, wrist pain, slow hooping, or knit distortion keeps ruining garments.
  • Level 3 (capacity): move to a multi-needle machine when volume grows and constant manual color changes prevent packing orders.
  • Success check: hooping time drops noticeably and batches run with fewer rejects; production feels controlled instead of rushed.
  • If it still fails, track which step causes the stop (hooping, stabilization, or thread changes) and upgrade only that constraint first.
