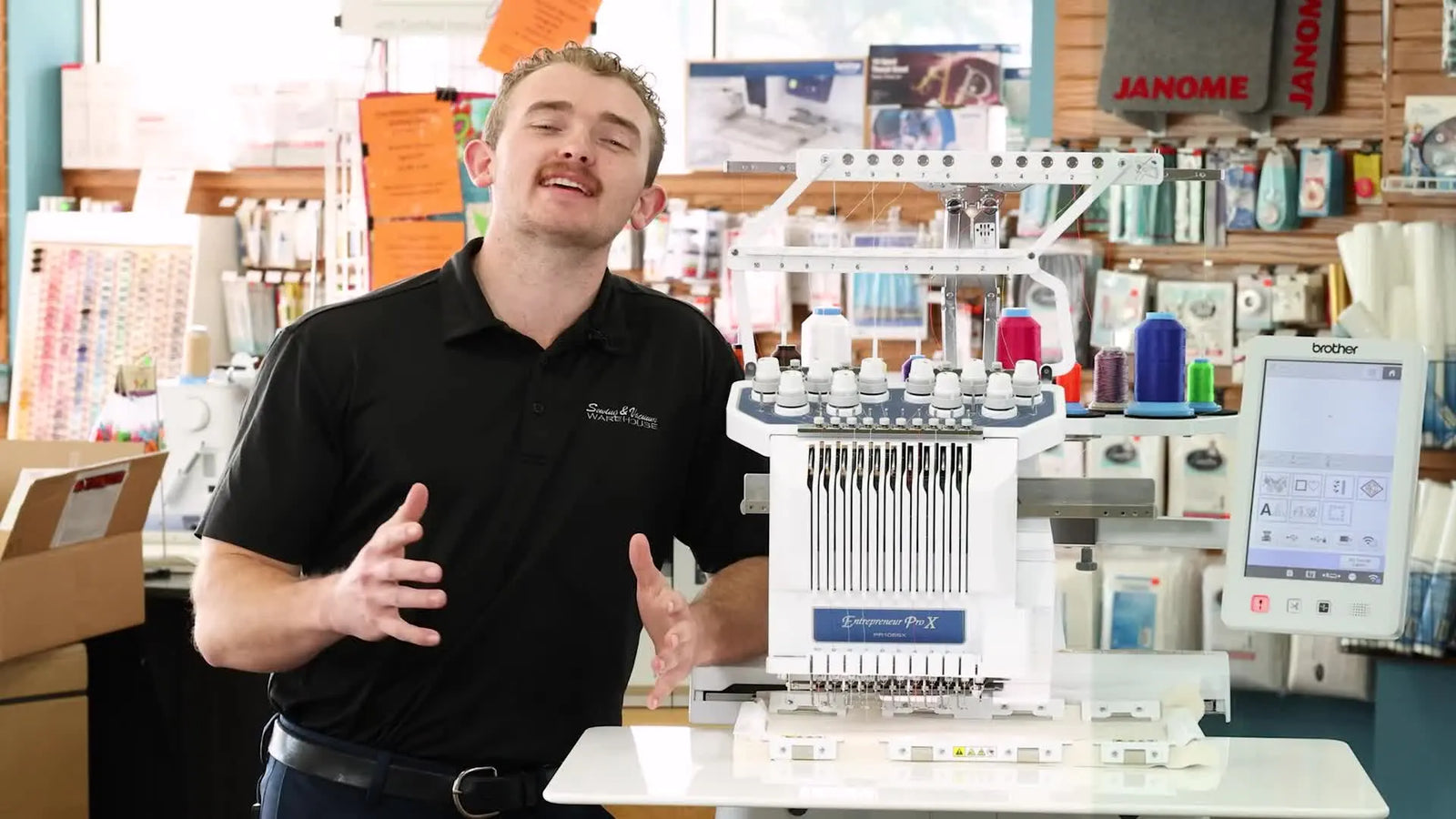

Brother PR1055X Deep Dive for Real-World Production: Camera Alignment, “No Sew” Editing, and Fast Patch Batching (Without the Usual Mistakes)

The Multi-Needle Leap: A Field Guide to Mastering the Brother PR1055X

You are here because you are tired. Tired of changing threads 15 times for a single logo. Tired of the babysitting. You’ve looked at the Brother PR1055X, but let’s be honest: moving from a single-needle home machine to a 10-needle beast is terrifying. It looks industrial. It sounds expensive. And the fear of crashing it is real.

I’ve spent 20 years training operators, and I can tell you this: Embroidery is a science of variables. Your result depends on the Machine + Thread + Fabric + Stabilization + The Operator.

In this guide, we are going to strip away the marketing fluff and focus on the tactile, operational realities of running this machine. We will turn your anxiety into a repeatable production workflow, whether you are doing corporate logos, backpacks, or batching patches.

1. The "Needle Count" Trap: It’s Not About Colors, It’s About Flow

New buyers look at 10 needles and think, "I need this for 10-color designs." Reality Check: 90% of commercial logos are 4 colors or less.

You aren't buying needles; you are buying continuity. You are buying the ability to set up a job, hit "Start," and walk away to invoice a client while the machine handles the color swaps.

A few operational baselines to ground your expectations:

• The Interface: The PR1055X tablet screen allows you to edit at the machine. This saves you the "Walk of Shame" back to your computer for minor sizing or rotation fixes.
• Connectivity: Wi-Fi means no more USB sticks. This reduces the risk of physical port damage over time.
• Noise Level: Unlike true industrial machines (which sound like a jackhammer), this crossover machine is engineered for home businesses. It has a rhythmic hum, not a mechanical clatter.


2. The Flat-Back Needle Safety Net

On commercial industrial machines, needles are often completely round at the top. If you rotate them 1° off-center, you get skipped stitches or shredded thread. It is a nightmare for beginners.

The PR1055X uses Flat-Back Needles (System HAx130EBBR). This is your fail-safe.

The "90-Second Needle Audit"

Before you blame thread tension or the bobbin case for bad quality, perform this physical check. Do this every morning.

1. Touch Test: Run your fingernail down the front of the needle. If you feel a "catch" or burr, throw it away. A $0.50 needle can ruin a $50 garment.
2. Orientation: Feel the flat side of the shank. It must face the back of the machine exactly.
3. Seating: Loosen the screw, push the needle up until it hits the distinct "hard stop," and tighten. If it’s 1mm too low, your timing is off.

Why the auto-threader matters: Threading 10 needles by hand in a cramped area increases the risk of crossing threads. Crossed threads cause tension snaps. The auto-threader is not just a luxury; it is line management.

3. Hooping Strategy: The Foundation of Precision

The camera system is brilliant, but it cannot fix a bad hoop job. If your fabric is loose, the stitches will pull the fabric inward, causing "puckering"—the enemy of professional embroidery.

The Sensory Standard for Hooping

When you hoop a garment, tap the fabric. It should sound like a dull thump on a drum. It should be taut, but not stretched so tight that the grain of the fabric curves.

The "Hoop Burn" Problem: Standard plastic hoops work by crushing fabric between two rings. On delicate performance wear or velvet, this leaves a permanent "burn" ring.

• Level 1 Fix: Use a "floating" technique with adhesive spray (messy).
• Level 2 Solution: If you are struggling with hoop marks or wrist fatigue from clamping, professionals switch to magnetic embroidery hoops. These use magnetic force to hold fabric without the crushing act of leverage, reducing marks and saving your wrists.

Pre-Flight Checklist: Hooping

• Stabilizer Check: Are you using the right backing? (See Decision Tree below).
• Tension Check: Gently pull the fabric edges. It should be smooth, with no "soft bubbles."
• Obstruction Check: Ensure no sleeves or straps are caught under the hoop.
• The "Click": When attaching the hoop to the machine arm, listen for the dual locking click. If you don't hear it, the hoop will fly off at 1000 SPM.

If you produce bulk orders, a hooping station for embroidery ensures your placement is identical on every shirt, reducing the reliance on the camera for major corrections.

4. The Snowman Workflow: Camera-Assisted Precision

The "Snowman" sticker creates a visual anchor for the machine. It tells the PR1055X: "Ignore where the hoop is; stitch relative to this sticker."

The Anatomy of the Sticker:

• Top Circle: Defines specific rotation (Top).
• Center Circle: Defines the center of the design.

The Golden Rule: Place the sticker on the fabric exactly where you want the center of the design. Don't "eyeball" it roughly and hope the machine fixes 4 inches of error.

The Camera Scan Sequence

1. Apply Sticker: Press firmly. If the edge lifts, the camera reads the shadow as a pixel and fails.
2. Select Preference: On screen, tell the machine, "Center the design ON the Snowman." Use this to place names above pockets without measuring.
3. Scan: Keep your hands away. The machine frame will move rapidly.

If you are researching embroidery machine camera alignment, understand that this feature turns a 5-minute measuring ordeal into a 30-second scan.

Setup Checklist (Pre-Scan)

• Sticker Adhesion: Is the sticker flat? (Use your thumbnail to burnish the edges).
• Selection: Did you choose the correct grid/placement mode on screen?
• Clearance: Is the embroidery arm clear of walls/objects? (The arm moves further than you think during a scan).


5. The 0.1° Secret: Micro-Adjustments

After the scan, the machine aligns the design. But sometimes, especially with text, it looks mathematically straight but visually crooked due to the fabric weave.

The Fix: Use the 0.1-degree rotation key.

• Why? A 1-degree shift is visible to the naked eye on a horizontal line. A 0.1-degree shift allows you to align text perfectly parallel to a pocket seam or stripe. This is the difference between "Homemade" and "Pro."


6. "No Sew" Function: Production Efficiency

Sometimes you want to embroider a logo but skip the background, or you imported a design with a heavy underlay you don't need.

Instead of watching the machine like a hawk to hit "Stop," use the "No Sew" (Deskskip) button.

1. Select the color block you want to skip.
2. Tap the "No Sew" icon (circle with a slash).
3. The machine treats that data as ghost data—it skips it entirely.


Hidden Consumable Note: Always use water-soluble pens or tailor's chalk for manual marking. Never use standard ink—heat from the ironing press sets ink permanently.

7. Batching Patches: The Matrix Tool

Making one patch is easy. Making 20 at once is where profit happens.

The Workflow:

1. Load design.
2. Move to Top-Left corner (Start position).
3. Hit the Matrix/Duplicate button.
4. Add rows/columns to fill the hoop (e.g., 4 rows of 7 = 28 patches).


The "Shrinkage" Danger Zone

When stitching dense patches on Water Soluble Stabilizer (WSS), the stabilizer tightens as thousands of stitches perforate it. Result: By the time the machine reaches the bottom right corner, the stabilizer has shrunk, and those patches may overlap or distort.

The Fix:

• Gap Buffer: Leave at least 10mm to 15mm between patches initially.
• Delete Strategy: If the preview looks tight, delete the last column. Better to stitch 24 perfect patches than 28 ruined ones.


Operation Checklist: Big Batches

• Bobbin Check: Do you have a full bobbin? (A full hoop of patches eats bobbins).
• Needle Check: Is the needle fresh? (Adhesive from stabilizers can gum up needles—wipe them with alcohol if needed).
• Overlap Scan: Zoom in on the screen preview. Do the cut lines touch? If yes, space them out.

If you are learning how to embroider patches, mastering this spacing logic is critical to avoiding wasted material.

8. Decision Tree: Fabric, Stabilizers & Tools

Stop guessing. Use this logic path for common scenarios.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. They can pinch fingers severely. Do not use if you have a pacemaker. Keep away from credit cards and mechanical watches.

9. Stop Watching, Start Managing: The Monitors

The PR1055X connects to the My Stitch Monitor app.

The Productivity Hack: Don't sit in front of the machine. The mesmerizing needle movement is a time trap.

1. Set the machine.
2. Go do other work (prep the next hoop, invoice, clean).
3. Wait for the Phone Notification. The app alerts you solely when the machine needs you (thread break, bobbin empty, job done).

This creates "phantom labor"—the machine works while you work. If you are comparing units as a 10 needle embroidery machine buyer, this connectivity is a massive ROI factor.

10. Troubleshooting: The "Ghost Frame" Error

Error: "The pattern extends out of the pattern area."

You scanned the hoop. The design looks small enough. The machine refuses to sew. Likely Cause: You imported a precise DST file that contains "Ghost Data"—invisible stitches or a bounding box from the digitizer that is larger than the visible design. The Fix:

1. Open the file in software (PE Design or similar).
2. Check the total pattern size.
3. Remove any jumps (long connecting threads) that extend outside the design.
4. Re-save and re-load.

11. The Upgrade Path: Standard vs. Magnetic Flows

The machine comes with standard plastic hoops. They are functional, but slow.

• Standard Hoops: Great for structural items (caps via the cap driver, heavy canvas).
• Magnetic Frames: The choice for speed. If you are doing a run of 50 left-chest logos, brother magnetic embroidery frames allow you to hoop a shirt in 10 seconds versus 45 seconds. Over 50 shirts, that is 30 minutes of saved labor.

Warning: Safety First. Keep loose hair, drawstrings, and fingers away from the needle bar area. The PR1055X does not stop instantly. A needle puncture at high speed is a hospital trip.

Final Thoughts: The Result is Worth the Learning Curve

In the demo, Quinton shows a batch of 28 patches taking 250 minutes. That is 4 hours of autonomous production.

The Brother PR1055X is a tool that rewards preparation.

• Prep correctly (Needle audit, stabilizer choice).
• Hoop securely (Drum tight, maybe upgrade to magnets).
• Align precisely (Snowman + Camera + 0.1° rotation).

Master these steps, and you won't just be an embroiderer; you will be a production manager.

FAQ

• Q: How do I stop puckering on the Brother PR1055X when embroidering shirts or polos?
  A: Fix puckering by correcting hoop tension first, then match the stabilizer to the fabric—camera alignment cannot compensate for loose fabric.
  • Re-hoop and aim for “drum tight” without stretching the fabric grain.
  • Verify stabilizer choice: cutaway for high-stretch performance wear, tearaway for standard polos/cotton.
  • Check for trapped fabric (sleeves/straps) under the hoop before sewing.
  • Success check: Tap the hooped area—fabric should sound like a dull drum thump and look smooth with no “soft bubbles.”
  • If it still fails: Reduce re-hooping variables by using a magnetic hoop to hold fabric evenly without over-clamping.
• Q: How do I prevent hoop burn marks on delicate fabric when using the Brother PR1055X standard plastic hoops?
  A: Prevent hoop burn by reducing clamp pressure methods or switching to magnetic hoops for repeatable holding without crush rings.
  • Float the garment with adhesive spray as a Level 1 fix (messy but effective for some fabrics).
  • Switch to a magnetic hoop as a Level 2 solution to reduce clamp-ring marks and wrist fatigue.
  • Avoid over-tightening by re-hooping to “taut, not stretched” tension.
  • Success check: After unhooping, there should be no permanent ring imprint where the hoop contacted the fabric.
  • If it still fails: Reassess hooping method and consider a hooping station to keep placement consistent without repeated re-clamping.
• Q: What is the correct daily needle check for Brother PR1055X flat-back needles (System HAx130EBBR) to prevent skipped stitches and thread shredding?
  A: Do a 90-second needle audit every morning—most “tension problems” start with a damaged or mis-seated needle.
  • Touch-test the needle: Feel for burrs/catches with a fingernail and discard if rough.
  • Align the flat side of the shank exactly to the back of the Brother PR1055X.
  • Seat the needle fully: Push up to the hard stop before tightening; even ~1 mm low can throw timing off.
  • Success check: After re-threading, stitching should sound smooth and consistent without repeated shredding or sudden breaks.
  • If it still fails: Re-check for crossed threading paths (auto-threader helps reduce this risk) and verify thread routing before adjusting tension.
• Q: How do I make sure a Brother PR1055X hoop is attached correctly so the hoop does not fly off at high speed?
  A: Attach the hoop until the Brother PR1055X arm locks with the dual-click—if the clicks are missing, stop and re-mount.
  • Clear obstructions (sleeves, straps, bulky seams) so the hoop sits flat on the arm.
  • Push the hoop into the arm mount firmly until the dual locking click is heard.
  • Keep hands away and do not “test-run” at speed if the mount feels uncertain.
  • Success check: You hear and feel the dual click, and the hoop has no wobble when lightly checked by hand.
  • If it still fails: Remove and reattach the hoop; do not start sewing until the lock is confirmed.
• Q: Why does the Brother PR1055X show the error “The pattern extends out of the pattern area” even when the design looks like it fits inside the hoop?
  A: This error is often caused by “ghost data” in the embroidery file (commonly DST)—the file’s bounding data is larger than the visible stitches.
  • Open the file in embroidery software (such as PE-Design or similar) and inspect the total pattern size.
  • Remove long jumps or stray stitches that extend outside the visible design.
  • Re-save the cleaned file and reload it to the Brother PR1055X.
  • Success check: The Brother PR1055X accepts the design and allows sewing without the out-of-area warning.
  • If it still fails: Confirm the hoop selection matches the actual hoop mounted and re-check for hidden points outside the design boundary.
• Q: How do I use the Brother PR1055X camera “Snowman” sticker correctly for accurate placement (and avoid failed scans)?
  A: Place the Snowman sticker precisely at the intended design center and make it perfectly flat—camera alignment depends on clean edges.
  • Press the sticker down firmly and burnish the edges so nothing lifts.
  • On-screen, select the option to center the design on the Snowman (not “near it”).
  • Keep hands away during scan and ensure the embroidery arm has clearance to move.
  • Success check: The scan completes without errors and the on-screen design center matches the sticker center.
  • If it still fails: Reapply a fresh sticker (lifted edges can read as shadows) and re-check the selected placement mode.
• Q: What are the safety rules for magnetic embroidery hoops used with machines like the Brother PR1055X?
  A: Treat magnetic hoops as industrial-strength tools—pinch injuries are common if fingers are between the magnets and frame.
  • Keep fingers clear when lowering the magnetic arms onto the hoop ring.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnetic hoops away from credit cards and mechanical watches.
  • Success check: The fabric is clamped securely without hand strain, and fingers never enter the closing path of the magnets.
  • If it still fails: Slow down the hooping motion and stage the garment flat first so magnets are applied in a controlled, predictable way.
