Copy, Paste, Delete, and Split in Embrilliance Essentials (PES Files) — Without Breaking Your Design

Master Class: How to Edit Embroidery Designs in Embrilliance Essentials Without Ruining Your Garment

Embroidery is 20% software and 80% physics. You might have a design that looks perfect on screen—perhaps you love the bananas but hate the grapes in a fruit basket motif—but if you don't understand how to surgically alter the stitch file, you risk bird-nesting your bobbin or creating a design that unravels in the wash.

This guide bridges the gap between digital editing and physical stitching. We will use a real-world workflow (Embrilliance Essentials) to duplicate an object, delete an unwanted layer, and—most critically—split a continuous outline so it doesn't ruin your registration.

The Goal: A clean, production-ready file that stitches specifically for your machine, not just a pretty picture on a monitor.

Phase 1: Total Visibility (The Steering Wheel)

Turning On the Embrilliance Essentials Object Window

You cannot edit what you cannot specificy. In embroidery software, "clicking on the picture" is often inaccurate because stitches overlap. You need X-Ray vision.

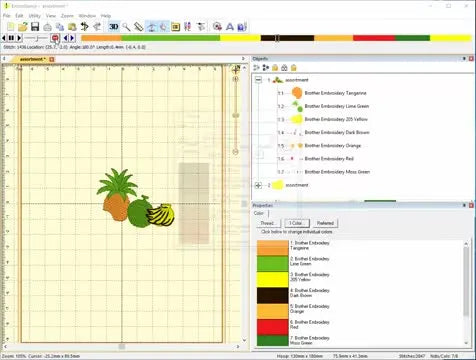

In the tutorial, the Object pane was hidden. The operator navigates to the View menu and checks Object Window.

Why This Matters (The "Why")

Without the Object Window, you are flying blind. You might think you selected "The Grapes," but you actually selected "The Underlay for the Whole Basket." Deleting the wrong layer causes the fabric to bunch up later because the structural support is gone.

Prep Checklist (The Pre-Flight Routine):

• File Verification: Ensure you are in PES (or your machine's native format) and the design is centered.
• Hoop Logic: Visually confirm the design fits within your safe stitching zone (e.g., leaving a 10mm buffer from the edge).
• The "Safety" Copy: Never edit your original file. Always Save As -> filename_EDIT_v1.
• Visual Check: Verify the Object Window is open on the right panel.

Phase 2: Duplicating Objects (The Invisible Clone Trap)

How to Copy and Paste Without Confusion

Duplicating elements allows you to create variations (e.g., "Two Bananas") without re-digitizing. However, novices often panic here because the software stacks the new layer perfectly on top of the old one.

The workflow:

1. Select the "bananas" object in the Object Tree (not the canvas).
2. CTRL+C (Copy).
3. CTRL+V (Paste).






Sensory Action: Immediately after pressing CTRL+V, click and drag the object on the canvas. If you don't move it, you won't see it.

Pro Tip for Scaling: If you plan to make 50+ of these modified designs, understand that copy-pasting increases stitch count. If you are doing volume production, efficient hooping for embroidery machine becomes your bottleneck, not the software. We will discuss tool upgrades for volume later.

Phase 3: Surgical Removal

Deleting the Grapes

Deleting is simple, but dangerous. In the video, the operator selects the "grapes" object in the Object pane and presses Delete.

The Trap: If you select the grapes on the canvas, you might accidentally select the outline layer too. Always select from the Object Tree to ensure you are only killing the grapes, not the borderline that defines the basket.

Phase 4: The Outline Paradox (Advanced Skill)

Why Your New Bananas Look "Naked"

This is where 90% of beginners fail. You copy the bananas, but the new copy has no black outline.

The Physics of Digitizing: The original digitizer likely created the black outline as one single, continuous "Running Stitch" that travels around the grapes, then the bananas, then the basket. When you copied the "Banana Fill," you left that continuous outline behind.

To fix this, we must use the Stitch Simulator to act as a digital scalpel.

1. Open Stitch Simulator.
2. Scrub the timeline forward until the needle creates the banana outline.
3. Visual Anchor: Watch for the exact stitch where the black line leaves the banana and heads toward the grapes (or the next fruit).
4. Use the arrow keys to step back, stitch by stitch.




Phase 5: Splitting the Stream

Using the "Stop" Command to Isolate Stitches

Embroidery files are streams of commands. To cut a stream, we insert a "Stop."

1. Pause at the exact transition stitch.
2. Click the Stop icon (Hexagon).
3. Assign a Temporary Color (e.g., Hot Pink or Grey).




This forces the software to treat that specific detailed section as a brand new object. Now you can copy just that outline segment.

Phase 6: Precision Alignment (The 3D View)

Manual Alignment That Actually Stitches Straight

The operator copies the isolated outline (now grey) and drags it over the new bananas.

The Problem: Computer screens are flat; thread has volume. The Fix: Toggle 3D View.

Zoom in until the pixels look blocky. Nudge the outline until it sits centrally on the fill.

• Sensory Check: In 3D view, the "rope" of the outline should overlap the edge of the fill pattern. If it perfectly touches the edge without overlap, you may get gaps on the real machine due to fabric pull.

Once aligned, change the color back to Black to match the rest of the design.

Phase 7: The Physical Reality (From Screen to Machine)

You have a perfect file. Now you need to put it on fabric. This is where "Perfect Digital" meets "Messy Analog." The number one reason edited designs fail is not the file—it's the Hooping and Stabilization.

Decision Tree: Fabric, Stabilizer, and Hooping

Use this logic flow to prevent puckering.

1. Is the fabric Stretchy (T-Shirt/Polo)?
   • Stabilizer: Must use Cutaway (2.5oz or 3.0oz). Tearaway will result in gaps.
   • Hooping: Do not stretch the fabric. It should lay flat/neutral.
2. Is the fabric Stable (Denim/Canvas)?
   • Stabilizer: Tearaway is usually sufficient.
   • Hooping: Tight, like a drum skin. Sensory Check: Tap the fabric; it should sound like a dull thud.
3. Is it a Slippery/Plush fabric (Velvet/Towel)?
   • Stabilizer: Cutaway on bottom + Water Soluble Topping on top.
   • Hooping: Crucial to avoid "Hoop Burn."

The "Hoop Burn" & Registration Crisis

When you edit files to add density (like doubling bananas), you increase the stress on the fabric. Traditional plastic hoops often leave permanent ring marks ("hoop burn") or slip during high-speed stitching, ruining your alignment.

• Level 1 Fix (Technique): Wrap your plastic hoop inner rings with bounding tape (vet wrap) for grip.
• Level 2 Fix (Tool Upgrade): Many enthusiasts switch to magnetic embroidery hoops. These use powerful magnets to hold fabric without forcing it into a ring, eliminating hoop burn and allowing for faster adjustments.
• Level 3 Fix (Production): If you are running orders of 50+ items, hooping speed is money. A hooping station for machine embroidery ensures every logo is in the exact same spot, creating a consistent commercial product.

Warning: Magnet Safety
If you upgrade to embroidery magnetic hoop systems, be aware they use industrial-strength magnets (Neo-dymium).
* Pinch Hazard: They can snap together with enough force to bruise or break fingers. Handle with care.
* Medical: Keep away from pacemakers.

Phase 8: Scaling Your Output (When to Upgrade)

As you get better at editing files, you will want to stitch faster. You will hit a ceiling with single-needle home machines.

• The Bottleneck: Changing thread colors manually for every "Stop" command you inserted (like our banana outline split).
• The Solution: Professional shops use Multi-Needle Machines (like the SEWTECH series). These machines accept the customized color stops and switch threads automatically, allowing you to press "Go" and walk away.

Commercial Pivot Logic:

• Struggling with hoop marks? -> Look into brother embroidery hoops upgrades or magnetic frames.
• Struggling with thread changes? -> Look into Multi-Needle machines.
• Struggling with breakage? -> Upgrade your thread brand (Simthread/Madeira) and check your needle type (Ballpoint for knits, Sharp for wovens).

Troubleshooting Guide (The "Why is this happening?" Table)

Final Operation Checklist

Before you press the green button:

1. [ ] Needle Check: Is the needle fresh? (Replace every 8 hours of stitching).
2. [ ] Bobbin: Do you have enough bobbin thread to finish the design?
3. [ ] Clearance: Is the hoop clear of walls/objects? (The carriage moves fast).
4. [ ] Simulator Run: Did you run the Stitch Simulator one last time to ensure no "flying stitches"?
5. [ ] Consumables: Do you have scissors and a fray check liquid nearby?

Warning: Physical Safety
Never put your hands near the needle bar while the machine is running. 800-1000 stitches per minute (SPM) is standard speed; a needle strike can cause serious injury. Always pause before trimming threats.

By mastering the software split AND the physical setup, you move from "Hobbyist guessing" to "Professional execution." Happy stitching.

FAQ

• Q: In Embrilliance Essentials, how do I turn on the Object Window so I can select the correct embroidery layers instead of clicking the design picture?
  A: Turn on the Object Window from the View menu so you can select exact objects (not overlapping stitches).
  • Click View > Object Window and confirm the object list appears on the right.
  • Select items from the Object Tree (example: “grapes” or “bananas”), not from the canvas.
  • Save a safety copy first: Save As → filename_EDIT_v1.
  • Success check: Clicking an object name highlights the correct layer consistently, without grabbing underlay by mistake.
  • If it still fails: Re-open the file and verify you are working in your machine format (for example PES) and not a read-only/imported view.
• Q: In Embrilliance Essentials, why does CTRL+C / CTRL+V copy-paste create a “missing duplicate” that looks like nothing happened?
  A: The duplicate is pasted perfectly on top of the original, so it is invisible until moved.
  • Copy from the Object Tree (select “bananas” in the object list), then press CTRL+C and CTRL+V.
  • Immediately click-and-drag on the canvas to pull the pasted copy away from the original stack.
  • Keep designs organized by renaming or recoloring temporarily (optional) so the new piece is easy to identify.
  • Success check: After dragging, two separate banana objects are visible and can be selected independently.
  • If it still fails: Confirm the correct object was selected in the Object Tree (not a grouped/underlay layer).
• Q: In Embrilliance Essentials, how do I delete the “grapes” object without accidentally deleting the outline or underlay layer?
  A: Delete only from the Object Tree so Embrilliance Essentials removes the exact object you intend.
  • Click the “grapes” entry in the Object Window (Object Tree), not the grapes on the picture.
  • Press Delete once, then visually inspect the remaining layers in the Object Tree.
  • Run a quick visual pass to ensure outlines and structural layers remain.
  • Success check: Grapes stitches disappear, but the basket/outline structure remains intact in both the preview and the Object Tree.
  • If it still fails: Undo, then re-select using the Object Tree because canvas selection can grab multiple overlapping elements.
• Q: In Embrilliance Essentials, why does a duplicated “banana fill” have no black outline, and how do I isolate and copy only the outline segment?
  A: The outline is often one continuous running-stitch path shared across multiple objects, so the fix is to split the stitch stream using Stitch Simulator + Stop.
  • Open Stitch Simulator and scrub to the moment the needle finishes the banana outline and starts traveling toward the next fruit.
  • Step stitch-by-stitch with the arrow keys to find the exact transition stitch.
  • Click the Stop icon (hexagon) and assign a temporary color so that outline section becomes its own object.
  • Success check: The outline segment shows up as a separate, selectable object that can be copied and moved onto the new bananas.
  • If it still fails: Re-check the transition point in Stitch Simulator—placing the Stop one stitch too early/late can leave the outline still “connected.”
• Q: In Embrilliance Essentials, how do I align a copied outline so it stitches cleanly over a fill without gaps caused by fabric pull?
  A: Align in 3D View and overlap the outline slightly onto the fill, not just edge-to-edge.
  • Toggle 3D View, zoom in until the pixels look blocky, and nudge the outline into position.
  • Center the outline so the “rope” of the stitch sits slightly over the fill edge (not barely touching).
  • Change the outline color back to Black after alignment so the final design matches.
  • Success check: In 3D View, the outline visibly overlaps the fill edge; it does not sit perfectly “kissed” to the edge.
  • If it still fails: Treat stabilization as the next lever—fabric pull is often reduced by using the correct stabilizer (commonly cutaway for knits).
• Q: For machine embroidery on T-shirts/polos vs denim/canvas vs towels/velvet, how do I choose stabilizer and hooping method to prevent puckering and hoop burn?
  A: Match stabilizer + hooping to fabric behavior, then confirm hooping tension with a simple sensory test.
  • Use cutaway (2.5oz or 3.0oz) for stretchy knits (T-shirts/polos) and do not stretch the fabric while hooping.
  • Use tearaway for stable wovens (denim/canvas) and hoop tight like a drum skin.
  • Use cutaway + water-soluble topping for plush/slippery fabrics (towel/velvet) and hoop carefully to avoid hoop marks.
  • Success check: For stable fabrics, tapping the hooped area gives a dull “thud,” and the fabric lies flat/neutral (not stretched) for knits.
  • If it still fails: Reduce hoop burn/slippage by wrapping inner hoop rings with bounding tape (vet wrap), or consider a magnetic hoop as a tool upgrade.
• Q: What safety rules should machine embroiderers follow for needle-bar injury risk and for neodymium magnetic embroidery hoop pinch hazards?
  A: Keep hands away from the needle area while stitching, and handle magnetic hoops as industrial pinch tools.
  • Pause the machine before trimming threads or reaching near the needle bar; high stitch speeds can injure fingers quickly.
  • Keep hoops clear of walls/objects because the carriage moves fast and can strike obstacles.
  • Handle magnetic hoops slowly—magnets can snap together hard enough to bruise or break fingers.
  • Success check: Hands never enter the needle-bar zone while the machine is running, and magnets are placed/removed with controlled, deliberate movements.
  • If it still fails: Stop immediately and re-train the workflow—set a habit of using the pause button for every trim/adjustment, and keep magnets away from pacemakers per medical guidance.
