Digitize a Cute Yellow Duck in Wilcom EmbroideryStudio—Clean Outlines, Soft Shading, and a Stitch-Out That Actually Matches the Screen

The Digitizer’s Paradox: Why “Perfect” on Screen Fails on Fabric (And How to Fix It)

When you are sitting in front of Wilcom, digitizing feels like drawing. You see clean vector lines, smooth fills, and vibrant colors. But embroidery is not printing. It is a physical act of pushing a sharp needle through compromising fabric thousands of times at high speed.

The scary part isn’t drawing the duck—it’s the moment of truth when you press "Start." It’s the fear that your "cute" design will stitch out like a bulletproof vest: outlines that resemble thick ropes, fills that pucker the fabric into a topographical map, or (worst of all) a design that drifts and strikes the hoop frame with a terrifying CRACK.

This guide rebuilds the workflow from the ground up, moving beyond button-pushing into process engineering. We will cover template safety, satin stitch physics, density management, and the crucial transition from software to hardware. Whether you use a home single-needle or a commercial multi-needle machine, this is how you turn a digital file into a sellable product.

The 3.8" Safety Box in a 4x4 Hoop: Stop Wilcom Designs From Hitting the Frame

The fastest way to destroy a machine—or at least snap a needle and ruin a garment—is to digitize right up to the edge of a stated 4x4" field.

Machine tolerances vary. A hoop striking the presser foot is a violent, expensive sound. The video creator demonstrates the industry standard safety habit: building a simplified visualization boundary that is smaller than your actual hoop capabilities.

The Physics of the "Buffer Zone"

Fabrics contract. Stabilizers shift. If you digitize a true 4.0" square, the natural "pull" of the thread might distort the fabric just enough to push the needle bar into the plastic frame.

The Protocol (Exact Values & Action Steps):

1. Create the Boundary: Draw a rectangle vector.
2. Size for Safety: Instead of 4.0" x 4.0", set the object properties to 3.8" x 3.8". This 0.2" gap is your "Safe Harbor."
3. Lock It Down: Right-click and Lock the template. If it moves while you work, it’s useless.
4. Scale Artwork: Resize your duck image to fit comfortably inside this box, leaving negative space.

Checkpoint (Sensory Verification):

• Visual: You should see a clear "No Fly Zone" between your artwork and the edge of the screen workspace.
• Mental: If you feel the urge to "use every millimeter," stop. Allow the design to breathe.

Warning: Mechanical Impact Hazard. Never trust the software’s theoretical limit blindly. A design hitting the hoop frame can shatter the needle, sending metal shards towards your eyes, or knock the machine’s timing gear out of alignment. Always respect the buffer zone.

Prep Checklist (The "Pre-Flight" Safety Protocol):

• Hoop Class Verified: Confirmed the machine workspace matches the physical hoop (e.g., 4x4).
• The 10% Rule: Boundary box set to 3.8" (approx. 95% of total field).
• Anchors Secured: Both the boundary curve and the background bitmap image are LOCKED (K).
• Consumables Check: Do you have a fresh needle (75/11 is standard) and the correct bobbin weight ready?
• Sequence Planning: Mental map created—Backgrounds first (spirals), Fills second (body), Details third (eyes/beak), Outlines last.


Spiral Fill Water Ripples in Wilcom: A Quick Background That Doesn’t Steal the Show

A common amateur mistake is creating a background water effect that is so dense it distracts from the main subject. The goal is suggestion, not saturation.

The video utilizes Wilcom’s Spiral Fill to create a kinetic, light-ripple effect. This technique serves two purposes: it creates context for the duck, and it keeps the stitch count low to prevent fabric distortion.

The "Light Touch" Configuration:

1. Shape: Draw a simple oval using the Circle/Oval tool.
2. Conversion: Convert the object to Spiral Fill.
3. The Sweet Spot Value: Set Spiral Spacing to 15.0 mm.
   • Why: A standard fill might be 0.40mm. 15.0mm creates wide, open loops. It implies water without stitching a blue carpet.

The "Travel Line" clean-up

Watch for "Connectors" (the threads between objects). In open fills like spirals, the software might try to "Run" (drag the thread) across the gap. You must force the machine to "Jump" (trim and move) if the travel line creates an ugly streak across the open fabric.

Pro Tip: If you see a straight line cutting across your beautiful spiral in the preview, select the object > Properties > Connectors > Set to "Always Jump" for distances over 2mm.

Checkpoint (Sensory Verification):

• Visual: The blue line should look like a loose sketch, not a solid block.
• Tactile: On the finished garment, this area should feel soft and pliable, not stiff or "bulletproof."


Column A vs Column C Satin Outlines: How to Trace the Duck Without Bulky Borders or Gaps

Satin outlines (the glossy borders) define the cartoon style. However, they are also the most dangerous part of the design. If them become too wide, they snag on zippers and washing machines. If too narrow, they disappear into the nap of the fabric (especially on towels or fleece).

The Tool logic: Column A vs. Column C

• Column A (Input A): You define both sides of the satin column. Use this for varying widths (like a calligraphy brush stroke).
• Column C (Input C): You draw a center line, and the software applies a constant width. Use this for consistent borders (like a Sharpie marker).

The "Rope vs. Thread" Width Dilemma

In the video, the digitizer makes a crucial correction that separates pros from novices.

• Initial Setting: 1.5 mm width.
• The Reaction: "Too thick." It overwhelms the design.
• The Adjustment: Reduced to 1.0 mm.

Expert Calibration:

• < 0.8 mm: Often too thin; thread may break or look wiry.
• 1.0 mm - 1.5 mm: The "Sweet Spot" for borders on 4" designs.
• > 2.0 mm: Risk of snagging; considered "Long Stitches."

The "Gap" Fear (Pull Compensation)

Fabric pulls inward as stitches tighten. If you line up your outline exactly with the edge of the yellow body fill, you will get a white gap between them on the final sew-out. The Fix: Intentionally overlap. Your satin border should barely sit on top of the yellow fill, biting into it by about 30-40%.

Checkpoint (Sensory Verification):

• Sound: When stitching satins, the machine should hum smoothly (Zzzzzzzt), not hammer (Thump-Thump). Hammering implies density piling up.
• Visual: In 3D preview, the outlines should sit smoothly on shapes without looking like distinct "ropes" lying on the surface.


Complex Fill (Tatami) for the Duck Body: Clean Coverage With Smart Start/End Points

Now we fill the body. We use Complex Fill (Tatami) because Satin stitches are too long to cover the wide body area (stitches longer than 7-8mm are generally unstable).

The "Flow" of Digitizing: The software defaults to random start/end points, often resulting in the machine jumping wildly from the tail to the head and back to the wings. This wastes time and adds trims (the "bird's nest" risk underneath the fabric).

Manual Control:

1. Set Entry Point: Where should the needle enter the shape? (Ideally, closest to the previous object).
2. Set Exit Point: Where should it leave? (Ideally, closest to the next object).
3. Stitch Angle: Change the angle (e.g., to 45 degrees) to follow the visual flow of the duck's body, rather than a flat horizontal fill.

This 30-second adjustment saves minutes of machine time and reduces the chance of the thread pulling out of the needle eye during a trim.

Thread Color Choices in Wilcom: Keep the Palette Simple So the Duck Stays “Cute”

The video selects: Yellow (Body), Blush Pink (Beak), Black/White (Eyes), Blue (Water).

The Commercial Reality check

Every color change triggers a "Stop."

• Single-Needle Machine (e.g., Brother PE800): You must physically walk to the machine, cut thread, re-thread, and restart. 5 colors = 5 manual interventions.
• Multi-Needle Machine (e.g., SEWTECH/Ricoma): The machine automatically switches needle bars.

Strategic Advice: Keep your palette efficient. If you can use the same Black for the eye pupil and the wing outline, do it. Grouping colors reduces friction.

Shading & Highlights With Fill Spacing: The “Soft Depth” Trick That Prevents a Cartoon From Looking Flat

How do you add shading without making the duck look like it's wearing a patch? You manipulate Spacing (Density).

The Physics of Density: Standard fill density creates a solid wall of color. If you put a solid Gold shadow on top of a solid Yellow body, you have two layers of thread + stabilizer + fabric. This is stiff and uncomfortable to wear.

The "Light & Airy" Technique: To create the shadow and highlight:

1. Digitize the shape on top of the body.
2. Increase Spacing (Lower Density):
   • Standard: ~0.40 mm spacing.
   • Highlight/Shadow: Change to 0.60 mm - 0.90 mm.
   • Video Example: The creator pushes the value all the way to 10 (1.0mm) for the sheen effect.

The Result: The background color (Yellow) peeks through the top layer (White or Gold), creating a blended, soft visual mix rather than a hard sticker effect.

Checkpoint (Sensory Verification):

• Tactile: Rub your thumb over the finished highlight. It should feel integrated into the fabric, not like a bump or a scab.


The Connector Reality: When to Run, When to Jump, and When to Trim

A "Connector" is the instruction telling the machine how to get from Object A to Object B.

The Logic Matrix:

• Is the path hidden? (e.g., Moving from the center of the body to the edge, before the body is fully stitched).
  • Action: Run Stitch. The machine stitches a path that gets covered up later. No trim needed. Fast and secure.
• Is the path visible? (e.g., Moving from the duck bill to the water ripple).
  • Action: Jump/Trim. The machine creates a locking stitch, cuts the thread, moves, and restarts.

Critical Setup Check: If you leave "Drag Lines" (untrimmed threads) across a design, you will have to trim them manually with scissors later. For a hobbyist, that's annoying. For a business, that is lost profit.

Setup Checklist (The "Pre-Export" Audit):

• Safe Boundary: Verify design is still within the 3.8" safety box.
• Connector Logic: Run the "Slow Redraw" (Shift+R) simulator. Watch for long straight lines crossing open space. Change these to Jumps.
• Layer Ordering: Ensure Outlines stitch after Fills.
• Density Check: Highlights set to >0.80mm spacing; Outlines set to ~1.2mm width.
• Underlay: Ensure "Underlay" is turned ON for the main body fills (Edge Run + Tatami is standard) to stabilize the fabric before the top stitching begins.

The “Can I Connect Two Separate Lines?” Question: How to Think About Joining Segments Without Making a Mess

Novices want to connect everything into one continuous line to avoid trims. Expert Reality: Don't force it. It is better to have a clean Trim and Restart than to have a messy, visible travel line connecting two distant points just to save 4 seconds.

Focus on Branching. If you have two satin outlines that touch (like a T-intersection), you can use Wilcom’s "Branching" tool to automatically figure out the unseen path. If they don't touch, just let the machine trim.

The Stitch-Out Moment: Multi-Needle Machine + Magnetic Hoop, and Why Hooping Is the Silent Quality Factor

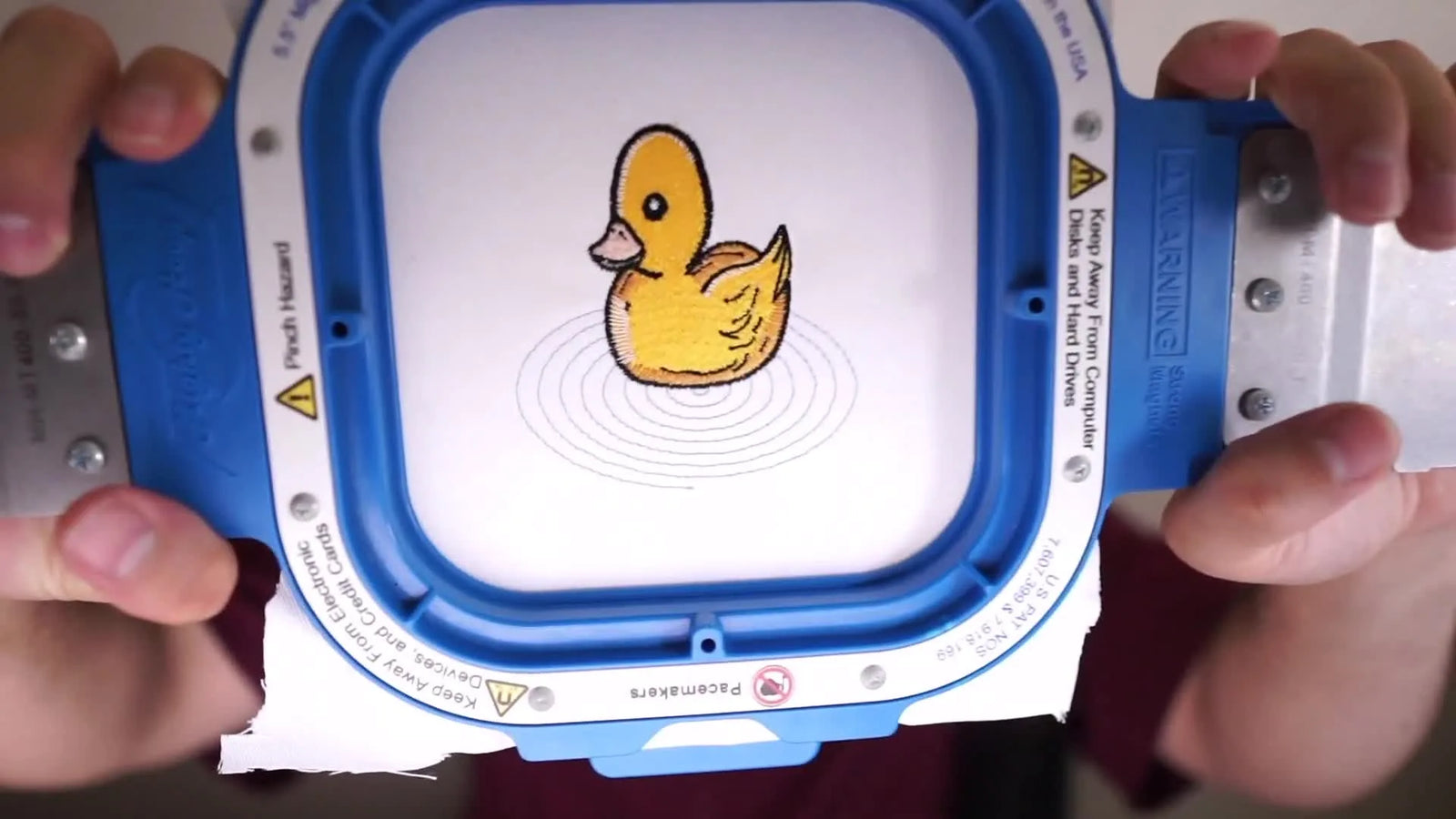

In the final reveal, we see the design stitched on a multi-needle machine, secured by a powerful magnetic hoop. This is not a coincidence; it is a workflow solution for the most common embroidery frustration: Hooping.

The "Hoop Burn" Struggle vs. Magnetic Freedom

Traditional friction hoops require you to muscle the inner ring into the outer ring. This requires hand strength and often leaves a "hoop burn" (a crushed ring mark) on delicate fabrics like velvet or performance polyesters. The struggle to get it tight often leads to "un-hooping" halfway through the job.

Enter the Magnetic Solution: The video utilizes a system like the mighty hoop, which uses magnetic force to clamp the fabric instantly without friction or residue.

Why upgrade?

1. Ergonomics: No wrist strain. Just "Click."
2. Fabric Safety: No friction burn on sensitive materials.
3. Speed: Loading a shirt takes 5 seconds instead of 45 seconds.

If you are struggling with alignment or hand fatigue, researching how to use mighty hoop will show you how production shops handle this volume. Even for home users, compatible magnetic frames are a massive quality-of-life upgrade.

Warning: Magnetic Hazard. Production-grade magnetic hoops are extremely powerful industrial tools. They can pinch fingers severely. Never place them near cardiac pacemakers or sensitive electronics. Handle with respect.

Decision Tree: Pick Stabilizer + Hooping Strategy Based on Stitch Density

Use this logic flow to prevent the dreaded "pucker" on your duck design.

Scenario A: The Fabric is Stretchy (T-Shirt / Polo)

• The Problem: The complex fill of the duck body will push the knit fibers apart, causing a hole or a pucker.
• The Solution: Use Cutaway Stabilizer (2.5 - 3.0 oz). Do not use tearaway. You need permanent support.
• Hooping: Do not stretch the fabric in the hoop. Lay it flat. Let the stabilizer take the tension.

Scenario B: The Fabric is Stable (Denim / Canvas / Towel)

• The Problem: High density might perforate the fabric if too tight.
• The Solution: Tearaway Stabilizer is usually sufficient.
• Hooping: Ensure the fabric is "drum tight" (taut, sounding like a drum when tapped).

Scenario C: High Volume Production

• The Problem: Hooping 50 shirts takes 2 hours.
• The Solution: This is the trigger point to invest in magnetic embroidery hoops. The consistency of the magnetic hold means you don't have to re-adjust tension for every single shirt.

The Upgrade Path (Without the Hype): When Better Tools Actually Pay You Back

The tutorial concludes with a clear visual: a professional stitch-out.

Phase 1: The Home Enthusiast (Brother PE800 / Single Needle)

You can achieve this result. However, you must be patient with color changes. If you struggle with hoop marks, look for a magnetic hoop for brother pe800. These aftermarket frames fit the specific attachment arm of home machines, bringing industrial convenience to the hobbyist level.

Phase 2: The Semi-Pro / Side Hustle

If you are selling these items, "time is money." Manual color changes and fighting with hoop screws kill your hourly rate.

• The Pivot: Terms like magnetic frames for embroidery machine aren't just buzzwords; they are productivity multipliers.
• The Check: If you are sewing more than 10 items a week, consider the jump to a SEWTECH multi-needle machine. The ability to load 12-15 colors and walk away while it stitches is how a hobby becomes a business.

Operation Checklist (the “don’t waste fabric” final pass before you stitch)

Before you press the green button:

• Visual Confirm: Scan the needle path. Is the foot clear of the hoop clips?
• Bobbin Check: Is there enough bobbin thread for the solid fills? (Running out mid-fill can leave a visible seam).
• Stabilizer Choice: Cutaway for knits, Tearaway for wovens?
• Hidden Consumable: Did you use a light mist of temporary adhesive spray (like 505) to bond the fabric to the stabilizer? (This stops the fabric from "flagging" up and down).
• Test Sew: Always run a test on a scrap piece of similar fabric. The on-screen preview is a lie; the thread is the truth.

Digitizing is a mix of art and engineering. Don't aim for complex perfection; aim for clean execution. Respect the safety zones, control your densities, and when the physical struggle of hooping fights you, remember that better tools exist to bridge the gap.

FAQ

• Q: How do I stop a Wilcom 4x4" embroidery design from hitting a 4x4 hoop frame during stitch-out?
  A: Use a 3.8" × 3.8" locked safety box instead of digitizing to the full 4.0" field.
  • Create a rectangle template and set it to 3.8" × 3.8", then Lock it so it cannot shift.
  • Scale all artwork to stay comfortably inside the box and keep visible negative space near the edges.
  • Re-check the boundary before export so later edits did not push any object outside.
  • Success check: You can clearly see a “no-fly zone” between the design and the workspace edge, and the stitch path stays away from hoop clips.
  • If it still fails: Stop the machine immediately and re-hoop/re-size—never “test your luck” near the frame because a strike can snap needles and knock timing out.
• Q: Which Wilcom Spiral Fill settings create light water ripples without making the background too dense?
  A: Set Wilcom Spiral Fill Spacing to 15.0 mm to keep the ripple effect open and low-density.
  • Draw a simple oval, then convert the object to Spiral Fill.
  • Set Spiral Spacing to 15.0 mm to avoid turning the background into a solid “blue carpet.”
  • Inspect connectors so the software does not drag a visible straight line across open fabric.
  • Success check: The preview looks like a loose sketch (not a solid block), and the stitched area feels soft/pliable rather than stiff.
  • If it still fails: Change connector behavior so long travel lines do not run visibly across the ripple area.
• Q: How do I remove visible travel lines in Wilcom connectors on open backgrounds like Spiral Fill water?
  A: Force a Jump instead of a Run when a Wilcom connector would cross visible open space.
  • Run a slow redraw simulation (Shift+R) and watch for long straight connector lines crossing the open background.
  • Open Object Properties > Connectors and set the behavior to “Always Jump” for distances over 2 mm when the travel would be seen.
  • Keep Run stitches only when the travel will be hidden under later stitching.
  • Success check: No straight “streak” line appears cutting across the spiral in preview, and you do not have to hand-trim drag lines after sewing.
  • If it still fails: Re-order objects so any necessary travel gets covered, or accept a clean Trim/Restart instead of forcing one continuous path.
• Q: What satin outline width should Wilcom Column A or Column C use to avoid bulky “rope” borders on a 4-inch duck design?
  A: Use 1.0–1.5 mm satin width as a practical sweet spot, and avoid starting at overly thick borders like 1.5 mm if it looks heavy.
  • Choose Column C for consistent-width borders (centerline input) and Column A when width must vary.
  • Reduce outline width if borders look like thick ropes; the example correction is from 1.5 mm down to 1.0 mm.
  • Overlap the satin outline slightly onto the fill (about 30–40%) to prevent white gaps from pull compensation.
  • Success check: The machine sound is a smooth hum (not hammering), and the outline sits cleanly without gaps or rope-like buildup.
  • If it still fails: Re-check density/underlay interactions—heavy piling can make satins “thump,” and insufficient overlap can show gaps.
• Q: How do I reduce unnecessary jumps and trims in Wilcom Complex Fill (Tatami) on the duck body?
  A: Manually set start and end points so Wilcom stitches the body in a logical flow instead of bouncing across the shape.
  • Set the entry point near the previous object and the exit point near the next object to minimize travel.
  • Adjust stitch angle (for example to 45°) so the fill follows the body’s visual flow.
  • Audit the stitch order so backgrounds stitch first, fills second, details third, outlines last.
  • Success check: The needle path looks efficient (fewer “wild” moves tail-to-head-to-wing), and the machine spends less time trimming.
  • If it still fails: Re-run slow redraw and revise connector logic—excess trims increase bird’s-nest risk under the fabric.
• Q: Which stabilizer should I use for a dense Wilcom Complex Fill duck design on T-shirts versus denim, and how tight should hooping be?
  A: Use cutaway stabilizer (2.5–3.0 oz) for stretchy knits, and tearaway is usually sufficient for stable wovens like denim/canvas/towel.
  • Choose Cutaway for T-shirts/polos and do not stretch the knit while hooping—lay it flat and let the stabilizer support the design.
  • Choose Tearaway for stable fabrics, and hoop “drum tight” when appropriate for that material.
  • Use a light mist of temporary adhesive spray (like 505) to bond fabric to stabilizer to reduce flagging.
  • Success check: The fabric stays flat during stitching (less flagging) and the finished design shows minimal pucker around the fill.
  • If it still fails: Reduce density in layered areas (especially highlights/shadows) and confirm underlay is enabled for main body fills.
• Q: What are the key safety rules for using industrial magnetic embroidery hoops to prevent finger injuries and equipment risks?
  A: Treat magnetic embroidery hoops as powerful industrial tools—keep hands clear of the closing path and keep them away from pacemakers/electronics.
  • Separate and join the hoop slowly and deliberately; do not “snap” the magnets together near fingertips.
  • Keep the hoop away from cardiac pacemakers and sensitive electronics.
  • Store and handle the hoop so it cannot suddenly clamp onto metal surfaces or tools.
  • Success check: The fabric clamps with a controlled “click” without pinching, and the hoop seats consistently without forcing or prying.
  • If it still fails: Stop and reset the hooping process—do not muscle magnets into place; switch to a safer handling routine before continuing production.
