Embroidering Hats Without a Cap Driver: The Floating Method That Saves Your Cap Shape (and Your Sanity)

Hat embroidery is the ultimate "expectation vs. reality" trap in our industry. You see a crisp 3D puff logo on Instagram, buy a cap, load it onto your single-needle machine, and then—CRACK. The needle strikes the bill, the cap shifts, and the design is a bird's nest of thread.

If you are reading this, you are likely holding a ruined hat or staring at your machine with a mix of fear and frustration.

Take a breath. As someone who has trained hundreds of operators, I can tell you that 90% of "hat disasters" aren’t caused by a lack of talent. They are caused by a misunderstanding of physics. A hat is a 3D object fighting to stay 3D, and you are trying to force it onto a 2D plane.

This guide isn't just a tutorial; it is a safety manual. We will move past the guesswork and use specific, conservative parameters to get you a clean result without breaking your machine.

The Physics of Failure: Why Caps Fight Back

To defeat the enemy, you must understand standard operating procedure versus the "hack."

Commercial machines use a Cap Driver—a cylindrical device that rotates the hat naturally. But if you are using a flatbed machine (like a Brother SE1900, PE800, or Singer Futura), you don't have that luxury. You are forcing the cap flat.

When you flatten a curved cap, the fabric stores "potential energy"—it wants to spring back into a curve. This spring-loaded tension is what causes the cap to peel off the stabilizer mid-stitch.

Your success depends entirely on one variable: Adhesion Management.

We are going to use the "Floating Method." This involves hooping sticky stabilizer (not the hat itself) and sticking the cap to it. Even if you are searching for a specific cap hoop for embroidery machine, understanding the floating method is a survival skill for any embroiderer, as it teaches you how to manage fabric tension without relying on a mechanical clamp.

Phase 1: The "Hidden" Prep (The Pre-Flight Check)

Most beginners skip to the hooping. Experts win in the prep phase. Before you even touch the machine, you need to gather your "Hidden Consumables."

• Fresh Bobbin: Never start a hat with a half-full bobbin. Running out of bobbin thread mid-cap is a nightmare because re-aligning a floated cap is nearly impossible.
• Top-Stitch or Titanium Needles (Size 90/14): Caps are thick. Standard 75/11 needles will deflect (bend) when hitting the buckram (stiffener). A deflected needle creates "shredded" thread.
• Painter's Tape: For securing the brim (optional but recommended).

Analyze Your Canvas: The 3 Cap Types

Not all hats are created equal. Identify your target:

1. OPF (One-Piece Front) / Trucker: Foam backing, no center seam. Difficulty: Low. The foam stabilizes the stitches.
2. Unstructured (Dad Hats): Clings to the head, floppy fabric. Difficulty: Medium. These shift easily; they need aggressive stabilization.
3. Structured (Sports Caps): Rigorous center seam supported by buckram. Difficulty: High. The center seam is a "bump" that causes needle deflection.


Pro Tip: If stitching a structured cap, avoid placing small lettering directly over the center seam. The height difference often causes stitches to sink or distort.

Phase 2: The Floating Method (Step-by-Step)

This is the standard workaround for single-needle machines. Follow this sequence exactly to minimize the "spring back" effect.

Step 1: Hoop the Sticky Stabilizer

Use a medium-weight sticky tear-away stabilizer. Hoop it tightly into your standard flat hoop.

• Sensory Check: Tap the stabilizer with your fingernail. It should sound like a drum—thump, thump. If it sounds dull or looks loose, re-hoop it. Loose stabilizer = shifting design.

This technique is basically a DIY version of a sticky hoop for embroidery machine, providing a solid adhesive floor for your item.

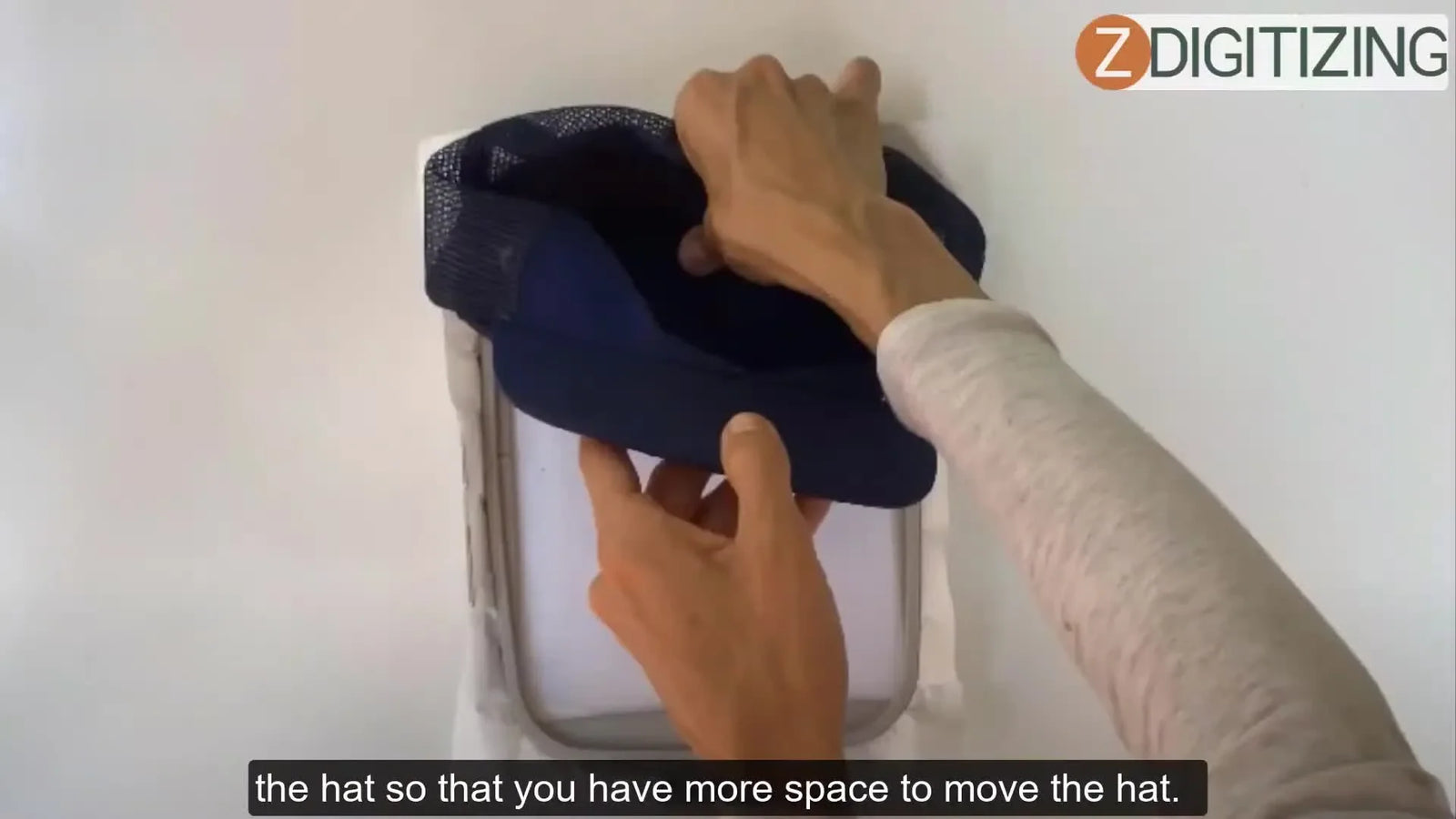

Step 2: Score and Peel

Use a pin or scissors to lightly score the paper backing inside the hoop. Peel away the paper to expose the adhesive.

Step 3: The "Fold and Press" (Critical Step)

This is where most people fail.

1. Fold the Sweatband: Flip the sweatband to the outside of the cap. If you leave it inside, you are sewing through 4+ layers of material, guaranteed to break a needle.
2. Flatten the Crown: Press the front panel of the cap onto the sticky center of the hoop.
3. Anchor it: Rub your knuckles firmly outward from the center of the cap. You need to activate the adhesive.


Checkpoint: Look inside the cap. Is the fabric sitting flush against the stabilizer? Any air bubbles or ripples will become permanent creases once stitched.

Step 4: Secure the Brim

The brim (bill) is heavy. Gravity will try to pull the cap off the stabilizer.

• Action: You may use pins (carefully, far from the stitch center) or painter's tape to secure the edges of the cap to the stabilizer for extra insurance.


Many users find this process tedious. If you eventually find yourself looking for a floating embroidery hoop or a specialized fixture to make this easier, know that you are simply experiencing the natural progression of an embroiderer seeking efficiency.

Phase 3: Machine Settings (The Safety Zone)

Do not use your standard settings. Caps are a hostile environment for your machine. We need to establish a "Safety Zone."

1. Speed Control: The Rookie Mistake

The video might show 800 SPM (Stitches Per Minute). For a beginner, this is dangerous.

• Rule: Set your machine to 400 - 600 SPM.
• Why: High speed increases vibration. Vibration breaks the adhesive bond holding the cap. Slower stitching maintains the bond.

2. Thread Cutter: OFF

• Why: When the automatic cutter engages, it often jerks the fabric or creates a "bird's nest" underneath if the clearance is tight.
• Action: Turn off auto-trimming. Jump threads are ugly, but a shifted hat is ruined. Trim manually later.

3. Basting Box: OFF

• Why: A basting box runs a stitch perimeter around your design. On a hat, this perimeter might run right into the hard plastic bill of the cap.
• Action: Disable basting. Trust your adhesive.


Pre-Flight Checklist (Do NOT Press Start Until Checked)

• Sweatband Check: Is it folded out of the way?
• Clearance Check: Manually rotate the handwheel to ensure the needle bar won't hit the bill.
• Center Check: Is the design centered relative to the seam, not just the hoop?
• Speed Check: Is the machine slowed down (approx. 600 SPM)?
• Bobbin Check: Is there enough thread to finish the job?

Phase 4: The Stitch Out (Operations)

Hit start. But do not walk away. You are the pilot, and this is a manual landing.

The "Danger Zone"

As the machine moves, the bill of the cap will swing around. It comes dangerously close to the needle bar housing.

• Your Job: Stand by the machine. If the bill looks like it’s about to hit the machine head, STOP immediately. You may need to gently guide the bill, but be extremely careful.

Needle Selection Deep Dive

The video mentions going bigger. Let's get specific.

• Standard: 75/11 needle. (Too weak for most caps).
• Recommendation: 90/14 Top Stitch Needle.
• Why: The larger eye reduces friction on the thread, and the thicker shaft prevents the needle from bending when it hits the thick center seam.

Warning: Physical Safety
Never place your fingers under the needle area to "hold the hat flat" while the machine is running. If the needle strikes the hard plastic bill, it can shatter. Flying needle shards are a real hazard. Wear glasses and keep hands at least 4 inches away from the active needle.

Operation Checklist (Monitoring)

• Sound Check: Listen for a rhythmic thump-thump. A harsh clack-clack usually means the needle is hitting the needle plate or the hook timing is off.
• Adhesion Check: Watch the edges of the cap. If they start peeling up, pause and tape them down immediately.
• Screen Check: Watch the crosshair. Ensure the design isn't drifting.

Phase 5: The Finish

Once the machine sings its "finished" song, don't just rip the hat off.

1. Release the Hoop: Remove the hoop from the machine.
2. Peel Gently: Peel the stabilizer away from the hat, not the hat away from the stabilizer. This protects the embroidery stitches.
3. Pick the paper: Remove the bits of tear-away stabilizer from the back.


A Stabilizer Decision Tree

Confusion about backing is common. Use this simple logic flow to decide.

Decision Tree: What goes behind the cap?

1. Is the cap holding method "Floating"?
   • YES: Use Sticky Tear-Away (Medium Weight). This is non-negotiable for hold.
   • NO (Using a Clamp/Frame): Proceed to step 2.
2. Is the cap "Structured" (Stiff front)?
   • YES: Use Tear-Away. The cap supports itself; the backing just aids stitch formation.
3. Is the cap "Unstructured" (Floppy fabric)?
   • YES: Use Cut-Away. The fabric is unstable and will stretch without permanent support.

Troubleshooting: The "Why is this happening?" Matrix

When things go wrong, use this matrix to diagnose the issue before changing random settings.

Moving Beyond the Struggle: When to Upgrade

There comes a moment in every embroiderer's journey where "making it work" turns into "losing money."

If you are just doing one birthday hat for your nephew, the floating method is perfect. Keep refining your skill.

However, if you are struggling with pain in your wrists from hooping, or if you have an order for 20 caps for a local softball team, the floating method will become a bottleneck.

Scenario A: "My wrists hurt and I hate the sticky mess."

If you are tired of the masking tape and sticky paper, but not ready for a new machine, look at your fixturing. Proper Magnetic Hoops for domestic machines can clamp difficult materials without the "hoop burn" or sticky residue.

• Many users search for a brother pe800 magnetic hoop or a brother hat hoop specifically to solve the issue of clamping thick items that traditional plastic hoops just can't grip.
• The Upgrade: A Sewtech Magnetic Hoop allows you to float materials and clamp them magnetically, giving you the best of both worlds.

Warning: Magnet Safety
Magnetic hoops use industrial-strength magnets (neodymium). They can pinch fingers severely. Keep them away from pacemakers, sensitive electronics, and children. They are tools, not toys.

Scenario B: "I need to do 50 hats by Friday."

You cannot float 50 hats on a single-needle machine and remain profitable. The time spent prepping sticky paper will eat your profit margin.

• This is the trigger point for a Multi-Needle Machine (like the models often compared to the janome mb-4s or similar commercial units).
• These machines use true Cap Drivers—rotating cylinders that stitch 270 degrees around the cap.
• The Upgrade: Moving to a multi-needle setup isn't just about speed; it's about the ability to use professional ricoma embroidery hoops or generic commercial frames that snap caps in place in seconds, not minutes.

The Bottom Line

Mastering hooping for embroidery machine operations on a single-needle unit is a badge of honor. It teaches you respect for the materials and the physics of the stitch.

Start slow. Use the 90/14 needle. Buy the sticky stabilizer. And remember: if you hear a cracking sound, don't panic. We've all been there. Change the needle, check the alignment, and try again.

Ready to stabilize your workflow? Check your stabilizer stock and needle inventory before taking on that next cap order.

FAQ

• Q: On a Brother SE1900 (or similar flatbed single-needle machine), what is the safest method to hoop a cap without a cap driver?
  A: Use the floating method: hoop sticky tear-away stabilizer, then stick the cap to the adhesive—do not hoop the cap fabric directly.
  • Hoop medium-weight sticky tear-away stabilizer drum-tight in a standard flat hoop.
  • Score and peel the paper backing to expose the adhesive, then fold the sweatband out and press/knuckle-rub the cap panel firmly onto the sticky area.
  • Tape or pin the brim edges to prevent gravity from peeling the cap up during stitching.
  • Success check: the cap fabric sits flush with no bubbles/ripples, and the edges do not lift when the hoop is gently moved.
  • If it still fails: re-hoop tighter (loose stabilizer is a common cause) and slow the machine down to reduce vibration.
• Q: When floating a cap on a Brother PE800, how can an operator tell if sticky stabilizer is hooped tight enough before pressing Start?
  A: The stabilizer must be “drum-tight”—if it sounds dull or looks loose, re-hoop before sticking the cap down.
  • Tap the hooped stabilizer with a fingernail and listen for a clear “thump, thump” sound.
  • Re-hoop if the stabilizer sags, wrinkles, or shifts when lightly pressed.
  • Stick the cap only after the stabilizer passes the tap test, then rub outward from center to activate the adhesive.
  • Success check: the stabilizer stays flat and tight, and the cap does not creep when you press along the edges.
  • If it still fails: add painter’s tape at the cap edges to reinforce the adhesive hold.
• Q: On a Singer Futura single-needle machine, what “hidden prep” prevents a ruined hat embroidery job before hooping starts?
  A: Start with a fresh bobbin and the correct needle (90/14 top-stitch or titanium), because stopping mid-cap or needle deflection is a common failure.
  • Wind/load a full bobbin (re-aligning a floated cap after a bobbin run-out is often not realistic).
  • Install a size 90/14 top-stitch (or titanium) needle for thick cap fronts and seams.
  • Fold the sweatband to the outside so the needle does not have to punch through extra layers.
  • Success check: handwheel rotation feels clear (no rubbing/hitting), and the needle penetrates cleanly without thread shredding.
  • If it still fails: slow the stitch speed and re-check that the sweatband is not sitting under the stitch area.
• Q: On a Brother SE1900 embroidering a cap with the floating method, what machine settings reduce shifting and bird’s nests?
  A: Run a conservative “safety zone”: slow speed (about 400–600 SPM), auto thread cutter OFF, and basting box OFF.
  • Set speed down to reduce vibration that can break the adhesive bond.
  • Turn off automatic trimming to avoid jerks and underside tangles in tight-clearance cap work.
  • Disable basting box so the perimeter stitch does not drift into the hard brim area.
  • Success check: the cap edges stay adhered throughout the design, and the underside does not form a thread wad (“nesting”).
  • If it still fails: pause immediately when lifting starts and tape the edges down before continuing.
• Q: On a Brother PE800, what should an operator do if the embroidery needle breaks on a structured cap center seam?
  A: Treat it as needle deflection: switch to a 90/14 titanium (or 90/14 top-stitch) needle and slow down to around 400 SPM.
  • Replace the needle immediately (a bent needle will keep breaking and can cause worse problems).
  • Reduce speed so impacts on the seam are less violent.
  • Reposition artwork when possible to avoid small lettering directly over the center seam (the height bump can distort stitches).
  • Success check: stitching sounds rhythmic (not harsh clacking) and the needle runs without snapping at the seam area.
  • If it still fails: stop and do a clearance check with the handwheel to confirm nothing is being struck during movement.
• Q: On a Brother SE1900 stitching a cap, how can an operator prevent the cap bill from hitting the machine head during the stitch-out?
  A: Do a manual clearance check first and monitor the “danger zone” during sewing—stop immediately if the bill swings too close.
  • Rotate the handwheel by hand before starting to confirm the needle bar area clears the cap bill.
  • Stand by the machine (do not walk away) and watch the bill as the hoop travels.
  • Stop the machine the moment the bill looks like it may contact the head; adjust the bill position carefully.
  • Success check: the hoop completes full travel without contact, and there is no “crack” or sudden impact sound.
  • If it still fails: re-tape/secure the brim and re-check centering so the bill swings in a safer arc.
• Q: When should a home embroiderer upgrade from floating caps to a magnetic hoop or to a SEWTECH multi-needle machine for cap production?
  A: Upgrade when floating becomes the bottleneck: first reduce pain/mess with a magnetic hoop; then move to a multi-needle machine when cap volume makes floating unprofitable.
  • Level 1 (technique): keep floating but standardize prep (fresh bobbin, 90/14 needle, slow speed, secure brim).
  • Level 2 (tool): choose a magnetic hoop when hooping strain, sticky residue, or inconsistent holding is slowing work.
  • Level 3 (capacity): choose a multi-needle machine when orders (for example dozens of caps) require faster, repeatable cap loading with a true cap driver.
  • Success check: setup time per cap drops and fewer caps shift mid-stitch compared with the floating workflow.
  • If it still fails: track where time is lost (hooping vs. stitch-out monitoring) to decide whether the constraint is technique or equipment.
