The Ultimate Guide to Photo Stitch Embroidery: From Pixel to Tangible Art

Embroidery is a tactile science. When you attempt a Photo Stitch—converting a photograph into a thread-based image—you are effectively asking your machine to perform a miracle. You are taking a flat, digital image and forcing a needle to inject thousands of physical threads into a flexible substrate.

The result can be breathtaking, or it can be a disaster.

We have all been there: You are 90 minutes into a design. The machine is humming, but something feels off. The fabric is rippling like a topographical map. The dog’s eyes in your portrait are misaligned. The final piece feels less like fabric and more like a bulletproof vest—stiff, dense, and unwearable.

This guide is your recalibration. Based on a heavy-duty workflow using Palette 11 software and a Baby Lock Altair (though the principles apply to any high-end ecosystem), we will deconstruct the physics of the Photo Stitch. We will move beyond "hoping for the best" to a standardized, repeatable engineering process.

1. The Physics of Density: Why Photo Stitches Fail

Before you touch a mouse or a hoop, you must understand the enemy: Displacement.

Photo Stitch algorithms creates realism by layering varying densities of stitches to create shading. A standard logo might have 10,000 stitches. The 9-inch dog portrait in our example has 103,548 stitches.

That is over 100,000 needle penetrations pushing fabric fibers apart. If your fabric is not secured with absolute rigidity, it will shift microscopically with every stitch. By stitch 50,000, those microns add up to millimeters, and your registration (alignment) fails.

The Expert Goal: We are not trying to reduce density (which ruins the look); we are building a foundation strong enough to support it.

2. Digital Prep: The "Garbage In, Garbage Out" Rule

The most common mistake novices make is asking the software to interpret a bad photo. Palette 11 is a calculator, not an artist. If you feed it a messy, low-contrast image, it will output a messy, muddy thread map.

The Source Material Protocol

A wider shot with a busy background forces the software to compress details into indistinguishable blobs.

• The Rule: Crop aggressively. Focus on the face.
• The Why: Photo Stitch translates pixels to thread regions. A close-up face gives the software more pixels per inch of subject, resulting in cleaner definition.

Palette 11 Workflow:

1. Load: Go to the Image tab -> Open from file.
2. Orient: If the image loads sideways, use Rotate Right immediately. Do not digitize a sideways image; it complicates your spatial visualization.
3. Audit: Zoom in. If the eyes are blurry in the photo, they will be featureless holes in the embroidery.


Pre-Digitizing Checklist (The "Don't Waste Time" Verification)

• Legal: Do you own the rights to this photo?
• Context: Is the background clutter-free? (Grass and trees digitize poorly).
• Substrate: Have you selected a fabric that can handle 100k stitches? (Canvas/Denim = Yes; T-shirt = Risk).
• Time Budget: A design this size is a 3-4 hour commitment. Do you have the uninterrupted time?
• Consumables: Do you have enough backing and bobbin thread? (Hidden Consumable: Pre-wound bobbins. Dense designs devour bobbin thread; wind 3-4 before you start).

3. The Power Crop: Using "Select Mask"

In Stitch Wizard, your first tool is the Select Mask. This is not just about composition; it is about thread economy.

By using a square crop (or custom shape) to remove the background, you eliminate thousands of unnecessary stitches. This reduces the "pull" on the fabric and prevents background noise from distracting from the subject.

4. Image Tuning: The "Less is More" Sweet Spot

The Image Tune tab in Palette 11 offers seductively complex sliders. Resist the urge to over-process.

The Proven Formula:

1. Sharpness: +1 Level (Helps define edges for the software).
2. Saturation: Slight Boost (Helps the software distinguish between similar colors).

Why this matters: Embroidery thread has a physical sheen. If your photo is dull, the software generates "muddy" transitional colors. Boosting saturation helps the software pick distinct thread colors that read clearly when stitched.

Expert Note: If you find yourself searching for terms like hooping for embroidery machine tutorials because your designs are warping, realize that no amount of perfect hooping can fix a digitizing file where the software created "mud" because the source image was too flat.

5. Scale & Resolution: The 9.5" Canvas

Size matters. The video demonstrates using a 9.5" x 9.5" frame and the Fit to Page function.

The Trade-off:

• Larger Size = Higher Resolution in thread. The machine has more physical space to create gradients.
• Smaller Size = The software has to cram detail into fewer stitches, leading to a "blocky" look.

For a photo realistic effect, go as large as your machine (and fabric) allows.

Decision Tree: Fabric vs. Stabilization Strategy

Photo stitch creates a heavy "plate" of thread. Your stabilizer choice determines if that plate lays flat or curls like a potato chip.

6. Thread Management: The "My Chart" Discipline

This is where amateurs get frustrated and pros get organized. Standard color charts (Floriani, Madeira) contain hundreds of colors you do not own. If you let the software pick from the full list, your machine will demand "Pale Peach 1045" at minute 45, and you will be stuck.

The Fix: Build "My Chart" in Palette 11

1. Go to Options -> Edit User Thread Chart.
2. Manually import only the threads you physically possess.
3. In Stitch Wizard, set the chart to My Chart.

Now, the software creates the image using your inventory. It might not be a perfect Pantone match, but it ensures you can actually stitch the design without panic-buying thread.

7. Wireless Transfer & The "Verification Ritual"

Transfering via Wi-Fi to the Baby Lock Altair reduces file corruption risks. But before you press "Sew," run the Verification Ritual.

The Setup Checklist:

• File Integrity: Does the stitch count on the machine match the PC? (103,000+).

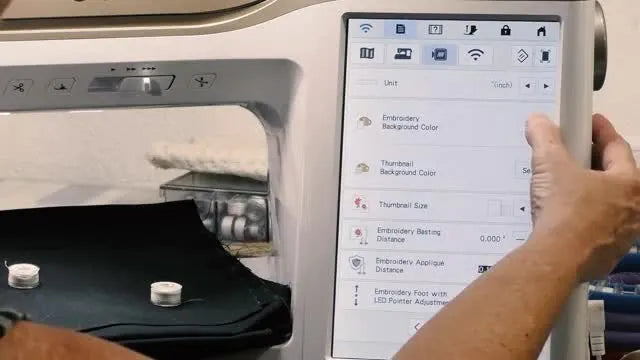

• Visual Check: Change the on-screen background color to match your fabric (e.g., Black). This reveals if gaps in the design look artistic or accidental.
• Thread Mapping: If you didn't use "My Chart," map the colors manually now. Assign specific spool numbers to each color stop.






8. The Physical Setup: Hooping for Survival

This is the single most critical variable. The video describes tightening the hoop screw "within an inch of its life."

The Problem with Screw Hoops: To hold canvas taut against 100,000 stitches, you have to tighten the screw immensely. This causes:

1. Hoop Burn: Permanent white rings on delicate dark fabrics.
2. Hand Fatigue: It hurts to tighten screws that hard repeatedly.
3. Slippage: Even tight screws can loosen under 3 hours of vibration.

The Professional Solution: Magnetic Evolution If you are struggling with "Hoop Burn" or fabric slippage, this is the trigger point to upgrade your tooling.

• Level 1 (Technique): Wrap your inner hoop with bias binding or vet wrap to increase grip without overtightening.
• Level 2 (Tooling): Switch to magnetic embroidery hoops. These use high-power magnets to clamp the fabric automatically. They provide uniform pressure around the entire perimeter (unlike screws which focus pressure at one point), eliminating hoop burn and slippage.
• Specific Fit: For Altair users, look for baby lock magnetic hoops compatible frames (like the SEWTECH series) that snap directly into your machine's mount.

Warning: Magnetic Safety
Magnetic hoops utilize industrial-strength magnets (neodymium).
* Pinch Hazard: Keep fingers clear when snapping the top frame.
* Medical Device: Keep at least 6 inches away from pacemakers.

9. The Stitch Out: Monitoring the "Heartbeat"

You are ready to run.

• Speed: The video mentions 1050 SPM (Stitches Per Minute). Expert Advice: Slow down. For a dense design, 600-800 SPM is the "Sweet Spot." It reduces friction, heat (which can snap thread), and needle deflection.
• Sound Check: Listen to your machine. A rhythmic thump-thump is good. A slapping sound means loose fabric. A grinding sound means a dull needle.
• Needle Choice: Use a Topstitch 90/14. The larger eye protects the thread from shredding during the thousands of penetrations.


10. Troubleshooting: The "Why is this happening?" Guide

11. Scaling Up: When to Move Beyond the Single Needle

A 206-minute design locks up your single-needle machine for half a day. If you are doing this for business (Pet Portraits, Memorials), a single-needle machine is a bottleneck.

The Production Trigger: If you receive orders for 5+ portraits a week, you have outgrown the Baby Lock Altair for production (keep it for delicate work).

• Thread Changes: A single-needle machine requires you to manually change threads 15+ times per design.
• The Upgrade: A multi-needle machine (like the SEWTECH 15-needle series) holds all your gray-scale colors simultaneously. You press "Start," and the machine runs the entire face without you touching it.

Final Operational Checklist

Do not press the green button until you can check every box:

• Needle: Brand new 90/14 Topstitch installed.
• Bobbin: Full bobbin loaded + 2 spares wound.
• Hoop: Fabric sounds like a drum when tapped (or is securely clamped in a magnetic frame).
• Path: Nothing hurts the carriage movement (check wall clearance).
• Design: Background previewed confirms coverage is adequate.
• Stabilizer: 2 Layers, crossed direction OR Heavy Cutaway.

Photo stitch is the marathon of embroidery. It requires preparation, patience, and the right tools. But when you pull that final hoop and see a hyper-realistic image made entirely of thread, you realize the engineering effort was worth every second.

FAQ

• Q: What consumables should be prepared before running a 100,000+ stitch Photo Stitch design on a Baby Lock Altair?
  A: Pre-wind extra bobbins and stage stabilizer first—dense Photo Stitch files burn through consumables faster than most people expect.
  • Wind 3–4 pre-wound bobbins (or prepare multiple full bobbins) before starting.
  • Cut the full stabilizer stack in advance (for example, 2 layers crossed at 90° as recommended for stability).
  • Confirm the design time budget is realistic (often 3–4 hours for large photo designs) so the run is uninterrupted.
  • Success check: You can complete the stitch-out without stopping due to an empty bobbin or missing backing.
  • If it still fails: Re-check the selected fabric vs. stabilizer stack (knits and T-shirts are high-risk for dense photo designs).
• Q: How tight should a screw hoop be for a high-density Photo Stitch embroidery design to prevent fabric shifting and misalignment?
  A: Tighten the screw hoop extremely firm and aim for “drum-tight” fabric—Photo Stitch density amplifies tiny shifts into visible misregistration.
  • Tighten the hoop screw aggressively, then tap the fabric to confirm it feels like a drum.
  • Wrap the inner hoop with bias binding or vet wrap to increase grip without overtightening.
  • Stop immediately if you hear “slapping” during sewing and re-hoop before continuing.
  • Success check: The design stays in register (eyes/edges align) and the fabric surface does not ripple like a map.
  • If it still fails: Add/float extra stabilizer under the hoop and consider switching to a magnetic embroidery hoop for more uniform clamping.
• Q: How can embroidery hoop burn marks be prevented when using a screw hoop on dark or delicate fabric for Photo Stitch embroidery?
  A: Reduce the need for extreme screw pressure by increasing hoop grip—hoop burn is a common side effect of over-tightening.
  • Wrap the inner hoop with bias binding or vet wrap to improve traction.
  • Choose a fabric that can tolerate the density (canvas/denim is safer than delicate fabrics for 100k+ stitches).
  • Use a stabilizer stack that carries the load so the fabric is not doing all the work.
  • Success check: After unhooping, there is no permanent white ring where the hoop contacted the fabric.
  • If it still fails: Switch to a magnetic embroidery hoop, which clamps evenly around the perimeter and can reduce localized pressure marks.
• Q: What are the safety precautions for using neodymium magnetic embroidery hoops to clamp fabric for Photo Stitch designs?
  A: Treat magnetic embroidery hoops as industrial pinch tools and keep them away from medical devices—strong magnets can injure fingers and interfere with pacemakers.
  • Keep fingers clear when snapping the top magnetic frame into place (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers or similar medical devices.
  • Place the hoop onto the fabric deliberately—do not let magnets “slam” together uncontrolled.
  • Success check: The hoop closes without finger contact, and the fabric is clamped evenly with no sudden shifting.
  • If it still fails: Re-seat the frame slowly and confirm no fabric bulk or seams are preventing full contact.
• Q: How can thread shredding and constant stops be reduced on a Baby Lock Altair during dense Photo Stitch embroidery?
  A: Slow the machine down and change to a more appropriate needle—high-density runs magnify friction and needle deflection.
  • Reduce speed into the 600–800 SPM range for dense designs (a safe sweet spot for many setups).
  • Replace the needle immediately; use a Topstitch 90/14 as specified for better thread protection.
  • Re-check the thread path for snags and confirm the machine is not running with a dull needle.
  • Success check: The machine runs longer intervals without repeated thread breaks or stop alarms.
  • If it still fails: Try a fresh needle again and listen for grinding/slapping sounds that indicate a dull needle or loose fabric.
• Q: What should be adjusted if white bobbin thread shows on top during a dense Photo Stitch embroidery stitch-out?
  A: Clean the bobbin area first and then slightly reduce top tension—white bobbin show-through is commonly tension or lint related.
  • Clean lint from the bobbin case area before changing settings.
  • Lower top tension slightly and test again on the same fabric + stabilizer stack.
  • If available, use a TOW Gauge method to set bobbin tension to about 22g as a reference point.
  • Success check: Bobbin thread no longer peeks through on the top surface in filled/shaded areas.
  • If it still fails: Re-check threading and confirm the needle type/size is appropriate for the thread and density.
• Q: When should a Baby Lock Altair Photo Stitch workflow be upgraded to a magnetic hoop or a SEWTECH multi-needle embroidery machine for production?
  A: Upgrade in layers: fix stability first (technique), then hooping (magnetic), then throughput (multi-needle) when order volume makes single-needle changes a bottleneck.
  • Level 1 (Technique): Improve hoop grip (wrap inner hoop), use the recommended stabilizer stack, and run 600–800 SPM for dense files.
  • Level 2 (Tooling): Move to a magnetic hoop when hoop burn, slippage, or long-run vibration loosening keeps causing shifting/gaps.
  • Level 3 (Capacity): Consider a SEWTECH 15-needle machine when producing around 5+ portraits per week and manual thread changes (15+ color changes) are consuming the day.
  • Success check: The same design stitches with stable registration and less operator intervention (fewer re-hoops, fewer stops, fewer manual thread swaps).
  • If it still fails: Verify the design file and source image quality—no hoop can fully compensate for a muddy or poorly prepared photo conversion.
