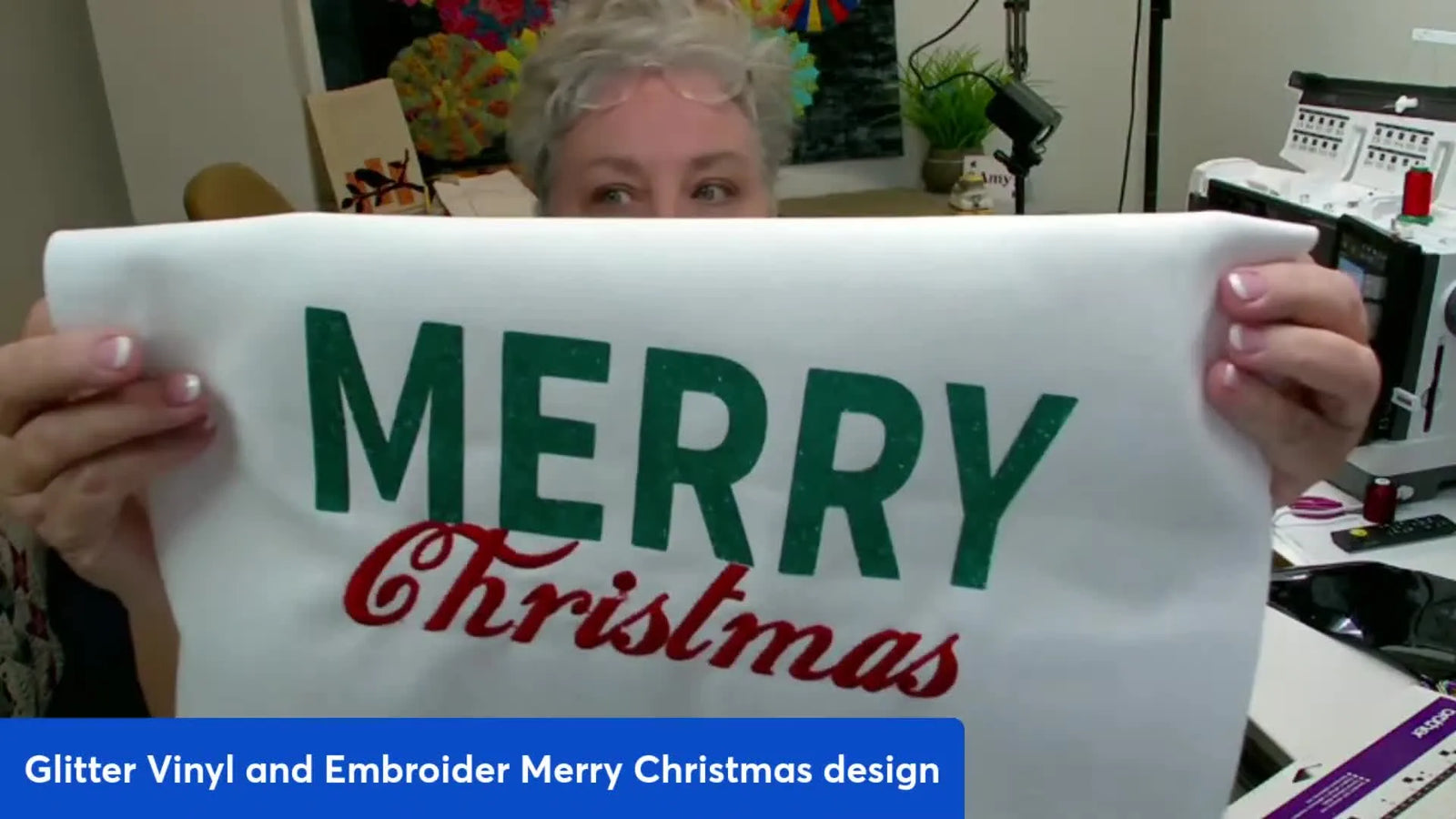

Glitter Vinyl + Embroidery That Actually Lines Up: A “Merry Christmas” Workflow with Brother ScanNCut, 6x10 Hoop, and DIME Appliqué

Mixed-media projects look effortless on camera—until you’re the one staring at glitter vinyl that won’t weed, a hoop that shifted a hair, and a press mark that won’t forgive you.

This “Merry Christmas” workflow is absolutely doable, even on a busy day, as long as you treat it like a production process: control the cut, control the hoop, control the press. Below is the exact sequence from the tutorial (ScanNCut cut + weed, embroidery stitch-out, then heat press), plus the extra checks I’ve learned the hard way so you don’t burn time—or vinyl.

The Calm-Down Moment: Why Glitter HTV + Embroidery Goes Wrong (and How to Keep It Predictable)

If you’ve ever missed a live tutorial and tried to recreate it later, you already know the real challenge isn’t the idea—it’s repeatability. Beginners often face "Step 1 Paralysis" because mixed media introduces two conflicting sets of variables: the heat chemistry of vinyl and the physical tension of thread.

Glitter HTV adds two “gotchas” that don’t show up with regular smooth HTV:

1. Visibility Zero: The cut lines can be hard to see because the rough glitter texture effectively camouflages the blade path.
2. The "Fairy Dust" Hazard: Tiny crumbs of vinyl can fuse permanently if they’re anywhere near your press area. Unlike thread, you can't snip a mistake away.

On the embroidery side, the design in this project was digitized lighter for sweatshirt fleece (loft eats stitches). That’s a smart move by the digitizer—until you stitch the same file on flat cotton or denim and wonder why it looks thin or gap-toothed.

If you’re building this as a sellable product (or just want it to look like you meant it), treat alignment and stabilization as the “real” craft here. A clean mixed-media finish is mostly physics: fabric tension, adhesive behavior, and heat/pressure discipline.

The “Hidden” Prep Pros Do First: Vinyl Orientation, Stabilizer Choice, and a Clean Press Zone

Before you touch the cutter or the hoop, lock in three things: orientation, support, and cleanliness. Most failures happen here, not at the machine.

1. Vinyl Orientation (Non-negotiable): Glitter HTV is almost always cut shiny side down (carrier sheet down) and your design must be mirrored.

• Sensory Check: Rub your thumb over the material. The rough, sandy side is the vinyl (back). The smooth, glossy side is the carrier. Place the glossy side against the mat.

2. Stabilizer Logic (The Foundation): The tutorial uses Cutaway Stabilizer (2.5 - 3.0 oz) with denim or sweatshirt fleece.

• The "Why": Tearaway is tempting because it's easy to clean up, but on wearables, it offers zero long-term support. After one wash, the stitches on a sweatshirt will distort without the permanent backing of a cutaway mesh.
• Pro Tip: For lofted fleece, float a layer of Water Soluble Topping (Solvy) on top. This prevents the stitches from sinking into the fabric pile, keeping your design crisp.

3. Press Zone Discipline: Glitter HTV is unforgiving. Any stray glitter bits in the margins will fuse forever to your expensive garment. Don’t assume you’ll “pick it off later.” You won’t.

• Hidden Consumable: Keep a tint roller or masking tape nearby to clear your press area before every single heat application.

If you’re doing a lot of garments, this is where workflow upgrades start paying you back. A stable, repeatable hooping method—and less wrestling with tight rings—is why many shops eventually invest in hooping stations. It’s not just about looking fancy; it’s about making placement identical across 20 shirts so you don't have to measure every single time.

Prep Checklist (Do this OR Fail):

• Mirror Check: Is the cut file mirror-imaged? (Read text backwards on screen).
• Side Check: Is glitter HTV shiny side (carrier) DOWN on the mat?
• Foundation: Have you selected Cutaway Stabilizer (2.5oz+)?
• Hygiene: Is the heat press platen wiped clean of lint and old vinyl?
• Containment: Is there a trash cup immediately next to you for weeded scraps?


Cut It Clean on the Brother ScanNCut SDX325: Scan the Mat, Then Lock “Half Cut” + “Weeding Box”

The tutorial’s cutting sequence is simple—and it’s the reason the vinyl weeds without drama. The goal is to kiss-cut (cut the vinyl, leave the carrier intact).

1. Load: Place the glitter vinyl on the mat face down. Smooth it out with a brayer or scraper to ensure zero air bubbles.
2. Visualize: Use the Scan function to see the background on the ScanNCut screen. This allows you to position the design exactly where your scrap piece of vinyl is located.
3. Settings (The Critical Path): Go into settings (wrench icon) and enable:
   • Half Cut: ON (Essential for HTV).
   • Weeding Box: ON (This cuts a rectangle around the design).
4. Blade: The tutorial uses the Black Blade (standard auto-blade).

The "Weeding Box" Value: That weeding box is a quiet money-saver. By automatically cutting a border around your design, you separate the waste from the usable scrap instantly. If you’re making seasonal items, saving "the rest of the sheet" is how you avoid buying a new roll for every small word.

The Weeding Hack That Saves Your Eyes: Cornstarch + Light Finger Pressure on Details

Once the cut is done, you might panic because you literally cannot see the cut lines. This is normal with glitter.

The Cornstarch Trick:

1. Take a small pinch of cornstarch (or baby powder).
2. Rub it gently over the surface of the vinyl.
3. Visual Anchor: Watch as the white powder settles only into the cut crevices, making your design pop out like a blueprint.
4. Wipe away excess surface powder with a dry cloth before peeling.

The Peel Technique:

1. Use a hook tool to lift a corner of the weeding box first.
2. Peel away the negative vinyl at a sharp 45-degree angle.
3. Tactile Check: If small details (like the dot on the 'i') start lifting, use light finger pressure to hold them down while you peel. If it pulls up constantly, your cutting pressure was too deep (cut through carrier) or too shallow (didn't cut adhesive).




Hoop the 6x10 Setup Without Distortion: Cutaway Support, Fabric Grain, and Placement Discipline

The embroidery portion is stitched in a 6x10 hoop on a Brother multi-needle machine. This is where physical mechanics dictate your success.

1. The "Hoop Burn" Struggle: Standard friction hoops require you to force fabric between an inner and outer ring. On thick sweatshirts, this often causes "hoop burn"—a shiny, crushed ring mark that may never wash out.

• The Fix: If you struggle to close the hoop or your wrists hurt, this is the classic trigger to look at magnetic embroidery hoops. These use powerful magnets to sandwich the fabric without forcing it into a gap, eliminating hand strain and hoop burn instantly.

2. Density vs. Fabric:

• The Scenario: The "Christmas" file is digitized lighter/thinner to accommodate the loft of fleece.
• The Adjustment: If you stitch that same lighter file on cotton or denim (flat fabrics), the tutorial recommends stitching it twice (running the machine again without unhooping) to increase density.
• Why: Thick fleece "swallows" thread, filling gaps. Denim does not. Without that second pass on denim, your embroidery will look threadbare.

3. Tension & Operation:

• Hooping Tension: It should be taut, but not stretched.
  • Sound Check: Tap the fabric. It should sound like a dull thud, not a high-pitched drum (too tight) and not a rattle (too loose).
• Speed: Even if your multi-needle can do 1000 stitches per minute (SPM), slow down. For lofty fleece or metallic threads, the "Sweet Spot" is usually 600-750 SPM. This reduces thread breakage and friction.

Warning: Safety First. Keep fingers, loose sleeves, and snips away from the needle area while the machine is running. A multi-needle head moves faster than human reaction time, and a split-second reach can result in a serious puncture injury.

Press “MERRY” Like a Pro: Sticky Carrier Placement, 350°F for 15 Seconds, No Sliding

After "Christmas" is stitched, unhoop the garment. Do not remove the stabilizer yet if you can avoid it, as it acts as a heat buffer, but usually, you'll trim it now.

Now, position the weeded "MERRY" vinyl above the embroidery.

The Sticky Advantage: The carrier sheet is sticky. Use this! stick it to the sweatshirt, hold it up, and look in a mirror. Is it centered? The sticky back allows you to reposition until perfect.

Pressing Formula (The safe zone):

• Temperature: 350°F (176°C).
• Time: 15 seconds.
• Pressure: Medium-Firm (You need to push the adhesive into the fibers).

Two Technique Points to Prevent Heartbreak:

1. Press—Don’t Iron. Ironing implies a sliding motion. Never slide. Sliding smears the softened adhesive and ruins alignment. Go straight down, lock/hold, lift straight up.
2. The "Margin" Check: The tutorial specifically warns to remove stray vinyl crumbs. One tiny glitter speck 2 inches away from the design will look like a stain forever once pressed.




Setup Checklist (The "Point of No Return"):

• Visual: Does "MERRY" read correctly? (Stop and actually read it).
• Tactile: Is the carrier sheet holding the vinyl flat? No bubbles or wrinkles.
• Hygiene: Have you used a lint roller on the entire chest area to grab stray glitter crumbs?
• Action: Align word above embroidery -> Stop touching it.
• Motion Plan: Straight down, 15 seconds, Straight up. NO SLIDING.

Turn the Cut File into a Satin Appliqué in DIME Software: Width 3.5–4.0, Zigzag Tack-Down

The bonus portion of the tutorial transforms this from a craft into a production workflow using DIME (Perfect Embroidery Professional) software.

The Digital Steps:

1. Select the text graphic.
2. Choose Convert to Applique.
3. Set type to Satin Stitch.
4. Column Width: Set to 3.5–4.0 mm. (Beginners often leave this too narrow; 3.5mm ensures it covers the raw edge of the vinyl).
5. Stitch Length: Set to 3.5 mm.
6. Tack-Down: Choose Zigzag.

Why Zigzag Matters: A straight run stitch might perforate the vinyl like a postage stamp, causing it to tear. A zigzag distributes the tension and grabs the material securely before the heavy satin border finishes the edge.

The "Rip-Away" Method: The tutorial notes you can peel glitter vinyl off the carrier sheet before stitching and treat it like appliqué fabric. This creates a stunning mixed-media effect.

If you are serious about this software workflow, you might see pros using a dime hoop or the popular dime snap hoop. These are specifically designed to work with these software dimensions to maximize your sewing field. The decision to upgrade to these magnetic systems usually comes when you realize how much time you lose screwing and unscrewing standard frames.

The “Why It Works” Layer: Hooping Physics, Material Behavior, and Small-Batch vs Production Thinking

A mixed-media project is a chain—your weakest link shows in the final photo.

1. Hooping Physics (What most people skip):

• Fabric needs to be neutral. High-loft fleece compresses. If you hoop it like denim (cranking the screw tight), you create a "waffle effect" where the embroidery sits in a crater.
• Solution: Use a magnetic frame or float the fabric on adhesive stabilizer to avoid crushing the pile.

2. Material Behavior:

• Glitter HTV is thick. Cornstarch is a visibility trick, not a bonding step.
• Once fused, HTV is permanent. There is no undo button.

3. Commercial Scalability (The quiet difference between 1 shirt and 100):

• For one-off gifts, you can "eyeball" the hoop placement and struggle with the screws.
• For orders of 50 shirts, your wrists will fail before the machine does.

This is where the conversation regarding magnetic embroidery hoops shifts from "luxury" to "necessity." They allow you to hoop a thick sweatshirt in 5 seconds without adjusting screws. If you are moving toward industrial output, pairing these hoops with reliable multi-needle machines (like the workhorses from SEWTECH) creates a production line that is scalable and profitable.

Warning: Magnetic Hazard. Industrial magnetic hoops are extremely powerful. Keep them away from pacemakers/medical implants. Be mindful of pinch points—fingers can get caught when the top ring snaps into place with significant force.

Troubleshooting the Three Most Common “This Looked Easy on Video” Problems

Here is a structured diagnostic table to help you fix issues before they ruin the garment.

A Simple Decision Tree: Pick Stabilizer + Workflow Based on Fabric and Volume

Use this to decide quickly without overthinking.

Decision Tree (Fabric → Stabilizer/Method → Notes):

• Sweatshirt Fleece (Lofty/Squishy)
  • Stabilizer: Cutaway (Heavy) + Water Soluble Topping.
  • Hooping: Magnetic Hoop preferred to prevent crush marks.
  • Note: Expect loft to "eat" stitches; avoid over-tightening.
• Denim (Heavy/Stable)
  • Stabilizer: Cutaway (Medium).
  • Hooping: Standard or Magnetic.
  • Note: Watch the grain alignment; use double-stitch method if file is light.
• T-Shirt Cotton (Stretchy/Thin)
  • Stabilizer: Fusible Mesh Cutaway (No Show).
  • Hooping: Must be floated or hooped gently to prevent puckering.
  • Note: Flat fabric exposes under-density immediately; review digitizing.

The Volume Question:

• Making 1–5 pieces? Standard hooping is fine if you take your time.
• Making 20–100+ pieces? You need a repeatable workflow. Look into alignment tools like the hoopmaster system or dedicated magnetic frames to standardize placement and save your hands.

The Upgrade Path That Feels Natural: When Better Tools Actually Fix the Pain

If you finish this project and feel exhausted, listen to that fatigue. It's usually a sign that your tools are fighting you.

• Pain: "It takes me 5 minutes to hoop one shirt, and I have hoop burn marks."
  • Solution: Magnetic Hoops. They clamp instantly without friction damage.
• Pain: "I can't get the placement exactly the same on every shirt."
  • Solution: Hooping Stations. They lock the garment in the same coordinate every time.
• Pain: "I'm spending all day changing thread colors on my single-needle machine."
  • Solution: SEWTECH Multi-Needle Machine. This is the leap from "crafting" to "production," allowing you to set 10 colors and walk away while it works.

Start with the consumables (better stabilizer, specialized needles). If the volume grows, upgrade the hardware.

Operation Checklist (Your Final Production Run-Through)

• ScanNCut: Glitter HTV shiny side down? Half Cut ON? Weeding Box ON?
• Weeding: Did you remove the box border first? Used cornstarch if blind?
• Embroidery Prep: 6x10 Hoop + Cutaway Stabilizer + Topping (if fleece).
• Machine: Speed set to 600-700 SPM?
• Execution: Stitch "Christmas". (Double-run if on flat denim).
• Heat Press: Temp at 350°F? Platen clean?
• Fusion: Place "MERRY". Press straight down (15 sec). Peel carrier only after cooling slightly (warm peel).

If you nail these checkpoints, this project stops being a "holiday experiment" and becomes a reliable, repeatable product you can sell with confidence.

FAQ

• Q: How do I cut glitter HTV correctly on a Brother ScanNCut SDX325 so the carrier sheet stays intact?
  A: Use glitter HTV shiny side (carrier) down, mirror the design, and turn Half Cut ON to kiss-cut only the vinyl layer.
  • Confirm orientation: Place the smooth/glossy carrier side against the mat and the rough glitter side facing up.
  • Enable settings: Turn Half Cut: ON and Weeding Box: ON in the settings (wrench icon).
  • Use Scan: Scan the mat first so the design lands exactly on the scrap area.
  • Success check: The vinyl weeds cleanly, and the clear carrier sheet is not sliced or lifted.
  • If it still fails: Run a small test cut on a corner scrap and adjust cut depth/pressure per the ScanNCut manual for that vinyl.
• Q: How do I weed glitter HTV cleanly when the cut lines are invisible after cutting on a Brother ScanNCut SDX325?
  A: Rub a small amount of cornstarch (or baby powder) over the glitter HTV so the powder settles into the cut grooves and reveals the lines.
  • Dust lightly: Apply a pinch and rub gently to avoid shifting small details.
  • Start with the border: Lift and remove the weeding box area first to separate waste fast.
  • Peel with control: Pull the negative vinyl back at about a 45° angle and hold tiny parts down with light finger pressure.
  • Success check: The powder makes the cut path clearly visible and small details (like dots) stay on the carrier.
  • If it still fails: Re-check cut quality—constant lifting can mean the cut was too deep (through carrier) or too shallow (not through adhesive).
• Q: What stabilizer setup should I use for embroidering on sweatshirt fleece vs denim in a 6x10 embroidery hoop to prevent sinking or thin coverage?
  A: Use cutaway stabilizer (2.5–3.0 oz) for both, and add water-soluble topping on sweatshirt fleece; on flat denim, consider running the lighter design twice without unhooping.
  • Add topping for fleece: Float a water-soluble topper on top to stop stitches sinking into the pile.
  • Match density to fabric: If the file was digitized light for fleece, run the stitch-out twice on denim/cotton without moving the hoop.
  • Keep support permanent: Avoid relying on tearaway for wearables when long-term support is needed.
  • Success check: On fleece, stitches sit on top (not buried); on denim, coverage looks filled-in (not gap-toothed).
  • If it still fails: Slow machine speed and re-check hooping tension and fabric choice before changing the design file.
• Q: How can I tell if fabric is hooped correctly in a 6x10 embroidery hoop to avoid puckering, distortion, or hoop burn on sweatshirts?
  A: Hoop the fabric taut but not stretched, and avoid over-tightening—thick sweatshirts are the most likely to show hoop burn with standard friction hoops.
  • Align and support: Keep fabric grain straight and use the recommended cutaway backing underneath.
  • Set tension correctly: Tighten only until stable—do not crank down like denim when hooping lofted fleece.
  • Consider hoop type: If closing the hoop is difficult or leaves shiny ring marks, switching to a magnetic hoop is often the cleanest fix.
  • Success check: Tap test—fabric sounds like a dull “thud,” not a high drum (too tight) and not loose/rattly (too loose).
  • If it still fails: Float the fabric on stabilizer (instead of forcing it into the ring) or change hooping method to reduce crush marks.
• Q: What machine speed should I use on a Brother multi-needle embroidery machine for sweatshirt fleece or metallic threads to reduce thread breaks?
  A: A safe starting point is to slow down to about 600–750 SPM for lofty fleece or metallic thread to reduce friction and breakage.
  • Reduce speed before stitching: Set speed lower than maximum even if the machine can run faster.
  • Watch the stitch area: Stop immediately if you see thread fraying, repeated breaks, or fabric shifting.
  • Stabilize correctly: Pair slower speed with cutaway backing and topper on fleece for the most predictable result.
  • Success check: The design completes with consistent stitches and no repeated thread breaks in the same area.
  • If it still fails: Re-check threading path and needle condition (generally a fresh needle helps), then follow the machine manual for tension checks.
• Q: How do I heat press glitter HTV above embroidery at 350°F for 15 seconds without the vinyl shifting or smearing?
  A: Use the sticky carrier to position, then press straight down at 350°F for 15 seconds with medium-firm pressure—never slide like ironing.
  • Lock placement: Stick the carrier down, step back, and visually confirm centering before pressing.
  • Clean the zone: Lint-roll the chest area and clear stray glitter bits from the platen and garment.
  • Press, don’t iron: Lower the press straight down, hold 15 seconds, lift straight up (no shifting motion).
  • Success check: The vinyl edges stay sharp and aligned, with no smear marks or offset after pressing.
  • If it still fails: Check for debris/glitter crumbs causing “permanent specks,” and re-press only if the carrier and vinyl manufacturer instructions allow.
• Q: What safety precautions should I follow when operating a Brother multi-needle embroidery machine and using industrial magnetic embroidery hoops?
  A: Keep hands and loose items away from the needle area during stitching, and treat industrial magnetic hoops as pinch-and-medical hazards.
  • Protect fingers: Never reach near the needle while the head is moving; stop the machine first.
  • Control clothing/tools: Secure sleeves and keep snips/tools out of the stitching path.
  • Handle magnets deliberately: Keep magnetic hoops away from pacemakers/medical implants and watch pinch points when the top ring snaps on.
  • Success check: Hooping and stitching can be done without hand strain, accidental pinches, or “quick reaches” near moving needles.
  • If it still fails: Slow down the workflow—set a repeatable routine (stop machine → hands in → hands out → start) and assign a safe placement spot for tools.
