Mastering Multi-Hooping in Hatch: From Panic to Precision

At some point in every embroiderer’s journey, you hit "The Wall." You find the perfect design—perhaps a sprawling floral back piece or a large company logo—only to realize it is 180mm wide, and your machine currently has a 100mm (4x4) hoop attached.

The immediate temptation is to shrink the design. Don't.

Shrinking a design developed for a larger scale compresses the stitch density. A satin stitch that was luscious and flexible at 100% scale becomes a hard, bulletproof knot that breaks needles and shreds thread when reduced by 20% or more.

If you are feeling that little spike of panic regarding splitting a design, that is actually a good sign. It means you respect the physics of the machine. Multi-hooping (splitting a design into sections) is the "Black Belt" of embroidery skills. It requires software precision and physical discipline.

The goal of this guide is to strip away the mystery of the Hatch software settings and, more importantly, give you the physical "shop floor" habits that ensure your fabric doesn't drift when you move from Hoop A to Hoop B.

The Calm-Down Check: Why Hatch Multi-Hooping Beats “Just Shrink It”

The methodology we are exploring uses a butterfly from the Hatch library as a case study. The scenario is a classic mismatch: a design approximately 180.8 mm wide being forced into a 100×100 mm (4×4) hoop.

Here is the key judgment call experienced digitizers make: Just because the software allows you to shrink it to fit a 5x7 hoop doesn't mean you should.

The Physics of the Stitch: When you shrink a design without re-digitizing, the stitch count often remains the same, but the space decreases.

• Result: Stitch density skyrockets.
• Symptom: You will hear a heavy "thud-thud-thud" sound from your machine as the needle struggles to penetrate the dense thread pack.
• Damage: This causes fabric puckering and potential needle deflection.

This is why mastering multi hooping machine embroidery is not just a workaround for small machines; it is a quality-preservation strategy. It allows you to maintain the integrity of the original digitizing file while stitching it on the equipment you own today.

The “Hidden” Prep Pros Never Skip: File Safety and Workspace Hygiene

Before you click a single splitting tool, we must secure your digital assets. In a professional shop, we treat original files like gold—we never stitch continuously on the "Master" file.

Follow this protocol in the Hatch Design Library:

1. Open Safely: Select your design (the Butterfly) and click “New from Selected.” This forces Hatch to open a copy, leaving your library master file untouched.
2. Naming Convention: Immediately save this new file with a clear suffix, such as Butterfly_Split_01. This prevents the "Which file did I export?" panic later.
3. Define the Reality: You must tell Hatch what physical equipment is on your table. In this guide, we are simulating a Single Needle machine with a 100x100 mm hoop limitation.

Hidden Consumables Check

Before proceeding, ensure you have these physical items ready, which are often overlooked in software tutorials:

• Water-Soluble Pen: For marking alignment crosses on fabric.
• Temporary Spray Adhesive (505): Crucial for multi-hoop stability.
• Printed Template Paper: Standard printer paper works, but translucent vellum is superior for alignment.


Prep Checklist (Do this before touching the software)

• File Isolation: Open the design using "New from Selected" to protect the original.
• Naming: Save immediately with a distinctive suffix (e.g., _MH or _Split).
• Machine Config: Verify Hatch thinks you are using the machine you actually own (e.g., Single Needle).
• Hoop Config: Select the actual hoop you intend to use (100x100 mm). Don't guess.
• Visual Audit: Zoom out. Does the design visibly exceed the hoop boundary square?

Hoop Reality Check: Seeing the Boundary

When you select the 100x100 mm hoop in the dropdown, Hatch renders a visual border. If your butterfly wings extend past this square, you are in multi-hoop territory.

Treat this step like a carpenter measuring wood. You are defining the "legal sewing field." If you possess a collection of various embroidery machine hoops, ensure the one selected on the screen matches the one you just snapped onto your machine arm. A mismatch here guarantees a collision between your needle and the plastic frame later.

The Green vs. Black Mystery: Reading the Heat Map

A common frustration for beginners opening the Multi-Hooping Toolbox is the "Black Screen."

• Green Areas: These stitches fit inside the currently active hoop position. Safe to stitch.
• Black Areas: These stitches are effectively "out of bounds."

If your design looks entirely black or mostly black, do not panic. It simply means Hatch hasn't calculated the additional hoop positions yet. You are looking at a map of "Unstitchable Territory" until we apply the logic in the next steps.

Registration Marks + “Small” Margin: Your Alignment Insurance

In the Multi-Hooping Options, you will see a setting for Registration Marks. This is non-negotiable.

Why you need them: When you finish Hoop 1 and move to Hoop 2, the machine needs a physical reference point to know exactly where the fabric is. Registration marks utilize the machine to stitch small reference points (usually crosses) that you align with the needle for the next section.

The "Small" Margin Setting: Select Margin = Small.

• The Logic: This places the registration marks as close to the design perimeter as possible without touching it.
• The Benefit: The closer the registration mark is to the design, the less "drift" error you will have if the fabric stretches.

This is where software meets physics. If you struggle with hooping for embroidery machine technique—specifically keeping fabric taut like a drum skin without warping it—software registration marks can only help so much. The fabric must be stabilized correctly so the distance between Mark A and Mark B doesn't change when you re-hoop.

Auto-Add Hoops: Solving the “Three Colors, Four Hoops” Puzzle

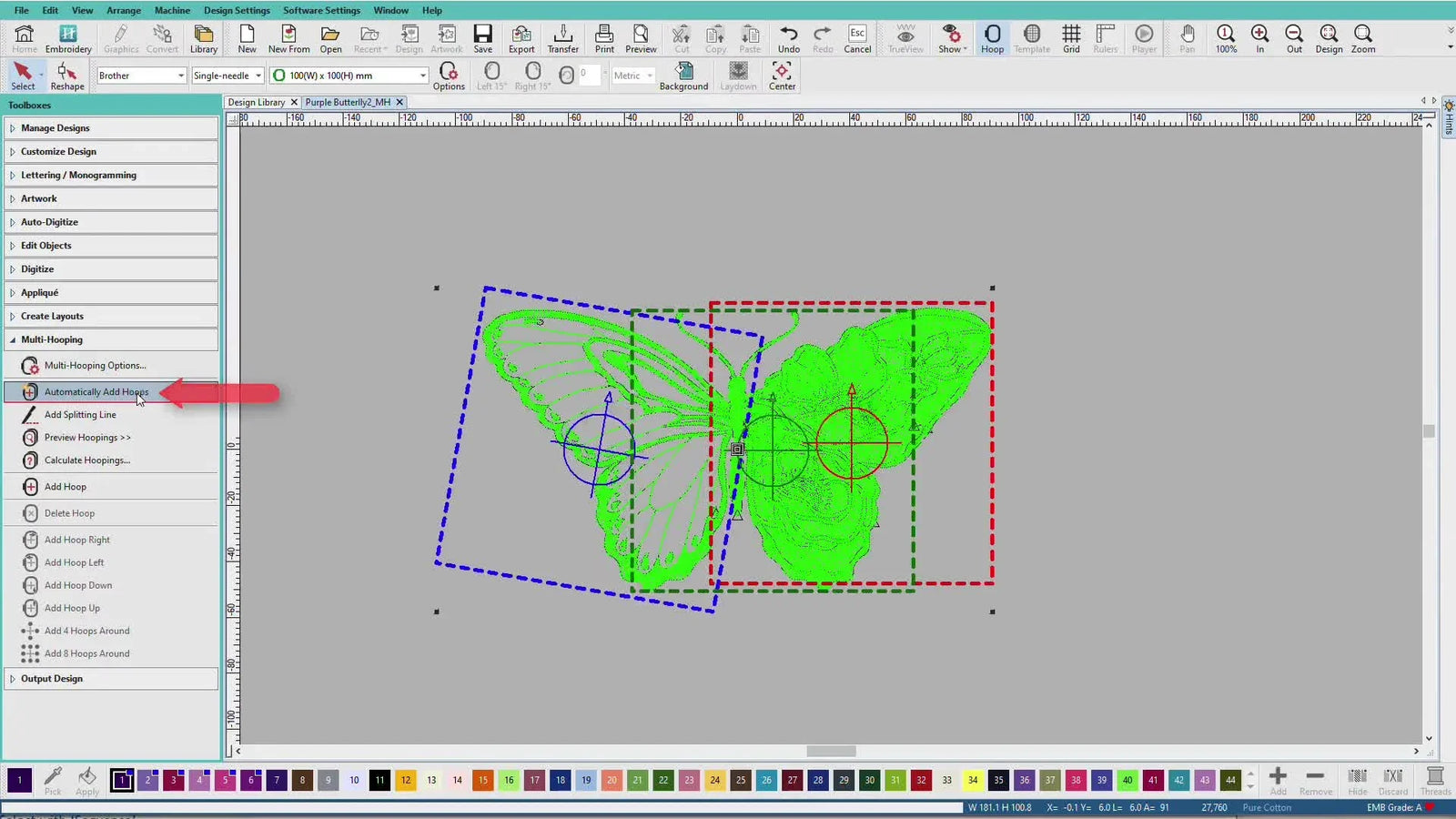

Click Automatically Add Hoops. Hatch’s algorithm will calculate the most efficient way to cover the black areas. You might see a prompt saying: "High quality splitting will result in 4 hoopings."

The Confusion: You look at the screen and see only Red, Green, and Blue hoop outlines (3 colors). Yet, Hatch says "4 Hoopings."

The Explanation: One of those physical hoop positions is used twice.

• Scenario: You stitch the left wing (Hoop 1). You move the hoop to the right for the right wing (Hoop 2). Later, due to layering (like antennae or top details), the software requires you to return to the physical position of Hoop 1 to finish lighter details on top.
• Why not just 2 hoops? The software prioritizes stitch integrity. It ensures that no single object is sliced in half unless absolutely necessary. It would rather make you re-hoop than ruin the look of a satin column.




Warning: Mechanical Safety
Multi-hooping involves moving the hoop frame near the limits of the sewing arm. Listen to your machine. If you hear a grinding noise or a sharp "click-clack" during travel, hit stop immediately. It usually means the hoop is hitting the machine body or the fabric bulk is catching on the presser foot rod.

Preview Hooping: The Docker is Your GPS

This is the step beginners often skip, leading to ruined garments. You must click Preview Hooping to open the Hooping Sequence Docker.

How to Read It: This docker is a chronological list.

1. Click and hold Hoop 1: The screen isolates exactly which stitches happen first.
2. Click Hoop 2: It shows what happens next.

The Mental Model: If you are on a single-needle machine, every new entry in this list represents you stopping the machine, taking the hoop off, re-clamping the fabric, and re-attaching it. This is physically demanding work.

The “Calculate” vs. “Save” Trap

After you verify the sequence, you click Calculate Hoopings. The software confirms coverage.

CRITICAL STOP: You have not created the files yet. "Calculating" is just the math. "Exporting" is the file creation.

Go to Output Design Toolbox -> Export Design. Hatch will ask for a destination. When you click Save, it will batch-process the split files. You must wait for the final confirmation dialog: "All hoopings were saved."

If you close the software before this distinct message appears, you might end up with Design_01 but missing Design_02.

Setup Checklist (Ready for Machine)

• Save Working File: Ctrl+S the .EMB file first.
• Format Check: Ensure you are exporting to the correct language for your machine (e.g., .PES for Brother, .JEF for Janome, .DST for Commercial).
• Batch Export: Use Output Design Toolbox > Export Design.
• File Count: Open your USB folder on your computer. If Hatch said "4 Hoopings," do you see 4 separate files?
• Visual Confirmation: Do the files have logical names (e.g., Butterfly_01, Butterfly_02)?

Print Preview Worksheets: The Map for Your Hands

You cannot multi-hoop successfully by guessing. You need printed templates.

In Print Preview:

1. Go to Options.
2. Check Hooping Sequence.
3. Ensure Hoops is selected.

The "Paperwork" Strategy: Print these pages at 100% Scale (Actual Size). These sheets contain the crosshairs that match the registration marks in the file.

• Action: Cut out the template for Hoop 2.
• Action: Poke a small hole in the center of the crosshair with a pin.
• Usage: Place this paper on your fabric to mark exactly where the needle must start for the second section.






The Physical Alignment Truth: Where Theory Meets Reality

Hatch has done its job. Now the success depends on your hands. The number one cause of failure in multi-hooping isn't software glitches—it's fabric drift.

If you are hooping a standard cotton tote, standard hoops work fine. However, if you are doing this on a hoodie or a knit shirt, the act of pulling the fabric taut for Hoop 2 often stretches it differently than Hoop 1.

• Result: The "Step." Users see a visible line where the design disconnected.

The Professional Solution: If you plan to do large designs regularly, you will hit a bottleneck with standard friction hoops. They are hard to align precisely without distorting the fabric grain.

This is where professional shops upgrade their tooling. Using a hooping station for machine embroidery provides a fixed, non-slip board to hold your garment while you clamp. It standardizes the tension.

Furthermore, many operators switch to a magnetic embroidery hoop for multi-hooping workflows.

• The Advantage: You don't have to unscrew and re-screw the ring. You simply lift the magnets, slide the fabric to align with your printed crosshair, and snap the magnets back down. The fabric doesn't get "pushed" or distorted as it does with an inner ring.
• The result: The transition between Hoop 1 and Hoop 2 is invisible because the fabric tension remains identical.

Warning: Magnetic Hazard
Magnetic embroidery hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Electronics: Keep them away from pacemakers, credit cards, and computerized machine screens.

Decision Tree: Stabilizer & Hooping Strategy

Use this physical logic flow to determine your setup before you stitch.

1. Is the fabric stable? (Denim, Canvas, Twill)

• YES: Use Medium Tearaway or Cutaway. Standard hoops are acceptable.
• NO: Go to Step 2.

2. Is the fabric unstable/stretchy? (Jersey, Pique, Performance Knits)

• YES: You must use Cutaway stabilizer (2.5oz or 3.0oz).
  • Upgrade Tip: This is the danger zone for standard hoops. A magnetic hoop is highly recommended to prevent "hoop burn" (permanent shine marks) and stretching during re-hooping.

3. Is the design high density? (Full back logos, Heavy Satin)

• YES: Float an extra layer of stabilizer under the hoop. Spray adhesive (505) is mandatory to bond fabric to stabilizer so they move as one unit.

Common Confusion: The "Why" Behind the Errors

Why did my lines not match up by 2mm? Usually, this is not the software. It is "Pull Compensation." Your stabilizer wasn't strong enough, and the stitches pulled the fabric inward. For multi-hooping, use a stabilizer one grade heavier than you think you need.

Why is it Black and Green? Remember: Black = "I don't fit yet." Green = "I fit." If it's black, you simply haven't added enough hoop positions in the toolbox.

The Upgrade Path: From Hobby to Production

Multi-hooping is valid, but it is slow. If you find yourself splitting designs for every third order, you are losing money on labor time.

The Efficiency Hierarchy:

1. Level 1 (Technique): Use Hatch Multi-Hooping + Printed Templates + Spray Glue. (Cost: Low / Time: High).
2. Level 2 (Tooling): Upgrade to embroidery magnetic hoops. Because you can re-hoop in seconds without distortion, your alignment success rate doubles. (Cost: Medium / Time: Medium).
3. Level 3 (Capacity): If you are consistently stitching designs larger than your field, the "correct" business move is eventually a machine with a larger field or a multi-needle system. But until then, precision multi-hooping with magnetic holding power is your bridge to professional results.

Operation Checklist (The Stitch-Out)

• Template Match: Place your printed template on the fabric. Does the grid allow the design to fit?
• First Hoop: Hoop the fabric with stabilizer. Verify tension (tap it, should sound like a drum).
• Stitch Hoop 1: Complete the file. Do not remove fabric from stabilizer if valid (usually you hoop the whole sandwich).
• Marking: Before removing Hoop 1, ensure the machine stitched the registration marks (crosses).
• Re-Hooping: Remove hoop. Align Hoop 2 using the printed template to match the sewn crosses on the fabric.
• Verification: Drop your needle manually (hand wheel) to see if it lands exactly in the center of the referenced cross.
• Stitch Hoop 2: Continue.

Mastering this workflow turns the "impossible" design into a routine job. Take your time, trust the checklist, and respect the alignment.

FAQ

• Q: In Hatch Embroidery Software Multi-Hooping, why does shrinking a 180 mm design to fit a 100×100 mm (4×4) hoop cause needle breaks and puckering?
  A: Do not shrink without re-digitizing; split the design with Hatch Multi-Hooping to avoid density spikes.
  • Choose: Keep the design at original size and use Multi-Hooping instead of “just shrink it.”
  • Listen: Stop if the machine sounds like heavy “thud-thud-thud,” which often signals excessive density and penetration load.
  • Stabilize: Use stronger stabilization for multi-hooping so fabric does not get pulled inward during dense areas.
  • Success check: The machine runs with a normal, consistent stitch sound and the fabric stays flatter with less puckering.
  • If it still fails: Reduce risk by splitting objects more cleanly (avoid slicing satin columns) and re-check hooping tension and stabilizer strength.
• Q: In Hatch Design Library, what is the safest way to start a Multi-Hooping project without overwriting the original embroidery file?
  A: Open a copy using “New from Selected” and save immediately with a split suffix before doing any multi-hooping work.
  • Click: Select the design in Hatch Design Library → choose “New from Selected.”
  • Save: Rename right away (example pattern: DesignName_Split_01) so exports do not get mixed up later.
  • Verify: Set Hatch machine type to match the real setup (for example, Single Needle) and select the exact hoop size being used (100×100 mm).
  • Success check: The original library design remains unchanged and the working file name clearly shows it is the split version.
  • If it still fails: Create a fresh copy again and confirm changes are being made only inside the new working file.
• Q: In Hatch Multi-Hooping Toolbox, why is the design mostly black with only small green areas after selecting a 100×100 mm hoop?
  A: Black simply means “out of bounds”; add hoop positions so Hatch can cover those areas.
  • Confirm: Check the correct hoop is selected (100×100 mm) so the boundary is realistic.
  • Use: Click “Automatically Add Hoops” to let Hatch calculate additional positions.
  • Preview: Open “Preview Hooping” to see the Hooping Sequence Docker and confirm each hoop covers the missing areas.
  • Success check: Each hoop position shows meaningful green stitch coverage, and the sequence clearly progresses without leaving major black regions.
  • If it still fails: Re-check that the selected hoop on-screen matches the physical hoop on the machine to avoid “false” boundary assumptions.
• Q: In Hatch Multi-Hooping Options, why should Registration Marks be enabled and Margin set to Small for multi-hooping alignment?
  A: Use Registration Marks with Small margin to minimize drift and give a reliable physical alignment target between hoopings.
  • Enable: Turn on Registration Marks (non-negotiable for consistent re-hooping).
  • Set: Choose Margin = Small to place marks close to the design perimeter for better accuracy.
  • Mark: Keep a water-soluble pen ready to help identify alignment points on fabric when needed.
  • Success check: When re-hooping, the needle can be manually dropped to land exactly in the center of the stitched cross mark.
  • If it still fails: Treat the problem as fabric drift—improve stabilization and reduce fabric movement during re-hooping.
• Q: In Hatch Multi-Hooping, why does “Automatically Add Hoops” say “4 hoopings” even if only 3 colored hoop outlines are visible?
  A: One physical hoop position may be reused later for layering, so the number of hoopings can exceed the number of unique on-screen outlines.
  • Accept: Follow the Hooping Sequence Docker; it is the true chronological order of stops and re-hoops.
  • Plan: Expect to re-hoop back to an earlier position for top details (like lighter elements added later).
  • Avoid: Do not force fewer hoopings if it would slice critical objects (Hatch prioritizes stitch integrity).
  • Success check: The Hooping Sequence Docker shows a clear, logical order and each section stitches complete objects where possible.
  • If it still fails: Re-check the sequence in Preview Hooping before exporting, and confirm coverage after “Calculate Hoopings.”
• Q: In Hatch Embroidery Software, why does clicking “Calculate Hoopings” not create the split files, and how do you avoid missing Hoop 2/3/4 exports?
  A: “Calculate” only verifies math; you must export via Output Design Toolbox → Export Design and wait for the final “All hoopings were saved” message.
  • Save: Ctrl+S the working .EMB file first so the split plan is preserved.
  • Export: Go to Output Design Toolbox → Export Design and choose the correct machine format (examples mentioned: .PES, .JEF, .DST).
  • Verify: Open the USB/export folder and confirm the file count matches the hoopings count (if Hatch says 4, you should see 4 files).
  • Success check: The software confirms “All hoopings were saved,” and the folder contains logically named sequential files.
  • If it still fails: Do not close Hatch early—repeat Export Design and wait for the completion confirmation dialog.
• Q: During Hatch multi-hooping on a single-needle embroidery machine, what mechanical safety signs mean the hoop is colliding near the sewing arm limits?
  A: Stop immediately if there is grinding or sharp “click-clack” during travel; it often indicates hoop/frame contact with the machine body or fabric bulk catching.
  • Pause: Hit stop the moment abnormal travel noise happens during a hoop move.
  • Inspect: Check whether the hoop frame is striking the machine body or the garment bulk is snagging near the presser foot rod area.
  • Adjust: Re-position and re-check the setup before restarting the sequence.
  • Success check: The machine can travel to the next stitch area smoothly without impact sounds.
  • If it still fails: Reduce bulk in the sewing area and confirm the selected hoop and real hoop match so travel limits are correct.
• Q: For Hatch multi-hooping on hoodies or stretchy knits, when should a magnetic embroidery hoop be used to reduce fabric drift and hoop burn, and what is the safe upgrade path?
  A: If re-hooping causes visible “steps,” stretching, or hoop burn on knits, a magnetic hoop is often the next safe tooling upgrade before considering a larger-field or multi-needle machine.
  • Diagnose: Treat misalignment lines as fabric drift first (stretch differences between Hoop 1 and Hoop 2 are common on knits).
  • Upgrade: Use a magnetic hoop to re-hoop by lifting and snapping magnets instead of forcing fabric with an inner ring, which often helps keep tension consistent.
  • Stabilize: Use cutaway stabilizer for unstable/stretchy fabrics and bond fabric-to-stabilizer with temporary spray adhesive so they move as one unit.
  • Success check: The transition between hoopings becomes visually clean (no obvious “step”) and fabric shows fewer shine marks from hoop pressure.
  • If it still fails: Increase stabilizer strength and alignment discipline (templates + needle drop test); if large designs are frequent, consider moving from technique → magnetic hoop → larger field or multi-needle capacity.
  • Safety note: Keep fingers clear of the snapping zone and keep strong magnets away from pacemakers, credit cards, and computerized machine screens.
