Hatch Cross Stitch Editing Basics: Select, Lock, Copy, Recolor, and Erase Without Wrecking Your Design

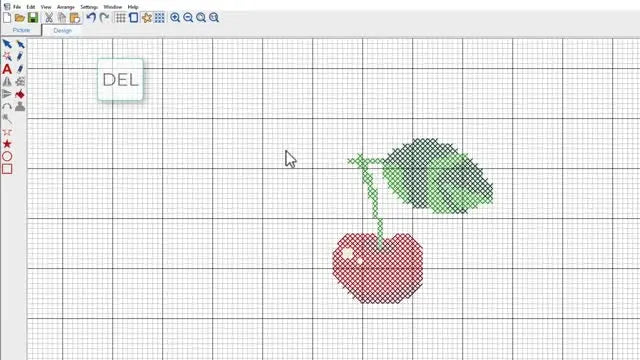

If you’ve ever hit Delete in Hatch Cross Stitch and watched the “wrong” stitches disappear, you’re not alone—and you didn’t break anything. Cross stitch editing feels unforgiving because you’re editing stitches (individual grid units), not traditional vector “objects.”

As an embroidery specialist, I see this panic often. You click a flower, hit delete, and suddenly the stem vanishes too. Once you internalize the logic of "stitch adjacency," the tools in this lesson transform from frustrating to predictable, fast, and safe.

The Calm-Down Primer: Why Hatch Cross Stitch Editing Feels “Touchy” (and How Pros Stay Safe)

In Hatch Cross Stitch, you are technically operating a grid-based editor. You’re constantly balancing two goals that are usually at odds with each other:

1. Edit quickly (Efficiency): So you don’t spend an hour fixing a 10-second mistake.
2. Edit safely (Quality Assurance): So you don’t accidentally delete outlines, shift blocks, or create "micro-gaps" that look fine on screen but cause thread breaks at the machine.

The video’s core message is simple: Selection comes first, then you decide whether you’re changing Crosses, Outlines, or both. When you treat selection + layer locking as a safety ritual, you stop making “panic edits.”

The Physical Reality Check: One practical mindset shift helps immensely: even though this is software, every grid square you edit represents a physical needle penetration. A tiny gap you create on-screen (even 1mm) can become a visible hole or a weak structural edge when stitched—especially on unstable fabrics like pique knits or terry cloth.

Warning: Physical Safety Alert. Editing stitches is deceptively easy to overdo. If you are trimming jump threads or cleaning up a test sew-out based on your software edits, keep fingers clear of the needle bar and moving pantograph. Always use proper embroidery snips. Rushing the cleanup phase is the #1 cause of minor puncture injuries in the studio.

The “Hidden” Prep Before You Click Anything: Set Yourself Up for Clean Edits in Hatch Cross Stitch

Before you start selecting and deleting, do two small things that prevent 80% of beginner frustration. This is your "Cockpit Check."

1. Define Your Target: Know exactly what you are trying to protect (outlines, crosses, or both). 2. The Vision Check: Zoom to the level where you can see individual stitch blocks. Auto Select depends entirely on whether stitches touch on a side versus a corner. If you can't see the grid clearly, you are flying blind.

A lot of users think they’re selecting “a leaf” or “a leg,” but Hatch is selecting whatever falls generally inside your selection boundary. That’s why zoom and specific tool choice matter.

Hidden Consumables for Precision

• High-DPI Mouse: Trying to edit cross-stitch grids with a trackpad is a recipe for wrist pain and errors. Use a mouse with adjustable sensitivity.
• Blue Light Glasses: You will be staring at high-contrast grids; protect your eyes to maintain focus.

Prep Checklist (Do this every session)

• Zoom Check: Can you clearly distinguish between a stitch touching on a side (flat edge) vs. a corner (point)?
• Action Plan: Decide if your next move is Move, Delete, Copy, or Recolor. This minimizes "undo" loops.
• Layer Strategy: If you constitute a delete command, have you mentally confirmed which layer (Outlines vs. Crosses) is active?
• Visual Adjacency: Remind yourself: What looks “connected” visually may not be connected by strict grid adjacency.

The Fast Rectangle Grab: Using Select Object Tool Without Accidentally Missing Pieces

The first method shown is the "Dragnet"—the classic click-and-drag rectangle selection.

The Action:

1. Choose Select Object Tool.
2. Click and drag a rectangle around the element you want.
3. Important nuance: The entire element must be fully enclosed inside the rectangle. If even one pixel is outside, it won't be grabbed.


Sensory Check (Visual): Look for the Magenta Highlight. You should see the selected element glow magenta (or your system's highlight color) with a bounding box around it. If it doesn't light up, you missed a corner.

When this works best:

• Isolated elements with "breathing room" (white space) around them.
• Quickly grabbing a whole motif to move it.

When it fails:

• Tight clusters (like insect legs or floral centers) where a rectangle will inevitably "catch" neighboring stitches you didn't intend to move.

The Precision Lasso for Awkward Shapes: Polygon Select Tool for Irregular Areas

When a rectangle is too clumsy—like trying to pick up a single coin with oven mitts—you switch to the Polygon Select Tool. This is your scalpel.

The Action:

1. Press Escape to drop any active tools.
2. Choose Polygon Select Tool.
3. Click point-to-point around the irregular area (the video example is a beetle/ladybug leg).
4. Listen for the rhythm: Click... click... click... following the shape.
5. Press Enter to seal the selection.


Sensory Check (Visual): You should see a "wireframe" boundary following your mouse clicks. Once you hit Enter, the wireframe snaps tight to the stitches.

Expert Experience: The Polygon tool is also your best friend for cleaning up "Stray Confetti"—those annoying single stitches left behind after a color change or deletion. It's much faster to lasso them than to delete them one by one.

The “It Only Works If They Touch” Rule: Auto Select Tool and Contiguous Color Blocks

Hatch Cross Stitch includes a unique Auto Select tool that targets contiguous areas. This is where most beginners get confused.

The Action:

1. Choose Auto Select Tool.
2. Click a solid color block (like the stem in the example).
3. Hatch selects only adjoining stitches of the same color.


The "Physics" of the Grid: Here is the immutable rule:

• Side-to-Side: Stitches MUST touch on a flat side to be considered "contiguous."
• Diagonal/Corner: If they only touch at a corner point, Auto Select treats them as separate islands.

This is why Auto Select sometimes “misses” what your eye perceives as a single shape.

Sensory Check (Visual): Look for the "Marching Ants" (dotted selection line). It should encompass the entire block you intended. if it stops halfway, check for a diagonal connection—that is your break point.

The Safety Switch That Saves Designs: Locking Outlines vs Crosses in the Edit Menu

This is the moment that separates the amateur hobbyist from the efficient digitizer. This function is your "Safety Switch."

The video shows that if you delete a fill area, you might accidentally delete the outline too—unless you lock it first.

The Action (Deleting Fills Only):

1. Go to the Edit menu.
2. Uncheck “Outlines”. This locks the outlines so they cannot be touched.
3. Use Auto Select to grab the fill.
4. Press Delete.




Sensory Check (Visual): After hitting delete, the color block disappears, but the black skeletal structure (the outline) remains perfectly intact.

The Reverse Action (Deleting Outlines Only):

1. Turn Outlines back on.
2. Uncheck “Crosses” (locking the crosses/fills).
3. Select all and delete. This strips the "skeleton" but leaves the "meat."


Why this matters commercially: Locking layers is how you safely create product variants. For example, creating a "Vintage Look" (Crosses only, no outline) vs. a "Cartoon Look" (Crosses with heavy outline).

Copy/Paste Without Chaos: Duplicating a Motif and Moving It Cleanly

Once you’ve made a clean selection, the video demonstrates duplication—the key to building patterns.

The Action:

1. Select the entire rose.
2. Copy (CTRL+C) and Paste (CTRL+V).
3. Crucial Step: The pasted copy appears exactly on top of the original. You must move it immediately.


Sensory Check (Visual): It will look like nothing happened initially because the layers are stacked. Click and drag the selection; you should see the "ghost" image separate from the original.

Setup Checklist (Before Recoloring):

• Separation: Is the duplicate fully cleared from the original? (No overlapping pixels).
• Targeting: Zoom in. Can you click specific color blocks without hitting the background?
• Volume: Are you changing 3 blocks or 300? (Determines if you use CTRL-Click or a Global Color Swap).

Bulk Recolor Like a Pro: CTRL+Click Multi-Selection and Palette Changes

The video efficiently recolors the duplicate rose using multi-selection.

The Action:

1. Use Auto Select.
2. Click the first red area.
3. Hold CTRL (Command on Mac).
4. Click additional red areas to add them to the "Group."
5. Right-click on the color palette and swap (e.g., Red to Orange).




Sensory Check (Visual): Watch the selection boxes. Multiple distinct areas should be highlighted simultaneously. When you click the new color, they should all flash not just to a new color, but to the same new color.

Expert Note: If Auto Select misses an island during this process, it is almost always the Corner-Touch Rule at play. Don't panic; just CTRL+Click the missed island to add it manually.

Clean Corrections Without Collateral Damage: Eraser Tool + Pencil Tool Right-Click Trick

For the final cleanup, we use the "manual labour" tools.

The Action:

1. Ensure Outlines and Crosses are both unlocked (active).
2. Choose the Eraser Tool.
3. Context Check: Ensure the correct stitch type is active on the toolbar.
4. Click and drag to "wipe away" mistakes.




Precision Mode:

• Switch context to Single Line (bottom toolbar).
• Use the Eraser on backstitch outlines without hurting the fill.




The 'Pro' Short-Cut: Instead of switching tools, you can often hold the Right Mouse Button while using the Pencil Tool to turn it into a temporary eraser.

Operation Checklist (The Pre-Save Audit)

• Gap Check: After erasing, zoom out to 100%. Did you accidentally create a visible white gap between the fill and outline?
• Mode Verification: If erasing outlines, are you definitely in Single Line mode?
• Adjacency Audit: If Auto Select was "picky," did you verify the corner connections?
• Undo Safety: When in doubt, CTRL+Z. Fixing a bad selection is 10x faster than manually repairing deleted stitches.

Troubleshooting: The 3 Most Common “Why Won’t It Work?” Moments

Follow this hierarchy: Check your Selection Tool -> Check your Adjacency -> Check your Locks.

The Real-World Payoff: Turning Clean Files Into Profit (Commercial Logic)

Software editing is only 50% of the battle. The other 50% is the physical execution. You can have a perfect cross-stitch file in Hatch, but if your hooping logic is flawed, the result will be puckered fabric and misaligned outlines.

If you are stitching cross-stitch style designs—which are dense and stitch-heavy—on garments, towels, or tote bags, your physical workflow is the bottleneck.

The "Tool Upgrade" Logic: When should you stop relying on "skill" and start relying on "better engineering"?

1. The Pain: You are fighting "Hoop Burn" (shiny ring marks) on delicate items, or your wrists ache from tightening screws on 50 shirts.
   • The Upgrade: Professionals often switch to a magnetic embroidery hoop to eliminate hoop burn. These frames snap together using magnetic force rather than friction, protecting the fabric grain.
2. The Pain: You are running a production batch (e.g., 20 Christmas towels) and re-hooping takes longer than the stitching.
   • The Upgrade: High-quality machine embroidery hoops designed for speed allows you to prep the next item while the machine is running.
3. The Pain: Your placement is inconsistent (crooked logos).
   • The Upgrade: Using a dedicated magnetic hooping station ensures every shirt is loaded at the exact same angle and tension, reducing rework to near zero.

Decision Tree: Stabilizer + Hooping Strategy for Dense Cross Stitch

Use this logic flow to determine your setup:

1. Is the fabric stretchy (T-shirts/Performance Polos)?

• YES: Use Cutaway Stabilizer (Must have). Hoop the stabilizer tight, but "float" the shirt or use a Magnetic Frame to avoid stretching the fabric fibers.
• NO: Go to Step 2.

2. Is the fabric lofty/textured (Terry Towels/Fleece)?

• YES: Use Water Soluble Topping (Solvy) to prevent stitches sinking. Use a Magnetic Hoop to hold the thick fabric without crushing the pile.
• NO: Go to Step 3.

3. Are you scaling production?

• Hobby: Standard hoops are fine.
• Business: Invest in hooping for embroidery machine efficiency tools like magnetic frames to double your output speed.

Warning: Magnetic Safety. Keep how to use magnetic embroidery hoop instructions handy. These magnets are industrial strength—they are not fridge magnets. They can pinch fingers severely. Keep them away from pacemakers and sensitive electronics.

The Final Scale-Up: If you master Hatch editing and perfect your hooping, but still find yourself waiting on the machine, the machine itself is the limit. Single-needle machines require constant manual thread changes for multi-colored cross-stitch designs. This is the stage where shops upgrade to SEWTECH Multi-Needle Machines. The ability to pre-set 10-15 colors and walk away turns "embroidery labour" into "embroidery management."

FAQ

• Q: In Hatch Cross Stitch, why does pressing Delete remove the flower stem when deleting only the flower fill, and how do I delete crosses without deleting outlines?
  A: Lock the Outlines layer before deleting, because Hatch Cross Stitch deletes stitches based on what is currently editable.
  • Open the Edit menu and uncheck “Outlines” to lock outlines.
  • Use Auto Select Tool to click the fill (crosses) area you want removed.
  • Press Delete only after confirming Outlines are locked.
  • Success check: the color block disappears while the black outline structure stays intact.
  • If it still fails: re-check the Edit menu—if both Outlines and Crosses are active, Hatch Cross Stitch can delete both.
• Q: In Hatch Cross Stitch, why does Auto Select Tool miss half the flower when selecting a solid color block, even though the shape looks connected?
  A: Auto Select Tool only follows same-color stitches that touch side-to-side, not corner-to-corner, so diagonal connections become separate “islands.”
  • Zoom in until individual grid squares are clearly visible.
  • Click the main area with Auto Select Tool, then hold CTRL (Command on Mac) and click the missed islands to add them.
  • Re-check the break point where the connection is diagonal rather than flat-edge.
  • Success check: the “marching ants” selection line encloses every intended section of that color.
  • If it still fails: switch to Polygon Select Tool and manually lasso the entire region.
• Q: In Hatch Cross Stitch, why does Select Object Tool fail to grab a motif when drag-selecting a rectangle around it?
  A: Select Object Tool only grabs elements that are fully enclosed by the rectangle—if any part sits outside the box, Hatch Cross Stitch will not select it.
  • Switch to Select Object Tool and drag a rectangle with extra margin around the motif.
  • Ensure no stitch pixels touch or cross the rectangle boundary before releasing the mouse.
  • Watch for the magenta highlight and bounding box to confirm selection.
  • Success check: the entire motif lights up (highlight) and shows a clear bounding box.
  • If it still fails: use Polygon Select Tool for tight clusters where a rectangle keeps catching neighbors.
• Q: In Hatch Cross Stitch, what is the fastest way to select a tiny irregular shape (like an insect leg) without grabbing nearby stitches?
  A: Use Polygon Select Tool and click point-to-point around the exact shape, then seal the selection with Enter.
  • Press Escape to drop any active tools first.
  • Choose Polygon Select Tool and click around the shape like connect-the-dots.
  • Press Enter to close the lasso and commit the selection.
  • Success check: a tight wireframe becomes a selection that matches the leg shape without pulling adjacent stitches.
  • If it still fails: zoom in further so the click points land cleanly on the grid edges, not between blocks.
• Q: In Hatch Cross Stitch, why does copying and pasting (CTRL+C / CTRL+V) look like nothing happened, and how do I move the duplicate safely?
  A: The pasted copy lands directly on top of the original, so you must move it immediately to see it.
  • Select the motif, then CTRL+C and CTRL+V to paste.
  • Click-and-drag right away to separate the “ghost” copy from the original.
  • Zoom in and confirm the duplicate is fully clear before recoloring to avoid accidental overlap.
  • Success check: you can visibly drag the duplicate away and see two distinct motifs with no stacked pixels.
  • If it still fails: reselect using the highlight/bounding box confirmation—if nothing highlights, the original selection did not include the full motif.
• Q: In Hatch Cross Stitch, how do I bulk recolor multiple separate red areas at once using Auto Select Tool without missing islands?
  A: Use Auto Select Tool plus CTRL+Click to build a multi-selection group, then swap the palette color in one action.
  • Click the first target color area with Auto Select Tool.
  • Hold CTRL (Command on Mac) and click additional same-color areas to add them to the group.
  • Right-click the color palette and change the color (e.g., Red to Orange).
  • Success check: all selected areas change to the exact same new color at the same time.
  • If it still fails: assume the corner-touch rule caused an island—CTRL+Click the missed section manually.
• Q: What needle safety steps should be followed when trimming jump threads or cleaning up a test sew-out after Hatch Cross Stitch edits?
  A: Treat cleanup as a physical needle hazard—keep fingers clear of the needle bar and moving pantograph, and use proper embroidery snips.
  • Stop and position the work so hands are not under the needle path before trimming.
  • Use proper embroidery snips rather than pulling or rushing thread removal.
  • Work slowly when removing jump threads created by dense cross-stitch edits.
  • Success check: jump threads are removed cleanly with hands never entering the needle strike zone.
  • If it still fails: pause and reset the workflow—rushing cleanup is a common cause of minor puncture injuries.
• Q: For dense cross-stitch style embroidery on shirts, towels, or batch orders, when should a shop upgrade from standard hoops to magnetic hoops or a multi-needle machine?
  A: Use a tiered decision: optimize technique first, then upgrade hooping hardware for consistency/speed, then upgrade to a multi-needle machine when thread changes become the bottleneck.
  • Level 1 (technique): match stabilizer and topping to fabric type and verify placement consistency before scaling.
  • Level 2 (tool): switch to magnetic hoops when hoop burn, fabric distortion, or slow re-hooping is limiting results and throughput.
  • Level 3 (capacity): move to a multi-needle machine when multi-color cross-stitch designs are slowed mainly by manual thread changes.
  • Success check: re-hooping time drops and placement becomes repeatable without rework across a small batch.
  • If it still fails: revisit the fabric decision points—stretch fabrics often need cutaway stabilizer and a non-stretch hooping approach, and lofty fabrics often need water soluble topping to prevent sink-in.
