How to Thread the Brother VR Embroidery Machine

Preparation: Spool Caps and Thread Direction

Embroidery is a game of millimeters and tension. Threading problems on the Brother VR usually aren’t mysterious "ghosts in the machine"—they are almost always physical errors: a missed guide, a snag at the spool, or the thread sitting on the wrong surface at the pre-tension knob.

As a Chief Embroidery Education Officer, I tell my students: Treat threading like a pilot’s pre-flight check. If you rush this, you will pay for it later with birdnests, broken needles, and ruined garments.

In this masterclass walkthrough, you’ll thread the machine exactly in the numbered sequence (1–6). We will move beyond just "putting the thread in the hole" and focus on the tactile feedback—the clicks, the resistance, and the angles—that confirm you’ve done it right.

If you’re new to the brother vr embroidery machine, mastering this setup skill is the single most effective way to prevent downtime, especially when you are trying to run consistent jobs for paying customers.

What you’ll learn (and why it matters)

• The Physics of Unwinding: How to mount the spool so it feeds without "whipping" or snagging.
• Cognitive Filtering: How to follow Guides 1–6 without getting distracted by other printed numbers on the machine body.
• The "Silent Killers": The two error triggers that cause most threading failures—Guide 3 not fully seated, and thread riding on plastic instead of the metal rail.
• The "Two-Hand" Technique: How to manipulate the automatic needle threader using the LCD button and physical mechanics.
• Micro-Mechanics: How to catch the internal hook through the needle eye (the hardest part) and diagnostics for when it fails.

Prep checklist (do this before you touch the thread path)

Before you begin, ensure your environment is sterile and your tools are ready. This isn't just about the machine; it's about your workflow.

• Spool Audit: Correct thread spool mounted on the stand (spool unwinds in the correct direction, facing forward as shown in the video).
• Cap Match: Spool cap selected that matches the spool diameter (too small = snagging; too big = friction).
• Tool check (Hidden Consumables): Have sharp micros-snips or curved scissors ready. A clean cut is vital for the needle threader.
• Lighting: Good lighting at the needle area (use the machine’s LED plus an extra gooseneck lamp if needed).
• Hygiene: Needle area clear of lint and stray thread tails (use an air duster or tweezers).
• Sensory Check: Hands clean and dry. Oily fingers make the thread slip; sticky fingers create drag.

Warning: Physical Safety Hazard. Keep fingers clear of moving parts when you press the physical white button to lower/raise the threading mechanism. Never force the threader lever or hook. If you feel metallic resistance, stop. Forcing it will bend the delicate internal hook ($$), leading to repeated failures.

Spool placement (Step 1)

1) Mount the Spool: Place the thread spool on the stand so it unwinds in the correct direction. In our demonstration, the spool faces forward.

• Expert Note: The thread should flow off the spool like water. If it has to "jump" over the rim of the spool, your tension will be erratic.

2) Cap It: Immediately place a spool cap on top of the spool. Press it down until there is zero gap between the cap and the thread spool.

Checkpoint: The spool cap sits flat. Pull a few inches of thread.

• Sensory Check (Auditory): The thread should pull silently.
• Sensory Check (Tactile): You should feel zero "tugging" or vibration on the line.

Expected outcome: When you tug the thread gently, it feeds consistently with no "tick-tick" snagging sound.

Why this matters in real production: A snag at the spool doesn't just break thread. It creates "micro-tension spikes." These spikes can pull the bobbin thread to the top (showing white dots on your design) or cause the machine to register a false "thread break" error.

If you’re comparing machines for a small shop, the brother vr is popular because it’s approachable—but it still rewards disciplined setup habits like this. Precision at the spool equals beauty at the needle.

The Upper Threading Path (Guides 1-3)

The Brother VR is friendly because it literally prints the path numbers on the machine body. However, under the stress of a deadline, your eyes can play tricks on you. The trap is that there are other numbers for bobbin winding or maintenance—so you must stay laser-focused on the main sequence (1 through 6).

Guides 1 and 2 (Step 2)

1) Guide 1: Follow the printed "1" and pass the thread through the back vertical guide.

2) Guide 2: Continue to the printed "2" at the top guide on the tension assembly.

Checkpoint: The thread must be seated inside each metal eyelet, not riding on the edge.

• Visual Check: Look from the side. Is the thread passing through the center of the loop?

Expected outcome: The thread path looks clean and straight, with no twists or kinks.

Watch out (from common user confusion): Tunnel vision is key here. If you see other printed numbers nearby used for winding bobbins, ignore them unless they are part of the specific 1–6 sequence shown in the video.

Guide 3 (pre-tension clip) (Step 3)

STOP. Pay attention here. This is the single most important "error prevention" step in the whole upper path. 80% of "tension issues" reported by beginners are actually "Guide 3" issues.

1) Locate the small blue guide labeled "3."

2) The "Flossing" Motion: Push the thread firmly into the guide using a flossing motion (back and forth) until it seats deep into the metal clip.

Checkpoint: The thread is seated deep in the clip.

• Sensory Check (Tactile): You should feel a subtle "click" or a sensation of the thread sliding into a groove. If it feels loose, do it again.

Expected outcome: The machine threads normally without throwing an error related to the upper path.

Practical explanation (The 'Why'): Guide 3 acts as a pre-tension control point and a check spring. If the thread isn't fully seated, the machine's sensors cannot detect the thread moving. This causes the machine to stop and beep "Check Upper Thread" even if the thread isn't broken.

If you’re setting up any brother embroidery machine for repeatable results, treat "fully seated in Guide 3" as non-negotiable.

Navigating the Tension Knob Correctly

We are entering the "Control Zone." This is the second major error trigger: friction management. The thread must sit on the polished metal rail, not the raw plastic housing.

Wrap the thread around the tension knob (Step 4)

1) The Clockwise Wrap: Wrap the thread clockwise around the tension knob.

2) The Metal Rail Check: As you pull the thread up around the knob, confirm it is riding on the silver metal rail/plate.

Checkpoint:

• Visual Check: Lean in and look. Is the thread sitting on the silver metal? Or is it cutting across the black/grey plastic casing?

Expected outcome: The machine accepts the threading path and runs without "won't work / error" behavior caused by misrouting.

Why this matters (Expert Context): Plastic has a much higher coefficient of friction than polished metal. If the thread rides on the plastic, it creates drag. This drag mimics high tension, causing your top thread to pull too tight, snapping threads, or puckering your fabric.

Decision tree: choosing stabilization and hooping approach for fewer thread/tension surprises

Correct threading is only half the battle. If your "foundation" (hoop + stabilizer) is weak, the perfect thread path won't save you. Use this decision tree to prevent the "it threaded fine but stitched badly" scenario.

Warning: Magnetic Field Safety. High-end magnetic frames use powerful Neodymium magnets. They can pinch skin severely. Crucially: Keep magnetic frames away from pacemakers, implanted defibrillators, and insulin pumps. Keep them away from credit cards and smartphones.

Business-minded note: If you find yourself avoiding orders for sleeves, pockets, or thick jackets because hooping is a nightmare, you are leaving money on the table. A free-arm machine like the VR allows for tubular items, but the standard hoops can be limiting. Professional shops pair the VR with a magnetic embroidery hoop system (like those from Sewtech) to reduce re-hooping time by 30-40% and eliminate operator wrist fatigue.

Using the Automatic Needle Threader

Once you reach the bottom of the numbered path, the printed numbers end. Now, we switch to the digital interface and the machine’s robotics. This requires finesse.

Thread Guides 4, 5, and 6 (Step 5)

1) Guide 4: Pass the thread under the horizontal metal bar labeled "4."

2) Guide 5 (Take-up Lever): Follow the arrow upward to the take-up lever area at "5." Make sure it slips into the eye of the lever. Tip: If the lever isn't visible, turn the handwheel until it is at its highest point.

3) Guide 6 (Needle Bar): Bring the thread back down to "6," the small guide directly above the needle clamp.

4) The Tension Hold: Hold the thread taut with your left hand while passing it through Guide 6 with your right.

Checkpoint: The thread is fully seated in each guide. You are holding it with light, consistent tension (think "dental floss," not "tug of war").

Expected outcome: The thread is positioned cleanly above the needle area, vertically aligned for the automatic threader.

Engage the threading mechanism (Step 6)

1) Digital Command: On the LCD screen, press the "Threading" button (icon looks like a needle with thread). This aligns the machine internally.

2) Mechanical Action: Press the physical white button on the machine head to lower the threading mechanism.

Checkpoint: You can see the threading hooks lower and rotate into position near the needle.

Expected outcome: The mechanism is fully down. The internal hook should be physically pushed through the eye of the needle from back to front.

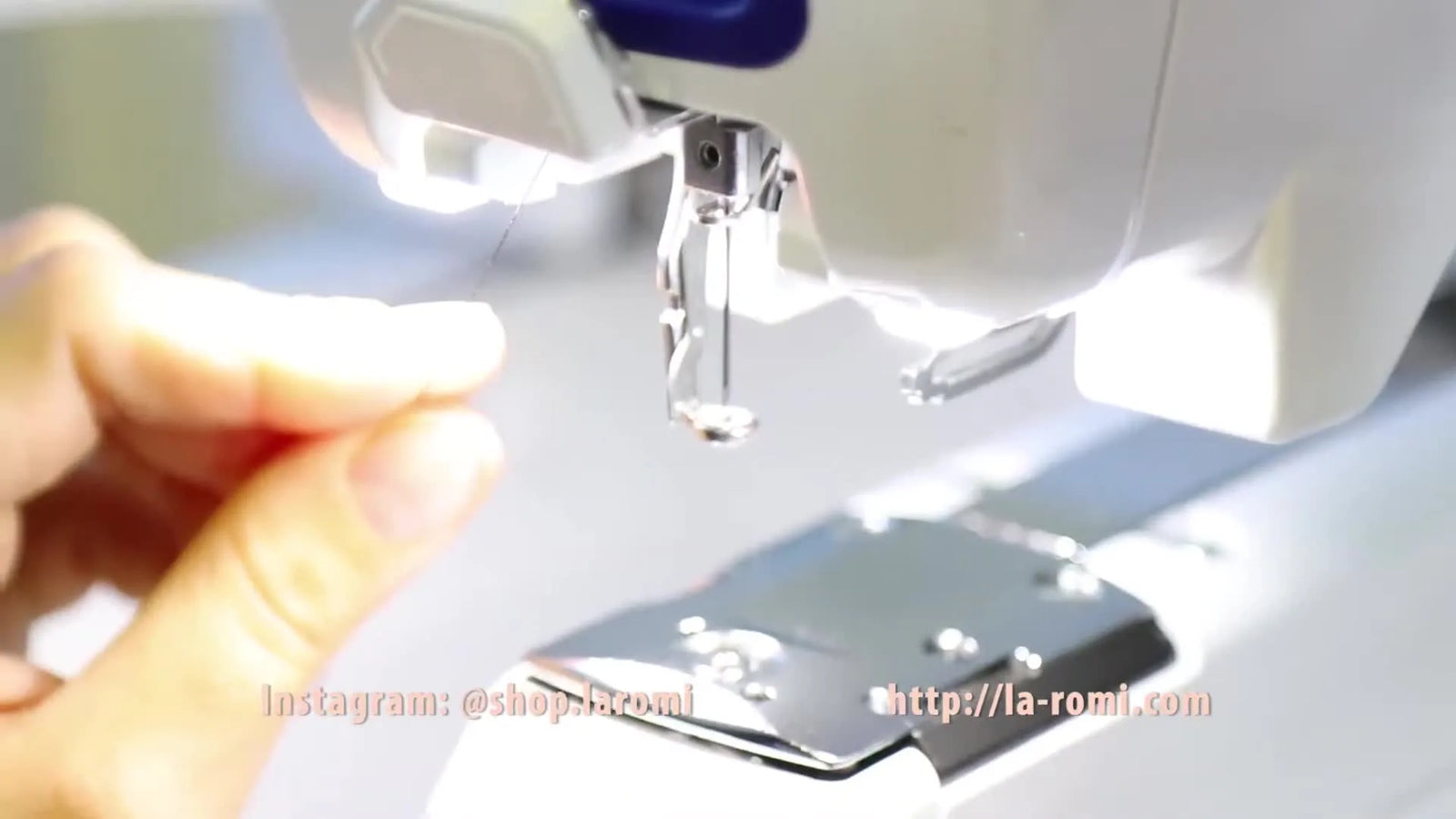

Catch the hook and thread the needle (Step 7)

This is the "Crux Move." It relies on hand positioning and keeping the thread level.

1) Two-Hand Control: Use both hands. Do not try to do this with one hand.

2) Horizontal Tautness: Hold the thread taut horizontally across the front of the needle.

3) Under the Forks: Pass the thread under the plastic guide forks of the threader assembly.

4) The Catch: Gently guide the thread upward to catch the tiny internal hook that is sticking out of the needle eye.

• Sensory Check (Visual): You need to see the thread snag on that tiny metal hook.

5) The Cut: Once hooked, pull the thread gently upward/sideways toward the built-in cutter on the side and trim it.

6) The Release: Press the physical white button again to complete the threading cycle.

Checkpoint: Before you press the button to finish, confirm the thread is actually caught on the hook (not just resting near it).

Expected outcome: As the mechanism retracts, it pulls a loop of thread through the needle eye. Pull this loop to the back to finish.

Operation checklist (repeat this every time you re-thread)

If doing a color change, perform this rapid fire check:

• Spool: Cap installed? Unwinding smooth?
• Path: Guide 1 & 2 correct?
• Guide 3: DID IT CLICK? (Thread fully seated).
• Tension: Thread on METAL, not plastic?
• Needle Bar: Thread caught in Guide 6?
• LCD: "Threading" button pressed?
• Mechanism: Level and locked?
• The Catch: Thread caught on internal hook?
• Success: Loop pulled through needle eye?

Efficiency tip for small shops: If you are doing frequent color changes or short-run personalization, setup time kills profit. Build a "threading station" habit—keep straight tweezers, spare spool caps, and a small flashlight always in the same place. If you later scale into batch work (50+ items), tools like hooping stations become essential to reduce handling time, ensuring every logo is placed identically without measuring every shirt.

Troubleshooting: What to Do When the Threader Hook Bends

When the machine errors during embroidery, it can sometimes lead to the automatic threader failing afterward—not because you forgot a step, but because of mechanical trauma.

Symptom → Cause → Fix (Structured Diagnostics)

Use this table to diagnose issues from "Low Cost" (User Error) to "High Cost" (Mechanical Failure).

Pro tip: Don’t "half re-thread." When you’re chasing an error, cut the thread at the spool and redo the full path from Step 1. Most repeat errors come from assuming the top section is "probably fine." It usually isn't.

The "Bent Hook" Nightmare

Likely cause: The tiny hook acts as a fuse. If the machine jammed previously, the hook might be slightly bent out of alignment. Fix: Visually inspect the hook with a magnifying glass.

• Option A (Risky): Try to gently bend it back with tweezers (not recommended for novices).
• Option B (Safe): Call a technician.
• Prevention: Never force the threader if the needle is slightly bent or if you are using a needle size smaller than 75/11 (too small for the hook to fit).

Preventing repeat problems (What experienced operators do)

1. Fresh Cuts: Keep the thread end cleanly cut before using the threader; frayed ends act like brushes and are harder for the hook to grab.
2. Goldilocks Tension: Maintain consistent, gentle tension with your hands—taut enough to guide, not so tight that you pull the needle bar out of alignment.
3. Know When to Fold: If threading suddenly becomes "impossible" after a crash, stop. Inspect the hook. Better to hand-thread the needle for a day than to break the mechanism further.

If you’re building a business and considering upgrades, the VR is a strong bridge machine. However, once you’re doing volume production, track your "Time per Garment." If you spend 5 minutes re-hooping and threading for a 3-minute stitch-out, your specialized labor is wasted. This is where workflow tools matter. Pairing repeatable hooping habits with a hoop master embroidery hooping station or upgrading to magnetic frames can reduce that 5-minute setup to 30 seconds.

Results

You now have a complete, repeatable threading process for the Brother VR:

1. Spool: Mounted correct direction + Cap + Check for snags.
2. Path: Guides 1–2 followed. Guide 3 seated with a click.
3. Tension: Thread riding on the Metal Rail.
4. Action: Two-hand technique for the automatic threader.
5. Recovery: A diagnostic path if the hook fails.

If you’re planning to add this machine to a small embroidery business, your biggest early win is consistency. Thread the same way every time. Verify the two critical checkpoints (Guide 3 + Metal Rail). Don't force the threader.

And remember, as your confidence grows, your tools should evolve. When you are ready to speed up production on tubular items or tricky knits, consider whether magnetic embroidery hoops fit your workflow—they are often the secret weapon for shops that need to deliver perfect results, fast, without the physical strain. Happy stitching.## FAQ

• Q: On the Brother VR embroidery machine, what spool cap size and spool direction prevent snagging and false “thread break” stops?
  A: Use a spool cap that matches the spool diameter and mount the spool so thread unwinds smoothly in the demonstrated forward-facing direction.
  • Install: Place the spool on the stand so the thread feeds off cleanly (no “jumping” over the spool rim).
  • Match: Choose a spool cap that sits flat and press it down until there is zero gap.
  • Pull-test: Draw a few inches of thread before threading the machine.
  • Success check: The thread pulls silently with zero “tick-tick” snagging and no vibration in your fingers.
  • If it still fails: Re-check for cap too small (snagging) or too large (friction), then re-run the full upper path from the spool.
• Q: On the Brother VR embroidery machine, how do you confirm the thread is fully seated in Guide 3 (blue pre-tension clip) to stop “Check Upper Thread” beeping?
  A: Seat the thread into Brother VR Guide 3 using a firm flossing motion until it clicks into the metal clip.
  • Locate: Find the small blue guide labeled “3”.
  • Floss: Push the thread back-and-forth into the clip (do not just lay it across the opening).
  • Re-seat: Repeat if it feels loose or shallow.
  • Success check: A subtle tactile “click”/snap-in feeling and the thread sits deep in the clip, not floating at the edge.
  • If it still fails: Cut at the spool and re-thread from Step 1—most repeat errors come from partial re-threading.
• Q: On the Brother VR embroidery machine, why does the upper thread cause birdnesting or loose loops on top when routed around the tension knob, and how do you fix the metal-rail vs plastic misroute?
  A: Re-wrap the Brother VR thread clockwise so it rides on the silver metal rail/plate—not across the black/grey plastic housing.
  • Wrap: Route the thread clockwise around the tension knob exactly as shown.
  • Verify: Lean in and visually confirm the thread is contacting the silver metal surface the whole way.
  • Re-do: If the thread slips onto plastic, remove it and wrap again with proper routing.
  • Success check: The thread path sits on metal (not plastic), and stitching runs without sudden tightness, snapping, or top-side looping/birdnesting.
  • If it still fails: Re-check Guide 3 seating first, then confirm Guides 1–2 are inside the metal eyelets (not riding an edge).
• Q: On the Brother VR embroidery machine, what is the safest way to use the automatic needle threader without bending the hook after a jam?
  A: Never force the Brother VR needle threader; use the LCD threading command first, keep fingers clear, and stop immediately if there is metallic resistance.
  • Command: Press the LCD “Threading” button (needle-with-thread icon) to align the mechanism before lowering it.
  • Operate: Press the physical white button to lower/raise the threading mechanism—do not push the mechanism by hand.
  • Protect: Keep fingers away from moving parts and never force a lever or hook.
  • Success check: The mechanism lowers smoothly and the hook aligns through the needle eye without scraping or hitting metal.
  • If it still fails: Hand-thread temporarily and inspect for a bent hook or needle issues before trying again.
• Q: On the Brother VR embroidery machine, how do you get the automatic needle threader to catch the thread and pull a loop through the needle eye (two-hand technique)?
  A: Hold the thread taut horizontally with two hands, route it under the threader forks, and visibly catch the tiny hook before releasing the mechanism.
  • Hold: Keep light, consistent tension across the front of the needle (taut like dental floss, not yanking).
  • Route: Pass the thread under the plastic guide forks of the threader assembly.
  • Catch: Guide the thread upward until it visibly snags on the tiny hook protruding through the needle eye.
  • Success check: A loop is pulled through the needle eye as the mechanism retracts; pull the loop to the back to finish.
  • If it still fails: Re-cut the thread end cleanly (frayed ends miss the hook) and retry—if the hook will not enter the needle eye, stop and inspect for hook bend or needle orientation problems.
• Q: When embroidering stretchy knits on the Brother VR embroidery machine, what stabilizer and hooping choice reduces distortion and hoop burn, and when should a magnetic embroidery hoop be considered?
  A: Use cutaway mesh (no-show) as the base stabilizer for knits and consider a magnetic embroidery hoop if traditional hoops leave rings or cause repeat re-hooping pain.
  • Stabilize: Apply Cutaway Mesh (No Show); add a water-soluble topper if stitches sink into the knit.
  • Diagnose: Watch for fabric distortion affecting registration and permanent hoop marks (“hoop burn”).
  • Upgrade (Level 2): Switch to a magnetic embroidery hoop to clamp without friction burn and speed consistent hooping on delicate knits.
  • Success check: The knit stays stable during stitching, the design stays registered, and the garment shows no lasting hoop rings after unhooping.
  • If it still fails: Re-check that hooping is firm and even (not over-stretched), and verify threading checkpoints (Guide 3 + metal rail) before changing tension settings.
