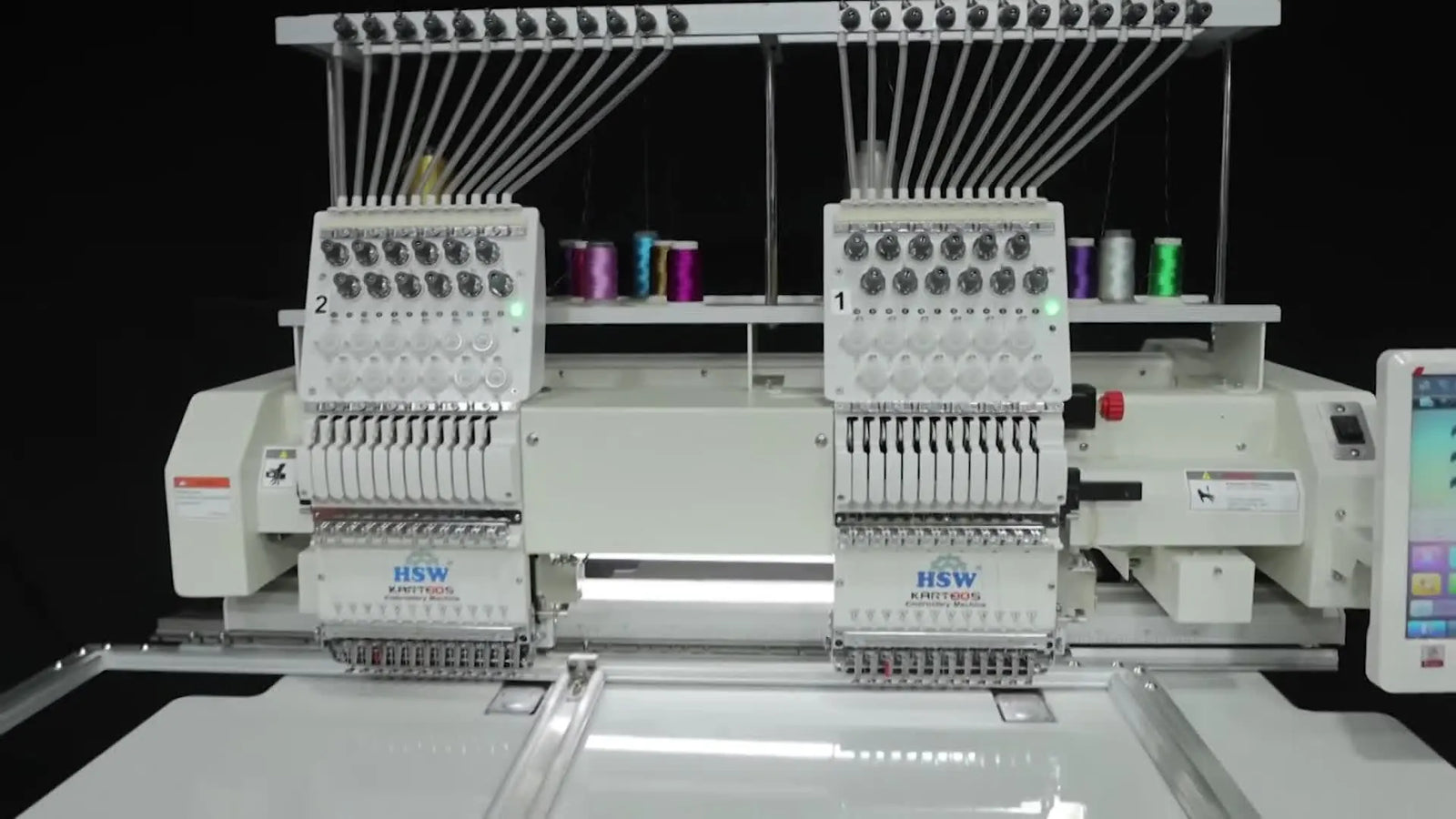

HSW 2-Head 12-Needle Embroidery Machine Review: The Real 60% Time-Saving Play (and How to Set Up Production Without Regrets)

When you are running a small embroidery shop, there is a specific moment where the aggressive joy of creation turns into the dull ache of a bottleneck. It usually happens when you land your first recurring corporate order—50 polos, same logo, same deadline. Suddenly, your single-head machine stops feeling like an artistic tool and starts feeling like an hourglass letting sand through one grain at a time.

This is the exact operational lane the HSW Two Head Embroidery Machine targets: business owners who are stitching the same design across multiple garments and need to double their output without cloning themselves.

In the video, Tapan Kapadia walks through the HSW two-head platform. He explains why it is built for parallel production and how the math works out to roughly 60% time savings when batching pieces (backs/fronts/sleeves) versus finishing one garment at a time. However, as an educator, I’m going to anchor these facts to the shop-floor realities that determine whether you actually keep that speed—or lose it to setup errors.

Calm the Panic: A Two-Head Machine Won’t Fix Chaos—But It Will Multiply Good Habits

Let’s be brutally honest: buying a two-head machine does not automatically make you twice as fast. It makes you twice as vulnerable to bad preparation.

If your thread path is sloppy on a single head, you ruin one shirt. On a dual-head, a bad tension setting or a poor hooping job ruins two shirts instantly. The machine multiplies your output, but it also multiplies your mistakes.

The upside, however, is massive. If your workflow is disciplined—meaning you use the right stabilizers and standardized hooping methods—a two-head setup turns a grueling 12-hour shift into a manageable 6-hour production run.

The Golden Rule: Parallel stitching only pays when your prep is standardized. If you are tweaking every shirt individually, you have lost the advantage before you press start.

The Specs That Actually Matter on the HSW Two Head Embroidery Machine (KART1202S Head Label)

Specs on a brochure are marketing; specs on the shop floor are constraints. From the video, here are the hard numbers and what they physically mean for your workspace:

• 12 Needles Per Head: The video highlights a 12-needle setup. If you are shopping for a 12 needle embroidery machine, this is your productivity baseline. It means you can load 12 different colors at once. In a production run, this drastically reduces the need to stop and manually change threads, which is the #1 killer of momentum.
• Embroidery Field (400 × 500 mm / 16 × 20 inches): This is generous. It allows for full jacket backs or large sash-frame work without re-hooping.
• Footprint (5 × 6 feet): This is the machine size, but not the working size. You need at least 2 feet of clearance on all sides to walk around and service the bobbin cases.
• 29-inch Door Pass: The machine is designed to fit through standard 29-inch doors. This is critical for home-based businesses or shops in older buildings.


The “Hidden” Prep Before Delivery Day: 29-Inch Door Planning and Shop Layout That Saves Your Back

The video treats the 29-inch door pass as a feature, but moving industrial equipment is a high-stakes operation. A machine of this weight does not "glide." It requires planning.

Warning: Physical Safety
Industrial embroidery machines are top-heavy and extremely heavy. Never attempt to lift or tilt the machine without proper equipment (pallet jack/forklift) and sufficient manpower. Crushed fingers and bent chassis frames are common outcomes of "winging it."

Pre-Flight Inspection Checklist (Do this 1 week before delivery):

• Measure tightest choke points: Don't just measure the door frame; measure the space between the door hinge and the opposite jamb. You need a clean 29 inches.
• Plan the "Operator's Triangle": Mark the floor where you will stand. You need easy access to the control panel, the needle area, and the thread rack.
• Staging Area: Create a designated table to the left of the machine for "To Be Sewn" items and a table to the right for "Finished" items. This prevents floor clutter.


The Production Trick That Makes Two Heads Pay: Running “2 Back / 2 Front / 2 Sleeves” in Sync

The most valuable takeaway from the video isn't the hardware; it's the logic. Tapan explains that the "Two-Head Advantage" is mathematical, not magical.

• Single Head Workflow: Complete Shirt A (Front + Back + Sleeve) -> Start Shirt B. Total time: ~3 hours per shirt.
• Two Head Workflow: Parallel Stitching. Two Fronts at once. Then, two Backs at once. Two Sleeves at once.
• Result: ~3.5 hours for two shirts. This is the 60% time savings.

Why this works: You are eliminating 50% of the setup interactions. You load the design once, set the colors once, and press start once for two garments. You aren't stitching faster; you are stopping less.

Setup Like a Shop Owner, Not a Hobbyist: Standardize Your Pieces Before You Touch the Frame

In a hobby environment, "good enough" is fine. In a two-head production shop, "good enough" causes misalignment.

If Head 1 is stitching a logo 3 inches from the collar, and Head 2 is stitching 3.5 inches from the collar because you loaded the garment sloppily, you just created a reject. To make parallel production work, you must view Consumables as Insurance.

Your Standardization Kit:

1. High-Quality Stabilizer: Cheap backing varies in thickness. Use premium backing to ensure both heads encounter the same resistance.
2. Temporary Spray Adhesive or Pins: Keep fabric from shifting during the vibration of high-speed stitching.
3. New Needles: Change needles on both heads simultaneously. Don’t wait for one to break.


A Practical Stabilizer Decision Tree for Border/Sash-Frame Work (So Your Speed Doesn’t Create Puckers)

The demo shows a sash/border frame setup. This method clamps a large piece of fabric or table cloth across both heads. The risk here is "flagging"—fabric bouncing up and down with the needle—which causes bird-nesting.

Stabilizer Decision Tree (Sensory Guide):

1. Is the fabric stretchy (Knits, Performance Wear)?
   • Yes: MUST use Cutaway.
   • Why: The stitches will slice through the knit fibers. Cutaway acts as a permanent skeleton.
   • Action: Use a medium weight (2.5oz) cutaway.
2. Is the fabric stable (Woven Cotton, Canvas, Denim)?
   • Yes: Use Tearaway.
   • Why: The fabric supports itself; the stabilizer just adds crispness.
3. Is the design dense (lots of fills, >15,000 stitches)?
   • Yes: Double Layer.
   • Rule of Thumb: If you run your hand over the backing and it feels flimsy compared to the fabric, add a second sheet. Cross the grain of the two sheets for maximum strength.


The Sash/Border Frame Reality Check: Clamp Tension, Fabric Distortion, and Why “Flat” Isn’t Always Flat

The aluminum sash frame (border frame) shown is powerful for efficiently utilizing the full 16x20 field. However, it introduces a physics problem: Drum Tension.

When you clamp a wide piece of fabric, you pull it tight.

• The Trap: If you pull it too tight (like a trampoline), the fabric stretches. You stitch on stretched fabric. When you unclamp it, the fabric snaps back, and your beautiful embroidery wrinkles instantly.
• The Sensory Check: Tap the clamped fabric. It should sound like a dull thud, not a high-pitched ping. It needs to be taut, not stressed.


The 60% Efficiency Claim—How to Keep It Real in Your Shop (Time Math You Can Actually Use)

The video claims huge time savings, but in the real world, "Hooping" is the silent killer of profit. You can have the fastest machine in the world, but if it takes you 5 minutes to screw a hoop tight, struggle with wrinkles, and align the shirt, your machine is sitting idle.

This is where traditional hoops fail high-volume production. They cause "Hoop Burn" (shiny rings on fabric) and wrist fatigue for the operator.

The Professional Solution: If you are serious about hitting that 60% efficiency, consider upgrading your workholding. Many growing shops switch to magnetic embroidery hoops.

• Why? They snap on instantly. No screws to tighten. No forcing inner rings into outer rings.
• The Gain: You reduce hooping time from minutes to seconds, and because the magnet holds the fabric flat without crushing the fibers, you eliminate hoop burn. This tool upgrade is often the difference between struggling and scaling.


Running the DAHAO Control Panel While Both Heads Stitch: What to Watch So You Don’t Lose a Whole Pair

The video shows the DAHAO interface. It’s a robust industrial controller. But your eyes shouldn't be glued to the screen; they should be on the thread path.

The "First Minute" Survival Guide: When you press start on a two-head run, assume everything will go wrong in the first 60 seconds.

1. Listen: A healthy machine makes a rhythmic "chug-chug" sound. A sharp "click" or "slap" means a thread is caught or a needle is hitting the needle plate.
2. Look: Watch the "Check Spring" (the little wire spring near the tension knob). It should bounce lively like a metronome. If it's still, your thread has popped out of tension.
3. Touch (Safely): Feel the table vibration. Excessive shaking means your speed (SPM) is too high for the table stability.


The Live Demo on the Aluminum Border Frame: How to Keep Two Heads Stitching in Perfect Unison

In the demo, the machine stitches a floral paisley border. To achieve this synchronization, your loading process must be identical.

Imagine loading two shirts. If you stretch Shirt 1 slightly, but leave Shirt 2 relaxed, the final embroidery will be different sizes. This is why professionals use a hooping station for embroidery machine. A station guarantees that every single garment is placed on the hoop at the exact same coordinates with the exact same tension, every single time. It removes the human variable of "eyeballing it."

Close-Up Reality: Needle Penetration, Presser Foot Action, and the “Don’t Ignore This” Safety Rule

The video shows extreme close-ups of the needle penetration. Notice how close the presser foot gets to the needle plate.

Warning: Hand Safety
The most dangerous time in embroidery is when you are "fixing a quick issue." Never reach your hand into the needle area to grab a thread tail while the machine is running. It takes the machine 0.1 seconds to drive a needle through your finger. Always Hit Stop.

Operational Check: Watch the presser foot height. It should lightly kiss the fabric.

• Too High: The fabric flags (bounces), causing bird nests.
• Too Low: It drags the fabric and leaves marks.
• Adjustment: Most machines have a dial or screw to adjust presser foot height. Set it so physically just touches the fabric at the lowest point of the stroke.


Thread Choices and Color Range: When 360+ Colors Helps (and When It Doesn’t)

The video highlights a 360+ color shade card. While variety is great for sales, consistency is king for production.

Material Science: Not all threads are equal.

• Poly (Polyester): High sheen, very strong, colorfast (can be bleached). Great for uniforms and commercial gear.
• Rayon: Softer, higher luster, but weaker. Snaps easier at high speeds (1000 SPM).
• Advice: For a two-head machine running at production speeds (800+ SPM), stick to high-quality Polyester thread to minimize breakage. Thread breaks on a two-head machine stop both heads. One cheap cone of thread can halt your entire factory.


“Two Sleeves at the Same Time” Sounds Easy—Until Sleeves Start Twisting (How to Prevent It)

Sleeves are high-profit items but notoriously difficult to hoop because they are narrow tubes. The video mentions using a divider to stitch two sleeves simultaneously.

The Challenge: Sleeves twist. It is very hard to get a straight horizontal line on a tapered sleeve. The Solution: Use specialized tools. A dedicated sleeve hoop is narrow enough to fit inside the sleeve without stretching the ribbing out of shape. Combine this with a distinct chalk mark on the center of the sleeve to ensure both heads are aligned perfectly parallel.

The Quiet Upgrade Path: Magnetic Hooping for Speed, Less Hoop Burn, and Less Operator Fatigue

We touched on this earlier, but it bears repeating. As you move from a hobbyist single-needle machine to a multi-head production beast, your physical endurance becomes the limit.

Traditional screw-tightening creates repetitive strain injury (RSI) in your wrists. A magnetic hooping station system isn't just about speed; it's about ergonomic health. It allows you to use gravity and magnets to hold the garment, saving your joints for the long haul.

Warning: Magnetic Field Safety
Commercial magnetic hoops use powerful Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to pinch skin aggressively. Keep fingers clear of the mating surfaces.
2. Medical Devices: Keep these magnets at least 6 inches away from pacemakers or insulin pumps, as the magnetic field can interfere with electronics.

“Embroidery Frame” Choices: Border Frame vs Hoops, and Where Shops Lose Money by Picking the Wrong One

The video demonstrates a "Border Frame," but for T-shirts and caps, you will use standard tubular hoops. Knowing which embroidery frame to grab is a key skill.

• Sash/Border Frame: Best for flat goods (table runners, curtains, patches) or repeating yardage.
• Tubular Hoops (Round/Square): Best for finished garments (Shirts, Hoodies).
• Magnetic Frames: Best for thick items (Carhartt jackets, leather) where plastic hoops might pop open or break.

Decision Rule: If you are fighting to close the hoop screw, you are using the wrong hoop. Upgrade to a magnetic frame or a larger size.

What the Finished Border Tells You: Two Identical Motifs Are a Quality Test, Not Just a Pretty Result

The video ends with two identical floral motifs. Look closely at them. This is your daily diagnostic test.

The "Twin Test": Compare the left garment (Head 1) and the right garment (Head 2).

• Is one logo slightly rotated? -> Hooping inconsistency.
• Does one feel harder/stiffer? -> Bobbin tension is too loose on that head.
• Are the fill stitches gapping on one? -> Top tension is too tight on that head.

Use the two heads to check against each other. They should be clones.

The Questions Shop Owners Always Ask After Watching This Video (Practical Answers)

Q: Can I run a hat on Head 1 and a shirt on Head 2? A: No. Technically possible, but practically a nightmare. You want the file, speed, and timing to be identical. Run batches: 50 hats, then 50 shirts.

Q: What is the "Sweet Spot" speed for this machine? A: The machine is rated for high speeds (likely 1000 or 1200 SPM), but for maximum quality and safety, I recommend the Start Sweet Spot: 700-850 SPM. At this speed, you sacrifice very little output but gain massive stability and thread safety.

The Upgrade Decision: When a Two-Head Machine Beats a Single Head (and When It Doesn’t)

Investing in a multi-head like the HSW is the pivot point from "Craft" to "Commerce."

If you find yourself searching for a commercial embroidery machine for sale, ask yourself: Do I have the volume of identical orders to feed two heads? If you are doing 50 unique custom names a day, a single head (or two separate single heads) might be better. But if you are doing team uniforms, corporate wear, or patches, a two-head machine is the most efficient multiplier of your time.

Just remember: The machine provides the potential. Your workflow, your stabilizers, and your standardized hooping provide the profit.

Setup Checklist (Pre-Production)

• Bobbin Check: Are both cases clean? Do they have roughly equal thread remaining?
• Needle Check: Are all needles straight and sharp? (Run a fingernail down the tip to check for burrs).
• Design Check: Is the design centered in the frame on the screen?
• Path Clear: Is the area behind the machine clear of walls/obstacles for the pantograph to move back?

Operation Checklist (The Run)

• The 1-Minute Rule: Watch the first minute intently. Listen for "clicks."
• Tension Monitor: Are top threads burying slightly into the fabric (correct) or sitting loosely on top (too tight)?
• Stop & Scan: Every 10 minutes, pause to scan for thread frays or bobbin runs.

If you are coming from a single-needle home machine, this feels like a giant leap. But if you respect the physics, use the decision trees above, and perhaps look into the tajima border frame style setup shown here, you will find that "industrial" doesn't mean "harder"—it just means "more disciplined."

FAQ

• Q: How do I keep the HSW two head embroidery machine from losing the “60% time savings” because hooping takes too long?
  A: Standardize prep and reduce setup interactions; the speed gain comes from stopping less, not stitching faster.
  • Batch by parts: Run “2 backs → 2 fronts → 2 sleeves” instead of finishing one garment at a time.
  • Pre-stage garments: Set a left table for “To Be Sewn” and a right table for “Finished” to prevent floor clutter and re-handling.
  • Upgrade the hold-down method: If screw hoops are slowing operators down or causing hoop burn, switch to magnetic hoops to snap on in seconds.
  • Success check: The machine spends more time stitching than waiting—starts are smooth and frequent stops for re-hooping drop noticeably.
  • If it still fails: Track where time is lost (alignment, tightening, rework) and add a hooping station to remove “eyeballing” variability.
• Q: What is a safe starting speed (SPM) on the HSW two head embroidery machine to balance quality and stability?
  A: A safe starting point is 700–850 SPM for stable production while protecting quality and thread safety.
  • Start at the low end: Begin near 700 SPM when running new fabrics, dense designs, or border frames.
  • Increase gradually: Raise speed only after both heads stitch cleanly for several minutes without abnormal vibration or thread issues.
  • Monitor the table: Reduce SPM if the stand/table shakes excessively during the run.
  • Success check: The sound stays rhythmic (no sharp “click/slap”), and vibration feels controlled and consistent.
  • If it still fails: Keep speed in the sweet spot and troubleshoot tension/thread path before pushing higher speeds.
• Q: How do I use the DAHAO control panel workflow on an HSW two head embroidery machine to prevent losing two garments in the first minute?
  A: Treat the first 60 seconds as a controlled inspection—assume problems will show immediately and catch them before both heads waste materials.
  • Listen immediately: Stop if a sharp “click” or “slap” appears (often indicates a caught thread or needle contact).
  • Watch the check spring: Confirm the check spring bounces actively; a still spring often means the thread popped out of tension.
  • Feel vibration safely: Lower SPM if the machine/table shakes more than normal.
  • Success check: Both heads run smoothly for the first minute with lively check springs and no abnormal noises.
  • If it still fails: Stop and re-thread carefully on both heads and re-check tension consistency before restarting.
• Q: How do I choose stabilizer for sash/border frame work on a two head embroidery setup to prevent puckers and bird-nesting?
  A: Match stabilizer to fabric and design density; the wrong backing often causes flagging, puckers, and nests during high-speed runs.
  • Use cutaway for knits: Choose medium weight cutaway for stretchy performance wear to keep stitches from distorting fabric.
  • Use tearaway for stable wovens: Select tearaway for woven cotton/canvas/denim when the fabric can support itself.
  • Double layer for dense designs: Add a second sheet when designs are very dense; cross the grain of the layers for strength.
  • Success check: The fabric stays controlled (less bouncing/flagging) and the underside remains clean without sudden thread nests.
  • If it still fails: Re-check presser foot height and clamp tension on the border frame because “too tight” can distort fabric.
• Q: How tight should clamp tension be on an aluminum sash/border frame to avoid fabric distortion after embroidery?
  A: Clamp the fabric taut but not stressed; over-tight “trampoline tight” fabric will relax after unclamping and wrinkle the embroidery.
  • Load evenly: Clamp without pulling the fabric aggressively in one direction.
  • Use the tap test: Tap the clamped fabric—aim for a dull thud, not a high-pitched ping.
  • Re-check after a few minutes: Fabric can creep; confirm tension stays even before starting a long run.
  • Success check: After unclamping, the embroidered area stays smooth instead of snapping back into ripples.
  • If it still fails: Reduce clamp tension and verify stabilizer strength (add a second layer on dense designs).
• Q: What presser foot height symptoms on an HSW two head embroidery machine indicate bird-nesting risk, and how do I correct it?
  A: Presser foot height must lightly “kiss” the fabric; too high increases flagging and nests, too low drags and marks the material.
  • Inspect while stopped: Check how the presser foot contacts the fabric at the lowest point of the stroke.
  • Adjust carefully: Use the machine’s presser foot adjustment (dial/screw design varies) and make small changes.
  • Run a short test: Stitch a small section before committing to a full batch on both heads.
  • Success check: Fabric movement is minimal (less bounce), and stitches form cleanly without sudden nesting underneath.
  • If it still fails: Re-check stabilizer choice and thread path/tension, because flagging and nesting often compound together.
• Q: What are the key safety rules for hand placement near the needle area on an industrial two head embroidery machine during a thread issue?
  A: Always hit Stop before reaching into the needle area; “quick fixes” while running are the most common cause of needle injuries.
  • Stop first: Pause the machine fully before grabbing thread tails or clearing a snag.
  • Keep hands clear on restart: Watch both heads for the first minute instead of reaching in to “help” the thread.
  • Use observation, not fingers: Diagnose by sound (click/slap), sight (check spring motion), and vibration.
  • Success check: Thread issues are corrected without hands entering the needle zone while the machine is moving.
  • If it still fails: Slow down, re-thread methodically, and only resume when both heads run smoothly for at least 60 seconds.
• Q: What magnetic hoop safety precautions should embroidery operators follow when using commercial magnetic hoops for production?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive medical devices; the magnets can snap together with force.
  • Keep fingers clear: Hold the hoop by safe edges and avoid the mating surfaces during closing.
  • Control the snap: Bring pieces together slowly and deliberately—do not “let go” close to contact.
  • Protect medical devices: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: Hoops close securely without finger pinches, and operators can repeat the motion confidently without accidents.
  • If it still fails: Add a consistent handling routine (same grip points, same approach angle) and pause production to retrain operators.
