Janome AcuFil Tool v1.3 Stipple Fill, Without the Headaches: Multiple Design Layout from Screen to USB (and 4 Perfect Re-Hoopings)

If you have ever stared at a pristine quilting layout grid on your screen and felt a knot of anxiety in your stomach thinking, “If I miscalculate this by 2 millimeters, I am going to ruin a week‘s worth of work,” you are not being dramatic. You are being a realist.

Multi-hoop edge-to-edge quilting is the "final boss" of machine embroidery. You are dealing with a live variable: fabric that stretches, batting that lofts, and a machine that blindly follows coordinates.

Janome’s Horizon Link Suite AcuFil Tool v1.3 is a powerful engineering marvel designed to tame this chaos, but it requires a specific mindset to master. It is not just about clicking "Next"; it is about understanding the physics of the grid.

This guide acts as your safety harness. We will strip away the confusion of the AcuFil workflow, standardize your verification process, and introduce the physical hooping protocols that separate amateur "hope it works" projects from professional "I know it will work" production runs.

The “Don’t Panic” Moment: Understanding the Black Box

First, we must establish what AcuFil Tool v1.3 actually is. It is a calculator that generates a stipple fill for a strictly rectangular or square area.

Many novices panic because they expect a creative design suite. AcuFil is not that. It is a utility tool with two rigid constraints you must accept to maintain your sanity:

1. The "Locked" Export: The file you generate is a specific .JPX format that contains both the stitch data and the background layout sizing. Once this file hits your machine, it is immutable. You cannot resize it. You cannot rotate it to fit a bad hooping.
2. The "Auto-Density" Algorithm: You cannot manually adjust stitch length or stipple density in this specific tool. The software calculates this based on the area size to ensure structural integrity.

Expert Insight: Why is it locked? Janome locks these files to prevent "math errors" at the machine level. If you were to resize a multi-hoop layout on the machine screen, you would destroy the alignment geometry between the four (or more) sections. The lock is a safety feature, not a bug.

The Hidden Prep Pros Do First: Calibration and Environment

Before you even touch the "Multiple Design Layout" button, we need to stabilize your digital environment. 90% of "ghost glitch" errors happen because the software defaults do not match the physical reality of your project.

1) Secure the Navigation (The "Exit" Trap)

In the upper-left corner, click the Sewing Applications button (the flower/grid icon).

Critical Action: Do not click Exit thinking it will close a menu. It closes the entire software suite. If you have unsaved work, it vanishes. Get comfortable using the Return arrow (usually bottom right) to back out of menus.

2) Synchronize Your Mental and Digital Units

From the Sewing Applications menu, open Unit.

The Rule of One: If your rotary mat and ruler are in inches, your software MUST be in inches.

• Action: Set to inch or mm immediately.
• Why? Mental conversion errors are the #1 cause of ruined quilts. Typing "200" thinking it is millimeters when the machine reads inches creates a massive layout error.


3) Verify the Engine Version

Use the Version tool to confirm you are running v1.3. Even if you update Horizon Link Suite, the AcuFil module often remains independent. Knowing you are on v1.3 ensures you aren't hunting for features that don't exist yet.

4) The "Paper Trail" Protocol

The video suggests printing a template is "useful." I will go further: It is mandatory for reliability. Printing the template provides a physical 1:1 scale reference. When you are standing at the machine, fatigued, trying to align your third hooping, placing that paper template on the fabric gives you a visual "truth" that the screen cannot match.

Prep Checklist: The "Pre-Flight" Safety Check

• Software State: AcuFil Tool is open; "Exit" button avoided.
• Unit Match: Software units (mm/inch) match your physical ruler exactly.
• Version Lock: Verified v1.3 is active.
• USB Hygiene: USB drive is plugged in, empty (or organized), and labeled.
• Hidden Consumable Check: Do you have enough bobbin thread? (Wind 5 bobbins now; don't stop mid-quilt).

The Freeze That Scares Everyone: The "Not Responding" False Alarm

You may experience a terrifying moment where clicking Design Collection turns the screen white and Windows says "Not Responding."

Do not force-quit. AcuFil integrates an old PDF viewing engine to show manuals. This bridge is slow.

• Action: Wait 15-30 seconds.
• Visual Check: Look for a secondary PDF error dialog or distinct window pop-up.
• Fix: Close that pop-up. The main program will snap back to life.


Pick the Right Mode: Respecting the Geometry

From the main menu, select AcuFil Multiple Design Layout.

Constraint Check: Is your project a placemat, a table runner, or a bed quilt? Good. Is it a hexagon or a circle? Stop. This tool only calculates rectangles.

Enter Project Dimensions: The "Rounding Surprise" and Precision Input

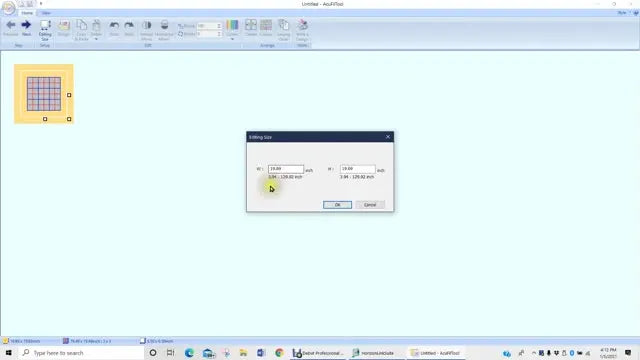

This is where the math happens. You will navigate to Editing Size to define your target area.

The Data:

• Min Size: 3.94 inches
• Max Size: ~129 inches
• Example Input: 16.00" x 13.50"

The Expert Warning (The Rounding Surprise): After you input 16.00, the software might autocorrect it to 15.91.

• Why? The software calculates stitches based on metric integers fundamentally. It snaps your inch input to the nearest valid metric stitch coordinate.
• The Fix: Do not fight it. Accept the 15.91. However, physically mark your fabric based on the software's final number, not your original wish. That 0.09" difference adds up over 4 hoopings.




Read the Grid Like a Pro: Blue Lines vs. Red Crosshairs

This is the most confusing visual for beginners. We need to decode the "GPS" of your quilt. Zoom in using the View tab. You will see two types of center lines.

1. Blue Lines (The Territory): These represent the center of your entire project (e.g., the center of the finished placemat).
2. Red Lines (The Map): These represent the center of the current hoop.

Cognitive Anchor:

• Blue = The Finished Dream.
• Red = The Current Action.

If you are setting up a hooping station for embroidery, you need to align your fabric's master center lines (usually chalked or marked with water-soluble pen) relative to these grid lines.

The Status Bar: Your Dashboard

Ignore the main picture. Note the numbers at the bottom right.

• Layout: e.g., 2 (Horizontal) x 2 (Vertical). All operations = 4 Hoopings.
• Size: The calculated area.




The Physics of Hooping: Why Projects Fail Here

The software part is done. Now comes the variable that machines cannot control: You. When you perform a 2x2 layout, you must hoop the fabric four different times.

The Failure Mode: If Hooping #1 is "drum tight" and Hooping #2 is "loose," the fabric will shrink differently when stitched. The result? The stippling lines will not meet. They will either overlap (ugly density) or gap (visible hole).

The Solution: Standardized Tension

1. Tactile Check: The fabric should not act like a drum. It should feel like a piece of paper resting on a table—taut, flat, but not stretched.
2. Auditory Check: If you tap it and it "rings," it is too tight. If it "thuds," it is likely correct.

The Tool Upgrade: This is where traditional screw hoops fail high-volume production. Tightening a screw perfectly four times in a row is physically difficult. Many professionals migrate to a magnetic embroidery hoop for quilting applications.

• The Physics: Magnetic hoops clamp perpendicularly. They do not "drag" the fabric/batting sandwich while tightening like screw hoops do.
• The Result: You get identical tension on Hooping #1 and Hooping #4, drastically reducing the chance of misalignment at the seams.

Warning: Magnetic Force Safety
If you choose to upgrade to magnetic hoops, treat them with respect. The magnets utilized in industrial-grade frames (like those for SEWTECH systems) are powerful pinch hazards. Keep fingers clear of the clamping zone! Also, keep them away from pacemakers and sensitive electronics.

The "Next" Screen Reality Check

Click Next. You will see the stipple simulation.

Reality Acceptance:

• All design editing tools are grayed out.
• You cannot change the squiggle tightness.

If the pattern looks too dense or too loose in the preview, your only control variable is to go back and change the Editing Size. You cannot change the texture without changing the dimension.

Setup Checklist: The "commit" Moment

• Visual Logic: Do the Blue/Red lines make sense contextually?
• Hooping Count: Confirmed the Layout Count (e.g., 2x2).
• Grid Check: Did you write down the calculated size (15.91") rather than your input size?
• Stabilizer Plan: Have you decided on the correct backing? (See Decision Tree below).

Export Without Regret: The Locked Protocol

Click the Write a Design icon (Sewing Machine/USB).

Crucial Step: Naming Convention. Do not name the file "Project1". The software will likely generate multiple files if the layout is complex.

• Best Practice: Name it [ProjectName]_Lay1_Hoop.
• The machine will read this.




Warning: production Lockout
Once updated to USB, this JPX file is Dead on Arrival regarding editing. If you take it to the machine and realize you used the wrong hoop size setting, you cannot fix it there. You must return to the computer. attempting to "fudge it" on the machine screen is the fastest way to break a needle or hit the frame.

Decision Tree: Stabilizer & Hooping Strategy

Stippling puts high stress on fabric. Use this logic flow to ensure your foundation is solid.

Q1: What are you quilting?

• A: Single Layer Fabric (e.g., just the placemat top)
  • Risk: Puckering.
  • Rx: Use Fusible No-Show Mesh (Cutaway). It provides permanent support.
  • Hooping: Standard hoop is acceptable with medium tension.
• B: Quilt Sandwich (Top + Batting + Backing)
  • Risk: "Hoop Burn" (crushed batting) and shifting layers.
  • Rx: No Stabilizer (often the batting acts as the stabilizer) OR a layer of Water Soluble Topping if the fabric has a pile.
  • Hooping: Critical Danger Zone. Screw hoops struggle here.
  • Upgrade Path: This is the specific scenario where magnetic embroidery hoops for janome provide the highest ROI. They accommodate the thickness of the sandwich without distortions.
• C: Stretchy/Knit Fabric
  • Risk: Wave distortion (The "Bacon" effect).
  • Rx: Fusible Poly-Mesh + Starch (spray).
  • Technique: Float the fabric if possible, or use magnetic frames to avoid the "stretch-pull" of tightening a screw.

The "Why It Went Wrong" Section: Dealing with Drift

You followed every step. You stitched hoop 1 and 2. But on hoop 3, the lines are 2mm off. Why?

The Physics of "Push/Pull": Every stitch you add introduces thread into the fabric. Thread creates displacement. By the time you reach the 4th quadrant, the fabric is technically "smaller" or "distorted" compared to when it was virgin cloth.

Mitigation Strategies:

1. Reduce Speed: Drop your machine speed to 600 SPM (Stitches Per Minute). High speed (800+) creates a "flagging" effect on the hoop, bouncing the fabric and reducing accuracy.
2. Hooping Station: Using a dedicated surface with grid lines helps. Many users search for hooping for embroidery machine tips, but the real secret is simply taping your template to a table and hooping directly on top of it.
3. Consumables: Use Odif 505 Temporary Spray Adhesive. Basting the batting to the fabric prevents "micro-shifts" inside the hoop.

Troubleshooting: From Symptom to Cure

The Upgrade Path: When to Invest in Your Tools

If you are a hobbyist making one quilt a year, the standard plastic hoops included with your Janome are sufficient. Patience is free.

However, stitches are money—or at least time. You should potential consider tool upgrades if:

1. The "Wrist Check": If your wrists hurt after tightening the hoop screw for a large multi-hoop layout, you are risking repetitive strain injury. A magnetic hoop for janome 550e (or similar compatible models) utilizes magnetic force rather than wrist torque, saving your hands.
2. The Volume Check: If you are producing sets (e.g., 8 placemats = 32 hoopings), the time saved by snapping a magnetic frame vs. screwing a plastic frame is approximately 2 minutes per hoop. That is over an hour of labor saved per set.
3. The Quality Check: If you consistently see "Hoop Burn" (shiny crushed rings) on velvet or high-loft batting, mechanical clamping is the culprit. Magnetic frames float on top, eliminating burn.

For those serious about production, verifying compatibility is key. Always check your specific machine arm width when looking for janome 500e hoops or similar upgrades to ensure the frame clears the needle bar mechanism.

Operation Checklist: The Final "Go"

• Needle Check: Is the needle fresh? (Size 75/11 for cotton, 90/14 for sandwich).
• Bobbin Check: Is the bobbin case free of lint? (One speck of dust throws off tension).
• File Check: Loaded the correct .JPX?
• Speed: Machine set to moderate speed (600-700 SPM).
• Safety: Hands clear of the movement zone.

Mastering AcuFil is not about magic features; it is about rigid adherence to physics and preparation. Set your grid, check your units, lock your hoop, and let the machine do the work.

FAQ

• Q: Why does Janome Horizon Link Suite AcuFil Tool v1.3 generate a locked .JPX file that cannot be resized or rotated on the embroidery machine?
  A: This is normal—AcuFil Tool v1.3 locks the .JPX to protect multi-hoop alignment geometry, so resizing/rotating on the machine will break the layout.
  • Accept the lock: Go back to the PC and change the project using Editing Size, then re-export.
  • Re-check the hoop setting before writing: Confirm the intended layout and hooping count before committing to USB.
  • Use a clear file name: Include project + layout/hoop reference so the correct file is loaded at the machine.
  • Success check: The stitched seam lines between hoopings meet without overlap or gaps.
  • If it still fails: Re-verify units (inch vs mm) and use the calculated final size shown by the software, not the number originally typed.
• Q: Why does Janome Horizon Link Suite AcuFil Tool v1.3 change 16.00 inches to 15.91 inches after inputting the Editing Size?
  A: Don’t fight it—AcuFil Tool v1.3 may “snap” inch inputs to valid metric-based stitch coordinates, so the displayed size is the number that matters for alignment.
  • Accept the adjusted value: Write down the final size shown (example: 15.91") and base all fabric markings on that.
  • Mark from the software result: Transfer the corrected dimensions to the fabric/template so every hooping references the same truth.
  • Avoid re-typing repeatedly: Re-entering often wastes time and can introduce new mistakes.
  • Success check: The printed/marked reference matches the software’s final dimensions at 1:1 scale.
  • If it still fails: Confirm the software unit setting matches the physical ruler (inch or mm) before entering any dimensions.
• Q: How can beginners correctly interpret the Blue lines vs Red crosshairs in Janome Horizon Link Suite AcuFil Tool v1.3 Multi-Hoop Layout?
  A: Use a simple rule—Blue lines indicate the center of the entire project, and Red lines indicate the center of the current hooping.
  • Anchor the “master center”: Mark fabric center lines and align them to the Blue project center first.
  • Confirm the active hoop: Use the Red crosshair to position the current hooping center each time.
  • Check the status bar: Verify the layout count (for example, 2x2 means 4 hoopings) before stitching.
  • Success check: The hooping positions “make sense” visually—each hooping lands where the next quadrant should be, not mirrored or shifted.
  • If it still fails: Print and use a 1:1 template as a physical reference during hooping to prevent orientation errors.
• Q: What should embroidery hoop tension feel like for Janome multi-hoop edge-to-edge quilting to prevent gaps or overlaps between sections?
  A: Aim for consistent, not maximum tension—fabric should be flat and taut like paper on a table, not drum-tight.
  • Standardize every hooping: Match the feel of Hooping #1 through Hooping #4 instead of tightening “a bit more” each time.
  • Use the tap test: Tap the hooped area—ringing usually means too tight; a dull thud is often closer to correct.
  • Avoid distortion during tightening: Tightening screw hoops can drag layers; keep the sandwich flat while securing the hoop.
  • Success check: Stitch lines meet at the boundaries without a visible gap or a heavy overlap ridge.
  • If it still fails: Slow the machine speed (a safe starting point in the guide is around 600 SPM) and consider switching to magnetic hoops for more repeatable clamping on thick quilt sandwiches.
• Q: Why does Janome Horizon Link Suite AcuFil Tool v1.3 show “Not Responding” when clicking Design Collection, and what is the safe fix?
  A: Don’t force-quit—this freeze is commonly a slow PDF/manual viewing bridge; waiting and closing the pop-up usually restores the program.
  • Wait 15–30 seconds: Let Windows finish loading the PDF component.
  • Look for a secondary dialog: Close any PDF error pop-up or separate window that appears.
  • Resume only after recovery: Continue once the main suite becomes responsive again.
  • Success check: The main program window becomes clickable and menus respond normally without restarting.
  • If it still fails: Save and restart the suite (avoid using “Exit” as a casual back button), then retry the same click sequence.
• Q: How do I stop thread nesting underneath during Janome multi-hoop stippling created by AcuFil Tool v1.3?
  A: Treat nesting as a setup stability problem first—re-thread and reduce fabric bounce (flagging) before changing anything else.
  • Re-thread top and bobbin: Completely re-thread both paths to eliminate a missed guide or tension mis-seat.
  • Reduce flagging: Lower stitch speed (the guide’s mitigation example is 600 SPM) so the fabric does not bounce in the hoop.
  • Check hoop stability: Confirm the fabric/sandwich is held consistently (loose hooping increases bounce and nesting risk).
  • Success check: The underside shows clean, even stitches without a “bird’s nest” pile forming after the first minute of stitching.
  • If it still fails: Stop and inspect for lint in the bobbin area and confirm the correct file is used (locked .JPX cannot be “fudged” at the machine).
• Q: What safety precautions are required when using magnetic embroidery hoops for thick quilt sandwiches in multi-hoop quilting?
  A: Magnetic hoops can be a major pinch hazard—keep fingers clear of the clamp zone and keep strong magnets away from pacemakers and sensitive electronics.
  • Clamp deliberately: Position fabric first, then lower the magnetic clamp with hands outside the closing path.
  • Control the workspace: Keep phones, storage media, and other sensitive electronics at a safe distance.
  • Protect people first: Do not use strong magnetic frames near pacemakers (follow medical guidance and the machine/hoop safety notes).
  • Success check: The hoop closes without snapping onto fingers, and the fabric stack is held evenly without shifting.
  • If it still fails: Reduce risk by practicing clamping on scrap fabric/batting until hand placement becomes automatic, then return to the actual quilt sandwich.
