Make a Small 5x7 Floral Design Look “Full-Back” Big in Embird Manager & Studio (Without Creating a Thread-Change Nightmare)

How to Resize & Edit Embroidery Designs for Hoodies: From "Tiny" to Professional

Mastering Embird, Stabilizers, and Hooping Logic for Bulky Garments

You know the feeling: You’re staring at a delicate 5x7 floral design, and then you look at the back of a thick, XL hoodie. You realize instantly, "This is going to look like a postage stamp on a billboard."

The fear is real—you don't want to ruin a $30 garment with a design that looks like an afterthought. But here is the secret: you don’t need to be a master digitizer to fix this. You just need to be a smart editor.

In this "Industry White Paper" style guide, we will rebuild the workflow experienced pros use: splitting elements, extending footprints through geometry, and—crucially—managing the physical reality of stitching on heavy fabric. We will move beyond just software clicks into the physics of hooping, ensuring your machine (and your sanity) survives the process.

Phase 1: The Reality Check (Stop Guessing, Start Measuring)

Before you click a single button in Embird Manager, you must reconcile your digital plan with your physical machine limits.

The "20% Buffer" Rule

Novices trust the software boundary line. Experts trust the physical clearance.

• The Problem: A design that touches the edge of the software grid often triggers a "Frame Error" on the machine or, worse, allows the presser foot to whack the plastic hoop frame.
• The Fix: Always leave a 10-20% margin. If your hoop is 5x7 (130x180mm), treat it like a 4.5x6.5 working area.

Compatibility Check

If you are stitching on a brother embroidery machine, the software settings must match your specific model's recognizable field. Software is hypothetical; your machine is the judge. Check your manual for the exact millimeter limits, not just the "5x7" label.

Phase 2: The "Surgical Split" in Embird Manager

To make a design bigger without distorting it, we don't just "scale up" (which ruins density). We dissect it. We need to isolate a single flower to use as a building block.

The Micro-Step Workflow

1. Select: Choose the Freehand Select Tool in Embird Manager.
2. Trace: Click around the small flower you want to liberate.
3. Isolate: Use the Split command.
4. Verify: Check the Object List (right panel). You should see the flower separate from the main vine.

Expert Insight: The "Thread Bridge" Danger

The Why: Embroidery files are not vector graphics; they are paths of thread. If your selection accidentally clips a neighboring vine, you create a "thread bridge." The Risk: When you move that flower later, the machine will try to stitch a long, ugly jump stitch between the two points. The Sensory Check: Zoom in until you see individual needle points. Ensure your selection line travels through empty space, not across stitches.

Phase 3: The Color-Mask Trick (Visual Decluttering)

Trying to select a green vine hidden behind blue petals is like trying to untie a knot in the dark. Use the Color Mask to turn on the lights.

Action Steps

1. Right-click the color box for the vine (e.g., Green) in the right panel.
2. Select: "Hide all colors except this one."
3. Execute: Now that the screen is clear, freehand select the vine structure and split it.
4. Restore: Right-click and "Show all colors."

Why this matters: It reduces Cognitive Load. When you can see clearly, your mouse hand is steadier, and your selection is cleaner.

Phase 4: Building the "Header" Layout (Geometry is Your Friend)

Now we build. By duplicating and rotating the vine, we create a corner shape that extends the design's footprint without adding stitch density that might bulletproof the fabric.

The Rotation Protocol

1. Duplicate the separated vine.
2. Right-click → Rotate → Rotate Left (90°).
3. Position: Nudge the duplicate so it touches the original.

Commercial Reality: The "Hoop Burn" Factor

You are designing this for a hoodie. Hoodies are thick. Standard plastic hoops rely on friction and friction leaves marks (hoop burn).

• The Pain Point: The larger your design, the tighter you must hoop. The tighter you hoop, the deeper the burn marks on delicate fleece or velvet.
• The Solution Criteria: If you struggle to close the hoop on thick seams, or if you see "shiny rings" after unhooping, your tool is failing the material.
• The Upgrade: This is why professionals switch to magnetic embroidery hoops. They use magnetic force rather than friction, holding thick hoodie material securely without crushing the fibers.


Phase 5: Recoloring with "Shop Floor" Logic

The video demonstrates changing flower colors using the Brother palette. Crucial Distinction: Changing color on screen does not change the command capability of the file. It only changes the visual reference.

The "Flossing" Tension Check

When you change threads physically on the machine to match your new digital design:

• Action: Thread the needle and pull the thread through the eye before starting.
• Sensory Anchor (Tactile): It should feel like pulling unwaxed dental floss between your teeth—consistent resistance, but not a struggle. If it pulls freely, your tension is too loose (looping risk). If it creates a groove in your finger, it's too tight (snapping risk).


Phase 6: Smart Color Sort (The Profit Savior)

This is the most critical step for efficiency.

The Math of Inefficiency:

• 1 unnecessary color stop = ~45 seconds (trim, stop, user changes thread, start).
• 10 unnecessary stops = 7.5 minutes of lost production time per hoodie.

The Protocol

1. Select All objects.
2. Join them into a group.
3. Right-click → Smart Color Sort.

The Upgrade Path: If you are doing production runs (e.g., 20 team hoodies), even optimized files have downtime. A hooping station for machine embroidery allows you to prep the next garment while the machine is running, doubling your throughput.

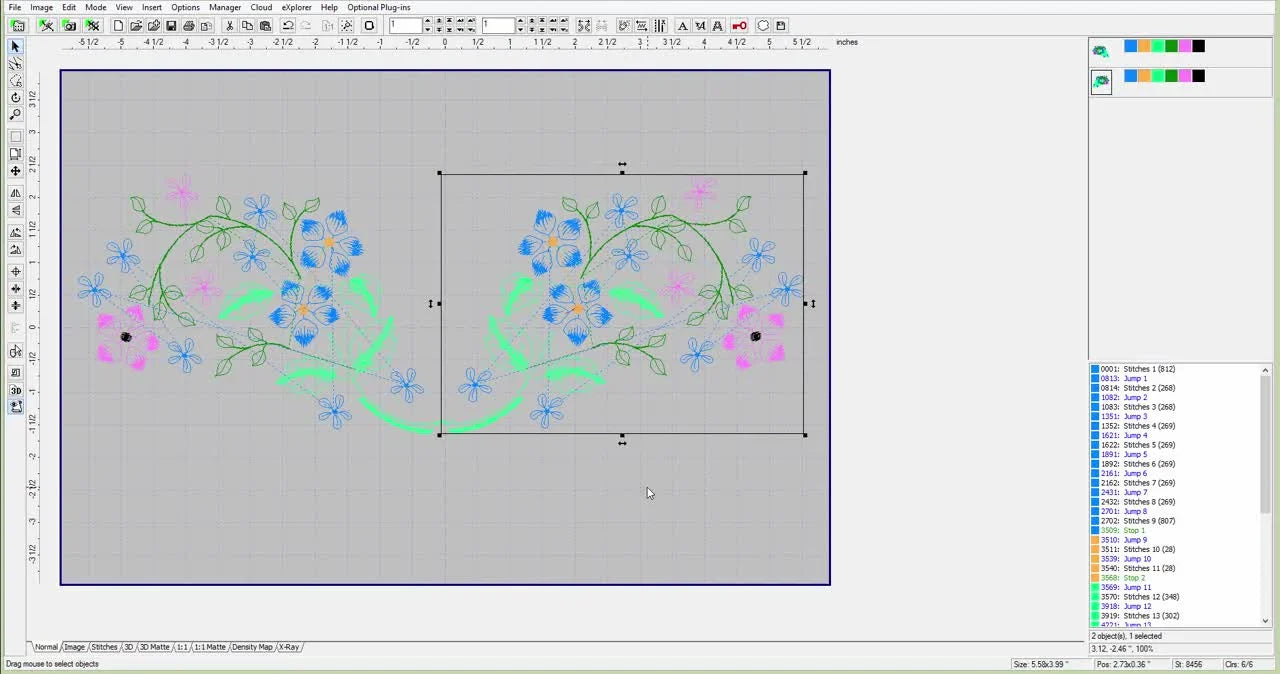

Phase 7: Mirroring for Symmetry

Duplicate your optimized group and Mirror Horizontal. You now have a symmetrical "Yoke" or "Header" design perfect for the upper back of a garment.

Check the Seam: Ensure the center points touch but do not overlap heavily. Heavy overlap = needle breakage zone.

Phase 8: Breaking the Robot Look (20° Rotation)

Perfect symmetry looks artificial.

• Action: Use Free Rotate to tilt the groups by 20 degrees.
• Result: The design flows organically around the curve of the shoulders rather than sitting like a rigid block.

[FIG-09] [FIG-10] [FIG-11] [FIG-12] [FIG-13]

Phase 9: Advanced Text (Embird Studio vs. Manager)

The tutorial moves to Embird Studio (the digitizing engine) to add the name "Gallifrey."

• Technique: Use the Envelope Tool to arc the text upwards.
• Visual Check: The curve of the text should parallel the empty negative space created by your floral vines.
• Warning: Do not stretch fonts more than 20% vertically, or the satin columns will become too sparse, revealing the fabric underneath.

[FIG-14] [FIG-15]

The "Physical Reality" Guide: Hooping & Stabilizing for Hoodies

Software is only 50% of the job. The rest is physics. Hoodies are heavy, stretchy, and difficult. Here is how to ensure your resized design doesn't warp.

Decision Tree: Fabric vs. Stabilizer

The "Hidden" Consumables

Don't start without these:

1. Temporary Spray Adhesive (e.g., 505): Essential for hoodies. It bonds the fabric to the stabilizer so they move as one unit.
2. Water Soluble Topping: If your hoodie is fuzzy/furry, you need a topper to keep stitches from sinking into the pile.
3. Ballpoint Needles (75/11): Sharp needles pierce the knit fibers and create holes; ballpoints slide between them.

Solving the "Hoop Struggle"

If you are wrestling to close the hoop bracket on a thick seam, you are risking two things:

1. Hoop Pop: The hoop explodes open mid-stitch (catastrophic layer shift).
2. Hoop Burn: Permanent crushing of the fabric pile.

The Professional Solution: Search for magnetic hoop for brother (or your specific machine brand).

• How it works: Top and bottom magnetic frames snap together automatically adjusting to the fabric thickness.
• The Safety Check: When using a brother 5x7 magnetic hoop, check that the magnet clears your machine's drive arm.
• Production Speed: For bulk orders, specific tools like a hoopmaster combined with magnetic embroidery hoops for brother are the industry standard for perfect, repeatable placement without the physical strain.

Warning: Magnet Safety
Magnetic hoops use industrial strength magnets. They can pinch fingers severely. Never place them near pacemakers. Keep credit cards and phone screens away from the magnetic field.

3 Critical Checklists for Success

1. The Prep Checklist (Software)

• Size Check: Is the design at least 20mm smaller than the actual physical hoop limit?
• Pathing: Are there any "thread bridges" left from splitting? (Zoom in 200%).
• Sort: Did I run "Smart Color Sort" to minimize thread changes?
• Save: Did I save the working file (.EOF) separately from the machine file (.DST/.PES)?

2. The Setup Checklist (Physical)

• Needle: Is a fresh Ballpoint 75/11 installed? (Old needles cause bird nests).
• Bobbin: Do I have a full bobbin? (Don't start a large header design on 10% thread).
• Hoop: Perform the "Drum Skin" test. Tap the hooped stabilizer—it should sound like a tight drum, not a dull thud.
• Clearance: Manually trace the design area to ensure the needle won't hit the hoop frame.

3. The Operation Checklist (During Stitching)

• Speed Strategy: Start slow. For the first 500 stitches on a bulky hoodie, limit speed to 600 SPM (Stitches Per Minute). Expert users might push 800+, but 600 is your safety zone.
• Sound Check: Listen for the "Rhythmic Purr." A loud "Thump-Thump" means the needle is struggling (dull needle or too many layers). A "Click-Click" often means the thread is catching on a spool cap.
• Watch the Drift: Watch the borders. If the outline is not landing on the fill, your fabric is shifting. Stop immediately and re-hoop (or use better adhesive).

Troubleshooting: When Things Go Wrong

Warning: Physical Safety
When moving from software to machine, never put your fingers inside the hoop area while the machine is enabled. If a needle breaks at 800 RPM, it can shatter. Always wear eyewear when monitoring closer than 2 feet.

By combining the digital precision of Embird with the physical robustness of proper stabilization and advanced hooping tools, you stop "hoping" it works and start knowing it will. Happy stitching!

FAQ

• Q: How do I prevent a Brother embroidery machine “Frame Error” or presser foot hitting the hoop when resizing a design for a 5x7 hoop?
  A: Leave a 10–20% buffer so the design never runs at the hoop’s physical edge.
  • Measure: Treat a 130×180 mm (5x7) hoop like a smaller working area (about 10–20% in from every side).
  • Verify: Check the exact millimeter stitch field in the Brother machine manual, not only the hoop label.
  • Test: Manually trace the design area before stitching to confirm the needle will not contact the frame.
  • Success check: The needle traces the full boundary with clear space from the hoop ring and no “frame” warning appears.
  • If it still fails: Reduce design size slightly more and re-check hoop clearance around bulky seams.
• Q: How do I avoid “thread bridges” (long ugly jump stitches) after using Embird Manager Split on an embroidery design for a hoodie back?
  A: Split only through empty space and confirm separated objects before moving anything.
  • Zoom: Increase view until individual needle points are visible before drawing the selection path.
  • Select: Keep the freehand selection line away from neighboring stitches so no connected path gets clipped.
  • Verify: Open the Object List and confirm the flower/vine is truly separated as its own object.
  • Success check: After moving the separated piece slightly, no long connecting stitch path appears between the moved piece and the original.
  • If it still fails: Undo the split and re-select with a wider “empty space” margin, then split again.
• Q: What stabilizer and consumables should be used to keep an embroidery design from warping on a fleece hoodie during stitching?
  A: Use 2.5oz+ cutaway stabilizer plus adhesive and topper when needed to control stretch and pile.
  • Choose: Use cutaway (2.5oz+) for hoodie fleece because knit stretch can defeat tearaway.
  • Bond: Apply temporary spray adhesive so fabric and stabilizer move as one unit.
  • Add: Use water-soluble topping if the hoodie surface is fuzzy to prevent stitches sinking.
  • Success check: The hooped area passes a “drum skin” tap test (tight drum sound, not a dull thud) and the outline lands on the fill during stitching.
  • If it still fails: Stop immediately if borders drift, then re-hoop with better bonding and consider improving hooping method.
• Q: How can a Brother embroidery machine user reduce hoop burn and hoop-closing struggle on thick hoodie seams without losing stitch stability?
  A: Use a magnetic embroidery hoop to hold thickness by magnetic force instead of crushing friction.
  • Diagnose: If closing the hoop bracket feels like a fight or “shiny rings” appear after unhooping, the hooping method is too aggressive for the fabric.
  • Upgrade: Switch to a magnetic hoop that snaps together and auto-adjusts to fabric thickness.
  • Check: Confirm magnetic frame clearance from the machine’s drive arm before running the design.
  • Success check: The hoodie is held firmly without over-tight clamping, and the fabric pile looks uncrushed after unhooping.
  • If it still fails: Add better adhesive bonding and re-check placement technique; hoop burn can also be reduced by wrapping standard hoops with pre-wrap tape.
• Q: What safety rules should be followed when running a multi-needle or single-needle embroidery machine on a bulky hoodie at 600–800 SPM?
  A: Keep hands out of the hoop area and start slower (about 600 SPM) until the first stitches prove stable.
  • Set: Limit speed to 600 SPM for the first ~500 stitches on bulky hoodies.
  • Listen: Monitor machine sound—loud “Thump-Thump” suggests struggle; “Click-Click” can indicate thread catching.
  • Clear: Never put fingers inside the hoop area while the machine is enabled; needle breaks at high RPM can shatter.
  • Success check: The machine runs with a steady “rhythmic purr,” and the fabric does not shift during the opening sequence.
  • If it still fails: Stop, replace needle, rethread with presser foot UP, and re-check hooping/stabilization before increasing speed.
• Q: What safety precautions are required when using magnetic embroidery hoops on Brother-style machines for hoodie embroidery?
  A: Treat magnetic hoops as industrial-strength magnets that can pinch and interfere with medical devices.
  • Protect: Keep fingers clear when frames snap together to avoid severe pinching.
  • Avoid: Never use magnetic hoops near pacemakers; keep credit cards and phone screens away from the magnetic field.
  • Confirm: Check magnet/hoop clearance to the machine’s moving parts before stitching.
  • Success check: The hoop closes controllably without finger pinch risk, and the machine completes a manual trace without contacting the frame.
  • If it still fails: Switch to a safer handling routine (place hoop on a flat surface before closing) and re-check machine clearance.
• Q: How do I fix bird nest (bobbin thread bunching) on a Brother embroidery machine when stitching a large resized hoodie back design?
  A: Rethread the top thread correctly with the presser foot UP and confirm tension with a quick “flossing” feel test.
  • Rethread: Lift the presser foot fully, then rethread so the thread seats into the tension discs.
  • Test: Pull thread through the needle eye—it should feel like unwaxed dental floss (steady resistance, not free-fall or finger-cutting tight).
  • Prepare: Start with a fresh ballpoint 75/11 needle because old needles can trigger nesting.
  • Success check: The first stitches form cleanly with no thread balling under the fabric and no sudden loops on top.
  • If it still fails: Stop and check for upper tension loss again, confirm bobbin is properly installed, and restart on scrap to avoid ruining the hoodie.
