Make Multi-Hoop Wall Hangings Actually Line Up: Digitizing “Let It Snow” in Embird Studio for the Brother Jumbo Large 300×200 Hoop

Digitizing a multi-part wall hanging looks “simple” right up until you stitch the second panel and realize the letters don’t line up by a fraction of an inch.

If you’re feeling that little spike of panic—good. It means you care about alignment. In my 20 years in this industry, I’ve learned that alignment is the only difference between a "craft project" and a product you can confidently sell or gift.

A viewer in the comments nailed it: this is more technical than it looks. Donna points out something I emphasize to every student: this can be an easy task if you lock down three "Hard Anchors" before you even touch a node: your hoop, your centering method, and your resize numbers.

Start Clean in Embird Studio: Open “Design 1,” Save a Working Copy, and Delete the Heavy Background Image

Donna opens “Design 1,” immediately saves a safety copy as a working file (“Design 0”), and then deletes the imported background image because it’s “too huge.”

Here is the cognitive psychology behind why she does this: Visual noise leads to motor errors. When you are performing repeated selection, grouping, and parameter tuning, a high-resolution bitmap cluttering the background fatigues your eyes. It makes it significantly easier to accidentally grab a background pixel instead of a vector node.

The "Clean-Slate" Protocol (Donna’s order):

1. Open the file for Design 1.
2. Save As immediately (Donna names it “Design 0”). This is your "Undo button" for catastrophic mistakes.
3. Delete the background image. You should now see only the digitizing objects (nodes/lines) against a clean grid.

Pro tip: Stop treating the delete key as destructive. In digitizing, deleting the reference image once you have the vector data is a safety feature. It prevents the software from lagging and keeps your "mental workspace" clear.

Prep Checklist (Do this *before* you touch hoop settings)

• File Hygiene: Confirm you are editing the copy (Design 0), not the original master.
• Visual Clarity: Background image deleted? Grid visible?
• Thread Inventory: Donna notes Red 2045 and Green 2108. Physical Check: Do you actually have these spools? Are they full? Running out of a specific dye lot halfway through a wall hanging is a nightmare.
• Unit Consistency: Decide now—Millimeters or Inches? (Donna switches to mm). Mixing units is the #1 cause of sizing errors.

Warning: Digitizing is safe; stitching is mechanical. When you eventually move to the machine, keep fingers clear of the needle bar and take-up lever. Never reach under the presser foot while the machine is running—broken needles fly fast.

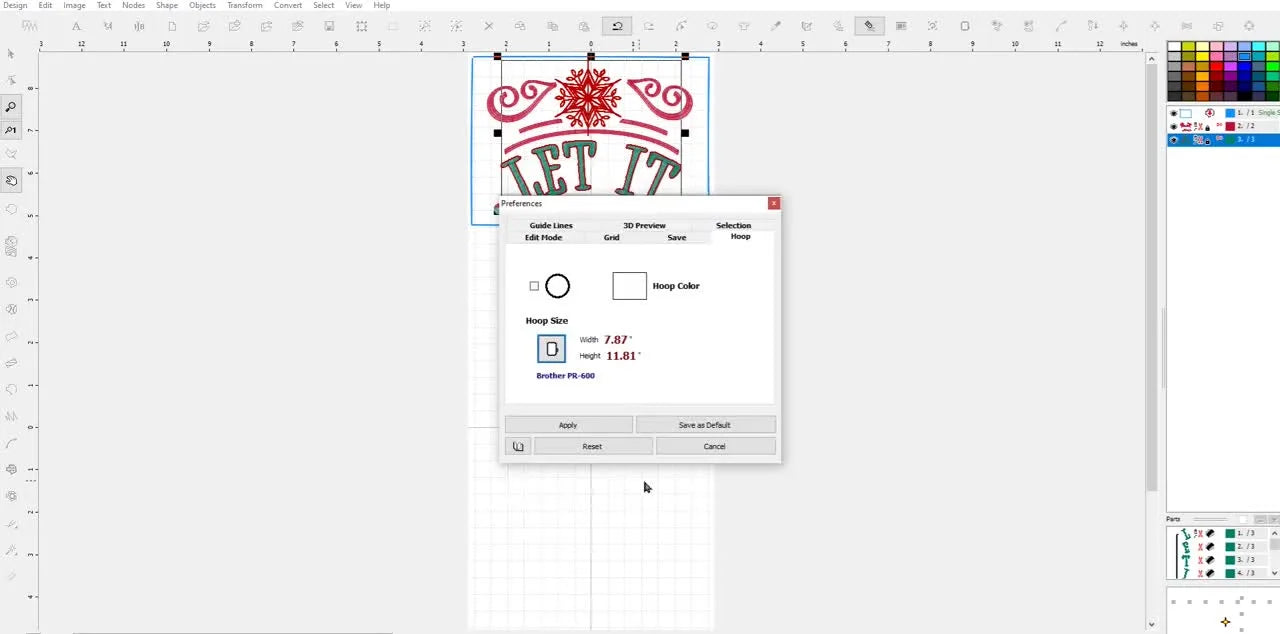

Lock the Brother Jumbo Large 300×200 Hoop in Preferences (and Rotate It Sideways Before You Waste Time)

Donna goes into Preferences and selects the Brother Jumbo Large 300×200 hoop (approx. 11.81" × 7.87"). She immediately toggles the hoop orientation to sideways/horizontal.

This is a critical "Pre-Flight" step. If you digitize a horizontal layout in a vertical hoop on screen, your machine will either refuse to load the file or rotate it unexpectedly.

Donna’s Workflow:

1. Open Preferences.
2. Select the specific frame: Jumbo Large 300×200. Note: Ensure this matches the physical hoop you own.
3. Toggle orientation (horizontal) and click Apply.

The Logic: You are creating a "Digital Twin" of your physical setup. Deviations here result in the dreaded "Design exceeds hoop size" error at the machine.

Setup Checklist (Your "Alignment Insurance")

• Hoop Match: Selected hoop on screen matches the physical hoop in your hand (300×200).
• Orientation: The grid is horizontal (landscape).
• Boundary Check: A red/blue boundary line is visible.
• Reset Rule: If you open a new letter file and the hoop reverts to default, stop. Go back to Preferences. Reset it. Never eyeball the boundaries.

The Alignment Secret: Center to Hoop + One Set of Transformation Numbers You Never Change (10.59" × 7.54")

Alignment failure happens when we trust our eyes instead of math. Donna drags the design into the hoop area, uses the Center to Hoop shortcut, then opens the Transformation window.

She stresses the Golden Rule of Multi-Hooping: Write the resize numbers down on a sticky note. Stick it to your monitor.

For every subsequent letter (S, N, O, W), she inputs these exact values:

• Width: 10.59 inches
• Height: 7.54 inches

The Action Sequence:

1. Select All objects (Ctrl+A).
2. Center to Hoop (usually a shortcut key or button). Visually confirm the design snaps to the distinct center crosshair.
3. Open Transformation.
4. Input 10.59 (width) and 7.54 (height). Do not drag the corner handles to resize—that is imprecise.
5. Apply.
6. Generate Stitches to preview.








Why this works (The Physics of Alignment)

Multi-part projects fail because of Variable Drift. If Panel A is resized by mouse-dragging (approx 10.6") and Panel B is resized by typing (exactly 10.59"), the letters will look different.

Donna’s method creates two "Hard Anchors":

1. The Center Point: An absolute zero.
2. The Dimensions: An absolute value.

If you are a perfectionist, this digital precision must be matched by physical precision. This is where many embroiderers start investigating a hooping station for brother embroidery machine. While the software handles the digital centering, a physical station ensures your fabric grain is perfectly straight in the hoop, marrying the digital math to the physical cloth.

Fix “Messy” Stitch Generation in Embird: Convert to Column, Then Use Wide Satin (Width 2) for Clean Lettering

Donna generates stitches and dislikes the default result. She tests Auto Column and Plain Fill, but they look "messy."

Sensory Check - What does "Messy" mean?

• On Screen: Jagged edges; stitches that look like "confetti" rather than solid blocks.
• On Fabric: A "Plain Fill" on lettering often looks flat and cheap. A "Satin" stitch should look like a raised, glossy rope.

Donna’s Fix:

• Convert to Column
• Apply Wide Satin
• Set satin width to 2 (Note: Ensure this isn't too wide for your specific fabric; if stitches exceed 7-9mm, they may snag. Standard satin density usually hovers around 4.0-5.0 points depending on the software scale).

The Protocol:

1. Ungroup objects to isolate the letter.
2. Open Parameters.
3. Right-click and select Convert to Column.
4. Switch stitch type to Wide Satin.
5. Preview: Look for smooth, "railroad track" style edges.
6. Correction: If a specific segment (like the "T") breaks, isolate it, convert it individually, and re-group.




Expert Note: The "Click" of Quality

"Messy" on screen usually means "Thread Break" on the machine. Short, erratic stitches cause tension spikes. By smoothing the path into a Satin stitch, you create a rhythmic flow for the machine—listen for a steady thump-thump-thump sound rather than a stuttering rat-a-tat.

Tip: If you upgrade to satin borders, check your bobbin tension. A good satin stitch should show about 1/3 white bobbin thread down the center on the back of the fabric.

Assign Thread Colors on Purpose: Red 2045 and Green 2108 (and Don’t Trust Auto-Colors)

Donna doesn’t guess colors. She ungroups the object and assigns specific catalog codes:

• Red: 2045
• Green: 2108

Common Glitch: She notices the color doesn't upgrade if the selection isn't "held." The Fix: Re-select the group explicitly, then click the color.

Commercial Reality: In a production shop, "Red" doesn't exist. Only "Code 2045" exists. Using standardized embroidery thread (like the high-sheen polyester cones we supply) ensures that if you run out of thread in year 1, the replacement cone in year 2 matches exactly.

The Repeatable Batch Workflow for S, N, O, W: Delete Image → Set Hoop → Center → Transform → Generate → Save → Compile

Donna’s genius isn't in the first file; it's in the rhythm of the subsequent files. For the "S", "N", "O", and "W", she enters a "Flow State":

1. Open File.
2. Delete Background (Clear clutter).
3. Set Hoop (Digital Twin).
4. Center (Anchor 1).
5. Transform to 10.59" x 7.54" (Anchor 2).
6. Generate.
7. Save.








Operation Checklist (The "Don't Drift" List)

• Sanity Check: Did I delete the background image?
• Hoop Check: Did the software revert to a default 100x100 hoop? (Reset to 300x200 if so).
• Math Check: Did I type 10.59, or did I accidentally type 10.95? (Double-check!).
• Visual Check: Generate the 3D preview. Does it look like a smooth satin stitch?
• Save: Save with a unique name (e.g., "Panel_S_Final").

If you find this repetition physically exhausting—especially the part where you handle the physical hoops for each panel—this is usually the trigger point for upgrading your hardware. A machine embroidery hooping station standardizes the physical placement, reducing the error rate when you move from screen to machine.

A Stabilizer Decision Tree for Wall Hangings: Choose Backing Like You Choose Digitizing Parameters

Donna covers the software, but I need to cover the physics. A wall hanging must remain perfectly flat. If it puckers, the alignment is ruined.

The "Hoop Burn" Problem: Standard plastic hoops require you to wrench the screw tight to hold fabric. This often leaves permanent shiny rings ("hoop burn") or crushes delicate batting.

Decision Tree: Fabric & Stabilization

In our ecosystem, this is a clear "Tool Upgrade" moment. If you are fighting to close your hoop on thick wall-hanging layers, a hooping for embroidery machine setup utilizing magnetic frames eliminates the struggle and the hoop burn.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. They can pinch fingers severely. Keep them away from pacemakers, implanted medical devices, and magnetic storage media (credit cards/hard drives).

Troubleshooting the Scary Stuff: When Embird Resizing, Hoop Orientation, or Colors Don’t Behave

Here is your structured guide to fixing the issues Donna encountered:

The Upgrade Path When You’re Ready to Produce (Not Just Test): Hoops, Workflow, and Machine Capacity

Donna’s method provides the software foundation. But as you move from "making one for fun" to "production," your bottleneck shifts from the mouse to your hands.

Here is the natural progression of an embroidery setup:

1. Level 1: The Hobbyist. Standard hoops, standard software. Pain point: Hooping is slow, hands hurt, fabric gets marked.
2. Level 2: The Pro-sumer. You upgrade to Magnetic Hoops.
   • Why: You stop fighting the fabric. The magnets hold thick wall hangings firmly without "burn."
   • Tool: A hoop master embroidery hooping station or similar system helps you align the logo/design on the same spot of the shirt/fabric every single time.
3. Level 3: The Business Owner. You upgrade to a Multi-Needle Machine (like SEWTECH models).
   • Why: Donna used Red and Green. On a single needle, that's a stop and a manual change. On a 15-needle machine, that is zero downtime.

Final Advice: Start with Donna’s digital discipline (Clean workspace, Hard Anchors). Once you master that, look at your physical workflow. If you are spending more time fighting the hoop than stitching, it’s time to look at your tools. Check your brother embroidery hoops sizes to ensure you aren't using a massive hoop for a tiny design, and consider magnetic frames to save your wrists and your fabric.

FAQ

• Q: In Embird Studio, how do I prevent multi-part wall hanging panels from misaligning when every panel must be exactly 10.59" × 7.54" in a Brother Jumbo Large 300×200 hoop?
  A: Use two hard anchors every time: Center to Hoop + typed Transformation dimensions (10.59" × 7.54")—never mouse-drag resize.
  • Select all objects (Ctrl+A), then run Center to Hoop before touching sizing.
  • Open Transformation and type Width 10.59 and Height 7.54, then Apply.
  • Repeat the exact same steps for every panel file (S/N/O/W) after confirming the hoop is still 300×200 and oriented horizontal.
  • Success check: After centering, the design snaps to the hoop center crosshair and every file reports the same width/height numbers.
  • If it still fails: Re-check unit consistency (mm vs inches) and verify you did not type 10.95 or another “nearby” value in any panel.
• Q: In Embird Studio Preferences, how do I fix “Design exceeds hoop size” caused by the Brother Jumbo Large 300×200 hoop being set to the wrong orientation (vertical vs horizontal)?
  A: Set the exact hoop model and rotate it to horizontal in Preferences before digitizing.
  • Open Preferences and select Brother Jumbo Large 300×200.
  • Toggle the hoop orientation to sideways/horizontal and click Apply.
  • Stop and reset Preferences anytime a new file opens with a default hoop (do not “eyeball” boundaries).
  • Success check: The grid displays in landscape and a clear boundary line is visible matching the horizontal 300×200 layout.
  • If it still fails: Confirm the selected hoop on screen matches the physical hoop size you actually own.
• Q: In Embird Studio, how do I fix “messy” stitch generation on letters when Auto Column or Plain Fill looks jagged instead of clean satin?
  A: Convert the letter to a column object and use Wide Satin with a satin width setting of 2.
  • Ungroup to isolate the problem letter/segment.
  • Open Parameters, then Convert to Column.
  • Change stitch type to Wide Satin and set satin width to 2, then preview.
  • Success check: The preview edges look smooth (clean “railroad track” rails) instead of confetti-like, jagged fragments.
  • If it still fails: Isolate only the broken segment (for example, part of a “T”), convert that segment alone, then regroup and regenerate stitches.
• Q: In Embird Studio, how do I assign thread color codes Red 2045 and Green 2108 when the color change “doesn’t stick” after clicking the palette?
  A: Re-select the actual object stitches (selection must be active), then apply the catalog code again.
  • Ungroup the objects so you can click the exact area that needs the color.
  • Click directly on the stitched object to confirm it is selected, then choose Red 2045 or Green 2108.
  • Repeat for each object group instead of trusting auto-colors.
  • Success check: The selected object immediately updates to the intended code (2045 or 2108) and stays after you click away.
  • If it still fails: Select again more precisely (do not select empty space) and reapply the color code with the object clearly highlighted.
• Q: For a multi-panel wall hanging, how do I choose stabilizer to prevent puckering and hoop burn on thick layers (fabric + batting) during machine embroidery hooping?
  A: Match stabilizer to fabric behavior, and use a magnetic hoop when thick layers or delicate surfaces make standard hoops leave marks.
  • Use Medium Heavy Tear-away or Cut-away for stable woven fabrics (canvas/cotton).
  • Use Polymesh Cut-away for unstable/stretchy fabrics (knits/loose weave).
  • For thick “sandwich” layers (fabric + batting), avoid over-tightening a standard hoop; consider floating with adhesive spray (messy) or switching to a magnetic hoop to clamp without crushing.
  • Success check: The wall hanging stays flat after stitching (no puckers) and the fabric face shows no shiny hoop ring.
  • If it still fails: Reduce hoop pressure/tightening, reassess stabilizer choice, and confirm the layers are not being stretched during hooping.
• Q: What is the correct safety practice when stitching multi-part panels on an embroidery machine to avoid needle-bar and take-up-lever injuries during repeated hooping?
  A: Keep hands completely clear of the needle area whenever the machine is running and never reach under the presser foot during motion.
  • Stop the machine before adjusting fabric, trimming thread, or repositioning anything near the needle path.
  • Keep fingers away from the needle bar and take-up lever during stitching cycles.
  • Work methodically when repeating panels to avoid “habit reach-in” accidents.
  • Success check: All adjustments happen only when the machine is stopped, and hands never cross into the needle/presser-foot zone during motion.
  • If it still fails: Slow down the workflow and treat every panel start as a fresh safety reset before pressing start.
• Q: What is the safety rule for using industrial-strength magnetic embroidery hoops to prevent finger pinches and medical-device risks during hooping?
  A: Handle magnetic hoops as pinch hazards and keep them away from pacemakers, implanted medical devices, and magnetic storage media.
  • Separate and place magnets deliberately—do not let magnets snap together near fingers.
  • Keep magnetic hoops away from pacemakers/implants and away from credit cards/hard drives.
  • Store magnets securely so they cannot jump onto tools or metal surfaces unexpectedly.
  • Success check: No uncontrolled “snap” closures happen during setup, and fingers stay outside the closing path.
  • If it still fails: Change handling technique (one magnet at a time) and create a clear, non-metal work zone to reduce sudden attraction.
