Mastering the Left-Chest Logo: A Zero-Failure Guide for Ricoma & Magnetic Hoops

Left-chest logos look deceptively simple. In reality, they are the "final boss" for many embroiderers. One crooked placement, one instance of hoop burn, or one catastrophic machine strike, and you are eating the cost of the garment.

In this guide, we are not just watching a video; we are deconstructing a professional, repeatable workflow. We will take a multi-color floral design, size it in Embrilliance, and stitch it on a Size Large T-shirt using a Ricoma EM1010, a Hoop Master station, and a 5.5" Mighty Hoop.

Your goal isn't just to finish one shirt. It is to build a process where shirt #50 looks exactly like shirt #1, with zero anxiety.

The Psychology of Production: Why Left-Chest Work Scares You

If your stomach drops when you press "Start," it’s because you lack verification. The stress comes from two variables:

1. Placement Anxiety: "Is it actually centered, or did it drift?"
2. Collision Fear: "Will the needle bar hit the hoop frame?"

We solve this with a triad of control: Software Sizing (The Map), Hooping Station (The Anchor), and Trace Verification (The Insurance).

Step 1: Lock the Design Size (The Digital Blueprint)

Before touching fabric, you must define your constraints. In the source workflow, the design is confirmed in Embrilliance at 4.00" (W) × 3.38" (H).

Why does this matter? A 5.5" hoop has a specific internal safe sewing field. If your design is 4.8" wide, you are flirting with disaster.

Action: Open your software. Select your design.

• Check: Is it under 4.25" wide for a 5.5" hoop?
• Check: Is it centered in the workspace?

One sentence that saves jobs: if you’re using a ricoma em 1010 embroidery machine, verifying limits in software first prevents the heartbreak of a "Design Exceeds Hoop" error after you've already hooped the garment.

Step 2: The Station Setup (The "anchor point")

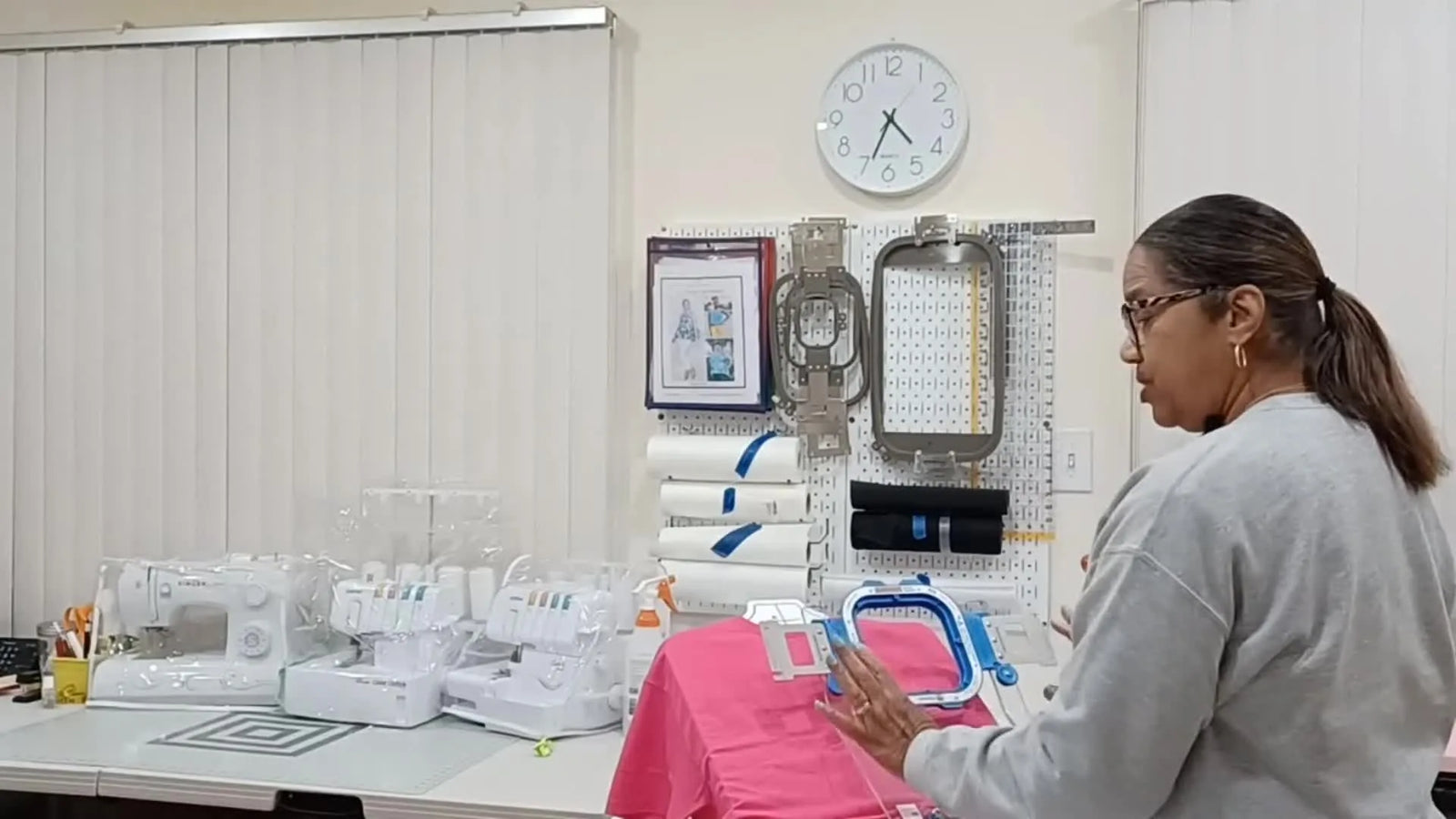

The video demonstrates a Hoop Master base board with a fixture sized for the 5.5" Mighty Hoop. Treat the station setup like calibrating a weapon sight.

The Physics of Consistency: When you hold a hoop freely in your hands, your "center" drifts by 0.5" to 1" every time due to hand fatigue. The station eliminates human error.

Setup Routine:

1. Seat the Fixture: Place the Mighty Hoop fixture onto the base.
2. Auditory Check: Listen for the solid clunk as it seats into the base pegs. It should not wiggle.
3. Visual Check: Ensure the "Free Arm" spacing is correct for a T-shirt (fixture usually sits lower on the board).


Prep Checklist (The "Pre-Flight" Inspection)

• Design Dimensions: Confirmed < 4.25" width (for this specific 5.5" hoop).
• Hoop Selection: Top and bottom magnetic rings selected and separated (store them far apart!).
• Station Integrity: Fixture is locked into the base; no wobbling.
• Consumables:
  • Cut-away stabilizer sheet (pre-cut).
  • Hidden Consumable: Temporary spray adhesive (e.g., Odif 505) – a light mist helps keep backing rigid.
• Workspace: Table cleared of scissors or stray magnets that could jump onto the hoop.

Warning: PINCH POINT HAZARD. Magnetic hoops snap together with approx. 10-15 lbs of force immediately. Keep fingers vertically clear of the rim. Never hold the hoop by the edges when snapping; hold the designated tabs or let the fixture do the work.

Step 3: Stabilizer and Fabric Logic

In the workflow, the bottom magnetic ring goes into the fixture recess first. Then, a sheet of Cut-Away Stabilizer is placed over it.

Why Cut-Away? (The Material Science) T-shirt knits are mechanically unstable; they stretch in X and Y directions. Tear-away stabilizer eventually dissolves or tears, leaving the stitches unsupported. Cut-away provides a permanent "suspension bridge" for your thread.

The Protocol:

1. Place bottom ring in fixture.
2. Place cut-away stabilizer.
3. Optional Pro Tip: Use a light mist of 505 spray to bond the backing to the shirt. This prevents "stabilizer creep."

Step 4: The "C Line" Alignment Technique

Here is the core move for a Size Large shirt:

1. Slide the shirt onto the station board.
2. Locate the intersection of the collar seam (or neck tag).
3. Align that center point to the "C" Line on the Hoop Master grid.

The "Why": The station is calibrated so that "A" is for small sizes (higher up) and lines like D/E are for XL/XXL. "C" is the industry standard sweet spot for Large.

This removes the guesswork. You aren't "eyeballing" the center; you are mechanically aligning a known point (collar) to a known grid.

One sentence that keeps your workflow consistent: when you’re relying on a hoop master station, pick one garment reference point (the collar seam) and strictly adhere to the letters on the grid.

Step 5: The "One Push" Snap

Hooping with magnets scares people because it is violent. It happens instantly.

The Technique:

1. Float: Hold the top ring by the side tabs. Align the metal arms with the fixture's guidance knobs.
2. Hover: Lower it until it hovers just above the fabric. Look for wrinkles.
3. Commit: Push straight down efficiently. SNAP.

Sensory Check: The fabric should be taut like a drum skin, but not stretched like a rubber band. If the grain of the ribbed knit looks curved, you pulled too tight.

If you’re new to learning how to use magnetic embroidery hoop systems, focus on the "Hover" phase. Do not snap until the shirt is perfectly flat.

Warning: MAGNETIC INTERFERENCE. The rare-earth magnets in these hoops produce strong fields. Keep them at least 6 inches away from pacemakers, insulin pumps, credit cards, and computerized machine screens.

Step 6: The Machine Setup & The "Clearance Ritual"

You have moved the shirt to the Ricoma EM1010. Now comes the most critical safety step. Magnetic hoops are thicker than standard plastic hoops. If your presser foot is too low, or the needle bar descends too close to the edge, you will break the machine.

The Ritual:

1. Mount: Slide the hoop onto the machine arms. Listen for the click of the retention clips.
2. Settings: Ensure machine is set to "Flat" or "Other" hoop (not Cap).
3. Slow Trace: Run the trace function.
4. The Finger Test: As the machine traces the outer limits, physically point your finger at the gap between the needle bar and the hoop wall.
   • Visual Metric: You need at least 3-5mm of visible metal plate.

This is your insurance policy. If you skip this, you are gambling with a $500 repair bill.

Setup Checklist (Machine Side)

• Hoop Arms: Locked securely (pull gently to verify).
• Bobbin: Check window—ensure you have at least 50% left (don't start a solid fill with a low bobbin).
• Needle: Size 75/11 Ballpoint (best for knits).
• Clearance: Slow Trace completed with visual confirmation of gap.
• Fabric Management: Ensure the rest of the shirt is not bundled under the needle arm (a common cause of drag).

Step 7: Execution – Speed and Sound

The video suggests using "Fast Mode." For a seasoned production shop, this means 900-1000 SPM (Stitches Per Minute). For you (the reader), let's calibrate.

The Reader's Sweet Spot:

• Start at 600-700 SPM.
• Why? At 1000 SPM, if a thread shreds, it creates a birdnest instantly. At 650 SPM, you can hear the problem before it becomes a disaster.

Sensory Feedback Loop:

• Sound: A rhythmic chug-chug-chug is good. A high-pitched whine or slapping sound means tension is off or the hoop is bouncing.
• Stitch Quality: Watch the first 100 stitches. Are they laying flat?

If you’re doing repeat left-chest work, mighty hoop for ricoma configurations allow for speed, but only after you have verified the physics at a lower speed.

Step 8: Validation (The Paper Test)

Before hitting start on a batch, the video shows overlaying a paper printout (template) on the hooped shirt.

Why do this? Software screens lie. They look 2D. A paper template is 1:1 scale.

1. Print the design from Embrilliance.
2. Cut it out.
3. Lay it on the hooped shirt.
4. Check: Is it level? Is it really where the nipple/pocket line would be?

If you’re trying to standardize mighty hoop left chest placement, this paper step is your quality control.

Step 9: Finishing (The Professional Touch)

You are not done when the machine stops.

1. Un-hoop: Pop the magnet (use the leverage tab, don't just yank).
2. Trim: Turn shirt inside out. Trim the Cut-away stabilizer using "Duckbill Scissors" (to prevent cutting the shirt). Leave a smooth 0.5" radius around the stitching.
   • Don't: Cut into a square (corners itch).
   • Do: Cut a rounded shape.




Decision Tree: Stabilizer & Topping Strategy

The "Abuela" design on a pink tee requires specific chemistry. Use this tree for your next project.

Troubleshooting: The "Doctor's" Guide

Symptom 1: The "Hoop Burn" (Ring marks on fabric)

• Likely Cause: Hooping too tight or leaving it hooped overnight.
• Fast Fix: Steam (do not press) the mark; or use "Magic Spray" (sizing).
• Prevention: Upgrade to magnetic hoops which hold via downward pressure, not friction ring stretching.

Symptom 2: Design is crooked (The "lean")

• Likely Cause: The shirt collar wasn't perfectly perpendicular to the station grid lines.
• Fast Fix: None. The shirt is a rag now.
• Prevention: Use masking tape on the station to mark exactly where the shoulder seams must land.

Symptom 3: Puckering (Wrinkles around the letters)

• Likely Cause: You stretched the shirt during hooping. When you un-hoop, the fabric relaxes but the stitches don't.
• Fix: Hoop "Neutral." Do not pull the shirt; lay it flat and smooth it gently.

Symptom 4: Cloud Cover/Tender Touch peeling after wash

• Likely Cause: Insufficient heat or pressure.
• Phyics: Fusible backing is a heat-activated glue. It needs Time + Temp + Pressure.
• Fix: Re-press. Set iron/press to 260-270°F (check mfg instructions) and press firmly for 10-15 seconds.

The Growth Logic: When to Upgrade Your Tools

You can embroider with a single needle machine and a plastic hoop. But pain is a signal. Here is when you should open your wallet to solve a problem:

Scenario A: "I hate hooping. My wrists hurt."

• Diagnosis: Physical fatigue is the #1 killer of embroidery hobbies.
• Prescription: A magnetic embroidery hoop solves this immediately. The "snap" does the work, not your wrists.

Scenario B: "I spend more time changing thread colors than stitching."

• Diagnosis: Efficiency bottleneck.
• Prescription: If you are consistently running 4+ color logos, a Multi-Needle machine (like Ricoma or SEWTECH) moves you from "hobbyist" to "manufacturer."

Scenario C: "My logos are never in the same spot."

• Diagnosis: Lack of standardization.
• Prescription: A dedicated hooping station for embroidery machine stops the drift. It turns placement into math, not art.

Operation Checklist (The Final Quality Control)

• Un-Hooping: Removed without stretching the hot stitches.
• Trimming: Backing trimmed smoothly with no sharp corners.
• Fusing: Cloud Cover applied? (Check edges with fingernail to ensure bond).
• Documentation: Did you write down "Size L = Line C" in your shop notebook? Do it now.

By following this workflow, you aren't just stitching a shirt. You are executing a manufacturing protocol. That is how you build a business.

FAQ

• Q: How wide can a left-chest logo be in Embrilliance when using a 5.5" Mighty Hoop on a Ricoma EM1010?
  A: Keep the design safely under 4.25" wide before hooping to avoid edge strikes and hoop-limit surprises.
  • Measure: Open the design in Embrilliance and confirm the width is under 4.25".
  • Center: Re-center the design in the software workspace before exporting/stitching.
  • Choose: If the design is wider, resize the artwork or move to a larger hoop instead of “hoping it fits.”
  • Success check: The design boundary sits comfortably inside the hoop’s safe sewing area with visible margin on all sides.
  • If it still fails… Run a slow trace on the Ricoma EM1010 and verify clearance before stitching any test garment.
• Q: What is the correct stabilizer choice for a cotton T-shirt left-chest logo when using a 5.5" Mighty Hoop and Ricoma EM1010?
  A: Use cut-away stabilizer for T-shirt knits because it keeps stitches supported after the shirt stretches and relaxes.
  • Place: Set the bottom magnetic ring in the fixture first, then lay a full sheet of cut-away over it.
  • Bond: Lightly mist temporary spray adhesive to reduce backing shift (stabilizer creep).
  • Manage: Smooth the shirt flat over the backing before snapping the top ring.
  • Success check: The hooped area feels drum-taut but not stretched; knit ribs/grain stay straight, not curved.
  • If it still fails… Switch to a more supportive backing approach (for slippery knits, no-show mesh + cut-away is often used) and re-check hooping tension.
• Q: How do I know the fabric is hooped correctly in a 5.5" Mighty Hoop to prevent puckering on a knit T-shirt left-chest logo?
  A: Hoop “neutral”—smooth the shirt flat and snap once, without pulling the knit like a rubber band.
  • Hover: Lower the top ring until it is just above the fabric and remove all wrinkles before snapping.
  • Commit: Push straight down in one firm motion instead of rocking the ring.
  • Avoid: Do not stretch the shirt during hooping; stretching causes puckers after un-hooping.
  • Success check: The fabric is taut and flat, and the knit grain/ribs remain straight (no bowing or distortion).
  • If it still fails… Reduce hooping tightness, add a light mist of temporary adhesive, and re-run a small test sew-out at a slower speed.
• Q: What is the safest way to prevent a needle-bar strike when using a magnetic hoop on a Ricoma EM1010?
  A: Always do a slow trace and visually confirm clearance because magnetic hoops are thicker than standard hoops.
  • Mount: Slide the hoop onto the machine arms and confirm the retention clips click/lock.
  • Set: Verify the machine is in “Flat/Other” hoop mode (not Cap).
  • Trace: Run the slow trace and watch the needle bar path around the outer limits.
  • Success check: There is a visible gap of about 3–5 mm between the needle bar area and the hoop wall during tracing.
  • If it still fails… Stop immediately and re-evaluate hoop choice/design size; do not force a run when clearance looks tight.
• Q: What are the main pinch-point safety rules when snapping a Mighty Hoop magnetic embroidery hoop?
  A: Keep fingers away from the rim path—magnetic rings can snap together with strong force.
  • Hold: Use the designated side tabs and let the fixture guide alignment instead of gripping the hoop edges.
  • Separate: Store top and bottom rings far apart when not in use to prevent accidental snap-together.
  • Clear: Remove metal tools and loose magnets from the table so nothing jumps into the hoop area.
  • Success check: The ring snaps straight down cleanly with no fingers near the closing gap.
  • If it still fails… Use the hooping station to do more of the alignment work and slow down at the “hover” stage before committing.
• Q: What magnetic interference precautions should I follow when using a Mighty Hoop magnetic hoop near embroidery equipment?
  A: Keep magnetic hoops at least 6 inches away from sensitive items and medical devices to reduce interference risk.
  • Distance: Keep hoops away from pacemakers, insulin pumps, credit cards, and computerized machine screens.
  • Control: Set rings down on a clear surface—do not park them on or near electronics.
  • Plan: Move the hoop to the machine only when ready to mount and trace.
  • Success check: No unintended attraction to nearby metal objects and no workflow steps require placing the hoop near screens/cards.
  • If it still fails… Create a dedicated “magnet-only” staging zone on the table, away from electronics and storage of cards/devices.
• Q: How do I fix hoop burn (ring marks) on a T-shirt after left-chest embroidery with a Hoop Master station and magnetic hoop?
  A: Steam the ring mark (do not press) and prevent repeats by avoiding over-tight hooping or leaving the shirt hooped too long.
  • Recover: Steam the marked area gently rather than flattening it with hard pressure.
  • Prevent: Do not leave garments hooped overnight—un-hoop promptly after stitching.
  • Upgrade path: If hoop burn keeps happening with traditional hoops, magnetic hoops often reduce ring-mark risk because they hold with downward pressure rather than friction stretching.
  • Success check: The ring mark relaxes and becomes visually minimal under normal viewing distance.
  • If it still fails… Re-check hooping technique for excessive tension and consider adjusting workflow timing so garments are not sitting hooped between steps.
