Pocket Hoop Hat-Side Embroidery on SmartStitch: Get Lower Placement Without Breaking a Presser Foot

Side-of-hat embroidery is the ultimate test of patience for beginners. It looks deceptively simple—until you are staring at a structural side panel that wobbles like a trampoline, a cursive logo that refuses to sit low enough, and a machine foot that seems destined to crash into the metal clamp.

If you are operating a SmartStitch multi-needle machine and aiming for crisp, clean branding on the side of a structured cap (especially when the front is already heavy with 3D puff), "winging it" is a recipe for broken needles and ruined merchandise. This guide converts the chaos of side-hooping into a controlled science.

The Calm-Down Moment: Why Hat-Side Embroidery Feels “Impossible” on a SmartStitch Multi-Needle

Understanding the physics of why this is difficult will calm your nerves. The front of a structured cap has buckram—a stiffened mesh that acts like built-in stabilizer. The side panel, however, is often just soft twill or mesh. In the instructional video, the host physically flexes the side to demonstrate this instability.

This "structural gap" causes three specific nightmares:

1. Flagging: The fabric bounces up and down with the needle, causing birdnesting.
2. Deflection: The needle hits the moving fabric and enters at a slight angle, ruining crisp text.
3. Distortion: The fabric ripples under thread tension, commonly known as "puckering."

Furthermore, SmartStitch machines ship with Safety Zones—invisible software barriers designed to prevent the presser foot from hitting the hoop. While safe, these factory settings are often too conservative, forcing your logo to sit awkwardly high on the cap profile.

The solution requires a three-layer approach: Mechanical Stability (Hooping) > Software Override (Parameters) > Visual Verification (Trace).

The “Hidden” Prep That Makes Hat Sides Behave: Pocket Hoop + Stabilizer Choices That Don’t Waste Your Time

Before touching the machine interface, you must stabilize the canvas. The specific tool required is a Pocket Hoop (also known as a clamp frame). Unlike standard tubular hoops, this applies pressure from the top and bottom to grip slippery curved surfaces.

The Stabilizer Equation

The video recommends 3 oz stabilizer, though 2 oz is mentioned as acceptable. From an industry durability standpoint, 3 oz tearaway is the "Sweet Spot" for structured caps.

• Why 3 oz? The side panel is wobbly. You aren't just stabilizing stitches; you are artificially adding the stiffness that the side panel lacks.
• Sensory Check: A 3 oz stabilizer should feel like heavy cardstock, whereas 2 oz feels more like standard printer paper. For side panels, "Cardstock" wins.

Hidden Consumable: Temporary Adhesive

While not explicitly stressed in every basic tutorial, a light mist of temporary adhesive spray is a "secret weapon" here. It bonds the backing to the cap interior, preventing the stabilizer from sliding away from the clamp during the chaotic loading process.

The Physics of Distortion:

• High Instability (Mesh/Soft Twill) + Curved Geometry = High Distortion Risk
• Stiffer Stabilizer + Proper Clamping = Low Distortion Risk

One final maintenance note: These clamp frames rely on tension screws. As mentioned in the video, screws can pop out over time. Keep a small kit of M3/M4 nuts and bolts (available at any hardware store) in your drawer to avoid production downtime.

Prep Checklist (Do this before hooping)

• Hardware: Pocket Hoop clamp arm moves freely; spring tension allows a firm snap.
• Consumables: 3 oz Tearaway stabilizer is cut to size (approx. 4" x 6").
• Clearance: Identify any thick internal seams or tags in the clamp zone (remove or tape them down).
• Design Assessment: The design fits within the strict 3.5" wide × 2.5" tall safety window.
• Consumable Check: Have your temporary spray adhesive and a new 75/11 sharp needle ready (ballpoints can struggle with structured twill).

Warning: Pinch Hazard. Keep fingers clear of the clamp lever and hinge points when locking the Pocket Hoop. The spring mechanism snaps shut with force adequate to bruise fingers or scratch the cap brim if your grip slips.

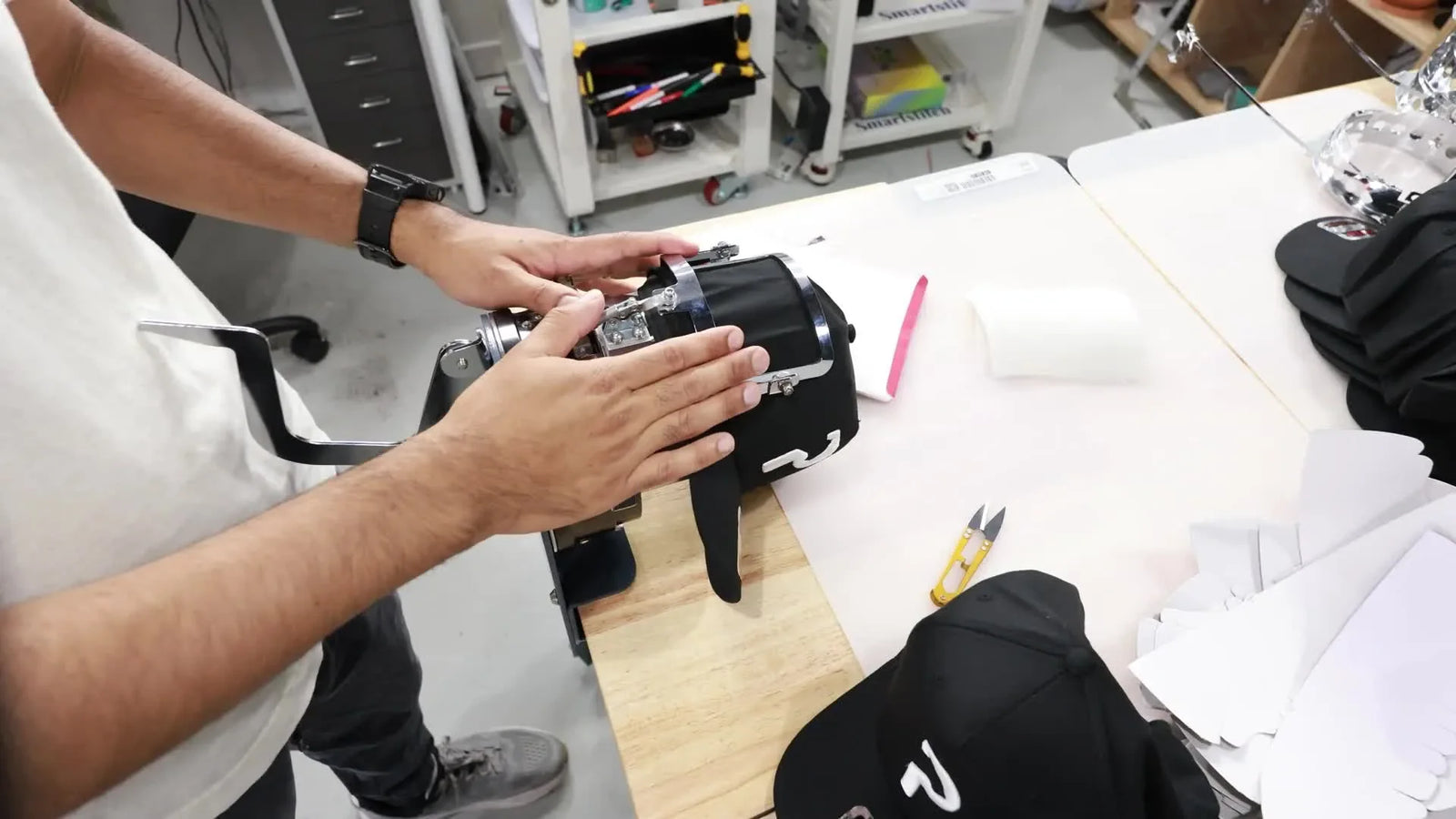

Hooping the Side Panel with a Pocket Hoop: The Clamp “Click” You Must Feel (and the Crease You Must Kill)

This is the physical skill barrier. A sloppy hoop job guarantees a sloppy stitch-out, regardless of your machine settings.

The Expert Sequence:

1. Insert: Lock the Pocket Hoop into the standard hat bracket/gauge.
2. Lift: Raise the clamp arm fully.
3. Position: Slide the hat side panel over the bottom plate.
4. Backing: Slide the stabilizer inside the hat, underneath the fabric.
5. Lock: Push the top clamp arm down.

The Sensory Anchor: "The Click" You must feel a distinct mechanical lock. If the lever feels spongy or doesn't produce a tactile "thud" or "click," the material is too thick, or the clamp isn't seated. If you sew without this lock, the hoop will fly off mid-stitch.

The Enemy: Diagonal Creases Structured caps inevitably want to fold when flattened. Look for diagonal ripples radiating from the sweatband. If you see them, unlock, stretch the fabric slightly, and re-clamp.

What “Commercial Quality” Hooping Looks Like

• Tension: The fabric in the window feels tight, similar to a snare drum skin.
• Flatness: No fabric bunches are trapped under the metal clamp teeth.
• Alignment: The sweatband is pulled back and not obstructing the stitch field.

A Shop Trick for Repeatability

For bulk orders, place a small piece of masking tape on the bottom clamp plate to mark the center alignment. Use this visual guide to load every hat in the exact same spot, reducing the need to re-center the design on screen for every single unit.

When the Design Sits Too High: The SmartStitch Hoop Limits That Block Lower Hat-Side Placement

You have hooped perfectly, but the machine fights you. You try to drag the design lower on the screen, and the machine beeps, refusing to move.

• The Symptom: The design is stuck high near the crown vents, leaving awkward empty space above the ear.
• The Cause: The factory hoop definition acts as a "digital baby gate," preventing the needle from going where the engineers deemed "risky."

To get professional placement (low and centered), you generally need to research methods for specific gear, often leading users to search for a smartstitch hat hoop tutorial or a workaround. In this specific case, we are going to modify the machine's internal logic to expand that digital gate.

The Secret Menu Move: Editing SmartStitch Hoop Parameters (Password + Exact Frame Length/Width)

Disclaimer: This is an advanced operation. You are removing safety barriers.

To enable lower embroidery, we must manually tell the machine that the hoop is larger than the factory default believes.

The Navigation Path:

1. Tap the Position menu icon.
2. Select the Hat Hoop icon.
3. Tap the small Cross/Plus icon (usually in the corner) to edit.
4. Enter Password: The standard technician password for the SmartStitch models referenced (1201/101) is usually 87181066.




The Critical Data Entry: Once inside the edit menu, you will see X and Y values. Change them to the host-recommended "Golden Ratio" for this frame:

• Frame Length (Y-axis): Change to 95.0 mm
• Frame Width (X-axis): Change to 50.0 mm


Calibration Checkpoints

• After typing 95.0, press Enter.
• After typing 50.0, press Enter.
• Double Verify: Look at the numbers on screen. A typo here (e.g., 950.0) could cause the machine to slam the pantograph to its limit, causing severe mechanical damage.

Warning: Collision Risk. By expanding these limits, you have disabled the machine's ability to stop you from hitting the metal frame. The machine now trusts you completely. If you skip the Trace step later, you risk shattering the reciprocating bar or the presser foot.

Why This Works (The "Why")

Standard manufacturing safety margins are huge—often 10mm-15mm away from the metal. By expanding the length to 95mm and width to 50mm, you are reclaiming that "buffer zone," allowing the needle to travel closer to the clamp edge (where the low side of the hat is).

If you are exploring a smartstitch embroidery frame upgrade, understanding these coordinate definitions is crucial for setting up any custom aftermarket hoops.

The Refresh Trick That Makes the New Settings Stick: Switching Hoop Profiles on SmartStitch

This is the most common point of failure. Operators change the numbers, hit save, and... nothing happens. The limitation persists.

The "Soft Reboot" Protocol: The machine's operating system caches the hoop profile. You must force it to reload the configuration file.

1. Exit the settings menu.
2. Select a different hoop profile (e.g., a round T-shirt hoop).
3. Let the machine "clunk" and adjust.
4. Select the Pocket Hoop / Hat Hoop profile again.


This sequence forces the operating system to read the new 95.0 / 50.0 values you just entered. Without this toggle, you are flying on the old charts.

Mounting the Pocket Hoop on the Driver: The Top Clips Only Detail That Prevents Wobble

Mechanics matter. The video emphasizes a mounting nuance that defies the intuition of standard tubular hoops.

• The Rule: The Pocket Hoop clips onto the top two attachment points of the cap driver bar only.
• The Prevention: Do NOT try to force it onto the bottom clips or "lock it all the way around."


If you force the mounting, you introduce torque (twisting force) to the hoop. This torque creates "Play"—small movements that occur every time the needle retracts. The result? jagged outlines and poor registration.

Setup Checklist (Pre-Trace)

• Mounting: Hoop is secured to the top two clips only. wiggle it—it should feel solid, not loose.
• Clearance: Spin the hat 360 degrees (visually) to ensure the brim or back strap isn't caught on the machine head.
• Profile: Confirmed the screen shows the correct hoop icon (reloaded).
• Needle: Ensure you are using the correct needle for your thread weight (usually a 75/11 for 40wt thread).

The Trace Test That Saves Presser Feet: Outline First, Then Stitch (No Exceptions)

Because we removed the digital safety barriers, Tracing is now a survival skill.

Press the Trace / Outline button. Keep your finger hovering over the Stop button.

Visual Verification Criteria:

1. The Hover: Watch the presser foot (not just the laser). Does it physically clear the metal clamp?
2. The Space: Is there at least a fingernail's width of fabric between the foot and the clamp at the lowest point of the design?
3. The Height: Does the foot pass over the thick sweatband seam without catching?

If the presser foot even brushes the metal, stop. Scale the design down by 5-10% or nudge it upward. Do not hope it "slides by."

Design Size Rules for the Pocket Hoop Window: 3.5" × 2.5" with a 1/4" Safety Margin

The host provides hard measurements for the physical window. Memorize these constraints regarding the hooping for embroidery machine process using this clamp frame.

• Physical Window: 3.5 inches (W) x 2.5 inches (H)
• Safe Sewing Area: 3.25 inches (W) x 2.25 inches (H)


The 0.25-inch Rule: Always leave a 0.25-inch (approx 6mm) buffer from the metal edge. This accounts for:

• Standard machine vibration.
• The "pull compensation" (fabric shrinking) which distorts the design shape slightly outward.
• The thickness of the presser foot itself.

Stabilizer Decision Tree for Hat Side Panels (Fast Picks That Prevent Wavy Cursive)

Stop guessing. Use this flowchart based on tactile feedback to choose your backing.

Step 1: The "Squish" Test Press your thumb into the side panel.

• A. It collapses easily (mesh/unstructured):
  • Solution: 3 oz Tearaway (for structure) OR Cutaway (if heavy stitch count).
  • Note: Mesh needs Cutaway if the design interacts heavily with the holes.
• B. It holds shape but flexes (standard twill):
  • Solution: 3 oz Tearaway (Standard Industry Choice). This is the baseline from the video.
• C. It feels stiff (reinforced wool/heavy cotton):
  • Solution: 2 oz Tearaway is acceptable, but 3 oz provides better text definition.

Step 2: The Design Check

• Heavy Fill / Tatami? -> Use 3 oz.
• Light Running Stitch / Open Text? -> 2 oz can work.

Troubleshooting Hat-Side Embroidery on SmartStitch: Symptoms, Causes, Fixes

When things go wrong, use this diagnostic table. Always troubleshoot from "Physical" to "Digital" to save money.

Pro Tip on Speed: The draft mentioned a vague speed. For side-of-cap embroidery on a multi-needle, 600-700 SPM (Stitches Per Minute) is the "Quality Safe Zone." Running at 1000 SPM on a vibrating clamp frame is asking for registration errors. Slow down to speed up (less rework).

The Upgrade Path That Actually Feels Like Relief: Faster Hooping, Less Fatigue, More Production Capacity

A common question in the comments is: "Can't I just use the normal hat hoop?" The answer is: You can, but do you want to?

Using a standard 270-degree cap frame for side logos requires awkward twisting and aggressive clipping. For a hobbyist doing one hat a week, that is fine. But for a business filling an order of 50 hats, wrist fatigue and setup time become your enemy.

The Production Hierarchy of Needs:

1. The "Better Hooping" Level:
   If you struggle with "Hoop Burn" (shiny rings left on fabric) or wrist pain from manual clamping, upgrading to a magnetic embroidery hoop system is the industry standard for relief. The magnets self-align and hold firm without the "wrestling match" of mechanical clamps. Use terms like tajima pocket frame or MaggieFrame when searching for compatible gear for industrial machines.
2. The "Volume" Level:
   If you are consistently turning away orders because you can't stitch fast enough, or if changing threads on a single-needle machine is driving you crazy, this is the trigger to look at dedicated multi-needle platforms like the SEWTECH ecosystem. The ability to set up 12 colors and walk away is the only way to scale profitability.

Warning: Magnet Safety. Powerful magnetic hoops can pinch skin severely and interfere with pacemakers. Store them with separating foam and never let two magnets snap together without a buffer.

Operation Checklist (The "Don't Ruin the Hat" Final Pass)

Before you press the green button, verify these six points to ensure a crash-free run.

• Flatness: The hat side panel is clamped drum-tight; no diagonal creases are trapped.
• Backing: Stabilizer is fully inserted and lies flat under the entire sewing field.
• Reset: The hoop profile was switched/refreshed after any parameter edits.
• Mount: The hoop is clipped to the Top Two attachment points only.
• Trace: You visually watched the presser foot clear the metal frame limits (Safety Gap > 3mm).
• Margins: The design has a 0.25-inch buffer from the frame edge.

If you check these boxes, you bypass the "fear phase" and move straight to production. Treat the side of a hat not as a problem, but as a procedure.

FAQ

• Q: What stabilizer weight should SmartStitch multi-needle operators use for side-of-hat embroidery with a Pocket Hoop on structured caps?
  A: Use 3 oz tearaway as the default because it adds the stiffness the side panel lacks.
  • Choose 3 oz tearaway for most structured cap side panels; treat 2 oz as “only if the panel is already stiff.”
  • Add a light mist of temporary spray adhesive to keep the backing from sliding during loading.
  • Slow the machine to about 600–700 SPM to reduce vibration-related distortion.
  • Success check: The backed area feels more like heavy cardstock than printer paper, and the side panel stops “bouncing” during stitching.
  • If it still fails: Switch to cutaway for very soft mesh or heavy stitch designs, and re-check clamping tightness.
• Q: What hidden prep items should SmartStitch multi-needle users gather before hooping a cap side panel in a Pocket Hoop?
  A: Prepare a 75/11 sharp needle, 3 oz tearaway backing cut to size, and temporary spray adhesive before touching the machine screen.
  • Cut stabilizer to roughly 4" × 6" so it fully supports the sewing field inside the cap.
  • Inspect the Pocket Hoop hardware: clamp arm moves freely and the spring snaps firmly.
  • Check the clamp zone for thick seams/tags and tape them down or avoid trapping them under the teeth.
  • Success check: The hat loads without the backing shifting, and the clamp locks decisively instead of feeling “spongy.”
  • If it still fails: Replace worn tension screws/nuts (keep M3/M4 hardware on hand) and re-load the cap.
• Q: How can SmartStitch multi-needle operators tell a Pocket Hoop clamp is locked correctly for side-of-hat embroidery?
  A: The Pocket Hoop must close with a distinct mechanical “click/thud,” and the fabric window must be drum-tight with no diagonal creases.
  • Insert the cap over the bottom plate, slide stabilizer inside under the fabric, then push the top clamp arm down firmly.
  • Unclamp and re-seat if diagonal ripples radiate from the sweatband area.
  • Pull the sweatband back so it cannot obstruct the stitch field.
  • Success check: The clamp lever feels positively locked (not mushy), and the hooped area feels like a snare drum skin.
  • If it still fails: Reduce thickness under the clamp (avoid seams) or service/replace worn clamp hardware.
• Q: How can SmartStitch multi-needle operators lower a side-of-hat logo when the SmartStitch Hat Hoop safety limits block placement?
  A: Edit the SmartStitch Hat Hoop parameters in the secret menu and set Frame Length (Y) to 95.0 mm and Frame Width (X) to 50.0 mm.
  • Navigate: Position → Hat Hoop → tap the small Cross/Plus edit icon.
  • Enter the technician password 87181066, then type Y = 95.0 and press Enter; type X = 50.0 and press Enter.
  • Double-check the exact decimals to avoid extreme travel values that can cause mechanical damage.
  • Success check: The design can be dragged lower on-screen without the machine beeping and blocking movement.
  • If it still fails: Perform the hoop-profile refresh by switching to a different hoop profile and then switching back.
• Q: Why did SmartStitch multi-needle Hat Hoop parameter edits not take effect after saving 95.0 mm and 50.0 mm?
  A: SmartStitch often caches the hoop profile, so the fix is to switch to a different hoop profile and then switch back to the Pocket Hoop/Hat Hoop profile.
  • Exit the edit menu completely.
  • Select a different hoop (for example, a round T-shirt hoop) and let the machine adjust.
  • Re-select the Pocket Hoop/Hat Hoop profile to force a reload.
  • Success check: The newly expanded placement range is available immediately, and the previous “digital baby gate” behavior is gone.
  • If it still fails: Re-enter the edit screen and confirm the values saved correctly (95.0 and 50.0, not 950.0).
• Q: How should SmartStitch multi-needle operators mount a Pocket Hoop on the cap driver to prevent wobble during side-of-hat embroidery?
  A: Clip the Pocket Hoop onto the top two attachment points only—do not force it onto the bottom clips.
  • Attach to the top two points, then lightly wiggle-check for solid seating.
  • Ensure the brim/back strap is not caught and has free clearance around the head.
  • Confirm the correct hoop icon/profile is selected on the SmartStitch screen.
  • Success check: The hoop feels solid with no “play,” and outlines/register lines stay crisp instead of jagged.
  • If it still fails: Re-mount without twisting force and re-run a Trace to confirm physical clearance.
• Q: How can SmartStitch multi-needle operators prevent presser-foot crashes after expanding Hat Hoop limits for low side-of-cap placement?
  A: Always run SmartStitch Trace/Outline first and watch the presser foot clear the metal clamp before stitching.
  • Press Trace/Outline and keep a finger ready on Stop.
  • Verify physical clearance at the lowest point: at least a fingernail-width gap between presser foot and clamp.
  • Check the presser foot passes over the sweatband seam without catching.
  • Success check: The full trace completes with zero brushing/contact against the metal frame.
  • If it still fails: Nudge the design up or scale down 5–10% and trace again before sewing.
• Q: When should side-of-hat embroidery operators upgrade from Pocket Hoop technique tweaks to magnetic hoops or a SEWTECH multi-needle machine?
  A: Upgrade in layers: first fix hooping/stabilizer fundamentals, then consider magnetic hoops for fatigue/hoop-burn relief, and consider a dedicated multi-needle platform when order volume is the real bottleneck.
  • Level 1 (technique): Improve clamping “click,” use 3 oz tearaway + temporary spray adhesive, and run 600–700 SPM for stability.
  • Level 2 (tool): Choose magnetic hoops if wrist fatigue, slow loading, or hoop burn keeps repeating in production runs.
  • Level 3 (capacity): Move to a multi-needle workflow when thread changes and throughput limits cause missed deadlines or turned-down orders.
  • Success check: Setup time drops and rework (needle breaks, distortion, collisions) becomes the exception instead of the norm.
  • If it still fails: Re-evaluate design size limits (keep within the safe sewing area and margin) and confirm Trace clearance every time; follow magnet safety precautions (pinch hazard and pacemaker risk).
