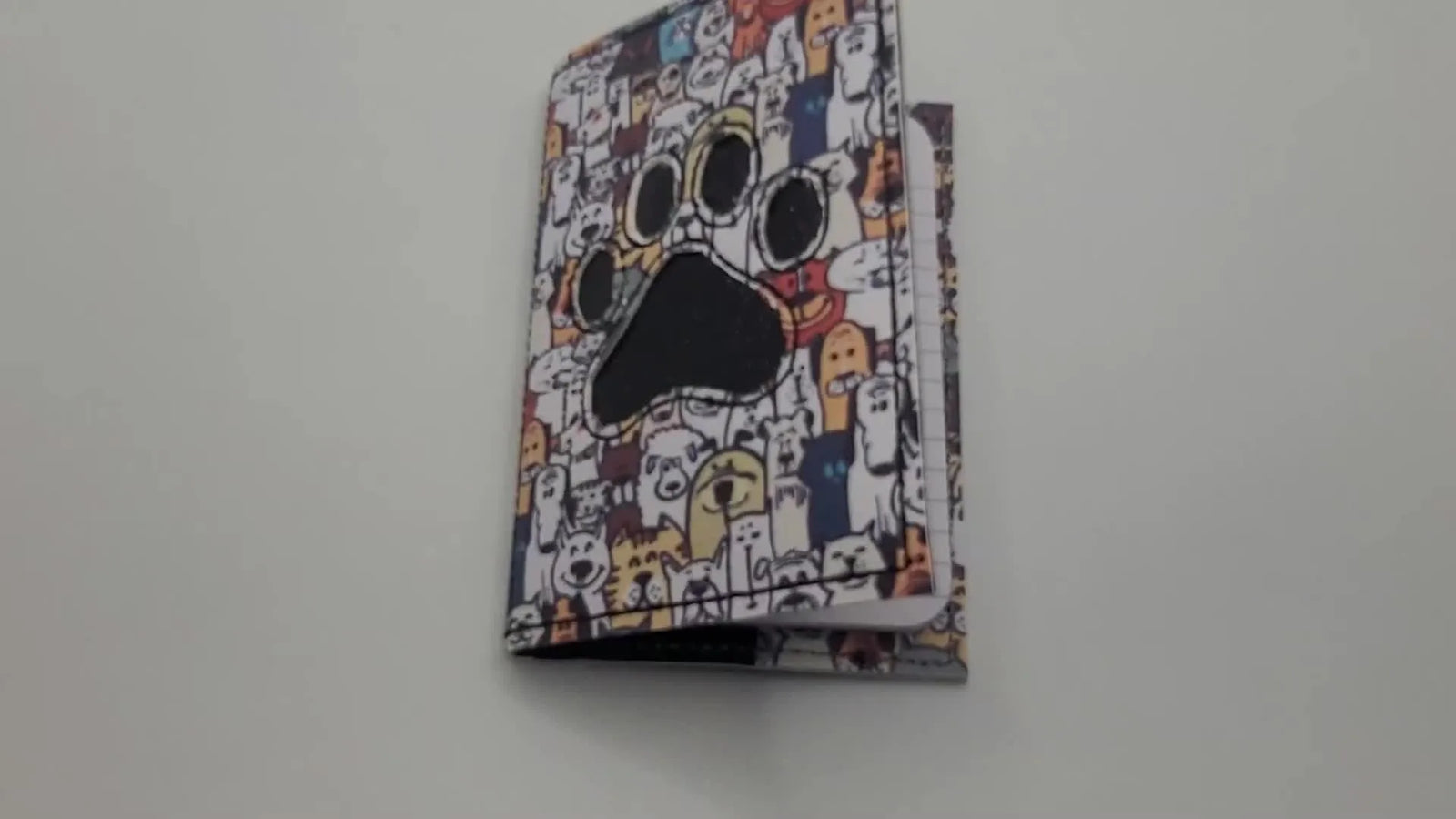

Reverse Appliqué ITH 5x7 Notebook Cover on Vinyl: The Clean-Cut Paw Print Method (Without Ruining Your Hoop or Your Sanity)

Vinyl ITH (In-The-Hoop) projects look “simple” right up until you’re on your third hoop flip, your tape is stuck to everything except the right spot, and your fold-over elastic decides to wander under the needle.

This 5x7 notebook cover is absolutely doable—and it’s a fantastic skill-builder because it forces you to master three things that separate clean ITH work from frustrating, wasted-material disasters:

1. Stable Hooping: Mastering tension without distortion.
2. Controlled Trimming: The art of the surgical cut.
3. Spatial Discipline: Managing the "front vs. back" battlefield.

Below is the full workflow, re-engineered from the video into a production-grade Standard Operating Procedure (SOP). We are moving beyond "guessing" and into "precision."

The “Don’t Panic” Primer for a 5x7 ITH Notebook Cover (Single-Needle Embroidery Machine Reality Check)

If you’re feeling a little tense before you start—good. That is your brain acknowledging that Vinyl + Reverse Appliqué + Elastic is a combination that punishes rushing. The upside is that every step in this project gives you a clear visual confirmation (placement box, paw outline, cut window, satin seal, tab box, lining tack, spine guides, final perimeter).

The Golden Rule: The goal isn’t speed on your first run. The goal is a cover that lays flat, stitches clean, and avoids that wavy “I fought my hoop and lost” look.

• Speed Recommendation: For vinyl on a single-needle machine, cap your speed at 600 SPM (Stitches Per Minute). Vinyl creates friction; high speeds heat the needle, which can melt the adhesive on your tape and cause thread shreds.
• Audio Check: You want a rhythmic, consistent purr. A labored thump-thump suggests your needle produces too much drag—slow down or change the needle.


Gather the Exact Supplies for the 5x7 Hoop Notebook Cover (Vinyl, Oly-Fun, FOE, Tear-Away Stabilizer)

Precision starts with preparation. From the video, here is the material list, augmented with the "Hidden Consumables" professionals use to prevent failure.

Core Materials (Cut Sizes):

• Main body: 6 x 8 in printed vinyl (Marine grade or standard embroidery vinyl).
• Lining: 6 x 8 in Oly-Fun (Crucial choice: it is thin, sturdy, doesn't fray, and reduces bulk at the spine).
• Reverse appliqué insert: 3 x 3 in glitter vinyl.
• Pockets: Two strips, 1.5 x 6 in.
• Closure: 9 in Fold-Over Elastic (FOE).
• Tab (“barn door”): 1 x 2 in vinyl.
• Notebook: Mini composition notebook 3.25 x 4.5 in.

The Hidden Consumables & Tools (Don't start without these):

• Stabilizer: Medium-weight Tear-Away (2.0 - 2.5 oz).
• Needle: 75/11 Sharp or Topstitch. Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
• Tape: Painter’s tape (blue) or specific embroidery tape. It must release without leaving residue.
• Cutting Tool: Double-Curved Appliqué Scissors or a surgical seam ripper. Flat scissors will accidentally cut your stabilizer.
• Lubricant: Sewer's Aid (liquid silicone) on the needle shaft can prevent vinyl buildup.

A note on workflow: this design repeatedly asks you to work on the back of the hoop. That’s where beginners lose alignment. If you are doing volume production, manual hooping becomes a bottleneck. Professionals often pair a system like a hoop master embroidery hooping station with consistent templates to ensure every notebook cover is centered exactly the same way, reducing the "measure twice, cut once" fatigue.

Prep Checklist (Do this before you even thread the machine)

• Bobbin Check: Ensure you have a full bobbin. Running out during a satin stitch on vinyl is a nightmare fix.
• Needle Hygiene: Install a fresh 75/11 Sharp needle. Burrs on old needles will shred vinyl.
• Inventory: Confirm all cut pieces: 6x8 main, 6x8 lining, 3x3 glitter, 1.5x6 pockets, 1x2 tab, 9" FOE.
• Tape Test: Stick a piece of your tape to a scrap of vinyl and peel it off. If it leaves gum or pelts the vinyl surface, switch brands now.
• Hoop Mechanics: Check your hoop screw. For vinyl, you cannot over-tighten, or you will get "hoop burn" (permanent ring marks). If your vinyl marks easily, this is the time to consider an upgrade path like magnetic embroidery hoops which clamp vertically rather than dragging layers horizontally.

Warning (Mechanical Safety): Reverse appliqué trimming is a "blade-and-needle neighborhood." When trimming inside the hoop, Keep fingers clear. Use small, controlled snips. Never trim while the presser foot is down or while your foot is hovering over the foot pedal. One accidental tap can drive a needle through your scissors—or your finger.

Step 1 Placement Stitch on Tear-Away Stabilizer (The Rectangle That Prevents Crooked Covers)

Video Action: Hoop your tear-away stabilizer “drum tight” (tap it; it should sound like a bongo). Run Step 1, which stitches a simple placement rectangle directly onto the stabilizer.

The "Why": This rectangle is your "Source of Truth." Do not rely on the plastic grid of your hoop. Just trust the stitched box.

Checkpoint: You should see a clean rectangle outline on the hooped stabilizer. Outcome: A verified coordinate system for placement.

Step 2 Tack Down the 6x8 Vinyl + Stitch the Paw Print Outline (Cover the Line Completely)

Video Action: Place the 6x8 main vinyl over the placement lines so it covers the rectangle completely. Tape the corners securely. Run Step 2. The machine tacks down the vinyl and stitches the paw print outline.

Sensory Check: Watch the vinyl as the needle hits. If it "bounces" or flags (lifts up with the needle), your hoop tension is too loose, or you didn't tape it down well enough.

Checkpoint: The paw print outline is visible on the patterned vinyl. Expected Outcome: Vinyl is secured flat; paw outline is crisp and not distorted.

Pro Tip: Do not "stretch" vinyl to make it look smooth. Vinyl has "memory." If you stretch it while hooping, it will contract later, creating ripples around your satin stitches. It should lay flat and neutral.

The Reverse Appliqué Cut: Open the Paw Pads *Inside* the Stitch Line (Clean Window, No Frayed Edge)

Video Action: Remove the hoop from the machine (do not un-hoop the stabilizer). Using a seam ripper or sharp curved scissors, carefully puncture and cut out the vinyl inside the stitched paw print lines.

Technique:

1. Puncture: Use the seam ripper to start a hole in the center of the pad.
2. Glide: Switch to scissors. Keep the blade flat against the stabilizer.
3. Trim: Cut 1mm to 2mm away from the stitch line.

Checkpoint: You can see the white stabilizer through the paw-pad openings. Expected Outcome: The cut edge sits just inside the stitch line so the next satin border can fully cover and seal it.

This is where the "messy look" usually happens. Follow these two rules:

• Rule 1: The Safety Zone. You need a 1-2mm buffer. Too close? You cut the thread. Too far? The satin stitch won't cover the raw edge.
• Rule 2: Smooth Curves. Jagged cuts force the satin stitch to bridge gaps, creating ugly "spikes" in your finished design.


Flip the Hoop: Tape the 3x3 Glitter Vinyl to the Back (Pretty Side Down, Fully Cover the Window)

Video Action: Turn the hoop over. Place the 3x3 glitter vinyl on the back of the stabilizer pretty side down (glitter face touching the adhesive side of the stabilizer). Secure it with tape on all four sides.

Checkpoint: Glitter vinyl is taped flat on the back of the hoop, covering the entire paw window from the rear.

Expected Outcome: When you stitch the next step, the machine will "sandwich" the top vinyl and the glitter layer.

The Friction Point: This step involves flipping the hoop and applying pressure. If you are using standard hoops, the screw mechanism often slips here. If you find yourself constantly wrestling to keep layers from shifting during these flips, this is a classic moment to consider an embroidery magnetic hoop. The magnetic force holds thick sandwiches (Vinyl + Stabilizer + Glitter) instantly without the need for screw adjustments, reducing distortion.

Step 3 Satin Stitch Border: Seal the Reverse Appliqué Like a Pro (No Gaps, No Tunneling)

Video Action: Re-attach the hoop carefully. Run Step 3.

Physics of the Stitch: The machine is now driving a dense column of stitches through three layers (Top Vinyl, Stabilizer, Bottom Glitter). This generates heat and perforation.

• Action: Reduce speed to 500-600 SPM.
• Visual Check: Ensure the satin stitch is "wrapping" the raw edge of the top vinyl completely.

Checkpoint: A thick, glossy satin stitch cleanly frames each paw pad. Expected Outcome: The satin stitch locks the top vinyl edge down and permanently captures the glitter vinyl underneath.

Troubleshooting: If the satin stitch looks thin or you see the bobbin thread pulling up to the top, your Upper Tension is too tight. Loosen it slightly (lower the number) until the stitch looks plump and consistent.

The “Barn Door” Elastic Closure: Tape FOE Ends Into the Placement Box (Keep the Loop Away From the Needle)

Video Action: Run Step 4 (Placement box for tab). Align the ends of the FOE inside that placement box. Tape the raw ends down.

Critical Maneuver: You must corral the loop of the elastic. Tape the loop to the center of the project so it is miles away from the needle path.

Checkpoint: FOE ends are stitched down neatly; the loop is safely secured elsewhere. Expected Outcome: The elastic is anchored firmly.

Production Note: If you are using a Brother-style 5x7 setup and doing high-volume repetitions, many makers look for a magnetic hoop for brother machines. The ease of snapping the hoop on and off allows for faster placement of small fiddly bits like elastic without disturbing the main stabilizer tension.

Hide the Raw Elastic Ends: Place the 1x2 Vinyl Tab and Run Step 6 (The X-in-a-Box Lock)

Video Action: Place the 1 x 2 in vinyl tab over the elastic ends to hide them. Run Step 6.

Checkpoint: The tab is stitched securely (usually a box with an X or triple stitch). Expected Outcome: Elastic ends are buried. The closure is now durable enough to withstand being pulled hundreds of times.

Flip Again: Attach the 6x8 Oly-Fun Lining on the Back (Bulk Control That Actually Matters)

Video Action: Turn the hoop over. Verify the elastic loop on the front is still taped to the center. Place the 6x8 Oly-Fun lining over the entire back of the hoop. Tape all four corners and the mid-points.

Why Oly-Fun? Unlike felt (too thick) or cotton (frays), Oly-Fun is a polypropylene sheet that acts like fabric but cuts like paper. It keeps the notebook spine flexible.

Checkpoint: The back is fully covered; lining is tacked down smoothly. Expected Outcome: A clean interior foundation that won’t add stiffness.

Warning (Magnet Safety): If you upgrade to magnetic frames for speed, treat them with respect. Industrial-strength magnets effectively have a "crush zone." They can pinch skin severely, snap onto scissors, or interfere with medical devices. Keep magnets away from pacemakers/implants, always store with the provided spacers, and never let two unshielded frames slam together.

Setup Checklist (Before you run the final assembly stitches)

• Elastic Protocol: The loop on the front is taped to the center. (Check it again. Seriously.)
• Lining Security: The Oly-Fun on the back is taped flat with no "bubbles."
• Tape Clearance: No tape edges are sticking into the stitch path where the needle might gum up.
• Hoop Check: Ensure the hoop is fully seated/clicked in.
• Clearance: If you have upgraded your tooling, confirm your brother 5x7 magnetic hoop matches your machine’s arm clearance.

Step 8 Spine Stitch Lines: Use Them as Your Pocket Alignment “Ruler”

Video Action: Run Step 8. This creates two vertical lines on the back.

Checkpoint: Two vertical stitch lines appear on the lining. Reasoning: These are not decorative. They are your alignment guides. They show you exactly where the notebook spine sits so you don't place your pockets too deep (notebook won't close) or too shallow (notebook falls out).

Pocket Placement on the Back: Align Two 1.5x6 Vinyl Strips and Respect Directional Prints

Video Action: Place the two 1.5 x 6 in pocket strips on the back. Align their inner edges perfectly with the spine stitch lines you just made. Tape them securely.

Visual Check: If your vinyl has a pattern (like the dogs in the video), ensure they are right-side up relative to the cover. Checkpoint: Pocket strips are straight, mirrored, and aligned to the spine guides.

Step 9 Final Stitch: The Perimeter That Makes or Breaks the Professional Look

Video Action: Run Step 9. This is the "Bean Stitch" or triple stitch that travels around the entire perimeter.

Physics of Failure: This step goes through: Oly-Fun + Pocket Vinyl + Stabilizer + Main Vinyl. It is a thick stack.

• Action: Increase tape usage on the corners of the pockets. If a corner lifts, the foot will catch it and ruin the project.

Checkpoint: The perimeter stitch catches all layers. Expected Outcome: A fully constructed cover ready to be cut out.

Operation Checklist (Right before you press Start on the final seam)

• Front Safety: Elastic loop is still secured to the center.
• Back Safety: Pocket strips are taped with no lifted corners.
• Path Clear: Trace the perimeter with your finger to ensure no tape or obstacles are in the way.
• Stability: If you are doing batches, consider whether hooping stations would reduce handling time. Consistent placement on the station means consistent stitching on the machine.

The One Troubleshooting Fix You’ll Use Forever: Elastic Getting Caught in the Seam

Symptom: You finish the project on Step 9, un-hoop it, and realize the elastic loop is sewn into the side seam. Cause: The tape holding the loop gave way on the "Front" while you were working on the "Back." The Fix: Use stronger tape (Kam Snaps tape or similar) for the elastic specifically. The Rescue: If it happens, do not rip the vinyl. Carefully unpick only the perimeter stitches in that area, free the elastic, hand-crank the machine to re-stitch that small gap, and tie off threads by hand.

Stabilizer + Vinyl + Tape: The “Why” That Prevents Wavy Edges

The video uses tear-away stabilizer and tape. This is a practical, low-cost combo. However, understanding the mechanics helps you troubleshoot:

1. Vinyl doesn't "relax": Unlike cotton, if you pull vinyl tight in the hoop, it stays stretched. When you un-hoop, it snaps back, causing the stabilizer to wrinkle. Solution: Hoop the stabilizer tight, but float the vinyl on top (use the placement stitch method).
2. Tape acts as "Basting": Tape prevents "creep." As the needle punches holes (thousands of them), it pushes the material microscopically. Without tape, by the time you get to the bottom of the design, you could be 2mm off.
3. Volume considerations: If you scale this up, "Eyeballing" alignment becomes exhausting. This is why pros move to hoopmaster setups—it turns a 2-minute struggle alignment process into a 10-second precise click.

Decision Tree: Choose Stabilizer + Lining Strategy for ITH Notebook Covers

Use this logic flow to determine your material stack:

1. Is your outer layer a heavy Marine Vinyl?
   • Yes: Use Medium Tear-Away. The vinyl provides its own structure.
   • No (Cotton/Canvas): Use Cut-Away Stabilizer. Cotton stretches; tear-away will result in outline misalignment.
2. Do you see "Tunneling" (gaps) between the satin border and the vinyl appliqué?
   • Yes: You cut the vinyl too close to the line, OR your stabilizer is too loose. Fix: Leave a 1.5mm gap when trimming and ensure stabilizer sounds like a drum.
   • No: Continue with current settings.
3. Are you experiencing "Hoop Burn" (shiny rings relative to the frame)?
   • Yes: You are over-tightening the screw. Fix: Use a layer of muslin between the hoop and vinyl, or switch to a hooping station for embroidery compatible magnetic frame that uses magnetic vertical force instead of friction.

The Upgrade Path (Without the Hard Sell): When Tools Actually Pay You Back

If you only make one notebook cover a month for a hobby, your best "upgrade" is simply patience and a fresh pack of needles.

However, if you are making these for craft fairs, Etsy shops, or corporate gifts, your bottleneck is no longer "stitching time"—it is handling time. The constant flip, tape, re-seat cycle is where profit is lost.

• Level 1 (Technique): Use spray adhesive (like Odif 505) lightly on the stabilizer to reduce the need for excessive tape.
• Level 2 (Tooling): If hooping leaves marks or hurts your wrists, magnetic frames reduce the clamping effort to zero and eliminate hoop burn.
• Level 3 (Scale): If you are turning away orders because your single-needle machine can't keep up with thread changes, looking into a SEWTECH multi-needle platform is the logical step. It removes the "stop-start" of thread changes, allowing you to prep the next hoop while the machine works.

And don't ignore the small stuff: Quality thread (Polyester 40wt) and the right stabilizer are the cheapest insurance policies you can buy against thread breaks and rework.

Final Fit: Cut It Out, Slide in the Mini Composition Notebook, and Check the Spine Fold

Video Action: Remove from the hoop. Tear away the excess stabilizer. Cut around the perimeter (leave about 1/8" to 1/4" of vinyl border). Insert the notebook.

Final Quality Checkpoints:

• The Stand Test: The cover acts stiff enough to protect the book but flexible enough to open flat.
• The Window: The paw print window is clean, with no "hairy" fabric edges poking through the satin.
• The Closure: The elastic holds the notebook snugly without bending the cover.

If your first one isn’t perfect, do not despair. Vinyl ITH is a tactile skill. Make a second one immediately while your hands remember the cutting pressure and the tape placement. The second one is almost always retail-ready.

FAQ

• Q: How do I hoop medium-weight tear-away stabilizer “drum tight” for a 5x7 ITH vinyl notebook cover without getting puckers later?
  A: Hoop only the tear-away stabilizer tight and float the vinyl on top using the placement stitch—do not stretch vinyl in the hoop.
  • Tap-test the hooped stabilizer; adjust until it sounds like a bongo and feels evenly tight edge-to-edge.
  • Stitch the Step 1 placement rectangle first, then place the 6x8 vinyl to fully cover the stitched box and tape the corners.
  • Avoid pulling vinyl “smooth”; lay vinyl neutral and flat so it does not contract later and ripple.
  • Success check: the placement rectangle is square, and the vinyl stays flat with no waves after stitching the tackdown.
  • If it still fails, reduce handling distortion by using more secure corner taping or consider a magnetic frame to prevent shifting during hoop flips.
• Q: What embroidery needle should I use for vinyl ITH notebook covers on a single-needle embroidery machine, and what needle problems cause vinyl shredding?
  A: Use a fresh 75/11 Sharp or Topstitch needle; avoid ballpoint needles because they may not pierce vinyl cleanly.
  • Install a brand-new 75/11 Sharp before starting; old needles can develop burrs that shred vinyl.
  • Slow down if you hear labored punching; excessive drag increases heat and thread stress.
  • Optionally apply a tiny amount of liquid silicone (like Sewer’s Aid) to the needle shaft to reduce vinyl buildup (generally helpful; follow machine guidance).
  • Success check: the machine sound is a steady, rhythmic “purr,” and needle penetrations look clean without dragging or skipped holes.
  • If it still fails, re-check speed (cap around 600 SPM for vinyl) and confirm the vinyl is taped down so it does not lift with the needle.
• Q: Why does printed vinyl “bounce” or lift (flagging) during Step 2 tackdown + outline stitching on a 5x7 ITH notebook cover?
  A: Vinyl lifting during Step 2 usually means the stabilizer tension is too loose or the vinyl is not taped securely enough.
  • Tighten the stabilizer hooping until it is drum tight, then re-run placement if needed on a fresh hooped stabilizer.
  • Tape the vinyl corners securely so the vinyl cannot rise with the needle on direction changes.
  • Do not stretch vinyl while positioning; stretching can cause later rippling around dense stitches.
  • Success check: vinyl stays fully flat as the needle punches, with no visible lift at corners or along the outline path.
  • If it still fails, reduce stitching speed (vinyl friction can increase lift) and verify the hoop is seated firmly on the machine arm.
• Q: How do I trim vinyl for reverse appliqué paw pads so the Step 3 satin stitch border fully covers the edge without gaps?
  A: Cut the paw-pad openings inside the stitched outline and leave a 1–2 mm buffer so the satin stitch can seal the edge.
  • Puncture the center first with a seam ripper, then switch to double-curved appliqué scissors for controlled trimming.
  • Keep the scissor blade flat against the stabilizer and trim smoothly around curves (avoid jagged cuts).
  • Stay 1–2 mm away from the stitch line: too close can cut threads; too far leaves raw edge exposed.
  • Success check: the next satin stitch “wraps” the vinyl edge completely with no raw vinyl showing and no spiky corners.
  • If it still fails, slow to 500–600 SPM for the satin step and confirm the glitter vinyl on the back fully covers the window before stitching.
• Q: How do I fix bobbin thread showing on top during the Step 3 satin stitch on a vinyl + stabilizer + glitter vinyl sandwich?
  A: If bobbin thread pulls to the top, the upper tension is too tight—loosen upper tension slightly until the satin stitch looks plump.
  • Reduce speed to about 500–600 SPM to limit heat and punching distortion in dense satin columns.
  • Adjust upper tension in small steps (a safe starting point is “slightly looser than current”); re-test on the same satin area if possible.
  • Confirm the satin stitch is wide/dense enough to cover the trimmed edge (thin coverage can look like tension trouble).
  • Success check: satin columns look glossy and full, with top thread dominating the surface and no bobbin “railroad tracks.”
  • If it still fails, re-check needle condition (burrs increase drag) and confirm the material stack is taped flat so it is not tunneling.
• Q: How do I stop fold-over elastic (FOE) from getting sewn into the side seam during the Step 9 final perimeter stitch on a 5x7 ITH notebook cover?
  A: Tape the FOE loop to the center of the project before flipping and stitching the back, and use stronger tape if the loop keeps escaping.
  • Anchor only the FOE ends in the placement box, then aggressively tape the loop far from the needle path (center of the hoop).
  • Re-check the FOE loop position every time the hoop is flipped for back-side steps.
  • If the FOE gets caught, unpick only the affected perimeter section, free the elastic, then hand-crank to re-stitch the gap and tie off threads.
  • Success check: after Step 9, the FOE loop moves freely and is not trapped under the perimeter seam anywhere.
  • If it still fails, switch to a higher-tack tape specifically for elastic control and increase tape at corners so nothing shifts during the thick-stack perimeter.
• Q: What safety steps should I follow when trimming reverse appliqué vinyl inside the hoop on a single-needle embroidery machine?
  A: Treat trimming as a “blade-and-needle neighborhood”: remove the hoop from the machine, keep the presser foot up, and keep feet off the pedal.
  • Remove the hoop from the machine but keep the project hooped; never trim with the hoop mounted.
  • Keep fingers clear and make small, controlled snips; do not rush curved areas.
  • Never trim while the presser foot is down or while a foot could accidentally tap the pedal.
  • Success check: trimming is slow and controlled, with no sudden hoop movement and no tool contact with the needle area.
  • If it still fails, switch to double-curved appliqué scissors (more control) and improve lighting so stitch lines are easy to see.
• Q: What magnet safety rules apply when using industrial-strength magnetic embroidery hoops/frames for ITH vinyl projects with frequent hoop flips?
  A: Magnetic frames can pinch hard—manage the “crush zone,” store with spacers, and keep magnets away from pacemakers/implants.
  • Keep hands clear when letting magnets close; guide frames down rather than letting them slam together.
  • Store magnetic frames with the provided spacers and never let two unshielded frames snap together.
  • Keep magnetic frames away from scissors and metal tools during setup so they do not jump unexpectedly.
  • Success check: frames close in a controlled way with no sudden snapping, and fingers never enter the closing gap.
  • If it still fails, slow down handling steps and set up a dedicated “magnet-safe” area on the table to separate metal tools from the frame during hoop flips.
