Save That Thread: Rewinding a Messy Brother Embroidery Machine Bobbin Without Triggering “Malfunction” Errors

If you have ever pulled a bobbin off your machine and muttered, "Well… that’s a complete disaster," you are in good company. In my 20 years of managing embroidery production floors and teaching novices, I have seen the "Bird's Nest Bobbin" bring grown adults to tears. A loose, lumpy, or tangled bobbin feels like wasted money—especially when there is still 50 meters of perfectly good thread left on it.

But here is the truth experienced embroiderers know: Fabric tension issues are often bobbin issues in disguise. If your bobbin is "squishy" or wound unevenly, your machine's tension disks cannot compensate for the erratic delivery speed.

The good news? You can salvage that thread. By treating the messy bobbin as a "supply spool" and rewinding it onto a clean, empty bobbin using the correct physics, you save money and restore your stitch quality. This guide will walk you through the process with the precision of a white paper, ensuring you understand the feel, the sound, and the science of a perfect wind.

That “Messy Bobbin” Panic: Why a Loose Class 15 Bobbin Will Ruin Tension (and Your Mood)

In the world of embroidery mechanics, consistency is king. A bobbin that is loosely wound—with loops popping up or thread stacked heavily on one side (often called "coning")—is a mechanical nightmare.

Why does this matter? Your machine relies on specific "pull force" (measured in grams, usually 18g-22g for bobbins) to form a lockstitch.

• The Physics of Failure: A loose bobbin creates "variable drag." As the thread helps off a loose loop, resistance drops to near zero. Then, it hits a snag, and resistance spikes.
• The Result: This erratic resistance causes the top thread to pull the bobbin thread to the top of the fabric (ugly white dots) or creates "bird nests" underneath.

If you are running a high-precision brother embroidery machine at home, understanding this variable drag is the difference between a boutique-quality finish and a project that looks "homemade" in the worst way. Jeanette’s core point in the video is one I repeat to shop owners daily: don’t throw it out if the fiber integrity is still good. Rewinding is not just cheap; it is a "reset button" for your thread's tension history.

The “Hidden” Prep Pros Do First: Set Up the Supply Bobbin So It Feeds Smoothly (Not Like a Slingshot)

Most beginners fail at rewinding because they hold the messy bobbin in their hand or let it bounce around on the table. Do not do this. This introduces human error into the tension equation.

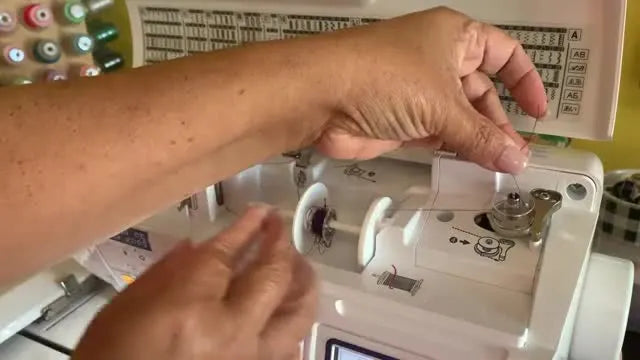

The video demonstrates the "Static Supply" method: placing the messy bobbin on the machine’s main spool pin. However, simply dropping it on is unsafe. You must create a "closed system" using a spool cap. Without the cap, the lightweight plastic bobbin will vibrate, bounce, and potentially fly off the pin, turning into a projectile or snapping your thread.

Prep Checklist (do this before you touch the Start button)

• Audit the Core: Confirm you have a pristine, empty Class 15 plastic bobbin. discard any bobbins with cracks or warped flanges—they are tension killers.
• Mount the Source: Place the messy/loose bobbin on the spool pin to act as your supply.
• install the Guard: Slide on a spool cap that is slightly larger than the bobbin's inner core but smaller than its outer flange (more on this later).
• Slack Test: Pull out 12 inches of thread. Ensure it feeds off the supply bobbin without lifting the bobbin off the pin.
• Tip Inspection: Inspect the thread end. If it is frizzy, cut it. You cannot thread a needle—or a bobbin hole—with a split end.

This is your first "QC Gate." In a hobby setting, you might skip this. In a production mindset, we know that 30 seconds of prep prevents 15 minutes of digging a jammed needle out of the throat plate.

The Bobbin-Winder “Malfunction Occurred” Message: What Happened, and the Safe Reset That Works

Modern embroidery machines are essentially computers with needles. They have sensors everywhere. Jeanette encounters a common error: “A malfunction occurred.”

This usually happens when the machine detects resistance in the winder motor (stalled motor) or when the sew/wind sequence is confused. It is the machine's way of saying, "I am protecting my motor from burning out."

What to do (exactly as shown)

1. Stop: Do not press start again.
2. Power Cycle: Turn the machine off.
3. Wait: Count to five (let the capacitors discharge).
4. Reboot: Turn the machine back on.

Expert Insight: This "hard reset" clears the error cache. If the error persists after a reboot, do not force it. You likely have thread wrapped around the winder spindle underneath the plastic cover—a common issue if tails are left too long.

Warning: Physical Safety Hazard. If your machine shows an error and the winder area is tangled, keep fingers away from moving parts. Do not use metal tweezers near the winder while the machine is on. Turn the machine off first. A sudden motor engagement can pinch skin or snap parts.

While a brother sewing machine is generally user-friendly, the bobbin winder is a high-torque component. Respect it.

The Start That Actually Catches: The “Through-the-Hole” Anchor Trick (and Why Wrapping Around the Core Slips)

This is the most critical technical skill in the entire process. Jeanette attempts the "friction method"—wrapping the thread around the center core—and fails. The smooth plastic core offers zero grip (low coefficient of friction), so the spindle spins while the thread sits still.

Her fix is the Mechanical Anchor:

• Action: She takes the clean thread end.
• Path: She threads it from the inside of the bobbin core, up through the small hole on the top flange.
• Result: A physical lock effectively tying the thread to the moving frame.


Why this works (the physics, in plain English)

When you rely on friction (wrapping), you are hoping the thread grips the plastic. When you use the hole, you create a mechanical stop. As holding the tail, the thread cannot slip because it is physically routed through the flange.

Sensory Cue: When you hold that tail and start the winder, you should feel a distinct tug on your finger—like floss being pulled tight. That tug tells you the anchor is solid.

The "Hole Method" is superior because it eliminates the "Mushy Start." A bobbin that starts loose will often result in the entire thread cake spinning on the core later, which destroys tension during sewing.

The Clean Rewind on a Brother Bobbin Winder: Hand Tension, Checkpoints, and the “Stop-and-Snip” Habit

Once anchored, the winding process is not "set it and forget it." You must act as the "tensioning device." Since we are bypassing some of the standard pretension disks by using a supply bobbin, your fingers must provide the drag.

Step-by-step winding workflow (with checkpoints)

1. Mount: Mount the supply bobbin on the main pin with the correct cap.
2. Route: Route the thread along the bobbin-winding path. Ensure the thread sits deep inside the pretension disk (listen for a faint click or floss-like snap).
3. Trim: Cut the thread end clean.
4. Threads: Feed thread through the bobbin hole (Inside → Out).
5. Install: Place the empty bobbin on the bobbin winder spindle until it clicks down.
6. Tension: Start winding while holding the tail upright and taut. Do not let go!
7. Monitor: Watch the supply side. If the messy bobbin starts to wobble violently, stop.
8. Finish: Stop when full, remove, and snip the excess tail flush with the plastic.


Expected outcomes (what “good” looks and feels like)

• Visual: The thread is stacked like rows of bricks—level from top to bottom. No pyramids or valleys.
• Tactile: When you squeeze the bobbin, it should feel firm, like a ripe apple or a drum skin. It should not feel squishy like a marshmallow.
• Auditory: The winding sound should be a steady hum. A rhythmic thump-thump suggests the supply bobbin is catching on something.






Operation Checklist (the last 30 seconds that prevent 30 minutes of frustration)

• Tension Check: Are you applying light resistance with your fingers to ensure a tight wind?
• Anchor Check: Did the thread catch immediately, or did the spindle spin freely for a second? (If it spun freely, stop and redo).
• Level Check: Is the thread building up evenly? If it is piling at the bottom, your thread isn't seated in the tension disk.
• Snip Check: Did you cut the starting tail flush? (A protruding tail will snag your bobbin case).
• Consumables: Have your curved snips ready for a clean cut.

Warning: Rotational Hazard. Keep loose clothing, hair, and fingers away from the spinning winder. The spindle moves at high RPM. Do not try to "guide" the thread up and down with your fingers near the moving bobbin—let the machine's cam do the work.

The Spool Cap Size Trap: Why a Too-Large Cap Causes Supply-Side Tangles (and How to Pick the Right One)

This is a subtle detail that separates pros from amateurs. Jeanette notes that a large spool cap causes drag on the supply bobbin.

In embroidery, Drag = Tension. If your spool cap is wider than the supply bobbin, the thread has to scrape over the edge of the cap every time it unwinds. This adds unnecessary vibration and friction.

The Fix: Use a spool cap that is smaller than the diameter of your supply bobbin. The thread should flow off the bobbin freely without touching the cap's rim.

What’s happening mechanically

• Large Cap: Thread hits cap edge → Friction Spike → Bobbin Jerks → Slack Loop Forms → Tangle.
• Small Cap: Thread clears edge → Constant Friction → Smooth Feed → Perfect Wind.

Many users searching for brother se1900 hoops and accessories often overlook simple items like spool caps, yet having a variety pack of caps (Small, Medium, Large) is as vital as owning good hoops. A $2 plastic cap can save a $50 embroidery shirt from being ruined by bad tension.

“Slot #4” vs “Through the Hole”: How to Choose the Right Start Method for Brother SE1900-Style Diagrams

There is often confusion between "The Manual Way" and "The Reality." Manufacturer diagrams (like those on the SE1900) often show a "Quick Set" method involving a cutting slot (often labeled #4 or with a cutter icon).

• The Slot Method: Fast, clean, requires no scissors. Failure Point: If the thread doesn't catch the internal blade perfectly, it slips.
• The Hole Method (Jeanette's Way): Slower, requires scissors, 100% reliability. Failure Point: User forgets to trim the tail.

My Verdict: If you are in production and the Slot Method fails even once, switch to the Through-the-Hole anchor. Reliable repetition beats occasional speed.

Setup Checklist (before you wind, confirm these three “quiet” details)

• Engagement: Is the empty bobbin pushed all the way down until it clicks?
• Direction: Is the thread winding clockwise? (It must always wind clockwise).
• Stability: Is the supply bobbin secured with the smallest possible cap that still holds it in place?


Quality Control You Can Feel: The Fingernail Test, Storage Habits, and Reusing Pre-Wound Bobbin Casings

Jeanette demonstrates the "Fingernail Test." This is your final quality gate.

How to execute:

1. Hold the finished bobbin.
2. Press your thumbnail into the thread pack.
3. Pass: The thread feels hard. Your nail leaves no mark or a very faint momentary dent.
4. Fail: Your nail sinks in deep, or the threads shift apart.

Why verify? A soft bobbin holds less thread (run out faster) and feeds faster (low tension). Using a soft bobbin when your machine expects a hard one will result in loops on top of your embroidery.

My shop-level finishing standard

A disorganized drawer is a recipe for dust contamination.

• Storage: Store bobbins in a "donut" saver or a sealed box. Dust on a bobbin introduces lint into your bobbin case, which clogs tension springs.
• Color Matching: Jeanette suggests keeping specialty colors. I agree. If you are using brother embroidery hoops to stitch sheer fabrics or lace, standard white bobbin thread might show. Matching the bobbin thread to the top thread is a pro-level touch.

Decision Tree: When to Rewind, When to Sew From the Bobbin, and When to Upgrade Your Workflow

Use this logic flow to make money-saving decisions without wasting time.

Start: You have a messy bobbin or a thread remnant.

1. Is the thread fiber damaged? (Fuzzy, kinked, stripped?)
   • YES: Trash it immediately. Saving $0.50 of thread risks a $200 repair.
   • NO: Proceed to Step 2.
2. Is there enough volume? (More than 10 yards?)
   • YES: Rewind using the "Through-the-Hole" method.
   • NO: Discard. The time cost of changing a bobbin every 2 minutes exceeds the thread value.
3. Is this for a critical project? (Client order, expensive garment?)
   • YES: Use a brand new factory pre-wound bobbin or a perfectly verified rewind. Do not risk it.
   • NO: (Test scrap/personal use) Use the rewound bobbin.
4. Are you fighting hoop burn or tension issues constantly?
   • YES: Your issue might not be the bobbin—it might be your hooping method. See the Upgrade Path below.

The Upgrade Path (Without the Hard Sell): Where Bobbin Skills End and Productivity Tools Begin

Mastering the bobbin rewind is Level 1. It saves consumables. But if you find yourself spending more time fixing bobbins, fighting with hoops, or restitching ruined garments, you need to look at your tools.

The "Pain-to-Product" Upgrade Ladder:

• Level 1: Stability (Consumables). Use high-quality backing (Stabilizer). If your fabric puckers, no bobbin fix will save you.
• Level 2: Speed & Safety (Magnetic Hoops).
  • The Pain: Traditional hoops require hand strength, cause "hoop burn" (shiny rings on fabric), and are hard to align.
  • The Fix: Many professionals actively search for magnetic embroidery hoops for brother machines. These clamp fabric instantly without friction burns and self-adjust for thickness. If you are doing towels or thick jackets, magnetic hoops are not a luxury; they are a necessity for sanity.
• Level 3: Scale (Multi-Needle Machines).
  • The Pain: You are turning away orders because your single-needle machine takes too long to change colors.
  • The Fix: SEWTECH Multi-Needle Machines. When you move from hobby to hustle, automatic color changes and larger fields transform your output.

Warning: Magnetic Field Hazard. If you upgrade to magnetic hoops, be aware they use powerful industrial magnets. People with pacemakers or insulin pumps should maintain a safe distance. Also, watch your fingers—these magnets snap together with significant force!

If you are currently experimenting with a brother pe800 magnetic hoop or similar upgrade, remember: A great hoop holds the fabric, but a great bobbin holds the stitch. You need both for perfection.

Quick Recap: The 60-Second Method You’ll Actually Use

1. Mount: Place messy bobbin on spool pin + Small Spool Cap.
2. Anchor: Feed thread Inside → Out (Through the Hole).
3. Hold: Pinch the tail tight; create drag with fingers.
4. Wind: Run until full. Listen for smooth hum.
5. Test: Perform the Fingernail Test (Must be firm).

Bobbin winding is the "breathing" of your embroidery machine. If it is shallow and erratic, the machine chokes. If it is deep and steady, the machine sings. Master this simple reset, and you master the foundation of the craft.

FAQ

• Q: How can a loose or “squishy” Class 15 plastic bobbin cause tension problems on a Brother embroidery machine?
  A: A loosely wound Class 15 bobbin creates inconsistent drag, so the stitch balance changes moment to moment even if the upper tension looks correct.
  • Stop sewing and remove the bobbin that feels soft, lumpy, or unevenly stacked.
  • Rewind the thread onto a clean, empty Class 15 plastic bobbin using the through-the-hole anchor method.
  • Apply light finger drag while winding so the new bobbin packs tight and even.
  • Success check: The finished bobbin feels firm (not marshmallow-soft) and looks level like “rows of bricks.”
  • If it still fails… Inspect for cracked/warped bobbins and recheck that the thread is seated correctly in the bobbin-winding pretension path.
• Q: How do you safely set up a messy Class 15 bobbin as a “supply spool” on a Brother sewing machine spool pin without tangles?
  A: Mount the messy Class 15 bobbin on the main spool pin and lock it down with the correct spool cap so the bobbin cannot bounce or launch.
  • Place the messy bobbin on the spool pin as the supply source.
  • Install a spool cap that holds the bobbin securely (closed system), then pull out about 12 inches of thread.
  • Cut off any frizzy thread end before threading the winding path.
  • Success check: The thread pulls smoothly without lifting the supply bobbin off the pin or making it wobble.
  • If it still fails… Change to a better-fitting cap and make sure the supply bobbin is not cracked or warped.
• Q: How do you fix the Brother bobbin-winder message “A malfunction occurred” during bobbin winding?
  A: Do a safe hard reset first—this clears the error state without risking the winder motor.
  • Stop immediately and do not press Start again.
  • Power the Brother machine off, wait five seconds, then power back on.
  • Restart only after confirming the winder area is clear and not resisting.
  • Success check: The error message clears after reboot and the winder runs smoothly without stalling.
  • If it still fails… Assume thread may be wrapped around the winder spindle under the cover and do not force the motor—power off before investigating.
• Q: Why does wrapping thread around the bobbin core slip on a Brother bobbin winder, and what is the most reliable way to start a Class 15 bobbin?
  A: Smooth plastic cores often won’t grip by friction, so use the mechanical anchor by feeding thread through the bobbin hole (inside → out).
  • Thread the clean end from the inside of the empty Class 15 bobbin core up through the small hole on the top flange.
  • Hold the tail upright and taut as you start winding so it “catches” immediately.
  • Stop and restart if the spindle spins without pulling the tail tight.
  • Success check: You feel a distinct tug on your finger as winding begins (the anchor is locked).
  • If it still fails… Re-thread through the hole with a freshly cut end and confirm the bobbin is pushed down onto the winder spindle until it clicks.
• Q: How can the wrong Brother spool cap size cause supply-side tangles when rewinding from a bobbin on the spool pin?
  A: A spool cap that is wider than the supply bobbin makes the thread scrape the cap edge, creating drag spikes and jerks that lead to tangles.
  • Swap to a spool cap that is smaller than the supply bobbin’s outer diameter so the thread clears the rim.
  • Re-run the slack test by pulling thread off the supply bobbin before winding.
  • Watch the supply bobbin for wobble or violent vibration and stop immediately if it starts.
  • Success check: The supply thread feeds smoothly with a steady hum—no rhythmic thumping and no jerking.
  • If it still fails… Re-seat the thread in the bobbin-winding pretension path and recheck that the supply bobbin is secured but not rubbing the cap.
• Q: How do you know a rewound Class 15 bobbin is “good” before sewing on a Brother embroidery machine?
  A: Verify firmness and even stacking—soft or uneven bobbins are a common source of loops and “bird nests.”
  • Perform the fingernail test: press a thumbnail into the thread pack to confirm it is hard.
  • Inspect the wind: it should be level top-to-bottom, not coned or piled to one side.
  • Snip the starting tail flush so it cannot snag in the bobbin case.
  • Success check: Your nail leaves little to no dent, and the bobbin feels firm like a ripe apple/drum skin.
  • If it still fails… Rewind with more finger drag and confirm the thread is seated in the pretension disk (not riding outside it).
• Q: What are the key safety rules for Brother bobbin winding and for using magnetic embroidery hoops in an embroidery workspace?
  A: Treat the bobbin winder as a high-RPM, high-torque area, and treat magnetic hoops as pinch-and-medical-device hazards.
  • Turn power off before touching or clearing any winder-area tangles; keep fingers away from moving parts when the winder is running.
  • Keep loose hair, sleeves, and jewelry away from the spinning bobbin winder spindle.
  • Keep strong magnetic embroidery hoops away from pacemakers or insulin pumps, and keep fingers clear when magnets snap together.
  • Success check: You can wind without reaching near rotating parts, and magnetic hoops close without pinching because hands stay outside the clamp zone.
  • If it still fails… Stop and reorganize the setup (tools, thread tails, workspace clearance) before trying again—rushing is what causes most injuries and breakage.
