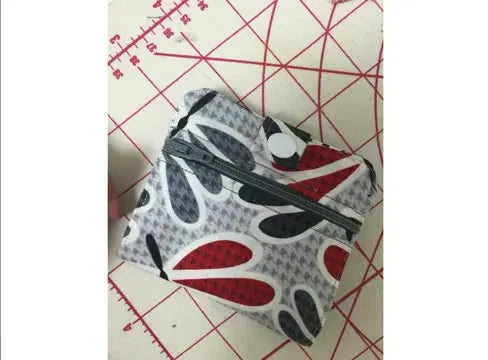

Stitch a Professional In-the-Hoop Wallet (5x7): The Zipper, Pocket Stack, and “Don’t Sew It Shut” Moment

Master Guide: The Absolute Beginner’s Roadmap to ITH Wallets

Subtitle: How to Conquer Zippers, Layers, and Hooping Fears Without Breaking a Needle

If you’ve ever watched an In-The-Hoop (ITH) project stitch out and thought, “There’s no way all those layers, pockets, and a zipper will behave in one hooping,” you’re not alone. The friction, the bulk, and the fear of hitting the zipper stop are real psychological barriers.

The good news: this wallet is entirely doable in a standard 5x7 hoop—cleanly—if you respect two things: layer control and zipper timing.

This guide rebuilds the process from the popular OESD Stitch Party wallet tutorial but injects 20 years of production floor experience. We will move beyond "just follow the steps" and teach you the feel of correct hoop tension, the sound of a happy machine, and the physics of why layers shift—so you can prevent errors before they happen.

The Calm-Down Primer: Why This 5x7 ITH Wallet Works (Even With a Zipper)

Technically, this wallet is constructed using a carrier-stabilizer build. This means you hoop only one layer of lightweight stabilizer, which acts as a "carrier" sheet. The machine then stitches placement lines and tack-down seams that hold each fabric layer exactly where it belongs.

Why this matters: You aren't fighting to hoop six layers of fabric at once. You are hooping paper, then floating fabric on top.

Three realities to accept up front:

1. Geometry: You’re not making a perfectly sharp rectangle. Those corners will naturally become soft curves once you turn and topstitch.
2. Safety: The zipper is safe only if it’s a nylon coil zipper (plastic teeth). If you use a metal zipper, you risk shattering the needle and damaging your machine's timing.
3. The "Hand": The difference between "homemade" and "pro" is pressing discipline. If you skip ironing a fold, the machine foot will catch it.

If you plan to make these in batches (for gifts or an Etsy shop), consistency is your currency. Fighting thick stacks and "hoop burn" (the shiny ring left by standard hoops) is the enemy of profit. This is where upgrading your workflow with tools like an embroidery magnetic hoop transforms from a luxury to a necessity, allowing you to float layers without crushing the fabric fibers.

The “Hidden” Prep That Saves the Whole Stitch-Out: Fabric Cuts, Pressing, Needles, and Stabilizer Choices

Before the hoop ever goes on the machine, do the prep like a production shop would. ITH wallets punish sloppy prep because every fold becomes a permanent stitched edge.

Materials Breakdown

Fabrics:

• Main Body: (Outside + Lining)
• Contrast: (Pockets + Zipper Pocket Lining)

Stabilizer:

• OESD Lightweight Tear-Away: (One piece).
  • Expert Note: We use tear-away here because it needs to be removed cleanly from the back of the zipper to allow the pocket to open. Cutaway would leave permanent bulk.

Hardware & Thread:

• Thread: 40 wt Polyester (Isacord or equivalent). Use the same color in the bobbin.
• Zipper: Nylon Coil, 7 inches minimum. (#3 size is standard).
• Snaps: Size 20 KAM Snaps (Plastic).

The Essentials (Don't start without these):

• Embroidery Needle: Size 75/11 (Sharp).
• Jeans Needle: Size 90/14 (For final topstitching).
• Adhesives: Temporary embroidery tape (paper tape) or a light mist of temporary spray adhesive.
• Tools: Point turner, rotary cutter, clear quilt ruler, iron (steam helps).

Fabric Cutting Dimensions (Precision Required)

• Tab: 3" x 3" (finishes to 3/4" wide).
• Wallet Bottom: 5" x 13" → Fold/Press to 5" x 6.5".
• Wallet Top: 5" x 4" → Fold/Press to 5" x 2".
• Wallet Lining: 5" x 8".
• Long Pockets (x2): 5" x 6.5" → Fold/Press to 5" x 3.25".
• Short Pockets (x2): 5" x 5" → Fold/Press to 5" x 2.5".
• Zipper Pocket Lining: 5" x 4.5".

Why the Stabilizer Choice Matters

If you see shifting, puckering, or "wavy" edges in ITH construction, it’s usually because the stabilizer "flagged" (bounced) in the hoop.

Sensory Check: When you hoop the tear-away, tap on it. It should sound like a tight drum skin. If it sounds like loose paper, re-hoop. Using magnetic embroidery hoops can make achieving this tension easier on your wrists, as the magnets snap the stabilizer flat rather than requiring you to tighten a screw against resistance.

Prep Checklist: Do Not Proceed Until Checked

• Cut all fabric exactly to list sizes.
• Press all folds bone-dry and sharp (steam then dry heat).
• Verify the zipper is NYLON COIL (run your fingernail over teeth; it should zip, not click).
• Wind bobbin with top thread color.
• Install fresh 75/11 needle.
• Clean the bobbin area (remove lint) to ensure stitch quality.


Build the Tab First: The Small Piece That Makes the Wallet Feel “Finished”

The tab is simple, but it’s the first place people get sloppy.

1. Press: Take the 3" x 3" tab fabric. Press in half.
2. Center: Open, fold raw edges to the center crease, and press.
3. Finish: Fold in half again to form a 3/4" wide strip.
4. Stitch: On your sewing machine, edge stitch down both long sides.
5. Fold: Fold the finished strip in half (raw ends together) and set aside.


Zipper Installation in the 5x7 Hoop: Placement Lines, Pull Direction, and Tape Discipline

Now, switch to embroidery mode. This is where precision matters.

1. Hoop: Load one layer of lightweight tear-away.
2. Run Stitch 1 (Placement): The machine stitches a box.
3. Place Zipper: Center the zipper over the lines.
   • Crucial: The zipper pull must be at the top or left (depending on orientation), but the metal stops must be outside the stitch area.
4. Tape: Tape the zipper teeth ends and the edges.
5. Run Stitch 2 (Tack-down): The machine stitches close to the teeth.
6. Cleanup: Remove tape that crosses the stitch path.

Expert Reality Check: If you hear a rhythmic "thump-thump" during this step, your needle might be hitting the zipper tape too densely. This is fine on nylon, but fatal on metal.

The Folded-Edge Alignment Trick: Place the Main Wallet Fabrics Without Covering the Zipper Teeth

1. Place Wallet Top: Align the folded edge of the 5" x 2" piece against the top zipper teeth.
2. Place Wallet Bottom: Align the folded edge of the 5" x 6.5" piece against the bottom zipper teeth.
3. Gap Check: Ensure the zipper teeth are visible between the fabrics. Do not overlap perfectly; leave the teeth clear so the zipper can move.
4. Tape: Secure the folded edges.
5. Run Stitch 3 (Panel Tack-down): This secures the main body.

Why tape matters here: Folded fabric acts like a spring. It wants to pop open. Tape acts as a clamp to keep it flat until the stitches lock it in.

Flip the Hoop Like a Pro: Pocket Lining Placement on the Back (Right Side Against Stabilizer)

This step confuses everyone the first time. Read carefully.

1. Remove Hoop: Take the hoop off the machine (do not un-hoop the stabilizer).
2. Flip: Turn the hoop over so you are looking at the back.
3. Place: Take the 5" x 4.5" zipper pocket lining.
   • Place it Face Down (Right Side touching the stabilizer).
   • Align it with the stitch box visible on the back.
4. Secure: Taping on the back is tricky. Use painter's tape generously on the corners.
5. Run Stitch 4 (Lining Tack-down): Return hoop to machine and stitch.


The One Moment You Can’t Miss: Unzip Halfway or You’ll Sew the Zipper Shut

STOP.

Before doing anything else:

1. Pattern Interrupt: Move your hand to the zipper pull.
2. Action: Unzip the zipper halfway into the middle of the project.
3. Verify: Is the plastic pull tab inside the stitched box?

The consequence: If you forget this, the next steps will sew the perimeter shut, trapping the zipper pull outside the wallet. You will have to throw the project away.

Pocket Stacking Without Foot Snags: Tab Placement, Pocket Order, and Tape Only in the Seam Allowance

We are now building the card slots.

1. Place the Tab

• Locate the center bottom mark.
• Place the tab with the Folded Loop pointing IN toward the zipper, and Raw Edges pointing OUT.
• Rule: Leave only 1/8" to 1/4" hanging off the edge. If the loop is too long inside, it blocks cards.


2. Place Short Pockets

• Align the folded edges of the Short Pockets to the outermost placement lines.
• Tape the sides.

3. Place Long Pockets

• Align the folded edges of the Long Pockets to the inner placement lines.
• They will overlap the short pockets. This is normal.

4. The "Anti-Snag" Taping Protocol

The embroidery foot loves to get caught under the lip of a folded pocket. If this happens, it will drag the fabric and ruin the alignment.

• Action: Place a strip of tape over the side edges where the pockets meet the stabilizer.
• Goal: You want the foot to glide over the tape, not hit the fabric ledge.




Final Seam, Trim, Turn: The Clean-Corner Routine That Separates Hobby From Pro

1. Place Backing: Place the final 5" x 8" lining fabric face down (Right sides together) over the entire stack.
2. Tape: Secure all four corners.
3. Run Final Stitch: This is a heavy triple-stitch that seals the wallet.
4. Un-hoop: Remove everything from the hoop.
5. Trim: Cut around the perimeter, leaving a 1/4" seam allowance.
6. Clip Corners: Angle-cut the corners to reduce bulk (don't cut the thread!).
7. Tear: Carefully remove the stabilizer from the back of the zipper channel.
8. Turn: Turn the wallet right side out through the open zipper. Go slowly. Pushing too hard can pop the seams.


Warning: Sharp Object Safety. When trimming excess fabric near the hoop or after removal, keep your non-cutting hand visible and away from the rotary blade path. When turning the bag, use a dull point turner, not scissors, to avoid poking through the corners.

Pressing + Topstitching: Use the Jeans Needle 90/14 and Accept the Curves

The wallet will look puffy and shapeless right now. Ironing transforms it.

1. Press: Steam the wallet flat. Roll the seams between your fingers to push them out, then press again.
2. Needle Swap: Switch your sewing machine to a Jeans Needle 90/14. The standard embroidery needle is too thin for these 8+ layers of fabric and stabilizer.
3. Topstitch: Stitch 1/8" from the edge around the entire perimeter.
   • Sensory Check: Stitches should look defined. If the machine sounds like it's struggling (stalling), hand-walk the wheel over the thickest corners.

Many users researching how to use magnetic embroidery hoop techniques find that magnetic framing keeps the initial layers flatter, resulting in a square wallet that is easier to topstitch at this stage.

Setup Checklist (Right Before Topstitching)

• Machine needle changed to Jeans 90/14.
• Wallet pressed flat; seams rolled out.
• Zipper pull pushed to the center (away from the foot path).
• Stitch length increased to 3.0mm (better for thick layers).

Snaps Done Right: Center Placement and “Smooth Side Inside” Orientation

1. Mark: Fold the flap down to find the natural closing point. Mark with an awl.
2. Install: Use your snap pliers.
   • Cap (Smooth circle): Goes on the outside of the flap and the inside of the pocket.
   • Socket/Stud: Goes on the mating surfaces.


Warning: Magnetic Safety. If you upgrade to professional framing systems like a brother magnetic hoop 5x7, handle them with care. The magnets are powerful enough to pinch fingers severely. Keep strong magnets away from pacemakers and computerized machine screens.

Troubleshooting the Top 3 ITH Failures

1. "I sewed my zipper shut."

• Symptom: You cannot turn the bag right side out.
• Cause: Forgot to unzip heavily before the final lining placement.
• Fix: Use a seam ripper to carefully open the final perimeter stitch, unzip, and re-sew on the sewing machine.
• Prevent: Put a sticky note on your machine screen that says "UNZIP."

2. "My needle broke on the corner."

• Symptom: Snap sound, broken tip.
• Cause: Too much bulk or metal zipper stop.
• Fix: Use a Jeans 90/14 for topstitching. Hand-crank the wheel over the thickest corner folds.

3. "The embroidery foot got caught."

• Symptom: Birdsnest of thread, skewed design.
• Cause: Pocket fold lifted up.
• Fix: Tape the pockets down at the seam allowance inside the hoop.

Stabilizer + Fabric Decision Tree

Use this logic to avoid "Hoop Burn" and shifting.

Start Here → What Main Fabric are you using?

1. Quilting Cotton (Standard)
   • Stabilizer: Tear-away (1 layer).
   • Hooping: Standard hoop is fine.
2. Vinyl / Faux Leather
   • Stabilizer: Tear-away.
   • Hooping: Critical. Standard hoops leave permanent rings (burn) on vinyl.
   • Solution: Use an embroidery magnetic hoop to clamp without crushing the grain.
3. Canvas / Denim
   • Stabilizer: Cutaway (for weight) or Tear-away (for finish).
   • Hooping: Hard to tighten the screw.
   • Solution: Use a magnetic hooping station or magnetic frame to handle the thickness.

The Upgrade Path: When "Cute Gift" Becomes "Product Line"

Just starting? Your single-needle machine and standard plastic hoops are perfect for learning. But if you begin selling these wallets, your needs change.

Trigger: "I'm spending more time battling the hoop screw than sewing."

• Diagnosis: Production Friction.
• Option 1 (Workflow): Incorporate embroidery hoops for brother machines that use magnetic closure. This reduces wrist strain and creates 100% consistent tension.
• Option 2 (Scaling): If you are making 50+ units, a single-needle machine is your bottleneck.
• Option 3 (System): Look into a hoopmaster hooping station system if you need identical logo placement on every single wallet tab.


Final Operation Checklist (Quality Control)

• Zipper slides smoothly without catching threads.
• Pocket lining is face-up when zipper opens (not inside out).
• All corners are poked out fully (no "dented" corners).
• Topstitching is even; no skipped stitches on thick spots.
• Snaps close with a crisp "click."

Make your first wallet slowly to learn the physics by hand. Make your second one to build confidence. By the third, you’ll understand exactly why professional tools matter—and you’ll be ready for them.

FAQ

• Q: For a 5x7 ITH zipper wallet, what stabilizer type should be hooped to avoid shifting and keep the zipper pocket usable?
  A: Hoop one layer of lightweight tear-away stabilizer so the zipper pocket can open cleanly and the fabric layers can be “floated” on top.
  • Hoop: Load a single piece of lightweight tear-away (not fabric) as the carrier layer.
  • Avoid: Using cutaway behind the zipper pocket area if you need the pocket to open without permanent bulk.
  • Success check: Tap the hooped stabilizer; it should sound like a tight drum skin, not loose paper.
  • If it still fails: Re-hoop for tighter tension and reduce stabilizer “flagging” before restarting the placement stitch.
• Q: How can a beginner confirm correct hoop tension for a 5x7 ITH wallet before stitching to prevent stabilizer “flagging” and wavy edges?
  A: Re-hoop until the stabilizer is flat, tight, and drum-like, because loose hooping causes bounce and edge waviness during ITH construction.
  • Hoop: Tighten so the stabilizer is smooth with no ripples or slack at the edges.
  • Test: Tap across multiple spots, not just the center.
  • Success check: The sound is consistently crisp (drum-skin tight) and the surface stays flat when you lightly brush it.
  • If it still fails: Switch to a magnetic hoop/frame if tightening a screw hoop evenly is difficult, especially on thicker materials.
• Q: For a 5x7 ITH wallet zipper installation, where should the zipper pull and metal stops be positioned to avoid needle hits and stitching failures?
  A: Use a nylon coil zipper and keep the metal stops outside the stitch area, with the zipper pull oriented to the top or left (based on your design orientation).
  • Choose: Nylon coil zipper (plastic teeth), not metal teeth.
  • Position: Center the zipper on the placement lines; keep end stops completely out of the stitched box.
  • Secure: Tape the zipper ends/edges so it cannot creep during tack-down.
  • Success check: The tack-down stitch runs without the needle contacting any metal, and the zipper teeth remain clear between fabric edges.
  • If it still fails: Stop immediately and re-position the zipper—do not continue if any stop is inside the stitch path.
• Q: How do I prevent sewing the zipper shut on a 5x7 ITH wallet during the final perimeter stitch step?
  A: Unzip the zipper halfway into the middle of the project before the final perimeter seam so the wallet can be turned right-side-out through the opening.
  • Stop: Before placing/stitching the final lining and perimeter, move the zipper pull.
  • Unzip: Pull the slider to the middle so it will be inside the stitched perimeter.
  • Verify: Confirm the pull tab is inside the stitch box area, not outside it.
  • Success check: After the final seam, the wallet can be turned through the open zipper without forcing.
  • If it still fails: Carefully open the perimeter stitch with a seam ripper, move the zipper pull, then re-sew the seam on a sewing machine.
• Q: What causes the embroidery foot to get caught on ITH wallet pockets in the hoop, and how do I stop the fabric from shifting?
  A: Folded pocket edges can lift like a spring and the embroidery foot can snag the “lip,” so tape the side edges down within the seam allowance to create a smooth glide surface.
  • Tape: Place tape over the side edges where pocket folds meet the stabilizer (keep tape in the seam allowance area).
  • Stack: Follow the pocket order (short pockets to outer placement lines, long pockets to inner lines) and secure before stitching.
  • Clean: Remove any tape that crosses an active stitch path before the needle reaches it.
  • Success check: The foot travels over the taped edges without catching, and pocket placement lines stay aligned after stitching.
  • If it still fails: Re-tape more firmly on the side edges and confirm the folded edges are pressed sharply before hooping.
• Q: When topstitching the finished ITH wallet on a sewing machine, which needle should be used to avoid broken needles on thick corners?
  A: Switch to a Jeans needle 90/14 for perimeter topstitching because an embroidery needle is often too fine for 8+ layers at the corners.
  • Swap: Install a Jeans 90/14 needle before topstitching.
  • Adjust: Increase stitch length to about 3.0 mm for thick layers.
  • Control: Hand-walk the wheel over the thickest corner transitions if the machine sounds strained.
  • Success check: Stitches look defined and consistent with no snapping sounds or stalled motor at corners.
  • If it still fails: Re-press to flatten bulk and slow down; avoid forcing the corner through at full speed.
• Q: What safety precautions should be followed when using an embroidery magnetic hoop/frame for ITH wallet hooping?
  A: Treat embroidery magnetic hoops/frames as pinch hazards and keep them away from sensitive medical devices and machine screens.
  • Handle: Keep fingers out of the magnet closing path; let magnets close in a controlled way.
  • Store: Keep magnets away from pacemakers and away from computerized machine screens.
  • Plan: Set the hoop/frame down on a stable surface before separating or stacking magnetic parts.
  • Success check: The hoop closes without finger pinches and the stabilizer is clamped flat without over-compressing the fabric surface.
  • If it still fails: Stop and reposition hands/grip—do not “fight” the magnets while hovering over the project.
