Stop Ruining Hats: A Cap Hooping Routine That Kills Flagging, Bird Nests, and Needle Breaks (Multi-Needle Setup)

Most embroiderers remember their first "Cap Day." It usually starts with excitement, moves quickly to frustration, and ends with a broken needle, a ruined blank, and a vow to stick to flat garments forever.

I have seen seasoned professionals—people who can embroider silk without a pucker—crumble when faced with a structured 6-panel trucker hat. Why? Because caps are not just a different garment; they are a different discipline. They fight you. They curve, they bounce, and the center seam is a physical barrier that breaks needles if you disrespect it.

But here is the truth: Cap embroidery is not luck. It is physics. Once you understand the forces required to hold that curved surface still under a needle moving 700 times a minute, the fear disappears.

This guide is your operational manual. We will move beyond "tips and tricks" into a structured, repeatable workflow that turns cap embroidery from a gamble into a guarantee.

The Physics of Failure: Structured vs. Unstructured

Before you touch a single setting, you must diagnose the patient. Your needle and stabilizer choices depend entirely on the structural integrity of the hat.

The Enemy is "Flagging." When the needle pulls out of the fabric, the fabric tries to lift up with it. On a flat hoop, the fabric is drum-tight. On a cap, the fabric is suspended in the air. If it bounces up and down (flagging), the thread loop doesn’t form correctly, resulting in bird nests, skipped stitches, and broken needles.

Diagnosis & Prescription

• Structured Caps (e.g., Baseball, Flexfit):
  • Profile: Stiff buckram front panel.
  • Behavior: Fights needle penetration; requires force to puncture.
  • The Prescription: 80/12 Sharp Point Needle (Titanium coated recommended to reduce heat). Use Light Tearaway Backing. The cap provides the stability; the backing just adds crispness.
• Unstructured Caps (e.g., "Dad Hats", Floppy Cotton):
  • Profile: No buckram support; soft fabric.
  • Behavior: Moves with the needle; prone to shifting and improved distortion.
  • The Prescription: 75/11 Sharp Point Needle. Use 2-3 layers of Tearaway or 1 layer of Cutaway. You must build the "skeleton" using stabilizer because the hat has none.


The "Sharp" Rule: Always use SHARP points on caps. Ballpoints are for knits; on a tough canvas cap, a ballpoint needle has to "punch" its way through, causing deflection. A sharp needle slices clean.

The Consumables You Didn't Know You Needed

Novices buy hats and thread. Pros buy the support system. Before starting, check your "Hidden Consumables" inventory:

• Temporary Adhesive Spray (e.g., KK100): Essential for unstructured caps to bond the fabric to the stabilizer, preventing the "drift" that ruins registration.
• Needle Nose Pliers: For removing the sweatband safely.
• White Lithium Grease/Machine Oil: Cap drivers generate high friction; ensure your machine is lubricated per the manual.
• Extra Bobbin Cases: A dedicated bobbin case with slightly tighter tension for caps is a pro secret.

The Stabilizer Decision Tree

Stop guessing. Use this logic flow to determine your setup within 30 seconds.

START: Pinch the front panel.

1. Is it stiff/hard? (Structured)
   • Yes: Use 1 Layer Tearaway.
     • Is the design dense (15,000+ stitches)? -> Add a second layer of Tearaway.
   • No (Unstructured/Soft):
     • Standard Cotton: Use 2 Layers Tearaway.
     • Slippery/Performance Fabric: Use 1 Layer Cutaway + Spray Adhesive.
     • Is it a stretchy knit beanie? -> Stop. Use Cutaway + Solvy Topper.


Using an effective embroidery hooping station allows you to align these stabilizers consistently, ensuring they sit flush against the cap curve rather than floating behind it.

Digitizing: The "Center-Out" Law

You cannot use a left-to-right chest logo on a cap and expect it to work. The physics are different.

• The Golden Rule: Digitize Bottom-Up and Center-Out.
• The Why: The center seam is the most stable point. By stitching the center first, you "tack" the cap down to the stabilizer. Then, you push the fabric away towards the sides. If you stitch outside-in, you push a wave of loose fabric toward the center, creating a bubble (puckering) right on the main seam.


Communicator's Tip: When ordering files from a digitizer, explicitly state: "For Structured Cap / Center-Out Path." If they send you a file that starts on the far left, send it back.

Phase 1: The Pre-Flight Prep

Do not rush this. 90% of failures happen before the hoop even clicks onto the machine.

1. The Sweatband Fold

If you stitch the sweatband to the forehead of the cap, the hat is ruined.

• Action: Flip the sweatband completely out.
• Visual Check: Can you see the raw seam where the bill meets the crown?
• Tactile Check: Rub your thumb along the inside wire line. Is it flat?

2. The Strap & Buckle

• Action: Unbuckle the back strap (if adjustable).
• Why: A loose strap creates a "tail" that can get caught in the pantograph arm moving at high speeds, causing a catastrophic cheerful machine collision.




Warning: Mechanical Hazard
Never place your hands near the needle bar while the machine is active. Cap drivers move differently than flat hoops—they rotate rapidly. Fingers caught between the driver cylinder and the needle plate can suffer severe injury. Always Stop/E-Stop before touching the cap.

Checklist 1: Pre-Flight Prep

• Needle Setup: 80/12 (Structured) or 75/11 (Unstructured) installed?
• Needle Condition: New or verified sharp? (Run a fingernail down the tip; if it catches, replace it).
• Sweatband: Pulled out and taped back if necessary?
• Back Strap: Unbuckled and secured?
• Bobbin: Full bobbin installed? (Running out mid-cap is a specialized form of torture).

Phase 2: The Hooping Ritual (The Sensory Guide)

This is where the battle is won. If you are using a standard hooping station for machine embroidery, the mechanical feedback is your guide. We will use Sensory Anchors to ensure you get this right.

1. The Stabilizer Slide

Slide a strip of stabilizer under the metal tab on the station cylinder.

• Visual Check: Ensure it is straight. If it is crooked here, it will bunch up inside the hat later.

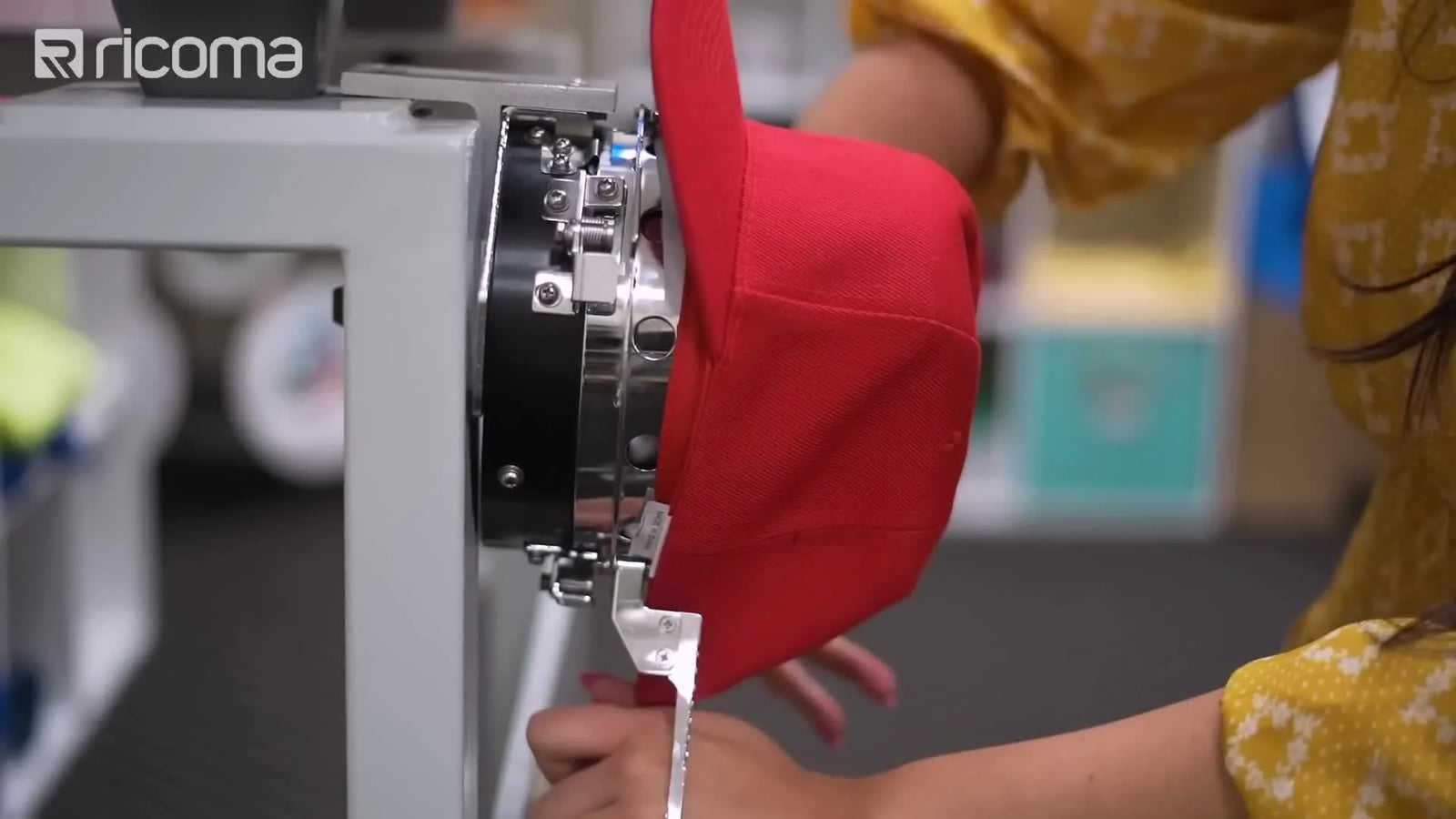

2. Mounting the Cap

Slide the cap onto the station. Watch the alignment pegs (the small metal posts on the side of the driver cylinder).

• Critical Action: The side panel fabric must go OVER and OUTSIDE the pegs.
• The "Why": If fabric gets trapped inside the pegs, the diameter increases, and the cap ring will not close properly.


3. The "Torque Offset" Trick

Align the center seam with the center line on the station thumb.

• Pro Tip: Rotate the cap 1/4 inch to the LEFT.
• The Physics: When you latch the cap ring, the mechanical torque naturally twists the hat slightly to the right. By starting left, the hat pulls perfectly into the center as it tightens.


4. Seating the Strap (The "Wire" Groove)

Place the metal strap of the cap ring directly into the groove where the bill meets the crown.

• Tactile Check: Push properly. You should feel the wire settle into the "valley" of the seam. If it is floating on the bill or the crown, the registration will slip.




5. The "Drum Skin" Latch

Hook the latch and close it.

• The Fingertip Test: Can you close the latch with just one finger with zero effort? It is too loose. Flagging is guaranteed.
  • Action: Unlatch. Tighten the thumb screw/adjustment screw.
• The Metric: You want to feel a firm resistance—like closing a stiff suitcase. It should leave a slight temporary indentation on your finger.
• Auditory Check: You define a solid "Clunk" or "Snap," not a weak click.
• Final Tactile Check: Tap the front of the cap face. It should sound and feel like a drum skin. If it feels soft, re-hoop.




For shops running volume, consistent tension is vital. This is why professionals often search for a commercial hat embroidery machine that includes heavy-duty driver systems capable of maintaining this tension over thousands of cycles.

Checklist 2: Hooping Quality Control

• Stabilizer: Smooth, not bunched?
• Side Alignment: Fabric is OUTSIDE the pegs?
• Center Seam: Perfectly vertical?
• Smoothness: No wrinkles on the front face?
• Tension: Does the cap face feel like a drum?
• Sweatband: Secured under the ring tabs?

Phase 3: The Danger Zone & Execution

The 0.5-Inch "Red Zone"

The bottom 0.5 inch (12mm) of the cap (nearest the brim) is the Needle Break Zone.

• The Physics: The angle between the bill and the crown is steep. If the presser foot hits the thick seam of the bill, it will deflect the needle into the metal plate.
• The Fix: Keep your design bottom edge at least 0.5 inches up from the brim seam.

Tracing: Your Insurance Policy

Snap the hoop into the driver.

• Auditory Check: Listen for two distinct "Clicks" to ensure the hoop is locked into the driver bar.


Always Trace. Do not just look at the laser. Watch the presser foot. Does it rub against the bill? If yes, move the design up.

The Speed Limit (SPM)

Your machine might say "1000 SPM," but physics suggests otherwise for beginners.

• The "Sweet Spot": 600 - 700 SPM.
• Why: At 1000 SPM, the centrifugal force on the cap is massive, increasing flagging. Slowing down reduces thread breaks and increases sharpness by 40%. Once you are confident, you can push to 800+, but speed is the enemy of quality when learning.

Checklist 3: Operation Go/No-Go

• Hoop Lock: "Click-Click" verified?
• Red Zone: Design is 0.5" clear of the brim?
• Trace: Completed without collision?
• Visor Guard: Did you cover the bill with a scrap cloth to prevent oil/rub marks?
• Speed: Set to 600-700 SPM?

Troubleshooting: The "Doctor's Table"

Don't panic. Use this symptom chart to find the cure immediately.

Commercial Logic: When to Upgrade the Tool

There comes a point where your skill is perfect, but your tools are the bottleneck. You need to recognize when to stop fighting the machine and start upgrading the equipment.

Scenario A: The "Wrist Pain" Trigger

• The Pain: Your wrists hurt from tightening screws all day. You have "hoop burn" marks on sensitive performanc wear caps that are impossible to steam out.
• The Criteria: If you are hooping 20+ caps a day or working with delicate specialized fabrics.
• The Solution: Magnetic Hoops.
  Terms like magnetic embroidery hoops solve this by using magnetic force to clamp rather than friction. They automatically adjust to the thickness of the fabric (from thin cotton to thick wool) without crushing the fibers. They are faster, safer for the fabric, and ergonomic for your hands.
  • Compatibility Note: Ensure you check compatibility with your specific machine (Ricoma, Brother, Tajima, SEWTECH) before buying.

Warning: Magnet Safety
Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely. Danger: Keep them away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives). If you have a pacemaker, do not use magnetic hoops.

Scenario B: The "Capacity Wall" Trigger

• The Pain: You are spending more time changing thread colors than stitching. You are turning down orders of 50+ hats because you can't meet the deadline with a single-needle machine.
• The Criteria: When your embroidery turns from a "hobby" into "production."
• The Solution: Multi-Needle Machines (SEWTECH).
  Moving to a dedicated multi-needle system allows you to pre-set 10-15 colors. More importantly, these machines often come with professional linear cap hoop for embroidery machine drivers that are far more stable than the attachment on a single-needle flatbed machine. This is how you scale from 5 hats a day to 50.


Final Thoughts: precision is a Habit

The difference between a ruined hat and a masterpiece is rarely the machine—it is the setup.

1. Respect the Prep: Fold that sweatband.
2. Respect the Tension: Tighten the hoop until it hums.
3. Respect the Zone: Stay 0.5" away from the brim.

If you follow this routine with a standard ricoma embroidery hoops setup or a hoopmaster station, the result will be the same: clean, crisp, commercial-grade embroidery. Now, go load that bobbin and conquer the curve.

FAQ

• Q: On a structured 6-panel trucker cap, what needle size and stabilizer setup should cap embroidery use to avoid needle breaks and bird nesting?
  A: Use an 80/12 sharp-point needle with 1 layer of tearaway backing as the baseline for structured caps.
  • Install: Swap to a fresh 80/12 SHARP (titanium-coated often helps reduce heat).
  • Add: Use light tearaway; add a second layer only if the design is very dense (15,000+ stitches).
  • Stabilize: Keep the sweatband flipped out so the ring clamps the cap body, not the band.
  • Success check: The cap front feels “drum tight” after hooping and stitches form cleanly without loops under the design.
  • If it still fails… Reduce speed to 600–700 SPM and re-check hoop latch tightness (flagging is the usual cause).
• Q: On an unstructured “dad hat” cap, what stabilizer layers and needle choice help prevent cap shifting and registration gaps during cap embroidery?
  A: Use a 75/11 sharp-point needle and build stability with 2–3 layers of tearaway or 1 layer of cutaway, plus temporary adhesive spray when needed.
  • Choose: 2 layers tearaway for standard cotton; switch to 1 layer cutaway for slippery/performance fabric and bond with temporary adhesive spray.
  • Align: Hooping must keep the cap fabric outside the alignment pegs so the ring closes evenly.
  • Secure: Tighten the latch so the cap cannot bounce (flagging causes drift and gaps).
  • Success check: During stitching, outlines stay closed with no “gap” at edges and the cap front does not visibly bounce.
  • If it still fails… Re-hoop and tighten the adjustment screw; shifting is usually hoop tension or poor bonding to stabilizer.
• Q: How can a Hoopmaster-style cap hooping station user verify correct cap hoop tension to stop flagging, skipped stitches, and bird nesting?
  A: Aim for “drum skin” tension—firm resistance on the latch, not a loose one-finger close.
  • Tighten: Unlatch and tighten the thumb/adjustment screw if the latch closes with zero effort.
  • Listen: Close the latch and require a solid “clunk/snap,” not a weak click.
  • Tap: Tap the cap face to confirm it sounds/feels tight like a drum.
  • Success check: The cap face feels taut and stitching runs without thread pile-ups underneath (no bird nest).
  • If it still fails… Confirm stabilizer is smooth (not bunched) and the fabric is not trapped inside the alignment pegs.
• Q: During cap embroidery, how far should a cap design stay from the brim seam to avoid needle breaks in the 0.5-inch red zone?
  A: Keep the design’s bottom edge at least 0.5 inches (12 mm) above the brim seam to avoid presser-foot collisions and needle deflection.
  • Reposition: Move the design upward if any part traces near the bill seam area.
  • Trace: Always trace by watching the presser foot (not only a laser) to confirm no rubbing on the brim.
  • Slow down: Run 600–700 SPM while learning to reduce force and flagging.
  • Success check: A full trace completes with zero contact between presser foot and bill, and needles stop snapping near the lower edge.
  • If it still fails… Confirm the file stitches bottom-up/center-out; seam hits plus poor stitch path often cause repeated breaks.
• Q: What should a cap embroidery operator do when cap embroidery produces bird nesting (thread pile-up) under the design on a structured cap?
  A: Treat bird nesting as a flagging problem first—tighten hoop tension until the cap face is truly stable.
  • Tighten: Increase latch/adjustment screw tension to eliminate cap bounce.
  • Verify: Re-seat the cap ring strap into the “valley” where the bill meets the crown so it cannot float.
  • Check: Confirm the bobbin is seated correctly before restarting.
  • Success check: The cap no longer bounces while sewing and the underside shows clean bobbin lines instead of a thread wad.
  • If it still fails… Re-hoop from scratch and confirm stabilizer is straight and not bunched behind the cap front.
• Q: What mechanical safety steps should a multi-needle cap driver user follow to avoid finger injury during cap embroidery setup and adjustments?
  A: Never put hands near the needle bar or rotating cap driver while the machine is active—stop the machine first every time.
  • Stop: Use Stop/E-Stop before touching the cap, ring, or driver area.
  • Adjust: Make all hooping, sweatband folding, and strap positioning with the machine fully stopped.
  • Secure: Keep the back strap unbuckled and controlled so it cannot snag moving parts.
  • Success check: The operator can move hands around the driver only when the machine is motionless and the cap is locked in place.
  • If it still fails… Review the machine manual’s cap-driver handling procedure and do not operate until the motion hazards are understood.
• Q: What magnet safety rules should a magnetic embroidery hoop user follow to prevent pinched fingers and medical device hazards?
  A: Treat magnetic hoops as high-force clamps—keep fingers clear and keep magnets away from pacemakers/ICDs and magnetic storage media.
  • Handle: Separate and seat magnets slowly to avoid sudden snap-in pinch points.
  • Avoid: Do not use magnetic hoops if the operator has a pacemaker/ICD; keep magnets away from cards and hard drives.
  • Plan: Set the hoop down on a stable surface before placing fabric to control alignment without finger trapping.
  • Success check: The hoop closes without finger contact in the clamp zone and the operator maintains a consistent safe hand position.
  • If it still fails… Switch to a conventional cap ring system for that operator/workstation and revisit shop safety policy before reintroducing magnets.
• Q: When cap embroidery production causes wrist pain from tightening cap rings and permanent hoop burn marks on performance caps, should the shop upgrade to magnetic hoops or a SEWTECH multi-needle machine?
  A: Upgrade in levels: first optimize hooping tension and speed, then consider magnetic hoops for ergonomics/marks, and move to a multi-needle system when production volume becomes the limiting factor.
  • Level 1: Lower speed to 600–700 SPM, re-hoop to true “drum skin” tension, and steam caps after stitching to reduce ring marks.
  • Level 2: Choose magnetic hoops when hoop burn and wrist strain show up—especially at ~20+ caps/day or delicate fabrics.
  • Level 3: Choose a multi-needle machine when thread-change time and deadlines block growth (for example, recurring 50+ hat orders).
  • Success check: Hoop time drops, hoop marks reduce, and daily cap output increases without quality loss.
  • If it still fails… Verify hoop compatibility with the specific machine before purchasing accessories, and confirm the cap driver system is stable enough for consistent tension.
