Stop the Bobbin From “Popping Up”: The Needle-Orientation Fix That Saves SWF MAS-12 Stitch-Outs

The “Don’t Panic” Primer for SWF MAS-12 Thread Tangles, Skipped Stitches, and Bobbin Showing on Top

When a commercial head is running and you suddenly see white bobbin thread on top, skipped fill, or a nasty tangle, your brain goes straight to: “Tension is wrong.” You hear that dreaded thunk-thunk sound, or worse, the silence of a thread break.

Take a breath. On the SWF MAS-12, those symptoms can come from something far more basic—and far more common than people admit: a needle installed in the wrong orientation.

Embroidery is an accumulation of variables. In the video, Jessica (LillyMaricreations) troubleshoots her SWF MAS-12 during a unicorn T-shirt stitch-out (metallic gold horn, teal/pink florals, pink satin name). The machine starts behaving only after she corrects needle position and removes a friction point in the thread path.

The Golden Rule of Troubleshooting: Never touch a tension knob until you have verified the physical path of the thread and the mechanics of the needle. 90% of "tension issues" are actually threading or hooping issues.

The “Hidden” Prep Jessica Did First: Inspect the Bad Stitch-Out Before Touching Any Knobs

If you’re staring at gaps in a fill area or seeing bobbin thread creep to the surface, you’re not alone—this is exactly what Jessica points out on a previous attempt where parts of the background were missed.

Here’s the calm, veteran way to frame it. Don't look at the mess as a failure; look at it as data.

• Skipped stitches usually mean the top thread didn’t form a consistent loop for the hook to catch. This is often a timing or needle issue.
• Bobbin thread showing on top often means the top thread isn’t seating/looping correctly (and yes, tension can do that—but so can needle orientation). It creates a "railroading" effect where the white bobbin thread creates a track down the center of your satin column.
• Thread tangling/getting caught can be as simple as friction or snagging somewhere in the thread path. If the thread jerks before it hits the needle, the tension discs can't do their job.

One key mindset shift: don’t “chase the problem” by turning knobs randomly. Start with the mechanical basics that must be correct before tension adjustments mean anything.

Jessica begins by inspecting what the machine already told her: missed areas in the metallic gold stitching and signs that something wasn’t forming clean stitches. This is where experienced operators save hours—because the fabric is your diagnostic report.

What to look for on the garment (Sensory Diagnosis):

• Visual: Gaps/missed areas in the fill (she points them out on the background). Is the fabric showing through?
• Visual: Evidence of bobbin thread pulling upward (white showing where it shouldn’t).
• Auditory: Did you hear the machine struggle or "slap" before the error?
• Tactile: Run your finger over the thread path. Does it feel smooth like glass, or is there a burr?

And she mentions a practical fix that many people overlook: if threads are getting caught, she removed rubber components/guides from the thread path because they were contributing to snagging. While rubber guides are meant to prevent whipping, if they degrade or get sticky, they become obstacles.

If you’re running a shop, this “inspect first” habit is also a profitability habit: every minute you spend guessing is a minute you’re not producing.

Prep Checklist (Do this BEFORE you re-run the design)

• [ ] Verify Repeatability: Identify exactly where the stitch-out failed (e.g., "Always happens on the left side of the satin column").
• [ ] The "Floss" Test: Floss the thread through the path by hand. If you feel a "snag" or irregular resistance (like pulling thread through sandpaper), you have a friction point.
• [ ] Surface Inspection: Look at the top surface for bobbin peek-through. If you see white "H" patterns on top, your top tension is effectively too specific or the needle is wrong.
• [ ] Needle Check (The Big One): Decide whether you should stop now and correct hardware (needle) before wasting another run.
• [ ] Tool Prep: Keep curved embroidery scissors nearby for safe thread management later (Jessica trims jump stitches by hand at the end).
• [ ] Consumable Check: Ensure you have spare 75/11 needles and temporary spray adhesive handy just in case.


The Needle “Dimple” Test: Installing an Embroidery Needle Correctly on the SWF MAS-12 Needle Bar

This is the heart of the video. It is the single most common error for beginners and even tired pros.

Jessica removes the needle and shows the physical features you must use to orient it correctly. She identifies a “little dimple” (the scarf) and a “little bump” to help you find the correct side.

The Physics of the Scarf: The "scarf" is an indentation above the needle eye. It allows the rotary hook of the machine to pass incredibly close to the needle without hitting it, grabbing the thread loop at the precise millisecond required. If this scarf is facing the wrong way, the hook misses the loop. Result: Skipped stitches or shredding.

Her key point: the flat/scarfed side must face the back of the machine.

That single detail can be the difference between:

• clean, professional stitches, and
• skipped stitches + bobbin showing on top + thread breaks.


How to do it (exactly as demonstrated)

1. Stop the machine and bring the head to a safe position. Ensure the machine is in a "Stop" state so the needle bar doesn't jump.
2. Loosen the needle screw just enough to slide the needle out. Do not remove the screw entirely (dropping it is a nightmare).
3. The Tactile Check: Rotate the needle in your fingers. You will feel a long groove on the front and a scooped-out "scarf" on the back.
4. Visual Confirmation: Look for the scarf/dimple (Jessica shows it close-up).
5. Insertion: Reinsert the needle. Ensure the Scarf faces directly to the BACK of the machine (6 o'clock position).
6. Depth Check: Push the needle all the way up until it hits the "stop" bar. You should feel a solid clunk when it hits the top.
7. Secure: Tigthen the screw.


Why this works (the “old tech” explanation)

Generally, the hook needs a consistent loop of top thread to catch. If the needle is rotated wrong (even by 10 degrees), the loop formation acts differently. The loop might twist away from the hook, known as "flagging."

This is why I tell new multi-needle owners: needle orientation is not optional—it’s a baseline calibration.

And if you’re running a swf mas 12 embroidery machine, treat needle checks like you treat bobbin changes: routine, not reactive. Before every new major project, check your needles. Burrs on the tip or a slight bend are invisible to the eye but obvious to the machine.

Warning: Sharps Hazard. Always power down or ensure the machine is fully stopped (Emergency Stop engaged) before putting fingers near the needle bar area; needles can puncture skin and a sudden movement from a servo motor can turn a simple check into a hospital visit.

The Thread-Path Friction Trap: When Rubber Guides Cause Thread to Catch and Tangle

Jessica mentions she removed rubber from the thread path because some threads were getting caught, causing tangling.

That’s a classic “looks harmless, costs you hours” issue. In embroidery, we want controlled tension, not unpredictable friction.

What’s happening (The Physics of Drag):

• Rubber components can degrade over time, becoming tacky.
• Certain threads (especially rayon or metallics) have higher coefficients of friction.
• If the thread "sticks" to the rubber, it creates a momentary high-tension spike. The machine thinks the thread is tight, the needle bends slightly, and the stitch distorts.

Visual Cue: Watch the thread cone. If it wobbles violently or the thread "slaps" against the guideways, you have excess friction.

If you remove or modify any guide, do it carefully and always cross-check with your machine’s manual—different setups rely on different guides for stability. However, providing a smooth path is priority number one.

A practical shop rule: if a thread is snagging, don’t just slow the machine and hope. Find the snag point. Run your fingers along the plastic tubes and eyelets to feel for rough spots.

To keep this grounded in the video’s scenario, the fix was simple: remove the rubber components that were catching thread.

The Metallic Thread Speed Reality on the SWF MAS-12: Why 900–1000 SPM Ran Better Than Slow

This surprises beginners, but Jessica states plainly that after her issues she realized she had it running slow—and that it does really well when it runs at 900 to 1000 SPM.

The Beginner's Instinct vs. Machine Physics: New users usually slow the machine down to 400 SPM when they see trouble. While logical, sometimes too slow is detrimental.

• Momentum: Commercial machines are designed for momentum. At very low speeds, the specific force required to punch through the fabric and form the loop changes.
• Thread Whip: Some metallic threads feed better when they are under the constant, high-frequency tension of high speed, rather than the "slack-pull-slack-pull" of low speed.

The "Sweet Spot" Strategy: While Jessica runs at 1000 SPM, that is expert territory.

• Beginner Safety Zone: 600–750 SPM. This is fast enough to maintain momentum but slow enough to react to errors.
• Pro Zone: 850–1000 SPM.

If you’re experimenting, change one variable at a time: fix needle orientation first, then evaluate speed.

And if you’re operating a 12 needle embroidery machine for paid work, log your “known good” speed ranges per thread type so you’re not re-learning the same lesson every month.

Setup That Prevents T-Shirt Distortion: Hoop Tension, Cut-Away Stabilizer, and a Simple Decision Tree

In the video, the project is a white cotton T-shirt hooped with a standard tubular hoop and backed with white cut-away stabilizer.

T-shirts are forgiving until they aren’t: the moment you add satin text and dense fills, fabric stretch becomes your silent enemy. The machine pushes thousands of stitches into the fabric; if the fabric can move, it will.

The Stabilizer Decision Tree (Use this before you blame tension)

Start here: What fabric are you stitching?

• Scenario A: Cotton T-shirt knit (like the video)
  • Decision: Use Cut-Away (2.5oz or 3.0oz).
  • Why: Knits stretch. Tear-away will disintegrate under the needle, leaving the fabric to distort. Cut-away holds the structure forever.
• Scenario B: Performance/Poly Stretch Tee
  • Decision: Heavy Cut-Away + Water Soluble Topper.
  • Why: The slippery fibers need maximum stability, and the topper prevents stitches from sinking.
• Scenario C: Woven Shirt / Canvas
  • Decision: Tear-Away is acceptable if the design is light.
• Scenario D: Structured Hats/Bags
  • Decision: Cap backing (stiff tear-away).

Next: How dense is the design?

• Dense fill + satin name (like “Maylin”) → Cut-away is the safer default. The more stitches, the more stability you need.
• Light outline only → You may get away with lighter support.

Finally: What’s your tolerance for rework?

• If this is a customer order, choose the stabilizer that reduces distortion risk, not the one that’s cheapest per sheet.

Hooping Physics: The "Drum Skin" Myth

You want the garment held flat and stable, but not stretched.

• The Test: Pull the fabric gently. It should be taut, but the weave of the T-shirt should not be distorted (opened up). If the pattern of the fabric looks like a grid that has been pulled wide, you have "Hoop Burn" waiting to happen.

The Commercial Solution for Pain-Free Hooping: If you routinesly fight hoop burn, slow hooping, or inconsistent tension across shirts, this is often a hardware limitation of standard tubular hoops. This is where professional accessories like magnetic embroidery hoops become a practical upgrade path.

• Why Upgrade? Unlike screw-tightened hoops that crimp the fabric, magnetic frames hold the fabric flat using vertical magnetic force. This eliminates "hoop burn" almost entirely and speeds up the loading process by 40-50%, especially when you are doing a run of 50 shirts.

Warning: Magnetic Safety. High-strength industrial magnets are powerful. Keep them away from pacemakers/medical implants. Be mindful of pinch hazards—fingers can easily get caught between the magnets and the frame with crushing force.

Setup Checklist (Before You Press Start)

• [ ] Needle Orientation: Scarf faces BACK (6 o'clock).
• [ ] Path Clearance: No sticky rubber or rough eyelets.
• [ ] Stabilizer Choice: Applied Cut-Away for the T-shirt (No Tear-Away on knits!).
• [ ] Hooping Quality: Fabric is neutral taut (not stretched).
• [ ] Perimeter Check: Trace the design to ensure the presser foot won't hit the plastic hoop.
• [ ] Speed Set: Dialed to a safe 600-800 SPM (or Jessica's 900 if confident).

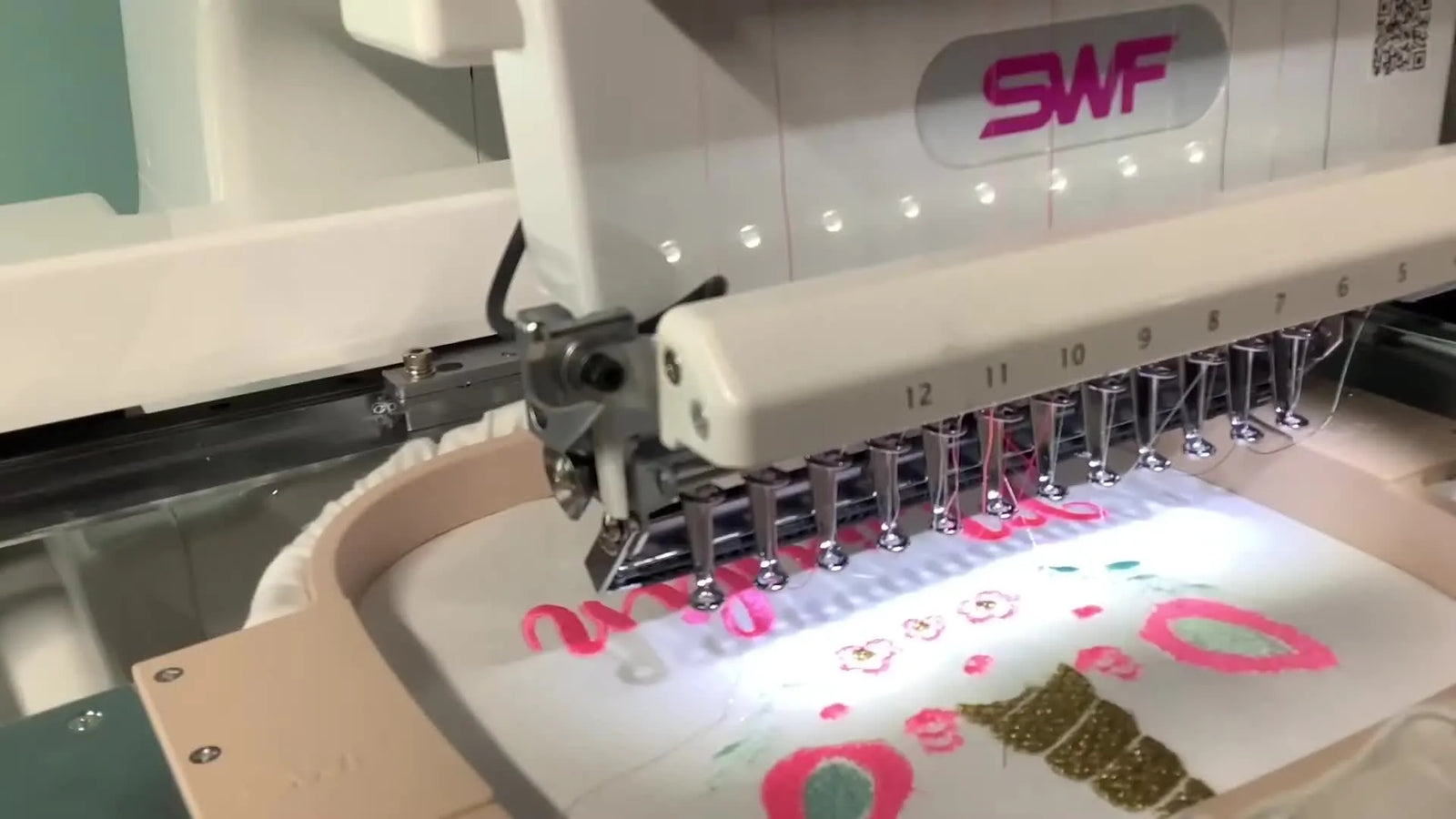

Running the Unicorn Stitch-Out on the SWF MAS-12: What to Watch During Color Changes and Satin Text

After the needle correction, Jessica runs the unicorn horn in metallic gold and watches for smooth flow and no breakage. Metallic thread is the ultimate stress test for a machine.

Then the machine proceeds through color changes for the floral elements (teal/pink accents) and later stitches the name “Maylin” in pink satin.

What I’d watch like a hawk (and why)

• Metallic Fill (Horn): Listen for a consistent "purring" rhythm. If you hear a "snapping" sound, the thread is twisting.
• Small Florals: Watch the trims. After a trim, does the needle pick up the bobbin thread immediately? If not, check your "Tail Length" settings.
• Satin Text: This is where bobbin peek-through becomes obvious. Jessica specifically watches for white showing on pink.
  • The "H" Test: On a satin column, turn the garment over. You should see 1/3 top thread, 1/3 bobbin thread, 1/3 top thread. If you see ONLY bobbin thread on the back, your top tension is too loose. If you see bobbin on top, top tension is too tight (or needle is wrong).


A comment under the video captures the emotional reality of learning multi-needle: someone mentions struggling with a red light error, discovering a needle was threaded backwards, and only testing one color at a time because it feels overwhelming.

That approach—prove one needle station is perfect, then scale—is exactly how you avoid spiraling. Do not try to solve 12 needles at once.

If you’re running swf embroidery machines and you’re new to multi-needle workflow, build a repeatable “one-head, one-color” validation routine before you attempt full 12-color production.

The Manual Trim Moment: When to Cut Jump Stitches (and When to Leave It Alone)

Near the end, Jessica uses hand scissors to trim long jump stitches (notably around the eyes/eyelashes and floral elements) before removing stabilizer.

This is more important than it sounds:

• Risk of Cutting Early: If you cut a jump stitch too early and too close to the knot, the subsequent stitches might unravel if they haven't locked yet.
• Risk of Cutting Late: If you unhoop the shirt first, the fabric relaxes. Trimming loose threads on relaxed fabric is dangerous because it's easy to snip a hole in the shirt.

Jessica also gives a smart operational habit: check all embroidery elements before removing from the machine in case a rerun is needed. That’s a pro move—because once you unhoop, you lose registration. You can never re-hoop a shirt exactly the same way twice.

If you’re doing volume work, consider standardizing your trimming tools. A dedicated pair of double-curved embroidery scissors allows you to get close to the fabric without digging in. Dull scissors cause tugging, and tugging distorts stitches.

“WAY TOO FAST” — Slowing Down the Learning Curve Without Slowing Down Production

One viewer says the video is “WAY TOO FAST.” Fair. Beginners often feel like they are drinking from a firehose.

Here’s how to slow the process down without turning your shop into a trial-and-error museum:

• Freeze the workflow, not the machine. Do your thinking during prep/setup. Once the machine is running, let it run.
• Change one variable at a time. Never change the needle AND the tension AND the speed simultaneously. You will never know which one was the culprit.
• Document your fixes. A simple notebook page (or a whiteboard in your shop) titled "Settings that Worked" saves you from repeating mistakes.

If you’re constantly rehooping shirts because you had to pull a piece out to troubleshoot, that’s where an investment in high-quality hoops for swf embroidery machine selection becomes a real efficiency lever—better hooping consistency means fewer “false tension” problems caused by fabric movement. This drastically reduces the "Setup" time, giving you more brain space to focus on the sewing.

Troubleshooting Map for SWF MAS-12: Symptom → Likely Cause → Fix You Can Try Today

Below is a practical map built directly from what happens in the video, with a little seasoned context.

1) Symptom: Thread tangling or getting caught

• Likely cause (video): Rubber guides/components in the thread path creating friction or catching the thread.
• Fix (video): Remove the rubber components from the thread path.
• Watch out: After any change, run a short test to confirm thread feeds smoothly.

2) Symptom: Missed areas / skipped stitches in the background

• Likely cause (video): Needle issues or settings; Jesica initially forwards to another color to bypass.
• Fix (video): Inspect needle orientation and correct it.
• Pro tip: Generally, skipped stitches that come and go are often mechanical (needle, hook timing, thread path) before they’re “tension.”

3) Symptom: White bobbin thread showing on top (especially visible on satin text)

• Likely cause (video): Needle not inserted correctly (wrong orientation).
• Fix (video): Remove needle, find the dimple/scarf, reinstall with scarf facing the back.

If you’re shopping for embroidery hoops for swf because you’re tired of garment movement masquerading as tension trouble, prioritize hoops that load consistently and don’t require you to over-stretch knits to get a tight hold.

The Upgrade Path That Actually Pays Off: From “One Shirt” Mode to “Shop” Mode

Jessica’s story is a familiar one: early mistakes, adjustments, then suddenly the machine runs “perfectly.” That’s the turning point where you should think like a shop owner.

Upgrade 1: Reduce rehooping time (and wrist fatigue)

If you’re doing repeat T-shirt placements, Magnetic Hoops can reduce the fight of aligning and clamping. This is especially helpful when your hands are tired or you’re doing long runs. It turns a 45-second struggle into a 5-second "snap."

Upgrade 2: Stabilizer and thread as a system

The video uses cut-away stabilizer and multiple thread types including metallic. In real production, your results depend on the combination of Fabric + Needle + Thread + Backing. Generally, when one element changes (new batch of shirts from a different supplier?), you should re-test rather than assume last week’s settings will hold.

Upgrade 3: Scale when the workflow is stable

If you’re consistently producing multi-color apparel and you’re ready to move from hobby pacing to order pacing, a multi-needle platform like SEWTECH can be a cost-effective productivity step. But do not upgrade the machine to fix a skills gap; upgrade the machine to solve a capacity gap.

Operation Checklist (End-of-Run Habits)

• [ ] The 500-Stitch Watch: Watch the first few hundred stitches after any needle change to confirm no tangles or bobbin peek-through.
• [ ] Satin Quality Control: During satin text, visually check for white bobbin showing on top.
• [ ] The "Save" Check: Before unhooping, inspect the full design. Do you need to back up and repair a letter? Do it now.
• [ ] Clean Trim: Trim long jump stitches carefully with embroidery scissors (as Jessica does) and avoid pulling on the knit.
• [ ] Release: Only then remove stabilizer and proceed to final garment handling.


The Finished Unicorn T-Shirt Reveal: What “Good” Looks Like After the Needle Fix

Jessica ends by showing the completed unicorn design on the white T-shirt. The important takeaway isn’t just that it stitched—it’s why it stitched: once the needle orientation was corrected and the thread path friction was addressed, the machine ran smoothly at her preferred speed range.

Embroidery is a science of small details. If you’re running a swf mas 12-needle embroidery machine and you’re stuck in the loop of “tension tweaks → worse results,” stop. Reset to zero. Do the boring checks first (Needle, Path, Hooping). The boring checks are what make the beautiful shirts.

FAQ

• Q: How do I reinstall an embroidery needle correctly on an SWF MAS-12 when the SWF MAS-12 shows skipped stitches, bobbin thread on top, or sudden thread breaks?
  A: Reinstall the needle with the scarf/dimple facing the BACK of the SWF MAS-12 before touching any tension knobs—this fixes a large share of “tension-looking” problems.
  • Stop the SWF MAS-12 and bring the head to a safe stop position before putting hands near the needle bar.
  • Loosen the needle screw slightly, remove the needle, and locate the long front groove and the scarf/dimple on the back.
  • Insert the needle fully up to the stop (feel it seat), then tighten the screw securely.
  • Success check: satin columns stop “railroading,” skipped areas disappear, and the stitch sound becomes steady instead of thunking.
  • If it still fails: floss the thread path for snags and inspect the needle for a bend/burr; then consider a small top-tension correction only after the mechanical checks.
• Q: What should I check on an SWF MAS-12 thread path when the SWF MAS-12 keeps tangling thread or birdnesting, especially if rubber guides are installed?
  A: Eliminate unpredictable friction first—sticky or degraded rubber guides can snag thread and create tension spikes that lead to tangles.
  • Power down/stop the SWF MAS-12, then “floss” thread through the entire path by hand to feel any gritty or sticky drag.
  • Remove or bypass the rubber components that are catching thread (confirm against the SWF MAS-12 manual if a guide is required for stability).
  • Run a short test sequence after the change to confirm smooth feeding before restarting a full design.
  • Success check: the cone feeds smoothly without violent wobble/slapping, and the machine runs without sudden jerks before the needle.
  • If it still fails: check for rough eyelets/tubes with your fingertip and re-verify needle orientation before adjusting tension.
• Q: How can I tell if SWF MAS-12 top/bobbin balance is correct on satin text when white bobbin thread is showing on top of a design?
  A: Use the satin “H test” and fix needle orientation first—bobbin showing on top often comes from a needle installed incorrectly, not just tension.
  • Flip the garment over and evaluate satin columns: aim for roughly 1/3 top thread, 1/3 bobbin thread, 1/3 top thread.
  • Recheck the embroidery needle on the SWF MAS-12 (scarf/dimple to the back) before turning any tension knobs.
  • Only after the needle/path are confirmed, make a small top-tension adjustment if the imbalance remains.
  • Success check: on the top side, the satin looks solid with no white speckling/track down the center; on the back, the “H” balance is visible.
  • If it still fails: inspect for thread-path friction points and confirm the design is not shifting due to hooping instability.
• Q: What stabilizer should I use on an SWF MAS-12 for a cotton T-shirt knit to prevent distortion, registration shift, and “false tension problems”?
  A: For a cotton T-shirt knit on an SWF MAS-12, use cut-away stabilizer as the safer default—especially for dense fill plus satin lettering.
  • Choose cut-away backing for knits (avoid relying on tear-away for knit T-shirts when the design is dense).
  • Hoop the shirt flat and stable but not stretched to avoid distortion that mimics tension issues.
  • Trace/check the design perimeter before sewing to ensure the presser foot will not hit the hoop.
  • Success check: fill areas remain fully covered with no gaps from fabric pull, and outlines stay aligned (no “off registration” look).
  • If it still fails: reassess hooping tension (neutral taut, not stretched) and consider a hooping hardware upgrade if consistency is the recurring problem.
• Q: What is the safest way to handle needle-area troubleshooting on an SWF MAS-12 to avoid puncture injuries while fixing skipped stitches or thread breaks?
  A: Treat the needle bar area as a sharps hazard—fully stop the SWF MAS-12 (or engage emergency stop) before reaching in, and keep fingers out of pinch zones.
  • Stop the machine completely before loosening the needle screw or touching the needle bar.
  • Use deliberate hand placement and good lighting when orienting the needle scarf/dimple to the back.
  • Keep tools (like curved embroidery scissors) nearby so you don’t improvise with unsafe cutting or pulling.
  • Success check: you can complete the needle change without the head moving unexpectedly and without hands passing under the needle path.
  • If it still fails: step back, re-check the machine is truly in a safe stop state, and follow the SWF MAS-12 manual procedures for service positions.
• Q: What safety precautions should embroidery shops follow when using magnetic embroidery hoops/frames to reduce hoop burn and speed up T-shirt hooping?
  A: Magnetic embroidery hoops can greatly reduce hoop burn and loading time, but the magnets are powerful—treat them as a pinch/crush hazard and keep them away from medical implants.
  • Keep magnetic hoops away from pacemakers/medical implants and clearly label the work area if multiple operators share stations.
  • Load by “rolling” magnets into place rather than snapping them down over fingers.
  • Store magnets in a controlled position so they cannot jump together unexpectedly.
  • Success check: the garment loads flat without over-stretching, with consistent holding pressure and minimal hoop marks.
  • If it still fails: revert to a standard hoop for that job and reassess stabilizer/hooping technique before forcing magnetic clamping on difficult placements.
• Q: What is a practical step-by-step upgrade path when an SWF MAS-12 operator keeps chasing “tension problems” caused by needle installation errors and inconsistent hooping?
  A: Use a three-level approach: fix basics first, upgrade hooping consistency second, and only consider machine capacity upgrades after the workflow is stable.
  • Level 1 (Technique): verify needle orientation (scarf to back), remove thread-path friction, and use the correct stabilizer for knit shirts before touching tension.
  • Level 2 (Tooling): if hoop burn, slow hooping, or inconsistent clamping keeps causing fabric movement, consider magnetic hoops to improve repeatability.
  • Level 3 (Capacity): if orders outgrow your stable process, then it may be time to scale production with a multi-needle platform—upgrade for throughput, not to compensate for unresolved setup basics.
  • Success check: repeat runs produce the same stitch quality without frequent rehooping, random tension knob changes, or mid-run tangles.
  • If it still fails: document one change at a time (needle/path/hooping/speed) and validate one needle station/color before running full multi-color jobs.
