Tree of Life ITH Wall Hanging: Cleaner Blocks, Flatter Seams, and Faster Hooping (Without the Usual Quilt-Bulk Headaches)

If you’ve ever finished an ITH (In-The-Hoop) quilt block and thought, “It looks great… until I try to join it,” you’re not alone. The "Sweet Pea Tree of Life" wall hanging is an achievable masterpiece, but it is also a masterclass in bulk management.

Success here isn't about magic—it's about "physics control." It rewards careful hooping, disciplined trimming (to the millimeter), and a few expert habits that prevent the dreaded "puffy seam."

This industry-grade walkthrough follows the exact sew-along flow: stitch the treetop block in the hoop, repeat for the remaining blocks, then assemble, border, quilt, and bind. I will guide you through the "danger zones" where most hobbyists accidentally create ripples, visible border lines, or chunky corners.

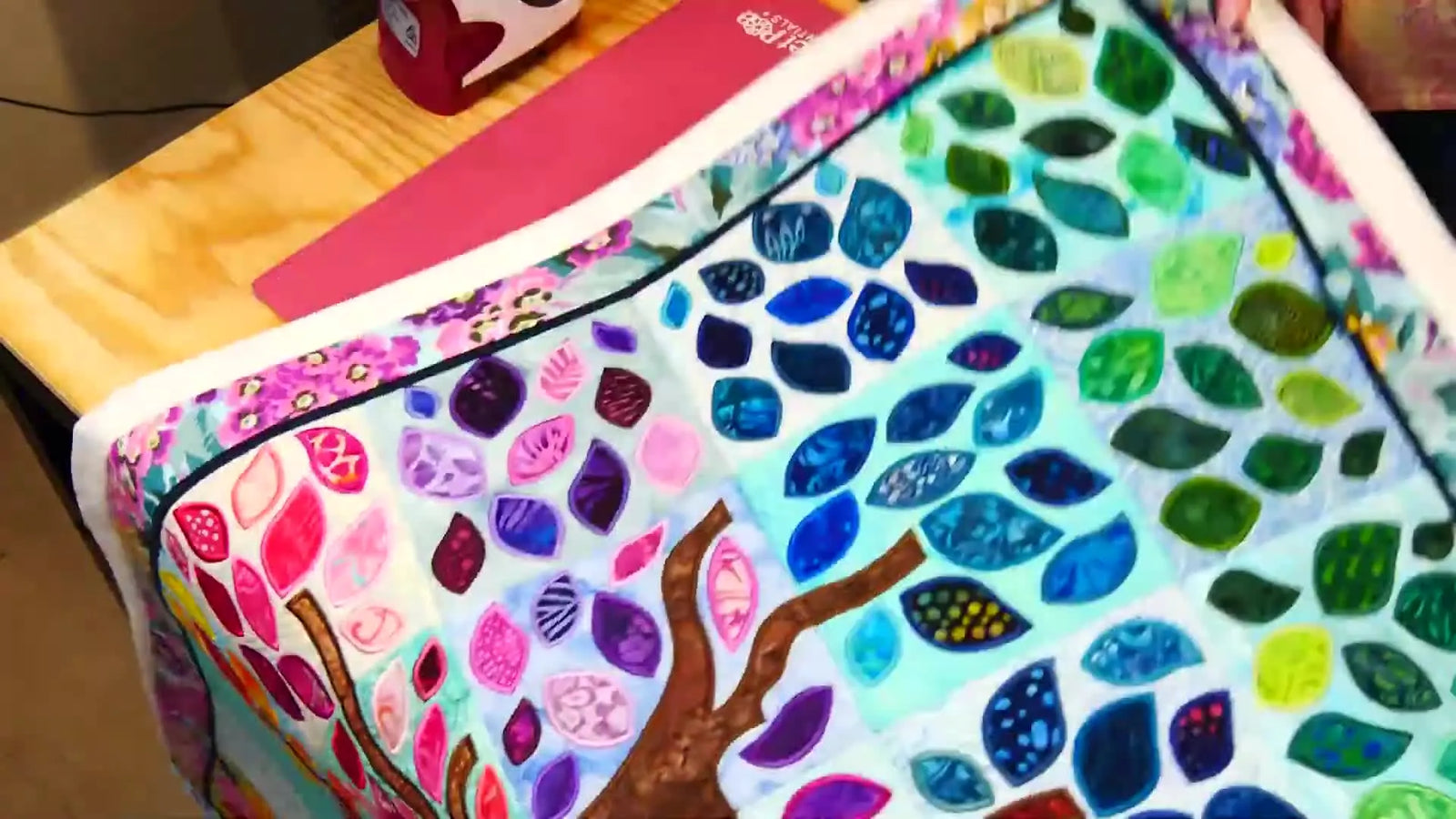

The Calm-Down Moment: What This Sweet Pea Tree of Life Wall Hanging Actually Requires (and What It Doesn’t)

You’re making five different blocks. The process is a hybrid: Embroidery Machine (Precision Construction) + Sewing Machine (Assembly).

The Cognitive Shift: Stop thinking like an embroiderer (who fears checking the bobbin) and start thinking like a quilter (who loves a 1/4 inch foot). The "success" comes from controlling thickness (batting + fabric + stabilizer).

If you are already dreading the repetitive hooping—doing the same mechanical action 20+ times—you are hitting the classic production bottleneck. This is where researching techniques for hooping for embroidery machine efficiency becomes vital for preserving your wrists and your sanity.

Hidden Consumables & Tool Essentials

Beyond the obvious fabric, ensure you have these "Job Savers" on your table:

• Needles: Titanium 75/11 Sharp (standard) or 90/14 (if using thick batting). A dull needle will push batting into the bobbin case.
• Adhesive: Temporary spray adhesive (e.g., KK100 or 505) for floating batting.
• Stylus ("The Pink Thing"): To hold fabric down safely.
• Duckbill Scissors: For applique trimming (preventing snipped base fabric).


The Hidden Prep That Saves Your Seams: Cutaway Stabilizer, Batting, and the Tools That Prevent Bunching

Before you stitch a single block, set yourself up so you’re not fighting fluff and bulk.

The "Why" behind the Stabilizer: We use Poly Mesh or Medium Weight Cutaway. Do not use Tearaway. Why? Tearaway eventually disintegrates, leaving your heavy quilt block supported only by the thread. Cutaway provides the permanent skeleton required for a project that hangs vertically.

A key detail: the batting tack-down is where many people get a “batting wave” that later turns into a lumpy seam. The video’s fix is simple and effective—use a stylus tool to hold batting flat near the needle as the presser foot passes.

Warning: Needle Safety Zone. Keep fingers and tool tips at least 1 inch away from the needle bar path. A machine moving at 600 SPM (Stitches Per Minute) cannot stop instantly. If you must adjust fabric, hit the "Stop" button first. A stylus is safer than a fingertip, but metal tools hitting a needle can shatter the needle into your eyes. Always wear safety glasses when embroidering heavy materials.

Prep Checklist (Do this before you start)

• Hoop Check: Confirm your hoop size (4x4, 5x5, 6x6, or 7x7) matches the file.
• Bobbin Check: Clean the bobbin case. Batting lint accumulates fast; a "thump-thump" sound usually means lint under the bobbin tension spring.
• Stabilizer Tension: Hoop the Cutaway stabilizer "drum tight"—it should make a resonant sound when tapped, but not be stretched so tight the weave distorts.
• Batting Prep: Pre-cut batting 1 inch larger than the design area to ensure no edges get caught under the foot.
• Organization: Isolate your "Fabric A" (Background) and "Fabric B" (Trunk) to avoid mixing them up mid-stitch.


The Batting Tack-Down Ritual: How to Stitch Batting in the Hoop Without Creating Bulk Later

The Physics of the Seam: Your goal creates a "Zero-Bulk Zone" at the edge. If batting gets into your final joining seam, the block won't lay flat.

Step-by-Step Production Flow:

1. Hoop Cutaway Stabilizer: Ensure the inner ring is seated firmly.
2. Float the Batting: Place batting on top. Do not hoop the batting; it adds too much drag.
3. The "Hover" Technique: As the machine stitches the tack-down line, use your stylus to gently depress the batting ahead of the foot.
   • Sensory Check: You should not see the batting "snowplow" (bunch up) in front of the foot.
4. Remove the Hoop (Do NOT Unhoop): Keep the stabilizer locked.
5. The Surgical Trim: Trim the batting 1–2 mm away from the stitch line.
   • Why 2mm? Too close = you might snip the thread. Too far (>3mm) = batting gets caught in the satin stitch border later, creating a lump.

Checkpoint: After trimming, run your finger over the edge. You should feel a distinct drop-off from the batting to the stabilizer.

Background Stippling + Trunk Applique: Clean Edges Without Nicking Your Base Fabric

Now we build the scene. This stage tests your patience with trimming.

1. Placement Stitch: Run the guide for Fabric A.
2. Placement: Cover the line with Fabric A.
3. Tack-Down & Stipple: The machine secures the fabric and adds texture.
   • Pro Tip: Reduce machine speed to 600 SPM for stippling if you hear the machine struggling to penetrate the layers.
4. Trunk Sequence: Repeat Placement -> Tack-down for Fabric B (Trunk).
5. The Crucial Distinction: Trim the Trunk fabric close (1-2mm), but DO NOT trim the outer edges of the Background Fabric yet. Leave the background fabric raw and large.

Why wait? Cotton plus batting can “shrink” slightly under heavy stitching density (called "Pull Compensation"). If you trim the outer block now, it might be too small by the time the embroidery finishes.

The 9-Leaf Sequence That Keeps You Sane: Applique Order, Trimming, and When to Move the Hoop

The leaves use a standard applique method. The risk here is Thread Nesting due to frequent jump stitches.

The Workflow:

1. Stitch Placement.
2. Place Scrap.
3. Stitch Tack-down.
4. Trim.
   • Technique: Pull the fabric scrap gently up and away from the stitch line while cutting. This creates tension that allows for a cleaner, closer cut.
5. Repeat x9.
6. Satin Finish: Cover raw edges.

Pro Habit: After every 3 leaves, flip the hoop over and check the underside. A loose thread tail can get caught in the next leaf's stitching, causing a "bird's nest." Snip tails early.

Squaring the Block Like a Quilter (Not Like an Embroiderer): The 0.5-Inch Rule That Makes Assembly Easy

This is the most critical step for the physical construction. Unlike standard embroidery where we tear away stabilizer and assume it's done, ITH blocks must be mechanically squared.

1. Remove from Hoop: Now remove everything—hoop, stabilizer, excess fabric.
2. The Visual Anchor: Place a clear quilting ruler over the block.
3. The Measurement: Align the ruler exactly 0.5 inch (1.27 cm) past the outer embroidery stitch line.
   • Note: The file is designed with this margin in mind.
4. The Cut: Use a sharp rotary cutter. Do not use scissors; human hands wobble. You need a perfect straight line.

Success Metric: You now have a block where the fabric edge is exactly 0.5 inch from the design. This guarantees your joining seams will be accurate.

Joining Sweet Pea Embroidered Quilt Blocks Into Rows: Pinning to Border Lines (Not to Hope)

Transition to Sewing Machine:

• Needle: Switch to a Universal 80/12.
• Foot: Use a standard foot or a 1/4 inch foot (if you can adjust needle position).

The Alignment Logic:

1. Place two blocks Right Sides Together.
2. Pin Perpendicularly: Pin directly through the embroidery border lines near the corners to align them.
3. The Sewing Path: Do not watch the edge of the fabric. Watch the embroidered border line.
4. Stitch Placement: Sew your joining seam one thread width inside the border line (into the seam allowance).
   • Why? This hides the embroidery border line inside the fold so no white thread shows on your final quilt face.
5. Pressing: Press seams Open. This reduces the bulk at the intersection from 4 layers to 2.


Row-to-Row Assembly: Matching Seams and Satin Stitch Points Without Distorting the Quilt Top

Gravity is your enemy here. Heavy rows drag fabric.

1. Pinning the Intersection: Where vertical seams meet, "nest" them if possible, or pin securely if pressed open.
2. Tack-Stitch Strategy: Before sewing the whole row, sew a few stitches just at the intersection points. Open it up and check: do the lines meet?
   • If yes: Sew the full row.
   • If no: Rip three stitches and adjust. It’s faster than ripping a whole row.

Expert Insight: Quilted blocks have "memory." If you force-stretch the fabric to match a corner, it will retract later, causing the wall hanging to curl (the "potato chip" effect). Let the fabric relax.

Flat Piping That Looks Crisp (Not Wavy): 1.5-Inch Strips, No Joints, Fold Direction Matters

Flat piping frames the art.

1. Prep: Cut 1.5-inch strips. Fold in half lengthwise (wrong sides together). Press flat.
2. Placement: Align raw edges of piping with raw edges of the quilt top.
3. Stitch: Baste with a 0.25-inch seam.
   • Warning: Do not use a 0.5-inch seam yet! You want this stitching hidden later.

If you produce these in volume, handling long strips and heavy stabilizers can fatigue your wrists. This is where ergonomic tools like hooping stations or specialized tables aid in managing the weight of the fabric, ensuring your alignment remains true without physical strain.

Borders With Batting Attached: Two Methods, One Goal—No Shifting, No Ghost Lines

We are adding borders that already have batting attached. This is "Quilt-As-You-Go" logic.

Decision Tree: Attaching Batting to Borders

Choosing the right method prevents the "creeping batting" effect.

The "Blind Stitch" Mistake: When attaching the border to the quilt center:

1. Place Right Sides Together.
2. Flip the project over. Sew from the BACK (Quilt Block side).
3. Why? You need to see the embroidery border line on the blocks to ensure you stitch just insides it. If you sew from the border side, you are guessing, and you will likely leave a "ghost line" of embroidery showing on the front.


Stitch-in-the-Ditch Quilting With Invisible Thread: The Bobbin Rule That Prevents Future Unraveling

This secures the sandwich (Top + Batting + Backing).

Tech Specs for Monofilament (Invisible Thread):

• Needle: Use the Monofilament in the Top Needle.
• Bobbin: Use Polyester/Cotton thread that matches the backing fabric.
• Tension: LOWER your top tension. Monofilament stretches like a rubber band. If tension is normal (4-5), it will snap back and pucker fabric. Drop it to 2.0-3.0 and test.

Why not Monofilament in the Bobbin? Monofilament creates weak knots. If used in the bobbin, the stitch structure often unravels after washing. Standard thread in the bobbin acts as the "anchor."

Often, achieving perfect tension with mixed threads requires experimentation. This is why professionals insist on quality. When switching between embroidery and sewing modes, maintaining consistent tension is easier if you use high-quality machine embroidery hoops and stabilizers that don't warp under pressure.

The Binding Math + The Mitered Corner Move: A Clean Finish That Hangs Flat on the Wall

The frame of your masterpiece.

1. The Miter: Stop sewing 3/8 inch (approx 1cm) from the corner. Backstitch. Cut thread.
2. The Fold: Fold the tail up at 90 degrees (creating a 45-degree angle), then fold perfectly back down flush with the edge.
3. Resume: Start sewing at the very edge.
4. Finish: Hand-stitch the binding on the back for a seamless look, or "stitch in the ditch" from the front if you are confident in your aim.


Two “Scary” Problems You Can Fix Fast: Border Lines Showing and Batting Bunching

Troubleshooting Table: Low Cost -> High Cost fixes.

The Upgrade Path When Repetitive Hooping Starts to Feel Like the Real Project

This project requires 5+ hoopings, plus countless re-alignments. If you felt physical strain or frustration with the "Hoop Burn" (shiny rings on fabric) or keeping the thick quilt sandwich clamped, you have encountered the boundaries of standard equipment.

Diagnose Your Needs:

1. The Pain: "My wrists hurt from tightening screws" OR "I can't get the thick batting hooped without popping out."
   • The Solution (Level 1): Upgrade to magnetic embroidery hoops. These use magnets to clamp fabric instantly without the "inner ring friction" that damages quilts. They handle thickness effortlessly.
2. The Pain: "Re-hooping takes longer than the actual stitching."
   • The Solution (Level 2): A magnetic hooping station. This tool uses jigs to align your magnetic hoop perfectly every time, cutting setup time by 50%.
3. The Pain: "I want to sell these, but my single-needle machine takes forever to change threads."
   • The Solution (Level 3): Commercial Multi-needle machines (like Sewtech's ecosystem). Automating color changes transforms a 3-hour struggle into a 45-minute production run.

Warning: Magnetic Hazard. Modern magnetic hoops use industrial-grade magnets (N52 usually). They are incredibly strong.
* Pinch Hazard: They can crush fingers if snapped together carelessly. Handle with straight vertical movements.
* Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and mechanical hard drives.

Setup Checklist (Before Sewing Machine Assembly)

• Square Check: Are all blocks chopped exactly 0.5 inch from the stitch line? (Measure, don't guess).
• Needle Swap: Removed embroidery needle? Installed 80/12 Standard needle?
• Bobbin Match: Is the bobbin thread changed from white (embroidery) to a color matching the backing fabric?
• Press: Iron set to steam. Pressing mat clear.
• Piping: Pressed in half with NO joints.


Operation Checklist (Final Quality Pass)

• Seam Flatness: Run hand over joins. Are they flat? (If lumpy, press again or unpick crushed batting).
• Visual Scan: No white embroidery layout lines visible on the front.
• Quilt Tension: Monofilament stitches lie flat and do not pull the fabric (puckering).
• Corners: Binding corners are 90 degrees and stuffed full (not hollow).
• Loop Test: Hanging loops are secure enough to hold the weight of the quilt.

If you want this project to look professional on the wall, the secret isn’t fancy stitches—it’s consistent trimming, calm alignment, and choosing tools that match the thickness you’re actually sewing. When you’re ready to speed up the repetitive parts, looking into magnetic hoops for embroidery machines is often the first upgrade that feels like an immediate quality-of-life improvement.

FAQ

• Q: How do I choose the correct stabilizer for the Sweet Pea “Tree of Life” ITH quilt blocks to prevent sagging on a wall hanging?
  A: Use Poly Mesh or a medium-weight cutaway stabilizer and avoid tearaway for this vertical hanging project.
  • Choose: Cutaway as the permanent “skeleton” so the dense quilting/embroidery stays supported long-term.
  • Hoop: Hoop stabilizer drum-tight (taut and resonant when tapped) without distorting the weave.
  • Avoid: Tearaway, because it can break down and leave the heavy block supported mostly by thread.
  • Success check: The finished block feels stable and does not droop or ripple when held upright.
  • If it still fails: Re-check hoop tension (too loose) and confirm batting was floated (not hooped) to reduce drag.
• Q: How do I hoop cutaway stabilizer “drum tight” for an ITH quilt block without stretching and warping the fabric grain?
  A: Hoop the cutaway stabilizer taut enough to sound firm when tapped, but stop before the weave distorts.
  • Tap-test: Tap the hooped stabilizer; it should feel tight and sound crisp, not soft or spongy.
  • Seat: Press the inner ring fully and evenly into the outer ring so tension is uniform.
  • Watch: Look for weave distortion or “shine” from over-tension; loosen and re-hoop if you see it.
  • Success check: The stabilizer is evenly tight across the hoop with no ripples and no skewed grain.
  • If it still fails: Clean lint from the hoop grooves and re-hoop—slipping rings often come from buildup.
• Q: How do I prevent “batting snowplow” during batting tack-down stitches when floating batting in the embroidery hoop?
  A: Float the batting (do not hoop it) and use a stylus to gently hold the batting flat ahead of the presser foot during tack-down.
  • Pre-cut: Cut batting at least 1 inch larger than the design area so edges don’t get pulled under the foot.
  • Hold: Use the “hover” technique—lightly depress batting in front of the foot as the tack-down line stitches.
  • Trim: After tack-down, trim batting 1–2 mm away from the stitch line to create a zero-bulk seam zone.
  • Success check: No moving ridge forms in front of the presser foot and the trimmed edge has a clear drop-off from batting to stabilizer.
  • If it still fails: Hit Stop and re-position batting; also consider slowing down if the layers feel resistant.
• Q: What is the safe way to use a stylus tool near an embroidery needle when stitching thick batting at 600 stitches per minute?
  A: Keep the stylus and fingers at least 1 inch away from the needle bar path, and press Stop before making any close adjustments.
  • Position: Hold batting down ahead of the presser foot, not beside the needle.
  • Pause: Press Stop before re-gripping or changing where the stylus touches the batting.
  • Protect: Wear safety glasses when embroidering heavy materials in case a needle breaks.
  • Success check: The stylus never crosses the needle’s travel path and there are no needle strikes or sudden “ping” sounds.
  • If it still fails: Increase the safety distance and adjust batting only when the machine is fully stopped.
• Q: How do I square ITH quilt blocks using the 0.5-inch margin rule so Sweet Pea Tree of Life blocks join without puffy seams?
  A: Trim each block with a quilting ruler so the fabric edge is exactly 0.5 inch past the outer embroidery stitch line.
  • Remove: Take the block fully out of the hoop and clear excess stabilizer/fabric before measuring.
  • Align: Set a clear quilting ruler so its cut line sits precisely 0.5 inch beyond the outer stitch line.
  • Cut: Use a rotary cutter for straight, repeatable edges (scissors often wobble and create mismatch).
  • Success check: Every side measures consistently with a clean, straight edge and identical seam allowance on all blocks.
  • If it still fails: Re-measure from the stitched border line (not the fabric edge) and re-trim for consistency.
• Q: How do I stop embroidered border lines from showing after joining two Sweet Pea ITH quilt blocks on a sewing machine?
  A: Sew the joining seam one thread-width inside the embroidered border line while watching the border line (not the fabric edge).
  • Pin: Pin perpendicular through the embroidered border lines near corners to lock alignment.
  • Stitch: Follow the embroidered border line and sew just inside it so the line folds into the seam allowance.
  • Press: Press seams open to reduce bulk at intersections.
  • Success check: No white border line is visible on the quilt face after pressing.
  • If it still fails: Re-sew the seam about 1 mm deeper (closer to the block center) to hide the line fully.
• Q: What safety precautions should I follow when using industrial-strength magnetic embroidery hoops to reduce wrist strain during repetitive hooping?
  A: Handle magnetic hoops with straight, controlled vertical movements and keep them away from medical implants and sensitive items.
  • Prevent pinches: Separate and reattach magnets slowly—do not let magnets snap together over fingers.
  • Keep distance: Maintain at least 6 inches from pacemakers or insulin pumps.
  • Protect items: Keep magnets away from credit cards and mechanical hard drives.
  • Success check: The hoop closes securely without finger pinches and fabric is clamped evenly without screw-tightening fatigue.
  • If it still fails: Switch to slower, two-handed handling and stage the magnets on a flat surface before closing.
