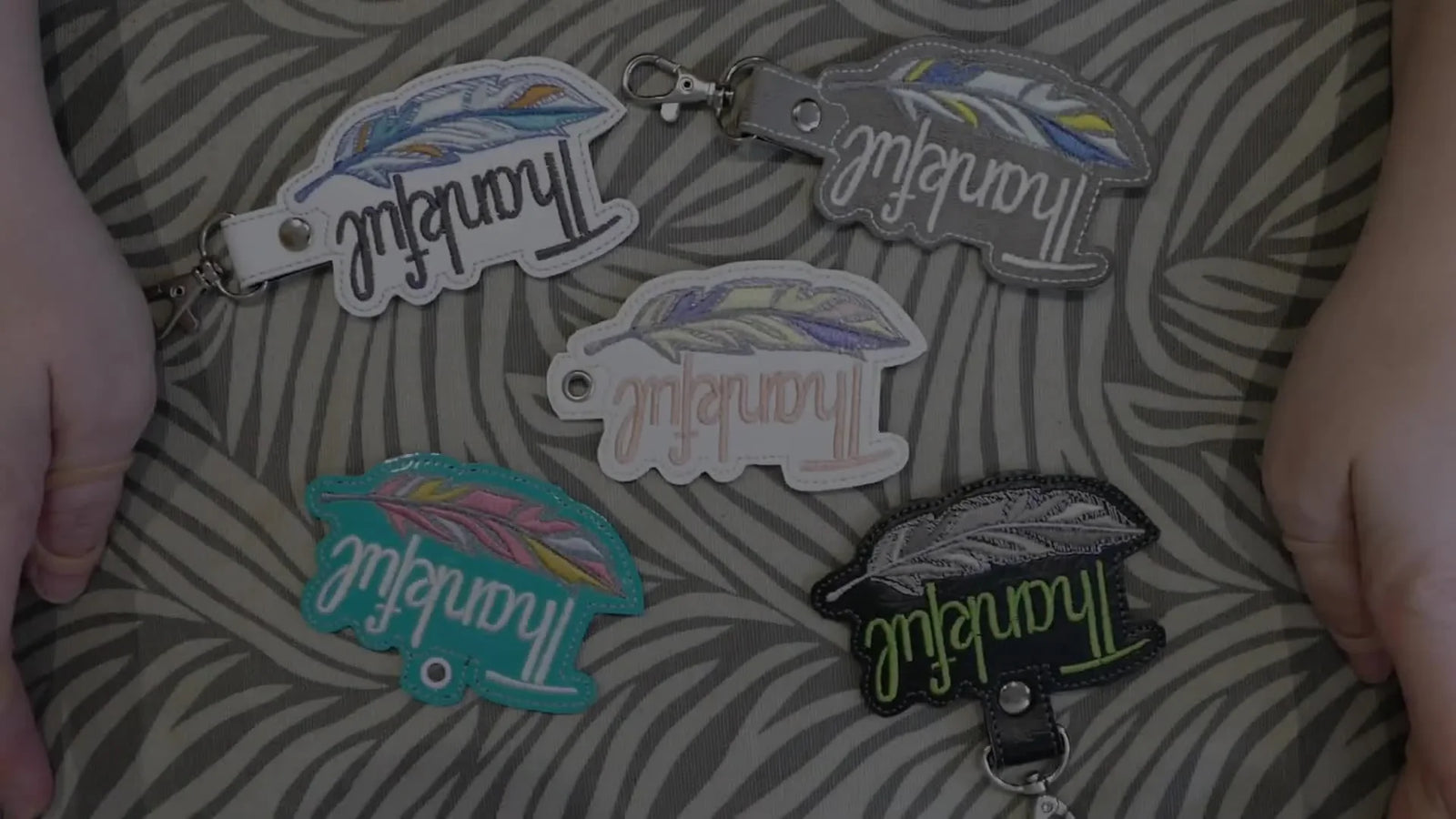

Vinyl Snap Tab Keychains That Don’t Warp, Nest, or Fall Apart: A Battle-Tested ITH Method (Marine Vinyl + Rivets)

If you’ve ever tried stitching on marine vinyl and ended up with warped edges, ugly back stitches, or a bird’s nest the moment the needle starts—take a breath. Vinyl snap tabs look simple, but they punish sloppy prep.

As someone who has trained thousands of embroiderers, I often see beginners blame their machines for what is actually a physics problem. Vinyl is thick, elastic, and creates high friction. It requires a specific protocol to handle push-and-pull forces.

This post rebuilds the workflow into a professional, repeatable process. We will cover the "why" behind every parameter, specific safety margins for your machine settings, and how to scale from making one messy tab to running a profitable mini-production line.

The Calm-Down Primer: Why Marine Vinyl Snap Tabs Go Wrong (and Why It’s Not “Your Machine Hates You”)

Marine vinyl is deceptive. It looks sturdy, but under the needle, it behaves like a fluid. It stretches, flags (bounces up and down), and it doesn’t forgive needle holes. Once you perforate it, that hole is permanent—you can’t “steam it out” like cotton.

Most failures come from one of four physical realities:

1. The Trampoline Effect (Flagging): The vinyl stretches while stitching, causing the border to look wavy or mismatched.
2. Tension Shock: The first few stitches nest underneath because the thick material prevents the tension discs from engaging immediately if the tails aren't controlled.
3. Stabilizer Drift: The backing shifts because it wasn’t secured before the border stitch, ruining the registration.
4. Hardware Mismatch: Snaps pop apart or rivets spin because the post length is chemically incompatible with the vinyl thickness.

The good news: The method below solves all four by controlling the variable of movement.

Supplies for Marine Vinyl Snap Tabs (Marine Vinyl, SF101, 505, Rivets) — What Matters and What’s Optional

To get professional results, we need to separate "nice-to-haves" from "mission-critical" components.

Core materials (The Non-Negotiables):

• Marine Vinyl: White for front, black for back. Tip: Start with smooth (matte) vinyl; textured/glitter vinyls are harder to clean.
• SF101 Iron-on Interfacing: This is the secret weapon fused to the back of the front vinyl.
• Stabilizer: Cutaway is the gold standard here. (Tearaway can work if doubled, but it increases risk).
• Adhesive: Odif 505 spray adhesive (or a generic temporary spray).
• Control: Painter’s tape / masking tape.
• Hardware: 9mm double cap rivets & 3/16" double-sided eyelets with washers.

Tools shown:

• Machine: Single-needle embroidery machine (Husqvarna Viking shown, but applies to Brother/Babylock/Janome).
• Hoop: 120x120mm (approx 4x4 or 5x7).
• Scissors: Kai 7205 (for power cuts) and Gingher curved scissors (for precision trimming).
• Punch: Rotary leather punch.
• Setting Tools: Tabletop rivet press (green press) or hand setters.

Hidden Consumables (Don't start without these):

• New Needles: Size 75/11 Ballpoint (Essential for avoiding cuts).
• Lighter: For singeing polyester thread ends.
• Scrap Vinyl: For testing tension before the real run.

A smart upgrade path (When "Good Enough" isn't enough): If you find yourself constantly fighting with sticky tape residue on your inner hoops, or getting "hoop burn" (shiny rings) on your expensive vinyl, this is where professionals switch strategies. Using embroidery magnetic hoops eliminates the need for aggressive taping and prevents hoop burn entirely by clamping the material without friction, making them essential for delicate marine vinyl.

The “Hidden” Prep That Prevents Stretch: Fusing SF101 to Marine Vinyl Without Melting It

The most common mistake beginners make is skipping the internal stabilization. The video’s first critical move is fusing SF101 to the back of the front vinyl.

The Action Step:

1. Cut your SF101 slightly smaller than your vinyl piece.
2. Set your craft iron to a Medium-Low setting (Wool setting, no steam).
3. Place SF101 on the back side of the vinyl.
4. Press very quickly—think of it as "tacking" rather than "melting."

Expert Insight (The 'Why'): Vinyl acts like a soft sheet under stitch tension. A column of satin stitches can pull the vinyl in by 1-2mm, warping the shape. SF101 adds a rigid skeleton to the vinyl so the needle’s repeated penetrations don’t “walk” the material out of shape. You aren't trying to make it board-stiff; you are just stopping the micro-stretch.

Warning: Heat Hazard: Vinyl is plastic. It will melt or permanently flatten (lose its leather-grain texture) if you park the iron for even 3 seconds. Always test on a scrap first and keep the iron moving like a hovercraft.

Prep Checklist (Do this before touching the machine power button)

• Stabilizer Selection: Heavyweight Cutaway is ready (or 2 layers of medium-weight Tearaway if practicing).
• Vinyl Prep: SF101 fused to the front vinyl (tested for melt marks).
• Sizing: Front and back vinyl pieces cut oversized (at least 1 inch wider than design).
• Adhesive Safety: 505 spray can is ready (designate a spraying box away from your machine).
• Hardware Verification: 9mm double cap rivets and 3/16" eyelets are on the table.
• Cutting Tools: Straight shears and curved snips are within arm's reach.

Stabilizer Choices for Dense Snap Tab Designs: Cutaway vs Tearaway (and When to Double It)

The debate between stabilizers is settled by physics: Density requires support.

The Rule of Thumb:

• Cutaway: The professional choice. It remains in the project forever, providing permanent support to the stitches so they don't distort over time.
• Tearaway: Acceptable for "fun" projects, but risky. If the needle perforations are too close (bean stitch), the tearaway can shred during the stitch-out, causing the vinyl to slip.

Expert Insight: If you must use Tearaway, you must cross-hatch two layers (one vertical, one horizontal) to create strength. However, for a commercial product, always use Cutaway.

Workflow Efficiency: If you look at high-volume shops, you will notice they don't struggle with paper rolls. They often use specialized hooping stations to ensure the stabilizer and backing are perfectly square every time. While you can eyeball it for one tab, a station ensures your 50th tab is identical to your first.

The Threadless Placement Stitch Trick: Get Perfect Alignment Without Wasting Thread

This is a "master class" technique that saves time and cleanup.

The Action Step:

1. Hoop your stabilizer only (make it drum-tight).
2. Unthread the needle (or remove the spool).
3. Run the first color stop (Placement Line).
4. Watch the needle punch precise holes in the stabilizer.

Sensory Check: Look closely at the stabilizer. You should see a clean, perforated outline of the snap tab. This is your "landing zone."

Why this helps: You don't have to pick out placement threads later, which often creates lumps under the vinyl or accidentally pulls the stabilizer. It creates a perfectly flat foundation.

Floating Marine Vinyl with 505 + Tape: The Anti-Warp Method for Push/Pull Distortion

"Hooping" vinyl is difficult because it is thick and slippery. The "Floating" technique bypasses this.

The Action Step:

1. Take your hooped stabilizer (with perforations) to your spray box.
2. Lightly mist the stabilizer (not the machine) with 505 spray.
3. Place the vinyl (SF101 side down) over the perforated outline.
4. Press firmly from the center out to remove air bubbles.
5. Tape the perimeter: Use painter's tape to secure the edges, ensuring the tape is well outside the stitch path.

Expert Insight: The 505 holds the center, and the tape holds the edges against the "pull" of the satin stitches.

The Hoop Burn Problem: Even with floating, standard hoops can leave marks on the surrounding fabric or vinyl if you aren't careful. This is why pros love magnetic embroidery hoops. They clamp the stabilizer and vinyl sandwich with vertical force solely, eliminating the "tug and screw" friction of traditional hoops that damages grain.

Setup Checklist (Right before you press “start”)

• Hoop Tension: Stabilizer is taut (sounds like a drum) before floating vinyl.
• Placement: Threadless run completed; perforations are visible.
• Adhesion: Vinyl floated with 505 and pressed firmly; no air pockets.
• Security: Tape applied to edges (checked against screen to ensure needle won't hit tape).
• Needle: Fresh 75/11 Ballpoint installed.
• Bobbin: Full bobbin (don't run out halfway through vinyl!).

The “No More Bird Nests” Start: Pulling Up Bobbin Thread on a Single-Needle Machine

If the underside of your embroidery looks like a tangled mess (a bird's nest), it usually happens in the first 3 seconds.

The Action Step (The Manual Pickup):

1. With the presser foot up, hold the top thread tail.
2. Press the "Needle Down" button, then "Needle Up."
3. Pull the top thread gently. You will see a loop of bobbin thread come up through the plate.
4. Pull that loop out. Hold both tails (top and bottom) with light tension.
5. Press Start. Hold the tails for the first 3-5 stitches, then trim them.

Sensory Check: You should feel a slight tug as the machine makes the first stitches. If the machine sounds like it's "crunching" or "hammering," Stop immediately—you have a nest.

Warning: Mechanical Safety: Keep fingers, tweezers, and loose thread away from the needle bar when initiating the manual cycle. A distraction here can lead to a needle through the finger.

The Backing Layer Trick: Taping Black Marine Vinyl to the Underside Before the Bean Stitch Border

This step creates the professional finish where the back looks as good as the front.

The Action Step:

1. Once the main design is done, remove the hoop (Do NOT unhoop the material).
2. Flip the hoop over.
3. Lightly spray your back vinyl piece (black) or tape it securely to the underside of the stabilizer, covering the design area completely.
4. Tape Corners: Tape the corners of the back vinyl excessively. You do not want this peeling up as the hoop moves.
5. Return loop to machine and run the final "Bean Stitch" (Trace/Border) outline.

Expert Insight: The "Bean Stitch" is a triple-stich (forward-back-forward). It goes through: Front Vinyl + SF101 + Stabilizer + Back Vinyl. This is a lot of bulk! Speed Tip: Lower your machine speed to 400-600 SPM (Stitches Per Minute) for this final step. High speed here causes needle deflection and broken needles.

Clean Cutting on Vinyl Snap Tabs: Kai for Straights, Gingher Curved for Bean-Stitch Curves

Cutting is 50% of the visual appeal. A jagged edge ruins the illusion of quality.

The Action Step:

1. Remove everything from the hoop.
2. Cut the stabilizer down to a manageable square.
3. The Straightaways: Use long-blade shears (Kai 7205). Use the full length of the blade to make one smooth cut rather than many choppy snips.
4. The Curves: Switch to curved embroidery scissors (Gingher). Angle the blades slightly away from the stitches (about 1-2mm gap).
5. The Nibble: If you see white stabilizer poking out from the middle, go back and carefully trim it.




Hardware That Doesn’t Fail: Setting 9mm Double Cap Rivets (and Why Kam Snaps Pop Apart)

Plastic "Kam" snaps are popular, but they often lack the "neck" length to handle two layers of vinyl plus stabilizer. They pop open under stress.

The Fix: Double Cap Rivets.

The Action Step:

1. Punch the hole using the rotary punch (use the smallest hole size that the post fits through snugly).
2. Insert the rivet post from the bottom.
3. Place the cap on top. You should hear a soft metallic click or feel it seat.
4. The Crush: Use a table press. Apply smooth, consistent pressure.

Sizing Criticality: If your rivet post is too long (e.g., 10mm post on a 3mm thick project), the rivet will bend sideways. The creator suggests 8mm posts are the sweet spot for this specific vinyl stack.

Double-Sided Eyelets with Washers: The Small Detail That Makes Your Key Fob Look Store-Bought

An eyelet without a washer on the back is sharp and unfinished. It will eventually cut the thread on your key ring.

The Action Step:

1. Punch the hole on a firm surface (a cutting mat over a solid table).
2. Insert the eyelet from the front.
3. Mandatory Step: Place the washer on the back shaft.
4. Use the setting tool to roll the metal edges over the washer.


Decision Tree: Vinyl + Stitch Density → Stabilizer + Needle + Hooping Method

Use this logic flow to avoid wasting material.

1) What represents your design density?

• Standard Logo / Text: Go to Step 2.
• Heavy Fill / Tatami Stitch: STOP. Marine vinyl does not like heavy fill. It will curl. Re-digitize for lower density or choose a different fabric.

2) How stretchy is the vinyl?

• High Stretch (2-way or 4-way): MUST use Cutaway stabilizer + SF101 fused to vinyl.
• Stiff / Low Stretch: Can use Tearaway (x2 layers), but Cutaway is still safer.

3) Are you fighting hoop burns?

• Yes: Use the "Float" method with 505 spray OR upgrade to a magnetic hooping station.
• No: Proceed with standard masking tape float.

4) What needle is installed?

• Standard: 75/11 Ballpoint (Gold standard for 2 layers).
• Heavy Duty: 80/12 Ballpoint (If using 3+ layers or very thick glitter vinyl).
• Banned: Leather Needles (They have a cutting blade tip—do not use on vinyl).

Troubleshooting Vinyl Snap Tabs: Symptoms → Likely Cause → Fix

Before you call a technician, check this table.

The Upgrade Moment: When This Stops Being a Craft and Starts Being Production

If you are making one key fob for a nephew, the tape-and-float method is perfect. But if you just took an order for 50 branded keychains for a local realtor, the "tape method" will physically hurt you.

The bottleneck in embroidery is rarely stitch speed—it is hooping time.

The Professional Upgrade Ladder:

1. Level 1 (Technique): Master the SF101 + Threadless Placement method described above.
2. Level 2 (Workflow): Standardize your consumables. Buy rivets in bulk (thousands, not dozens).
3. Level 3 (Tooling): Implement magnetic embroidery hoops.
   • Why? They allow you to swap projects in seconds without unscrewing and re-screwing the outer ring. No tape residue, no hoop burn, instant hold.
4. Level 4 (Scale): When you are tired of babysitting single-needle color changes and re-threading, shops graduate to SEWTECH multi-needle machines. This allows you to set up 6-10 colors at once and walk away while the machine produces money.

Warning: Magnet Safety: If you upgrade to magnetic hoops, treat them with extreme respect. These are industrial magnets. Keep them away from pacemakers and implanted medical devices. Watch your fingers—they snap shut with enough force to pinch blood blisters!

Operation Checklist (The “Don’t-Make-Me-Unpick-This” Final Pass)

• Melt Check: SF101 fused without damaging the vinyl grain.
• Stability: Cutaway stabilizer hooped drum-tight.
• Placement: Vinyl aligned perfectly to threadless perforation marks.
• Tails: Bobbin thread pulled up manually; both tails held for first 5 stitches.
• Backing: Back vinyl taped securely (corners taped down!) before final border.
• Speed: Machine slowed to ~600 SPM for the final heavy layers.
• Finishing: Edges cut smoothly; Hardware set with correct post length (no spinning).

FAQ

• Q: Why does a Husqvarna Viking single-needle embroidery machine make a bird’s nest underneath when stitching marine vinyl snap tabs?
  A: Use the manual bobbin-thread pickup and control both thread tails for the first stitches—most “instant nests” happen in the first 3 seconds.
  • Re-thread with the presser foot UP, then hold the top thread tail.
  • Tap Needle Down, then Needle Up, and pull the top thread to bring up the bobbin loop.
  • Hold both tails with light tension for 3–5 stitches, then trim.
  • Success check: the machine should sound smooth (not “crunching”), and the underside should show normal stitches—not a tangled wad.
  • If it still fails: stop immediately, remove the hoop, clear the jam, and restart while holding both tails again.
• Q: How do I know the stabilizer is hooped correctly for marine vinyl snap tabs on a Brother/Babylock/Janome single-needle embroidery machine?
  A: Hoop the stabilizer only and make it drum-tight before floating vinyl—stabilizer tension is the foundation for clean borders.
  • Hoop cutaway stabilizer (or two crossed layers of tearaway for practice) until it feels tight and even.
  • Run a threadless placement stitch (unthreaded needle) to perforate the outline before adding vinyl.
  • Add vinyl after the perforations are visible, not before.
  • Success check: the stabilizer should feel like a drum and show a clean perforated outline that you can align to.
  • If it still fails: re-hoop the stabilizer; uneven tension often shows up later as wavy borders.
• Q: How can I stop wavy or distorted satin borders (flagging) when embroidering marine vinyl snap tabs on a single-needle embroidery machine?
  A: Fuse SF101 to the front vinyl and use cutaway stabilizer—this reduces micro-stretch that causes warped edges.
  • Fuse SF101 to the back of the front vinyl using a medium-low iron setting (no steam) with very quick presses.
  • Float the vinyl onto hooped stabilizer using 505 spray on the stabilizer, then tape the perimeter well outside the stitch path.
  • Keep the vinyl pieces oversized (at least 1 inch larger than the design) so edges stay controlled.
  • Success check: the finished border should match the shape cleanly with no ripples or mismatched edges.
  • If it still fails: avoid heavy fill/tatami designs on marine vinyl; reduce stitch density or change the design style.
• Q: What is the safest way to fuse Pellon SF101 to marine vinyl for snap tabs without melting or flattening the vinyl grain?
  A: Use medium-low heat, no steam, and “tack” quickly—vinyl can permanently melt or flatten if heat sits too long.
  • Cut SF101 slightly smaller than the vinyl piece and place it on the back side of the vinyl.
  • Press very quickly (keep the iron moving); do not park the iron.
  • Test on scrap vinyl first before committing to the real pieces.
  • Success check: SF101 is bonded flat with no shiny melt marks and no crushed texture/grain.
  • If it still fails: lower the iron temperature and shorten contact time even further; scrap-testing is mandatory on vinyl.
• Q: Why does a single-needle embroidery machine break needles during the final bean-stitch border when adding the back vinyl layer on snap tabs?
  A: Slow down and control bulk—bean stitch goes through multiple layers and high speed can cause needle deflection and breaks.
  • Flip the hoop (do not unhoop the project), tape or lightly spray and secure the back vinyl to the underside.
  • Tape the corners aggressively so the back layer cannot peel up during hoop movement.
  • Reduce speed to about 400–600 SPM for the final border pass.
  • Success check: the border stitches run without “hammering” sounds, and the needle clears the layers without snapping.
  • If it still fails: check for adhesive buildup on the needle and replace with a fresh 75/11 ballpoint needle.
• Q: What needle should I use for marine vinyl snap tabs on a home single-needle embroidery machine, and why are leather needles a bad idea?
  A: Start with a fresh 75/11 ballpoint needle—leather needles are cutting-point and can permanently damage vinyl.
  • Install a new 75/11 ballpoint needle before the stitch-out to reduce skipped stitches and tearing.
  • Use 80/12 ballpoint only if the stack is very thick (for example, extra layers or thick specialty vinyls).
  • Avoid leather needles because the cutting tip can slice vinyl and leave irreversible perforation damage.
  • Success check: the needle penetrates smoothly with clean holes and no tearing or “sawing” along the stitch line.
  • If it still fails: slow the machine for thick steps (especially the final border) and re-check layer count and securing method.
• Q: What safety steps should I follow when pulling up bobbin thread manually on a Husqvarna Viking/Brother/Babylock/Janome single-needle embroidery machine to prevent finger injuries?
  A: Keep hands and tools away from the needle bar during the manual needle cycle—this is where most accidental punctures happen.
  • Raise the presser foot before starting and hold thread tails to the side, not in front of the needle.
  • Use Needle Down/Needle Up controls calmly; do not reach under the needle while it can move.
  • Keep tweezers, loose threads, and fingers clear of the needle path when the machine starts stitching.
  • Success check: both thread tails are controlled without your fingers entering the needle area, and the first stitches form cleanly.
  • If it still fails: stop, power down if needed, and clear thread tangles with the needle fully stopped in the up position.
