Wide Cap Frame on the Brother PR670E: The Sensor-Bypass Setup That Gets Bigger Hat Designs (Without Crashing Your Needle Case)

If you’ve arrived here, you are likely standing in front of your machine, frustrated by the limitations of the standard cap driver, chasing one specific goal: a larger sew field on caps without investing in a $15,000 industrial upgrade just yet.

This "Wide Cap Frame" method is effectively a "jailbreak" for your embroidery machine. It is not a factory-approved workflow. In the referenced video, the presenter is transparent: this technique bypasses sensors. It can void your warranty, and if performed without discipline, it can result in a "bird’s nest" or a shattered needle driver.

As someone who has managed production floors for two decades, I will walk you through this not just as a "hack," but as a high-precision manual protocol. We will replace the machine's automated safety sensors with your own eyes, ears, and hands. If you are willing to become the safety mechanism, this technique can unlock profitable new capabilities for your shop.

Don’t Panic: What the Wide Cap Frame “Hack” Really Does on a Brother PR670E Cap Driver

Normally, a brother pr670e embroidery machine relies on a foolproof digital handshake: it detects a magnet on the cap driver, recognizes "Cap Frame Attached," and automatically locks the sew field to a safe, small rectangle.

The method we are analyzing forces the machine to hallucinate. By removing the driver magnet and manually triggering the hoop sensor with a custom hook, we trick the machine into believing a 180 mm × 130 mm flat hoop is attached.

This lie grants you a massive sew area, but it creates three critical risks you must manage manually:

1. Orientation: The machine will no longer auto-rotate designs 180°. You must do it.
2. Clearance: The machine assumes it is sewing flat fabric. It does not know a plastic cap bill is millimeters away from the needle bar.
3. Stability: The standard electronic checks for hoop bounce are gone.

If you proceed, treat this like operating a manual transmission car: you have more control, but you can also stall the engine if you aren't paying attention.

The “Hidden” Prep Pros Never Skip: Tools, Consumables, and a 60-Second Machine Health Check

Before you pick up a screwdriver, we need to stabilize your environment. Amateur mistakes happen when you are scrambling for tools while the machine is idling.

The Mandatory Tool Kit:

• Precision Screwdriver: specifically sized for the driver magnet screw (avoid stripping this at all costs).
• The Custom Hook Tool: Usually supplied with third-party wide frames to depress the sensor switch.
• Consumables: 3M Painter’s Tape (Blue tape), sharp snips, and a fresh Titanium or Ballpoint needle (size 75/11 is your safe starting point).
• Hidden Consumable: A small Ziploc bag. You will lose that magnet screw if you don't bag it immediately.

The 60-Second Sensory Health Check:

1. Listen: With the machine off, manually move the pantograph (X/Y arm). You should hear a smooth glide. A gritty "grinding" sound means you need to clean your rails before adding the weight of a heavy cap driver.
2. Look: Inspect your needle plate hole. If it has burrs or scratches from previous needle breaks, file them smooth. A rough plate will shred thread when doing high-tension cap work.
3. Feel: Check the bobbin tension. Pull the thread; it should feel like pulling a spiderweb—slight resistance, but smooth. If it jerks, clean the bobbin case.

Warning: Physical Safety Hazard
This workflow puts your hands and metal tools dangerously close to the needle path during setup. Never have your fingers inside the frame perimeter when toggling the machine between screens. If a sensor glitch occurs, the pantograph can snap to center instantly. Always keep hands clear of the "Kill Zone" (the sewing field) when the machine is live.

Prep Checklist (Do not proceed until all boxes are checked)

• Ziploc bag labeled "Driver Magnet" is ready.
• Wide Cap Frame and Driver are on a flat surface (not hanging off the machine).
• You have verified the screwdrivers fit perfectly (no play/wobble).
• You have a "Sacrificial Cap" for the first test run.
• Hidden Check: You have removed any standard flat hoops from the immediate workspace to avoid confusion.


Magnet Removal on the Cap Driver: The One Screw That Changes Everything

The video demonstrates the physical modification required to bypass the sensor. This is the point of no return for this session.

Action: Locate the small magnet on the cap driver arm. Action: Unscrew it carefully. Sensory Check: As you turn the screw, ensure it moves freely. If it resists, back off. You do not want to strip the threads on the driver assembly.

Once this magnet is removed, the machine becomes blind. It no longer knows a cap driver is attached. From this moment forward, you are the sensor. Place the magnet and screw in your Ziploc bag immediately.

Installing the Wide Cap Driver and Holding the Hoop Sensor Switch with a Custom Metal Hook

This step requires dexterity. You are simulating the installation of a standard flat hoop while physically bolting on a cap driver.

The Procedure:

1. Loosen the mounting thumb screws on the machine arm slightly.
2. Slide the wide cap driver onto the mount.
3. The Critical Step: As you slide it in, use the custom metal hook tool to reach back and depress the small hoop sensor switch.
4. Tighten the customized screws while holding that switch in the "engaged" position.

The "Click" Confirmation: When you power up or enter the embroidery screen, listen for the machine's distinct startup rhythm. Look at the screen immediately.

Success Metric (Visual):

• The screen MUST display the hoop size as 180mm × 130mm (or similar medium flat hoop).
• If the screen shows a "Cap" icon or a different size, stop. You failed to engage the sensor switch properly. Loosen, re-seat the hook, and try again. Do not force the machine to sew if the detection is wrong.


The Design Rotation Reality: Why Your Cap Design Must Be Turned 180° in the Edit Menu

Because the machine believes it is holding a flat frame, it assumes "Top" is away from you. However, on a cap driver, the cap is mounted upside down relative to a shirt.

Action: Go to your Edit Menu. Action: Select your design. Action: Press the Rotate button until the design is upside down on the screen (rotated 180°).

The "sanity check": If you skip this, you will embroider a logo perfectly on the brim... facing the wearer's forehead.

Expert Tip: Do not just rely on the screen. Print a template of your design, rotate it 180°, and tape it to your machine stand as a visual reference. This reduces cognitive load when you are tired.

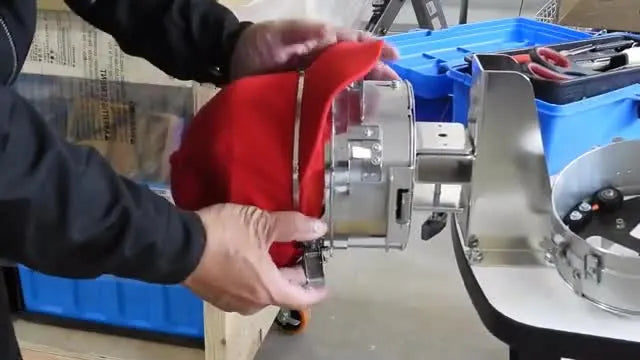

Hooping the Cap in a Wide Cap Frame: The Seam Line the Teeth Must Bite (or the Hat Will Walk)

Hooping is where 90% of cap embroidery errors occur. In the video, the presenter highlights a specific alignment technique that is non-negotiable for stability.

The Anatomy of a Secure Hold:

1. Unlock the strap on the wide frame.
2. Slide the cap's sweatband under the locator plate.
3. Align the cap so the metal teeth of the frame bite directly into the seam line (where the brim meets the crown).

Why the Seam Line? (Physics): The seam line is the structural spine of the cap. It is thick and reinforced. If the teeth bite here, the cap cannot squirm. If the teeth bite into the single-layer fabric just above the seam, the fabric will stretch, the cap will shift, and your registration (outline alignment) will fail.

Sensory Check (Tactile): When you close the strap clamp, it should require significant force—like closing a stiff latch on a ski boot. If it closes easily, it is too loose. Tighten the adjustment screw. The cap should feel drum-tight. Thump it with your finger; it should sound like a dull thud, not a hollow rattle.

The 3M Painter’s Tape Trick: Stop Cap Bill Bounce Before It Breaks Plastic (or Needles)

Cap bills act like diving boards—they vibrate when the machine moves fast. This vibration causes "flagging" (fabric bouncing up and down), which leads to bird-nesting and broken needles.

The Fix:

1. Cut a 3-inch strip of 3M Painter’s Tape.
2. Tape the edges of the cap bill (visor) or secure the sides of the cap to the frame stabilizers.

The Goal: You are creating a "dampener." The tape limits the vertical travel of the bill. It is ugly, but effective.

Warning: Magnetic Safety (Pacemakers & Pinch Hazards)
While this specific hack uses a mechanical screw-clamp driver, many shops define their workflow by upgrading to modern tools. If you use magnetic embroidery hoop systems for your flat garments or specific aftermarket cap systems, be aware: these utilize industrial-grade Neodymium magnets.
* Danger: Keep them at least 6 inches away from pacemakers.
* Pinch Hazard: They snap together with up to 50lbs of force. Keep fingers clear of the mating surfaces.
* Tool Safety: Do not leave screwdrivers near magnetic hoops; they can snap onto the magnet frame with projectile force.

Clearance Check on the Brother PR Cap Setup: Trace the Bottom Stitch Point Like Your Machine Depends on It

This is your final insurance policy. You must verify that the embroidery foot will not smash into the cap brim.

The Manual Trace Protocol:

1. Lower the presser foot (if your machine allows manual lowering) or visually estimate.
2. Use the touchscreen arrows to move the pantograph to the absolute bottom-center of your design.
3. Visual Check: Look at the gap between the presser foot and the cap brim/driver metal. You need at least a "credit card's thickness" of air.
4. If it touches, move the design UP on the screen. Do not risk it.

The Consequence: If the foot hits the brim, it won't just ruin the hat. It can bend the presser foot bar or strip the Y-axis motor gears. This is a $500+ repair. Trace every single time.

Color Sequence and Start Point: Small Screen Choices That Make Installation Easier

The video emphasizes setup efficiency.

Action: Set the machine's "Start Point" to Top Center.

• Why? This positions the needle bar out of the way when you load the driver, giving your hands more room to work.

Action: Verify Color Sequence.

• Why? Because you are focused on the hack, it is easy to forget standard checks. Ensure the machine isn't trying to sew a black outline before the white fill.

Setup Checklist (The "Pre-Flight" Safety Check)

• Machine Screen detects 180×130 mm (Not Cap).
• Design is rotated 180° (Upside down on screen).
• Start Point is set to Top Center.
• Cap is hooped with teeth biting the Seam Line.
• Tape is applied to dampen bill vibration.
• Critical: You have performed a manual trace of the bottom-most stitch point and verified clearance.


Speed Limits That Keep You Out of Trouble: Why the Video Drops to 400 SPM

The video recommends dropping the speed to 400 SPM (Stitches Per Minute).

The Expert "Sweet Spot" Data:

• Beginner/safe mode: 400 SPM.
• Expert/Stable mode: 600 SPM.
• Danger Zone: 800+ SPM.

The Physics of Speed: Caps are heavy and unbalanced. As speed increases, centrifugal force tries to throw the cap off the driver. At 800 SPM, a wide cap frame vibrates violently. This vibration causes the needle to deflect (bend), hitting the throat plate. Rule: Slow down. You are already saving time by not re-hooping; don’t lose that time changing a broken needle.

Running the Stitch-Out: What “Good” Looks Like While the Cap Is Sewing

Press start, but hover your finger over the Stop button.

Sensory Monitoring (The first 30 seconds):

1. Sight: Watch the cap bill. Is it blurring? Only slight vibration is acceptable. If it looks like a hummingbird wing, STOP.
2. Sound: Listen for a rhythmic "Thump-Thump-Thump." If you hear a sharp metallic "Tick-Tick-Tick," the needle is grazing the plate or the frame. STOP immediately.
3. Touch (Bobbin): Periodically check the bobbin thread on the back (if safe). It should be a clean white column taking up 1/3 of the width of the satin column.

Operation Checklist (Post-Run)

• Did the design stay centered? (No shifting).
• are the outlines crisp? (No flagging).
• Is the needle straight? (Remove and roll on a flat table to check for bends).


Stabilizer Decision Tree for Cap Embroidery: Pick Backing Like a Production Shop (Not a Hobby Test)

The hack gives you the space, but stabilizer gives you the quality. A wide frame offers less natural support than a tight standard cap frame, so your backing choice is critical.

Decision Tree: Stabilizer Selection

• IF Cap is Structured (Stiff Buckram front) AND Design is Low Density (Text only):
  • USE: 1 Layer of Heavyweight Tearaway (2.5oz or 3.0oz).
  • Why: The cap provides the support; backing just adds crispness.
• IF Cap is Unstructured (Floppy "Dad Hat") OR Design is High Density (Fill stitch logo):
  • USE: 1 Layer of Cutaway (2.5oz) + Temporary Spray Adhesive.
  • Why: The fabric is too weak to hold the heavy stitches. Cutaway prevents the design from distorting into a ball.
• IF Fabric is Performance/Polyester (Slippery/Stretchy):
  • USE: 1 Layer Cutaway + Tape the edges.
  • Why: Performance mesh slips easily. Friction is your friend here.


The “Why It Works” Layer: Hooping Physics, Bounce Control, and Repeatability for Shops

This method succeeds for two reasons: Anchoring and Damping.

1. Anchoring: By biting into the brim seam, you are connecting the embroidery frame to the rigid skeleton of the cap, not the flimsy fabric skin.
2. Damping: The painter's tape acts as a shock absorber. It changes the resonant frequency of the cap bill so it doesn't harmonize with the needle speed.

These are not "hacks"; they are basic mechanical engineering principles applied to sewing. Understanding why they work allows you to troubleshoot when they fail.

Common Failure Symptoms (and the Fast Fixes) When Using a Wide Cap Frame on Brother PR Machines

Troubleshooting Matrix:

The Upgrade Path: When to Stop Hacking and Start Scaling Your Hat Workflow

While this wide cap frame method is a powerful skill for your arsenal, it involves setup time and risk. As your business grows, you will reach a tipping point where "hacking" costs you more money in labor than buying the right tools.

• Level 1: The Hobbyist/Side Hustle: Stick with this hack. It works, it's cheap, and it teaches you mechanics.
• Level 2: The Semi-Pro (Efficiency Focus): If you are fighting with hoop burns on flat items or struggling to hoop thick items like Carhartt jackets, investigate magnetic embroidery hoop solutions. While not for this specific driver hack, magnetic systems for flat goods (Mighty Hoops, etc.) drastically reduce wrist strain and hooping time for your other projects.
• Level 3: The Volume Producer (Scale Focus): If you are consistently taking orders for 50+ caps, the setup time for this hack is eating your profit margin. This is when you look at SEWTECH multi-needle machines or upgrading to dedicated commercial equipment designed for wide-cap dimensions natively.

Also, legacy matters. If you are running an older brother pr655e embroidery machine, this hack breathes new life into it. But if you manage a fleet, standardize your method. Don't let one operator use the hack while another uses standard frames.

Finally, for those still using older accessories like brother pr600 hoops or the original brother pr600 hat hoop, be exceptionally careful with clearance. Newer wide frames may physically not fit inside the throat space of first-gen machines. Always perform the manual hand-trace test (Section 8) before hitting start.

The goal isn't just to embroider a hat; it's to embroider 100 hats without a single failure. Master the physics, respect the safety limits, and upgrade your tools when the volume demands it.

FAQ

• Q: How do I confirm a Brother PR670E Wide Cap Frame hack is detected as a 180 mm × 130 mm hoop (not a cap frame) before sewing?
  A: Stop until the Brother PR670E screen shows a 180 mm × 130 mm (medium flat hoop) size—wrong detection is a crash risk.
  • Re-seat the wide cap driver and depress the hoop sensor switch with the custom metal hook while tightening the screws.
  • Power on or enter the embroidery screen and check the hoop readout immediately.
  • Success check: The display shows 180×130 mm (or similar medium flat hoop), not a cap icon or another size.
  • If it still fails: Loosen, reposition the hook on the sensor switch, and repeat—do not force-start with incorrect detection.
• Q: What tools and “hidden consumables” are required for the Brother PR670E wide cap driver magnet removal and sensor-bypass setup?
  A: Gather the exact screwdriver, the custom hook tool, and a labeled Ziploc bag before touching the Brother PR670E cap driver magnet screw.
  • Prepare: Use a precision screwdriver that fits the magnet screw with no wobble to avoid stripping.
  • Prepare: Keep 3M Painter’s Tape, sharp snips, and a fresh needle ready (75/11 is a safe starting point).
  • Prepare: Bag the magnet and screw immediately in a labeled Ziploc bag so they don’t get lost.
  • Success check: Everything is within reach and the magnet/screw are secured before the machine is live.
  • If it still fails: Pause and reset the workspace—scrambling mid-setup is when most damage and mis-installs happen.
• Q: How do I prevent needle breaks and bird’s nests on a Brother PR wide cap frame setup caused by cap bill bounce (flagging)?
  A: Reduce vibration first—tape the bill/sides and stabilize the backing so the cap cannot bounce under the needle.
  • Apply: Place a strip of 3M Painter’s Tape to dampen the cap bill (visor) movement and/or secure cap sides to the frame stabilizers.
  • Stabilize: Ensure the stabilizer is firmly attached inside the cap (often tape or temporary adhesive helps in practice).
  • Slow down: Run at 400 SPM for safe mode; increase only after the setup proves stable.
  • Success check: The bill shows only slight vibration (no “hummingbird wing” blur) during the first 30 seconds.
  • If it still fails: Stop and re-check hooping at the brim seam line and re-run a manual trace for clearance.
• Q: Why does a Brother PR670E cap design stitch out upside down when using a wide cap frame hack, and how do I fix the orientation?
  A: Rotate the design 180° in the Brother PR670E Edit Menu because the machine thinks it is sewing a flat hoop, not a cap driver.
  • Open: Go to Edit Menu and select the design.
  • Rotate: Press Rotate until the design is turned 180° (appears upside down on the screen).
  • Verify: Use a printed template rotated 180° as a visual reference if fatigue causes mistakes.
  • Success check: The on-screen design is clearly inverted before pressing Start.
  • If it still fails: Stop the run and re-check that the machine is detecting the setup as a flat hoop size (not a cap frame mode).
• Q: How tight should a cap be hooped in a wide cap frame on Brother PR machines, and where must the frame teeth bite to stop cap shifting?
  A: Clamp the cap so the frame teeth bite into the brim-to-crown seam line; biting above the seam often causes walking and registration errors.
  • Align: Slide the sweatband under the locator plate and position the cap so teeth land on the seam line (brim meets crown).
  • Tighten: Close the strap clamp with strong resistance and adjust the strap screw if it closes too easily.
  • Test: Thump the hooped cap—aim for drum-tight, not loose and rattly.
  • Success check: The clamp feels like a stiff latch and the cap sounds like a dull thud when tapped.
  • If it still fails: Re-hoop and re-bite the seam line—do not “chase” misregistration with design moves.
• Q: How do I do a Brother PR670E cap brim clearance check to prevent the presser foot from striking the bill during a wide cap frame setup?
  A: Manually trace to the bottom-center stitch point and confirm at least a credit-card thickness gap from the presser foot to the brim/driver.
  • Move: Use touchscreen arrows to go to the absolute bottom-center of the design.
  • Inspect: Look directly at the presser foot-to-brim/metal clearance before sewing.
  • Adjust: If clearance is tight or touching, move the design UP on-screen and re-check.
  • Success check: A clear “credit card” air gap is visible at the lowest stitch position.
  • If it still fails: Stop and rethink design placement or setup—sewing without clearance risks costly mechanical damage.
• Q: What stabilizer should I use for cap embroidery on a Brother PR wide cap frame setup for structured caps vs unstructured caps vs performance polyester?
  A: Match stabilizer to cap structure and design density—wide frames need the right backing to hold shape.
  • Choose: For structured caps + low-density text, use 1 layer heavyweight tearaway (2.5 oz or 3.0 oz).
  • Choose: For unstructured caps or high-density fill, use 1 layer cutaway (2.5 oz) plus temporary spray adhesive.
  • Choose: For performance/polyester, use 1 layer cutaway and tape the edges to increase friction.
  • Success check: During sewing, outlines stay crisp and fills don’t distort or “ball up” the cap front.
  • If it still fails: Reduce speed (400 SPM) and increase bill damping; shifting usually points back to hoop bite at the seam line.
• Q: What safety rules prevent hand injuries and magnet hazards during a Brother PR wide cap frame sensor-bypass workflow and when using magnetic embroidery hoops?
  A: Treat the sewing field as a “kill zone” and keep fingers/tools out when the Brother PR machine is live; keep strong magnetic hoops away from pacemakers and pinch points.
  • Keep clear: Never place fingers inside the frame perimeter when switching screens or powering the machine—unexpected pantograph movement can snap to center.
  • Control tools: Do not hold metal tools near moving parts; set screwdrivers down before the machine is live.
  • Magnet safety: Keep magnetic hoops at least 6 inches from pacemakers and keep fingers off mating surfaces to avoid pinch injuries.
  • Success check: Hands stay outside the sewing field during all live movements, and magnets are handled with controlled, two-hand placement.
  • If it still fails: Stop and reset the workflow—safety errors are a sign the setup pace is too fast for a sensor-bypass method.
