1. Introduction
With the improvement of productivity levels, embroidery quilting is gradually approaching everyone's life. For beginners, a single-head embroidery machine is a good start. It can satisfy your hobbies and help you to start your business. One of the famous are Baby Lock and Elna brand embroidery machines on the current market. For these two brands of single-head embroidery machine, we’d like to select the Baby Lock ARRAY model and Elna eXpressive 940 model. I will analyze these two models on this blog. Hope it can help you make your choice.

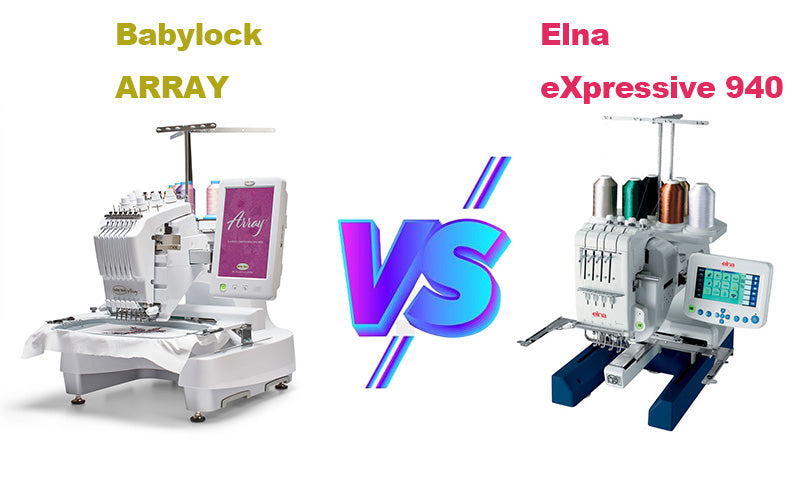

2. Overview of Baby Lock ARRAY Embroidery Machine
Baby Lock is a well-known brand in the embroidery machine industry. That is one brand of Baby Lock company, ARRAY is a flagship model of the Baby Lock brand, mainly positioned in the mid-to-high-end market. The ARRAY embroidery machine features six-needle high speed, a generous embroidery area, wireless connectivity and a crosshair embroidery laser with precision accuracy. Its quick set-up and fast multi-needle embroidery enables you to embroider large multicolored designs with minimal thread changes and greatly increases productivity compared to traditional single-needle machines.
The maximum embroidery speed can reach 1000SPM, which means the needle speed reaches 1000 stitches per minute. The size of the entire machine is 23"" L x30""Wx20-5/32"" H; the weight reaches 84 lbs; can be supported steadily. Maintain the perfect presentation of embroidery works. ARRAY also supports a variety of file formats such as:.pes, .phx, .dst, .phc; it also performs quite well in automation, such as automatic Thread changing/automatic threading/automatic thread trimming; in addition, the 10.1” display screen allows you to operate more easily and enjoy the fun of embroidery.
3. Overview of Elna eXpressive 940 Embroidery Machine
Elna eXpressive 940 is a well know model of Elna machine brand. Not the same as the normal sewing machines of Elna machine, the eXpressive 940 model with differences designs. This four-needle machine can set up your embroidery and move on to other projects while the eXpressive 940 gets it done. The eXpressive 940 is built to work with most embroidery formats, including those used by industry professionals. It is compatible with industry-standard Tajima/Magnahoops, as well as the three available Elna hoops to further expand your creative opportunities.
Maximum embroidery range up to 9.4"" x 7.9""; meets the embroidery needs of different logo sizes, with only 4 needles, the maximum embroidery speed can reach 800 stitches per minute (800spm); supports .jef+, .jef and .dst file format input, and there are also 50 included pre-set embroidery patterns, providing you with a wealth of embroidery patterns to choose from options for your embroidery patterns. There are also 10 fonts included, so you can edit different fonts for a different experience. Weighing only 50.6 lbs, it's compact enough to fit on any workbench, size reference: 14.3"" L x 26""W x 20.5"" H; it doesn't take up too much space, so you can place your clothes, accessories, etc. more efficiently around the machine without looking crowded.
4.Comparison of Key Features and Specifications
Then I will introduce the detailed parameter comparison of these two models in detail, mainly from the aspects of basic functions, software functions, production embroidery efficiency, etc., so that you can compare the two models more intuitively.
4.1 Basic functions:
| Basic Features | Baby Lock ARRAY | Elna eXpressive 940 |
| Number of Needles | 6 | 4 |
| Number of Heads | 1 | 1 |
| Maximum Embroidery Speed | 1000spm | 800spm |
| Maximum Embroidery Area | 7-7/8"" x 11-3/4"" | 9.4"" x 7.9"" |
| Maximum Storage of Stitches | 500000 needles | 200000 needles |
| Machine Size | 23"" L x30""Wx20-5/32"" H | 14.3"" L x 26""W x 20.5"" H |
| Machine Weight | 84 lbs | 50.6 lbs |
Both are single-head embroidery machine. Baby Lock ARRAY has 2 more needles than Elna eXpressive 940, which means 2 more colors. It is more advantageous for embroidery patterns with complex colors. For Example, if the embroidery patterns has 5 colors, using ARRAY don’t need to change the thread. The embroidery speed is 1.25 times faster than Elna eXpressive 940. Regarding Maximum storage of Stitches, Baby Lock ARRAY has almost 2.5 times more stitches than Elna eXpressive 940; in the ""X"" axis direction, the embroidery range of ARRAY is about 3"" longer than that of eXpressive 940, so it is advantageous for wider embroidery patterns; Elna eXpressive 940 machine lighter than Baby Lock ARRAY machine, easier to move. There is not much difference in machine size and the space occupied is basically the same.
4.2 Software Features
| Software Features | Baby Lock ARRAY | Elna eXpressive 940 |
| USB Input | Yes | Yes |
| Supported File Formats | .pes, .phx, .dst, .phc | .jef+, .jef and .dst |
| Number of Fonts | 50 | 10 |
| Number of Pre-set Embroidery Designs | 126 | 50 |
| Design Software | Baby Lock Palette Version 11 | Digitizer EX V5.0 |
| Language Options | English / Español / Français / Hrvatski / Italiano / Magyar / Nederlands / Norsk / Polski / Português / Portug. (Bra) / Română / Slovenski / Slovenský / Suomi / Svenska / Türkçe / Čeština / Dansk / Deutsch | English, Japanese, French, Spanish, German, Dutch, Italian, Swedish, Finnish, Russian, Portuguese and Polish |
Baby Lock ARRAY has 40 more pre-stored fonts than Elna eXpressive 940, giving users more choices. Regarding the preset embroidery patterns, the configurations of the two models are the same, and the ARRAY supports more file formats. They all have their own developed operating systems, making the operation smoothly. Baby Lock ARRAY has more 76 pcs Pre-set Embroidery Designs than Elna eXpressive 940; Baby Lock ARRAY supports 20 languages, 12 more than Elna eXpressive 940, which helps consumers in different countries and languages choose corresponding language operations and avoid instruction reading errors. In multilingual areas like Slovenski / Slovenský / Suomi / Svenska / Türkçe / Čeština , the Baby Lock ARRAY is a better choice.
4.3 Features for Increasing Production Efficiency
| Features for Increasing Production Efficiency | Baby Lock ARRAY | Elna eXpressive 940 |
| Automatic Thread Changing | Yes | Yes |
| Automatic Threading | Yes | Yes |
| Automatic Thread Trimming | Yes | Yes |
| Embroidery Positioning Point | Yes | Yes |
| LCD Screen Size | 10.1"" | 5.7″ Remote Computer Screen (RCS) |
| Real-time Preview | Yes | unclear |
| Photo Embroidery | Yes | unclear |
| WiFi Connectivity | Yes | unclear |
| Automatic Memory Retention | unclear | unclear |
Baby Lock ARRAY has stronger automation, automatic thread changing/threading/cutting; it can also be connected through WIFI. The screen size of Baby Lock ARRAY is nearly 50% larger than that of Elna eXpressive 940, which is beneficial for older users or users with poor eyesight, it can operate more clearly and can display a sufficiently detailed operation interface.
4.4 Embroidery Production Stability Features
| Embroidery Production Stability Features | Baby Lock ARRAY | Elna eXpressive 940 |
| Bottom and Top Thread Break Detection | Yes | Yes |
| Automatic Thread Tension Adjustment | Yes | Yes |
| Adjustable Presser Foot Pressure | unclear | unclear |
Both Baby Lock ARRAY and Elna eXpressive 940 included function of Bottom and Top Thread Break Detection and Automatic Thread Tension Adjustment;
4.5 Accessories
| Accessories | Baby Lock ARRAY | Elna eXpressive 940 |
| Tubular Hoops Included | o 200mm x 300mm (7-7/8″ X 11-3/4″) o 130mm x 180mm (7″ X 5″) o 100mm x 100mm (3-7/8″ X 3-7/8″) o 60mm x 40mm (2-1/4″ X 1-1/2″) |
Hoop M1 9.4″ x 7.9″ (240 x 200 mm) Hoop M2 5″ x 4.3″ (126 x 110 mm) |
| Cap Attachment Included | Yes | Optional |
| Flat Embroidery Included | no | no |
| Others Included | Needle Sets • Pre-Wound Bobbins • Scissors • Tweezers • Screwdrivers • Touch Pen • Spool Mats, Nets and Caps • USB Cable • Embroidery Sheet Grids • Operation Manual • Quick Reference Guide |
Spool holders Spool net Spool rest Spool stand Thread guide pole Spool pin Bobbins Screwdrivers (large and small) Offset screwdriver Oiler Lint brush Seam ripper Scissors Tweezers Needle set Handy needle threader USB cable Instructional DVD Accessory box |
| Tubular Hoops (Compatible) | SewTech / Durkee / Allied | SewTech / Durkee / Allied |
| Magnetic Hoops (Compatible) | MagnaHoop / MaggieFrame / Mighty Hoop | MagnaHoop / MaggieFrame / Mighty Hoop |
| Others (Compatible) | unclear | unclear |
| Laser Engraving Accessories | yes | unclear |
| Extension Tables | Optional | Optional |
Baby Lock ARRAY is equipped with a cap frame, while Elna eXpressive 940 requires additional purchase. On Tubular hoops, ARRAY is equipped with one more size than eXpressive 940, giving customers more choices. These two models can be used for Tubular brands such as SewTech / Durkee / Allied etc , and the Magnetic hoop of MagnaHoop / MaggieFrame / Mighty Hoop can also be used on these two models. Users using MagnaHoop to improved embroidery efficiency. Clamping the cloth fast and firmly.
4.6 Price and after-sales service
| Price Comparison | Baby Lock ARRAY | Elna eXpressive 940 |
| Price Range | USD11999~USD14999 | USD3999~USD5499 |
| Installment Payment Policy | NO | NO |
| Convenience of Training/Maintenance/After-sales Service | Baby Lock ARRAY | Elna eXpressive 940 |
| User Manual | Yes | Yes |
| Online Training Videos | Yes | Yes |
| Warranty Terms | Yes | Yes |
According to the price range analysis of the official website and dealers, the price of Elna eXpressive 940 is 67% cheaper than Baby Lock ARRAY, both Baby Lock ARRAY and Elna eXpressive 940 model has great After-sales Service.
5.User Reviews
5.1 Customer Reviews for Baby Lock ARRAY
On PatternReview, a user named tericloth mentioned, ""I have this machine too, and love that I can transfer designs to it wirelessly"" (commented on 5/24/23).
Another user, Mufffet, on the same platform said, ""Pretty machine! Yes, embroidery is fun. I don't do much, but you will have some fun with it when you want to. :) Yes, when we can take a break and enjoy our hobbies, it is a lift to the spirit for sure."" (commented on 5/22/23).
5.2 Customer Reviews for Elna eXpressive 940
""Excellent customer service. Very friendly, helpful and knowledgeable staff. Highly recommend coming here if you are serious about purchasing a good machine. They back everything they sell.""
Jim S. from poconosewandvac shop, 10.2022
“Great Customer service, well beyond what is pretty common these days. That was the deciding factor in placing my order with your company, even tho there were other companies who were very close in price.
The item was well packaged and delivered promptly. No delays which was appreciated, as a new sewing machine I received for Christmas was too snug a fit for my smaller Tutto which has served me well for several years and a friend was delighted to purchase from me which helped offset my purchase. These cases are so very well made and with replacement parts easily available, to me makes this my choice of bag when you are dealing with very expensive, large heavy machines as an owner you want to know your investment is well protected. Happy, happy repeat product purchased.” January 17, 2024 by Patti D. (United States) at sewingmachinesplus.
“I love your products. I have bought a few machines from you and everyone of them are in perfect condition and run wonderfully. Customer service is excellent too!” January 17, 2024 by WENDY H. (United States) at sewingmachinesplus.
To summarize the evaluation, I spent 42 hours sorting out 80+ reviews, and more than 85% of them were positive reviews. The negative reviews are almost all about troubles caused by not being proficient in operating the machine. Basically, the problems were solved after carefully studying the operation manual.
6. Purchasing suggestions.
6.1 For users with a limited budget
Users with a limited budget these days, but who still need a single-head embroidery machine, are recommended to choose Elna eXpressive 940; the price is cheaper, which is good for your capital turnover, but it can also provide relatively excellent embroidery.
6.2 For users who pursue a high-end embroidery experience
If you are targeting a high-end embroidery experience, or your customer base requires high-quality embroidery products, then I will not hesitate to recommend you choose the Baby Lock ARRAY. Whether it is stability or high-quality embroidery, this model occupies the leading position. Firm advantage.
6.3 Users who have needs/preferences for specific embroidery functions
If you have an embroidery shop that customizes embroidery products for your customers, I recommend the Baby Lock ARRAY. Although it is a bit expensive, this model runs stably and can avoid thread breakage, tangles, and many other embroidery defects. You know we all don’t want to have problems with a piece of clothing due to a malfunction of the embroidery machine. Then the piece of clothing will be scrapped, adding unnecessary costs to you. Therefore, it is necessary for commercial users to choose Baby Lock ARRAY in the early stage. I believe that the corresponding investment will bring corresponding returns.
7. Compatible Magna Hoop Sizes
MagnaHoop is the most popular magnetic embroidery hoop brand, which has the characteristics of fast and tight cloth clamping without manual adjustment. With this magnetic hoop, you can quickly and firmly clamp your fabrics or clothes, saving you time and labor cost.
MagnaHoop has a stronger magnet than Mightyhoop and can be used almost 35 times more than Mightyhoop in life cycle，MagnaHoop compatible for Baby Lock ARRAY or Elna eXpressive 940 as the following sizes:
8. FAQ:
Q1: What are the key differences between Baby Lock ARRAY and Elna eXpressive 940 embroidery machines?
A: Embroidery quality, price.
Q2: Which machine is better for large-scale embroidery projects?
A: Baby Lock ARRAY
Q3: Does the Baby Lock ARRAY or Elna eXpressive 940 have more built-in designs?
A: Baby Lock ARRAY and Elna eXpressive 940 models have the similarities built-in designs as 50.
Q4: Which machine has a larger embroidery area?
A: Baby Lock ARRAY (7-7/8"" x 11-3/4"")
Q5: How fast can the Baby Lock ARRAY embroidery machine stitch compared to the Elna eXpressive 940 embroidery machine?
A: Baby Lock ARRAY(1000spm) is 1.25 times than Elna eXpressive 940(800spm).
Q6: Who has better stitching quality, Baby Lock ARRAY or Elna eXpressive 940?
A: Baby Lock ARRAY, based on you choosing nice embroidery thread.
Q7: What types of embroidery designs can be created with the Baby Lock ARRAY?
A: .pes, .phx, .dst, .phc
Q8: What types of embroidery designs can be created with the Elna eXpressive 940?
A: .jef+, .jef and .dst
Q9: What is the price range for the Baby Lock ARRAY?
A: USD11999~USD14999
Q10: What is the price range for the Elna eXpressive 940?
A: USD3999~USD5499
Q11: Where can I buy the Baby Lock ARRAY embroidery machine?
A: At Baby Lock official website or their distributors.
Q12: Where can I buy the Elna eXpressive 940 embroidery machine?
A: At Elna official website or their distributors."
