Master Machine Embroidery on Belts: Essential Techniques and Equipment Guide

1. Introduction to Belt Embroidery

Machine embroidery on belts shows up everywhere—from karate ranks and judo stripes to leather fashion belts, dog collars, and bag straps. Belts are narrow, thick, and often stiff, which makes hooping, stabilization, and needle choice more demanding than ordinary garments. In this guide, you’ll see what embroidery machine equipment actually works for belts, how to hoop securely, and which stabilizers and needles to use on leather, fabric, and synthetics. We’ll also cover material-specific techniques so your designs stitch clean, straight, and centered on the first run.

Table of Contents

• 1. Introduction to Belt Embroidery
• 2. Essential Equipment for Successful Belt Embroidery
• 3. Material-Specific Embroidery Techniques
• 4. Step-by-Step Embroidery Process
• 5. Machine Comparison & Recommendations
• 6. Troubleshooting Common Issues
• 7. Purchasing Guide: Equipment and Suppliers
• 8. FAQ: Belt Embroidery Essentials
• 9. Conclusion: Elevating Your Belt Embroidery

2. Essential Equipment for Successful Belt Embroidery

A successful belt job starts with the right hooping system, a machine that can manage thickness, appropriate needles and thread, and smart stabilizer choices. Multi-needle commercial machines with variable speed and compatible hoops give you more control on thick, narrow substrates.

2.1 Specialized Hooping Systems for Belt Materials

• Belt-specific hoops (center-bar design)
• Why they exist: Standard circular/rectangular hoops don’t hold narrow, thick belts well. Belt hoops are built with an extra center piece so the belt feeds through the middle and stays aligned along its length.
• How to load: Thread the belt top-to-bottom and back to the top, center it, stretch evenly, then lock both sides until you hear clear clicks. Many belt hoops are sized for belts around 1.5 inches wide.
• Orientation tip (as shown in the karate belt and leather belt videos): Insert the hoop so the “U” on the bracket faces the correct corner per your machine, then trace the design to ensure you stay within belt edges.
• magnetic machine embroidery hoops technology
• For thick leather belts and tricky strap materials, modern magnetic hoops have emerged as a strong option, helping prevent material slippage and messy results that can come from uneven pressure.
• Garment-compatible magnetic machine embroidery hoops from Sewtalent provide secure holding that helps avoid distortion on strap-like projects.
• If you prefer a premium magnetic system for garment embroidery, MaggieFrame offers a wide range of frame sizes and machine compatibility. Its powerful magnets hold fabrics evenly, help reduce hoop marks, and speed up hooping. In many garment setups, users report significant time savings per hooping and a noticeable reduction in embroidery defects. Note: MaggieFrame is for garment embroidery hooping (not for caps/hats).
• Machine considerations

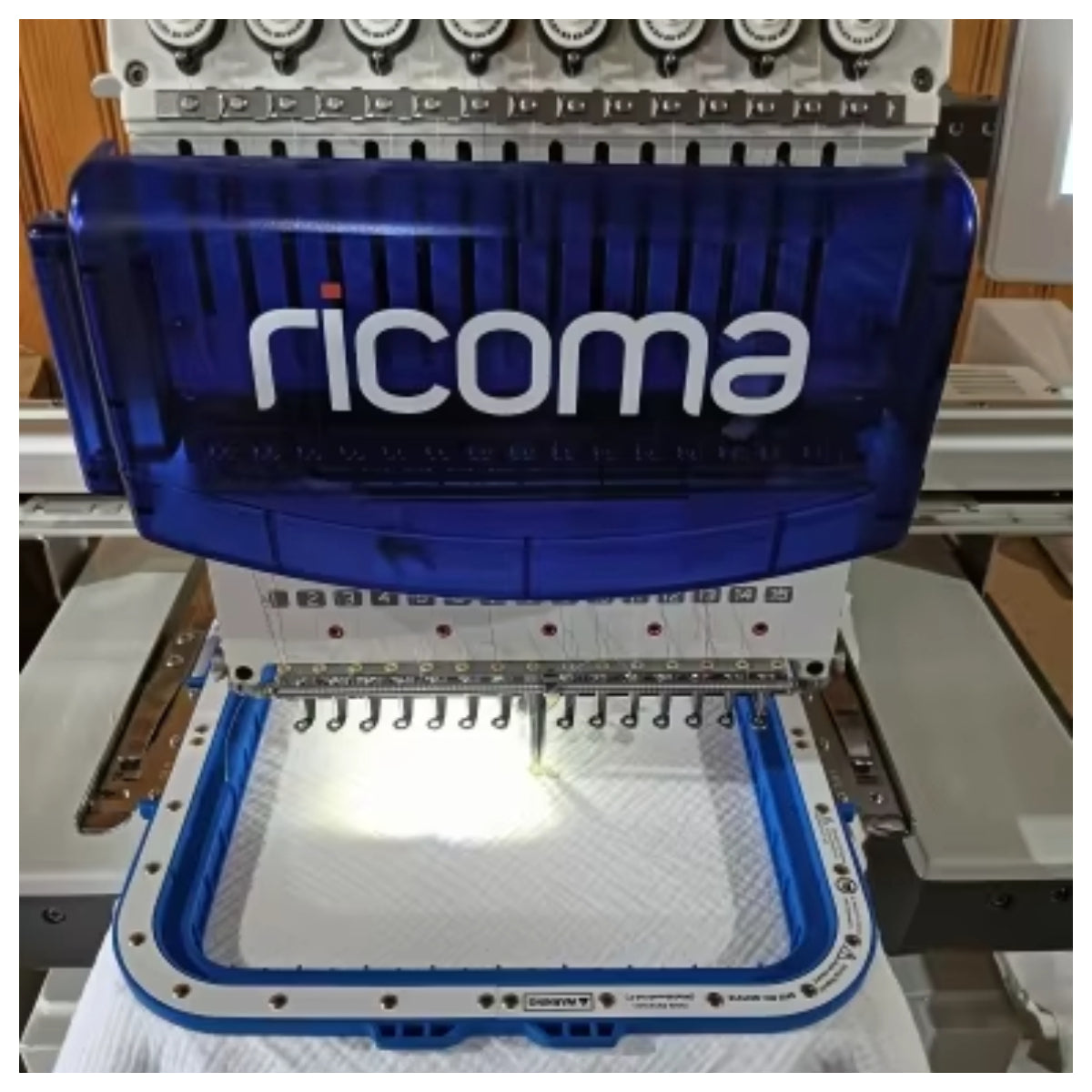

• The Ricoma MT-1501 (15 needles, up to 1,200 stitches per minute, 22" x 14" area) is frequently used for belt work in demos and supports belt hoops and magnetic frames.
• For higher volume or thicker builds, industrial machines (e.g., ZSK industrial series with advanced options; Richpeace CNC systems with variable speed and dual-zone capability for materials up to about 8 mm) offer expanded headroom. Select by needle count, thickness capacity, hoop compatibility, and controllable speed.

2.2 Needle and Thread Selection Guide

• Needle sizes for belts
• Start with 75/11 for PU/faux leather and lighter woven belts.
• Move up through 80/12–90-range for multilayered or denser builds.
• Reserve larger options (up to 110/18) for the thickest stacks and dense stitch types.
• Material note: For thick materials, chrome needles are beneficial because they tolerate deflection better; titanium-coated alternatives can be brittle under stress on very thick substrates.
• Thread choices
• You’ll need embroidery thread for the design and regular sewing thread for any construction/reassembly work. Choose design thread colors that stand out without overpowering the belt; use subtle top-stitching thread when you don’t want it to compete with the embroidery.
• Helpful tools
• A tension meter and tweezers improve consistency and control on tight runs. Use your machine’s trace to center the design precisely on the belt width (the karate belt tutorial stitched about 7,000 stitches in roughly 8–9 minutes after a proper trace).

2.3 Stabilizers: Choosing the Right Backing

• Stabilizer categories
• Cut-away: Permanent support for small lettering and detail; great on unstable or stretchy materials. Common weights range roughly from 2½ ounces up to ultra-thick options around 3¾ ounces per square yard.
• Tear-away: Temporary support for firm, non-stretchy substrates such as leather, caps, and canvas belts; remove by tearing after embroidery. You can stack layers if you need more stability but still want clean removal.
• Water-soluble and heat-away films: Specialty options for surface control and situations where you don’t want visible backing.
• Weight guidance
• Lightweight stabilizers are used for lighter fabrics; medium and heavyweight stabilizers suit sturdier belts. Heavy cap-style tear-away (around 3 oz per square yard) can keep columns and lettering crisp on tough belt materials.
• “No-show”/poly mesh
• A soft, thin cut-away that won’t show through light colors; useful when you want permanent support without bulk.
• Adhesive methods
• Sticky-back tear-away or a light spray-to-stabilizer application helps hold slippery or narrow belts in place. Apply spray sparingly to the stabilizer, then finger-press onto the belt’s reverse to prevent bleed-through.

3. Material-Specific Embroidery Techniques

From chrome-tanned leather to canvas and synthetic/elastic belts, adjust speed, stabilization, and needle choice to match the substrate.

3.1 Mastering Leather Belt Embroidery

• Choose the right leather
• Chrome-tanned leather is the most embroidery-friendly because it stays soft and supple; vegetable-tanned (oak/bark) is harder and better for tooling than stitching.
• Stabilization and speed
• Apply a no-show mesh (light cut-away) to the back with a light temporary adhesive to resist stretching during stitching.
• Reduce machine speed to handle penetration resistance smoothly and protect stitch quality.
• Needle and stitch parameters
• Use chrome needles for thick leather to manage deflection. The source cautions that titanium-coated needles can snap under stress on thick materials.
• Minimum stitch length should reflect thickness: one point equals 0.1 mm (10 points = 1 mm). For a 3 mm-thick belt (e.g., karate or leather stacks), keep minimum stitch length at or above 30 points to prevent thread breaks.
• commercial embroidery machine for sale commonly handle leather up to about six-ounce thickness (6/64" or ~2.4 mm). Materials beyond this may require heavier industrial setups.
• Hooping protocol
• With belt hoops, feed top-to-bottom and back to top through the center bar; lock firmly and trace before running. The leather belt demo shows this setup holds the belt close to the needle plate to reduce bounce.

3.2 Fabric & Canvas Belt Strategies

• Reinforce first
• Fabric-based belts (cotton, duck cloth, canvas) are the most predictable. Lighter fabrics benefit from heavy-duty interfacing on both front and back to create a stable, belt-like structure before embroidery.
• Stabilizer and density
• Use tear-away stabilizer for firm, woven belts; add layers if the weave is coarse. Keep stitch density moderate to avoid pillowing on thick canvas.
• Hooping and alignment
• A belt hoop or a magnetic hoop with sticky-back tear-away works well. Create a simple tape centerline on the hoop to keep multiple runs consistently aligned along the belt length.
• Speed
• Most woven belts stitch well at normal production speeds once properly stabilized and reinforced.

3.3 Synthetic and Elastic Belt Solutions

• Nylon and PU/faux leather
• PU/faux leather behaves much like fabric: standard speeds usually work, and stabilization needs are lighter than genuine leather. Sticky-back tear-away or a light spray-to-stabilizer bond keeps slick nylon from shifting. Apply adhesives sparingly to avoid bleed-through.
• Elastic belts
• Treat stretch as a risk for distortion. Use support that controls movement and opt for minimal-stitch design approaches (avoid heavy fills and very long satin columns that fight the stretch). The goal is clean registration without restricting elasticity.
• Tension management
• Proper stabilization helps keep thread tension consistent. If you have a tension meter, verify that upper and bobbin tensions are balanced before running a narrow, stretchy belt.

Up next, we’ll dial in digitizing and positioning so your motifs stay perfectly centered on 1-inch widths and repeat flawlessly along the length.

4. Step-by-Step Embroidery Process

4.1 Design Digitization and Positioning

Belts give you inches, not acres—so digitize with the width in mind. In most cases, keep your design no wider than 1 inch and adjust stitch density and underlay to match the belt’s texture and thickness to avoid puckering. Rotate artwork 90° or 180° based on how the belt will be worn so text reads correctly when the belt is tied or buckled.

• Software setup
• Using best digitizing software for embroidery, constrain design width to the belt’s safe area (often around 1 inch).
• Reduce density for stiff substrates; add underlay that supports without overbuilding.
• For karate belts, names typically run lengthwise near the end. Some competition standards limit placement and size; for instance, embroideries under 20 cm in specific positions may be accepted.
• Positioning aids
  • Use your machine’s trace to preview boundaries before you stitch.
  • A simple “placement stitch” (e.g., a short vertical line placed first in the file) can confirm alignment.
  • For long runs, mark a centerline on the hoop/stabilizer with tape so every repeat registers on the same axis.
• Practical checks
  • Load your design, forward the cursor to the top-center of the design, then trace.
  • Test on scrap of similar thickness to verify needle, thread, density, and tension before stitching the actual belt.

4.2 Thru-Belt vs. Front-Only Methods

Different belt constructions call for different approaches. Choose your method based on the belt type (martial arts vs. fashion) and the look required front and back.

• Thru-belt embroidery (standard)
  • What it is: The embroidery goes through to the back. The back shows a mirror image and the meeting of top and bobbin thread.
  • When to use: Ideal for most belts, including martial arts belts where rank stripes and horizontal text are required to be thru-belt.
  • Notes: With three or more colors, you can keep a single bobbin color; expect mixed back appearance where multiple colors meet.
• Front-only embroidery (special construction)
  • What it is: The belt’s construction threads ride over the embroidery so nothing appears on the back.
  • When to use: Available on select belts; not suitable for rank stripes or horizontal text.
  • Look: Clean backside with front-only decoration, preserving structural integrity.
• Integrated vs. non-integrated (martial arts belts)
  • Integrated: Embroidery done on the outer surface before belt manufacture; construction stitches are added afterward, producing durable results that are invisible on the reverse. Not recommended for grade lines because long straight lines can deform during construction. Typical turnaround is about 3 weeks.
  • Non-integrated: Embroidery added after belt fabrication; faster (often within 3 business days), with the embroidery visible on the back.

4.3 Execution and Quality Control

Run belts like a production pro: stabilize well, monitor closely, and standardize your finishing.

• Pre-embroidery prep
  • Hooping: Use a belt hoop or a secure hooping method; ensure the belt sits close to the needle plate to minimize bounce.
  • Stabilizer: Heavy tear-away or adhesive-backed tear-away helps lock the belt in place.
  • Tension and test: Stitch on similar-thickness scrap to validate tension and appearance.
• During the run
  • Trace every time you re-hoop to avoid drifting off the belt edges.
  • Pause to re-seat the belt if you see micro-shifts or hear stressy needle sounds.
  • Multi-repeat workflow: After each stitch-out, remove the belt, patch the torn tear-away, re-align using your centerline, and continue. This repeat-and-patch cycle is a reliable way to cover long lengths.
• Post-embroidery finishing
  • Trim all jump stitches and tails.
  • Remove tear-away slowly for clean edges.
  • For fashion belts that need assembly: open folded sides if applicable, stitch front/back pieces, install hardware (e.g., D-rings), and topstitch approximately 1/8 inch from the edge, staying clear of the embroidery.

5. Machine Comparison & Recommendations

5.1 Commercial vs. Industrial Machines

Choose your platform by volume, material mix, and design complexity. Here’s how three commonly referenced options stack up for belt work.

• Ricoma MT-1501 (commercial multi needle embroidery machine)
  • Strengths: 15 needles, up to 1,200 SPM, and a 22" x 14" embroidery area. Demonstrated in belt workflows and supports belt hoops. A versatile choice for small to mid-size shops handling mixed materials (martial arts belts, leather fashion belts, dog collars).
  • Best for: Shops that need a proven, single-head commercial setup with multi-needle efficiency and enough throat space for strap-like items.
• Janome MB-7 (commercial-grade multi-needle)
  • Strengths: Multi-needle design minimizes thread changes on intricate belt designs and handles diverse fabrics well.
  • Best for: Low-to-mid volume custom belts where design variety and color changes are common, but industrial-level throughput isn’t required.
• BAI Vision series (industrial-leaning performance)
  • Strengths: Runs at 1,200 SPM with strong precision; noted capability with specialized applications, including 3D foam—useful for raised logos on belts.
  • Best for: Higher-volume operations wanting top speed and precise stitching on complex patterns.
• BAI Mirror series (value-oriented commercial)
  • Strengths: Operates at around 1,000 SPM and offers a cost-effective entry point at approximately $5,400.
  • Best for: Startups and small shops prioritizing affordability while still needing a capable commercial platform.

Recommendation snapshot:

• Low-to-mid volume, custom work: Janome MB-7.
• Cost-sensitive commercial entry: BAI Mirror series.
• Speed with specialized capability: BAI Vision series.
• Balanced all-rounder in commercial workflows: Ricoma MT-1501.

5.2 Key Features for Belt Embroidery

Evaluate machines and accessories with belt realities in mind: narrow fields, thickness, high repeat accuracy.

• Thickness handling
  • Look for smooth penetration on dense martial arts belts and leather. Stable presser foot behavior and controllable speed help avoid deflection and needle stress.
• Hoop compatibility
  • Confirm support for belt hoops and strap-friendly hooping methods. Easy “trace” and accurate hoop offsets protect edges on 1-inch widths.
• Multi-needle efficiency
  • Minimizes thread changes for complex logos/text on belts using a multi needle embroidery machine; preserves registration when stitching multi-color sequences.
• Speed with control
  • High SPM is helpful, but only if the machine maintains precision on thick materials. A machine that stitches cleanly at moderated speeds on leather is more valuable than one that races yet shreds thread.
• Stitch memory and workflow tools
  • Ample memory for repeat names/logos, plus utilities like trace, per-color sequencing, and “go-to-stitch” functions streamline repeats and quick fixes.
• Specialty capabilities
  • If you offer raised effects, verify compatibility for 3D foam techniques on belts (a noted strength of the BAI Vision series).

6. Troubleshooting Common Issues

6.1 Preventing Needle Breaks

On belts, needle breaks usually trace back to three culprits: mismatch of needle-to-material, overly short stitch segments for the thickness, or excess mechanical stress.

• Match needle to thickness
• Use smaller sizes (75/11–80/12) for lighter fabric belts and PU/faux leather; step up through 90-range and up to 110/18 for thicker stacks or dense stitch types.
• Chrome needles tolerate deflection better on thick leather; use caution with titanium-coated needles on very thick substrates (they can be brittle under stress).
• Respect “thickness vs. stitch length”
• Convert thickness to “points” (1 point = 0.1 mm). Keep minimum stitch length at or above the material’s point value to reduce snaps. Example: a 3 mm belt ≈ 30 points; keep minimum stitches ≥ 30 points to reduce thread and needle stress.
• Slow down and stabilize
• Reduce speed on leather and multilayer belts. Ensure the belt sits close to the needle plate to minimize bounce. Use appropriate stabilizer so the needle isn’t fighting a moving target.
• Fresh, correctly installed needles
• Replace at the first sign of burrs or bending. Seat fully, align properly, and tighten the clamp firmly.
• Mechanical checks (when breaks persist)
• Inspect for burrs on the needle plate or hook.
• If you observe consistent deflection or registration drift, verify the machine’s belt-drive tension and X-belt alignment per your service procedures; loose systems can add shock to the penetrations and contribute to breakage.

6.2 Solving Thread Tension Problems

Consistent tension on belts starts with thread/needle compatibility, precise threading, and calibrated discs.

• Use the right thread–needle pairing
• Size 15 nylon thread: 70/10–80/12 needles (Tex 16 range).
• Size 69 nylon thread: 100/16–110/18 needles (Tex 70 range).
• Polyester embroidery thread is preferred for durability and wash resistance on belts; adjust tension per material behavior.
• Rethread correctly
• Always rethread with the presser foot up so tension discs open. Verify the thread path matches the manufacturer’s routing and that thread is properly seated in every guide.
• Use spool caps or thread nets to eliminate snagging and inconsistent feed.
• Calibrate upper and bobbin tension
• Test on scrap of similar thickness and observe top/bottom balance. A tension meter (if available) helps standardize settings.
• If the upper thread frays or snaps repeatedly, slightly reduce top tension and confirm there are no burrs on the needle eye or guides.
• Material-specific adjustments
• Heavier leather, dense webbing, and elastic require tension tweaks. Adjust in small increments and retest; universal “one-setting-fits-all” approaches rarely hold up across belts.
• Frame stability and alignment
• Misalignment that looks like tension trouble can come from shifting in the hoop. Use sturdy hooping methods and adhesive-backed tear-away for slick synthetics. Re-trace after each re-hoop in multi-repeat runs to keep designs centered on narrow widths.

With a disciplined test–adjust–verify loop, belts stitch cleanly and repeatably—even on thick leather or stretchy styles.

7. Purchasing Guide: Equipment and Suppliers

Belt embroidery rewards shops that buy once and buy right. Prioritize hooping systems that keep narrow straps stable, then choose trusted suppliers that back up their gear with real support. Here’s how to invest with confidence.

7.1 Hooping Solutions Worth Investing In

• Magnetic embroidery hoops for garment belts

  Sewtalent magnetic hoops are garment-compatible options that hold strap-like items evenly, helping prevent distortion and slippage on narrow belts and dog collars.

  Magnetic hooping systems such as MaggieFrame have shown major efficiency gains in garment production. Compared to screw-tightened hoops, magnetic hooping can reduce per-hooping time from about 3 minutes to roughly 30 seconds (around 90% faster) and cut embroidery defects by about 15% through steadier fabric holding.

  Note: MaggieFrame is engineered for garment embroidery hooping (not for caps/hats). It offers 17+ sizes with wide machine compatibility, strong magnetic holding, alignment reference lines, and durable build quality—features users lean on for repeatable strap/belt runs.

• Dedicated belt hoops

  Ricoma’s belt hoop (as seen in the karate belt and leather belt videos) routes the belt through a center bar so it sits low over the needle plate, reducing bounce. It’s designed for belts, sashes, and collars. User feedback notes secure holding; check machine compatibility and availability (it may be on backorder at times).

• Fast hooping frames

  Fast Frames’ Karate & Belt Hoop Frame (listed around $339.99) is a premium option with an advertised hooping time near 10 seconds, a 3" × 9" field, repeatable alignment, and support for popular Brother and Baby Lock multi-needle models. It’s designed for speed and consistency in belt workflows.

• Real-world setup tips from belt/strap videos

  Sticky-back tear-away on the bottom hoop plus a tape centerline helps you place, stitch, peel, and advance the belt quickly for repeat names and logos.

  For thicker leather belts, reduce speed and keep the belt seated close to the needle plate (belt-hoop center bar helps).

Action step: If belts are a frequent order, pair a garment-compatible magnetic hoop (e.g., Sewtalent; MaggieFrame for broader garment work) with a dedicated belt hoop and a hooping station. Use sticky-back tear-away to streamline repeats.

7.2 Reliable Suppliers and Review Analysis

• HoopTech Products

  User sentiment consistently calls their frames “game changers,” citing better registration, cleaner results at higher speeds, and fewer needle/thread issues. Customers also highlight strong service and support. If you need robust strap control and pro assistance, HoopTech earns high marks in real-world use.

• AllBrands.com

  A dependable retailer for specialized frames like Fast Frames. Listings typically include detailed compatibility notes and specs, which help you avoid mismatches. Clear pricing and product documentation make it easy to validate fit before you buy.

• Direct manufacturer channels (e.g., Ricoma)

  Manufacturer-direct purchasing can offer belt-specific hoops and guidance. Based on buyer reports, inventory can be tight for niche accessories (e.g., occasional backorders), so confirm lead times. Direct channels are helpful if you need fitment clarity or setup recommendations for a specific machine.

• Premium machine ecosystem considerations

  Japanese and German engineering (e.g., Barudan, ZSK) are frequently praised for long-term reliability in demanding, high-volume, multi-material workflows. Budget-friendly Chinese platforms (e.g., BAI) also draw positive feedback for speed and value. Match your volume and materials to the vendor’s support quality and accessory availability.

Decision checklist:

• Confirm hoop fit for your exact machine model.

• Prioritize suppliers that publish compatibility charts and offer responsive support.

• For volume runs, weigh long-term reliability and accessory ecosystems—not just price.

8. FAQ: Belt Embroidery Essentials

8.1 Q: How do I calculate safe minimum stitch length for thick belts?

- A: Convert thickness to “points,” where 1 point = 0.1 mm. Keep your minimum stitch length at or above the material’s point value. Example: a 3 mm belt ≈ 30 points, so set minimum stitch length ≥ 30 points to reduce thread snaps and needle stress.

8.2 Q: Are there rules about karate belt embroidery size and placement?

- A: Standards vary by organization and event. Some competition guidelines accept embroideries under 20 cm in defined positions. Always verify with the specific dojo/association before production to ensure compliance.

8.3 Q: What stabilizer should I use—and how do I remove it cleanly?

- A: For firm, non-stretchy belts (leather/canvas), heavy tear-away works well; remove it slowly after stitching for crisp edges. For lighter or unstable materials, use cut-away (including “no-show” mesh) for permanent support. Sticky-back tear-away or light spray (applied to stabilizer) helps hold slick nylon—use sparingly to prevent bleed-through.

8.4 Q: Do I need a belt-specific hoop, or can I use a magnetic hoop?

- A: Both types of embroidery hoop work. Belt hoops with a center bar keep the strap low and stable—great for thick leather and martial arts belts. Magnetic hoops paired with sticky-back tear-away also hold narrow straps reliably and speed up repeats. Choose based on belt thickness, speed goals, and your machine’s compatible options.

8.5 Q: Which needles and threads are safe bets for belts?

- A: Start around 75/11 for PU/faux leather and lighter woven belts, increase through 80/12–90-range as layers/density rise, and go up to 110/18 for the thickest stacks. Chrome needles handle deflection well on leather. Polyester embroidery thread is a durable, wash-resistant choice for belt projects.

9. Conclusion: Elevating Your Belt Embroidery

Belts demand steadiness, smart stabilization, and designs tuned to narrow widths. Choose a hooping system that truly holds, match needle and stitch length to thickness, and use tear-away or cut-away wisely. With precise digitizing and disciplined test–adjust–verify runs, you’ll stitch clean, centered results faster—and repeat them across leather, canvas, and synthetics with confidence. Ready to scale? Invest in reliable hoops and suppliers that support your growth.
