Mastering Serger Looper Threading: Essential Techniques for Flawless Stitches

1. Introduction to Serger Looper Threading Fundamentals

Proper looper threading is the difference between silky, balanced serger seams and a tangle of frustration. In this guide, you’ll learn safe, step‑by‑step threading for upper and lower loopers, how to diagnose and fix thread breakage or stitch issues, and why loopers matter in stitch formation. We’ll fold in brand nuances from popular machines, the best tools and techniques, and clear tension‑tuning protocols. Master these fundamentals and you’ll prevent breakage, avoid rethreading spirals, and produce professional, reliable results on any project.

Table of Contents

• 1. Introduction to Serger Looper Threading Fundamentals
• 2. Step-by-Step Guide to Threading Upper and Lower Loopers
• 3. Troubleshooting Common Looper Threading Issues
• 4. The Critical Role of Loopers in Stitch Formation
• 5. Brand-Specific Threading: Brother, Juki, and Singer Compared
• 6. Essential Tools and Techniques for Effortless Threading
• 7. Perfecting Stitches: Tension Adjustment Protocols
• 8. Conclusion: Key Takeaways for Looper Threading Mastery
• 9. FAQ: Solving Persistent Looper Threading Challenges

2. Step-by-Step Guide to Threading Upper and Lower Loopers

2.1 Preparation: Machine Setup and Safety Protocols

• Power off, open covers, and raise the presser foot. Raising the presser foot releases the tension disks so thread seats correctly rather than riding on top.
• Turn the handwheel toward you to raise the needles/loopers to the highest or threading position. Many machines include alignment marks—follow your manual.
• Move the upper knife out of the way (where applicable, e.g., Juki/SINGER walkthroughs) to protect fingers and improve visibility while threading.
• Spool management: fit cones on spool holders, use thread nets for slippery threads, and keep the thread antenna fully extended for smooth delivery. Waxing thread ends can stiffen them for looper-eye insertion.
• Keep tweezers handy. Bent or fine-tip tweezers make small guides and the looper eye easy to reach.
• Pro tip from Juki and SINGER demos: use four different thread colors the first time you thread. You’ll instantly see which path needs attention during testing.

Sequence matters. Follow the interdependent order: upper looper → lower looper → right needle → left needle. If any thread breaks, rethread the entire machine from the start to restore proper interlock.

2.2 Upper Looper Threading: Precision Techniques

• Follow the color-coded path. Many sergers mark the upper looper route (commonly red or blue). Treat it like “connect-the-dots”: from the thread tree through the top guides, down into the tension disk, then through intermediate guides to the upper looper.
• Floss the tension disk. Hold thread in both hands and gently “floss” into the disk to seat it fully (seen in Juki and SINGER tutorials). With the presser foot up, the disks open and accept thread correctly.
• Position the looper. Turn the handwheel until the upper looper is fully forward so the looper eye is accessible.
• Use tweezers to thread the looper eye front-to-back (as shown in Juki/SINGER demos). Pull a 3–4 inch tail and tuck it under the presser foot.
• Expect spiral/pigtail guides. Some models include spiral “pigtail” guides—place the thread in as indicated by your color marks.
• Quick check: your thread should follow all marked guides with no skipped posts, and it should sit cleanly in the tension disk.

2.3 Lower Looper Threading: Navigating Complexity

• Expect a more intricate path. The lower looper typically routes through multiple, lower-position guides and a take-up lever, often color-coded (e.g., green/orange).
• Handwheel positioning is key. Some models (e.g., MOD‑8933) have you bring the lower looper to the far left for one guide, then to the right for the next. Always rotate the handwheel toward you to reveal the correct threading points.
• Access aids on popular models:
  • Brother 1034D/1634D: rotate to reveal the lower‑looper “notch,” insert through the hole first with tweezers, then rest the thread into the notch before closing (YouTube demo).
  • Juki MO‑654/644: press the white release to pop out the lower-looper mechanism; don’t miss the tiny upper “thumb” guide before the looper eye.
• Thread the looper eye with tweezers and pull a 3–4 inch tail to the back/under the foot.
• Critical crossover: ensure the lower looper thread sits above/over the upper looper at the end (SINGER demo). Incorrect crossover prevents stitch formation.
• Tie‑on rethreading. For quick color changes, tie new thread to old above the tension disks and pull through slowly (one at a time) along the full path. If a knot snags, rethread by hand at that point.

3. Troubleshooting Common Looper Threading Issues

3.1 Solving Thread Breakage and Tension Imbalances

Over 70% of serger malfunctions trace back to threading errors, so systematic checks pay off.

• Most common causes
• Missed guides or wrong sequence. If loopers aren’t threaded first (upper → lower → right needle → left needle), threads can trap each other and snap.
• Tension disk issues. If the presser foot wasn’t raised during threading, the thread may sit on top of the disk, creating erratic tension and breakage.
• Snags and burrs. Nicks on the looper, needle plate, or guides act like micro‑blades. Run your fingertip along the path; if you feel a rough spot, smooth gently with fine sandpaper.
• Thread delivery hiccups. Cones that don’t spin freely or a collapsed antenna create intermittent tension spikes.
• Resolution protocol
• Rethread the entire machine in order. This resets the interlocking paths so no thread is trapped beneath another.
• Inspect every guide and the looper eyes for burrs or misroutes; ensure the lower looper thread crosses above the upper looper at finish.
• Reduce speed on tough fabrics or heavy threads to minimize stress surges.
• Replace needles regularly (about every eight sewing hours) to prevent snagging looper threads during loop capture.
• Understand the “tug‑of‑war.” Looper threads meet at the fabric edge. If one side dominates, it pulls the loop to the wrong face—your visual cue that tensions need correction (see 3.2).

3.2 Fixing Stitch Formation Errors and Skipped Stitches

• Read the stitch like a map
• Loops on the top that don’t belong there: upper looper likely too tight or the lower too loose.
• Loops on the underside that shouldn’t be there: lower looper likely too tight or the upper too loose.
• Adjustment hierarchy
• Balance loopers first, then refine needle tensions. This prevents multiple misadjustments from masking each other.
• Move tension dials in tiny steps (¼–½ notch), test on scrap, repeat.
• Skipped stitches
• Often look like timing issues but can be caused by extreme tension mismatch or misthreading. First, rethread completely and rebalance tensions.
• Persistent skips after correct threading/tension suggest timing/service is needed.
• Diagnostic best practices
• Use four different thread colors during tests (as shown in Juki/Brother videos). You’ll spot which thread misbehaves instantly.
• Always thread with the presser foot up so tensions engage correctly; test‑sew and inspect before starting a project.

3.3 Preventing Breakage with Consistent Fabric Tension

Stitch stability isn’t just about the machine. Fabric support matters—especially when you switch between serging and garment embroidery.

• Why consistent fabric tension helps
• Even fabric support reduces drag and slippage at the needle/loopers, lowering the risk of sudden tension spikes and thread breaks.

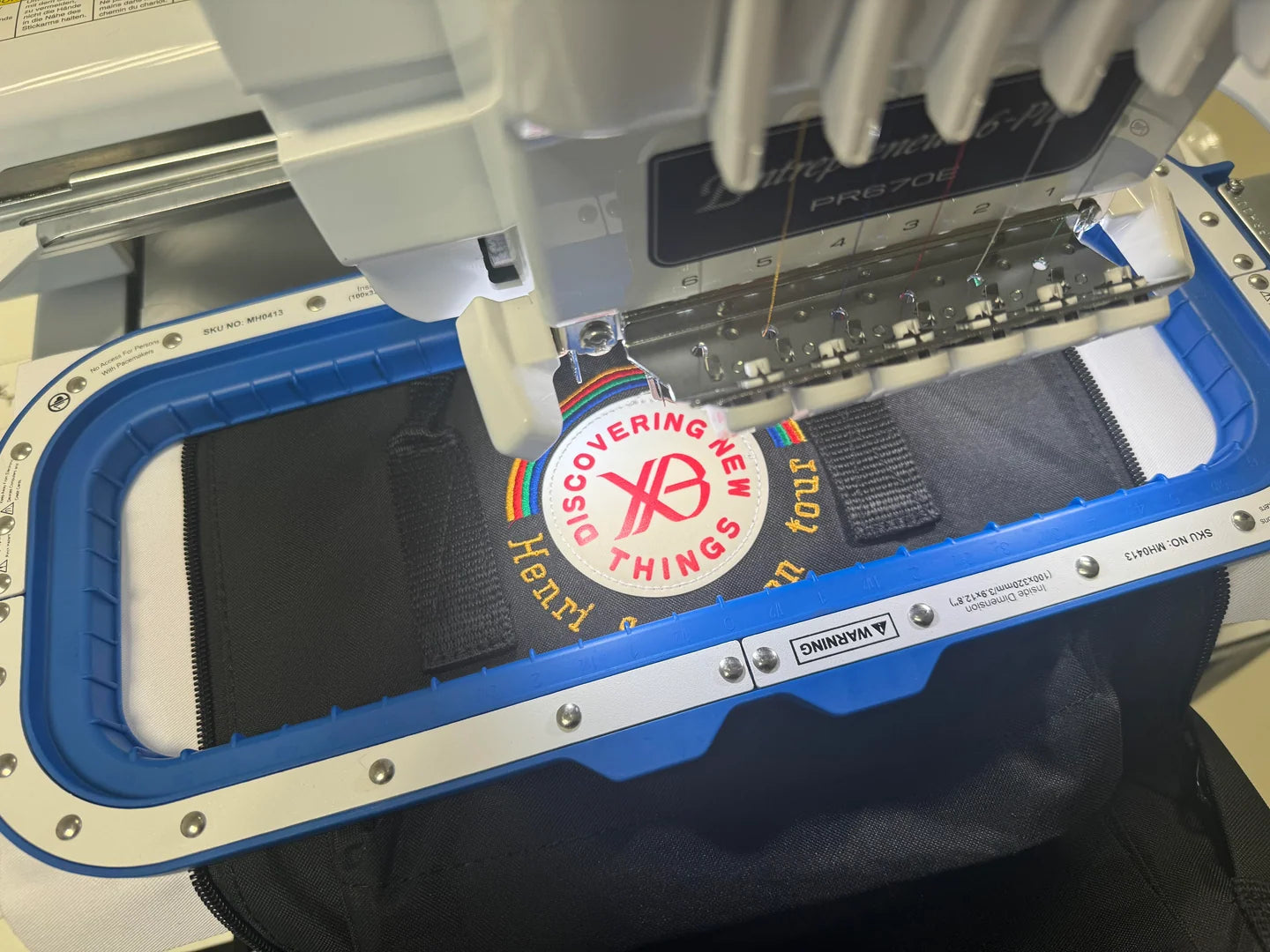

• For garment embroidery: Sewtalent magnetic hoops
• Magnetic hooping holds garments evenly and securely along the stitching field, helping prevent fabric creep that can translate into thread stress and misalignment during embroidery.
• They’re quick to set up and user‑friendly, which helps minimize handling errors that lead to rethreading.
• Also consider MaggieFrame magnetic hoops
• Designed for garment hooping, MaggieFrame’s powerful magnetic hooping system provides even tension across a wide fabric range and helps reduce hoop marks through uniform pressure. They’re fast to put on/off and built for long service life.
• Note: these solutions are for garment embroidery hooping, not for cap/hat hooping.
• Practical tip
• Stabilize well, hoop smoothly, and avoid over‑stretching fabric before you serge edges for embroidery projects. Fewer fabric shifts mean fewer thread hiccups at the machine.

Ready to put this into practice? Start by rethreading in the proper order, color‑test your stitches on scraps, and stabilize your fabric consistently before production runs.

4. The Critical Role of Loopers in Stitch Formation

Loopers are the reason a serger can seam, trim, and edge‑finish in one pass. Mechanically, they work as a synchronized pair: the upper looper lays thread above the fabric edge, while the lower looper lays thread below. As the needles pierce the fabric, the two looper threads interlock—an “interlocking process” that sandwiches the raw edge inside a flexible thread matrix. The result is a clean, secure overlock finish that resists fraying and can stretch without popping.

This choreography depends on precise timing between needles, loopers, and the cutting system. As shown in Singer’s 14CG754 demo, the knives trim first; then loopers wrap the new edge while the needles secure it. Balanced looper tension determines where the interlock meets—too much pull from either looper and the stitch migrates to the wrong side. That’s why threading order and tension seating (presser foot up, “floss” the disks) matter so much to stitch quality.

Coverstitch machines also rely on a looper—threaded first on the Juki MCS‑1500—to create the underside cover formation while needles form the parallel top lines. The Juki guide uses dotted vs. solid lines to signal behind‑ vs. front‑mounted guides, reinforcing how accurate pathing underpins reliable interlocking.

Loopers also enable specialized finishes. Two‑thread configurations (via a subsidiary looper/spreader) produce narrow rolled hems and delicate edge treatments, while controlled stretching during serging creates decorative lettuce edging. Across knits, activewear, and everyday seams, the looper‑driven interlock delivers both durability and flexibility in a single, efficient operation.

5. Brand-Specific Threading: Brother, Juki, and Singer Compared

When comparing popular brands like Brother, Juki, and Singer, it's important to consider their threading systems to find the best sewing machine for embroidery and sewing projects.

5.1 Brother's Systematized Approach

Brother’s architecture (e.g., 1034D) emphasizes clarity and access:

• Numbered guides end‑to‑end: from the telescopic stand through tension disks and down to the loopers/needles. The stepwise labels reduce guesswork.
• Slide‑out lower looper lever: thread the looper hole first with tweezers, then rest the thread into the notch before sliding the lever back until arrows align (as shown in Brother looper videos). This greatly eases the trickiest step.
• Practical note: the 1034D does not support two‑thread modes, so plan on three‑ or four‑thread stitches rather than two‑thread rolled hem variants.

Threading essentials still apply: presser foot up to open the disks, floss each tension, and maintain 3–4 inch tails before test‑sewing.

5.2 Juki's Traditional Methodology

Juki’s MO‑654/MO‑644 family uses front‑mounted dials and a traditional, hands‑on threading style:

• Color‑coded paths plus a pop‑out lower looper mechanism: press the white release to swing the lower‑looper unit forward for visibility.
• Don’t miss the tiny “thumb” guide above the lower looper and the spiral “pigtail” guides—both are easy to overlook and essential for smooth delivery.
• Bent tweezers are your best friend for tight angles and for feeding the looper eye front‑to‑back. Juki demos also highlight moving the upper knife out of the way during threading to improve access.

Result: a robust system that rewards careful sequence and dexterity, especially in the lower‑looper area.

5.3 Singer's Versatile Threading System

Singer’s design balances simplicity with flexibility:

• Individual needle guides and separate needle screw sets provide precise control over each needle path (contrasting with unified guide systems).
• Two‑thread capability: by using a spreader to disengage the upper looper, Singer models can create multiple two‑thread rolled hem options—great for delicate edges.
• Stitch finger positions: Singer’s Pro Finish uses “R” (rolled hem) and “S” (standard serging) positions that interact with your threading choice and stitch selection.
• Metal telescopic thread guide with elongated, open guides offers stable cone control.

Singer’s tutorial underscores a critical interlock checkpoint: after threading, ensure the lower looper thread sits over the top of the upper looper before sewing. That crossover is essential for stitch formation.

6. Essential Tools and Techniques for Effortless Threading

6.1 Manual Aids: Tweezers, Thread Nets, and Wax

• Bent tweezers: Reach small guides and looper eyes cleanly—especially on coverstitch loopers and tight lower‑looper angles (as seen on the Juki MCS‑1500 walkthrough). Use them to place thread into pigtail guides and to thread from front‑to‑back with control.
• Thread nets: Slip over cones to keep cross‑wound thread from spilling and “flopping” during delivery. They stabilize feed and reduce tension spikes.
• Wax and clean snips: Lightly wax or trim thread ends to stiffen them; this makes it easier to hit small guides and looper eyes on the first try.
• Always thread with the presser foot up, and gently floss each tension disk so the thread seats inside rather than riding on top.

6.2 Advanced Methods: Thread Cradles and Bypass Systems

Working with specialty or heavy threads? Use these pro methods:

• Thread cradle: Fold a long piece of standard thread in half, feed the cut ends through the looper path (or air‑threading ports), then place the specialty thread in the loop and pull it through. This captures metallic or decorative threads that resist normal paths.
• Bypass techniques: If a thread can’t pass through an automatic port, use a normal‑weight thread to establish the path, then pull the heavy thread through using the created loop.
• Automated systems: Baby Lock’s ExtraordinAir and JetAir air‑threading options eliminate much of the manual lower‑looper struggle by blowing threads through tubular loopers.

Comparative overview from the research:

Choose based on your volume, materials, and dexterity. For mixed thread types, combine thread nets, tweezers, and cradle methods for reliability without constant rethreading.

6.3 Optimizing Workflow with Time-Saving Hooping

Efficient fabric setup reduces drag at the needles and loopers—often the hidden cause of sudden tension spikes and thread breaks. For garment embroidery, using a hooping station for magnetic hooping helps keep fabric stable so you aren’t chasing slippage‑induced misalignment later.

• Sewtalent magnetic hoops for garment embroidery
• Designed to speed up garment hooping by about 90% compared with screw hoops, helping you move from setup to stitching faster and with fewer handling errors.
• Even, secure hooping minimizes fabric creep that can translate into thread stress and rethreading.
• Built for industrial‑style durability to stand up to daily production.

• Also consider MaggieFrame magnetic hoops (garment hooping only; not for cap/hat hooping)
• Strong magnetic hooping with even pressure across a wide fabric range helps maintain consistent tension and reduce hoop marks.
• Quick on/off operation supports rapid changeovers; the hoops are built for long service life.

Tip: Stabilize properly, hoop smoothly, and avoid stretching the fabric before serging edges for embroidery projects. A stable fabric platform plus correct threading sequence is the fastest path to flawless, repeatable results.

7. Perfecting Stitches: Tension Adjustment Protocols

7.1 Principles of Looper-Needle Tension Balance

Balanced serger stitches happen when the upper and lower looper threads intersect exactly at the fabric edge. Read the stitch like a map: if looper thread migrates to the wrong side, that side’s opposite looper is pulling too hard. Excess upper-looper tension drags the lower looper to the right side; excess lower-looper tension does the reverse. Loose loops hanging off the edge signal insufficient tension.

Work in a strict sequence. Adjust loopers first (upper → lower), then refine needle tensions. This hierarchy prevents stacked errors from masking the real culprit.

Confirm thread seating before touching the dials. Raise the presser foot so tension disks open, “floss” each thread into its disk, and verify the full thread path. Misroutes and lower-looper entanglement often mimic tension problems and won’t be fixed by turning dials.

Know your control style. Rotary dials (often 1–9) follow “righty-tighty, lefty-loosey.” Lay‑in/disc systems tighten with upward movement and loosen downward. Whichever system you have, aim for small, deliberate moves and immediate test stitches on your actual fabric.

7.2 Step-by-Step Adjustment for Different Fabrics

• Prepare a clean test
• Thread correctly with the presser foot up, then test on the same fabric you’ll sew. Use four different thread colors to spot the misbehaving path quickly (as shown in threading demos).
• Chain off and examine where the looper threads meet. The goal: interlock right at the edge with no puckering or loop overflow.
• Start with looper baselines (by fabric)
• Heavier fabrics need looser tensions to accommodate bulk; lightweight fabrics need slightly tighter control. Use these starting points, then fine‑tune:

  Fabric Type	Recommended Starting Range (Looper Tensions)
  Knits (T‑shirts)	2–3
  Denim/Heavy Wovens	4–6

• Heavier threads and stretchy threads (e.g., Woolly Nylon) often require additional loosening for proper formation.
• Adjust in small increments
• Change one dial at a time by 1/4–1/2 step, sew a few inches, and reassess. Begin with the upper looper to center the interlock; then adjust the lower looper to meet it at the edge; finish with minor needle refinements as needed.
• Target the edge, not over or under it
• If loops hang off the cut edge even after tension tweaks, refine cutting width so the stitch forms snugly on the edge (as demonstrated in Singer’s walkthrough). For thick multi‑layer seams, reduce both looper tensions slightly to create space for proper interlocking.
• Special case: two-thread overlock
• With a two‑thread converter (e.g., in the Bernina L450 demo), only the lower looper is used; expect the lower‑looper thread to show on both sides. Balance needle tension to avoid puckering while preserving that delicate edge look.
• Validate your result
• Professional-quality stitches show consistent tension along the seam, no thread migration to the wrong face, and no loose loops. If symptoms persist after correct threading and measured adjustments, inspect for snags/burrs or misroutes before altering numbers again.

8. Conclusion: Key Takeaways for Looper Threading Mastery

Mastering looper threading and tension is all about sequence and small, smart moves. Thread with the presser foot up, seat each thread, and adjust loopers before needles. Read the stitch—watch where threads migrate—and use tiny, incremental dial changes on fabric that matches your project. Lean on brand guides, color-coded paths, and proven testing routines. Practice these diagnostics and you’ll turn tension mysteries into repeatable, flawless results. Ready to level up? Re-thread cleanly, test in color, and fine-tune with intention.

9. FAQ: Solving Persistent Looper Threading Challenges

9.1 Q: Why rethread the entire machine after a breakage?

- A: The interlock relies on threading order. When one thread snaps, others can trap or cross paths incorrectly. Rethread in sequence—upper looper → lower looper → right needle → left needle—to restore a clean, known baseline. Several demos (including coverstitch guidance) recommend rethreading all threads after a looper break.

9.2 Q: How do I tell timing issues from tension problems?

- A: If stitches form but the loops migrate to the wrong side or hang off the edge, you’re looking at tension imbalance. Balance loopers first, then needles, in small steps. If you still get skipped stitches after correct threading and balanced tensions, that points to timing/service needs (as noted in our troubleshooting section).

9.3 Q: What threads work best in the loopers?

- A: Match tension to thread behavior. Heavier threads typically need looser settings; stretchy options (like Woolly Nylon or Brothreads) also benefit from loosened tensions. For decorative/thick threads, use thread‑cradle or alternative methods shown in air‑threading demos, and test on scraps before production. Avoid overly thick or waxy threads in pneumatic threaders.

9.4 Q: What maintenance helps prevent recurring tension issues?

- A: Keep the threading path clean; check looper eyes, guides, and the needle plate for burrs that can nick threads. Always thread with the presser foot up so tension disks seat correctly, and test‑sew on matching scraps after any change. Replace needles regularly and reduce speed on tough materials to minimize stress spikes.

9.5 Q: My air‑threader struggles with knots or decorative threads—what can I do?

- A: Use a flat knot and pull one thread at a time. If the knot is too bulky, use a normal thread as a “puller” (folded thread cradle) to draw the decorative thread through. To reduce stress, some models let you bypass the right port via an auxiliary guide; do not bypass the left port. Avoid thick/waxy threads in the pneumatic system, and use the threading wire only as a short‑term fix. If issues persist, visit authorized service.
