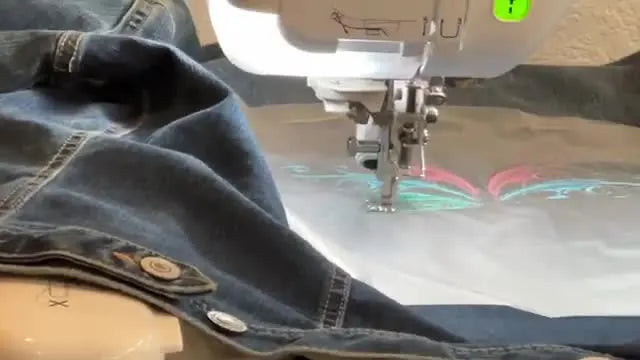

Embroidering a Denim Jacket on the Brother Dream Machine: The Floating Method That Saves You From Bulky Seams

Denim jackets are the "Mount Everest" for many machine embroidery enthusiasts. They look incredibly cool, but they present a trifecta of terror: thick seams that fight standard hoops, heavy fabric that creates drag, and a high cost of failure (ruining a $50+ jacket feels much worse than ruining a tea towel).

In this project, Anisa (The Crafty Author) successfully navigates these hazards to stitch a large butterfly on a denim jacket back using a Brother THE Dream Machine. She utilizes a classic "floating" technique—bypassing the struggle of hooping the thick fabric itself—combined with clear placement tools.

However, simply watching the steps isn't enough to guarantee safety for your machine or your garment. Below, we break this down into a master-class standard operating procedure, adding the sensory checks, safety margins, and tool upgrades that turn a risky experiment into a repeatable production process.

The Denim Jacket Panic Is Real—Here’s the Calm Plan for Brother THE Dream Machine Embroidery

If you have ever tried to force a denim jacket into a standard plastic hoop, you likely encountered "Pop-Out Syndrome"—where the inner ring shoots out the moment you tighten the screw—or "Hoop Burn," which leaves permanent white stress marks on the indigo dye.

You aren't doing it wrong; the physics are just working against you. Standard hoops are designed for flat, even cotton, not the bulky topographical map of a denim yoke.

The strategy used here is Floating. Instead of capturing the denim in the hoop, we hoop only the stabilizer and stick the jacket on top. If you are searching for a floating embroidery hoop workflow that eliminates hoop burn and seam fighting, this is the foundational method. It bridges the gap between frustration and a finished wearable.

Supplies for Embroidering a Denim Jacket (240 x 360 Hoop, Cutaway, 505, and the Placement Tools That Prevent Regret)

To execute this safely, you need the right chemical and physical support. Here is the enhanced supply list based on the video and industry best practices:

• Machine: Brother THE Dream Machine (or similar large-field single needle).
• Hoop: 240 x 360 mm (Large enough to fit the design without the jacket seams hitting the hoop edges).
• Stabilizer (Base): Medium to Heavy Weight Cutaway. Note: Never use tearaway on denim jackets; the high stitch count will perforate it, causing registration loss.
• Adhesive: 505 Temporary Spray Adhesive.
• Stabilizer (Top): Water Soluble Topper (essential for stitch clarity).
• Placement: DIME Print & Stick Target Paper (or printed paper template + tape).
• Tools: Ruler, Fabric Shears, Disappearing Ink Pen/Pin.
• Hidden Consumables (Don't start without these):
  • New Needle: Size 90/14 or 100/16 Jeans/Denim Needle. (Do not use a standard 75/11; it will deflect and break).
  • Thread: Isacord (40wt Polyester) is standard for denim durability.


Pro tip from the comments (Experience Validated): Viewers often ask, "Why use a topper on denim? It's not a towel." The Answer: Denim is a twill weave—it creates diagonal ridges. Without a topper, your satin borders have to fight those ridges, leading to jagged edges ("sawtoothing"). The topper acts like a suspension bridge, allowing the thread to lay smooth and glossy.

The “Hidden” Prep That Makes Floating Work (Cutaway Tension, Clean Hoop, and a No-Mess Adhesive Habit)

Floating relies entirely on the friction and adhesion between the stabilizer and the jacket. If your stabilizer is loose, your design will pucker.

Hoop the cutaway stabilizer to drum-skin tight

Start by ensuring your table and hoop are clean. Lint or leftover spray residue on the inner hoop ring will reduce grip.

1. Loosen the hoop screw significantly.
2. Place the Medium Weight Cutaway over the outer ring.
3. Press the inner ring in. You should hear a solid snap or chunk sound as it seats.
4. The Sensory Check: Tighten the screw, then gently pull the stabilizer from the edges to remove slack. Tap the center with your fingernail. It should sound like a drum—a high-pitched thrum, not a dull thud.


Prep Checklist (Do this BEFORE spraying)

• Check Needle: Is a fresh 90/14 or 100/16 installed? (Burrs on old needles will shred denim).
• Check Bobbin: Do you have a full bobbin? Changing bobbins mid-float can shift the heavy jacket.
• Surface Tension: Tap the hooped stabilizer. Is it drum-tight?
• Hardware Safety: Ensure the hoop screw is tightened as far as your fingers can comfortably go (use a screwdriver gently if needed, but don't crack the plastic).

Warning: Mechanical Safety. When pulling stabilizer tight, keep your fingers away from the mechanism while tightening the screw. If your hand slips while applying tension, the plastic edges can cause injury. Also, ensure your scissors are nowhere near the hoop while tightening to avoid puncturing your "drum skin."

Expert “why” (So you don’t repeat the same mistake)

Beginners often blame the denim for puckering. In reality, 90% of puckering in floated designs comes from loose stabilizer. Under the intense friction of thousands of needle penetrations, loose stabilizer pulls inward. If the foundation moves, the house (your design) collapses.

505 Spray on Stabilizer (Not Fabric): The Clean Floating Adhesive Routine That Prevents Gunk and Shifting

This step determines if your jacket stays put or shifts mid-design. The goal is a "Post-it Note" tackiness, not a permanent bond.

Anisa shakes the can vigorously (listen for the agitator ball rattling freely) and sprays only the hooped stabilizer.

The Rules of Adhesion:

1. Spray the Stabilizer, NEVER the Machine: Always spray away from your embroidery machine. Airborne adhesive settles on hook gears and sensors, causing long-term damage.
2. Distance Matters: Hold the can 8-10 inches away. You want a mist, not puddles.
3. The Touch Test: Wait 15 seconds, then touch it with your knuckle. It should feel tacky (sticks but releases) rather than wet/gummy.

Watch out (Comment-Inspired): Using double-sided tape is an alternative, but on heavy denim, tape creates "anchor points" rather than distributed grip, which can lead to bubbling between the tape lines. Spray provides uniform surface tension.

Floating the Denim Jacket Back Panel: Centering, Smoothing, and Keeping Seams Out of the Hoop’s Fight Zone

Now comes the critical maneuver: attaching the heavy jacket to the sticky stabilizer.

The Technique:

1. Fold the jacket in half vertically to find the general center, or use your eye if using the placement method below.
2. Lay the hoop mostly flat on a sturdy table.
3. Place the jacket down gently.
4. Smooth from the center out. Use the flat of your palms. Do not use your fingertips to "rake" the fabric, as this stretches the denim grain. You want it to relax onto the adhesive in its natural state.

Placement rule from the video (and it’s a good one)

Anisa targets the design 1–2 inches below the neckline (yoke seam).

• Why? If it's too high, the design gets hidden by hair or a hood. If it's too low, it looks like a "tramp stamp" placement. Ideally, the center of the design should hit roughly between the shoulder blades.

Operation Checklist (Floating Success)

• Flatness Check: Run your hand over the stitch area. Are there any hidden lumps (pockets, inside tags, seams) trapped underneath?
• Adhesion Check: Lift the hoop vertically. The jacket should stay stuck to the stabilizer without peeling away under its own weight.
• Clearance Check: Ensure the bulky sleeves and collar are folded back so they won't fall into the stitch field.

DIME Print & Stick Target Paper Placement: Audition the Butterfly Before You Commit Thread to Denim

"Visualizing" is risky; "Auditioning" is safe. Anisa uses DIME Print & Stick Target Paper to print the butterfly at 1:1 scale. This allows her to stick the design on the jacket, walk away, look in a mirror, and adjust.

She measures the specific panel width (8 inches), finds the center (4 inches from seam), and marks the vertical axis.

She then peels the target paper and aligns the crosshairs of the printed template with her manual marks.

Pro tip from the comments: "Can I reuse the sticker?" Generally, no. Once you peel it off denim (which is fuzzy), the adhesive degrades. Treat placement media as a disposable insurance policy. It costs a few cents; the jacket costs $50+. Use a new sheet for precision.

Brother Dream Machine On-Screen Alignment: Match the Needle Position to Your Real-World Center

With the jacket floated and the target sticker in place, take the hoop to the machine.

The "Danger Zone" Connection: Slide the hoop onto the machine arm. Listen for the distinct click of the locking mechanism. On heavy items, users often think the hoop is latched when it isn't. Give the hoop a gentle tug to confirm it is locked.

Using the Brother Dream Machine's camera/scanner or laser pointer, align the machine's virtual center with the crosshair on your target sticker. Remove the sticker before stitching.

Speed Control (Critical for Beginners): While the machine can go faster, slow it down. For complex designs on heavy denim, reduce your speed to 600 - 700 SPM (Stitches Per Minute).

• Why? High speed creates vibration. Vibration causes the heavy jacket to shimmy, potentially ruining registration.

Setup Checklist (Pre-Flight)

• Hoop Lock: Physically tug the hoop arm to ensure it is locked.
• Clearance: Rotate the handwheel manually (or use the "Trace" function) to ensure the needle bar won't hit a thick seam or rivet.
• Sticker Removal: Did you take the paper template off?
• Needle Clearance: Ensure the presser foot height is adjusted (if your machine allows) for the thicker denim sandwich.

Warning: Needle Deflection Hazard. Denim seams can deflect a needle, causing it to strike the throat plate and shatter. Always utilize the "Trace" function to visually confirm the foot does not cross a thick yoke seam or conductive rivet. Wear eye protection when stitching heavy materials.

Stitching the Butterfly on Denim: Water-Soluble Topper, Color Changes, and How to Avoid “Sunk” Detail

Lay the Water Soluble Topper over the area. No spray is needed; just moisten the corners slightly or use a quick piece of tape at the very edge (away from the needle) to hold it.

Sensory checks (Machine Health Mindset)

During the embroidery process, be present.

• Listen: A rhythmic thump-thump is normal for denim. A loud CLACK or grinding noise means the movement is obstructed.
• Watch: Keep an eye on the sleeves. The weight of a denim sleeve hanging off the table can drag the hoop. Support the excess fabric with your hands or a small table extension to reduce drag on the motor.

Comment Integration: "My thread keeps breaking." If this happens on denim, it is usually because the thread tension is too tight or the needle eye is getting clogged with adhesive/topper. Floss the tension discs and perhaps lower your top tension slightly.

Finishing the Denim Jacket Embroidery: Tender Touch Backing and a Cleaner Wearable Interior

Once the design is done, remove the hoop, tear away the excess stabilizer (cut the cutaway close to the stitches with curved appliqué scissors), and remove the topper.

Anisa applies Tender Touch (a fusible tricot mesh) to the inside of the jacket.

Why is this mandatory for pros? Embroidery fills are dense and scratchy. On a jacket back, this rubs against the wearer's back or catches on the shirt worn underneath. Tender Touch fuses over the bobbin stitches, creating a silky smooth barrier.

Troubleshooting Denim Jacket Embroidery Problems: Symptoms → Likely Cause → Fix You Can Do Today

Even with the best prep, things happen. Use this logic flow to solve issues without panic.

The Upgrade Path When You’re Done Fighting Denim: Magnetic Hoops, Faster Hooping, and Safer Bulk Handling

Floating is an excellent technique, but it is technically a workaround. It relies on adhesive chemistry to fight the physics of heavy fabric. If you find yourself doing denim jackets regularly—for a team, a shop, or just gifts—floating can become tedious and adhesive-heavy.

Here is the decision logic for upgrading your workflow:

Decision Tree: Float vs. Magnetic Hoop vs. Production Scale

1. The Occasional DIYer: If you embroider 1-3 jackets a year, stick to Floating (Cutaway + 505). It is cheap and effective.
2. The Dedicated Hobbyist/Side Hustle: If you struggle with wrist pain from tightening screws, or you are tired of hoop burn, investigate magnetic embroidery hoops for brother. Magnetic hoops clamp from the top and bottom automatically, accommodating thick seams without forcing them into a plastic channel.
3. The Production Shop: If you have orders for 20+ jackets, floating is too slow. You need the speed of a Magnetic Frame combined with a robust machine.

Where magnetic hoops fit (without the hype)

For Brother Dream Machine owners, searching for a magnetic hoop for brother dream machine or a dime magnetic hoop for brother is a common progression. These hoops allow you to slide the jacket in, snap the magnets down, and start—often eliminating the need for spray adhesive entirely because the magnetic force holds the denim grain straighter than adhesive ever could.

A specifically popular variant is the dime snap hoop, which combines a bottom metal frame with a magnetic top. Alternatively, users looking for "sticky" solutions might look into a sticky hoop for embroidery machine, though for heavy denim, magnets generally offer superior holding power against drag.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Do not place them on your lap. Keep them away from pacemakers, credit cards, and computerized machine screens. Always slide the magnets off the frame rather than prying them up to avoid sudden snapping.

Final Reality Check: What This Video Teaches (and What You Should Do Next)

This project proves that you don't need industrial gear to embroider denim, but you do need industrial discipline.

Recap of the Winning Formula:

1. Drum-Tight Stabilizer: The foundation must be rigid.
2. Chemical Grip: Light, even 505 spray holds the fabric.
3. Mechanical Clearance: Use a fresh Jeans needle and support the jacket's weight.
4. Surface Engineering: Use a topper to keep stitches clearly visible.

If you master the "Float," you can stitch almost anything. If you find the "Float" frustrating or slow, look toward hooping for embroidery machine upgrades like magnetic frames to remove the physical struggle from the equation.

FAQ

• Q: How do I float a denim jacket on a Brother THE Dream Machine without puckering the design?
  A: Float the denim jacket on drum-tight hooped cutaway stabilizer, because loose stabilizer is the #1 cause of puckering in floated embroidery.
  • Hoop medium-to-heavy cutaway stabilizer first, then tighten the hoop screw firmly.
  • Pull stabilizer edges to remove slack before spraying adhesive.
  • Spray 505 on the hooped stabilizer (not the jacket), then smooth the jacket from center outward with flat palms.
  • Success check: Tap the hooped stabilizer—there should be a high-pitched “drum” thrum, not a dull thud.
  • If it still fails… Re-hoop with tighter stabilizer and reduce fabric drag by supporting the jacket weight during stitching.
• Q: What needle should I use to embroider a denim jacket on a Brother THE Dream Machine to prevent needle breaks and deflection?
  A: Use a fresh 90/14 or 100/16 jeans/denim needle, and avoid stitching across bulky seams or rivets.
  • Install a new 90/14 or 100/16 jeans needle before starting (old needles can have burrs that snag denim).
  • Use the machine “Trace” (or manual clearance check) to confirm the needle path will not cross the yoke seam or hardware.
  • Slow the machine down to reduce vibration on heavy denim.
  • Success check: The stitch cycle sounds like a steady denim “thump,” with no sudden loud “CLACK.”
  • If it still fails… Stop immediately and re-check for a hidden seam/rivet under the design area, then replace the needle again.
• Q: How do I use 505 temporary spray adhesive for floating a denim jacket without gunking up a Brother THE Dream Machine?
  A: Spray 505 lightly on the hooped stabilizer away from the embroidery machine, aiming for “Post-it note” tack—never a wet layer.
  • Shake the can well, then spray from about 8–10 inches away to create a mist.
  • Wait about 15 seconds before placing the jacket.
  • Touch-test with your knuckle before mounting fabric.
  • Success check: The stabilizer feels tacky (grips and releases), not wet/gummy.
  • If it still fails… If shifting continues, re-spray lightly and re-smooth; if residue builds, clean hoop surfaces so the stabilizer grip is not reduced.
• Q: How do I align a large back design on a denim jacket using DIME Print & Stick Target Paper with a Brother THE Dream Machine?
  A: Print the design at true size, stick it to the jacket to “audition” placement, align to center marks, then remove the paper before stitching.
  • Measure the jacket back panel and mark the centerline (example shown: 8-inch panel, center at 4 inches).
  • Position the design about 1–2 inches below the neckline/yoke seam for balanced back placement.
  • Use the Brother THE Dream Machine on-screen alignment (camera/scanner/positioning) to match the needle center to the template crosshair.
  • Success check: Before stitching, the virtual/needle center matches the physical crosshair exactly and the hoop is fully latched with an audible click.
  • If it still fails… Re-stick with a fresh sheet (the adhesive usually won’t hold accurately after peeling off denim).
• Q: Why do satin borders look jagged or “sawtoothed” when embroidering denim on a Brother THE Dream Machine, and how do I fix it?
  A: Use a water-soluble topper on denim, because the twill ridges can swallow satin stitches and distort edges.
  • Lay water-soluble topper over the stitch area before starting (no spray needed).
  • Secure only at the far edges if needed (keep tape well away from the needle path).
  • Keep speed controlled (a slower setting helps reduce vibration-related detail loss).
  • Success check: Satin borders sit on top of the fabric with smooth, glossy edges rather than sinking into diagonal ridges.
  • If it still fails… Re-evaluate design density/underlay choices in the file and confirm the jacket is not shifting due to drag.
• Q: What should I do if the embroidery design outline is “off” after floating a denim jacket on a Brother THE Dream Machine?
  A: Treat it as fabric shift/drag—stop and stabilize the foundation before continuing, because denim weight can pull the hoop during stitching.
  • Stop the machine as soon as mis-registration is visible.
  • Re-smooth the jacket from center outward and confirm it is still firmly adhered to the stabilizer.
  • Support sleeves/collar so hanging fabric does not tug the hoop/motor during movement.
  • Success check: Lift the hoop carefully—the jacket should remain stuck to the stabilizer without peeling under its own weight.
  • If it still fails… Re-hoop the cutaway stabilizer tighter (drum-tight), then restart; repeated shifting often means the stabilizer foundation was not rigid enough.
• Q: When should I switch from floating a denim jacket to using a magnetic hoop or upgrading to a multi-needle embroidery machine for denim production?
  A: Use floating for occasional jackets, consider a magnetic hoop when hooping causes hoop burn or wrist strain, and consider a production machine when volume makes floating too slow.
  • Choose floating (cutaway + 505) if the work is occasional and results are stable.
  • Choose a magnetic hoop if hoop burn, seam fighting, or screw-tightening fatigue keeps happening on denim.
  • Choose a production-focused setup when handling 20+ jackets makes adhesive-based floating a bottleneck.
  • Success check: The chosen method reduces re-hooping, shifting, and setup time without increasing rejects.
  • If it still fails… If denim continues to shift even with good prep, move up one level (from floating to magnetic clamping) to reduce reliance on adhesive grip.
