5 Prep Habits That Make a Brother Innov-is VM5200 Embroidery Look “Pro” (Before You Touch a Design File)

The 5-Step "Clean Room" Protocol: Mastering Your Machine Before You Press Start

If you have ever watched a four-hour stitch-out ruin itself in the final ten minutes and thought, "My design file must be corrupt," take a deep breath. In my 20 years of running production floors and training operators, I have found that 90% of "file corruptions" are actually physical setup errors.

Embroidery is not just software; it is physics. It is a high-speed collision between fabric, stabilizer, and thread, occurring 1,000 times per minute. When you view your machine as a precision instrument rather than a magic box, the "mystery" problems disappear.

Based on Martyn Smith’s expert workflow—and expanded with the safety protocols I use to train industrial operators—this guide will help you build a bulletproof setup ritual. We moving beyond "tips" into an engineered workflow that eliminates variables before they become disasters.

1. Friction Management: The Physics of Hoop Stability

Most beginners believe that if a hoop slips, they simply need to tighten the screw harder. This is a dangerous misconception that leads to stripped screws and "hoop burn" (permanent crush marks) on delicate garments.

Real stability comes from friction management, not brute force. Your machine bed—the plastic arm the hoop slides onto—must be a friction-neutral zone, while the hoop itself must provide maximum grip.

If you are fighting registration issues (where outlines don't line up with the fill) or slippage with standard machine embroidery hoops, do not reach for a screwdriver yet. Reach for a cleaning cloth.

The Clean-Bed Protocol: Why Dust is the Enemy of Registration

The Symptom: Your design outlines are shifting slightly to the right, even though the hoop feels tight. The Cause: Micro-layers of lint, spray adhesive overspray, and skin oils on the machine bed are reducing the friction required for the pantograph to move accurately.

The Action Plan

1. Remove the Bobbin Case: Take out the bobbin and the casing.
2. Lint Extraction: Use a small brush (never canned air, which blows dust into the motor) to remove "dust bunnies."
3. Surface De-Greasing: Wipe the entire machine bed and the attachment arm with a microfiber cloth.

Hidden Consumable Alert: Keep a bottle of Isoropyl Alcohol (90%+) nearby. A quick wipe of the machine bed removes invisible adhesive residue that causes drag.

Sensory Check (The "Squeak" Test)

Run your fingertips across the machine bed.

• Fail: It feels slick, oily, or gritty.
• Pass: It feels dry and "squeaky" clean.

When the bed is clean, the hoop moves purely based on the motor's command, not sliding on a layer of grease. If you are doing high-volume heavy items (like hoodies), this friction management is critical.

The Bobbin "Heartbeat": Loading for Tension Consistency

The Symptom: You see white loops popping up on the top of your design, or the thread nest looks like a bird's nest underneath. The Fix: The "Click and Drag" loading method.

Many users drop the bobbin in and cover it up. This is the #1 cause of "false tension" issues. If the thread isn't seated in the tension spring, you have zero tension, regardless of what the screen says.

The "Click and Drag" Procedure

1. Insert Full Bobbin: Ensure the thread unwinds in the correct direction (usually counter-clockwise, forming a "P" shape).
2. The Finger Trap: Place your index finger firmly on the bobbin so it cannot spin.
3. The Floss: With your other hand, pull the thread through the slit and under the tension spring.
4. The Sensory Check: Pull the thread gently. You should feel a slight, smooth resistance—similar to pulling dental floss. If it runs loose, do it again.
5. Replace Cover Plate: Never run without it.

Warning: Mechanical Hazard. Never run the machine "just for a second" without the bobbin cover plate. The hook assembly spins at high velocity; without the plate, the bobbin case can pop out, shatter against the needle, and send shrapnel flying.

Needle Ballistics: Choosing Ammunition, Not Just Sizes

A needle is not just a sharp point; it is a delivery system. Using a standard 75/11 needle on a thick canvas tote is like trying to hammer a nail with a screwdriver—it might work, but it will overlap and bend.

The "Thump" vs. "Pop" Diagnosis

Listen to your machine.

• The "Pop": A clean, crisp sound as the needle penetrates. (Good).
• The "Thump": A dull, heavy thudding sound. (Bad - The needle is struggling to penetrate).

The Needle Selection Matrix

Lifespan Rule: Change your needle every 8 hours of running time, or immediately if you hear a "tick-tick" sound (which means a burr on the tip is snagging fabric).

Safety Protocol: Sharps Disposal. Do not throw old needles in the trash can where they can poke through the bag and injure cleaners. Use an old pill bottle or a dedicated sharps container.

Thread Logistics: The Vertical Advantage

If your thread snaps randomly, look at the path, not the needle. Thread has "memory"—it wants to curl back into the shape of the spool. If it enters the machine twisted, it will shred.

The Symptom: Thread breaks consistently at high speeds or fast color changes. The Fix: Vertical Thread Delivery.

Thread should flow vertically up from the spool before it turns horizontal to enter the machine. This allows the twist to relax.

1. Placement: Place your thread stand directly in front of or to the side of the machine, ensuring a clear line of sight to the first guide.
2. Cone Stability: If using a large cone on a small spindle, it will wobble. A wobbling cone changes tension every time it tips.
3. The fix: Use a cone holder (stabilizing insert) OR flip a "fat" cone upside down if that anchors it better.

Pro Workflow: If you are setting up a permanent workspace, organizes typically search for a hooping station for machine embroidery to keep their hoops, backing, and thread stands in a fixed, ergonomic layout. Consistency in your physical layout leads to consistency in your stitching.

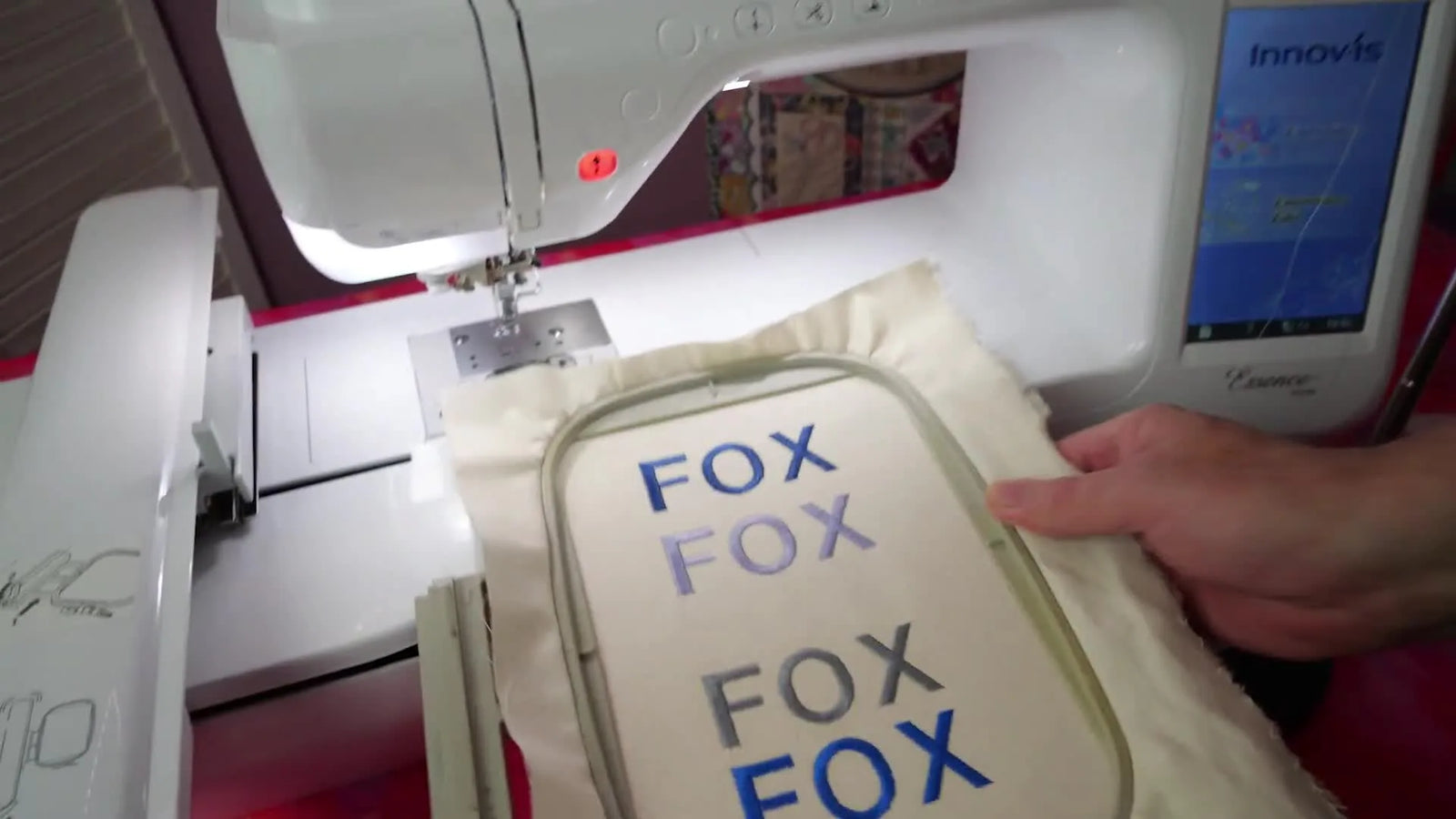

The FOX Test: Calibrating Tension with Data

Do not guess if your tension is right. Prove it. Martyn Smith uses the "FOX" test because the letters contain straight columns, curves, and stops—the three stress points for tension.

The 1/3 Rule (The "H" Test)

1. Stitch the word "FOX" (or a simple Satin Stitch block) about 1 inch high.
2. Flip the hoop over and look at the back.
3. The Gold Standard: You should see a white strip of bobbin thread taking up the middle 1/3 of the column, with the colored top thread taking up the outer 1/3 on each side.

• Bobbin too wide ( > 50%): Top tension is too tight (pulling top thread down) OR bobbin is too loose.
• Bobbin too narrow (thin line): Top tension is too loose OR bobbin is way too tight.

For modern computerized units, like a brother embroidery machine, run this test every time you switch from polyester thread to metallic thread. Metallics require much looser top tension to prevent stripping.

The Z-Axis: Embroidery Foot Height (The "Business Card" Check)

This is the setting 80% of beginners ignore. The presser foot in embroidery does not hold the fabric down constantly like a sewing machine; it hovers.

The Symptom (Flagging): The fabric bounces up and down with the needle (like a trampoline). This causes birdnesting and loud banging noises. The Cause: The foot height is set too high for the fabric.

The Adjustment Procedure

1. Lower the needle/foot manually (using the handwheel or screen command).
2. The Sensory Check: You should be able to slide a standard business card between the foot and the fabric with slight friction.
   • Too High: Card slides freely without touching. (Risk: Flagging/Bouncing).
   • Too Low: Card won't fit or foot leaves drag marks on fabric. (Risk: Drag/Distortion).

If you are working with thick, puffy foam or quilting, you must raise this height. If working with thin organza, lower it.

When working with difficult heights (like thick jacket seams), standard plastic hoops often fail to hold the fabric flat without leaving marks. This is the scenario where upgrading to an embroidery magnetic hoop often solves the problem instantly, as the magnets automatically adjust to the fabric thickness without crushing it.

The Stabilizer Decision Matrix: Avoiding the "Bulletproof Vest" Effect

Beginners often use too much stabilizer ("If one layer is good, three is better!"), resulting in stiff, uncomfortable patches (the "bulletproof vest" effect). Use this decision tree to pick the right stability, not just more stability.

The "Will It Stretch?" Test

Pull your fabric diagonally.

1. Does it stretch? (T-shirts, Polos, Knits)
   • Decision: YOU MUST USE CUTAWAY.
   • Why? Knits are fluid. Tearaway will disintegrate after 500 stitches, and the fabric will distort. Cutaway provides a permanent skeleton.
2. Is it stable? (Denim, Canvas, Towels)
   • Decision: USE TEARAWAY.
   • Why? The fabric supports itself; the stabilizer is just temporary scaffolding for the stitch formation.
3. Is it "fluffy" or textured? (Towels, Velvet, Fleece)
   • Decision: ADD WATER SOLUBLE TOPPING.
   • Why? Prevents stitches from sinking into the pile and disappearing.


The Pre-Flight Checklist: Your Routine for Success

Print this out and tape it to your machine. Perform these checks before you press the green button.

Prep Phase (The Environment)

• Bed Check: Machine bed wiped clean? (Pass/Fail)
• Bobbin Check: Area free of lint? (Pass/Fail)
• Bobbin Thread: Threaded through the tension spring? (Did you feel the drag?)
• Cover Plate: Instated and clicked shut?

Setup Phase (The Project)

• Needle: Is it the right type for this fabric? (e.g., Ballpoint for knits).
• Needle Health: Has it been changed in the last 8 hours?
• Thread Path: Is the cone stable? Is the thread flowing vertically?
• Foot Height: Did you do the business card test?

Operation Phase (The Test)

• FOX Test: Did you run a test stitch on scrap fabric?
• 1/3 Rule: Does the back showing 1/3 bobbin thread?
• Clearance: Is the hoop clear of walls/screen/thread stand?


Structured Troubleshooting: From Symptom to Cure

Stop random guessing. Follow this "Low Cost to High Cost" logic path.

The Commercial Upgrade Path: When to Buy Better Tools

As you move from "hobbyist" to "semi-pro," your time becomes more expensive than your gear. Here is how to diagnose when you have outgrown your current setup.

Pain Point 1: "Hooping takes too long and my wrists hurt."

• The Diagnosis: Traditional screw-hoops are ergonomic nightmares for production runs.
• The Upgrade: Magnetic Hoops.
• The Logic: They snap on instantly, self-adjust to thickness, and eliminate "hoop burn." For Brother users, searching for a specific brother 5x7 magnetic hoop fits perfectly into standard production workflows.

Warning: Magnetic Field Safety. Commercial magnetic hoops use industrial-grade neodymium magnets.
1. Pinch Hazard: They can snap together with 50+ lbs of force. Keep fingers clear.
2. Medical: Keep away from pacemakers.
3. Tech: Keep away from phones and credit cards.

Pain Point 2: "I can't swap thread colors fast enough."

• The Diagnosis: Single-needle machines are great for learning, but bad for profit. If a design has 12 colors, you are the bottleneck.
• The Upgrade: SEWTECH Multi-Needle Machines.
• The Logic: If you are producing 50+ shirts a week, a multi-needle machine that auto-swaps colors allows you to walk away and do other tasks (like hooping the next shirt) while it runs.

Pain Point 3: "My large designs are puckering."

• The Diagnosis: Your stabilizer isn't holding up, or your hooping is inconsistent.
• The Upgrade: Hooping Station & Commercial Stabilizers.
• The Logic: A station ensures every shirt is hooped in the exact same spot, with the exact same tension, every single time.


Conclusion: The Machine Respects Consistency

Embroidery is a discipline of variables. Your machine cannot see; it cannot feel. It relies entirely on you to set the parameters. By keeping the bed clean, the path clear, and the needle fresh, you remove the "chaos" from the equation.

Start with these 5 steps. Master the sensory checks—the click of the bobbin, the squeak of the clean bed, the pop of the needle. Once your hands learn these feelings, you won't just be an operator; you'll be a craftsman.

FAQ

• Q: Why do machine embroidery outlines shift to the right even when standard screw embroidery hoops feel tight?
  A: Clean the machine bed and hoop attachment arm first—micro-layers of lint, adhesive overspray, and skin oils commonly cause drag and registration drift.
  • Remove the bobbin and bobbin case, then brush out lint (avoid canned air because it can push dust into the motor area).
  • Wipe the entire machine bed and the attachment arm with a microfiber cloth; keep 90%+ isopropyl alcohol nearby for invisible adhesive residue.
  • Re-hoop and run a small test to confirm the fabric is stable before committing to a long stitch-out.
  • Success check: The machine bed feels dry and “squeaky” under fingertips (not slick, oily, or gritty).
  • If it still fails: Re-check stabilizer choice (cutaway vs tearaway) and confirm the hoop is not binding against any walls/screen/thread stand during sewing.
• Q: How do you load an embroidery bobbin correctly to prevent birdnesting under the needle on a computerized embroidery machine?
  A: Use the “click and drag” method so the bobbin thread is seated under the tension spring—most “mystery” nesting starts with a bobbin that is not actually tensioned.
  • Insert the bobbin in the correct unwind direction (commonly counter-clockwise, forming a “P” shape).
  • Hold the bobbin down with an index finger so it cannot spin, then pull the thread through the slit and under the tension spring.
  • Replace the cover plate and never run the machine without it.
  • Success check: The thread pulls with slight, smooth resistance (like dental floss), not freely loose.
  • If it still fails: Stop immediately, cut threads under the plate, then re-thread the entire top thread path from scratch.
• Q: Is it safe to run an embroidery machine for “just a second” without the bobbin cover plate installed?
  A: No—do not run an embroidery machine without the bobbin cover plate because the hook assembly spins at high speed and the bobbin case can pop out and shatter.
  • Power down/stop the machine before opening the bobbin area if anything sounds wrong.
  • Install the cover plate fully and confirm it clicks shut before stitching.
  • Keep fingers and loose items away from the hook area during operation.
  • Success check: The cover plate is fully seated and locked, and the machine runs without rattling or unusual vibration.
  • If it still fails: Inspect for trapped thread in the hook area and re-load the bobbin using the “click and drag” method.
• Q: How can the “business card test” set embroidery presser foot height to stop fabric flagging and bobbin birdnesting?
  A: Adjust embroidery foot height so a business card slides under the foot with slight friction—too high causes flagging (bouncing) and nesting.
  • Lower the needle/foot manually (handwheel or screen command) to the working position.
  • Adjust the foot height until a standard business card fits with light drag (not free-sliding, not jammed).
  • Re-test on scrap fabric before running the full design.
  • Success check: The fabric does not bounce like a trampoline and the machine sound is smoother (less loud banging).
  • If it still fails: Confirm hooping is holding the fabric flat; on difficult thickness changes (like seams), a magnetic hoop may reduce distortion without crushing.
• Q: How do you choose the correct embroidery stabilizer to avoid puckering or the “bulletproof vest” stiffness on garments?
  A: Match stabilizer to fabric behavior—use cutaway for stretch, tearaway for stable woven items, and add water-soluble topping for textured surfaces.
  • Pull the fabric diagonally to test stretch before hooping.
  • Use cutaway for knits (T-shirts, polos) so the design has a permanent “skeleton.”
  • Use tearaway for stable fabrics (denim, canvas) as temporary scaffolding.
  • Success check: The finished area stays smooth without excessive stiffness, and stitches do not sink into towel/fleece pile when topping is used.
  • If it still fails: Re-check hooping consistency and run a test sew-out on the same fabric + stabilizer stack.
• Q: How does the FOX test confirm correct embroidery tension using the “1/3 rule” on the back of the stitch-out?
  A: Stitch “FOX” (or a satin block) and verify the bobbin thread shows as a clean strip in the middle 1/3—this is a fast, data-based tension check.
  • Stitch a 1-inch-tall “FOX” on scrap with the same fabric, stabilizer, and thread planned for production.
  • Flip the hoop and inspect the columns on the back.
  • Adjust based on what you see: too-wide bobbin showing suggests top tension is too tight or bobbin is too loose; too-thin bobbin line suggests top tension is too loose or bobbin is too tight.
  • Success check: Bobbin thread occupies the middle 1/3, with top thread taking the outer 1/3 on both sides.
  • If it still fails: Repeat the test after any major thread change (poly to metallic often needs looser top tension); follow the machine manual for exact adjustment points.
• Q: When do magnetic embroidery hoops make more sense than standard screw hoops for hoop burn, wrist fatigue, and inconsistent hooping?
  A: Upgrade in levels: first fix technique and setup, then consider magnetic hoops for faster, more consistent clamping—especially when standard hoops cause hoop burn or slow production.
  • Level 1 (technique): Clean the machine bed, verify foot height with the business card test, and confirm stabilizer choice before blaming the hoop.
  • Level 2 (tool): Switch to a magnetic hoop when screw hoops leave crush marks on delicate garments or when thickness changes (seams/hoodies) keep slipping or distorting.
  • Level 3 (capacity): If single-needle color changes make you the bottleneck for weekly volume, consider a multi-needle machine to reduce manual stops.
  • Success check: Hooping time drops, registration stays consistent across repeats, and fabric shows fewer clamp marks after unhooping.
  • If it still fails: Re-run a FOX tension test and confirm the hoop clears all obstacles during sewing (no collision drag).
