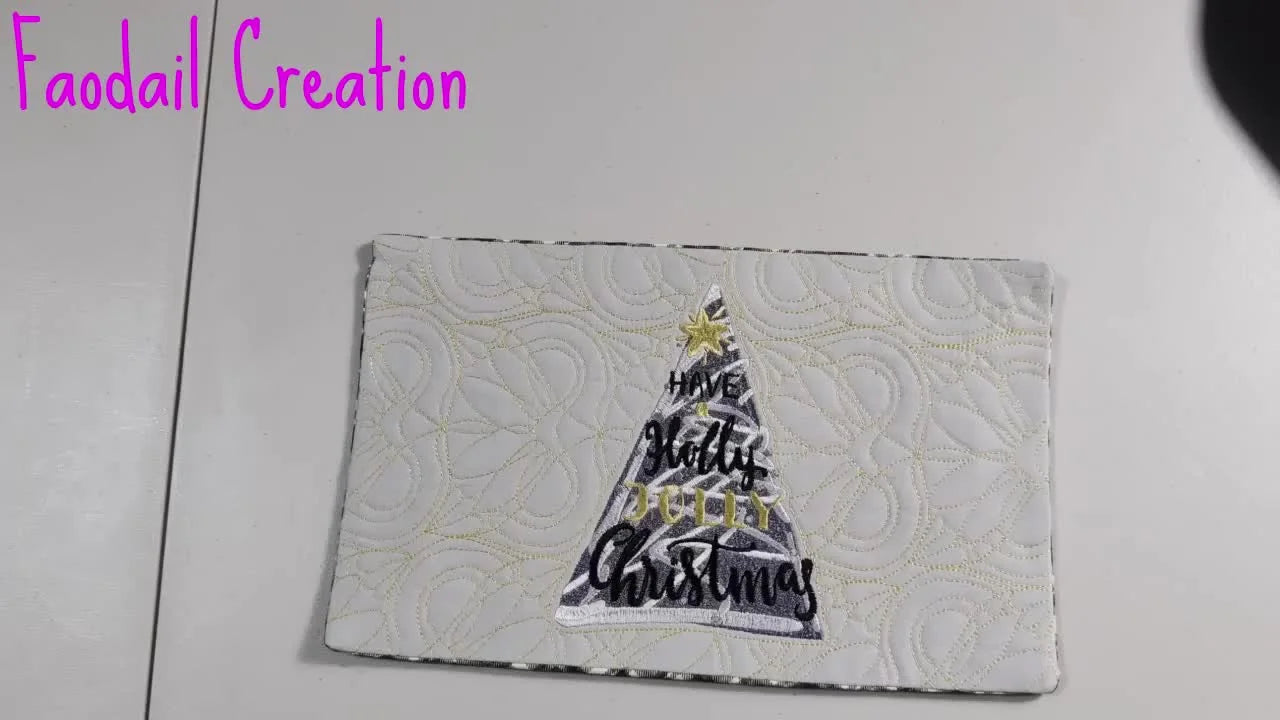

Altair 2 ITH Christmas Placemat, Done the “No-Software” Way: IQ Designer Shapes, Smart Stitch Sequencing, and a Clean Envelope Back

If you have ever watched an In-The-Hoop (ITH) project stitch beautifully for 45 minutes, only to have it ruined in the final seconds because the presser foot caught a fold in the backing fabric, you know the specific kind of heartbreak unique to machine embroidery. It is not just a wasted 50 cents of material; it is the frustration of mechanics defeating creativity.

This Baby Lock Altair 2 project is more than just a seasonal placemat. It is a masterclass in process control. It teaches the three skills that separate "hopeful hobbyists" from production-ready experts:

1. IQ Designer Architecture: Building geometry inside the machine so you are not dependent on buying third-party files.
2. Buffer Logic: Stacking files in the embroidery memory in a sequence that respects the physics of fabric movement.
3. The "Envelope" Maneuver: Managing the physical bulk of backing fabric without causing a "bird’s nest" or a collision.


Calm the Panic First: Why an Altair 2 ITH Placemat Feels Hard (and Why It’s Actually Predictable)

An ITH placemat looks intimidating to a novice because you are asking a single hoop to perform three contradictory tasks simultaneously: it must hold the top layers under high tension for a dense fill, maintain perfect alignment across four different file loads, and then accommodate loose, bulky backing fabric at the very end.

The panic comes from the unknown variables. The cure is a standardized workflow.

On the Baby Lock Altair 2, we treat this not as "art," but as a controlled manufacturing sequence: Baste (stabilize), Fill (texture), Design (focal point), Close (construction). When you understand the "Why" behind each step—specifically how the machine interacts with the grain of your cotton—the anxiety disappears.

One user comment under the source video highlighted a common industry gap: "There’s a shortage of clear Altair tutorials, so people end up guessing." In embroidery, guessing leads to needle breaks. We will remove the guesswork by focusing on checkpoints, sensory feedback, and expected outcomes.

The “Hidden” Prep That Saves the Whole Placemat: Tear-Away, Batting, Center Marks, and Thread Planning

Before you even touch the screen of the Altair 2, you must win the physical battle with your materials. A digital design is only as good as the physical substrate it sits on.

Materials Breakdown (The Video vs. Reality)

• Stabilizer: Heavy-weight Tear-away. Expert Note: Avoid "waffle" style tear-away; look for a crisp, paper-like feel that tears cleanly in multiple directions.
• Batting: Low-loft cotton or polyester batting. Why? High-loft batting creates drag under the foot.
• Top Fabric: High-quality quilting cotton.
• Backing: Two cotton pieces, pre-hemmed (we will cover the overlap math later).
• Marking: Frixion (heat-erasable) pen.
• Temporary Adhesion: Painter's Tape (Blue or Green) is non-negotiable for the envelope step.
• Hidden Consumable: A fresh 75/11 Embroidery Needle. Do not use a dull needle for dense background fills; you need a sharp point to penetrate the batting without pushing it down into the bobbin case.

The "Crisp Fold" Centering Method

We need to find the absolute geometric center of the fabric.

1. Fold the placemat top in half (lengthwise). Press the fold with your finger to create a sharp crease.
2. Fold again (widthwise).
3. Mark the intersection point with your Frixion pen.

The host notes the design will stitch over this dot. However, this dot is your "Sanity Anchor." Later, when you are staring at a screen full of rectangles, glancing at your hoop and seeing that dot perfectly centered provides the psychological assurance that you are still on track.

Prep Checklist (Pre-Flight Safety Check)

• Stabilizer Check: Is the tear-away large enough to be caught by the hoop on all four sides with 1-inch clearance?
• Margin Check: Is the batting and top fabric cut at least 2 inches wider than the final design?
• Needle Check: Is the needle fresh? Run your fingernail down the tip—if it catches, replace it immediately.
• Bobbin Load: Wind 2-3 bobbins with 60wt or 90wt bobbin thread. Large fills consume massive amounts of thread; running out without a backup ready breaks your flow.
• Tape Deck: Tear off 4-5 strips of painter's tape and stick them to the edge of your table now, so you aren't fighting the roll with one hand later.

Build the Placemat Foundation in IQ Designer: The 14.00 x 9.17 Rectangle That Maximizes the Hoop

We begin by defining the boundaries. On the Altair 2, enter IQ Designer. We are creating a "Basting/Placement" line.

Base Rectangle Parameters

• Shape: Rectangle (Sharp corners).
• Size: 14.00 x 9.17 inches.
  • Why these numbers? This pushes the limits of the large hoop while leaving a safe margin for the presser foot travel.
• Line Type: Single Run (Running Stitch).
• Color: Red (Visual contrast against white batting).

The "Phantom Click" Pitfall: A critical UI detail often missed by beginners: Selecting "Red" and "Running Stitch" in the menu does not apply it to the shape. You must select the Bucket Tool (Pour) and physically tap the shape on the screen. If you don't hear the confirmation beep or see the line change color, the machine is still holding the default settings (usually a Satin Stitch, which would be disastrous here).

Expected Outcome: You see a thin red outline on your grid. Save Action: Save this to IQ Designer memory AND the Embroidery Pocket.

Import the Built-In “Holly Jolly Christmas” Tree, Rotate 90°, and Create a Stamp Boundary You Can Fill Around

Now, we import the focal point. We are using the internal "Holly Jolly Christmas" tree, but the technique applies to any dense design.

Tree Configuration

• Edit: Rotate 90 degrees to fit the landscape orientation of the placemat.
• Action: Save to memory.

The "Stamp" Function (The Void Maker)

In IQ Designer, use the Stamp Key (Flower Icon). This creates an outline based on the exact shape of the tree.

• Distance/Offset: Increase this setting slightly (0.04" - 0.08").
  • Why? You need a "No Fly Zone" or boundary fence around the tree so your background fill doesn't crash into the detailed pine needles.
• Stitch Setting: Set this boundary line to "No Sew" or leave it as a reference line; its primary job is to tell the bucket fill where to stop.

Expected Outcome: A black outline appearing slightly offset, hovering around the tree design like a forcefield.

Make the Background Fill Look Quilted (Without External Software): The 13.5 x 9.0 Inner Rectangle + Bucket Fill

This step creates the professional "quilted" texture. We need layers of geometry.

1. Create Rectangle #2: Size this to 13.50 x 9.00 inches.
   • Physics Note: This is smaller than the base rectangle (14.00 x 9.17). This gap ensures your raw edges are enclosed in the final turn.
2. Select Fill: Choose a generic stipple or decorative fill.
   • Density Warning: For standard cotton/batting, keep the density at default (100%). If you go higher (e.g., 120%), you risk bulletproof stiffness. If you go lower (e.g., 60%), the batting may loft through.
3. Color: Purple (for screen visibility).
4. The Target Zone: Use the Bucket Tool and tap in the space inside the 13.50 rectangle BUT outside the tree stamp.

Expected Outcome: The screen fills with purple texture, neatly stopping at the tree's edge and the rectangle's border. The tree itself remains empty.

Save Action: Save this fill element to memory.

The Closure Rectangle That Makes the Envelope Back Work: 13.00 x 8.00 Running Stitch (Pink)

This is the structural seam. It stitches the backing fabric to the front.

• Shape: Rectangle.
• Size: 13.00 x 8.00 inches.
  • Why so small? This rectangle acts as the final seam. It must be smaller than the Background Fill (13.5 x 9.0) to ensure that no raw batting edges are visible when you turn the placemat right-side out. It provides your uniform seam allowance.
• Line Type: Triple Run (Bean Stitch) or Standard Run. A Triple Run is stronger for items that will be washed.
• Color: Pink.

Save Action: Save to memory.

Setup Checklist (The "Are We Ready?" Gate)

• Digital Assets: Confirm you have 4 files in memory: (1) Base Basting, (2) Background Fill, (3) Tree Design, (4) Closure Rectangle.
• Size Hierarchy: Do the sizes make sense? 14.00 (Base) > 13.50 (Fill) > 13.00 (Closure). If the Closure is larger than the Fill, you will have white batting showing on your finished edges.
• Visual Check: On the preview screen, is the Closure Rectangle completely inside the Fill area?
• Needle: Verify the 75/11 needle is installed and tightened.

Stitch Sequencing on the Baby Lock Altair 2: Load the Files in the Only Order That Makes Sense

Embroidery is a physical stack. We must load files into the embroidery buffer in an order that builds stability.

Correct Sequence:

1. Basting Stitch (Base Rectangle): Locks stabilizer + batting + fabric. Prevents shifting.
2. Fill Stitch (Background): Compresses the batting before the detailed design.
3. Design (Christmas Tree): Stitches on top of the stabilized, compressed sandwich.
4. Closure Rectangle (Pink): The final seal.

Why this order? If you stitch the Tree first, then the Fill, the fabric will push away from the tree, creating "puckering halos" or registration gaps. Always compress the background first to stabilize the field.

Hooping Without Wrinkles: What “Even Tension” Really Means (and When Magnetic Hoops Are the Upgrade)

The video demonstrates manual hooping: pushing the inner ring into the outer ring.

The Sensory Standard: Do not aim for "tight as a drum." That is a myth that warps bias grain. Aim for "taunt skin." gently press your finger on the hooped fabric. It should deflect slightly but bounce back instantly. There should be no "hills and valleys."

The Pain Point (Hoop Burn): Standard hoops rely on friction and brute force to hold fabric. If you are working with delicate cottons or bulky batting, you generally have to tighten the screw aggressively. This causes "hoop burn" (crushed fibers) and can distort the rectangular shape of your placemat into a subtle hourglass.

If hooping is the bottleneck that makes you dread starting a project, or if you struggle with wrist pain from tightening screws, this is the trigger point to investigate magnetic hoops for babylock embroidery machines.

The Logic for Upgrading:

• Physics: Magnetic hoops use vertical clamping force rather than horizontal friction. They do not distort the fabric grain.
• Volume: If you are making a set of 8 placemats, the time saved by snapping magnets vs. wrestling screws adds up to hours.

Warning: Mechanical Safety. Keep fingers strictly on the outside rim of the hoop when latching standard hoops. The snap-down action can pinch skin severely.

Use the IQ Monitoring App Like a Pro: Stitch Counts, Thread Stops, and the “Don’t Touch Anything Yet” Rule

The host utilizes the IQ Monitoring app to track the 15,000+ stitch count.

The Auditory Anchor: Learn the sound of your machine. A happy Altair 2 makes a rhythmic, sewing-machine hum.

• If you hear a "Slap-Slap-Slap": The thread is likely whipping out of the tension disc.
• If you hear a "Grinding Thump": You have a bird's nest forming in the bobbin case.

Crucial Operation Rule: When the bobbin runs out (and it will during the fill), DO NOT UNHOOP. The registration is sacred. Any movement of the fabric within the hoop destroys the project.

Mid-Fill Bobbin Runout on an Altair 2: The Clean Recovery That Preserves Placement

Symptom: The machine stops, and the "Empty Bobbin" icon flashes. Cause: High-density fill consumed the supply.

The Surgical Fix:

1. Cut: Use the automatic cutter button.
2. Release: Release the hoop attachment lever only. Do not touch the fabric or the hoop latch.
3. Slide: Gently slide the hoop off the embroidery arm.
4. Swap: Replace the bobbin. Ensure the bobbin tail is cut to the correct length (usually built-in cutter on the case).
5. Return: Slide the hoop back on. Listen for the distinct "Click" of the embroidery arm locking.
6. Backtrack: Use the +/- stitch key to back up about 10-15 stitches so the new thread over-stitches the old tail, locking it in.


Accidentally Left a “Black Line” in the Design? Skip the Color Block Instead of Panicking

The host encounters a common error: A "Stamp outline" line that wasn't deleted or set to "No Sew."

Symptom: The machine brings up a color change for a black outline you don't want. Fix: Do not restart. Use the "Spool+" button on the screen to skip that entire color block. The machine will jump to the next step (the Closure Rectangle) without dropping a single needle penetration.

The Envelope Back That Actually Works: Hem Two Pieces, Overlap 2 Inches, and Tape Like You Mean It

We have reached the "Danger Zone." We physically add the backing fabric to the underside of the hoop.

The Prep

Prepare two pieces of backing fabric. Fold one edge over by 1/4 inch, press, fold again, and stitch a straight hem. These are your "clean edges."

The Deployment

1. Remove hoop from machine (fabric stays in hoop!).
2. Flip hoop upside down on a clean table.
3. Place Backing Panel 1 Right Side Down (facing the table). Tape the outer edges to the hoop frame/stabilizer.
4. Place Backing Panel 2 Right Side Down, creating a 2-inch overlap in the center.

The Critical Action: You must construct a "Tape Ramp." Use your painter's tape to secure the entire length of the raw edges. But more importantly, tape over the "step" where the fabrics overlap.

If the presser foot is moving from a single layer to the double-layer overlap, the toe of the foot can catch the lip of the fabric, flipping it over and stitching it into a ball. Tape provides a smooth, slippery surface for the foot to glide over.

Warning: Magnet Safety. If you opt for magnetic frames, treat them with extreme caution. The magnets used in high-end hoops (like those from SEWTECH) are industrial strength. They can pinch fingers fiercely and can damage mechanical watches or pacemakers if brought too close. Keep a "safe zone" of 6 inches.

For high-volume envelope work, baby lock magnetic embroidery hoops are significantly safer for the project because they hold thick layers (Stabilizer + Batting + Front + Backing + Backing Overlap) vertically without popping open, which is a common failure mode of plastic hoops under stress.

When the Foot Catches the Backing Seam: The Double-Tape Fix That Prevents a Huge Mess

Symptom: You hear a ripping sound or see the backing fabric dragging under the hoop. Cause: The foot caught the overlap seam.

Emergency Protocol:

1. STOP: Hit the big Start/Stop button immediately.
2. Assess: Don't pull. Snip the thread if necessary.
3. Reinforce: Apply more tape. The host demonstrates applying a second layer of tape perpendicular to the stress point.
4. Resume: Back up 5 stitches and continue slow.


Trim, Turn, Press: The Finishing Moves That Make It Look Store-Bought

Once the Pink Closure Rectangle is stitched:

1. Unhoop: Now you can finally pop the latch.
2. Trim: Cut around the entire pink rectangle, leaving a 1/4 inch seam allowance. Clip the corners at a 45-degree angle (don't cut the stitch!) to reduce bulk.
3. Turn: Turn the project right-side out through the envelope slot.
4. Poke: Use a point turner or a chopstick to gently push the corners out square.
5. Press: Steam press firmly. The batting creates a lush, quilted look.
6. Close: (Optional) Hand stitch or fuse tape the envelope slot closed, or leave it open for easy washing/pillow insertion.


Operation Checklist (The "Don't Ruin It" List)

• Observation: Did you watch the first 100 stitches of the Basting run? (If it fails here, you save the fabric).
• Audio Monitor: Is the machine sound consistent during the fill?
• Bobbin Protocol: Did you change the bobbin before it ran out (pro move) or immediately upon alert?
• Under-Hoop Check: Before the final closure stitch, did you check underneath to ensure the backing tape hasn't curled up?
• Clearance: Is the table clear behind the machine? (Don't let the moving hoop hit a wall or coffee cup).

A Quick Stabilizer Decision Tree for ITH Placemats

Not all placemats are created equal. Use this logic to choose your consumables.

Variable: Top Fabric Type

• Quilting Cotton (Stable):
  • Recipe: Tears-away Stabilizer + Cotton Batting.
  • Result: Firm, flat finish.
• Linen (Texture/Loose Weave):
  • Recipe: Cut-away Mesh Stabilizer (fusible preferred).
  • Reason: Linen distorts easily; Tear-away is too weak.
• Velvet/Minky (Nap):
  • Recipe: Tear-away underneath + Water Soluble Topping on top.
  • Reason: Prevents stitches from sinking into the fluff.

Variable: Hooping Frequency

• One-off Project: Standard plastic hoop is fine.
• Production Run (5+ Items): The friction of re-hooping repeatedly causes hand fatigue and inconsistent tension. This is where hooping for embroidery machine efficiency matters more than stitch settings.

The Upgrade Path (Without the Hard Sell): When Tools Actually Pay You Back

The method shown in this video works perfectly for hobbyists making a single gift. However, if you find yourself creating sets for craft fairs or taking commissions, your bottleneck will shift from "digitizing" to "mechanical handling."

The Pain: Wrist strain and "Hoop Burn" rings that require hours of ironing to remove. The Solution: magnetic hooping station. These systems hold the hoop while allowing you to align fabric using magnetic flaps—ensuring every placemat in a set is identical.

The Pain: Re-hooping thick layers (Batting + Canvas) causing the outer ring to pop off. The Solution: High-torque magnetic embroidery hoops. By clamping vertically, they accommodate variable thickness without losing grip.

If you decide to upgrade, precision matters. Always verify your machine's specific attachment width against a compatibility chart for babylock magnetic hoop sizes. A gap of 2mm means the hoop won't lock into the carriage.

For serious production, looking into systems like the hoopmaster hooping station can create a standardized workflow where "loading" takes 30 seconds instead of 3 minutes.

Final Word: The Baby Lock Altair 2 is a powerhouse, but it obeys the laws of physics. Respect the stitch sequence, tape your backing aggressively, and listen to the sound of your machine. Stitching is 10% magic and 90% engineering.

FAQ

• Q: What materials and “hidden consumables” are required to stitch a Baby Lock Altair 2 ITH placemat without presser-foot collisions?
  A: Use heavy-weight crisp tear-away, low-loft batting, quilting cotton, painter’s tape, and a fresh 75/11 embroidery needle to keep layers stable and clearance predictable.
  • Replace: Install a new 75/11 embroidery needle before dense background fills.
  • Avoid: Skip “waffle” tear-away; choose a paper-like tear-away that tears cleanly in multiple directions.
  • Prep: Pre-tear 4–5 strips of painter’s tape and park them on the table edge for the envelope step.
  • Success check: The backing stays flat and taped down, and the presser foot glides over overlaps without catching or dragging.
  • If it still fails: Re-check backing bulk (high-loft batting can add drag) and add more tape to create a smoother ramp over the overlap.
• Q: How do you judge correct hooping tension on a Baby Lock Altair 2 to prevent wrinkles and “hoop burn” on ITH placemats?
  A: Aim for “taut skin,” not “tight as a drum,” to keep even tension without distorting fabric grain.
  • Press: Gently press a fingertip on the hooped fabric; allow slight deflection and fast rebound.
  • Inspect: Look for a flat surface with no “hills and valleys” across the hoop opening.
  • Reduce: If hoop burn appears, back off aggressive screw tightening and focus on even tension instead of maximum tension.
  • Success check: The hooped fabric looks uniformly smooth and the rectangle stitches stay square (no subtle hourglass distortion).
  • If it still fails: Consider upgrading to a magnetic hoop for vertical clamping that generally reduces distortion and hoop marks.
• Q: What is the correct Baby Lock Altair 2 file stitch sequence for an ITH placemat to prevent puckering halos and registration gaps?
  A: Load and stitch in this order: Base Basting rectangle → Background Fill → Tree design → Closure rectangle.
  • Confirm: Keep four separate files ready (Base Basting, Background Fill, Tree, Closure Rectangle).
  • Stitch: Run basting first to lock stabilizer + batting + top fabric before any dense work.
  • Compress: Stitch the fill before the focal design to compress batting and stabilize the field.
  • Success check: The fill texture meets the design cleanly without gaps, and the design area does not show “push-away” or halos.
  • If it still fails: Re-check the size hierarchy (Base > Fill > Closure) so the closure stays fully inside the fill area.
• Q: How do you recover from a mid-fill “Empty Bobbin” stop on a Baby Lock Altair 2 without ruining placement on an ITH placemat?
  A: Do not unhoop; remove only the hoop from the arm, swap the bobbin, then back up 10–15 stitches to lock the new thread in.
  • Cut: Press the automatic cutter button.
  • Release: Release the hoop attachment lever only; keep fabric and hoop latch untouched.
  • Swap: Replace the bobbin, trim the tail as your bobbin case cutter allows, then reattach the hoop until the arm “clicks.”
  • Backtrack: Use the +/- stitch keys to reverse about 10–15 stitches before resuming.
  • Success check: The new bobbin thread overlaps the previous stitches cleanly with no visible gap or shift in the fill pattern.
  • If it still fails: Stop and verify the hoop fully locked back into the embroidery arm before stitching forward again.
• Q: How do you skip an unwanted color block (such as a stamped outline) on a Baby Lock Altair 2 without restarting an ITH placemat?
  A: Use the on-screen “Spool+” control to skip the entire unwanted color change block.
  • Identify: Confirm the machine is prompting a color change for the outline you did not intend to sew.
  • Skip: Tap “Spool+” to advance past that block to the next step (for example, the closure rectangle).
  • Continue: Resume stitching without unhooping.
  • Success check: The machine advances to the next intended step without placing any stitches from the unwanted outline.
  • If it still fails: Pause and review the saved elements to ensure reference outlines are set to “No Sew” (or removed) before saving the final sequence.
• Q: How do you prevent the presser foot from catching the envelope backing overlap on a Baby Lock Altair 2 ITH placemat?
  A: Build a smooth “tape ramp” over the overlap so the presser foot cannot grab the fabric lip during the closure stitch.
  • Hem: Pre-hem the two backing panels to create clean edges.
  • Overlap: Place panels right-side down with a 2-inch overlap in the center, then tape outer edges firmly.
  • Ramp: Tape across the overlap “step” so the foot glides from single-layer to double-layer smoothly.
  • Success check: No ripping sound, no backing drag, and the closure rectangle stitches without shifting the backing.
  • If it still fails: Stop immediately, add a second layer of tape perpendicular at the stress point, back up 5 stitches, and continue slowly.
• Q: What safety rules should be followed when hooping and using magnetic embroidery hoops for thick ITH placemat layers on a Baby Lock Altair 2?
  A: Keep hands on safe zones to avoid pinch injuries—standard hoops can snap down, and magnetic hoops can clamp with industrial force.
  • Position: Keep fingers strictly on the outside rim when latching a standard hoop to avoid pinch points.
  • Control: Handle magnetic hoops slowly and deliberately; magnets can pinch hard and suddenly.
  • Distance: Keep magnetic hoops away from mechanical watches and pacemakers; maintain a practical safe zone of about 6 inches.
  • Success check: The hoop is latched/clamped without finger contact near the closing edge, and the project remains securely held without popping or shifting.
  • If it still fails: Pause and reassess handling technique before continuing—do not “muscle through” a misaligned hoop or magnet clamp.
