Video reference: “Applique on a Sweater with a Ricoma EM-1010” by Kayla's Custom Kreations
A neat appliqué lights up a plain sweater like nothing else—if you prep and sequence your steps with care. This project walks you through a clean, repeatable workflow tailored to the Ricoma EM-1010 and knit garments, so your stitch lines are crisp, edges are sealed, and the inside stays soft.
What you’ll learn
- How to prep appliqué fabrics with Heat n Bond for fray-free edges
- How to hoop a sweater with poly mesh stabilizer and align a printout precisely
- How to program frame-out stops for stress-free fabric placement and trimming
- How to trim close with curved scissors (including inner cutouts) and finish with a neat zigzag
Primer: What This Appliqué Method Delivers An appliqué combines a base garment (here, a black sweater) with cut fabric shapes (cheetah print letters and a glitter white lightning bolt) secured by embroidery runs. The sequence demonstrated here uses placement stitches, tap-down stitches, trimming, and a final zigzag that cleans the edges and secures everything down.
Where it shines
- Knit garments where a soft, wearable interior matters
- Mixed-fabric designs with more than one appliqué layer
- Decorative edges that aren’t satin but still need neat coverage
Constraints and prerequisites
- You’ll need a design that includes placement and tap-down paths.
- A true-to-size printout helps with layout. The design here was printed at exact scale for placement checks.
- Poly mesh stabilizer keeps the sweater supported without irritation; the creator notes their washed sweaters remain soft and stitches hold up.
From the comments: A reader asked about overall machine experience and tension. The creator says they love their Ricomas; tension can be tricky sometimes but worth learning. Use test swatches to dial in your own machine before committing to the garment.
Pro tip: If you typically use magnetic hoops, note the creator’s observation—on their setup, the frame-out function behaved best with the standard hoop that came with the machine. embroidery magnetic hoops
Prep: Tools, Materials, and Files Tools
- Ricoma EM-1010 multi-needle embroidery machine
- Heat press (for Heat n Bond)
- Fabric scissors and curved embroidery/appliqué scissors
- X-Acto knife (optional for inner cuts)
- Tape measure
- Packing tape
- Spray adhesive
Materials
- Black sweater
- Poly mesh stabilizer
- Cheetah print fabric (fat quarter)
- Glitter white fabric (fat quarter)
- Heat n Bond (Light)
- Bobbin and embroidery thread (white used throughout)
Files and references
- Your appliqué design (two fabric layers used here)
- True-to-size printout of the design for placement
- Run sheet (if provided) to know where to add stops
Why these choices
- Heat n Bond Light on the appliqué fabric seals cut edges and helps prevent fraying under a zigzag outline.
- Poly mesh stabilizer supports knits and remains comfortable after washes.
Watch out: Cut Heat n Bond slightly smaller than your fabric pieces so adhesive doesn’t transfer onto the press platen.
Quick check
- Fabric pieces are slightly larger than their design areas.
- Printout matches the design’s stitch size.
- Poly mesh is on hand and sized to your hoop.
Checklist — Prep done when:
- Fabrics are ironed flat
- Heat n Bond is pre-cut (slightly smaller than the fabric)
- Stabilizer piece is cut
- Printout is ready
Setup: Stabilizer, Template, and Hooping 1) Prepare Heat n Bond on both fabrics
- Iron out wrinkles first.
- Place the rough (adhesive) side of Heat n Bond on the wrong side of each fabric.
- Press using the product’s recommended time.
- Let cool, then peel the paper to reveal a shiny film left on the fabric.
Why it matters: With a zigzag finish (not satin), heat-sealed edges help prevent fibers from escaping into the stitch path during wear and washing.
Quick check: After peeling, the wrong side of the fabric should look smooth and slightly shiny where adhesive remains.
2) Stabilize the sweater and align the template
- Turn the sweater inside out and lay it flat.
- Lightly spray the poly mesh stabilizer, then position it adhesive-side to the inside front where the design will go.
- Flip the sweater right-side out and place your printed design on the garment, four fingers down from the collar (as demonstrated) or to your preference.
- Verify centering with a tape measure from the armpit seams; match left and right readings.
- Tack the paper template in place with small bits of packing tape.
Pro tip: Tape avoids the accidental pin-through-both-layers risk common with pins on knits.

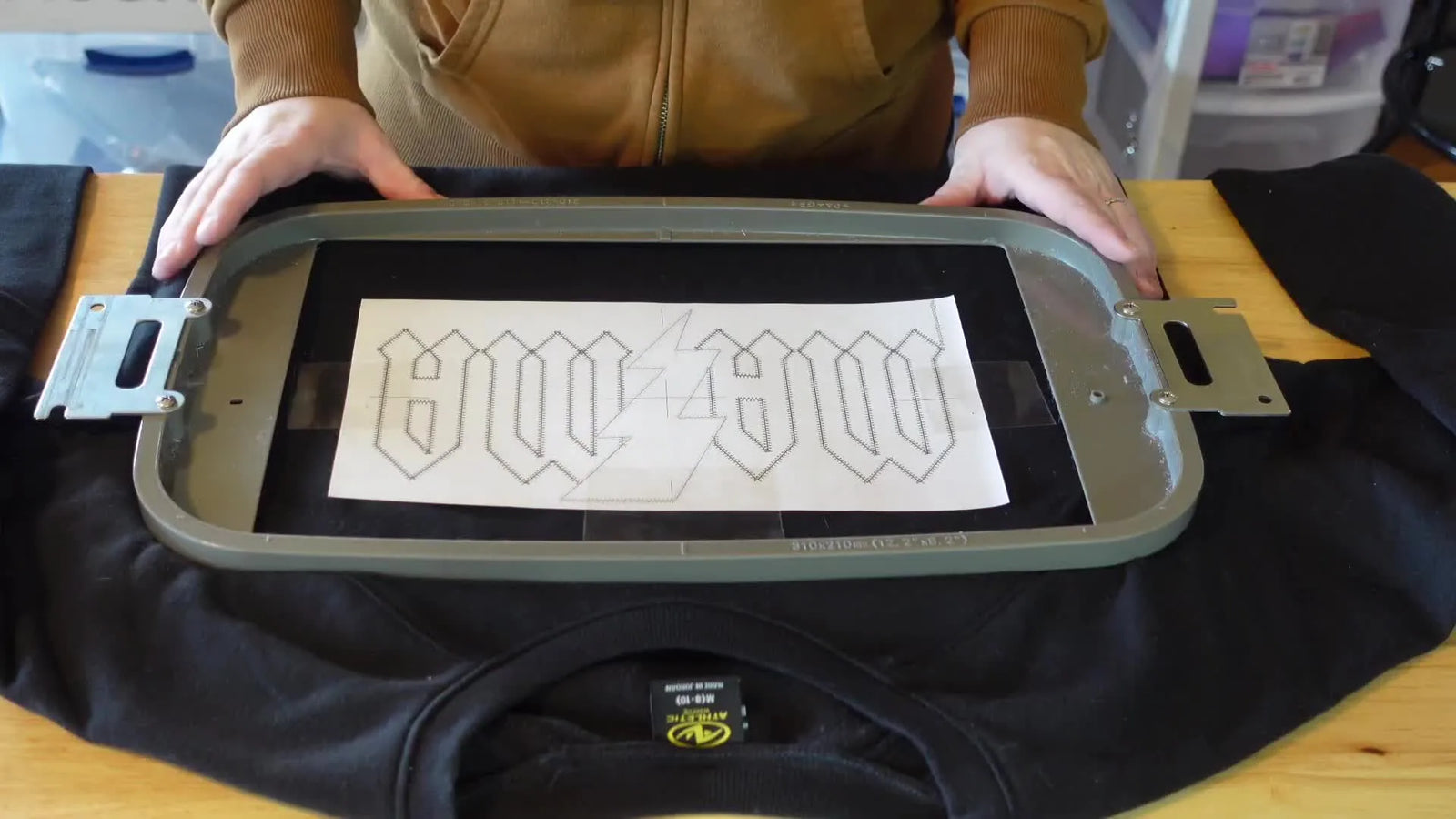

3) Hoop with alignment in mind
- Slide the bottom hoop under the placement.
- Align the top hoop, matching the hoop’s center guides with the printed design’s center.
- Press in and double-check that the vertical/horizontal guides still line up after tightening. Re-seat if anything shifted.
Outcome to expect: A flat, tensioned sweater front with the template centered and the hoop’s crosshairs aligned.
Decision point: If you rely on magnetic hoops, confirm your machine’s frame-out behavior before stitching. The creator observed that frame-out sounded best on a standard hoop with their configuration. If frame-out isn’t smooth on your magnetic hoop, switch to the stock hoop for the appliqué runs. ricoma embroidery hoops
Checklist — Setup done when:
- Heat n Bond is adhered and peeled
- Stabilizer is smooth inside the sweater
- Template is centered and taped
- Hoop is snug, flat, and aligned to the template
Operation: Stitch, Place, Trim, Repeat Threading and stops
- Thread: White, used for all steps in this project
- Bobbin: Confirm full before you start
- Add frame-out stops for the first four steps: letters placement, letters tap-down (then trim), lightning bolt placement, lightning bolt tap-down (then trim)
- Run a trace to confirm the needle path clears the hoop and is positioned where you expect
Quick check: You should see “F” (frame-out) on steps where the machine should pause.
Programming machine stops
1) Mount the hooped sweater under the arm and trace the design. Lock in placement. 2) Stitch the placement outline for the letters.
3) Lay the cheetah fabric so it fully covers the placement outline. Frame in and stitch the tap-down.
4) Remove the hoop and trim the excess fabric very close to the stitch line.
5) Return to the machine and repeat for the lightning bolt: stitch placement, lay the glitter fabric, tap-down, and trim. 6) Finish with the final zigzag stitching that secures both appliqué layers.
The art of trimming
- Use curved embroidery scissors to cut just outside the tap-down stitches. Curved blades help you stay close without nicking the sweater.
- For inner cutouts (like the center of an “A”), slide the scissors in almost flat and make a tiny entry slit; avoid digging the tip downward, which risks piercing the garment.
Watch out: Cutting the tap-down stitches will loosen the appliqué; move slowly and keep the blade belly against the fabric surface for stability.
Inner details done safely
- Continue the shallow, nearly flat approach in tight corners.
- Work in short snips rather than long cuts to control the path.
From the comments: If your design didn’t come with a run sheet, map it to the demonstrated logic—placement → tap-down → trim → repeat for each fabric layer → final edging. This sequence is exactly what drives the six runs in the project here.
Pro tip: If you typically use magnetic fixtures, ensure their clearance and frame-out motion are smooth before committing to the sweater. Some users prefer stock hoops for appliqué runs that require frequent stops. hooping station for embroidery
Letters complete, now the lightning bolt - Stitch the bolt’s placement outline, cover fully with the glitter white fabric, run the tap-down, then remove and trim as you did for the letters.
Finish with the zigzag - Mount the hoop and run the final zigzag steps around both appliqué shapes. You’re looking for even coverage that captures all raw edges.
Checklist — Operation done when:
- All fabric layers have been placed, tap-down stitched, and trimmed cleanly
- Zigzag edging is complete with no gaps
Quality Checks: What Good Looks Like
- Heat n Bond backing: After trimming, there should be no fuzzing at cut edges; the adhesive film keeps fibers tidy.
- Placement accuracy: Design sits where your tape-measure checks predicted; no tilt relative to the collar.
- Edge quality: Zigzag is even and consistently encloses the raw edges.
- Inside feel: Poly mesh sits flat with no ridges that would irritate the wearer.
Quick check: Tug gently at the trimmed edges before the final zigzag—proper tap-down means the fabric won’t lift.
Watch out: Puckering indicates hoop tension or stabilizer placement issues. Re-hoop if you see ripples before running the final decorative pass. mighty hoops
Results & Handoff: Clean Finish and Care 1) Remove the hoop and tidy the inside - Trim or gently tear away excess poly mesh, leaving a small border around the stitching so the edges don’t chafe or unravel.
2) Inspect the front - The creator’s final result showed a neat zigzag and well-placed design. If you’re working with a dark base and light, slightly sheer fabric, consider layering a second opaque white appliqué piece underneath in the design stack next time.
From the comments: To block show-through on light fabrics, one reader recommends a specialty “Top Cover” layer to mask the base garment color under the appliqué. The creator noted this tip for future use.
Care notes
- The creator reports poly mesh remaining soft and comfortable after many washes, with stitching still looking great.
- Turn garments inside out before washing to reduce surface abrasion on stitches.
Troubleshooting & Recovery Symptom: Fabric doesn’t fully cover the placement outline
- Likely cause: Inexact placement when laying the appliqué piece
- Fix: Lift and reposition during the frame-out; ensure coverage extends past the placement line on all sides
Symptom: Adhesive on the press
- Likely cause: Heat n Bond cut larger than the fabric
- Fix: Re-cut Heat n Bond slightly smaller than the fabric piece and repress on a clean surface
Symptom: Fraying at edges after trimming
- Likely cause: Heat n Bond not fully adhered or peeled too soon
- Fix: Re-press with proper time/pressure; always let it cool before peeling
Symptom: Puckering during stitching
- Likely cause: Hooping tension or wrinkled stabilizer
- Fix: Re-hoop, smoothing the sweater and stabilizer; re-spray and reapply stabilizer if needed
Symptom: Cutting into the sweater
- Likely cause: Aggressive tool angle or long stroke cuts
- Fix: Switch to curved scissors; insert blades nearly flat and make many short snips; for inner shapes, start with a tiny slit from a flat angle
Isolation tests
- Trace test: Always run a trace to confirm safe travel paths before stitching
- Edge test: After tap-down, lightly tug the fabric edge; if it lifts, run another securing pass before trimming
From the comments
- No run sheet? Follow the demonstrated order: placement → tap-down → trim for each fabric, then final edging.
- Tension learning curve: The creator loves their Ricomas but notes tension can be tricky; test on scraps to dial in your setup.
- Show-through blocker: A commenter’s “Top Cover” tip can help when using light appliqué fabrics on dark garments.
Additional notes for hoop choice If your machine’s frame-out sounds rough with certain magnetic frames, consider the stock hoop that came with the machine for appliqué steps requiring frequent stops and trims. This follows the creator’s observation on their setup. mighty hoops for ricoma em 1010
Optional gear thoughts Some embroiderers prefer magnetic frames for speed. If you explore that route, confirm compatibility and behavior with your machine’s stop/trace features before production. magnetic hoops
Gear cross-check
- Stock hoops often provide predictable clearances during trace and frame-out.
- If you later add third-party magnetic frames, test for smooth frame-out pauses and clearance with your garment. dime snap hoop
Hooping flow reminder
- Stabilize inside the sweater, template on the outside, measure from fixed points, tape lightly, align hoop guides to the template, and test trace before the first stitch. hooping station for embroidery
Looking ahead As you refine your process, you can standardize placements for common designs on sweaters and track any custom layer stacks (like underlay whites) for specific base colors. ricoma embroidery hoops
