Baby Lock Destiny 2 IQ Designer: Auto-Stippling a Quilt Block and Framing It with Candlewicking (Without Wasting a Single Stitch)

Mastering IQ Designer: Turning "Flat" Embroidery into Professional Quilt Blocks

If you’ve ever stared at a "perfectly fine" embroidery design and thought, Why does it still look flat on a quilt block?—you’re not alone. The missing ingredient is usually texture. The good news is the Baby Lock Destiny 2 (and similar high-end machines) can do the heavy lifting inside IQ Designer. You can build a professional-looking stippled background, keep a clean buffer around your motif, and then add a textured outline that reads like handwork.

This project uses a built-in Kids Corner owl and three key moves:

1. Save a precise exclusion outline (so your stippling doesn’t crash into the owl).
2. Auto-generate an all-over stippling background inside a square hoop area.
3. Recall that saved outline and convert it into a candlewicking "frame" with adjustable size and spacing.


Don’t Panic: IQ Designer "Feels" Like Digitizing, But It’s Easier

IQ Designer can look intimidating because it uses digitizing language—outlines, properties, spacing, preview, set. But in this workflow, you’re not building a design from zero; you’re enhancing a built-in motif with controlled background texture and a decorative border.

Mindset Shift: Treat the owl as your "hero," the stippling as your "quilt texture," and the candlewicking as your "frame." When you think in layers, the screen stops feeling like a maze.

The Hidden Prep Pros Do First: Physics Before Digital

Before you touch the screen, we need to talk about physics. Stippling is thousands of stitches moving in random directions. If your physical setup is weak, the digital design will fail.

1. Thread & Needle Reality Check For stippling, you need a thread that can handle high-speed, multi-directional travel.

• Thread: 40wt Polyester is ideal—it runs clean and resists breakage better than Rayon during long stipple runs.
• Needle: Use a fresh Topstitch 80/12 or Embroidery 75/11. If you hear a rhythmic "thump-thump" sound while stitching, your needle is dull or your hoop is loose.

2. Stabilizer Logic Stippling creates "pull" in every direction. If you use a flimsy tear-away, the fabric will bunch up (pucker) in the gaps.

• Recommendation: Use a Fusible No-Show Mesh (PolyMesh) or a medium-weight Cutaway. The goal is to turn your fabric into a stable canvas that doesn't distort.

3. The Hooping Battle This is where 90% of beginners fail. If your fabric is drum-tight in one direction and loose in the other, stippling will exaggerate that imbalance.

• The Trap: Traditional hoops often leave "hoop burn" (permanent creases) on delicate quilt blocks, or they simply pop open when you try to hoop a thick "quilt sandwich" (fabric + batting + backing).
• The Pro Fix: Many shops emphasize the importance of a hooping station for machine embroidery to ensure perfect alignment, but the tool that saves your hands is the hoop itself.

Hidden Consumables: Keep a lint roller and temporary spray adhesive (like Odif 505) nearby. Stippling generates lint; keep your bobbin case clean.

Prep Checklist (Do this OR Fail):

• Grain Check: Is the fabric grain straight? Off-grain fabric creates wavy blocks.
• Hoop Check: Tap the hooped fabric. Does it sound like a tight drum skin?
• Bobbin: Wind a fresh bobbin. Stippling eats thread; don't start with a half-empty one.
• Clearance: Clean the bobbin area. Lint buildup causes "bird nests" on long runs.


Step 1: Pick the Built-In Kids Corner Owl Design #3

On the Destiny 2 screen:

1. Go into Kids Corner.
2. Select design #3 (Brown Owl).
3. Press Set to place it on the workspace.

This matters because everything you do next—outline distance, stippling exclusion, and the recalled candlewicking frame—references the design’s exact position.

Step 2: The 0.080" Exclusion Outline (The Safety Zone)

Here’s the move that separates "playing" from "repeatable results." We need to tell the machine: "Don't stitch within 0.080 inches of the owl."

1. Go to the Edit tab.
2. Tap the Outline feature (flower icon).
3. Adjust the outline distance using the plus button until it reads 0.080" (approx 2mm).
4. Crucial Step: Tap Memory (or IQ Designer storage) to save this outline shape into the machine’s stamp pattern list.

Why 0.080"? This creates a "breathing room." Without it, the stippling would stitch right up against the owl's satin edges, potentially causing the foot to snag or the thread to break.

Sensory Check: You should see a red line appear around the owl. After you save it, it might disappear from the screen. Don't panic. It is saved in the machine's "brain" for later recall.

Step 3: Auto-Stippling Inside the 7-7/8" Hoop Area

Now you’ll generate the background texture.

1. Activate the Stippling tool (surrounding region).
2. Match the Distance: Set the distance to 0.080" again. This ensures the background texture stops exactly where your exclusion line (from Step 2) begins.
3. Select Hoop: Choose the 8x8 hoop (technically 7-7/8" x 7-7/8").
4. Density/Spacing: Set stippling spacing to 0.252".
   • Expert Note: A lower number (e.g., 0.100") makes tight, dense stippling (stiff). A higher number (0.250"+) makes soft, "quilt-like" stippling.
5. Hit Preview.

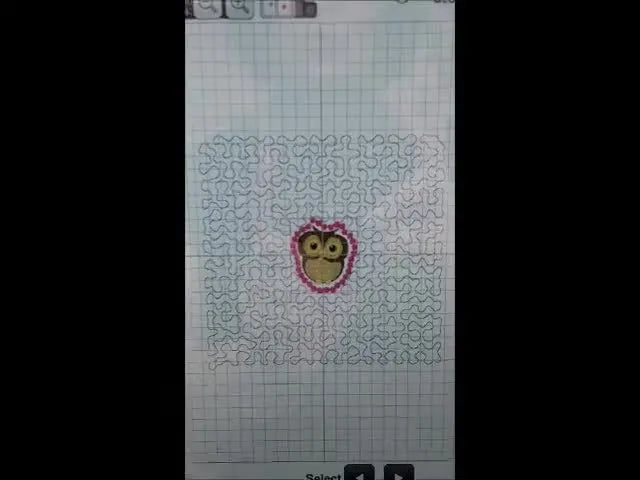

Success Metric: The screen should look like a puzzle—stippling fills the square, but the owl layout remains clean.

Quilt-As-You-Go Strategy: The video suggests a smart sequence: Stitch the owl first on just the top fabric/stabilizer. Then, slide your batting and backing underneath the hoop before running the stippling pass. This anchors the layers together without bulky hooping.

The "Square-It-Up" Habit & Hoop Physics

By forcing the stippling into a square hoop area (7-7/8" x 7-7/8"), you are designing a perfectly square block. However, square blocks only stay square if they aren't stretched during hooping.

If you are fighting to hoop thick layers, the inner ring of a standard hoop often pushes the fabric as you tighten it, causing a "bowed" effect. This is why many embroiderers move toward magnetic hoops for babylock embroidery machines. The magnets clamp straight down without the "push-pull" distortion of screw-tightened hoops, ensuring your square block comes out actually square.

Step 4: Recall the Saved Outline (The Shortcut)

Once you like the stippling preview, you bring back that red outline you saved in Step 2.

1. Tap Add to enter IQ Designer layers.
2. Go to the Shape tab.
3. Tap the Saved Outlines icon (looks like the outline flower).
4. Select the owl outline you saved and press OK.


Step 5: "Paint" the Candlewicking Border

Currently, the outline is just a line. We need to tell the machine to make it a "Candlewick" stitch (replicating the look of French Knots).

1. Line Properties: Select the Candlewicking stitch (knot icon).
2. Color: Pick a high-contrast color (the video uses pink) so you can see it clearly.
3. Apply: Select the Bucket/Fill Tool and tap the line around the owl.

Visual Check: The line must change color. If it stays black, you haven't applied the property yet.

Step 6: Dial In the Texture (Size 0.200" / Spacing 0.028")

Candlewicking needs specific settings to look like knots rather than messy blobs.

1. Tap Next.
2. Size: Increase to 0.200". This makes the "knots" visible and bold.
3. Spacing: Decrease to 0.028". This packs the stitches closer together for a continuous frame effect.
4. Preview: Check the screen.

Success Metric: You should see a thick, knotted chain surrounding the owl, sitting exactly between the owl and the stippling.

When you are ready, press Set. Confirm that you are converting to embroidery.

Setup Checklist (Right before you press Start):

• Hoop Safe: Is the hoop attached securely? Listen for the click.
• Speed: Reduce machine speed to 600-800 SPM. Stippling at max speed (1000+) increases heat and friction; slowing down produces cleaner curves.
• Needle Clearance: Rotate the handwheel manually for one revolution to ensure the needle doesn't hit the foot or hoop.
• Floating Layers: If adding batting underneath, use spray adhesive or pinning (outside the stitch zone) to prevent shifting.


The "Why It Works" Layer-by-Layer

1. Exclusion (0.080"): Prevents stitch collision.
2. Stippling (0.252"): Anchors the fabric and provides texture.
3. Candlewicking (0.200"): Acts as a visual frame, hiding the transition between the owl and the background.

This approach requires consistent tension. If your fabric slips, the border won't align. This brings us back to the importance of hooping for embroidery machine technique. The more consistent your hooping, the more accurate your borders.

Warning: Machine needles are sharp and move fast. Keep fingers away from the needle bar. If using magnetic hoops, be aware of the pinch hazard—keep fingers clear of the snapping magnets!

Troubleshooting the "Scary Stuff"

When things go wrong, use this logic flow:

The Upgrade Path: From Hobby to Production

Once you master this block, you might want to make 12 of them for a full quilt. This is where physical fatigue sets in. Hooping 12 blocks with a screw-tightened hoop is exhausting and hurts your wrists.

Here is a decision tree to help you decide if it's time to upgrade your tools:

Decision Tree: Do you need Magnetic Hoops?

1. Are you stitching on thick items (Towels, Quilt Sandwiches, Jackets)?
   • Yes: Standard hoops struggle here. A baby lock magnetic embroidery hoop automatically adjusts to thickness, holding securely without forcing the inner ring.
2. Are you experiencing wrist pain or "Hooper's Thumb"?
   • Yes: Magnetic hoops snap shut. No screwing, no yanking fabric.
3. Do you run a business (Etsy/Local)?
   • Yes: Time is money. If you spend 5 minutes hooping and re-hooping to get it straight, you are losing profit. babylock magnetic embroidery hoops can cut hooping time down to seconds.

Pro Tip: If you are eventually producing high volumes (50+ items a week), look beyond the single-needle machine. A SEWTECH Multi-Needle machine combined with magnetic frames is the industry standard for scaling up without burning out.

Operation Checklist (While stitching):

• Watch Layer 1: Watch the exclusion outline stitch first. If it looks centered, you are safe.
• Listen: A smooth hiss is good. A loud clack usually means a burr on the hook or a bent needle.
• Stop & Trim: If using jump stitches, trim the tails before the stippling starts so they don't get sewn over.


By following these numbers (0.080" / 0.252" / 0.200" / 0.028") and securing your fabric properly, you turn your Baby Lock Destiny 2 from a sewing machine into a quilting powerhouse.

FAQ

• Q: How do I stop Baby Lock Destiny 2 IQ Designer stippling from turning wavy or puckered on a quilt block?
  A: Re-hoop drum-tight and upgrade stabilizer to a fusible No-Show Mesh (PolyMesh) or medium cutaway before running the stippling.
  • Re-hoop: Tap the hooped fabric and correct any “tight one way, loose the other” hooping.
  • Switch stabilizer: Avoid flimsy tear-away for stippling; use fusible PolyMesh or medium cutaway to prevent distortion.
  • Slow down: Stitch stippling at 600–800 SPM to reduce heat/friction and improve curve quality.
  • Success check: The stippling gaps look evenly spaced and the block stays square without ripples after stitching.
  • If it still fails: Reduce layer shifting by securing batting/backing with temporary spray adhesive and re-check hoop attachment for a solid click.
• Q: What Baby Lock Destiny 2 IQ Designer settings create a clean buffer so stippling does not crash into a built-in Kids Corner owl design?
  A: Set both the saved exclusion outline distance and the stippling distance to 0.080" so the background stops exactly at the safety zone.
  • Create outline: Use Edit → Outline and adjust to 0.080", then save the outline to machine memory for recall.
  • Match stippling: Use the Stippling tool and set distance to the same 0.080" before previewing.
  • Preview first: Confirm the owl area stays clear while stippling fills the hoop boundary.
  • Success check: The preview shows a clean “breathing room” ring around the owl with no stipple lines touching satin edges.
  • If it still fails: Re-check that the 0.080" outline was saved correctly and that stippling distance was not changed on a different screen.
• Q: How do I fix Baby Lock Destiny 2 bird nest tangles under the fabric during long stippling runs in IQ Designer?
  A: Rethread both the top thread and bobbin completely, then clean lint from the bobbin area before restarting.
  • Rethread top path: Remove and rethread, ensuring the thread snaps into the tension discs.
  • Rethread bobbin: Insert a freshly wound bobbin and confirm correct bobbin threading.
  • Clean out lint: Clear the bobbin area; stippling produces lint that can trigger nesting.
  • Success check: Stitching sounds like a smooth “hiss” and the underside shows controlled stitches instead of loops and tangles.
  • If it still fails: Change to a fresh Topstitch 80/12 or Embroidery 75/11 needle and test again on a scrap sandwich.
• Q: What needle and thread are recommended for Baby Lock Destiny 2 stippling in IQ Designer to reduce thread breaks and rough running?
  A: Use 40wt polyester thread with a fresh Topstitch 80/12 or Embroidery 75/11 needle as the first-line setup for stippling.
  • Replace needle: Install a new needle before starting; don’t “push through” a long stipple run with an old needle.
  • Choose thread: Run 40wt polyester for cleaner high-speed, multi-direction travel compared with more fragile options.
  • Listen while stitching: Treat rhythmic “thump-thump” sounds as a warning of a dull needle or loose hoop.
  • Success check: Stippling runs continuously without repeated breaks and without rhythmic impact sounds.
  • If it still fails: Slow the machine to 600–800 SPM and re-check hoop tightness before changing any design settings.
• Q: How do I make Baby Lock Destiny 2 IQ Designer candlewicking around an owl outline look bold instead of thin?
  A: Increase candlewicking Size to 0.200" and tighten Spacing to 0.028", then preview before converting to embroidery.
  • Apply the stitch: Select Line Properties → Candlewicking and use the Bucket/Fill tool on the outline so the line changes color.
  • Adjust texture: Set Size to 0.200" and Spacing to 0.028" for a thick, knotted frame effect.
  • Preview: Confirm the candlewicking sits neatly between the owl and stippling.
  • Success check: The border reads as a continuous knotted chain, not a faint dotted line.
  • If it still fails: Confirm the outline was selected (not the background) and that the line actually changed color after applying properties.
• Q: What safety steps should be used before pressing Start on Baby Lock Destiny 2 IQ Designer embroidery for stippling and candlewicking?
  A: Reduce speed and manually confirm clearance so the needle cannot strike the foot or hoop during the first stitches.
  • Set speed: Run at 600–800 SPM for cleaner stippling and less friction.
  • Check clearance: Rotate the handwheel manually for one full revolution before starting.
  • Keep hands clear: Keep fingers away from the needle bar area during stitching.
  • Success check: The machine runs without needle contact “clacks,” and the first outline stitches form cleanly where expected.
  • If it still fails: Stop immediately, re-seat the hoop until the attachment clicks, and re-check thickness/layer placement before restarting.
• Q: How do magnetic embroidery hoops help Baby Lock Destiny 2 quilt blocks stay square and reduce hoop burn compared with screw-tightened hoops?
  A: Magnetic hoops clamp straight down to reduce push-pull distortion and can reduce hoop burn/creases on delicate quilt block fabrics.
  • Use for thick stacks: Choose magnetic clamping when hooping quilt sandwiches that make standard hoops slip or bow the fabric.
  • Protect surfaces: Avoid over-tightening traditional hoops when creases are a recurring issue.
  • Work faster: Use magnetic closure to reduce repeated re-hooping when making multiple blocks.
  • Success check: The stitched block measures square and the fabric surface shows fewer permanent ring marks after unhooping.
  • If it still fails: Re-check grain alignment before hooping and stabilize with fusible PolyMesh or medium cutaway so the fabric behaves like a stable canvas.
