Brother NQ1700E From Box to First Stitch: The Calm, Repeatable Setup That Prevents Birdnests and Wasted Fabric

Master Guide: Unboxing and Mastering Your Brother NQ1700E (Without The Fear)

If you just unboxed a Brother Innov-is NQ1700E and your brain is bouncing between excitement and a whisper of "please don’t let me break this expensive machine," you are not alone. Machine embroidery is an experience-based science. I have watched hundreds of first-day setups go sideways for the same three reasons: a "spongy" bobbin, a hoop tension that is slightly off, and skipping the "handshake" test that tells you the machine is ready before you risk a real garment.

This guide is not just a recap of the manual. It is a Setup & Calibration Protocol. We will rebuild the workflow show in common tutorials—unbox, assemble, wind a bobbin, hoop felt with cutaway, run a built-in lettering tension test—but we will add the sensory checks and safety margins that experts use to guarantee success.

1. The Battle Station: Unboxing Without Losing the Essentials

The process begins with a standard unboxing. You will find the included hoops (typically a 6x10 and a 5x7), manuals, a dust cover, power cable, and the accessory pouch.

The Veteran Move: Do not just pile these on the table. Before you plug anything in, perform a tool audit. You need to identify the Production Critical items vs. the Storage items.

The "First Hour" Kit

• The Unit: The embroidery arm (this machine is embroidery-only).
• The Hoop: Start with the 5x7 (medium size) for rigidity.
• Consumables: 40wt Polyester top thread and 60wt or 90wt Bobbin thread.
• Stabilizer: No-show Mesh or Cutaway (do not start with Tearaway).
• The Hidden Consumables:
  • Curved Scissors: If the kit scissors are dull, get double-curved embroidery scissors immediately.
  • Fresh Needles: Verify you have a 75/11 Embroidery Needle installed. Factory needles can sometimes be dull from testing.

If you are currently researching this model, you will see it referred to as the brother nq1700e because it occupies a specific market position: it offers the large field of a dedicated embroidery machine without the intimidating price tag of a commercial multi-needle unit.

2. The "Click" Test: Installing the Embroidery Unit

The embroidery unit slides onto the left side of the machine base. This is the brain and muscle of your alignment.

The Sensory Protocol:

1. Align: Position the unit flush against the left side.
2. Slide: Push it gently. Do not force it.
3. Listen: You are waiting for a distinct, sharp CLICK.
4. Verify: The connector protection door must retract fully.

Warning: Mechanical Safety
Never force the embroidery unit. If you feel resistance before the "click," stop. Forcing it bends the metal connection pins, requiring an expensive mainboard repair. Ensure your fingers are not between the unit and the machine body—pinch hazard.

3. Bobbin Winding: Building Your Foundation

A poor bobbin is the root cause of 50% of tension issues. The video demonstrates using the built-in winder.

The "Rock Hard" Rule:

1. Place the spool on the pin.
2. Follow guides 1–2 around the pre-tension disc. Tactile Check: You must feel the thread snap under the tension disc. If it floats on top, the bobbin will be loose.
3. Wrap thread around the bobbin and place it on the shaft.
4. Slide shaft to the right (Start button turns Orange).
5. wind until full.

Success Metric: Squeeze the finished bobbin with your thumb and index finger. It should feel like a rock. If it feels "spongy" or you can dent the thread, unwind it and start over. A spongy bobbin delivers uneven thread, causing loops and birdnests.

4. The Art of Hooping: Taut, Not Stretched

Hooping is where the human element meets the machine. We will use Felt and Cutaway stabilizer for this test.

The Standard Procedure:

1. Layer Felt on top of the Cutaway stabilizer.
2. Loosen the outer hoop screw and lift the Quick-Release lever.
3. Press the inner hoop into the outer hoop.
4. Lock the lever.

The "Drum Skin" Nuance: You want the material taut (flat, no wrinkles, sounds like a drum when tapped) but not stretched.

• If you stretch it: The fabric will relax after un-hooping, puckering the design.
• If it's loose: The needle will push the fabric into the throat plate (Flagging), causing skipped stitches.

If practicing on standard hoops feels like a wrestling match, knowing the terminology helps. People refer to the bundled brother 5x7 hoop as the "daily driver," but be aware that standard hoops rely on friction. If you struggle with hand strength or thick heavy fabrics, this is where "Hoop Burn" (white friction marks) happens. (More on solving this in the Upgrade section).

Prep Checklist (The "Pre-Flight" Inspection)

• Needle Check: Is the needle straight and inserted all the way up?
• Bobbin Orientation: When you drop the bobbin in, does it spin counter-clockwise (like a 'P') when you pull the tail?
• Thread Path: Is the top thread firmly seated in the tension disks? (Pull thread near the needle; the rod should bow slightly).
• Hoop Tension: Tap the fabric. Do you hear a dull thud (good) or a flappy sound (bad)?

5. Screen Navigation & Zoning

We will use the built-in lettering to create a "Pattern of Proof" tension test.

The Workflow:

1. Select "H" and "I" (straight columns are best for testing tension).
2. Set size to Large.
3. Critical Step: Go to settings and tell the machine you are using the 5x7 hoop.
4. Move the design to the Top-Left Corner.

The "Reset" Safety Net: If the machine beeps and refuses to let you change hoop sizes, it is because the current design center is outside the new hoop's boundary.

• The Fix: Press the Center/Reset button. This snaps the design to 0,0 distinct. Now change the hoop size. Then move the design.

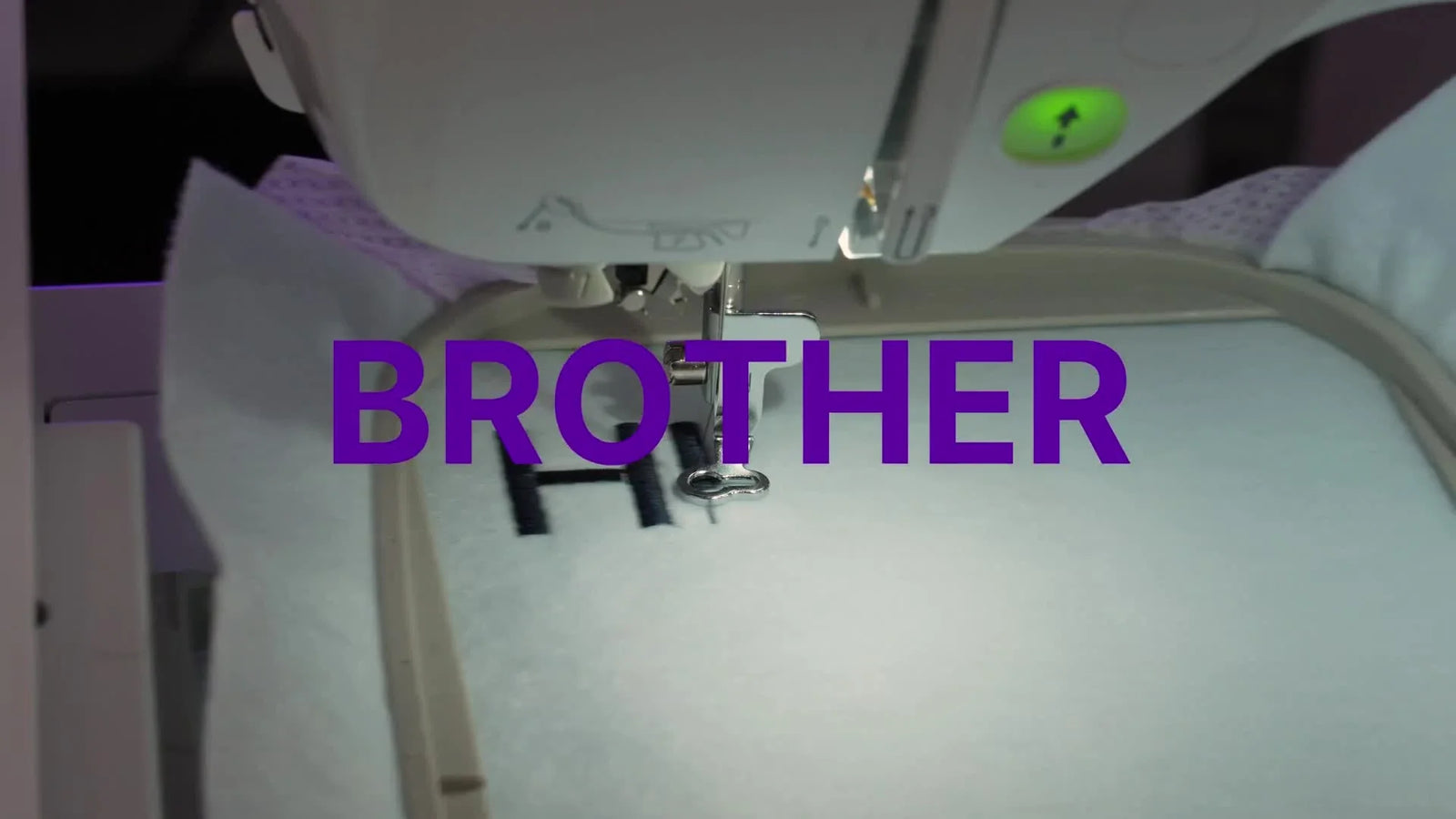

6. The Stitch Out: Reading the "HI" Test

Stitch the design. The machine will auto-trim jump stitches.

The "1/3 Algorithm" (Post-Op Analysis): Flip the hoop over and look at the back of the satin column (the thick part of the 'I').

• Perfect Tension: You see a white strip of bobbin thread occupying the middle 1/3 of the column, with colored top thread wrapping 1/3 on the left and 1/3 on the right.
• Too Much Top Tension: You see only white thread (bobbin pulled to top).
• Top Tension Too Loose: You see no white thread (top thread looping on back).

Expert Note: Tension is dynamic. It changes based on thread thickness and fabric drag. This test on felt proves the machine is fine. If you switch to a thin t-shirt later and see loops, it is a stabilizer issue, not a broken machine.

7. Loading USB Designs & Clearance Checks

We now load a Mandala design via USB.

Workflow:

1. Insert USB.
2. Select "Pocket" Icon -> USB Symbol.
3. Select Design -> Set.
4. Move to Bottom Right (to avoid the 'HI' test).

Physics Check: You are likely using the larger hoop here. Many users search for embroidery machine 6x10 hoop limits because they forget about table clearance.

• Check: Look behind the machine. Is there enough empty desk space for the hoop to travel fully back? If the hoop allows the table or wall, it will knock the registry off, ruining the design.

8. The 9,471 Stitch Run: Sound is Your Diagnostic Tool

The screen shows 14 minutes and 9471 stitches.

Sensory Diagnostics (Sound):

• Rhythmic Thump aka "The Heartbeat": Normal. This is the sound of the needle penetrating.
• Quiet Whir: Excellent. Low drag.
• Sharp "Clicking": STOP IMMEDIATELY. This often means the needle is hitting the presser foot or the hoop edge.
• Crunching: EMERGENCY STOP. This is a birdnest forming in the bobbin case.


Setup Checklist (Final Output Verification)

• Clearance: Space behind machine is clear.
• Hoop Lock: The lever is firmly locked; inner hoop does not pop out.
• Presser Foot: Is down (Green light is on).
• Speed: For the first layer, consider lowering speed slide to 50% to watch start quality.

9. The Reveal and QC

Inspect the final Mandala.

• Registration: Did the outline align with the fill?
• Loops: Are there loops on top? (Top tension loose or thread not in disk).
• Puckering: Is the fabric around the stitches wrinkled? (Hooping wasn't tight enough or stabilizer was too light).

10. Troubleshooting: The T-Shirt "Birdnest" Nightmare

A common scenario in the comments: Switching from Felt (Easy) to T-shirts (Hard) results in a thread nest (birdnest) under the throat plate.

The Mechanism of Failure: T-Shirts are stretchy. If you use Tearaway stabilizer (which is paper-soft), the needle pushes the stretchy fabric down into the hole. The thread creates a loop, catches on the bobbin case, and pile-up ensues.

Decision Tree: Fabric vs. Stabilizer

Use this logic to prevent nests:

Emergency Recovery: If you get a birdnest:

1. Do NOT yank the hoop. You will bend the carriage.
2. Cut the top thread.
3. Lift hoop gently; reach under with scissors and cut the "column" of thread.
4. Remove hoop and clean the shuttle race.

11. Can I Do Carhartt Jackets or Caps? (The Physics of Drag)

Yes, but you are fighting physics.

• Carhartt Jackets: These are heavy. On a single-needle machine, the motors must drag the entire weight of the jacket.
  • Tip: Roll the excess jacket and clip it so it doesn't drag on the table edges. Friction kills registration.
• Hats: You cannot do "structured" caps (like baseball caps) easily on a flatbed. You must flatten them.
  • Tools: You will see pros discuss a cap hoop for embroidery machine. For this single-needle machine, look for "durkee cap frame" or similar flat-hat systems.

12. Operating Like a Pro: The Upgrade Path

In the comments, a user mentions running two NQ1700Es before upgrading to a 15-needle machine. This is the natural business cycle. Here is how to judge when you need to buy your way out of a problem.

Level 1: Workflow Upgrade (The Hidden Gems)

If your bottlenecks are Hooping Crookedly or Hoop Burn, you need better tooling.

• Hooping Stations: Terms like hooping station for embroidery machine refer to fixtures that hold the hoop in the exact same spot every time. This ensures the logo is always same distance from the collar.
• Alignment Systems: Ecosystems like hoopmaster for brother are popular because they standardize the placement, removing human error.

Level 2: The Magnetic Revolution

Professional shops rarely use the plastic "screw and crank" hoops for production runs. They use Magnetic Hoops.

• Why: They snap shut instantly. They hold thick jackets without "popping" open. They reduce hoop burn (shine) on delicate velvet or dark poly.
• Advice: Many beginners search for magnetic embroidery hoop solutions only after ruining a shirt with hoop burn. Consider getting a 5x7 magnetic frame early to save your wrists and your garments.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial neodymium magnets. They can pinch fingers severely. Crucially, keep them away from pacemakers, insulin pumps, and magnetic storage media.

Level 3: The Production Upgrade (Multi-Needle)

If your bottleneck is Changing Thread Colors (e.g., stopping every 2 minutes to switch blue to red), a single needle machine is costing you money.

• The Fix: A multi-needle machine (like the SEWTECH commercial series or Brother PR). These hold 10-15 colors at once. When one color finishes, the head moves, and the next color starts instantly.
• Criteria: If you are producing 20+ multicolored shirts a week, the time saved by a multi-needle machine usually pays for the lease payment.

Operation Checklist (The "Run" Cycle)

• Watch Layer 1: Stay at the machine for the first color to ensure no birdnesting.
• Listen: Monitor sound profile.
• Trim: If the machine doesn't trim a long jump stitch, pause and trim it manually to prevent the foot from catching it.

Final Thought: The NQ1700E is a capable workhorse. The machine will do its part if you do yours: Stabilize correctly, hoop tautly, and listen to the machine. Master the "HI" test on every new fabric, and the fear will vanish, replaced by the rhythm of production.

FAQ

• Q: What must “Production Critical” items be in the first-hour kit for a Brother Innov-is NQ1700E embroidery setup?
  A: Use a minimal kit that prevents 90% of first-run failures: correct needle, stable thread, and correct stabilizer.
  • Verify: Install a fresh 75/11 embroidery needle (factory needles may be dull).
  • Choose: Use 40wt polyester top thread with 60wt or 90wt bobbin thread.
  • Start: Use no-show mesh or cutaway stabilizer (avoid starting with tearaway).
  • Upgrade: Use sharp curved or double-curved embroidery scissors if the included scissors feel dull.
  • Success check: The first test stitch-out runs without looping underneath, skipped stitches, or shredding.
  • If it still fails: Re-do the bobbin winding “rock hard” check and confirm the top thread is seated in the tension disks.
• Q: How do you install the Brother Innov-is NQ1700E embroidery unit without bending connector pins?
  A: Slide the embroidery unit in gently and stop immediately if there is resistance before the click.
  • Align: Hold the unit flush to the left side of the machine base.
  • Slide: Push gently—do not force the unit into place.
  • Listen: Wait for a distinct, sharp “CLICK.”
  • Verify: Confirm the connector protection door retracts fully.
  • Success check: The unit seats fully with a clean click and no grinding or “half-locked” feel.
  • If it still fails: Remove the unit and re-align; forcing it can damage pins and require major repair.
• Q: How can you tell if a Brother Innov-is NQ1700E bobbin is wound correctly when tension problems keep happening?
  A: A correctly wound bobbin should feel “rock hard,” not spongy, and the thread must snap under the pre-tension disc during winding.
  • Thread: Follow the winding path and ensure the thread snaps under the pre-tension disc (not floating on top).
  • Wind: Fill the bobbin using the built-in winder until complete.
  • Test: Squeeze the finished bobbin between thumb and index finger.
  • Rewind: Unwind and redo any bobbin that dents easily or feels soft.
  • Success check: The bobbin cannot be dented by finger pressure and stitches form without random loops/birdnesting.
  • If it still fails: Check bobbin orientation in the case (counter-clockwise like a “P” when pulling the tail) and re-seat the top thread in the tension disks.
• Q: What is the correct hooping tension for a Brother Innov-is NQ1700E to prevent puckering and skipped stitches on felt or knits?
  A: Hoop the fabric taut like a drum, but never stretched—stretching causes puckers later, and looseness causes flagging and skips.
  • Layer: Place felt on top of cutaway stabilizer for the setup test.
  • Hoop: Tighten until the surface is flat with no wrinkles, then lock the quick-release lever.
  • Avoid: Do not stretch fabric while tightening (especially on knits).
  • Check: Tap the hooped area to evaluate tension before stitching.
  • Success check: The fabric sounds drum-like when tapped and does not ripple; stitches land cleanly without skipped sections.
  • If it still fails: Switch to a stabilizer better suited for the fabric (cutaway or fusible poly mesh for tees) or consider a magnetic hoop to reduce slipping and hoop burn.
• Q: What does “perfect tension” look like on the Brother Innov-is NQ1700E built-in lettering “HI” test (the 1/3 rule)?
  A: Perfect tension shows bobbin thread as a narrow strip in the middle third of the satin column on the back.
  • Stitch: Run large built-in “H” and “I” lettering as a controlled tension proof.
  • Inspect: Flip the hoop and examine the back of the satin column (the thick part of the “I”).
  • Compare: Adjust only after confirming what you see matches the tension pattern.
  • Success check: Bobbin thread sits in the center 1/3, with top thread wrapping roughly 1/3 on each side.
  • If it still fails: Re-check the bobbin quality and thread path first; if felt tests fine but tees loop later, treat it as a stabilizer/knit-control problem rather than a broken machine.
• Q: How do you stop Brother Innov-is NQ1700E birdnesting when switching from felt to T-shirts?
  A: Treat T-shirts as high-risk fabric: use cutaway or fusible poly mesh and avoid tearaway so the fabric doesn’t get pushed into the needle hole.
  • Choose: Use cutaway for stable knits and fusible poly mesh (no-show) for unstable tees.
  • Hoop: Keep fabric taut but not stretched; consider floating or using a magnetic hoop to control movement.
  • Recover: If nesting starts, do not yank the hoop—cut top thread, lift gently, cut the thread column underneath, then clean the shuttle race.
  • Success check: The first color runs without “crunching” sounds and the underside stays clean (no growing thread mass).
  • If it still fails: Slow down for the first layer and re-check presser foot down/green light, correct hoop lock, and top thread seated in the tension disks.
• Q: What safety checks should you use on a Brother Innov-is NQ1700E when you hear sharp clicking or crunching during embroidery?
  A: Stop immediately—sharp clicking often indicates a needle strike, and crunching usually means a birdnest forming in the bobbin area.
  • Stop: Pause as soon as clicking/crunching starts (do not “let it finish”).
  • Inspect: Look for needle contact with presser foot or hoop edge if clicking is present.
  • Clear: If crunching is present, cut threads and remove the nest carefully, then clean the shuttle race.
  • Prevent: Confirm clearance behind the machine so the hoop cannot hit a wall/table and knock registration.
  • Success check: The machine returns to a steady rhythmic “heartbeat” thump without abnormal clicks, crunching, or sudden resistance.
  • If it still fails: Replace the needle, re-check hoop size selection and design positioning, and re-run a controlled “HI” test before stitching a garment.
• Q: When should Brother Innov-is NQ1700E users upgrade from technique fixes to magnetic hoops or a multi-needle machine for production work?
  A: Use a tiered approach: fix process first, then upgrade hoops for hooping/burn issues, and only move to multi-needle when color changes are the time sink.
  • Level 1: Standardize workflow—master the “HI” tension proof, stabilize knits correctly, and pass the pre-flight checks (needle, bobbin orientation, thread seated, hoop tension).
  • Level 2: Upgrade to magnetic hoops when hooping is physically hard, hoops slip/popup on thick items, or hoop burn shows on delicate/dark fabrics.
  • Level 3: Upgrade to a multi-needle machine (such as SEWTECH commercial series) when frequent thread color changes are the real bottleneck in multi-color jobs.
  • Success check: Output becomes consistent without repeated restarts, and cycle time drops mainly because setup and color-change delays are removed.
  • If it still fails: Identify the bottleneck explicitly (hooping accuracy vs. fabric drag vs. thread changes) before spending—each symptom points to a different fix.
