Brother PE550D Basics That Actually Stick: Threading, Disney Menus, and the Binder-Clip Onesie Trick (Without the Usual Beginner Mistakes)

If you just unboxed a Brother PE550D and your brain is already spinning—thread paths, red/green lights, hoops that feel too small, and knit fabric that suddenly wants to eat your needle—you’re not alone. The PE550D is a friendly machine, but it is also brutally honest: if your hooping, stabilizing, or threading is even slightly off, the laws of physics will ruin your design immediately.

Machine embroidery is 20% art and 80% engineering. This guide moves beyond the "happy path" shown in quick videos and rebuilds the workflow into a professional-grade Standard Operating Procedure (SOP). We will focus on the sensory details beginners miss—the clicks, the tension resistance, and the specific "feel" of a properly prepped machine—especially when tackling the notorious challenge of embroidering text on a knit baby onesie.

Start Calm: Powering On the Brother PE550D Without Smacking the Carriage (and Your Project)

When you turn the Brother PE550D on, the screen will prompt you to touch it, and the embroidery arm (the carriage) will move to find its "home" position. This is the calibration phase. Tap the screen, press OK, and visually sweep the deck before the machine hums to life.

Warning: Keep fingers, scissors, clips, and loose fabric completely out of the embroidery arm path during startup and tracing. The carriage moves with significant torque; a surprise impact can knock the belt off its gear, bend the arm, or smash your finger.

The Sensory Check:

• Sight: Ensure the bed is clear of tools.
• Sound: Listen for the smooth mechanical whir-click of the calibration. A grinding noise means something is blocking the path.


The “Hidden” Prep Pros Do First: Needles, Bobbins, Stabilizer, and a 30-Second Knit Reality Check

The video demonstrates a basic setup: embroidery scissors, binder clips, pre-wound white bobbins, and Organ size 11 ballpoint needles.

Here is the "Why" that experts know: Knit fabric (like a onesie) is composed of interlocking loops, acting like a spring. If you stretch it inside the hoop, it stores potential energy. As you stitch, the fabric tries to rebound, while the needle is punching thousands of holes. This causes the "puckering" or "bullet hole" effect beginners fear.

If you are learning hooping for embroidery machine on knits, stabilizer is not optional—it is the structural foundation. The "ballpoint" needle is crucial because it pushes the knit loops aside rather than cutting them, preventing holes in the delicate cotton.

The Pro Formula for Knits:

• Stabilizer: Cut-away (Absolute requirement for baby clothes; tear-away will result in a distorted mess after one wash).
• Adhesion: Temporary adhesive spray (like KK100) is a "hidden consumable" that prevents the fabric from shifting on top of the stabilizer.


Prep Checklist (do this before you touch the touchscreen)

• Needle: Installed a fresh Ballpoint Size 75/11? (Check for the flat side facing back).
• Bobbin: Inserted a 60wt or 90wt pre-wound bobbin? (Remove distinct plastic packaging/adhesive).
• Stabilizer: Secured Cut-away stabilizer? (It should feel soft but impossible to tear by hand).
• Hoop Hardware: Loosened the tension screw enough to accept the thickness of the fabric + stabilizer?
• Tools: Placed medium binder clips and "duckbill" or curved scissors within reach, but away from the drive belt.


Thread the Brother PE550D the Way It Wants: The Numbered Path, the Tension Disc, and the Auto-Threader “Cut” Trick

Threading is where 90% of "tension issues" actually originate. Follow the machine’s numbered path strictly:

• Place the thread spool on the pin. Use a spool cap that is slightly larger than the spool diameter to prevent snags.
• Go through 1, then back to 2.
• Important: At step 3 (the tension discs), hold the thread taut with your right hand near the spool while pulling down with your left hand. You should feel a slight "flossing" resistance as the thread seats deep between the tension plates.
• Thread the take-up lever (the metal arm that moves up and down). If the thread misses the eye of this lever, you will get a "bird's nest" of thread instantly.

You can thread the needle by hand, but the video demonstrates the automatic needle threader (lever marked at area “8”).

The Pro Trick for the Auto-Threader: Many beginners struggle here. The trick is not force; it is geometry. Hook the thread on the guide, pull it across the cutter, and hold the thread gently (don't pull hard) as you depress the lever. Listen for a soft click as the tiny hook grabs the thread.

Pick Designs on the PE550D Screen: Disney/Pixar Menus, Built-In Fonts, and What the Machine Can’t Edit

On the PE550D control panel, you have access to:

• Disney/Pixar libraries (Cars, Mickey, etc.).
• Generic shapes and floral motifs.
• Lettering menus (Fonts).

Understanding the Limits: A common frustration expressed in comments is the inability to change the type of stitch. The machine is a "player," not a "creator." It reads coordinates. If you want to change a satin stitch to a fill stitch, you need external software (digitizing software) on your computer, not the machine screen.

Connectivity Note: This specific model relies on USB transfer. It does not have Bluetooth. To use internet designs, you must save them as .PES files (Brother's format) on a USB drive smaller than 16GB (formatted to FAT32) for best compatibility.

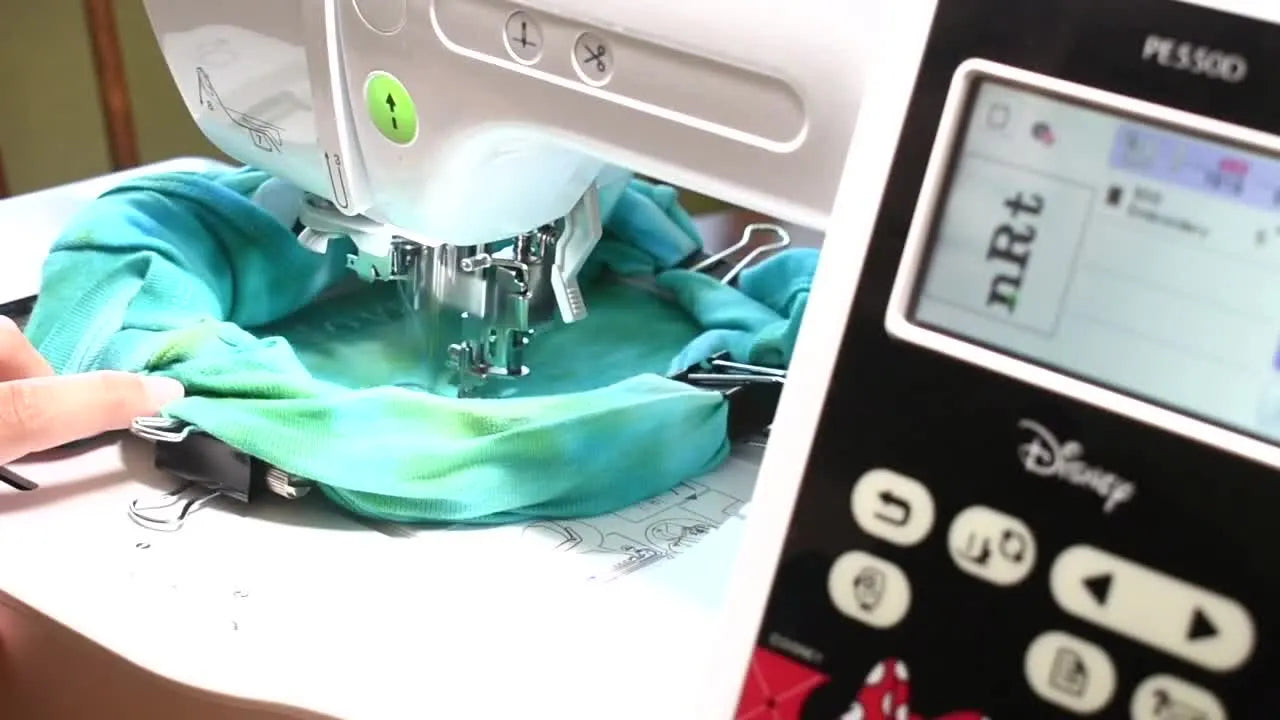

The Onesie Problem (and the Binder-Clip Fix): Keep Tubular Knit Fabric From Getting Stitched Shut

A baby onesie is a tube. Your machine has a single flat bed. The physics problem is obvious: the back of the shirt wants to slide under the needle.

The video suggests a practical field-fix: Hoop step one (the front of the shirt and stabilizer), then roll the excess fabric (back of shirt, sleeves) outward and secure it with medium binder clips to the rim of the hoop.

Why this works: You are not just keeping the fabric out of the way; you are reducing drag. If the heavy jersey fabric hangs off the machine bed, gravity pulls the hoop, causing design misalignment. Binder clips keep the center of gravity neutral.

However, be aware of the "Hoop Burn" risk. The standard plastic brother 4x4 embroidery hoop relies on friction. To hold a thick onesie tight, you have to tighten the screw aggressively. This often leaves a shiny, crushed ring on delicate knits that is hard to steam out. This is a known trade-off of standard hoops.

Load the Hoop on the Brother PE550D Without a Fight: Presser Foot Up, “Shimmy” In, Click the Pins, Then Test the Lock

Hooping a tiny garment is a wrestling match. To mount it:

1. Raise the Presser Foot: It must be in the highest position (lift level 2 if available).
2. The Shimmy: Carefully slide the hoop under the needle. Watch the binder clips—ensure they don't catch on the needle clamp screw.
3. The Lock: Align the hoop pins with the carriage slots. Squeeze the release lever and push until you hear distinct Snap.

The Wiggle Test: Once locked, grab the frame of the hoop (not the fabric) and give it a gentle wiggle. The entire carriage arm should move with it. If the hoop rattles independently, it is not locked. A loose hoop guarantees a ruined design.

If you find yourself sweating while fighting to get a thick seam into a standard hoop for brother embroidery machine, recognize this is a mechanical limitation of the "inner/outer ring" system. It is not your lack of skill; the tool is fighting the material thickness.

Make the Text Fit the Onesie: Rotate 90°, Set Density to 110%, and Always Run Trace Before You Stitch

Space is tight on a 4x4 field.

• Orientation: Rotate the text 90 degrees so it runs down the lengthy part of the hoop.
• Density: The video suggests 110% density.
  • Expert Note: Why 110%? Standard density is often set for woven cotton. On knits, stitches sink into the "fluff." Increasing density ensures the letters look solid and bold rather than sparse.
• The Trace: Press the icon with the dotted square and needle. The machine will move the hoop to outline the design box.

Critical Safety Check during Trace: Watch the needle clamp bar as it travels near your binder clips. If a clip is placed too close to the stitch area, the needle bar will strike it, potentially destroying the machine's timing. Adjust clips after the trace if they are in the danger zone.

Setup Checklist (right before you press Embroider)

• Top Thread: Pulled through the eye and under the foot? (Tail should be 3-4 inches).
• Bobbin: Cover plate replaced securely?
• Orientation: Design rotated 90° so it reads correctly on the finished garment?
• Obstacle Check: Binder clips are clear of the needle path (verified via Trace)?
• Bulk Check: The back of the onesie is totally clear of the bottom of the hoop? (Check by feeling underneath).

Stitch With Both Hands and a Cool Head: Green-Light Start, Then Guard the Bulk So It Can’t Snag

To begin:

• Lower the presser foot (Button turns Green).
• Press Start.

The " babysitting" Duty: Do not walk away. With a onesie, you must perform "Traffic Control." Gently use your fingers to create a barrier, keeping the loose fabric of the neck and sleeves from falling back into the embroidery field.

Physics of the Needle Break: If the fabric is pulled too tight (trampolined) or if the hoop drags on a heavy sleeve, the needle will deflect. If it hits the needle plate hole edge instead of the center, it snaps. Beginners often blame the machine, but it is usually "Hoop Drag."

If you encounter frequent thread breaks or bunching (birdnesting), stop immediately. Check the Thread Path first. 90% of the time, the upper thread has popped out of the take-up lever.

The Tension Dial Reality: Why “2” Worked Here (and Why Your Machine Might Not Match)

In the video, the user lowers the tension dial to 2.

• Standard Setting: usually 4.
• Video Setting: 2 (Looser upper thread).

Expert Interpretation: Tension is variable. It depends on thread brand opacity and fabric thickness. Lowering tension to 2 allows the top thread to relax, creating a satin stitch that sits "plump" on the knit fabric rather than digging in.

The "H" Test: Don't guess. Sew a capital "H". Look at the back. You should see 1/3 white bobbin thread in the center, flanked by the colored top thread on the sides.

• If you see only white on the back: Top tension is too tight (Lower the number).
• If you see no white on the back (or color on the bobbin side): Top tension is too loose (Raise the number).

When learning hooping for embroidery machine variables, never change tension and stabilizer at the same time. Isolate the variable.

Unhoop Without Distorting the Knit: Lift the Foot, Release the Lever, and Use the Disc Tool Only If You Over-Tightened

When the "Finished" chime sounds:

1. Lift the presser foot.
2. Press the sash release lever to remove the hoop.
3. Crucial Step: Do not pop the inner ring out like a cork. Loosen the screw significantly first.

If you "pop" the hoop while it is tight, the friction will distort the wet/warm fibers of your knit fabric, leaving a permanent "waffle" mark. The video shows using the included disc-tool to loosen the screw.

Clean Lettering Like a Pro: Trim Jump Stitches Close (Because the PE550D Won’t Do That Part for You)

The PE550D cuts threads at color changes, but it leaves "jump stitches" (connecting threads) between letters of the same color.

Finishing Protocol:

• Remove the hoop from the machine.
• Place it on a flat table.
• Use curved embroidery scissors (curved tip points UP away from fabric) to snip the jumps.
• Tear away the excess stabilizer carefully, supporting the stitches with your thumb so you don't distort the onesie.




Troubleshooting the “Beginner Panic” Problems: What to Check When It Breaks Needles, Bunches Underneath, or Pops the Hoop

Diagnose issues using this "Low Cost to High Cost" logic. Always check the free things (threading) before buying new things.

1) Birdnesting (Giant wad of thread under the plate)

• Likely Cause: Upper thread is NOT in the tension discs or take-up lever. The machine thinks there is zero tension and dumps thread.
• The Fix: Raise the presser foot (opens discs), re-thread completely, verify the "floss" feel.

2) Hoop Pop-Out / Hoop Burn on Knits

• Likely Cause: Combat between thick fabric and the plastic hoop's friction mechanism.
• The Level 1 Fix: Use thinner stabilizer or looser screw settings (risky).
• The Level 2 Fix: professionals often switch to magnetic embroidery hoops for brother machines. Magnetic hoops hold fabric using vertical force (clamping) rather than friction (wedging). This eliminates "hoop burn" and holds thick seams without popping, acting as a massive quality-of-life upgrade for knitwear.

3) Needle Breaks Instantly

• Likely Cause: Needle is bent, or the hoop hit an obstruction (clip/foot).
• The Prevention: Run the "Trace" function before every single design.

4) White Bobbin Thread Showing on Top

• Likely Cause: Top tension too tight OR Bobbin case not seated.
• The Fix: Clean the bobbin area of lint. Lower top tension dial by 1 number.

Stabilizer Decision Tree for Baby Onesies and Knit Shirts (So You Don’t Guess)

Use this logic flow to prevent ruined garments.

1. Is the fabric stretchy? (T-shirt, Onesie, Sweatshirt)
   • YES: Use Cut-Away Stabilizer. (Adhere with spray).
   • NO: Go to step 2.
2. Is the fabric Woven/Stable? (Quilt square, Denim, Canvas)
   • YES: You can use Tear-Away Stabilizer.
3. Is the fabric "Fluffy" or Textured? (Towel, Velvet, Fleece)
   • YES: You need a Water Soluble Topper (Avalon film) on top to keep stitches from sinking, PLUS stabilizer on the bottom.

When the 4x4 Hoop Becomes the Bottleneck: A Practical Upgrade Path

The creator notes a desire for a larger field. The 4x4 area is great for learning, but hooping efficiency is exactly where beginners quit.

Identify Your Pain Point:

• Pain: "I hate tightening the screw and getting hoop burn on every shirt."
  • Solution: A magnetic embroidery hoop compatible with the PE550D. It snaps on instantly, protecting the fabric elasticity.
• Pain: "It takes me 10 minutes to hoop straight for a 5-minute stitch."
  • Solution: A hooping station for machine embroidery. This holds the hoop and garment in a fixed position, ensuring straight placement every time across multiple shirts.
• Pain: "I have orders for 50 shirts and I can't sit here changing thread."
  • Solution: This is the trigger for capacity scaling. Moving to a multi-needle machine (like SEWTECH distribution models) allows you to set 10 colors at once and use tubular industrial hoops that slide into shirts effortlessly.

Warning: Magnetic Hoops contain powerful neodymium magnets. Pinch Hazard: They snap together with force. Keep away from pacemakers, credit cards, and children.

Operation Checklist (the last 60 seconds that prevent 80% of mistakes)

• Clearance: Excess fabric is clipped back; nothing is tucked under the hoop.
• Trace: Verified the needle path does not hit the plastic frame or clips.
• Start: Thread tails held for the first 3-5 stitches (or pulled to back).
• Monitoring: Hands ready to guide bulk fabric, keeping it away from the moving arm.
• Finishing: Hoop removed safely, jump stitches trimmed, backing cut (not torn) away.

Mastering the PE550D is about respecting the process. If you stabilize correctly, trace every time, and manage the fabric bulk, the machine will do the rest perfectly.

FAQ

• Q: What should be checked on a Brother PE550D before touching the touchscreen to avoid puckering on a knit baby onesie?
  A: Do the needle–bobbin–stabilizer–hoop screw check first; knit onesies fail fast when prep is slightly off, and this is common.
  • Install a fresh Ballpoint Size 75/11 needle with the flat side facing back.
  • Insert a 60wt or 90wt pre-wound bobbin (remove any packaging/adhesive) and confirm the bobbin area is clean.
  • Use cut-away stabilizer and secure the knit to it (temporary adhesive spray is often used to prevent shifting).
  • Set the hoop tension screw to accept fabric + stabilizer thickness without forcing.
  • Success check: the hooped area feels supported and stable (not “trampolined” tight), and the stabilizer cannot be torn by hand.
  • If it still fails, stop and re-check hooping tension and the upper threading path before changing any settings.
• Q: How should Brother PE550D upper threading be done to prevent birdnesting under the needle plate?
  A: Re-thread the Brother PE550D exactly on the numbered path and “seat” the thread into the tension discs; most birdnesting starts here.
  • Raise the presser foot before threading (this opens the tension discs).
  • Follow steps 1 → 2 → 3 carefully, and at step 3 pull taut to feel a slight “flossing” resistance as the thread seats.
  • Confirm the thread is through the take-up lever eye; missing it can cause instant thread dumping.
  • Use the auto-threader gently and listen for a soft click instead of forcing the lever.
  • Success check: the thread has consistent, slight resistance when pulled by hand and does not slip loosely.
  • If it still fails, remove the thread completely and re-thread again—do not “patch” the path mid-way.
• Q: How can Brother PE550D users keep a tubular baby onesie from getting stitched shut during embroidery?
  A: Roll the excess fabric away from the stitch field and clip it to the hoop rim so the back layer cannot drift under the needle.
  • Hoop only the front layer with stabilizer; keep the rest of the onesie outside the hoop.
  • Roll sleeves/back fabric outward and secure with medium binder clips on the hoop rim.
  • Run Trace before stitching to confirm clips are not in the needle bar travel zone.
  • Monitor the bulk while stitching so gravity cannot pull the hoop and shift alignment.
  • Success check: you can feel under the hoop and confirm no fabric layer is trapped beneath the stitch area.
  • If it still fails, reposition clips farther from the sewing field and reduce fabric drag on the machine bed.
• Q: How do Brother PE550D users confirm embroidery tension is correct using the “H” test, and what does bobbin thread showing mean?
  A: Stitch a capital “H” and judge the back; the correct look is about 1/3 bobbin thread centered with top thread on both sides.
  • Sew a test “H” on similar fabric/stabilizer before the real onesie.
  • If the back shows only white bobbin thread, lower the upper tension number (top tension is too tight).
  • If there is no white on the back or color pulls to the bobbin side, raise the upper tension number (top tension is too loose).
  • Change only one variable at a time (do not change stabilizer and tension together).
  • Success check: the back shows a balanced “railroad track” with bobbin in the middle, not fully white or fully color.
  • If it still fails, clean lint from the bobbin area and confirm the bobbin case is seated correctly.
• Q: What should Brother PE550D owners do for safety when powering on and running Trace to avoid hitting tools or clips with the embroidery arm?
  A: Clear the embroidery bed before power-on and watch the full Trace path; the carriage moves with torque and impacts can cause damage.
  • Remove scissors, clips, and loose fabric from the embroidery arm path before pressing OK at startup.
  • Listen during calibration for a smooth whir-click; stop if grinding suggests a blockage.
  • Use Trace for every design and watch the needle clamp bar travel near hoop edges and any clips.
  • Reposition binder clips after Trace if any part looks close to the needle travel area.
  • Success check: Trace completes without contact, and there is no abnormal sound or sudden stop.
  • If it still fails, remove the hoop, re-mount it, and repeat Trace with the area fully cleared.
• Q: How can Brother PE550D users fix hoop pop-out or hoop burn on knit fabric, and when should a magnetic hoop or multi-needle machine be considered?
  A: Start with hooping/stabilizer technique, then consider a magnetic hoop for quality-of-life, and consider a multi-needle machine only when volume makes hooping/thread changes the bottleneck.
  • Level 1 (technique): avoid over-tightening the screw on knits and stabilize properly with cut-away so the fabric doesn’t need extreme hoop pressure.
  • Level 2 (tool upgrade): magnetic hoops often clamp vertically instead of wedging by friction, which may reduce hoop burn and hold thick seams without popping.
  • Level 3 (capacity upgrade): if frequent re-hooping and thread changes slow down production (e.g., batches of many shirts), a multi-needle machine can reduce downtime by keeping multiple colors set.
  • Success check: the hoop holds securely without leaving a shiny crushed ring, and the design stays aligned without “hoop drag.”
  • If it still fails, treat it as a mechanical limitation of standard inner/outer hoops and move to the next level rather than forcing tighter screw pressure.
• Q: What magnetic hoop safety precautions should be followed when using magnetic embroidery hoops with Brother-style embroidery workflows?
  A: Treat magnetic hoops as pinch hazards; the magnets snap together with force and must be kept away from sensitive items and children.
  • Keep fingers clear when bringing the magnetic ring halves together; let them meet slowly and controlled.
  • Keep magnetic hoops away from pacemakers, credit cards, and children.
  • Store magnetic hoops so they cannot snap onto metal tools unexpectedly.
  • Success check: the hoop closes without finger pinch and stays seated without sudden “slam” impacts.
  • If it still fails, stop using the hoop until handling is controlled and the work area is cleared of metal objects that could attract the magnets.
