Brother PE800 Birdnesting Isn’t “Bad Tension”—It’s Usually One of These 3 Setup Mistakes

If you are new to a Brother PE-series machine, the sounds of embroidery are a language you haven't learned yet. But there is one sound every beginner knows: the rhythmic thump-thump-thump of the needle, followed by a sudden, sickening crunch. You pull the hoop off, look underneath, and find a chaotic birdnest of thread that looks like steel wool.

I have spent twenty years on production floors and in classrooms, and I have watched that specific panic wash over thousands of faces. You feel like you broke the machine. You feel like the tension dial is your enemy.

Here is the truth: 90% of "tension disasters" on a Brother PE800 are not tension problems. They are mechanical setup errors that snowball into physics problems.

This guide rebuilds the workflow from the video, calibrated with the "shop floor" senses—what you should feel in your fingertips and hear with your ears—to ensure you never fear the birdnest again.

The Calm-Down Check: Why 99% of "Tension" Issues Are Actually "Path" Issues

When a design birdnests, your instinct is to grab the screwdriver or turn the tension dial. Stop.

In my experience, birdnesting (massive loops on the bottom) and "bobbin thread showing on top" are almost exclusively caused by the Path of Resistance. If the thread isn't traveling through the machine's physical gates correctly, the computer cannot compensate for it.

On the Brother PE800, this path is usually broken by three specific user actions:

1. Material mismatch: Putting thick top thread in a bobbin case designed for thin thread.
2. The "Free-Spin" Error: Letting the bobbin rotate during loading (zero tension).
3. The "Closed Door" Error: Threading the top with the presser foot down.

If you fix these, the "tension" fixes itself. Before we start, let's reset the environment.

Prep Checklist: The 30-Second Sanity Reset

Do not skip this. Cleansing the crime scene is half the repair.

• Clear the Nest: Stop the machine. lift the hoop. Cut the birdnest carefully. Hidden Consumable: Use curved embroidery scissors or tweezers to extract shards of thread from the bobbin case.
• Inspect the Needle: Rub your fingernail down the needle shaft. If you feel a "click" or a scratch, the birdnest bent your needle. Replace it. A burred needle will shred thread instantly.
• Check the Bobbin Case: Take the black bobbin case out (if removable on your model) or inspect the drop-in area. A single piece of lint the size of a grain of rice can throw off tension by 20%.
• The "Floss" Test: Prepare to re-thread from scratch. Do not simply tie a knot and pull it through.


Mistake #1: The Physics of Thread Weight (Why the Bobbin Fights Back)

In the video, the distinction is made clearly, but let's dive into the physics of why this matters.

• Bobbin Thread (The Anchor): Typically 90 weight (thinner/lighter).
• Top Thread (The Paint): Typically 40 weight (thicker/heavier).

The "Why"

Your machine's bobbin tension plate is calibrated for a thin, slippery 90wt thread. If you load it with thick 40wt embroidery thread, two things happen:

1. Friction Overload: The thick thread drags against the metal case.
2. Tension Imbalance: The bottom pulls harder than the top, dragging the top thread down and creating a mess.

The Golden Rule: Unless you are doing a specialized technique (like freestanding lace), never put embroidery thread in the bobbin. Use specific 60wt or 90wt bobbin thread.

The Commercial Upgrade Path

Once you master thread weights, your next hurdle will be consistency. If you are using the correct thread but still getting variable results, the issue might be how the fabric is held. Standard hoops can leave "hoop burn" or allow fabric to slip. This is where professionals look for upgrades. For example, a magnetic hoop for brother pe800 acts as a quality-of-life upgrade, clamping fabric evenly without the friction burn of traditional rings, essentially removing "fabric slippage" from your list of variables.

Mistake #2: The "Spinning Bobbin" Error (The Finger-Hold Technique)

This is the most subtle error in the video, and the one that causes the most "phantom" problems.

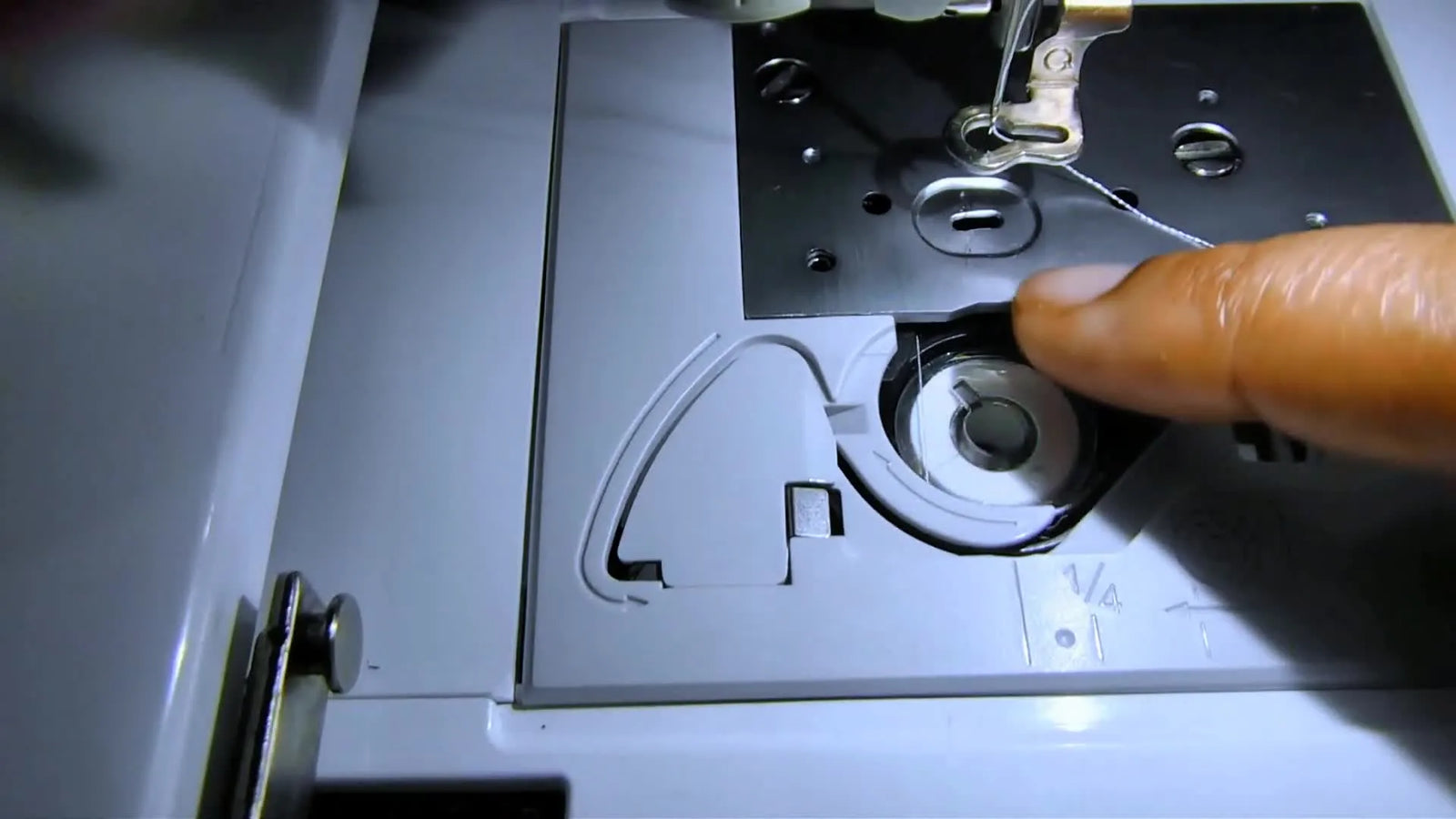

When you drop the bobbin in, you must route the thread through a tiny metal slit (the tension spring).

• The Setup: Drop the bobbin in. The thread should unwind counter-clockwise (forming a letter "P").
• The Error: If you pull the thread tail and the bobbin spins inside the case, the thread did not enter the tension spring. It is just lying on top of it.
• The Result: Zero tension on the bobbin. Massive loops on top of the fabric.

The Sensory Fix: The Finger Anchor

1. Drop the bobbin in (Counter-Clockwise).
2. The Anchor: Place your right index finger firmly on the bobbin to stop it from moving.
3. The Pull: With your left hand, pull the thread tail into the groove.
4. The Check: You should feel a slight "snap" or resistance as it slides under the metal plate.
5. The Cut: Trim the connector.

If the bobbin spun even once during that process, start over.

Many home users eventually migrate to rigid framing systems because they value speed. While mastering the bobbin load is critical, using a brother pe800 magnetic hoop allows for faster hooping of the garment itself, giving you more time to focus on these critical machine setup steps.

Mistake #3: Threading with the Presser Foot Down (The "Closed Door" Problem)

I call this the #1 killer of beginner confidence.

The tension discs on your machine are like a gate.

• Presser Foot UP: The gate is OPEN. Thread can slide deep between the discs.
• Presser Foot DOWN: The gate is CLOSED.

If you thread the machine with the foot down, the thread floats on top of the discs. It never touches the tension mechanism. You hit "Start," and the machine creates a birdnest instantly because there is zero drag on the top thread.

The Sensory Check: The "Floss" Test

Before you thread the needle eye:

1. Foot UP: Pull the thread. It should flow freely/loosely.
2. Foot DOWN: Pull the thread. You should feel significant resistance, like the difference between pulling a loose rope and pulling a tight gluestick.
3. Confirmation: If you don't feel that change in resistance, you missed the tension discs. Rethread.

Warning: Needle Safety. Keep fingers, loose hair, and tools away from the needle zone when testing tension or threading. A startling noise or accidental start can result in a needle through the finger. Always engage the "lock" mode on your screen if your model supports it during threading.

The Hidden Variable: Hooping Physics & Stabilization

The video covers the machine, but in a real shop, we know that 50% of failures are actually Fabric Physics. Even with perfect threading, if your fabric is a "moving target," you will get bad results.

The "Drum Skin" Standard

When fabric is hooped, tap it with your finger.

• Correct: It sounds like a drum (thump-thump). It is taut but not stretched to distortion.
• Incorrect: It feels soft or ripples when you push it.

If you struggle to get this tension with standard hoops (especially on thick items like towels or delicate knits), this is a "tool issue," not a skill issue. This is why you see terms like hooping for embroidery machine trending—users are looking for ways to stabilize their canvas.

Stabilizer Decision Tree

Don't guess. Use this matrix.

"Why won't the thread stay in Notch 6?" (The Bobbin Path)

A common frustration mentioned in the comments is the thread popping out of the "6" guide on the PE800 plate.

The Diagnosis

If the thread jumps out of the track, it usually means the tail was too short or cut incorrectly.

1. Ensure the thread follows the arrows exactly.
2. When you pull the thread across the cutter, pull it flat and taut.
3. Listen for the snick sound of the blade cutting the thread.
4. Do not pull a long tail out and leave it hanging. The PE800 is designed to pick up a short, contained tail.


When You *Do* Want Matching Bobbin Thread (Advanced)

Sometimes you need the bobbin to match the top—for example, on a Freestanding Lace (FSL) project or a towel where the back is visible.

This is a Violation of Standard Operating Procedure, so you must compensate:

1. Slow Down: Reduce machine speed to 350-400 SPM (Stitches Per Minute).
2. Adjust Tension: You may need to slightly loosen top tension, as the bobbin thread is now "stronger" (thicker) than usual.
3. Expect Adjustments: Do not try this on a final garment first. Test on scrap.

For commercial consistency, using an embroidery hooping station can ensure that your placement is identical every time, which is critical when you are experimenting with advanced thread settings and need to minimize other variables.

Setup Checklist: The "Pre-Flight" Routine

Execute this before hitting the green button.

• Needle Check: Is it new? Is it the right type (Ballpoint for knits, Sharp for wovens)?
• Thread Weight: Top is 40wt, Bobbin is 90wt/60wt.
• Bobbin Load: Did I hold it down so it didn't spin? Unwinding Counter-Clockwise?
• Top Threading: Was the presser foot UP when I threaded?
• The Floss Test: Did I pull the thread with the foot down to verify resistance?
• Hoop Check: Is the inner ring pushed slightly past the outer ring (floating)? Is the screw tight?


Scaling Up: When Hobby Tools Meet Production Demands

If you are running a small business, you might hit a wall where you are doing everything "right," but still getting errors after the 50th shirt.

This is often Lint Fatigue or Tool Limitations.

• Lint: Polyester thread creates dust. Clean your bobbin case every 4-5 bobbin changes.
• Tools: Standard embroidery hoops rely on friction screws. Over time, hands get tired, and hoops get loose.

If you are facing fatigue, upgrading to a brother 5x7 magnetic hoop can significantly reduce wrist strain and hoop burn on delicate items. If you are doing volume production, the magnets hold consistent pressure without manual tightening.

Troubleshooting Map: Symptom -> Cause -> Fix

Operation Checklist: The "First 30 Stitches"

The machine is most likely to fail in the first 10 seconds. Watch it like a hawk.

1. Hold the Tail: For the first 3-4 stitches, lightly hold the top thread tail to prevent it from being sucked down.
2. Listen: A smooth hum is good. A clanking thud requires an emergency stop.
3. Watch the Center: Is the bobbin thread covering about 1/3 of the back of the satin stitch? That is the perfect ratio.

Warning: Magnetic Hoop Safety. If you upgrade to magnetic frames, be aware they use powerful industrial magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep magnets away from pacemakers and implanted medical devices.

The Upgrade Path: Fix the Process, Then Fix the Tool

Embroidery is 80% preparation and 20% stitching.

If you are a beginner, master the Finger-Hold Bobbin Load and the Presser Foot Up threading. These are free fixes that solve expensive problems.

Once your skill is solid, look at your bottlenecks:

• Fighting with fabric slipping? Look into magnetic embroidery hoops for brother.
• Spending too much time measuring placement? Look into hoop stations.
• Spending too much time changing colors? That is when you look at multi-needle machines.


The most important takeaway is this: The machine is logical. It does not hate you. If it is nesting, it is telling you that the path is open where it should be closed, or closed where it should be open.

Reset the path. Check the sound. Trust your hands.

FAQ

• Q: How do I stop Brother PE800 birdnesting under the fabric right after pressing Start?
  A: Rethread the Brother PE800 top thread with the presser foot UP, because threading with the presser foot down leaves the top thread with near-zero tension.
  • Stop the machine and clear the nest; remove thread scraps from the bobbin area with tweezers/curved scissors.
  • Raise the presser foot, rethread the entire top path (do not tie-on and pull through).
  • Do the “Floss Test”: pull thread with foot UP (loose), then foot DOWN (noticeably resistant).
  • Hold the top thread tail for the first 3–4 stitches to prevent it being sucked underneath.
  • Success check: the first 30 stitches run with a smooth hum and no large loops collecting under the fabric.
  • If it still fails: inspect the bobbin loading—if the bobbin spun during loading, reload it and ensure the thread snaps under the tension spring.
• Q: What bobbin thread weight should be used in a Brother PE800 to prevent tension disasters and looping?
  A: Use dedicated 60wt or 90wt bobbin thread in the Brother PE800; do not load 40wt embroidery thread in the bobbin for normal embroidery.
  • Confirm the top thread is typical 40wt and the bobbin is 60wt/90wt bobbin thread.
  • Replace any bobbin that was wound/loaded with thick top thread for standard designs.
  • Test-stitch on scrap after changing thread types.
  • Success check: on satin stitches, the bobbin thread covers about 1/3 of the back, not pulling heavily to the top.
  • If it still fails: clean lint from the bobbin area and re-seat the bobbin thread into the tension slit using the finger-hold technique.
• Q: How do I correctly load a drop-in bobbin on a Brother PE800 so the bobbin does not “free-spin” and cause looping?
  A: Prevent the Brother PE800 bobbin from spinning while pulling the thread into the slit so the thread actually enters the tension spring.
  • Drop the bobbin in so it unwinds counter-clockwise (forming a “P”).
  • Anchor the bobbin with an index finger so it cannot rotate.
  • Pull the thread tail firmly into the groove until a slight snap/resistance is felt under the metal plate.
  • Trim at the cutter as designed; avoid leaving a long tail.
  • Success check: pulling the bobbin thread through the path feels slightly resistive and controlled, not loose and “free.”
  • If it still fails: restart the load from the beginning—if the bobbin spun even once during threading into the slit, the thread likely rode above the spring.
• Q: Why does Brother PE800 bobbin thread keep popping out of guide “Notch 6” on the needle plate?
  A: Keep the bobbin thread tail short and pull it flat and taut across the cutter so the Brother PE800 can capture the intended tail length.
  • Reroute the bobbin thread exactly along the arrows on the plate.
  • Pull the thread flat and tight across the cutter (not upward) to get a clean cut.
  • Listen for the cutter “snick” to confirm the tail was cut correctly.
  • Avoid pulling out a long tail and leaving it hanging.
  • Success check: the thread stays seated in the track and does not jump out when the machine begins stitching.
  • If it still fails: reload the bobbin using the finger-anchor method to ensure the thread is under the tension spring.
• Q: What is the correct hooping tension standard for Brother PE800 embroidery to prevent fabric shifting and puckering?
  A: Hoop to the “drum skin” standard—taut like a drum, not soft or rippling, and not stretched to distortion.
  • Tap the hooped fabric; aim for a firm drum-like thump rather than a dull ripple.
  • Tighten the hoop screw firmly and ensure the fabric is held evenly.
  • Match stabilizer to fabric type (for example, cutaway for knits; tearaway for stable wovens).
  • Success check: the fabric surface stays flat while stitching and does not creep; finished areas show minimal puckering.
  • If it still fails: upgrade stabilization first (often switching to cutaway helps) and recheck that the fabric is not slipping inside the hoop during the first 30 stitches.
• Q: What stabilizer should be used for Brother PE800 embroidery on T-shirts, towels, woven cotton, and performance wear?
  A: Use a fabric-matched stabilizer on the Brother PE800 instead of guessing, because many “tension” problems are actually fabric movement problems.
  • Choose cutaway (2.5oz+) for T-shirts/knits to control stretch.
  • Choose tearaway for woven cotton when the fabric is stable.
  • Choose tearaway plus a water-soluble topper for towels/fleece to prevent stitches sinking into pile.
  • Choose fusible cutaway for slippery performance wear to prevent shifting.
  • Success check: stitching stays crisp with reduced puckering and fewer thread breaks during direction changes.
  • If it still fails: revisit hooping tension (drum skin test) and watch the first 30 stitches for any fabric creep.
• Q: What safety steps should be followed when threading a Brother PE800 or testing tension near the needle area?
  A: Treat threading and tension checks on the Brother PE800 as a needle-injury risk zone and keep hands and tools away from the needle path.
  • Keep fingers, hair, and tools clear of the needle area while pulling thread and positioning fabric.
  • Use the machine’s lock mode during threading if the Brother PE800 model supports it.
  • Stop immediately if a clanking thud or crunch is heard; do not try to “power through.”
  • Success check: threading and the floss test can be done without hands ever crossing the needle’s travel path.
  • If it still fails: pause and reset—remove the hoop, clear thread debris, and replace a needle that feels scratched or catches a fingernail.
• Q: When should a Brother PE800 user upgrade from standard hoops to magnetic hoops or consider a multi-needle machine for small business production?
  A: Upgrade only after the Brother PE800 setup is repeatable—use process fixes first, then use tools to remove bottlenecks like fabric slippage, hoop burn, and operator fatigue.
  • Level 1 (process): standardize the pre-flight routine—new needle, correct thread weights, bobbin loaded without spinning, presser foot UP for threading, floss test.
  • Level 2 (tool): consider magnetic hoops when hoop burn, slipping fabric, or wrist strain from tightening screws becomes the recurring variable.
  • Level 3 (capacity): consider a multi-needle machine when color changes and long runs create fatigue and consistency issues (often after dozens of garments).
  • Success check: production runs stay consistent after multiple items, with fewer mid-run stops and less rehooping.
  • If it still fails: check for lint fatigue—clean the bobbin area regularly (for example, every 4–5 bobbin changes) and confirm hoop pressure remains consistent.
