Brother PE800 Unboxing to First Power-On: The Calm, Pro-Level Setup That Prevents Costly Beginner Mistakes

The Unboxing Master Method: Setting Up Your Brother PE800 for Professional Results (Day 1 Guide)

You are staring at a brand-new Brother PE800 container. The box is torn open, styrofoam is scattered across the room, and your brain is already racing: “Did I miss a part? Did I plug it in right? What if I break a $900 machine on day one?”

Take a breath. This anxiety is normal—it is known as "New Machine Fear," and it affects everyone from hobbyists to factory owners.

However, this exact moment is where most beginners accidentally create their first failures. A lost accessory in the foam, a misaligned bobbin case, or a skipped connection step can lead to hours of frustration later. Embroidery is a precision sport; we need to set your playing field correctly.

This guide rebuilds the unboxing and initial overview into a clean, repeatable First-Day Workflow. I will provide the concrete steps shown in standard tutorials, but I will overlay them with the "Chief Education Officer" insights—the sensory checks, the safety margins, and the physical "why"—so you don’t just set it up, you understand it.

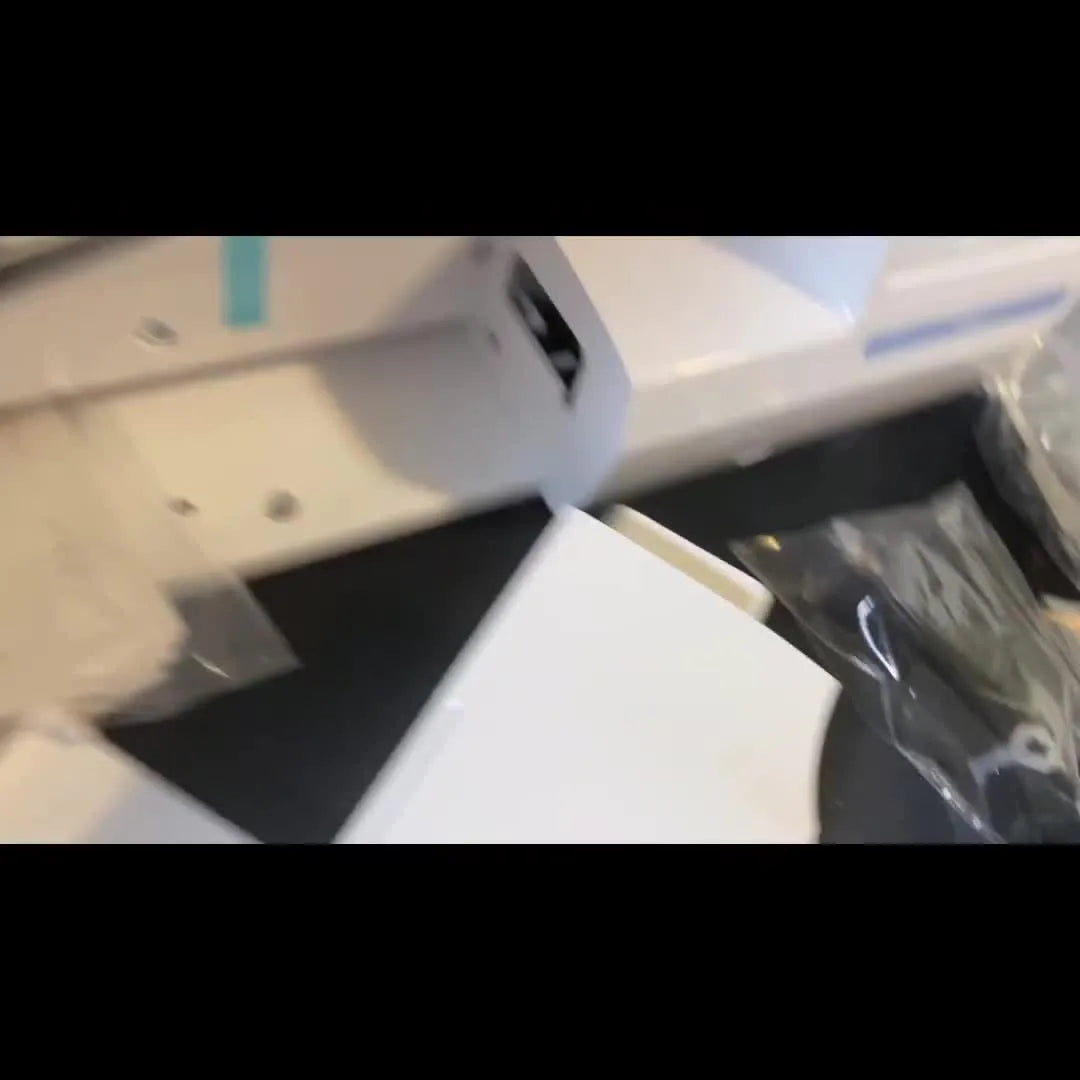

Phase 1: The "Crime Scene" Unboxing Strategy

Most tutorials show a fast-motion unboxing. In reality, you need to slow down. The PE800 packaging contains small, clear plastic bags and white envelopes that blend perfectly with the styrofoam.

The "Rattle Test" Protocol

Here is the professional rhythm I want you to follow to ensure zero lost assets:

1. Clear the Floor: Create a 5-foot clear radius.
2. The Extraction: Remove the large items first (Machine body, Embroidery Unit, Power cord). Place them on a stable table.
3. The Foam Audit: Do not crush or throw away any styrofoam yet. Run your hand inside every cavity of the foam.
4. The Rattle Test: Before discarding any cardboard inserts or the main box, shake them. If you hear a rattle, you missed the seam ripper or the bobbin clip.
5. The Envelope Hunt: Locate the white accessory envelope. It is flat, unassuming, and contains the tools you need to fix 90% of future problems.

That “one extra minute” prevents the panic of thinking a critical screwdriver is missing, only to realize it is in a landfill.

Pro Tip: Keep the box. If you ever need to ship the machine for service, that molded foam is the only thing that will keep the main shaft aligned during transport.

Phase 2: The Critical Omissions (What You Must Buy)

The video of the unboxing reveals a hard truth: The "Ready to Use" label is technically a lie. The box includes a Brother bobbin thread spool (labeled #90 weight polyester, white), but it lacks the creative essentials.

The "Hidden Consumables" List

To run a test that doesn't end in tears, you need to acquire these immediately. Do not attempt your first stitch without them:

• Top Thread: 40wt Polyester Embroidery thread (NOT cotton sewing thread).
• Stabilizer: Tear-away (for woven fabrics) or Cut-away (for knits/polos).
• Needles: Organ or Schmetz 75/11 sized needles (Embroidery or Ballpoint). The installed needle is for testing; have backups ready.
• The "Invisible" Tools: You need curved embroidery scissors (for snipping jump stitches flush) and a can of temporary adhesive spray (like Odif 505) if you plan to float fabric.

One sentence that will save you money and frustration: Your machine is only as good as the Thread + Stabilizer + Needle inputs you feed it.

Workflow Logic: When to Upgrade

If your goal is garment embroidery (hoodies, polos, denim jackets), you will quickly find that the standard plastic hoop is your bottleneck. It requires significant hand strength and can leave "hoop burn" (crushed fabric pile). This is usually the moment users start researching a magnetic hoop for brother pe800 to reduce hand strain and fabric marking.

Phase 3: The Power Defense System

In the video, the creator plugs the PE800 into a surge protector strip instead of the wall. This is non-negotiable shop discipline.

Why This Matters

Embroidery machines rely on a precision motherboard to coordinate the needle bar and the embroidery arm (pantograph). A "dirty power" spike from a thunderstorm or a vacuum cleaner plugged into the same circuit can fry the screen or corrupt the step-motors.

Warning: Electricity is a real risk to expensive embroidery electronics. Use a quality surge protector (rated 1000+ Joules). Route cords behind the table so you cannot trip and pull the machine off the desk.

Phase 4: The Sound of "Normal" (First Boot)

The video shows the first boot-up: The power button is on the right. The light floods the needle area. The screen wakes up.

But here is what the video doesn't describe—the sound.

The Calibrating Dance: When you turn it on, the embroidery arm will move X (left/right) and Y (front/back) to find its center. You will hear a robotic whirrr-clunk.

• Good Sound: Smooth hum, rhythmic mechanical slides.
• Bad Sound: A loud GRIND or rapid clicking (like a card in a bicycle spoke). This means the arm is physically blocked.

Pre-Flight Visual Check:

• Expected outcome: Needle area LED is bright and steady.
• Expected outcome: LCD displays the "Carriage will move" warning.
• Expected outcome: No transport tape remains.

Phase 5: The Blue Tape Removal (The Hidden Hazard)

The video shows peeling off the blue adhesive tape used to secure moving parts during shipping.

You must be surgical here. There is often a piece of tape tucked under the bobbin cover or near the thread take-up lever.

The "Sticky Finger" Check: After removing tape, run your finger along the plastic surfaces. If you feel sticky residue, clean it immediately with a drop of rubbing alcohol on a cloth. Why? Loops of thread whip around these areas at 600 stitches per minute. If a thread hits a sticky spot, it will snag, shred, and snap, causing a "bird's nest" under the plate.

Warning: Keep fingers clear of the needle area and moving embroidery arm during calibration. Never pull transport tape violently; if it resists, use small scissors to snip it free to avoid bending tension springs.

Phase 6: Thread Path Anatomy & The 1/3 Rule

In the video, the top plastic lid lifts to reveal the horizontal spool pin and the numbered threading diagram.

Do not just thread it; feel it.

The "Dental Floss" Test

When you pull the thread through the tension discs (usually step 3 on the machine), you should feel a distinct resistance, similar to pulling dental floss between your teeth.

• No resistance? You missed the tension disc. Re-thread.
• Too tight? The thread is caught.

The Bobbin Success Metric

When looking at your test stitch on the back of the fabric, you want to see the 1/3 Rule:

• The white bobbin thread should occupy the center 1/3 of the satin stitch width.
• The colored top thread should occupy the outer 1/3 on both sides.
• If you see all white: Top tension is too tight.
• If you see all color: Top tension is too loose.

Phase 7: The Limitation of the 5x7 Hooping System

The video demonstrates the included 5x7 inch hoop. This defines your "Sandbox."

This hoop is excellent for flats, but it introduces the beginner's nightmare: Hooping Mechanics. To embroider, the fabric must be "drum tight" but not stretched.

• Too loose: The fabric flags (bounces), causing blurry outlines.
• Too tight: You stretch the fibers; when released, they snap back, causing puckering.

The "Hoop Burn" Problem

If you are doing delicate items or bulky hoodies, the standard hoop frames require you to jam the inner ring into the outer ring. This friction often leaves a permanent "burn" ring on velvet or dark cotton.

The Solution Path: If you plan to embroider finished garments (not just flat fabric), this is the physical limit of the included tools.

• Level 1 Fix: Use "Floating" (hoop the stabilizer, spray adhesive, stick garment on top).
• Level 2 Fix: Upgrade to a brother 5x7 hoop alternative, specifically a magnetic frame.
• The Professional Choice: Shops standardize on brother pe800 magnetic hoop options because the magnets simply click into place. They hold thick hoodies firmly without forcing a plastic ring inside, eliminating hoop burn and wrist fatigue.

Warning: Magnetic Hoop Safety
Magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together with force—keep fingers clear of the contact zone.
* Electronics: Keep magnets away from pacemakers and the machine's LCD screen/motherboard area.

Phase 8: The Stabilizer Decision Matrix

The creator mentions stabilizer is needed. Let's make that actionable. Use this decision tree for your first week:

Stabilizer Decision Tree

1. Is the fabric stretchy? (T-shirt, Polo, Knit)
   • YES -> MUST use Cut-Away Stabilizer. (Tear-away will result in a distorted design).
   • NO -> Proceed to next.
2. Is the fabric loose woven/toweling?
   • YES -> Use Tear-Away + Water Soluble Topper (to keep stitches from sinking).
   • NO (Denim, Canvas) -> Tear-Away** is sufficient.

The Golden Rule: Stabilizer supports the fabric; the fabric supports the stitch. Never skimp here.

Prep Checklist: The "Pre-Flight"

• Bobbin thread is #90 wt (Brother standard) or #60 wt (Generic standard).
• Top thread is 40 wt Polyester.
• Needle is fresh (new project = new needle).
• Stabilizer matches the fabric type (see Matrix above).
• Workspace is clear of obstructions for the embroidery arm.

Phase 9: The Accessory Kit & Maintenance

In the video, the white accessory envelope reveals tools: screwdrivers, seam ripper, spool caps, and a cleaning brush.

The "Hidden" Maintenance Routine

• The Disc Driver: Do not use a dime to open the needle plate. Use the included disc-shaped screwdriver. Coins can slip and scratch the plate, creating burrs that shred thread.
• The Brush: Every 3–5 bobbin changes, take the bobbin case out and brush the dust from the cutter area. Dust accumulation is the #1 cause of "cutter error" messages.


Phase 10: Digital Workflow (USB)

The PE800 is USB compatible.

Digital Hygiene Rules:

1. Capacity: Use a USB drive 8GB or smaller (older machine OS reads smaller drives faster).
2. Format: Ensure it is formatted to FAT32.
3. Files: Only put .PES files (for Brother) in the root folder. Do not bury designs in 10 layers of sub-folders.

Phase 11: Production Reality & Scaling Up

The creator’s excitement in the video is infectious. But eventually, you will hit the "Single Needle Wall."

If you receive an order for 20 team polos, the PE800 requires you to:

1. Stop the machine for every color change (Instruction: "Change to Red").
2. Re-thread the needle manually.
3. Hit start.
4. Repeat 5 times per shirt.

The Criteria for Upgrading

• The Symptom: You are spending more time re-threading than the machine spends stitching.
• The Symptom: You can't hoop items straight.
• The Fixes:
  • Placement: Professionals use a hooping station for embroidery machine (like the hoop master embroidery hooping station or generic equivalents) to ensure every logo is in the exact same spot.
  • Efficiency: If you are consistently searching for magnetic embroidery hoops for brother pe800 to speed up workflow, your volume might validate a Multi-Needle machine (like a SEWTECH 10-needle or 15-needle). These machines hold all colors at once and sew 30-40% faster.

However, for today, your PE800 is a capable workhorse. Master the single-needle logic first.

Setup Checklist: Ready for First Stitch

• Machine is stable on a surge protector.
• All blue tape is removed (check under levers).
• Bobbin is wound and inserted (thread follows the arrow path).
• Top thread passed the "Dental Floss" tension test.
• Presser foot is UP during threading, and DOWN before stitching.
• Hands are clear of the hoop area.

You are now ready to hit the "Green Button." Start with a slow speed (try 400 SPM rather than max), watch the thread path, and let the machine do the work. Welcome to the guild.

FAQ

• Q: What must be purchased immediately after unboxing a Brother PE800 to avoid first-day stitching failures?
  A: Brother PE800 test stitching usually fails without proper top thread, stabilizer, and spare needles—buy those before the first design run.
  • Get: 40wt polyester embroidery top thread (not cotton sewing thread), plus tear-away (wovens) or cut-away (knits/polos) stabilizer.
  • Stock: Organ or Schmetz 75/11 embroidery or ballpoint needles, and keep backups ready.
  • Add: Curved embroidery scissors for jump stitches; add temporary adhesive spray if planning to float fabric.
  • Success check: The first test design runs without repeated thread breaks and the fabric does not pucker or distort after unhooping.
  • If it still fails: Re-check the threading path and stabilizer choice before adjusting tension.
• Q: How can a Brother PE800 user confirm the top thread is correctly seated in the tension discs during threading?
  A: Use the Brother PE800 “Dental Floss” feel test—there should be a clear, smooth resistance when pulling thread through the tension step.
  • Raise: Lift the presser foot UP while threading so the tension system can seat the thread properly.
  • Pull: Draw the thread through the tension area and feel for distinct resistance (not free-sliding).
  • Re-thread: If there is no resistance, completely re-thread the machine from the spool.
  • Success check: The pull feels like dental floss between teeth—steady resistance without snagging.
  • If it still fails: Inspect for thread catching or misrouting on the numbered path and re-seat the spool cap/thread guide.
• Q: What does the Brother PE800 “1/3 rule” mean for bobbin thread showing on satin stitches, and how can it be used to judge tension?
  A: On a Brother PE800, correct balance typically shows bobbin thread in the center 1/3 of the satin stitch width, with top thread covering both edges.
  • Stitch: Run a small satin test on the intended fabric + stabilizer combination.
  • Inspect: Flip the hoop over and evaluate the satin columns from the back.
  • Interpret: All white bobbin showing usually means top tension is too tight; all top color showing usually means top tension is too loose.
  • Success check: Bobbin thread sits centered (about the middle third), with top thread visible on both outer thirds.
  • If it still fails: Re-thread the top thread using the tension “feel” test before changing any tension settings.
• Q: What should the Brother PE800 sound like on first boot, and what noises indicate the embroidery arm is blocked?
  A: Brother PE800 startup should sound like a smooth calibration movement; loud grinding, rapid clicking, or harsh clunking often means the carriage is obstructed.
  • Clear: Remove any packing material and ensure the embroidery arm has open space to move X/Y freely.
  • Watch: Confirm the screen shows the “Carriage will move” warning and nothing is touching the hoop area.
  • Stop: Power off if a loud GRIND or fast clicking starts, then remove the obstruction before restarting.
  • Success check: A smooth hum with rhythmic movement during calibration, with no violent vibration or repeated clicking.
  • If it still fails: Re-check for remaining transport tape or physical blockage around the embroidery unit connection area.
• Q: How can leftover blue transport tape or adhesive residue on a Brother PE800 cause bird’s nests, and how should it be cleaned safely?
  A: On a Brother PE800, leftover tape or sticky residue can snag fast-moving thread and trigger shredding or bird’s nesting—remove all tape and clean residue immediately.
  • Search: Check obvious surfaces and also under the bobbin cover and near moving thread path areas.
  • Peel: Remove tape slowly; if it resists, snip with small scissors instead of yanking.
  • Clean: Wipe any sticky residue with a drop of rubbing alcohol on a cloth (keep liquid away from internal electronics).
  • Success check: Plastic surfaces feel smooth (not tacky) when rubbed with a fingertip, and test stitching runs without sudden shredding.
  • If it still fails: Re-check the full thread path for snag points and confirm the bobbin is inserted following the arrow path.
• Q: How can Brother PE800 users prevent hoop burn and wrist strain when hooping thick garments like hoodies using the standard 5x7 hoop?
  A: Brother PE800 hoop burn and hooping struggle are common on thick or delicate fabrics; start with floating, then consider upgrading to a magnetic hoop if hoop burn continues.
  • Level 1: Hoop the stabilizer only, apply temporary adhesive, and float the garment on top to reduce compression marks.
  • Level 2: Switch to a magnetic embroidery frame to avoid forcing a plastic inner ring into the outer ring on bulky items.
  • Level 3: If repeated hooping and re-hooping is the real bottleneck, evaluate a higher-efficiency workflow (fixtures/hooping stations) or a multi-needle setup.
  • Success check: The fabric holds securely without a permanent ring mark after unhooping, and the design outline stays crisp (no fabric “flagging” bounce).
  • If it still fails: Re-check hooping tension (drum tight but not stretched) and confirm stabilizer type matches the fabric.
• Q: What safety precautions should be followed when using magnetic hoops with a Brother PE800 to avoid pinch injuries and equipment risks?
  A: Magnetic hoops are safe for Brother PE800 work when handled deliberately, but the magnets can snap together hard—keep fingers and sensitive devices clear.
  • Separate: Keep hands out of the contact zone and let magnets meet in a controlled way to avoid pinching.
  • Position: Keep magnets away from pacemakers and away from the machine’s LCD/motherboard area when not installed.
  • Control: Set the hoop down flat before attaching magnets so the snap force does not twist fabric or pinch skin.
  • Success check: Magnets “click” into place without finger contact and the fabric is held evenly without shifting.
  • If it still fails: Switch back to floating for the current job and reassess magnet handling technique before the next hooping cycle.
