BX Monogram Fonts in Embrilliance Express: Clean 2-Letter & 3-Letter Layouts, Matching Frames, and the Template Trick That Saves Your Sanity

If you have ever typed initials into your embroidery software, hit “save,” and then stared at the preview thinking, “Why does this look… wrong?”—you are not alone. Monograms are deceptively picky: a design can be mathematically centered yet optically askew, a frame can hold the correct dimensions but feel claustrophobic, and one quirky letter (the notorious "J" or "L") can ruin the symmetry of an otherwise perfect circle.

This guide rebuilds the workflow for creating professional monograms using BX fonts in Embrilliance Express. However, we go beyond the screen. Drawing from 20 years of production experience, we will add the veteran-level checkpoints, physical stabilization strategies, and safety protocols that prevent you from wasting stabilizer, thread, and garments once you actually press "Start."

The “Don’t Panic” Primer: What BX Files Do in Embrilliance Express (and Why They Feel Like Magic)

A BX file is essentially a font file format that acts as a keyboard plugin for your embroidery software. It allows you to generate stitches from typed letters, rather than importing individual alphabet design files solely as images—a tedious process that feels like working in 2009.

In the workflow demonstrated, we use Embrilliance Express (the free mode of the Embrilliance platform). By clicking the A button to Create Letters, you can type initials to instantly build a monogram. This transforms monogram building from a "puzzle assembly" task into a simple typing workflow.

Two operational reality checks:

1. Software Access: You do not need to buy the full software package to do this. You can download the Embrilliance platform and run it in Express Mode (leaving the serial number blank).
2. Asset Requirement: While the mode is free, you must own the monogram BX fonts. The software is the engine; the BX files are the fuel.
3. lineage Note: If the interface reminds you of "EmbroideryWorks," that is because both are developed by Briton Leap.


The “Hidden” Prep Before You Type Anything: Files, Size Limits, and a Save Strategy That Prevents Rework

Before you build a monogram, you must establish a "Pre-Flight" protocol. In a professional shop, we never start designing without knowing the physical constraints of the machine and the hoop.

The Physical Constraint Check

You must have your target hoop size locked in your mind. In the tutorial, the design is constantly checked against a 4x4 field. If you are designing for a compact machine using a standard brother 4x4 embroidery hoop, treat that 3.93" x 3.93" boundary like a concrete wall. It is significantly easier to adjust kerning (letter spacing) now than to discover you are 2mm out of bounds when the machine refuses to load the file.

The "Shop Owner" Save Strategy

A common novice mistake is saving only the machine file. Adopt this commercial habit immediately:

• Save a Working File (.BE): This preserves the font properties, allowing you to re-type or resize letters later.
• Save a Stitch File (.PES, .DST, etc.): This is the "flattened" data the machine reads.

Phase 1 Checklist: Preparation & Assets

• Asset Verification: BX font and companion files (frames/templates) are installed.
• Hoop limit: Defined target size (e.g., 4x4 constraint).
• Visual Aid: Locate the font’s mapping chart (A–L style mapping).
• Storage: Folder created for saving both Working (.BE) and Stitch (.PES/.DST) files.
• Consumables: Check inventory for appropriate stabilizer (Cutaway for knits, Tearaway for woven) and 75/11 embroidery needles.


Make a 2-Letter Monogram in Embrilliance Express Without Fighting Kerning

When creating a standard 2-letter monogram (e.g., Elegant Frame style), the process is linear but requires optical adjustment.

1. In Embrilliance Express, click A to Create Letters.
2. Select the desired monogram font.
3. Type the two letters (e.g., JT).
4. Select the height (e.g., 4 inch).

The Logic: Typing order controls position. The first key stroke is the Left letter; the second is the Right. Case sensitivity (uppercase/lowercase) typically does not matter for the software's file retrieval, but consistency helps.

Pro Tip: The "Floss Test" for Kerning

Kerning (spacing between letters) is not just aesthetic; it dictates stitch mechanics.

• Too Close: If satin columns touch, they create a "bulletproof" dense spot that can break needles.
• Too Far: The monogram loses cohesion.

The Fix: Use the spacing slider to separate the letters until you see daylight between the satin columns. In production, we look for a gap of roughly 1mm to 2mm on screen to account for thread spread—the physical reality that thread has volume and will expand slightly when stitched.

If you are producing bulk orders (e.g., 50 wedding napkins), relying on manual dragging for every single item is inefficient. This is where a physical hooping station for embroidery becomes valuable; it allows you to align the physical garment exactly the same way every time, so your digital file requires zero "nudging" at the machine.

The 3-Letter Monogram Rule That Never Changes: Left, Center (Largest), Right

Three-letter monograms trip up beginners because the logic is rigid.

• 1st Key: Left Letter (First Name)
• 2nd Key: Center Letter (Last Name/Surname) — Conventionally larger.
• 3rd Key: Right Letter (Middle Name)

In the Curtsy monogram example:

1. Click A to create a lettering object.
2. Select a size (e.g., 2 inch).
3. Type the combination (e.g., EHL).


The "Green Node" Adjustment

Auto-spacing is a mathematical algorithm; it does not "see" the design. Letters with heavy weight on one side (like E, F, L) often look off-center.

• Action: Click the green center node on the specific letter (the H) and drag it.
• Success Metric: Zoom out until the design is actual size (1:1). Does it look balanced to the naked eye? If yes, trust your eye over the grid.

Add Matching Frames the Right Way: Using the Separate Fancy Oval Frames BX File (and the A–L Mapping Chart)

This is where the BX ecosystem separates itself from standard image files. A "Fancy Oval" font often includes separate BX files for frames.

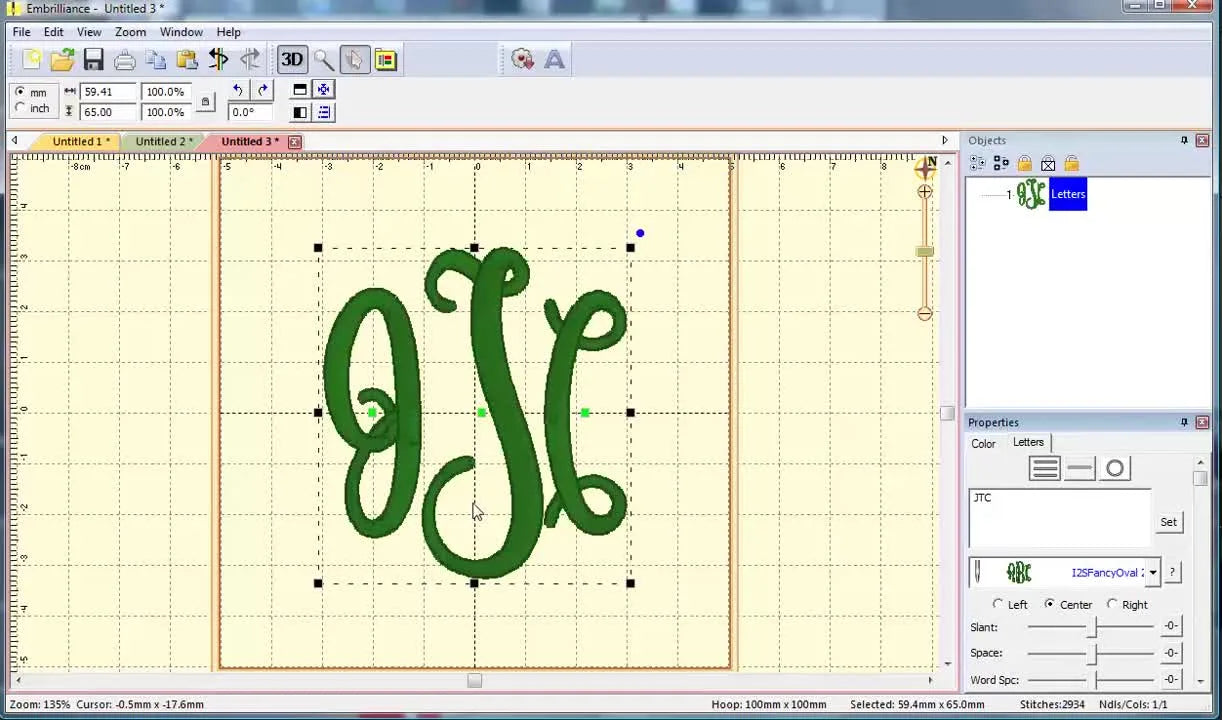

The Mapping Workflow:

1. Type the monogram (e.g., JTC).
2. Select the 2.5 inch size.
3. Create a New Lettering Object for the frame.
4. Select the Fancy Oval Frames font.
5. Consult the Chart:
   • A–D: Frames for 2 inch.
   • E–H: Frames for 2.5 inch.
   • I–L: Frames for 3 inch.
6. Type the mapped key (e.g., H) to generate the correct frame.




Preventing "The Shift"

When you add a frame, you introduce a visual boundary. If your monogram is slightly off-center, the frame will magnify the error.

• Micro-Nudge: Move outer letters first, then center the middle letter.
• Physical Reality Check: Remember that fabrics shift. A perfect 0.5mm gap on screen may close up on a plush towel.

Decision Tree: Stabilizer & Hoop Selection

• Scenario A: Stable Fabric (Cotton napkin) $\rightarrow$ Tearaway stabilizer $\rightarrow$ Standard hoop is acceptable.
• Scenario B: Unstable Fabric (Fleece/Towel) $\rightarrow$ Water Soluble Topper (essential for clarity) + Cutaway stabilizer.
• Problem: Standard hoops leave "hoop burn" (crushed pile) on thick towels.
  • Condition: If stitching >5 towels or handling delicate velvet.
  • Solution: Professional shops switch to an embroidery frame that uses magnets or clamps rather than friction rings.

Force a Thread-Change Stop: Using the Color Palette So the Frame Stitches Separately

Unless you have an industrial multi-needle machine that reads specific color codes, your single-needle machine merges same-colored objects. To force a stop (e.g., to cut jump threads or check alignment):

1. Click the Color tab.
2. Select the frame object.
3. Change it to a contrasting color (e.g., Orange).


This ensures the machine pauses between the frame and the letters, giving you a safety buffer to trim any travel threads before the letters stitch over them.

The Template Trick for Natural Circle Monograms: Fix “Looks Off-Center” Letters Like M, N, O (and the J Kerning Quirk)

Circular monograms are notoriously difficult because letters like "J" often lack the bottom-left curve needed to complete the circle, leaving a visual gap.

The Template Fix:

1. Load the Template BX file (often a running stitch circle).
2. Type the mapping key (e.g., B for 2 inch).
3. Overlay this circle on your monogram.
4. Drag the individual letters to conform to the template's edge, ignoring the software's grid.




Warning: The template is a real stitch object. You must delete the template layer from the Object Pane before saving your stitch file. If you do not, your machine will stitch a permanent circle through the middle of your monogram.

Applique Frames in Fancy Oval: Reorder the Object Pane So Placement/Tack-Down Stitch First

Applique requires a strict physical sequence: Place Fabric $\rightarrow$ Tack Down $\rightarrow$ Trim $\rightarrow$ Satin Finish. The software does not always know this automatically.

The Reordering Protocol:

1. Create the applique frame (e.g., type C for circle).
2. Look at the Object Pane (usually on the right).
3. Right-click and move the applique frame to the top of the stitching order (or ensure its internal steps—Placement and Tackle—run first).
4. Ensure the letters stitch last.






Safety Warning: If the Satin Border stitches before the Tack-Down visual inspection, your needle will strike loose fabric edges. This can shatter the needle. Always feel for the "crunch" of the needle hitting the throat plate—if you hear that, hit Stop immediately.

Phase 2 Checklist: Setup & Export

• Sequence Check: Applique placement/tack-down is First. Letters are Last.
• Cleanup: All template/guide circles deleted.
• Color Stop: Frames and Letters are different colors (if a stop is needed).
• Safety: Verify the design fits 10mm inside the physical hoop limit to avoid hitting the plastic frame.

“Can I Do a 4-Letter Monogram with a BX Monogram Font?”—What the Comments Reveal (and Your Best Workaround)

Most BX monogram fonts are hard-coded for 2 or 3 position logic. A 4-letter request requires a manual workaround.

• Strategy: Create two separate lettering objects (e.g., "AB" and "CD").
• Execution: Manually drag them side-by-side.
• Caveat: You lose the automatic shape (like a diamond or circle) unless you manually resize the inner letters to be larger and outer letters to be smaller.

Decision Tree: From Design on Screen to Clean Stitch-Out (Hoop Size, Stabilizer Mindset, and Upgrade Paths)

Once the file is saved, the battle moves to the physical realm. Use this decision logic to determine your tooling.

1. The "Texture" Test

• Is the fabric flat (Shirt/Napkin)? $\rightarrow$ Proceed with standard hoop. Tension should be "drum tight"—tap it, you should hear a thud.
• Is the fabric thick/plush (Towel/Blanket)? $\rightarrow$ Danger Zone. Standard hoops require immense pressure to close, often leaving "hoop burn" (permanent rings).

2. The Volume test

• Are you stitching 1 item? $\rightarrow$ Float the item (hoop the stabilizer, stick the towel on top). Use 505 spray or water-soluble glue stick.
• Are you stitching 50 items? $\rightarrow$ Floating is too slow.

3. The Tool Upgrade Path When you encounter the limits of standard plastic hoops (pain in wrists, hoop burn marks, impossible to hoop thick seams), professionals upgrade their workholding.

• Level 1 Software: Master the BX workflows above.
• Level 2 Hardware: Switch to magnetic embroidery hoops. These use magnetic force to clamp thick goods without crushing fibers or requiring "superhuman" wrist strength.
• Level 3 Efficiency: If you are constantly changing hoops between a 4x4 limit and larger backs, invest in a standardized set of machine embroidery hoops that cover all your common dimensions (4x4, 5x7, 8x8).

Magnet Safety Warning: High-end magnetic hoops use Neodymium magnets. They possess extreme clamping force.
* Pinch Hazard: Keep fingers clear of the mating surface. The "snap" can cause blood blisters or broken nails.
* Medical Risk: Keep magnets away from pacemakers and insulin pumps.
* Electronics: Do not rest magnetic hoops on laptops or near credit cards.

The Upgrade Moment: When Your Monograms Are “Good,” but Your Workflow Is Still Slow

The difference between a hobbyist and a professional often isn't the design quality—it's the speed of execution.

Once you have mastered the Left-Center-Right typing logic and the Template Alignment trick, your bottleneck will shift to the machine.

• Symptom: You spend 5 minutes hooping a towel and 10 minutes stitching it.
• Diagnosis: Your "handling time" is eating your profit or leisure time.
• Prescription: Use the Decision Tree above. If you are fighting the hoop, the hoop is the problem. If you are fighting the software, use the Template trick.

Phase 3 Checklist: Final Operation

• Hoop Check: Inner ring and outer ring are secure (or magnets are fully engaged).
• Topper: Water-soluble topping is placed over pile fabrics (towels) to keep stitches elevated.
• Needle: Fresh 75/11 or 90/14 needle installed (Monograms are dense; a burred needle cuts fabric).
• Trace: Run a "Trace" or "Contour" function on the machine to physically verify the needle won't hit the hoop.
• Listen: The machine should hum rhythmically. A rhythmic "thump-thump" indicates the needle is struggling to penetrate—check your stabilizer density.

By rigorously applying these software preparation steps and respecting the physical physics of the unique materials you are stitching, you effectively eliminate the "surprise factors" that ruin projects. Your monograms will not just look good on the preview screen—they will come off the machine centered, crisp, and professional.

FAQ

• Q: How do I build a 2-letter monogram with BX fonts in Embrilliance Express without the letters colliding or looking too far apart?
  A: Use Embrilliance Express letter spacing to create a small visible gap so thread spread will not fuse the satin columns—this is common and fixable.
  • Click A (Create Letters), choose the BX monogram font, type the two initials in order (Left letter, then Right letter), and set the target height.
  • Adjust the spacing slider until there is clear “daylight” between satin columns (a small on-screen gap helps prevent dense collision when stitched).
  • Avoid manual dragging for every item if you are doing multiples; focus on consistent physical alignment instead.
  • Success check: Zoom to actual size (1:1) and the two letters look balanced with a visible separation (not touching).
  • If it still fails: Reduce overall size slightly or re-check that the design is staying within the intended hoop boundary before exporting.
• Q: How do I prevent Embrilliance Express monogram designs from being rejected by a Brother 4x4 embroidery hoop size limit during export or on-machine loading?
  A: Design to the hoop boundary from the start and keep the monogram safely inside the field so the machine does not refuse the file.
  • Lock the target field in your mind as a hard boundary (for a Brother 4x4 field, treat the edge like a wall).
  • Check the monogram size repeatedly against the 4x4 field while adjusting spacing and adding frames.
  • Leave extra clearance; keep the design comfortably inside the hoop limit (the blog’s safety protocol recommends staying well inside to avoid hardware contact).
  • Success check: The full design remains inside the hoop boundary on-screen with margin, and the machine loads the file without an “out of bounds” refusal.
  • If it still fails: Resize the full design down first, then re-do kerning and re-center rather than trying to force the last 1–2 mm.
• Q: How do I save monogram files correctly in Embrilliance Express so the BX font properties are not lost and the machine file still stitches?
  A: Save two files every time: a Working file for edits and a Stitch file for the machine—this prevents rework later.
  • Save a Working file (.BE) to preserve the editable lettering object and font behavior.
  • Save a Stitch file (.PES/.DST/etc.) as the flattened file the embroidery machine reads.
  • Create one project folder per customer/order so both versions stay together.
  • Success check: Reopening the .BE file still shows editable lettering objects (not just stitches), and the stitch file opens/loads on the machine.
  • If it still fails: Verify the BX font is installed/available on that computer, and confirm you did not overwrite the .BE with only a stitch format.
• Q: How do I use the green center node in Embrilliance Express to fix a 3-letter BX monogram that looks optically off-center (especially with letters like E, F, or L)?
  A: Trust optical centering over mathematical centering by nudging the letter using the green node—this is a normal step for asymmetrical letters.
  • Type the 3-letter monogram in the standard order (Left, Center-largest, Right).
  • Click the specific letter that looks wrong and drag the green center node to re-balance its visual position.
  • Zoom out to actual size (1:1) before judging alignment.
  • Success check: At 1:1 view, the monogram looks balanced to the naked eye even if it is not perfectly centered on the grid.
  • If it still fails: Adjust the outer letters first, then re-center the middle letter again—frames will magnify small alignment errors.
• Q: How do I add a separate BX frame (such as Fancy Oval Frames) in Embrilliance Express without the monogram shifting off-center after the frame is added?
  A: Create the frame as a separate lettering object using the font’s mapping chart, then re-center the monogram visually before stitching.
  • Create the monogram first, then create a New Lettering Object for the frame.
  • Select the Frames BX file and use the A–L mapping chart to type the correct key for the chosen size.
  • Micro-nudge alignment: move outer letters first, then fine-center the middle letter so the frame does not expose the imbalance.
  • Success check: With the frame visible, the spacing around the monogram looks even, and the design still stays within the hoop boundary.
  • If it still fails: Re-check stabilization and fabric type—plush towels can close small gaps and make a “perfect on screen” layout look tighter when stitched.
• Q: How do I force a thread-change stop between a BX monogram and its frame on a single-needle embroidery machine using Embrilliance Express?
  A: Change the frame to a different color in the Color tab so the machine pauses between objects for trimming and inspection.
  • Click the Color tab in Embrilliance Express.
  • Select the frame object and change it to a contrasting color (for example, Orange).
  • Stitch the frame first, let the machine stop, then trim/check before the letters stitch.
  • Success check: The machine inserts a clear stop between frame stitching and letter stitching (separate color blocks).
  • If it still fails: Confirm the frame and letters are truly separate objects and not merged into one color block in the design.
• Q: What are the safety checks to prevent needle strikes or needle breakage when stitching applique frames and dense monograms in Embrilliance Express projects?
  A: Ensure the stitch sequence is physically correct and keep the design well inside the hoop so the needle never hits hardware—stop immediately if the machine sounds wrong.
  • Reorder the Object Pane so applique runs in the proper sequence (Placement → Tack-down → Trim → Satin finish), with letters stitching last.
  • Delete any template/guide stitch objects before saving the stitch file so the machine does not sew unwanted circles.
  • Run the machine’s Trace/Contour function to confirm the needle path will not hit the hoop; keep the design safely inside the hoop boundary.
  • Success check: The machine hums rhythmically (no repeated “thump-thump”), and the needle does not contact the throat plate or hoop.
  • If it still fails: Stop the machine immediately, re-check stitch order and hoop clearance, and replace the needle (dense monograms can expose a burred needle quickly).
• Q: When does it make sense to switch from a standard embroidery hoop to a magnetic embroidery hoop for towels or plush fabrics to prevent hoop burn and reduce hooping time?
  A: Upgrade to a magnetic hoop when thick or delicate pile fabrics show hoop burn or when repetitive hooping is slowing production—this is usually a handling-time problem, not a design problem.
  • Use standard hoops for stable fabrics; for towels/fleece, add water-soluble topper + cutaway stabilizer to keep stitches clear.
  • If standard hoops must be tightened aggressively to hold thick goods (causing crushed pile/hoop burn), switch to a magnetic clamping style to reduce pressure damage and wrist strain.
  • For one-off items, floating can work; for batches, reduce handling time with faster, more consistent workholding.
  • Success check: The fabric surface shows less crushing after unhooping, and hooping becomes repeatable without “superhuman” force.
  • If it still fails: Review magnet safety practices—keep fingers clear of the snap zone and keep strong magnets away from pacemakers/insulin pumps and sensitive electronics.
