Digitizing Finn in Sophie Sew Without the “Brick Stitch” Look: Compensation, Tiny Details, and Cleaner Stitch Order

Mastering the "Finn" Character: A Field Guide to Clean Cartoon Embroidery

Understanding the Gap Between Screen and Spool

If you’re staring at a cartoon design in Sophie Sew and thinking, “It looks fine in 3D… so why does my test sew-out feel like a stiff patch of armor?”, you’re not alone. Finn is a deceptively simple character: big clean outlines, a few fills, and tiny facial details. That combination is exactly where beginners accidentally create dense, thread-breaking files—or files that run, but look rough because the stitch order is fighting the physics of the fabric.

This guide rebuilds the Finn overview workflow into a repeatable, industrial-grade process. We will keep every specific setting shown in the video so you can follow along, but I will add the "sensory diagnostics"—the sounds and feelings—that veteran digitizers use to judge a file before the machine even starts.

Phase 1: The Setup (Audit Before You Edit)

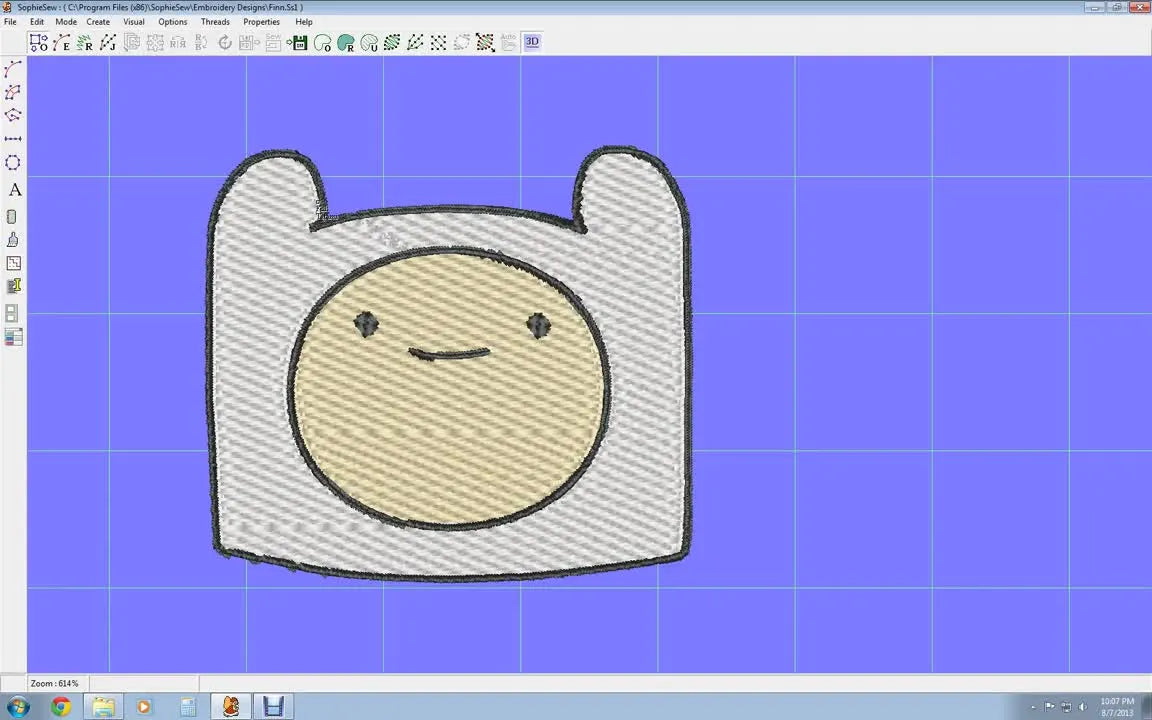

The video starts in 3D mode with the Finn design selected as a single object group. That’s intentional. The host points out that the design is made of many individual pieces, but they’re associated into a group.

Why this matters: Grouping is your safety net. If you ungroup everything too early, you lose the ability to move the character as a whole without misaligning the eyes or mouth.

The 600% Rule: The host zooms in to 600%. This is not optional. At 100%, you see the image. At 600%, you see the geometry.

• Visual Check: Look for "crossed nodes" (lines that twist over themselves like a tangled garden hose).
• Production Reality: Sophie Sew stores color codes, but they rarely match your specific thread brand perfectly. Ignore the screen color; trust the spool you hold in your hand at the machine.


Prep Checklist: The "Pre-Flight" Audit

• Group Status: Confirm the design is associated/grouped using the top bar.
• Zoom Level: Set to 600%. Nodal errors hide in plain sight at lower zooms.
• Object ID: Identify the families: Main Outline, Hat Fill, Face Fill, Eyes, Mouth.
• Consumables Check: Do you have your spray adhesive (for float capability) and sharp needles (75/11 is the sweet spot for cotton)?

Phase 2: The "Gap Killer" (Outline Engineering)

In the video, the host selects the body outline and switches to Edit Mode. The outline is a simple satin stitch, but he applies a specific setting to prevent the dreaded "white gap" (where the fabric shows between the outline and the fill).

• Satin Stitch Compensation (Main Outline): 2.5 mm (Note: This value is specific to Sophie Sew's calculation method. In other software, pull compensation is usually 0.3-0.5mm. Adhere to the video's 2.5mm if using Sophie Sew.)

The Expert's "Why": Fabric is fluid. When a needle penetrates, it pulls the fabric inward. Without compensation, the fill pulls away from the outline, creating gaps. Compensation forces the stitches to overlap slightly, creating a seal.

Sensory Anchor: When stitching an outline with proper compensation, it should sit proud (slightly raised) on top of the fill edges. If it looks "sunken" or you see fabric peeking through, you need more compensation.

Phase 3: The "Thin-Line" Cosmetic Trick

To make the character look hand-drawn rather than ropey, the host adjusts the outline height:

• Upper Height: 0.1
• Lower Height: 0.1
• (Default is usually 1.0)

The Trade-off: Reducing height from 1.0 to 0.1 makes the satin stitch tighter and thinner. It looks professional, BUT it is less forgiving. A thin line cannot hide a bad fill edge. This is why the 2.5 mm compensation above is critical—it widens the reach of the stitch to grab the fill.

Warning: Physical Safety
When test-sewing highly detailed outlines, keep fingers and nippers at least 4 inches away from the needle bar. High-density short stitches can cause needle deflection. If a needle breaks, shards can fly at high velocity. Always wear safety glasses when testing new files.

Phase 4: The Discipline of Defaults (Fills)

For the hat’s internal fill region:

• Stitch type: Tatami
• Settings: Left at Defaults

The Cognitive Shift: Beginners often turn knobs (density, angle, spacing) hoping for magic. Stop. The default settings in most software are engineered for standard woven cotton. Only change them if you have a specific failure (e.g., fabric showing through).

The "Thump-Thump" Test: If your machine makes a heavy, laboring thump-thump sound while stitching a fill, your density is too high (nodes are too close). If it sounds like a smooth hum, your density is in the safe zone.

Phase 5: The Micro-Detail Conundrum (1mm Eyes)

Here is where most novice files fail. The host notes the eyes are roughly 1 mm.

• The Problem: The "Circle Tool" struggles at 1 mm. It treats geometry mathematically, not physically.
• The Fix: Create a Handmade Object.
  1. Use a Running Stitch for the outline.
  2. Use a Tatami for the fill.


Why this works: At 1 mm, a standard satin column is just a knot. By manually placing a running stitch and a light fill, you prevent "bulletproof embroidery"—stiff, hard lumps that break needles.

Sensory Anchor: Run your thumb over the finished eye. It should feel like a bump, not a rock. If it feels sharp or hard enough to scratch skin, it is too dense.

Phase 6: Face & Mouth Settings

Face Fill:

• Type: Tatami
• Compensation: 0 (We don't need the fill to expand, we rely on the outline to cover it).

Mouth Satin:

• Upper/Lower Height: 0.1 / 0.1 (Matches the body).
• Compensation: 1.5 mm (Less than the body).

Logic: The mouth is an internal detail, not a container. It doesn't need to cover a raw edge, so we use less compensation to keep it crisp.

Phase 7: Stitch Order (The Hidden Efficiency)

The video shows using Blue Arrows (pathing) and Red Lines (jumps) to audit the file.

Setup Checklist: The "Red Line" Audit

• Pathing: Trace the blue arrows. Does the machine jump from left ear -> right foot -> left eye? That is bad pathing.
• Optimization: Reorder objects to flow logically (e.g., Hat -> Face -> Eyes -> Mouth).
• Cleanliness: Reduce red lines. Every red line is a jump stitch that requires a trim (or a manual snippet).

Phase 8: The Physical Pivot – When Software Is Perfect, But The Sew-Out Fails

You have followed the guide perfectly. You export to DST. You run the file. And it puckers.

This is usually not a digitizing failure. It is a Hooping Failure.

Determining Your Tooling Strategy

The best file in the world cannot fix fabric that is moving inside the hoop. Use this decision tree to determine if you need to upgrade your tools.

Decision Tree: Consumables & Hooping

1. Do you hear a "drum skin" sound when you tap the hooped fabric?
   • Yes: Tension is good. Proceed.
   • No: You need better stabilization. Use a Cutaway stabilizer for knits/stretchy fabrics. Tearaway is only for stable wovens.
2. Are you seeing "Hoop Burn" (shiny rings) on the fabric?
   • Yes: You are over-tightening standard hoops to compensate for slippage.
   • Solution: This is a mechanical limit of friction hoops.
3. Are you doing production runs (10+ items)?
   • Yes: Standard screwing and unscrewing of hoops is your biggest Time Thief.

The Professional Solution: Magnetic Workflows

If you are moving from "hobby" to "hustle," fighting with standard plastic hoops is a losing battle. This is why professionals switch to magnetic embroidery hoop systems.

• Zero Burn: They clamp via magnetic force, not friction, eliminating ring marks.
• Speed: No screws. Snap on, snap off.
• Consistency: The tension is identical every time, which means your 2.5 mm compensation setting will behave exactly the same on Shirt #1 as on Shirt #50.

Warning: Magnetic Field Safety
magnetic embroidery hoop systems use industrial-strength magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone. They can pinch with 10+ lbs of force.
2. Medical Devices: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place phones or credit cards directly on the magnets.

The Hardware Upgrade Path

Once you master digitizing files like Finn, your bottleneck shifts from "creating the file" to "sewing it fast enough."

• Level 1 (Software): You master the Sophie Sew workflow above.
• Level 2 (Stability): You upgrade to specific machine embroidery hoops like the MaggieFrame / SEWTECH magnetic series to solve puckering and hooping speed.
• Level 3 (Scale): You graduate from a single-needle breakdown to a multi-needle machine. SEWTECH machines allow you to load 10+ colors at once (solving the "manual thread change" issue mentioned in the video) and run at higher speeds with industrial tension control.

Operation Checklist: The First Run

• Speed Limit: Set machine to 400-600 SPM (Stitches Per Minute) for the first test. Speed kills details.
• Watch the Gap: Pause after the first outline. Is the fill meeting the edge?
• Color Stops: Since DST files from Sophie Sew might have odd color codes, have your thread cones lined up in order on your table before you press start.
• Hidden Consumable: Keep a tweezers handy. With 0.1 height outlines, any stray thread tail caught underneath will show through.

By combining the precise software settings from the video with professional hooping disciplines, Finn stops being a frustration and becomes a badge of honor. Happy stitching.

FAQ

• Q: In Sophie Sew digitizing, why does the Finn satin outline show a white gap between the outline and the fill after exporting a DST file?
  A: Increase the satin stitch compensation for the main outline so the outline slightly overlaps the fill edge.
  • Set the Finn main outline satin compensation to 2.5 mm when using Sophie Sew (other software may calculate differently).
  • Zoom to 600% and inspect fill edges for geometry issues before adjusting anything else.
  • Stitch a slow test run and pause after the first outline to confirm coverage.
  • Success check: The outline should sit slightly “proud” on the fill edge with no fabric peeking through.
  • If it still fails: Treat it as a hooping/stabilization problem (fabric shifting can create apparent gaps even with correct settings).
• Q: What is the 600% zoom check in Sophie Sew for the Finn character, and what problems does it prevent in cartoon embroidery?
  A: Always audit the Finn design at 600% to catch node/geometry issues that look fine at 100% but sew poorly.
  • Confirm the design remains grouped/associated before deep edits to avoid misaligning eyes and mouth.
  • Look for crossed nodes or twisted paths in edit mode that can cause harsh stitch direction changes.
  • Identify object families (main outline, hat fill, face fill, eyes, mouth) before changing settings.
  • Success check: At 600%, paths look clean and intentional—no “tangled hose” overlaps at corners.
  • If it still fails: Run a test sew-out at 400–600 SPM to verify the problem is truly digitizing and not hooping movement.
• Q: In Sophie Sew, why do Finn’s outlines get “ropey” or too thick, and what settings make the satin outline look more hand-drawn?
  A: Reduce the satin upper/lower height to 0.1/0.1 to thin the outline, but only after ensuring edge coverage with compensation.
  • Set Upper Height to 0.1 and Lower Height to 0.1 (from the typical 1.0 default).
  • Keep the main outline compensation strong (2.5 mm in Sophie Sew) so thin satin still grabs the fill edge.
  • Test at a conservative speed and trim loose tails that can telegraph under thin outlines.
  • Success check: The outline reads crisp and “inked,” not like a heavy cord, and does not expose fabric at edges.
  • If it still fails: Back off density-related tweaks and re-check fill edge quality at 600% (thin satin cannot hide bad edges).
• Q: How do you digitize 1 mm eyes in Sophie Sew for the Finn character without creating dense, needle-breaking “bulletproof embroidery”?
  A: Use a Handmade Object with a running stitch outline and a light tatami fill instead of forcing a tiny satin circle.
  • Create the eye as a Handmade Object rather than relying on the Circle Tool at 1 mm.
  • Use Running Stitch for the outline and Tatami for the fill to avoid a hard satin “knot.”
  • Sew a sample and physically feel the result before committing to a production run.
  • Success check: The eye feels like a small bump under your thumb, not a sharp hard rock.
  • If it still fails: Slow the first run to 400–600 SPM and check needle condition/sharpness before changing more parameters.
• Q: What is the “drum skin” test for hooping tension, and how does it help diagnose puckering on the Finn DST sew-out?
  A: Tap the hooped fabric—if it does not sound like a drum skin, the fabric is not stabilized/tensioned enough and can pucker even with perfect digitizing.
  • Re-hoop and aim for firm, even tension across the entire hooping area.
  • Match stabilizer to fabric: use cutaway for knits/stretchy fabrics; reserve tearaway for stable wovens.
  • Avoid over-tightening standard hoops to “force” tension (this often causes hoop burn).
  • Success check: A clear drum-like tap sound and the fabric does not shift during stitching.
  • If it still fails: Consider a magnetic hoop workflow to reduce slippage and keep repeatable tension across multiple items.
• Q: What causes hoop burn (shiny hoop rings) when embroidering Finn on cotton, and how do magnetic embroidery hoops reduce hoop burn?
  A: Hoop burn usually comes from over-tightening standard friction hoops to stop slippage; magnetic hoops clamp without friction rings.
  • Stop cranking the screw tighter once the fabric is held—over-tightening trades slippage for shiny marks.
  • Improve stabilization first so the fabric does not need extreme hoop pressure.
  • Use magnetic hoops when hoop burn is recurring and consistency matters across repeated runs.
  • Success check: The finished fabric shows no shiny ring marks and the design stays registered without needing excessive screw pressure.
  • If it still fails: Re-check the “drum skin” tension and stabilizer choice; puckering plus hoop burn often means the fabric is moving and being crushed.
• Q: What safety precautions should be followed when test-sewing high-density short stitches on the Finn outline with 0.1/0.1 satin height settings?
  A: Treat detailed outline tests as a needle-break risk and keep hands and tools well away from the needle zone.
  • Keep fingers and nippers at least 4 inches away from the needle bar during test sewing.
  • Wear safety glasses when running new, dense, highly detailed files because needle shards can fly if a needle breaks.
  • Start the first run at 400–600 SPM to reduce deflection and observe behavior early.
  • Success check: The machine runs smoothly without visible needle deflection, and no “violent” snapping or repeated thread breaks occur.
  • If it still fails: Stop immediately, re-check needle sharpness (75/11 is cited as the sweet spot for cotton), and reduce risk by re-testing before production.
