Ditch the USB: Pairing the Brother Aveneer EV1 with the Artspira App (Without the Usual Wi-Fi Headaches)

If you’ve ever stood in front of a premium machine like the Brother Aveneer EV1 thinking, “Why is this simple Wi-Fi thing suddenly my whole afternoon?”—you’re not alone. The friction of modern connectivity often clashes with the tactile joy of embroidery. The good news: once you understand the registration handshake (Long Machine Code → App PIN → Green Checkmark), it’s genuinely quick.

This post rebuilds the exact on-screen flow shown in the video, but applies an "Education Director" filter. We will add the necessary guardrails that keep you from chasing ghosts—wrong Wi-Fi bands, typo-induced failures, or the dreaded "missed confirmation tap."

Calm the Panic: What “Pairing Brother Aveneer EV1 to Artspira” Actually Means (and What It Doesn’t)

Let’s demystify the tech. Pairing is simply registering your machine inside Artspira so the app can send designs wirelessly to the machine’s Pocket (cloud) area. This allows you to finally stop living the "USB-drive shuffle" life.

However, to avoid frustration, we must set two critical expectations immediately:

1. Pairing ≠ Connection: Your machine can be successfully connected to your home Wi-Fi router and still be invisible to Artspira. They are two separate layers.
2. Code ≠ Serial Number: This is the most common novice error. You are not engaging in a warranty registration. You are creating a temporary digital handshake. Do not look at the sticker on the back of your machine; you need the dynamic code generated on the screen.

If you’re setting this up on any brother embroidery machine, visualize it like a two-factor login for your bank: the machine proves itself to the app, and the app proves itself back to the machine.

Warning: Physical Safety Alert. While you are focused on the screen and tapping through menus, ensure your hands, sleeves, and styluses are kept away from the needle bar and presser foot area. Accidental startups during "test transfers" happen frequently. A moving embroidery needle does not stop for fingers.

The “Hidden” Prep Pros Do First: Wi-Fi, Screen Mode, and a 30-Second Sanity Check

Before you even open the Artspira app, execute this pre-flight check. Skippng these steps accounts for roughly 80% of "failure to pair" support tickets.

The Invisible Barrier: Network Segregation

The video correctly states that the tablet and machine must be on the same network. However, in modern homes, "same network" is tricky.

• The Trap: Your phone is on your 5GHz high-speed band, but your embroidery machine (like many IoT devices) often prefers or requires the 2.4GHz band. If your router segregates these heavily, the devices cannot "see" each other.
• The Fix: Ensure both devices are connected to the exact same SSID (Network Name). Avoid "Guest" networks, which often block device-to-device communication for security reasons.

What the video shows you must verify

1. Internet Path: The machine needs a route to the outside internet, not just the local router.
2. Wireless LAN Enable: This toggle must be ON.

Hidden Consumable Alert: Before you start, grab a capacitive stylus. Typing long, non-responsive numeric strings on a touch screen with a finger often leads to errors. A stylus ensures you hit the right number the first time.

Prep Checklist (Pre-Flight):

• Visual Check: Confirm the machine screen shows the Wi-Fi icon with at least 2 bars of strength.
• Network Check: Verify your tablet is not on LTE/5G data; it must be on Wi-Fi.
• SSID Match: Confirm tablet and machine show the exact same network name (e.g., "Studio_WiFi" vs "Studio_WiFi_5G").
• Proximity: For the initial pairing, stand within 10 feet of your router to eliminate signal drop issues.


Find the Right Button Fast: Artspira App “Register” + Brother Aveneer EV1 Settings Page 13

Navigation is often where cognitive friction peaks because menus are dense.

On the App Side (Tablet/Phone):

1. Open Artspira.
2. Look for the Sewing Machine Icon in the upper right corner.
3. Enter the machine settings area and tap Register.

On the Machine Side (Aveneer EV1):

1. Tap the Settings (paper icon) key.
2. You likely need to scroll. Go forward to Page 13. This is the dedicated Artspira housing.
3. Locate the large Register button.

Expert Note: Do not hunt through the general "Network" or "Wi-Fi" settings on pages 6-9. Those control the router connection. The registration handshake is exclusive to the Artspira page.

If you own multiple brother embroidery machines and see older devices listed (the video shows a Luminaire entry), ignore them. Focus solely on the active registration for the unit in front of you.

The Two-Way Code Handshake: Long Machine Code → App PIN → The Green Checkmark That Everyone Misses

This is the core operation. It requires a specific sequence. If you perform these steps out of order, the "handshake" fails, and you have to start over.

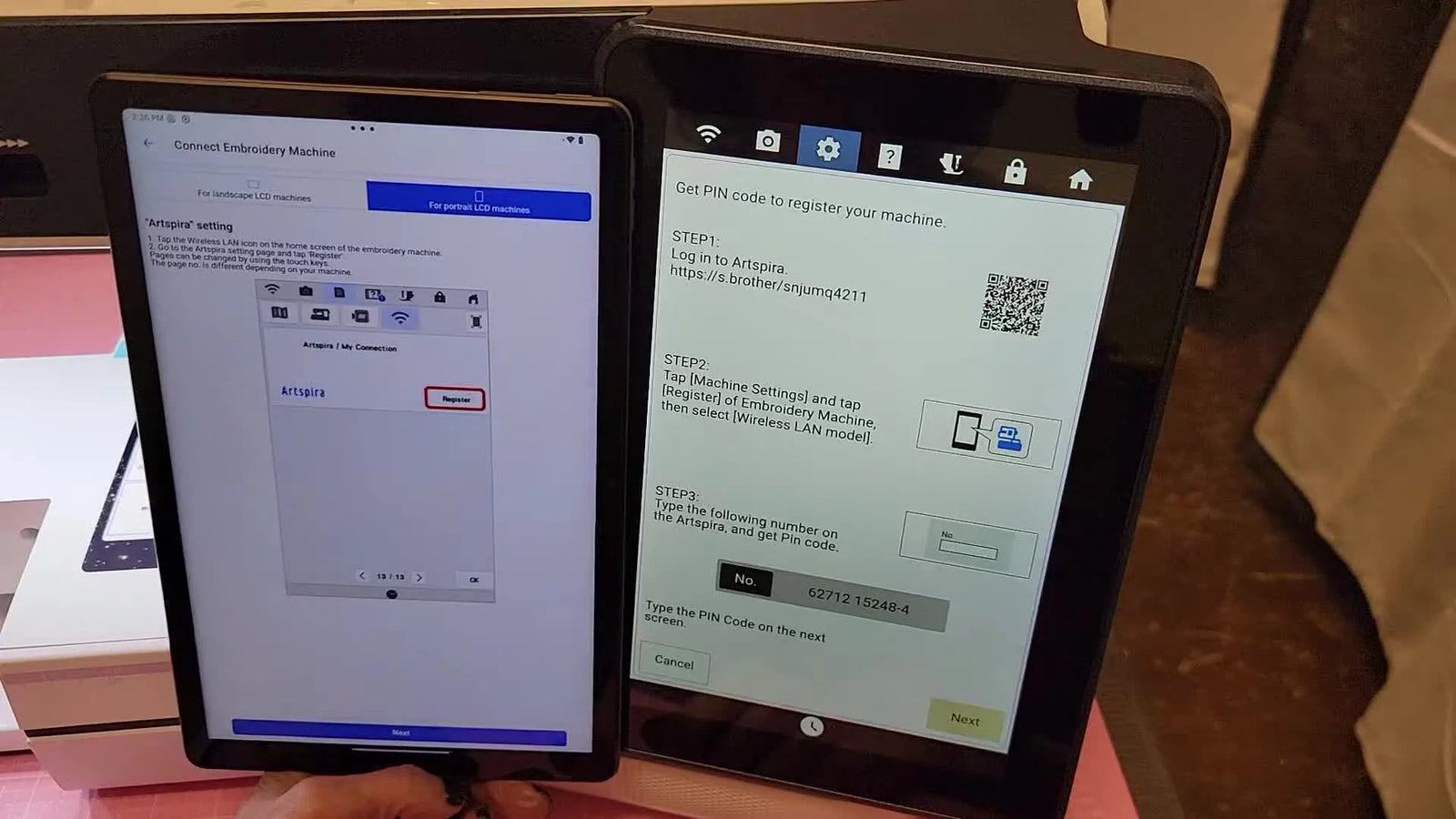

Step A — Generate the long code on the machine

After pressing Register on Page 13 of the machine, the screen will change.

• Visual Anchor: Look for a QR code and a long numeric string.
• Data: The video example shows: 627 112 152 481 4.
• Note: This code is likely temporary. Do not write it down for later; use it now.


Step B — Type that long code into the tablet

In the Artspira app, a number pad field will appear.

• Action: Carefully type the machine's code into the tablet.
• Crucial Distinction: As the creator warns, do not type the machine serial number. If you are looking at a silver sticker on the back of the machine, you are doing it wrong. Look at the screen.


Step C — Receive the 4-digit PIN on the tablet

Once the app accepts the machine code, it will "reply" with a 4-digit PIN.

• Data: The video shows 6033.
• Sensory Check: Ensure you read this clearly; mistaking a 6 for an 8 is common on smaller phone screens.


Step D — Enter the PIN on the machine... and FINISH IT

Back on the machine's screen, you will see a prompt for the PIN.

• Action: Enter the 4 digits.
• The "Pro Move" (Failure Point): You are not done just because you typed the numbers. You must tap the Set button or the Green Checkmark to finalize the command.

Many users type the code and wait. Nothing happens. You must tell the machine to "execute" the pairing.

Setup Checklist (The Handshake):

• Machine: Navigate to Page 13 → Register.
• Machine: Leave the generated Long Code displayed on the screen.
• Tablet: Input the Long Code immediately (don't let the session time out).
• Tablet: Wait for the 4-digit PIN generation.
• Machine: Input the PIN.
• Machine: CRITICAL: Tap the Green Checkmark/Set button to save.


“Why Did My Machine Name Change?” The SewingMachine248 Surprise (and Why You Should Ignore It)

Success! But wait—your premium machine is now called SewingMachine248 inside the app.

The video shows the creator attempting to rename the machine in settings, but the registered name defaults back.

• The Reality: The app assigns a specific network ID. Functionality is 100% unaffected by this generic name.
• The Workaround: In a busy shop environment, rely on physical labeling. Put a piece of masking tape or a label on the physical machine that says "App ID: 248".

If you are managing a mixed floor containing a brother sewing machine alongside embroidery-only units, this physical labeling is the only way to prevent sending a jacket back design to a machine set up for a hat.

Your First Wireless Win: Transfer a Design from Artspira to the Brother Aveneer EV1 Pocket

Now, let's validate the connection immediately. Do not assume it works—prove it.

On the Tablet (Artspira)

1. Navigate to New Free Embroidery Designs.
2. Select a simple file (the video uses a heart/dove design).
3. Tap Create, then Done.
4. Hit the Transfer button.
5. Sensory Anchor: Watch for the loading bar and the confirmation message: “Data transfer is complete.” If you don't see this confirmation, the file did not leave the tablet.




On the Machine (Aveneer EV1)

1. Press the Home button.
2. Select Embroidery.
3. Locate the Pocket icon (this represents cloud storage). It usually looks like a pocket or a cloud symbol.
4. Visual Anchor: You should see the thumbnail of the heart/dove design appear.




The workflow is now established. The file size in the video was small (3.56 x 4.09 inches), but the "pipe" is now open for larger files.

Operation Checklist (Validation):

• App: Verify the transfer target matches your machine name (e.g., SewingMachine248).
• App: Wait for the specific "Transfer Complete" text.
• Machine: Navigate to Embroidery → Pocket.
• Machine: If the design isn't there, press the Wi-Fi key on the screen to force a refresh.
• Selection: Tap the design to ensure it opens in the edit screen.

When Your Artspira “Education” Menu Looks Different: Fixing the Missing Category Confusion

A common user anxiety raised in the comments is the "Missing Menu" syndrome. The user goes to Education → Basics but sees categories like "Embroidery, Cutting, Simulation" instead of what the instructor sees.

The Expert Perspective: App interfaces are "live" software. They change based on:

1. Your geographic region.
2. The specific machine model you registered.
3. The app version you are running.

The Fix: Do not panic. If your menus look different, it does not mean your pairing failed. Use the Search function within the Education tab. If you are looking for the import tutorial, search for "Import." Prioritize the Transfer Function over the Education menus. If you can transfer a design, your setup is perfect, regardless of how the tutorial library is organized.

“Did You Get Your Artspira Magazines Back?” What to Do When Content Disappears

Another common issue: Content tiles (Magazines) vanishing.

• Diagnosis: This is usually a server-side content refresh or a login session timeout, not a machine connection failure.
• Action: Separate content from connectivity. If you can't see the magazine, but you can transfer that heart design, your machine is fine. Log out of Artspira and log back in to refresh the content cache.

The “Why” Behind Smooth Wireless Transfers: Reliability Habits That Save Real Production Time

Why go through this pairing process? It isn't just about being tech-savvy; it's about production rhythm. Every time you stop to find a USB stick, format it, and walk it to the computer, you lose 3-5 minutes. In a week, that’s an hour of lost production.

Reliability Habits:

1. Dedicated Tablet: Use one shop tablet for transfers to avoid "multi-device confusion."
2. Morning Test: Send a tiny file every morning to ensure the connection is alive before you have a customer waiting.
3. Minimize Variables: Don't change your router password unless necessary.

Once your data flow is instant, you will notice other bottlenecks in your workflow. The most obvious one? Hooping.

Wireless transfer saves you 2 minutes, but struggling with a screw-tightened hoop on a thick hoodie can cost you 10 minutes and sore wrists. This is where physical tool upgrades become logical.

Warning: Magnetic Safety. As you explore advanced tools like magnetic frames, be aware they use powerful industrial magnets. Pinch Hazard: They can snap together with crushing force. Medical Device Warning: Keep them away from pacemakers and insulin pumps.

Upgrade Path After Wi-Fi: From “It Works” to “It Pays” (Without Buying Random Stuff)

Use this logic to decide your next investment. Do not buy tools you don't need; buy solutions to specific pains.

Scenario A: The "Hoop Burn" Struggle

The Pain: You are embroidering delicate fabrics or thick polar fleece. Traditional hoops leave ring marks ("hoop burn") that require steaming to remove, or you simply can't tighten the screw enough for thick items. The Solution: This is the trigger to upgrade to a magnetic embroidery hoop. The Benefit: Magnets self-adjust to the fabric thickness. There is no screw to tighten, and the flat clamping force eliminates hoop burn. It turns a 5-minute struggle into a 10-second "click."

Scenario B: The "Single-Needle" Ceiling

The Pain: You have orders for 50 chest logos. Your Aveneer is amazing, but it has one needle. You are stopping every 2 minutes to change thread colors. The Solution: Wireless transfer won't fix this. You are ready for a multi-needle machine (like the SEWTECH ecosystem). The Benefit: You set up 15 colors, press start, and walk away.

Scenario C: Compatibility Confusion

The Pain: You have an Aveneer at the shop and a smaller machine at home, and you want efficient hooping for both. The Research: Equipment is specific. You might search for a magnetic hoop for brother pe800 for your home unit. Always verify the hoop fits the specific carriage arm of your model. A hoop for a multi-needle machine will generally not fit a single-needle home machine.

Scenario D: The High-End Studio

The Pain: You are running a Brother Luminaire alongside your Aveneer and want standardized framing. The Solution: Look specifically for magnetic hoops for brother luminaire. Using the same hooping system across networked machines allows you to prep garments on a generic station and clip them into whichever machine finishes first.

Decision Tree: What is your actual bottleneck?

1. Is the Machine stopping?
   • Cause: Thread Breaks. -> Fix: Check Needles/Thread path.
   • Cause: Color Changes. -> Fix: Upgrade to Multi-needle machine.
2. Is the Operator stopping?
   • Cause: Searching for USB. -> Fix: Artspira Pairing (This Guide).
   • Cause: Fighting the hoop screw. -> Fix: Magnetic Embroidery Hoops.
   • Cause: Wrist Pain. -> Fix: Hooping Station + Magnetic Hoops.
3. Is the Product rejected?
   • Cause: Hoop marks. -> Fix: Magnetic Frames + Backing optimization.

Quick Recap: The Exact Flow That Worked (Repeatable Standard Operating Procedure)

1. Prep: Machine and Tablet on same SSID (2.4GHz preferred).
2. Nav: App → Register | Machine Pg 13 → Register.
3. Action: Type Machine Code into App.
4. Confirm: Type PIN into Machine.
5. Critical: Tap Green Checkmark on machine.
6. Verify: Send "Heart" design → Check "Pocket."
7. Optimize: If hooping slows you down now that data is fast, look into magnetic framing solutions.

You have now removed the "digital friction" from your studio. Go make something beautiful.

FAQ

• Q: How do I pair a Brother Aveneer EV1 with the Artspira app without getting stuck on the registration step?
  A: Pairing works when the Brother Aveneer EV1 completes the exact handshake order: Long Machine Code → Artspira PIN → Green Checkmark on the machine.
  • Generate: Tap Settings (paper icon) → go to Page 13 → tap Register to display the long code (and QR).
  • Enter: Type the long machine code into Artspira (use it immediately; don’t save it for later).
  • Confirm: Enter the 4-digit PIN from Artspira back into the Brother Aveneer EV1, then tap Set/Green Checkmark to execute.
  • Success check: The Brother Aveneer EV1 accepts the PIN and completes registration (no “waiting forever” screen after you press the Green Checkmark).
  • If it still fails… Restart the registration from Page 13 and re-check that both devices are on the same Wi-Fi SSID (not Guest, not cellular).
• Q: Why is a Brother Aveneer EV1 connected to Wi-Fi but still invisible in the Artspira app during registration?
  A: This is common—Wi-Fi connection and Artspira pairing are two different layers, and network segregation often blocks discovery.
  • Match: Connect the tablet/phone and Brother Aveneer EV1 to the exact same SSID (avoid “_5G” vs non-5G name mismatches).
  • Avoid: Disconnect from Guest Wi-Fi and turn off LTE/5G data on the tablet/phone during setup.
  • Verify: Confirm Wireless LAN is enabled on the machine and the Wi-Fi icon shows at least 2 bars.
  • Success check: The Artspira Register flow accepts the long machine code and returns a 4-digit PIN.
  • If it still fails… Move within 10 feet of the router and try again to rule out signal drop during the handshake.
• Q: What should I do if Artspira asks for a code and I accidentally enter the Brother Aveneer EV1 serial number instead of the on-screen machine code?
  A: Don’t worry—Artspira registration requires the dynamic on-screen long machine code, not the sticker serial number.
  • Cancel: Back out of the Artspira code entry screen and restart the Register flow.
  • Display: On the Brother Aveneer EV1, go to Settings → Page 13 → Register and keep that long code visible.
  • Enter: Type only the on-screen long numeric string into Artspira (a capacitive stylus helps prevent typos).
  • Success check: Artspira generates a 4-digit PIN after the long code is accepted.
  • If it still fails… Re-enter carefully; one wrong digit will stop the handshake with no useful clue.
• Q: Why does Brother Aveneer EV1 Artspira pairing fail after I enter the PIN, and the machine seems to do nothing?
  A: The most missed step is failing to tap the Set button/Green Checkmark after entering the PIN on the Brother Aveneer EV1.
  • Enter: Type the 4-digit PIN on the machine exactly as shown in Artspira.
  • Execute: Tap Set/Green Checkmark to finalize (typing the PIN alone is not a command).
  • Repeat: If the screen timed out, restart at Page 13 → Register and request a fresh PIN.
  • Success check: The Brother Aveneer EV1 confirms registration right after pressing the Green Checkmark (no idle screen waiting).
  • If it still fails… Re-run the entire handshake quickly so the session doesn’t expire mid-step.
• Q: How can I confirm a Brother Aveneer EV1 wireless transfer from Artspira actually worked (not just “looks connected”)?
  A: Prove it by transferring a small design and verifying it appears in the Brother Aveneer EV1 Pocket area.
  • Send: In Artspira, choose a simple design → Create → Done → Transfer and wait for “Data transfer is complete.”
  • Check: On the machine, press Home → Embroidery → open Pocket (cloud/pocket icon) and look for the thumbnail.
  • Refresh: Press the on-screen Wi-Fi key to force a refresh if the design doesn’t show immediately.
  • Success check: The design thumbnail appears in Pocket and opens into the edit screen when tapped.
  • If it still fails… Confirm the Artspira transfer target matches the registered machine name shown in the app.
• Q: Why does my Brother Aveneer EV1 show up in Artspira as “SewingMachine248,” and can I ignore the name change?
  A: Yes—this generic name is a normal app-assigned ID and does not affect transfer functionality.
  • Accept: Treat the name as an identifier, not a problem to fix.
  • Label: Put a physical label on the Brother Aveneer EV1 (for example “App ID: 248”) to avoid sending designs to the wrong machine.
  • Verify: Always confirm the transfer target in Artspira before tapping Transfer.
  • Success check: Designs transfer to the intended machine and appear in that machine’s Pocket.
  • If it still fails… If multiple machines are registered, re-check you’re selecting the correct target before each transfer.
• Q: What safety steps should I follow when pairing a Brother Aveneer EV1 to Artspira and doing test transfers near the needle area?
  A: Treat setup like an active machine session—keep hands and sleeves away from the needle bar/presser foot area during menu tapping and test transfers.
  • Clear: Move fabric, tools, and fingers away from the needle/presser area before starting any “test transfer” workflow.
  • Focus: Use a stylus if needed so you don’t lean into the machine while typing codes.
  • Pause: If you must reach near the needle area, stop and make sure the machine is not about to start.
  • Success check: You complete registration and test transfer without any unintended machine movement near your hands.
  • If it still fails… Step back, reset calmly, and restart the registration flow—rushing near the needle is when accidents happen.
• Q: When wireless transfer works on Brother Aveneer EV1 but production is still slow, when should I switch from technique fixes to magnetic embroidery hoops or a multi-needle machine?
  A: Use a bottleneck check: fix workflow first, upgrade tools when the same pain repeats and costs more time than the upgrade.
  • Level 1 (Technique): Standardize the process—use a dedicated tablet and send a tiny test file each morning to confirm Artspira transfers are alive.
  • Level 2 (Tool): If hooping causes hoop burn, screw-hoop struggle, or wrist pain on thick/delicate items, magnetic embroidery hoops are often the next step.
  • Level 3 (Capacity): If the real stop is constant thread color changes (single-needle ceiling), a multi-needle machine is the practical upgrade path.
  • Success check: After the change, the operator stops less often (less hoop fighting, fewer color-change interruptions) and jobs flow more smoothly.
  • If it still fails… Identify whether the machine is stopping (thread/color) or the operator is stopping (hooping/USB/searching) and upgrade only that constraint.
