Edge-to-Edge Quilting on a Janome Horizon: The Magnetic Hoop Method That Keeps Rows Straight (and Your Sanity Intact)

The Zero-Drift Protocol: Mastering Edge-to-Edge Quilting on Janome Machines (A Field Guide)

If you have ever attempted to quilt a finished "sandwich" (top + batting + backing) on a standard single-needle embroidery machine, you are likely familiar with the specific heartbreak known as "The Drift."

The first two blocks look spectacular—crisp, aligned, professional. But by the third row, something shifts. A millimeter of rotation here, a slight drag there, and suddenly your continuous edge-to-edge pattern looks disjointed. It is the visual equivalent of a tiling job gone wrong, and unlike tiles, you cannot simply pry them up. Ripping out stitches from batting is a sensory nightmare.

This guide helps you move from "hoping it aligns" to "knowing it aligns."

We are deconstructing a magnetic frame method on the Janome Horizon Memory Craft platform. This is not just a tutorial; it is a protocol based on three non-negotiable rules of embroidery physics:

1. Dynamic Marking: Mark only what is immediate (preventing accumulation errors).
2. Absolute Zero: Use the machine’s "Stitch #1" to dictate coordinates, not your eyes.
3. Physical Anchoring: Use the needle as a mechanical pin before clamping.

We will also address the commercial reality: when does fiddling with a home machine cost you more money than upgrading to a production ecosystem?

The “Don’t Panic” Primer: Why Janome Horizon Edge-to-Edge Quilting Goes Sideways So Fast

Edge-to-edge quilting feels like it should be the easiest task in embroidery: stitch, move, repeat. However, physics is working against you. A quilt sandwich is technically a "live" dynamic material—it compresses, stretches, and creates drag.

When you use standard plastic hoops on a quilt, you are fighting two enemies:

• Hoop Burn & Drag: To get the hoop closed, you have to apply immense pressure. This crushes the batting and distorts the top fabric.
• Rotation Creep: As you wrestle the heavy bulk of the quilt to the left or right, the fabric inside the hoop tends to twist just 1 or 2 degrees. Over a King-size quilt, that 1-degree error compounds into a 3-inch gap by the final row.

The solution detailed here relies on separating alignment from clamping. By using a magnetic system (like the Janome ASQ22 size reference), you eliminate the friction that causes the drag.

The Hidden Prep That Makes This Work: Paper Template + Chalk Lines (Row-by-Row, Not All at Once)

Novices mark the whole quilt before they start. Experts mark one row at a time.

The video demonstrates the use of a printed paper template of your design and a chalk marker. The distinction here is critical: fabric relaxes and shifts as you work on it. Lines drawn on Monday may be accurate; by Friday, after you have wrestled the quilt through the machine throat fifty times, those lines are lies.

The Protocol:

1. Print precisely: Ensure your paper template is printed at 100% scale.
2. Mark the grid: Use a chalk marker (or a air-soluble pen for lighter fabrics) to mark a horizontal registration line.
3. Hidden Consumable Alert: Keep a roll of painter’s tape nearby. Use it to tape the paper template to the quilt temporarily while you mark, ensuring the paper doesn't slip.

This sets your vertical spacing (distance from top to center).

Prep Checklist (Do this before touching the machine)

• Needle Check: Install a fresh Topstitch 90/14 or Quilting 90/14 needle. Quilting through three layers dulls needles instantly; a burred needle causes skipping.
• Sandwich Audit: Verify the backing is smooth and the basting (spray or pin) is secure but not obstructing the stitch path.
• Template Accuracy: Measure your printed paper template with a ruler to ensure your printer didn't scale it down to 98%.
• Marking Tool: Test your chalk marker on a scrap. Ensure it brushes off but stays visible under the machine's LED lights.
• Thread Selection: Choose a high-sheen polyester (40wt) that contrasts just enough to be seen, but blends enough to hide minor imperfections.

Warning: Mechanical Safety
When "burying" the needle to anchor the quilt (described later), keep your hands flat and away from the needle bar path. Do not hold the fabric near the foot. If the machine engages or you accidentally hit the start button, a finger under a quilting needle is a catastrophic injury.

Why a Magnetic Hoop for a Heavy Quilt Sandwich Feels Like Cheating (In a Good Way)

Standard hooping requires "drum-tight" tension. This is the Enemy of quilting. You do not want tension; you want stability.

A quilt sandwich has loft (fluffiness). If you force it into a friction hoop (inner and outer rings), you are essentially pulling the top fabric tighter than the backing. When you un-hoop later, the top puckers.

The Magnetic Physics: A magnetic frame clamps vertically. It presses straight down. It does not pull the fabric outward.

• Sensory Check: When clamped, the quilt should feel soft but immovable—like a heavy book resting on a table, not like a trampoline.

If you are struggling with back-pain or wrist fatigue from wrestling enormous quilts, this is often the point where hobbyists look for a magnetic hooping station. These tools allow you to lay the heavy quilt flat while applying magnets, saving your shoulders from "The Wrestle."

The Stitch #1 Trick on a Janome Embroidery Machine: Stop Guessing Where the File Starts

Human eyes are terrible at estimating the center of an irregular shape. Computers are perfect at it.

The most critical technical step in this video is utilizing the Janome navigation screen to advance to Stitch Number 1.

• The Action: Use the "+" button on the stitch counter.
• The Result: The machine physically moves the hoop arm to the exact X/Y coordinate where the needle will take its first dive.

This moves the goalpost from "Align the hoop nicely" to "Align the quilt to the Needle." It is a subtle but profound shift.

Constraint Check: Ensure your specific hoop is selected in the settings (e.g., ASQ22 8.7" x 8.7"). If the machine thinks you have a smaller hoop, it will refuse to move to the edge coordinates.

Setup Checklist (Before you clamp anything)

• File Logic: Load the continuous line design. Ensure it is oriented correctly (not rotated 90 degrees).
• Machine Zero: Advance the sequence to Stitch #1.
• Hoop Security: Listen for the audible click when attaching the hoop arm to the carriage. A loose hoop guarantees drift.
• Bulk Management: Roll or fold the excess quilt to the left of the machine.
• Environment: Ensure the quilt is not hanging off the table edge, which creates "gravity drag" that pulls against the hoop motors.

The Alignment Ritual: Needle Down at the End of the Last Motif (This Is Your Real Registration Mark)

This is the "Secret Sauce." How do you connect Row A to Row B without a gap?

The Anchor Method:

1. With the machine locked at Stitch #1, manually slide your loose quilt sandwich under the foot.
2. Align the exact end point of your previous stitching directly under the needle.
3. Sensory Check: Lower the needle (using the handwheel or button) until it penetrates the fabric. It should go through the fabric and "bite" into the plate/bobbin area slightly.
4. The Feel: Gently wiggle the quilt. It should feel pinned. The needle is now your physical anchor.

This technique eliminates the "float." You are no longer guessing where the connection is; the machine is physically holding the connection point for you.

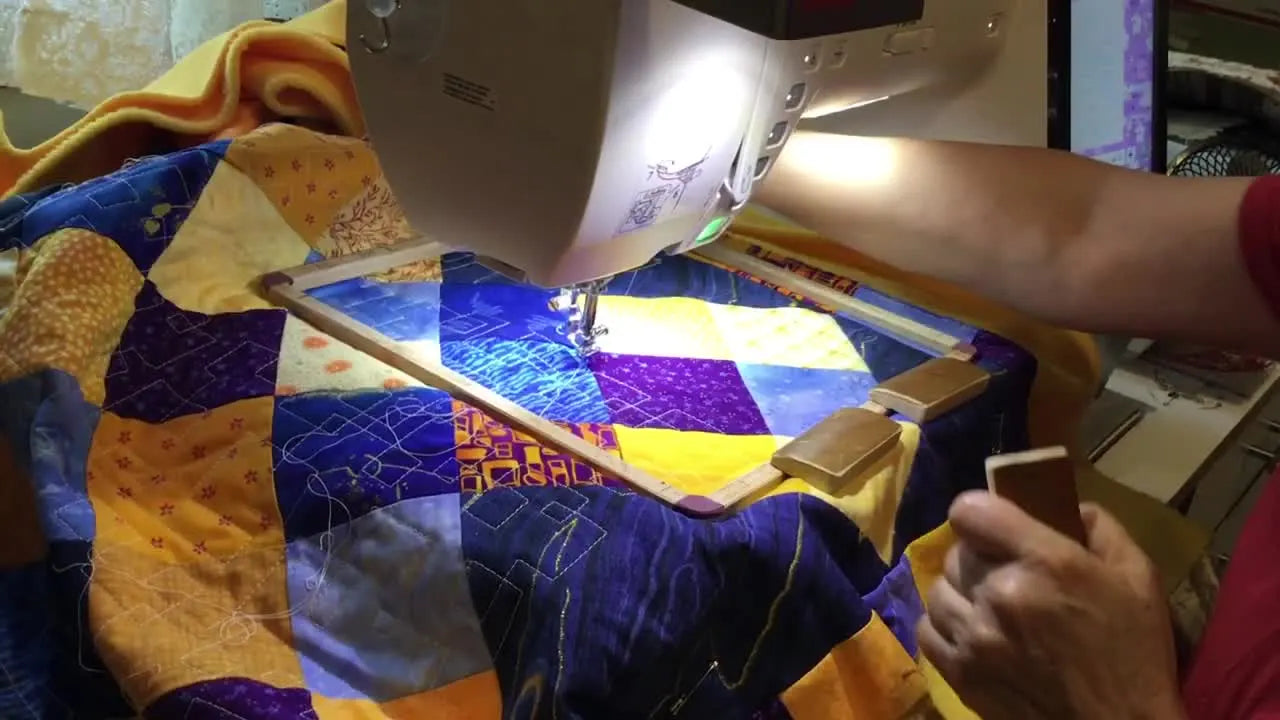

Clamping the Magnetic Hoop Without Distorting the Quilt: Opposite Sides First, Then Micro-Adjust

Now that the needle is pinning the quilt in place, you apply the magnetic frame. But how you apply it determines if you get a bubble.

The Clamping Order:

1. Top Magnet: Snap it on.
2. Bottom Magnet: Snap it on.
3. Smoothing: Gently stroke the fabric away from the center—imagine you are smoothing a wrinkle out of a bedsheet. Do not pull; just smooth.
4. Side Magnets: Snap them on.

By doing Opposite Sides First, you neutralize the tension. If you went clockwise (Top, Right, Bottom, Left), you would likely push a wave of fabric toward the final corner, creating a "pucker trap."

For those running production, this speed and precision are why many search specific terms like magnetic embroidery hoops for janome embroidery machines—finding a frame that clears the needle bar while offering maximum grip is essential for preventing "flagging" (fabric bouncing).

Warning: Magnet Safety
Neodymium magnets used in modern hoops are incredibly powerful.
* Pinch Hazard: Never let two naked magnets snap together; they can break skin or shatter the coating.
* Device Safety: Keep them at least 6 inches away from computerized machine screens, credit cards, and pacemakers.
* Tool Hygiene: Do not lay scissors next to your magnets; they will become magnetized and frustrate you by picking up pins forever.

Clean Starts on Machine Embroidery Quilting: Pull Up the Bobbin Thread and Control the Tails

Nothing ruins the back of a quilt faster than a "bird's nest" (a tangle of thread) on the very first stitch.

The Protocol:

1. Raise Needle: Lift the needle up from its anchor position.
2. Verify: Look at the screen. Did the hoop move? No. Good.
3. Cycle: Drop the needle down and up once.
4. The Sweep: Swipe a pair of tweezers or a seam ripper under the foot to pull the bobbin thread loop to the top.
5. The Hold: Hold both the top and bobbin tails firmly (like floss) for the first 3-4 stitches.

This ensures the knot forms inside the batting layer, not as a messy clump on the back. It is a hallmark of professional embroidery. Often, specialized hooping station for machine embroidery setups include spool stands or clips to help manage these tails during the prep phase.

The Presser Foot Hover Rule: Stop the Quilt From Bunching Under the Foot

If your machine sounds like it is straining, or you hear a rhythmic thump-thump of the foot hitting the fabric, your Presser Foot Height is wrong.

Quilts are thick. If the foot is set to a standard "0" or "0.5mm," it will act like a snowplow, pushing a wave of fabric in front of the needle. This causes the design to distort and the registration to fail.

The Fix:

• Go to your machine settings.
• Raise the foot height to 1.5mm - 2.5mm (depending on batting loft).
• Visual Check: The foot should hover just above the fabric surface when the needle is down. It should barely kiss the fabric, not compress it.


Stitching the Motif: What “Good” Looks Like While the Janome Runs

Once you hit "Start," your job changes from Operator to Auditor.

Auditory Cues:

• The sound should be a smooth, rhythmic hum.
• A "slapping" sound indicates the fabric is flagging (bouncing) -> Check magnet strength.
• A "grinding" sound indicates the quilt drag is too heavy -> Support the quilt weight with your hands or a table extension.

Speed Limit: While your machine might claim 1000 SPM (Stitches Per Minute), running an edge-to-edge quilt at max speed is risky. High speed increases vibration and drag.

• Sweet Spot: 600 - 700 SPM. This gives the feed system time to move the heavy sandwich accurately.

Professionals often invest in magnetic embroidery hoop systems not just for ease, but because the firm grip allows for slightly higher speeds without the fabric shifting.

Operation Checklist (Every hooping, every time)

• Anchor: Needle buried at the exact end-point of previous design?
• Square: Horizontal chalk marks aligned with frame witness marks?
• Tension: Fabric is flat but not stretched drum-tight?
• Clearance: Presser foot hovering, not plowing?
• Tails: Bobbin thread pulled up and held aside?

The Pro Finish Move: Create Long Tails, Cut Clean, Then Bury Them Later

When the design finishes, do not let the automatic cutters chop the thread short (if your machine has this option, turn it off for quilting).

The Hand-Finish Method:

1. Lift the needle and foot.
2. Pull the hoop toward you to create 4-5 inches of thread slack.
3. Cut manually.
4. Why? Automatic cutters leave a 1cm tail on the back. Over time and washing, this can poke out. By leaving long tails, you can thread a hand needle later and bury the thread deep into the batting layer, making it invisible and permanent.


The Easy-to-Miss Reset: Re-Center in Edit Mode After You Jog the Hoop

Here is a trap that catches 90% of users.

If you jogged the hoop manually to trim a thread or check a bobbin, your machine might still think the hoop is in that offset position. If you start the next row, it will be misaligned.

The Fix: After every row completion, go to the Edit Screen and press the Center Design button. This recalibrates the machine's brain to the physical center of the hoop, ensuring your "Stitch #1" logic remains valid for the next cycle.

Comment-Section Reality Check: “Can You Sell That Hoop?” and What to Do If You Quilt for Profit

The video features comments begging for the specific magnetic hoop shown. The creator clarifies it was a DIY solution for specific students.

The Commercial Reality: For hobbyists, DIY is fine. But if you are quilting for customers, "homemade" is a risk. You need certified tolerance and holding power.

This brings us to the Productivity Paradox:

• The Problem: You have 50 quilts to do. A single-needle machine requires re-hooping every 8 minutes. That is roughly 60 interruptions per quilt.
• The Symptom: Your back hurts, your wrists ache from clamping, and you are terrified to leave the machine alone for 30 seconds.
• The Tool Upgrade:
  1. Level 1 (Hobbyist): Buy a commercial-grade magnetic embroidery hoops for janome. This solves the wrist pain and hoop burn.
  2. Level 2 (Pro): If you are running a business, the bottleneck is the single needle. You are spending more time hooping than stitching.

This is where a SEWTECH Multi-Needle Machine changes the math. With a large continuous sash frame or a giant magnetic field, you hoop once and stitch for 45 minutes. You gain the ability to walk away, answer emails, or prep the next quilt.

If you are tracking your "Time-on-Machine" vs. "Time-Hooping," and the hooping time is winning, you have outgrown your current toolset.

Decision Tree: Choosing Stabilizer/Backing Strategy for Quilting a Quilt Sandwich

Since the quilt sandwich is the stabilizer, you don't use Cutaway or Tearaway. However, you must make dynamic adjustments based on the fabric type.

START HERE:

1. Is the Quilt Batting "High Loft" (Puffy/Thick)?

• YES:
  • risk: Presser foot drag.
  • Fix: Raise foot height to 2.5mm. Use stronger magnets (8+ points of contact).
• NO (Standard Cotton/Bamboo):
  • Risk: Pucker.
  • Fix: Ensure standard foot height (1.5mm).

2. Is the Quilt Top "Slippery" or Stretchy (Minky/Silk)?

• YES:
  • Risk: Distortion during stitching.
  • Fix: Use temporary spray adhesive (Odif 505) between batting and top. Use a magnetic embroidery hoop with texture-grip tape to prevent sliding.
• NO (Cotton):
  • Fix: Standard magnetic clamping is sufficient.

3. Are you seeing "Gapping" between rows?

• YES:
  • Cause: Fabric shrinkage (draw-in).
  • Fix: Slightly overlap your rows by 1-2mm in your template planning to account for the draw-in.


The Repeat Loop: How to Set Up the Next Hooping Without Losing Your Place

To finish, let’s solidify the mental loop. This should become muscle memory:

1. Reset: Edit Mode -> Center Design.
2. Position: Advance to Stitch #1.
3. Hoop: Attach empty magnetic frame base.
4. Anchor: Drag quilt -> Needle Down at end of previous row.
5. Align: Check chalk lines against frame.
6. Clamp: Opposite sides first.
7. Execute: Pull tails -> Run file -> Cut long tails.

By converting "art" into "process," you remove the fear. The machine is just a tool; you are the engineer.

The Upgrade Path (Without the Hard Sell): When Better Hoops or a Multi-Needle Machine Actually Pays Off

If you are a hobbyist doing one heirloom quilt a quarter, the method above is perfect. It requires patience, but it costs nothing but time.

However, if you are reading this because you are frustrated by the limitations of a single-needle throat space or the constant re-hooping, listen to that frustration. It is data.

• Scenario A: You love your Janome but hate the bruising on your palms.
  • Solution: Upgrade to magnetic hoops for embroidery machines. They are compatible with most models and convert "clamping" into "snapping."
• Scenario B: You have orders piling up and you are turning away work because you can't quilt fast enough.
  • Solution: Look at the SEWTECH High-Speed Multi-Needle ecosystem. These machines are built with wider fields and faster drag-free movements specifically for this workload.

Keep stitching, keep measuring, and trust the physics—not just your eyes.

FAQ

• Q: On a Janome Horizon Memory Craft embroidery machine, why does edge-to-edge quilting drift or rotate when using standard plastic hoops on a quilt sandwich?
  A: This is common—standard hoops add friction and outward pull, which creates drag, hoop burn, and rotation creep that compounds across rows.
  • Reduce distortion by switching the goal from “drum-tight tension” to “stable clamping” (avoid stretching the quilt layers).
  • Support the quilt bulk so it does not hang off the table edge and create gravity drag.
  • Roll/fold excess quilt to the left so the carriage is not fighting weight and torque.
  • Success check: The quilt feels soft but immovable in the hoop (not trampoline-tight), and repeated rows stay visually aligned without growing gaps.
  • If it still fails… Switch to a magnetic clamping method and use Stitch #1 positioning so the needle—not your eyes—defines the start point.
• Q: On a Janome Horizon Memory Craft, how do you use Stitch Number 1 to align edge-to-edge quilting so the next row starts exactly where the file begins?
  A: Use the machine’s Stitch #1 to move the hoop to the true start coordinate, then align the quilt to the needle position instead of eyeballing center.
  • Select the correct hoop size in settings (example shown: ASQ22 8.7" x 8.7") before positioning.
  • Advance the stitch counter to Stitch #1 so the machine drives to the exact X/Y start point.
  • Align the registration marks and the prior stitching endpoint under the needle while the machine is parked at Stitch #1.
  • Success check: When Stitch #1 is selected, the needle location clearly matches the intended start point of the motif without “guessing.”
  • If it still fails… Re-check that the machine is not restricted by an incorrect hoop selection that prevents edge positioning.
• Q: On a Janome Horizon Memory Craft, how do you connect Row A to Row B in edge-to-edge quilting without gaps using the needle-down anchor method?
  A: Pin the exact endpoint of the previous motif with the needle before clamping, so the quilt cannot “float” during hooping.
  • Lock the machine at Stitch #1, then slide the loose quilt sandwich under the foot.
  • Align the exact end point of the previous stitching directly under the needle.
  • Lower the needle until it penetrates the quilt and “bites” slightly into the plate/bobbin area to mechanically anchor the spot.
  • Success check: Gently wiggle the quilt—if the quilt feels pinned and cannot drift, the anchor is correct.
  • If it still fails… Confirm the endpoint you’re pinning is truly the last stitch location (not a nearby line) before clamping the frame.
• Q: How do you clamp a magnetic hoop on a quilt sandwich for Janome Horizon Memory Craft edge-to-edge quilting without creating bubbles or puckers?
  A: Clamp opposite sides first while the needle is anchoring the registration point, then smooth (do not pull) before adding side magnets.
  • Snap on the top magnet first, then the bottom magnet (opposite sides first).
  • Smooth fabric gently away from the center like a bedsheet—avoid outward pulling that stretches layers unevenly.
  • Add the side magnets last to finish the clamp.
  • Success check: The surface is flat with no “wave” pushed into the last corner, and the quilt remains soft (not over-compressed).
  • If it still fails… Re-do the clamp sequence; clockwise clamping often traps a pucker at the final corner.
• Q: On a Janome Horizon Memory Craft, how do you prevent bird’s nests at the start of edge-to-edge quilting on a quilt sandwich?
  A: Pull up the bobbin thread and hold both thread tails for the first 3–4 stitches so the knot forms inside the batting, not as a tangle underneath.
  • Raise the needle from the anchor position and verify the hoop did not shift on-screen/physically.
  • Drop the needle down and up once to create the bobbin loop.
  • Sweep tweezers (or a seam ripper) under the foot to pull the bobbin loop to the top.
  • Hold both top and bobbin tails firmly for the first few stitches.
  • Success check: The quilt back shows a clean start with no thread wad (no “nest”) under the first stitches.
  • If it still fails… Stop immediately, remove the tangle, then repeat the tail-hold start; do not keep stitching over a forming nest.
• Q: On a Janome Horizon Memory Craft, what presser foot height helps stop thick quilt sandwiches from bunching, thumping, or “snowplowing” during edge-to-edge quilting?
  A: Raise presser foot height so the foot hovers instead of compressing the loft; the guide’s working range is 1.5–2.5 mm depending on batting loft.
  • Go into machine settings and increase presser foot height (a safe starting point is 1.5 mm for standard loft, up to 2.5 mm for high loft).
  • Listen while running: thump-thump usually means the foot is hitting and pushing fabric.
  • Re-check quilt support so drag is not forcing fabric into the foot.
  • Success check: The foot barely kisses the surface when the needle is down, and the machine runs with a smooth hum instead of rhythmic slapping/thumping.
  • If it still fails… Slow down toward the 600–700 SPM range and confirm the quilt is not hanging off the table creating extra drag.
• Q: What needle and prep checks help prevent skipped stitches and alignment issues when edge-to-edge quilting a quilt sandwich on a Janome Horizon Memory Craft?
  A: Start with a fresh Topstitch 90/14 or Quilting 90/14 needle and verify template scale and row-by-row marking before stitching.
  • Install a new Topstitch 90/14 or Quilting 90/14 needle (quilting through three layers dulls needles quickly).
  • Measure the printed paper template to confirm it printed at 100% scale (not reduced).
  • Mark only the next row (not the whole quilt) using chalk or an air-soluble pen, and use painter’s tape to keep the paper template from slipping.
  • Success check: Stitching forms consistently (no intermittent skips), and registration lines stay trustworthy from row to row.
  • If it still fails… Re-check sandwich security (basting/spray/pins not obstructing the stitch path) and re-mark the immediate row rather than relying on older lines.
• Q: What safety rules matter most when using needle anchoring and strong magnets for edge-to-edge quilting on a Janome Horizon Memory Craft?
  A: Treat the needle and magnets as pinch/injury hazards—keep hands flat and clear during needle-down anchoring, and handle neodymium magnets with strict spacing and control.
  • Keep hands away from the needle bar path when burying the needle; never hold fabric near the foot while positioning.
  • Prevent magnets from snapping together; place magnets deliberately to avoid pinched skin or chipped magnets.
  • Keep magnets at least 6 inches away from computerized screens, credit cards, and pacemakers.
  • Success check: Positioning feels controlled—no hands near the needle path, and magnets never “jump” uncontrolled onto the frame.
  • If it still fails… Pause and reset the workspace: lay tools away from magnets (to avoid magnetizing scissors) and reposition the quilt so you are not rushing near the needle.
