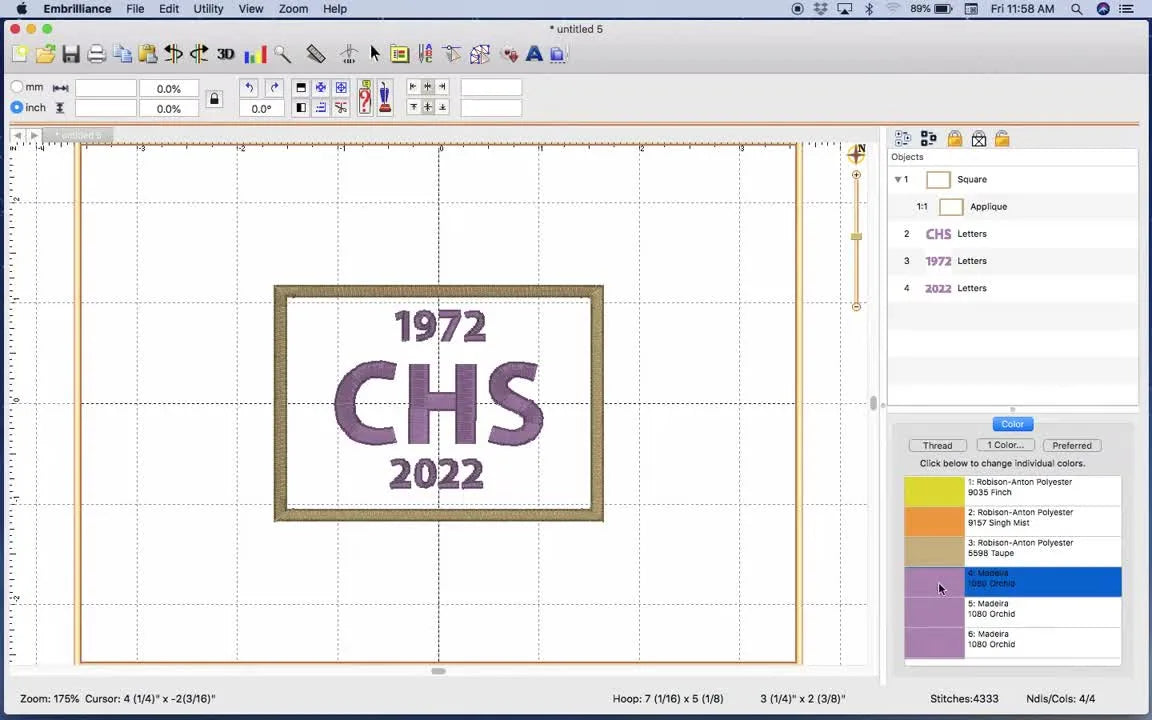

Embrilliance Essentials Hat Patch Appliqué: Build Clean Stops, Perfect Sizing, and a Patch That Actually Stitches Well

If you have ever opened Embrilliance, stared at a blank grid, and thought, “I just want a simple patch for a hat—why does this feel like a geometry exam?” you are not alone. Machine embroidery is an art of variables: fabric stretch, stabilizer choice, and hoop tension all conspire against precision. The good news is that the workflow in this video is beginner-friendly, and it is built around one professional habit that prevents most appliqué disasters: deliberate, forced machine stops.

As a veteran of the trade, I often see beginners struggle not because they lack creativity, but because they lack a "production mindset." This post rebuilds the exact on-screen process from the tutorial, but I will strip away the guesswork. I will add the tactile, sensory details—the "feel" of the hoop, the "sound" of a good stitch—that turn a digital file into a physical patch you can be proud to wear.

Lock the Hoop Boundary First: 130×180 mm (5×7) Is Your Guardrail in Embrilliance

Before you draw a single line, you must define your battlefield. In the video, Suzanne sets the design space to the 130×180 mm (5×7) hoop in Preferences.

Why is this step non-negotiable? In the physical world, "hoop drift" is real. If you digitize a patch right up to the maximum 5x7 limit, the presser foot may hit the plastic frame, causing a "knocking" sound (a mechanical warning sign) or shifting the registration.

The Safety Rule: Always leave a buffer. When you see that dashed orange outline on the screen, treat the inner 5mm as a "No Fly Zone." This ensures that even if your fabric is thick or your hooping isn't perfectly centered, your needle won't strike the frame—a mistake that breaks needles and ruins timing.

Pro tip from the comments (software version reality check): If your interface doesn’t match what you see in older tutorials, do not panic. Platforms update. The critical function here is simply Preferences > Hoops > Select 130x180. If the menu has moved, the physics of the hoop size remain the same.

The “Free Shape” Hunt: Pull the Embrilliance Appliqué Square (Even If the Forum Link Moved)

Suzanne merges an appliqué base from the library. In the video, she locates a specific square shape from a "Free Forum Gift" folder.

Reality Check: Links rot. Forums change. Several viewers noted they couldn't find this specific file. Do not let this stop your production. The "magic" is not in that specific free file; it is in the workflow you are about to build.

What to do if the file is gone:

1. Log in: Ensure you are logged into the Embrilliance platform.
2. Use Primitives: If the file is missing, click the "Merge Stitch File" or "Library" button and select any basic satin-stitch square or rectangle.
3. The Goal: You need an object with three layers: Placement, Tack-down, and Finish. As long as the object has these properties, the source doesn't matter.


Turn a Square into a 2.5" × 3.5" Patch Base Without Warping Your Edges

Suzanne manipulates the square, dragging the black handles until the properties bar reads approximately 2.5" × 3.5" (standard vertical patch size). She then hits Center Design to align it relative to the hoop.

The Hooping Variable: On screen, dragging a square into a rectangle looks effortless. In reality, resizing an appliqué shape impacts the corner angles. If you stretch it too aggressively, your satin stitches at the corners may become sparse.

Sensory Check: When you run the simulation in software, look closely at the corners. Do the satin stitches look like solid bars, or do they fan out like an opening deck of cards? If they fan out too much, the raw edge of your patch fabric will peek through.

Decision Point: If you are making 50 of these patches, manual centering on the screen isn't enough; you need manual consistency at the station. This is where an embroidery hooping station transforms your result. It allows you to place the backing and fabric in the exact same spot on the physical hoop every time, matching your centered digital design.

Force Clean Appliqué Stops: Placement → Tack Down → Satin Stitch Must Be Separate Colors

This is the absolute heart of this tutorial. If you take nothing else away, learn this: Machines only stop when told.

Suzanne explains that the appliqué object typically has three steps:

1. Placement stitch: A running stitch that marks the fabric (shows you where to place your patch material).
2. Tack down: A zigzag or running stitch that secures the patch material (so you can trim).
3. Satin stitch: The heavy, beautiful border that hides the raw edges.

In the software, she manually changes the thread color for each step (e.g., Blue, Red, Yellow). She will not actually switch thread colors at the machine; she is tricking the machine into pausing.

Why this prevents disaster: Without these stops, the machine would run straight from placement to satin, stitching over your untrimmed fabric and creating a messy, bulky edge that looks amateurish.

The Workflow Benefit: Stopping the machine allows you to slide the hoop out (or bring it forward) to trim the excess fabric. If you are using magnetic embroidery hoops, this step is significantly faster. Because magnetic hoops hold fabric with clamping force rather than friction and screws, you can often trim without destabilizing the fabric, or remove and re-attach the top frame instantly if you need better access.

Warning: Mechanical Safety
When trimming appliqué fabric after the tack-down stitch, keep your hands clear of the needle bar. If your machine has a "Needle Up" or "Lock" safety mode, engage it. Dull scissors require you to pull on the fabric, which can distort the registration. Always use sharp, double-curved appliqué scissors.

Add “CHS” with the Lettering Tool: Block Font, Centered, and Sized to Fill the Patch

Suzanne selects the “A” lettering tool, types CHS, chooses a bold Block font, and sizes it to fill the center.

The "Hat Curve" Factor: Designing for a hat is different than designing for a flat shirt. A patch that looks perfectly proportioned on a 2D screen will look "taller" when wrapped around the curve of a forehead.

• The Fix: Avoid pushing your text too close to the vertical edges (left/right). Leave a slightly larger margin than you think you need.
• Density: Block fonts are dense. Ensure you aren't overlapping the satin border, or you will break needles when the machine tries to drive through both the text and the border stitches.

Add the Years (1972 and 2022): Duplicate the Process, Then Match Sizes on Purpose

Suzanne adds 1972 at the top and 2022 at the bottom, scaling them down to fit the borders.

Cognitive Load: Beginners often eyeball the first year, then struggle to match the second. Do not fight the geometry. Create one, get the size perfect, duplicate it (Ctrl+C / Ctrl+V), and then change the text. This guarantees symmetry without the headache.

Precision Sizing in Embrilliance: Aim for 7/8" Height (and Keep Both Years Consistent)

Suzanne uses the dimension box to type 7/8" (approx. 22mm) for the text height, aiming for a width of about 5/16".

Data Point - The Small Text Threshold: While 7/8" is a comfortable size, be careful if going smaller. The industry "danger zone" for standard 40wt thread is text smaller than 5mm (approx 0.2"). Since 7/8" is well above that, you represent safe territory.

• Troubleshooting: If your block text looks "blobby" on the screen, check the Pull Compensation settings in Embrilliance (usually set to 0.1mm or 0.2mm). This compensates for the thread pulling the fabric in.

Color Choices That Read from Across the Room: Make the Main Letters Pop

Suzanne changes the CHS text to blue to contrast with the years. This isn't just art; it's utility.

The Contrast Rule: On a hat, lighting is rarely perfect. You need high contrast. If your patch background is white, use dark threads (Navy, Black, Deep Red).

• Production Note: If you are running 20 of these for a reunion, having consistent color changes is vital. This is where high-quality magnetic embroidery frames shine—they allow you to swap identical hat blanks into the machine without adjusting screws, ensuring the "CHS" lands in the exact same spot relative to the brim on every single hat.

Want a Fully Embroidered Patch (No Twill Showing)? Here’s What Embrilliance Can—and Can’t—Do in This Exact Setup

A viewer asked about filling the background completely. Suzanne explains that Essentials (the base software) is primarily for sizing and lettering. To create custom background fills (stippling, cross-hatch), you typically need Stitch Artist Level 1 or 2.

The Engineering Reality: If you want a "solid fill" patch (100% thread coverage), you are changing the physics of the project.

1. Stitch Count: A 2.5x3.5" solid fill adds roughly 6,000–8,000 extra stitches.
2. puckering: That much thread pulls the fabric hard. You would need to upgrade from a tear-away stabilizer to a heavy cut-away or even a specialty stiffener.

If you attempt full-coverage patches, learning how to use magnetic embroidery hoop systems becomes critical. The consistent, drum-tight tension they provide resists the "puckering" force of high stitch counts better than unevenly tightened manual hoops.

The “Hidden” Prep Before You Stitch This Patch on a Hat (So It Doesn’t Ripple or Lift)

The video moves fast, but the preparation is where you actually win or lose. Before you press "Start," you need a physical strategy for the hat.

Consumables You Cannot Skip

• Spray Adhesive (Temporary): Essential for holding the patch material to the stabilizer during the placement stitch.
• Appliqué Scissors: Double-curved blades allow you to trim inside the hoop without gouging the fabric.
• New Needle: Use a Topstitch 80/12 or Embroidery 75/11. An old needle will snag satin columns, leaving white bobbin thread showing on top.

The Hat Solution

Stitching a flat patch for a hat is one thing; stitching directly on a hat is another. If you are trying to appliqué directly onto a finished cap, a standard flat hoop is a nightmare of slippage. This is the scenario where a specific hat hoop for brother embroidery machine (or your specific brand) is mandatory. It locks the bill of the cap out of the way and maintains the curvature.

Prep Checklist (Software Side)

• Hoop Check: Is the boundary set to 130×180 mm?
• Size Check: Is the patch base roughly 2.5" × 3.5"?
• Stop Check: Are the three appliqué steps (Place, Tack, Satin) set to different colors?
• Margin Check: Is the "CHS" text clear of the satin border by at least 3mm?
• File Save: Save as .BE (working file) AND your machine format (.PES, .DST, etc.).

Setup Like a Production Shop: Placement Consistency Beats “Perfect Once”

Ideally, you want every patch to look identical.

• For Flat Patches: If making patches to glue onto hats later, hoop a sheet of sturdy organza or felt. Use a magnetic hooping station to ensure your stabilizer is perfectly square.
• For Direct-to-Hat: If stitching onto the cap, precision is difficult with standard hoops. Professionals use a brother hat hoop attachment (for Brother machines) which rotates the hat surface to keep it perpendicular to the needle.
• For Bulk Runs: If you are producing 50 patches, the screwing and unscrewing of standard hoops will cause wrist fatigue and slower times. A brother 5x7 magnetic hoop allows you to "slap and go," drastically reducing downtime between color changes and trimming adjustments.

Warning: Magnetic Field Safety
Strong Magnets Hazard: Commercial-grade magnetic hoops are extremely powerful.
* Pinch Hazard: Keep fingers clear of the magnet path when snapping shut.
* Medical Devices: Maintain a safe distance (6 inches+) from pacemakers or ICDs.
* Electronics: Keep away from credit cards and delicate storage media.

Setup Checklist (Machine Side)

• Bobbin Check: Do you have enough bobbin thread to finish the satin border? (Running out mid-satin is a disaster).
• Needle Check: Is the needle straight and sharp?
• Thread Path: Re-thread the top thread to ensure no tension disc lint.
• Trace: Run the "Trace" or "Trial" function to visually confirm the needl won't hit the hoop.

Operation Checkpoints: What You Should See at Each Stop

Since we forced the machine to stop using color changes, use those pauses for quality control.

1. Stop 1 (Placement): You should see a simple run stitch outline.
   • Action: Spray back of patch fabric lightly. Place over outline. Smooth down.
2. Stop 2 (Tack Down): You should see a zigzag or run stitch holding the fabric.
   • Sensory Check: Run your finger over it. Is there a bubble? If yes, stop. It will become a crease.
   • Action: Remove hoop (or slide out). Trim fabric close to the stitching (1-2mm max). Do not cut the stitches!
3. Stop 3 (Satin/Text): The machine finishes the border and letters.
   • Sensory Check: Listen. A rhythmic "hum" is good. A loud, slapping "clack-clack" usually means the thread is caught, or the hoop is bouncing.

Operation Checklist (During Stitching)

• Placement: Fabric covers the line completely?
• Trim: Fabric trimmed close enough so it won't poke through the satin?
• Satin Finish: No bobbin thread showing on top (if yes, lower top tension).

Quick Troubleshooting: Symptoms → Likely Cause → Fix

When things go wrong, do not panic. Follow this logic tree.

The Upgrade Path: Scaling from Hobby to Side Hustle

You have mastered the file. You have mastered the stops. But if you are asked to do 20 hats for the reunion, you will quickly find your bottleneck isn't the software—it's the hardware.

• Level 1 (Skill): You use the stops and manual trimming perfectly. Great for 1-5 patches.
• Level 2 (Tooling): You upgrade to Magnetic Hoops. This eliminates the "hoop burn" on delicate hat fabrics and speeds up the trimming process because you can release the fabric instantly.
• Level 3 (Capacity): You find that changing threads manually for "CHS" vs "Border" is taking too long. This is when you look at SEWTECH Multi-Needle Solutions, allowing you to set all colors at once and let the machine run while you prep the next hoop.

Embroidery is a journey of removing friction. Master this patch workflow today, and you will be ready for the production upgrades tomorrow.

FAQ

• Q: In Embrilliance Essentials, how do I set the 130×180 mm (5×7) hoop boundary so the presser foot does not hit a standard 5×7 hoop frame?
  A: Set the hoop size in Preferences first, then keep an inner buffer so the design never runs to the frame edge.
  • Open Preferences, go to Hoops, and select 130×180 mm (5×7) before drawing or merging any shapes.
  • Keep the inner ~5 mm as a no-stitch “buffer zone” instead of using the full dashed boundary.
  • Run the machine’s Trace/Trial function before stitching to confirm clearance.
  • Success check: During tracing, the needle path stays comfortably inside the hoop and you do not hear any “knocking” or tapping against the frame.
  • If it still fails: Reduce the design size slightly and re-center the design before exporting.
• Q: In Embrilliance, what should I do if the “Free Forum Gift” appliqué square file is missing but I still need a 3-step patch base (placement/tack-down/satin)?
  A: Use any basic satin square/rectangle as long as it contains placement, tack-down, and finish steps—the exact free file is not required.
  • Log into the Embrilliance platform if the library content looks incomplete.
  • Merge any simple satin-stitch square/rectangle from Library or a stitch file you already have.
  • Verify the object contains three distinct steps: placement, tack-down, and satin/finish.
  • Success check: In the stitch sequence, you can clearly identify three separate stages before the lettering runs.
  • If it still fails: Choose a different base shape that explicitly shows placement + tack-down + satin in its properties/sequence.
• Q: In Embrilliance appliqué digitizing, how do I force an embroidery machine to stop between placement stitch, tack-down stitch, and satin stitch for trimming?
  A: Assign different thread colors to each appliqué step so the machine treats them as separate color blocks and pauses.
  • Change the thread color for placement, tack-down, and satin to three different colors (even if you will sew the same real thread).
  • Re-check the stitch sequence to confirm the steps are split into three color changes.
  • Pause at the tack-down stop, move the hoop forward/out safely, and trim with sharp double-curved appliqué scissors.
  • Success check: The machine stops automatically after placement and again after tack-down, giving a clear trim window before satin.
  • If it still fails: Re-open the object properties/sequence and confirm the color change was applied to the correct sub-steps (not just the overall design).
• Q: When trimming appliqué fabric on a machine embroidery hoop after the tack-down stitch, what safety steps prevent needle-bar injuries and registration shifts?
  A: Lock the machine in a safe “needle up” state and trim with sharp curved appliqué scissors without pulling the fabric.
  • Engage Needle Up / safety lock mode if the machine has it before hands go near the hoop.
  • Keep fingers clear of the needle bar area and trim fabric 1–2 mm from the tack-down line (do not cut stitches).
  • Use sharp, double-curved appliqué scissors so you don’t have to tug on fabric inside the hoop.
  • Success check: Fabric edge is clean and close, and the patch material stays flat with no distortion around the outline.
  • If it still fails: Replace dull scissors and re-check that the patch fabric was secured (light temporary spray adhesive helps prevent shifting).
• Q: On a hat patch appliqué run, what supplies and machine checks prevent bobbin run-outs, snagged satin columns, and uneven stitch quality?
  A: Do a short “production-style” preflight: fresh needle, enough bobbin, correct thread path, and the right tools on hand.
  • Install a new needle (Topstitch 80/12 or Embroidery 75/11 as used in the workflow).
  • Confirm bobbin has enough thread to complete the satin border (running out mid-satin is a common failure).
  • Re-thread the top path to clear tension-disc lint and confirm smooth feeding.
  • Success check: Satin stitching sounds like a steady rhythmic “hum,” and the border looks even without random skips or fuzz.
  • If it still fails: Slow the machine down and re-check tension and needle condition before restarting the satin border.
• Q: On an appliqué patch satin border, why is white bobbin thread showing on the top edge, and how do I correct upper tension versus bobbin seating?
  A: Slightly reduce top tension and confirm the bobbin is seated correctly before changing anything else.
  • Lower top tension in small steps and test again on a scrap with the same stabilizer/fabric stack.
  • Remove and re-insert the bobbin to ensure it is properly seated (listen/feel for the “click” if your case design provides it).
  • Inspect the thread path for snags and confirm the thread is fully in the tension discs.
  • Success check: The satin edge shows clean top thread coverage with no bobbin “white” peeking on the outer edge.
  • If it still fails: Re-thread completely and change to a new needle—small needle damage can exaggerate tension symptoms.
• Q: If an embroidery machine needle breaks on the satin border of a 2.5" × 3.5" appliqué patch, what is the safest immediate fix during production?
  A: Slow the machine down and reduce stress at the border rather than forcing speed through dense areas.
  • Reduce stitching speed (SPM) before restarting the satin border section.
  • Switch to a stronger needle option mentioned for this scenario (Titanium 75/11) if breakage repeats.
  • Confirm the design is not crowding the hoop boundary and run Trace/Trial to avoid frame strikes.
  • Success check: The satin border runs without “clack-clack” impacts and stitches form a smooth, consistent edge.
  • If it still fails: Re-check fabric thickness and border density in the design; excessively dense stitching on thick stacks often needs a design adjustment.
• Q: When making 20–50 hat patches, how do I choose between skill optimization, upgrading to magnetic embroidery hoops, and moving to a SEWTECH multi-needle embroidery machine?
  A: Use a tiered approach: fix the workflow first, upgrade hooping for consistency next, then add multi-needle capacity if thread changes become the bottleneck.
  • Level 1 (Skill): Separate placement/tack/satin into different colors to force clean stops and trim windows for small runs.
  • Level 2 (Tooling): Switch to magnetic hoops when hoop burn, slow screw-hooping, or inconsistent tension is causing crooked placement or puckering.
  • Level 3 (Capacity): Move to a multi-needle setup when manual thread changes and restarts are limiting throughput on multi-color patches.
  • Success check: Patch placement becomes repeatable across blanks, stops happen reliably, and cycle time drops without quality loss.
  • If it still fails: Standardize a station routine (same stabilizer, same needle schedule, same trace check) before changing more hardware.
