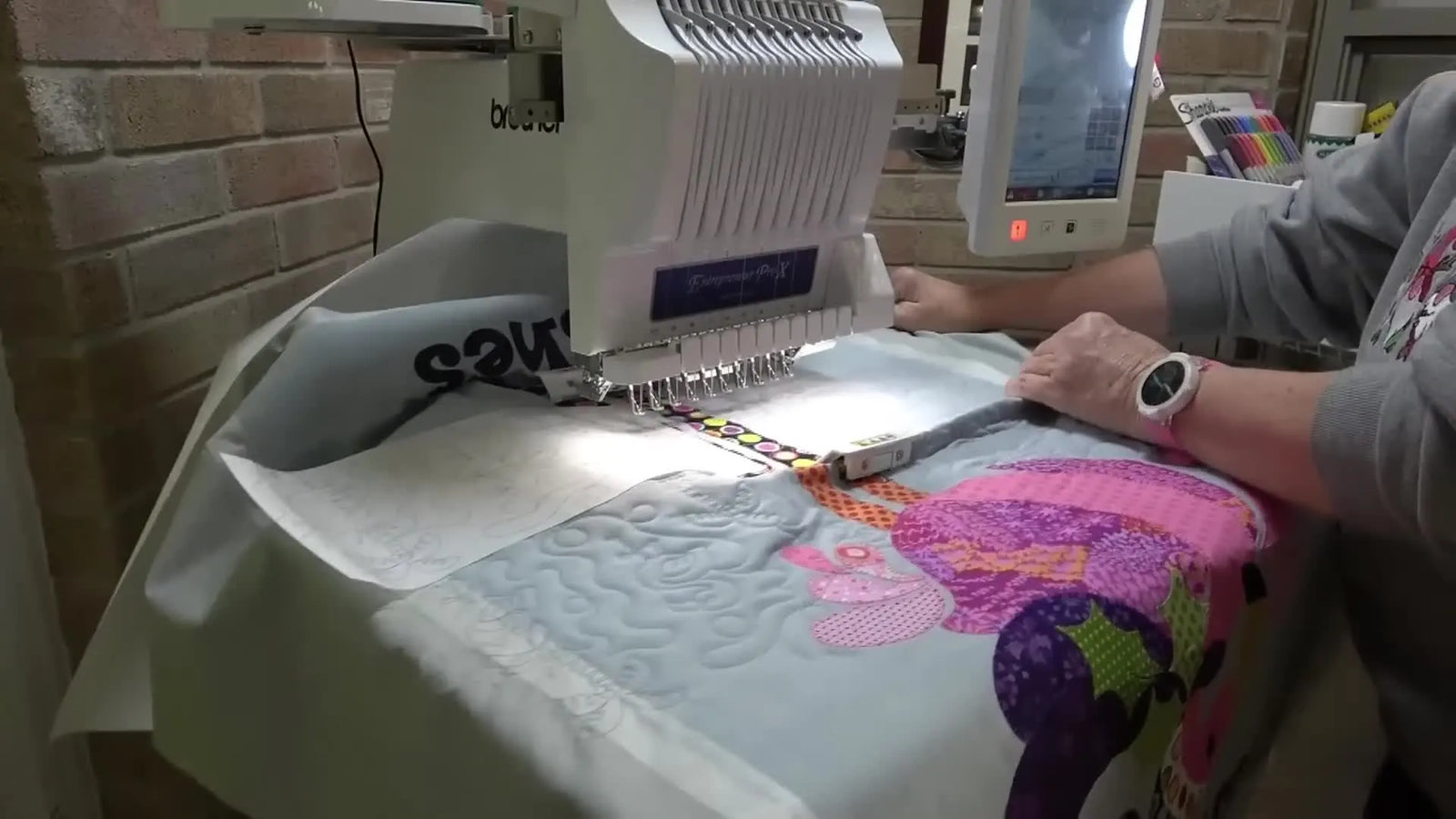

End-to-End Quilting on a Brother PR1055X (or Any Embroidery Machine): The Template + Magnetic Hoop Method That Actually Lines Up

Mastering End-to-End Quilting on an Embroidery Machine: The "No-Panic" Guide

If you’ve ever attempted edge-to-edge quilting on an embroidery machine and thought, "There is no human way I can re-hoop this ten times without a disaster," you are not alone. The panic is real. The fear of that one crooked re-hooping—the one that turns a beautiful continuous flow into a row of disconnected "oops" moments—is the number one reason beginners quit.

But here is the truth I have learned from two decades in the industry: Precision is not about luck; it is about anchors.

The method detailed below eliminates the guesswork. It relies on two things that do not lie: a physical template and a repeatable registration point. Once you understand these anchors, the machine—whether a single-needle home unit or a commercial powerhouse—becomes a tool of mass production.

The "Pantograph Look" Without a Longarm: What Designs by JuJu End-to-End Quilting Is Really Doing

To the untrained eye, machine quilting looks like magic. To us, it is engineering.

End-to-end quilting designs are digitized with a hard start and a hard stop. They are mathematically calculated so that the end coordinate of Pattern A is the exact start coordinate of Pattern B.

When you search for Embroidery Machine Quilting, you aren't just looking for patterns; you are looking for a workflow that mimics the fluid motion of a longarm machine using the static "tile" approach of a hoop. When executed correctly, the result is an "unbroken chain" of texture. When executed poorly, it looks like a checkerboard of errors.

The "Hidden" Prep That Prevents Snags, Shifts, and Needle Breaks

Most failures happen before the machine is even turned on. Through microscopic shifts in the fabric layers or "hoop creep," a design can drift by 2mm—which is enough to ruin a connection.

1. Build the Quilt Sandwich (The "No-Pin" Zone)

You must adhere your batting to the backing and the top.

• The Glue: Use a temporary spray adhesive (like 505).
• The Sensory Check: Spray from 8-10 inches away. You want a "tacky note" feel, not a wet glue feel. If it feels wet, you've used too much, and you risk gumming up your needle.
• The Rule: Do not use pins.

Warning: Mechanical Danger
Pins and embroidery machines are mortal enemies. Unlike a sewing machine where you can "creep" over a pin, an embroidery machine moves at 600+ stitches per minute (SPM). A needle striking a pin creates a "shrapnel event"—it can shatter the needle, gouge the hook assembly, or throw the machine's timing out of sync. Never use pins in the stitch path.

2. Tape the Open Edges (The 1/4-Inch Rule)

Tape the raw edges of your quilt sandwich where the embroidery foot might travel.

• Why: A quilting foot catches on raw edges very easily. If it catches, it creates drag. Drag equals misalignment.
• The Method: Use paper embroidery tape or painter’s tape. Apply it within 1/4 inch of the edge so you can trim it away later without residue.


3. The Hidden Consumables

Before you start, ensure you have these often-overlooked items:

• Titanium Quilting Needles (Size 90/14): Standard embroidery needles may struggle with the "sandwich" density.
• FriXion Pen or Water Soluble Marker: For marking registration crosshairs.
• Low-Tack Tape: For securing templates.

Prep Checklist: The "Pre-Flight" Safety Check

• Sandwich Stability: Layers adhered with spray; smooth to the touch with no bubbles.
• Edge Safety: All open edges taped down flat (1/4" margin).
• Backing Size: Backing is at least 3-4 inches larger than the hoop on all sides.
• Bobbin Check: Bobbin thread color matches the backing fabric (this hides tension imperfections).
• Needle Status: Fresh needle installed (listen for the "click" when inserting).

Template Options That Don’t Lie: The Map vs. The Stitch

Your template is your navigation system. Without it, you are blind flying. You have two valid options to create this map.

Option A: Print & Stick Target Paper

This involves printing the design at 100% scale onto adhesive target paper.

• Pro: It sticks securely and doesn't shift.
• Con: Requires a printer and consumables.
• Insight: When purchasing supplies, many users research Using print and stick target paper for embroidery, finding that the initial cost saves hours of frustration compared to standard paper that rips easily.


Option B: The Stitched Stabilizer Template (Reusable)

Hoop a piece of heavy cutaway stabilizer. Stitch the design outline (or the full design) in a contrasting dark color.

• Pro: Perfect accuracy because it came from your machine. Reusable.
• Con: Uses thread and stabilizer.


Trim Like You Mean It: The 1mm Tolerance

This is the step that separates "hobbyist" from "professional."

You must trim your template (paper or stabilizer) exactly to the start and stop stitch points.

• The Visual Anchor: Use a clear ruler. If the design ends at a specific leaf tip, your paper edge must be exactly at that leaf tip.
• The Error Margin: If you leave even 1/8" of extra paper, you will have a 1/8" gap in your quilting.


Magnetic Hoop vs. Traditional Hoop: The Workflow Difference

We need to talk about wrist fatigue and "hoop burn."

Traditional hoops rely on friction and screw tension. To hold a thick quilt sandwich, you have to loosen the screw, shove the inner ring in, and tighten it down with significant force. This causes two problems:

1. Hoop Burn: The friction crushes the batting, leaving permanent "ghost rings."
2. The "Pop" Factor: As you stitch, the thick fabric wants to spring out, causing the tension to loosen mid-stitch.

This is why a magnetic frame for embroidery machine is the industry standard for quilting.

The Physics of Magnets

Magnetic hoops uses vertical force (clamping) rather than horizontal friction.

• The Sensory Shift: Instead of wrestling and tightening screws (the "gymnastics"), you simply lay the top frame down. Snap. It is secure.
• The Efficiency: When you need to slide the quilt to the next section, you lift the magnet, slide the fabric, and drop the magnet. A 3-minute re-hooping process becomes a 15-second process.

If you are serious about production, search terms like magnetic embroidery hoops for brother or compatible frames for your specific machine model. It creates a flatter surface and eliminates hoop burn entirely.

Warning: Magnet Safety
High-quality embroidery magnets (like those on SEWTECH frames) are industrial strength.
* Pinch Hazard: They can snap together with enough force to bruise loose skin or fingers. Handle with intent.
* Medical Devices: Keep strong magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on your laptop hard drive or credit cards.

Setup That Prevents Bunching: The "Inside-Out" Rule

Whether you are on a single needle or a multi-needle, you are fighting physics. The "Throat Space" is the area between the needle and the machine body.

Rule: Start in the middle of the quilt and work toward the edges.

• If you start at the top and work down, you will eventually have to roll the entire bulk of the quilt into the throat space.
• On a machine like the brother pr1055x, space is premium. If the quilt bunches against the machine tower, it creates resistance. Resistance causes the X/Y carriage to slip, ruining your design alignment.

The Camera Overlay Method: Trust but Verify

If you own a high-end machine (Solaris, Luminaire, PR1055X) with a camera:

1. Load: Load design via USB.
2. Rotate: Rotate the design 90 degrees on-screen (usually) to match the vertical hoop orientation.
3. Scan: The machine scans the fabric in the hoop.
4. Align: You see the "ghost" of your design over your fabric.


Crucial Note: The camera is a viewing tool, not an autopilot. You must manually nudge and rotate the design until your digital start point perfectly overlaps your physical reference point. Many users searching for Quilting on Brother PR1055X mistakenly believe the camera does the alignment for them. It does not; it acts as your eyes.

The Manual "Needle Drop" Truth Test: For The Rest of Us

No camera? No problem. The "Needle Drop" method is actually more precise because it is mechanical, not optical.

1. Place Template: Tape your template on the quilt where the next block goes.
2. Crosshair alignment: Use the plastic grid that came with your hoop. Align the grid's center with the template's clear markings.
3. Hoop It: Hoop the sandwich. Remove the template.
4. The Drop Test:
   • Using your machine's handwheel (or needle up/down button), lower the needle slowly.
   • Success Metric: The needle tip should land exactly in the crosshair center of your marking. Not "close to it." In it.




The Crosshair Habit: Marking the "End of the Line"

When a pattern block finishes stitching, do not remove the hoop immediately.

1. Take your FriXion pen (or air-erase marker).
2. Draw a small crosshair (+) exactly where the last stitch ended.
3. Why: This ink mark is the only thing linking Reality A (what you just stitched) to Reality B (what you are about to stitch). Texture can be deceiving; ink marks are absolute.


Re-Hooping: connecting the Chain

1. Remove the hoop.
2. Take your template for the next block.
3. Align the Start Point of the template exactly over the Crosshair (+) you just drew on the fabric.
4. Tape the template down.
5. Re-hoop (using the grid to center the template).


The Final Verification: Before you press "Start":

• Load the design.
• Move the machine's starting position to the first stitch.
• Drop the needle. Does it land in the hole of the crosshair?
  • Yes: Stitch.
  • No: Nudge the design on the screen until it does.


Setup Checklist: The "Go/No-Go" Decision

• Orientation: Design rotated 90° (if required).
• Method: Template secured (Sticky or Taped).
• Clearance: Quilt bulk supported (on a table) so it doesn't drag the hoop down.
• Verification: Needle drop test confirmed alignment to within <1mm.
• Bobbin: Sufficient bobbin thread for the full pass (don't run out mid-block!).

Troubleshooting: The "Symptom-Cause-Fix" Protocol

When things go wrong, use this table to diagnose the issue logically.

A Simple Decision Tree: What Tool Do You Introduction Need?

Navigate your upgrade path based on your pain points.

1. The "Frequency" Question:

• Are you quilting one baby blanket a year?
  • Solution: Stick with your Standard Hoop + Painter's Tap. It is slow, but free.
• Are you quilting 3+ items a year or selling them?
  • Solution: Upgrade to Magnetic Hoops. The time saved on re-hooping pays for the hoop in two projects.

2. The "Accuracy" Question:

• Do you have a camera machine (Solaris/PR1055X)?
  • Solution: Use Print & Stick Paper. The camera sees the high contrast well.
• Do you have a standard machine?
  • Solution: Use the Stitched Template method. It removes "printer error" from the equation.

3. The "Scale" Question:

• Is the quilting physically fighting the machine throat?
  • Solution: If you are fighting bulk constantly, you have outgrown a single-needle chassis. This is the trigger point to investigate multi-needle machines (like SEWTECH or Brother PR series) where the "open arm" design allows fabric to fall away freely.

The Upgrade Path: From Hobby to Production

If you find yourself enjoying the result but hating the process, your equipment is likely the bottleneck.

• Level 1 (Consumables): Improve your tape, your spray (505), and your needles (Titanium).
• Level 2 (The Tool): If your wrist hurts or alignment is inconsistent, search for dime magnetic hoop or SEWTECH magnetic frames. This is the single highest ROI upgrade for quilting.
• Level 3 (The Machine): When you are doing "End-to-End" on 50 shirts or 10 quilts a month, a standard flatbed machine is costing you money in labor time.

What "Success" Looks Like

If you follow the 1mm Trim Rule and the Needle Drop Verification, the connection point should be invisible. You shouldn't be able to spot where block A stops and block B starts.

Operation Checklist: The Final Run

• Mark: End point crossed marked with FriXion pen immediately after stitching.
• Trim: Jump stitches trimmed flush.
• Clean: Bobbin area checked for lint build-up every 2-3 bobbin changes.
• Reset: Verify needle straightness (roll it on a flat surface) if you heard any "crunches."

End-to-end quilting is a rhythm. Hoop, check, stitch, mark, repeat. Once you have the right tools—be it proper tape or a magnetic frame—the panic disappears, replaced by the satisfying hum of a job well done.

FAQ

• Q: Why does edge-to-edge quilting on a Brother PR1055X leave visible gaps or misaligned connections between quilting blocks?
  A: The most common cause is fabric drag or a registration point that is off by more than 1 mm—support the quilt weight and verify alignment with a needle-drop test before stitching.
  • Support: Place the quilt bulk on a table so it does not hang and pull against the hoop.
  • Secure: Tape raw edges within a 1/4-inch margin so the foot cannot catch and “bulldoze” the sandwich.
  • Verify: Move to the first stitch and lower the needle slowly to the marked crosshair before pressing Start.
  • Success check: The needle tip lands exactly in the crosshair center and the next block’s start blends without a step or gap.
  • If it still fails: Switch to a physical template method (print-and-stick paper or a stitched stabilizer template) and trim the template to the true start/stop points.
• Q: How do I stop bird nests under the needle plate on a Brother embroidery machine when quilting a thick quilt sandwich?
  A: Rethread the top thread with the presser foot UP so the thread fully seats in the tension discs—this fixes most sudden nesting.
  • Rethread: Lift the presser foot, completely rethread the top path, then rethread the needle.
  • Confirm: “Floss” the thread into the path and feel for consistent resistance where the tension discs engage.
  • Reset: Replace with a fresh needle if the nesting started after a snag or “crunch” sound.
  • Success check: The underside shows controlled bobbin lines (not a wad of top thread) and stitches form cleanly for the first few inches.
  • If it still fails: Stop immediately, clear the nest, and re-check threading again—do not keep stitching through a jam.
• Q: How do I prevent embroidery hoop burn marks on quilts when using a standard screw embroidery hoop on a Brother embroidery machine?
  A: Reduce friction and over-tightening, and consider a magnetic embroidery hoop if hoop burn is recurring on thick quilt sandwiches.
  • Adjust: Avoid forcing the inner ring; loosen the screw more than expected and let screw tension do the holding.
  • Prep: Use spray adhesive to stabilize layers so the hoop does not need excessive clamping pressure.
  • Upgrade: Use a magnetic hoop to clamp vertically instead of crushing with hoop friction.
  • Success check: After unhooping, there is no shiny “ghost ring” and the quilt surface lies flat without compressed tracks.
  • If it still fails: Re-evaluate hooping technique and move to magnetic frames for quilting-heavy workflows.
• Q: How do I prevent “hoop pop” when quilting a thick quilt sandwich with a traditional embroidery hoop on a Brother embroidery machine?
  A: Loosen and seat the hoop correctly—most “hoop pop” happens when the sandwich thickness fights the inner ring and the screw is not set for true clamping.
  • Re-hoop: Loosen the screw more than feels necessary, then insert the inner ring without forcing the layers.
  • Stabilize: Adhere layers with temporary spray adhesive so the sandwich behaves like one fabric.
  • Monitor: Stop if the fabric starts creeping; do not try to “power through” a loosening hoop.
  • Success check: The inner ring stays fully seated through stitching and the fabric tension stays consistent without slipping.
  • If it still fails: Move to a magnetic hoop, which is designed to hold thick layers without friction-based slipping.
• Q: What is the safest way to avoid needle breakage on an embroidery machine when quilting a quilt sandwich, especially around the stitch path?
  A: Do not use pins anywhere in the embroidery stitch path—pins can cause a needle strike at high speed and damage the machine.
  • Replace: Use temporary spray adhesive to hold the quilt sandwich instead of pinning.
  • Tape: Tape open/raw edges so the embroidery foot cannot snag and pull layers into the needle.
  • Check: Install a fresh needle and confirm it is fully seated (listen/feel for the firm “click” when inserting).
  • Success check: The machine runs without “crunch” impacts, needle deflection, or sudden thread breaks when crossing layered areas.
  • If it still fails: Stop and inspect for any snag points (tape edges, bulky seams) before restarting.
• Q: What safety precautions should be used when handling industrial-strength SEWTECH magnetic embroidery hoops during quilting re-hooping?
  A: Treat magnetic hoops as pinch-hazard tools—separate and place the magnetic frame deliberately, keeping magnets away from medical devices and sensitive electronics.
  • Handle: Keep fingers out of the closing path and lower the top frame straight down rather than letting it snap sideways.
  • Distance: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Protect: Avoid placing magnets directly on items like laptop hard drives or credit cards.
  • Success check: The hoop closes without finger pinches and clamps the quilt evenly with a flat, stable surface.
  • If it still fails: Slow down the handling motion and reposition the frame—control prevents sudden snap forces.
• Q: What is the fastest way to decide between standard hoops, magnetic hoops, and upgrading to a multi-needle embroidery machine for edge-to-edge quilting production?
  A: Use a tiered approach: optimize technique first, upgrade to magnetic hoops when re-hooping pain and inconsistency persist, and consider a multi-needle open-arm machine when throat-space bulk becomes the constant bottleneck.
  • Level 1: Improve consumables and setup (temporary spray adhesive, proper edge tape, fresh quilting-capable needle, and a repeatable template + crosshair routine).
  • Level 2: Upgrade to magnetic hoops if wrist fatigue, hoop burn, hoop pop, or slow re-hooping is limiting throughput.
  • Level 3: Upgrade to a multi-needle machine when quilt bulk repeatedly fights the throat space and causes resistance-related misalignment.
  • Success check: Re-hooping becomes repeatable (needle-drop hits the crosshair) and block connections become visually “invisible.”
  • If it still fails: Start quilting from the middle and work outward, and reassess whether the machine’s throat space is forcing unavoidable drag.
