Five Perfect Buttonholes, One Hoop: A Pfaff Creative Icon Shape Creator Placket Workflow That Won’t Drift

Mastering Multi-Buttonhole Placement on the Pfaff Creative Icon: A Precision Guide for Perfect Plackets

Buttonholes are the "final boss" of garment construction. They are often the last step, meaning if you mess them up, you ruin a garment you just spent ten hours sewing. You’ve likely felt that specific anxiety: fighting a thick seam allowance, watching the fabric creep 1mm sideways under the foot, or realizing buttonhole #4 is slightly higher than buttonhole #3, making the whole placket look homemade.

Deep breath. We are moving from "manual estimation" to "digital precision."

This guide breaks down the method to stitch five evenly spaced buttonholes in one continuous run using the Pfaff Creative Icon and its built-in Shape Creator. We aren't just replicating a video; we are establishing a repeatable, industrial-grade workflow that applies to cuffs, pillows, and production runs. By letting the machine handle the math and the spacing, you eliminate human error.

Why the Pfaff Creative Icon buttonhole-in-the-hoop method feels like cheating (in a good way)

In traditional sewing, every buttonhole is a separate physical event. You mark, you align, you pray the foot doesn't slip, you stitch, you cut threads, you repeat.

In this digitized workflow, we front-load the work. We tell the machine, "I have a 7-inch space, and I need 5 buttonholes distributed mathematically perfectly." The machine creates a single file. You align the fabric once.

This approach is superior when:

• Precision is Non-Negotiable: You need exact spacing across a visual pattern (like the gingham used in this example).
• Terrain is Rough: You are working near bulky seams where a standard buttonhole foot might tilt, causing stitch density issues.
• Volume Matters: You are making 20 uniform team shirts.

If you have invested in a pfaff embroidery machine, using the embroidery unit for "sewing tasks" like this is a massive leap in ROI (Return on Investment). It turns a variable manual process into a fixed digital constant.

The “hidden” prep that prevents drift, puckers, and that first-stitch thread panic

The video tutorial jumps straight to the screen, but as any veteran embroiderer knows, the war is won or lost at the ironing board and the winding station. The machine executes code; physics dictates the result.

What the video uses (and what you should match)

• Machine: Pfaff Creative Icon.
• Hoop: Creative Supreme Hoop 360 x 260 mm (Essential for long plackets).
• Consumables: 60wt Bobbin thread, 40wt Embroidery Thread (Rayon or Polyester).
• Substrate: A pressed strip of gingham fabric (representing a shirt placket).

The Unspoken Consumables (What you actually need)

• Stabilizer: The video uses white stabilizer. For a buttonhole placket, I recommend a Heavy Starch/Tearaway or a Poly-mesh Cutaway. Why? Buttonholes are high-density satin stitches. If the stabilizer is too soft, the fabric will "tunnel" (pull in), distorting the buttonhole shape.
• Needle: Use a Topstitch 80/12 or Embroidery 75/11. Do not use a Universal needle; the larger eye of a Topstitch needle protects the thread during the rapid back-and-forth movement of satin stitching.
• Basting Spray (Optional): A light mist of temporary adhesive spray (like Odif 505) on the stabilizer helps prevent the fabric from shifting before the tack-down stitch.

Prep checklist (do this before you touch Shape Creator)

• Measurement Verification: Measure your buttons physically. The rule of thumb is Button Diameter + Thickness + 2mm. Don't guess.
• Bobbin Audit: Load a brand new, full bobbin. Satin stitching consumes massive amounts of thread. Running out of bobbin thread in the middle of a buttonhole sequence is a disaster that involves unpicking tiny stitches.
• Hoop Check: Ensure the 360 x 260 mm hoop screw is loosened ready for the stabilizer.
• Pressing: Use spray starch on your placket strip. It should feel crisp, almost like paper. This rigidity helps the stitches form cleanly.

Warning: Needle Zone Safety. When setting up basting or "floating" materials, your hands will be inside the hoop area. Keep fingers, scissors, and loose thread tails at least 3 inches away from the needle bar. A 1000 SPM (Stitches Per Minute) machine does not forgive hesitation.

Build the buttonhole layout in Pfaff Shape Creator—once—and stop measuring five times

The core concept here is "Create One, Multiply to Many." We will define one perfect buttonhole, then use the machine's "Shape Creator" to distribute clones along a specific line length.

1) Select the buttonhole stitch and confirm defaults

Navigate to the Embroidery side of the machine:

1. Go to Stitches.
2. Select the Buttonhole category.
3. Choose your style (standard square end is common).
4. Open Stitch Edit.
5. Critical Adjustment: Check the specific parameters.
   • Density: The default is usually 4.0. If using thicker thread, lower this number (make it less dense) to prevent thread build-up.
   • Size (Length): The video uses 15mm. Adjustment: For a standard men's shirt button, 15-18mm is typical. For a coat, you might need 25mm+.
   • Spread (Width): 0.4 is standard.

Sensory Check: Look at the screen. Is the buttonhole creating a "hole" or just a line? Ensure the slit space is visible.

2) Choose the hoop size that matches the job

1. Open Hoop Options.
2. Select Creative Supreme Hoop 360 x 260.
3. Why this hoop? You need length. The standard 120x120 hoop is too short for a shirt placket.

3) Use Shape Creator to create a straight-line “placket ruler”

1. Open Shape Creator (The icon looks like shapes arranged in a circle/line).
2. Select Straight Line as your path.
3. The Inputs: The machine needs to know the total length of the path.
   • Video Example: Placket is 7 inches.
   • Conversion: You must input Millimeters. 7 inches = 177.8 mm.

Expert Tip: Do not round down. If you type 170mm, your buttons will cramp. If you type 185mm, they will drift off the placket. Use a calculator.

4) Rotate the line vertical

1. Use the rotation tool to turn the entire line 90 degrees.
2. The line should now run North-South on your screen (representing the vertical shirt front).

5) Duplicate to five buttonholes

1. Tap the quantity counter up to 5.
2. The machine automatically calculates the equidistance. Buttonhole #1 is at the top, #5 is at the bottom, and 2, 3, 4 are spaced mathematically perfectly between them.

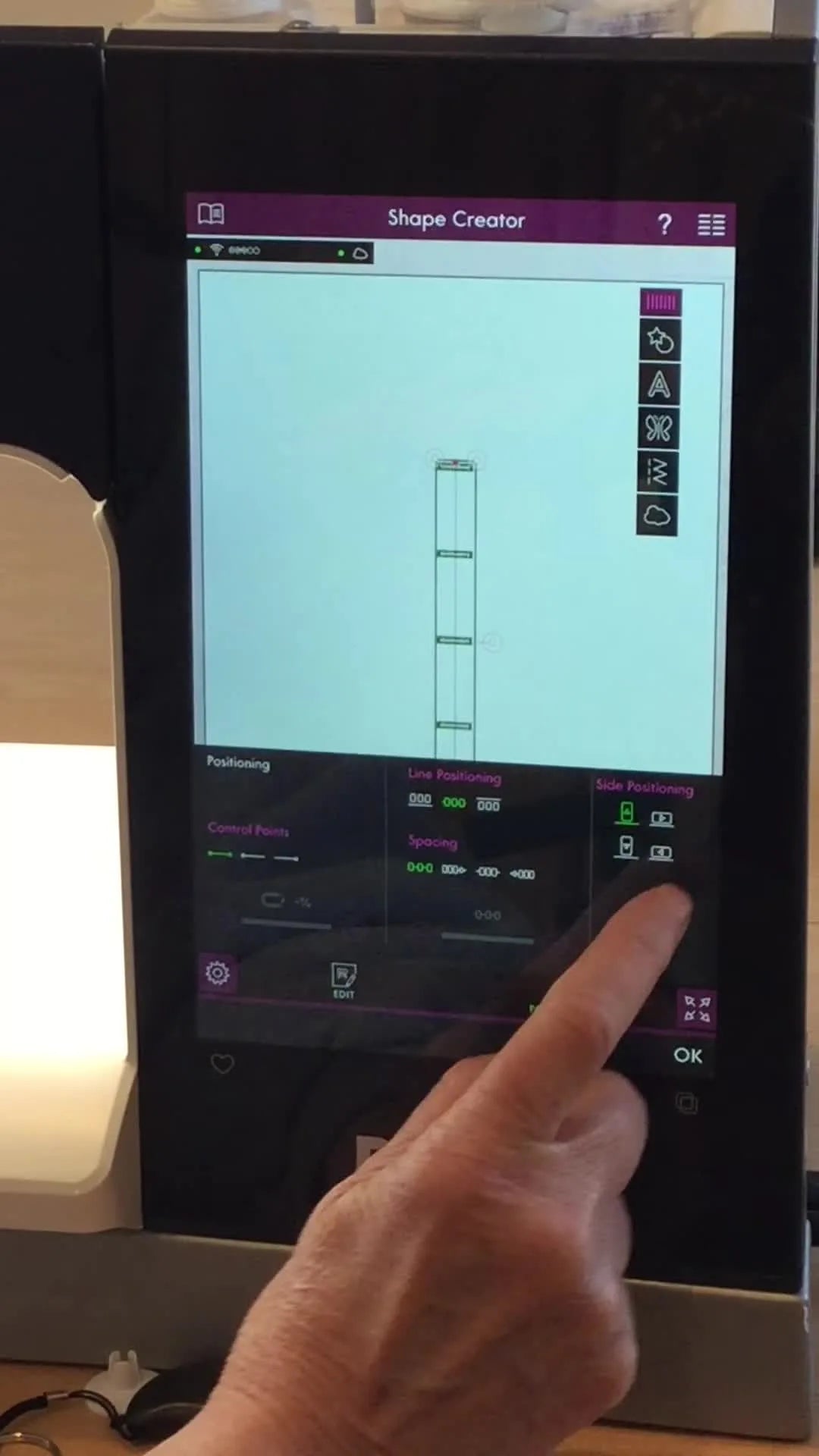

6) Fix the “wrong direction” problem with Side Positioning

A common "Gotcha" in Shape Creator: The line rotates, but the objects on the line might not.

• Symptom: Your line is vertical, but the buttonholes are horizontal (ladder steps).
• Fix: Use the Side Positioning angle adjustment to rotate the individual buttonholes 90 degrees.
• Goal: The buttonhole slit should align with the vertical line.


The inches-to-millimeters moment: why 177.8 mm matters more than you think

The video emphasizes entering 177.8 mm. Why the decimal?

Embroidery machines are engineering tools; they operate on metric coordinate systems. When we say "7 inches," that is an approximation. When the machine sees "177.8mm," it allocates stitch points based on exact grid coordinates.

By forcing yourself to convert exactly (7" x 25.4), you guarantee that the top buttonhole and bottom buttonhole land exactly where you pinned them on your fabric.

Stitch-out settings that keep the machine moving (and keep you sane)

We are about to convert this design into stitch data. There are two specific settings in the Embroidery Stitch-Out menu that you must enable to avoid frustration.

1. Baste Around Design:
   • Function: This stitches a large rectangular box on the stabilizer before the buttonholes begin.
   • Purpose: This is your "alignment map." It shows you exactly where to place your fabric.
2. Monochrome (or Color Sort):
   • Function: This tells the machine, "All these buttonholes are the same color."
   • Purpose: Without this, the machine might stop and trim after every single buttonhole, asking you to confirm the "next color" (even though it's the same). Monochrome forces a continuous run, saving you about 5 minutes of button-pushing redundancy.


The floating method: hoop stabilizer only, then place fabric using the basting “map”

"Floating" acts as a non-destructive way to hold fabric. We are not hooping the shirt placket (which usually leaves ugly "hoop burn" or creases). We are hooping the stabilizer, then attaching the shirt to the stabilizer.

Pass 1: Hoop stabilizer and stitch the placement basting

1. Hooping: Hoop only your stabilizer.
   • Sensory Check: Tap the stabilizer. It should sound like a drum skin—"Thump, Thump." If it sounds loose or paper-baggy, re-hoop. Loose stabilizer = distorted buttonholes.
2. Attach Hoop: Slide the hoop onto the embroidery arm. Listen for the distinct click of the locking mechanism.
3. Run Pass 1: Press Start. The machine stitches the Basting Box onto the bare stabilizer.


Fix the “Please check the upper thread” stop—without guessing or rethreading everything

In the tutorial, the machine stops instantly and flashes: “Please check the upper thread.”

The Expert Diagnosis: The machine isn't actually looking at the upper thread. It is sensing a lack of tension or uptake. In the video, the user inserted a bobbin but didn't pull the tail up. The bobbin thread was loose underneath, offering no resistance to the top thread loop. The sensors interpreted this lack of resistance as a broken top thread.

The Fix:

1. Don't rethread the top yet.
2. Check the bobbin. Is it low? Replace it.
3. Crucial Step: Manually hold the top thread tail and turn the handwheel (create one stitch) to pull the bobbin thread loop up through the needle plate.
4. Pull a 4-inch tail of both threads and hold them lightly for the first 3 stitches. This creates immediate tension, satisfying the machine's sensors.


Align the placket strip on the hoop like a pro: eyeballing works—until it doesn’t

With the basting box stitched on the stabilizer, you now have a visual target.

1. Take your pressed fabric strip (placket).
2. Lay it over the basted box.
3. Alignment:
   • The Video Method: Eyeballing it based on the gingham check lines.
   • The Engineer's Method: Use a water-soluble marker or chalk to draw a center line on your placket. Align that drawn line with the needle center point (use the machine's "Needle Point Laser" if your model has it, or drop the needle manually to check center).

While the video shows a simple "lay and pray" method, professionals using a floating embroidery hoop technique will often use double-sided embroidery tape or a light spray adhesive on the designated area of the stabilizer to ensure the fabric doesn't micro-shift when the hoop moves.

Lock it down with the second basting pass, then let the machine run all five buttonholes

Floating means the fabric is loose. We need to secure it before the heavy stitching starts.

1. The Second Baste: The Pfaff Creative Icon allows you to run the Baste function again. This time, it stitches through your fabric, tacking it to the stabilizer.
2. The Danger Zone: The instructor uses her fingers to hold the strip flat as the needle approaches.
   • Safety Rule: Use the eraser end of a pencil or a specific "sewing stiletto" to hold fabric down. Do not put your fingers inside the moving hoop area.
3. The Main Event: Once basted, press Start. The machine executes buttonholes #1 through #5. Thanks to "Monochrome" mode, it flows from one to the next without pausing.

Setup checklist (right before you press Start on the final run)

• Foot Check: Is the embroidery foot (usually foot 6A) attached? (Do not use a standard buttonhole foot).
• Clearance: Is the shirt body draped so it won't get caught under the hoop? Use clips to manage excess fabric.
• Monochrome: Is the "Color Block Sort" or "Monochrome" icon active?
• Speed: Decrease speed to medium (600-800 SPM). High speed on satin stitches can sometimes cause thread breakage or friction heat.


The “why” behind the method: hoop tension, stabilization, and why floating works here

Why go through all this trouble instead of using the sewing mode?

1. Dimensional Stability: When you clamp fabric in a hoop, you distort the fibers. By "floating" the fabric on top of tight stabilizer, the fabric remains in its natural, relaxed state. This means when you un-hoop it, the fabric won't shrink back and pucker the buttonholes.

2. The Basting Scaffold: The double-basting technique creates a temporary "frame" around the sewing area. It mimics the tension of a hoop without the physical crush marks.

However, consistency is key. If you struggle to get your stabilizer drum-tight every time, a hooping station for embroidery can act as a "third hand," ensuring your stabilizer tension is repeatable from project to project.

Troubleshooting buttonholes in the hoop on Pfaff Creative Icon: symptoms you’ll actually see

Even with automation, things go wrong. Here is your field guide to identifying issues based on what the machine is telling you (or doing to your fabric).

Symptom: Machine stops immediately with “check thread”

• Likely Cause: No tension on the uptake lever (bobbin not catching).
• Quick Fix: Retread bobbin, pull tail up manually. Hold threads for first 3 stitches.

Symptom: "Birdnesting" (Tangle of thread under the needle plate)

• Likely Cause: Upper thread came out of the tension discs OR fabric is flagging (bouncing) up and down.
• Quick Fix: Rethread top with presser foot UP (to open discs). Ensure fabric is firmly basted down.

Symptom: Buttonholes are misaligned (Crooked Line)

• Likely Cause: Fabric shifted between placement and second baste.
• Quick Fix: Use temporary spray adhesive or sticky stabilizer next time. Use a ruler to mark the center line on the fabric.

Symptom: Buttonholes are fuzzy or "looped" on top

• Likely Cause: Top tension too loose or stabilizer too weak.
• Quick Fix: Increase top tension (lower number on some machines, higher on others—check manual). Use a heavier stabilizer.


Stabilizer decision tree for floating a buttonhole placket

The video is silent on stabilizer specifics, but your choice dictates quality. Use this logic flow:

1. Is the fabric stable (Cotton, Linen, Denim)?

• YES: Use Tearaway Stabilizer (Medium Weight). It supports the stitches but removes easily, leaving clean edges.

2. Is the fabric unstable (Knits, Rayon, Silk)?

• YES: Use Cutaway Stabilizer (Mesh or Standard). Satin stitches (buttonholes) will slice through knits; Tearaway is not strong enough. You must use Cutaway to prevent holes.

3. Is the fabric sheer/transparent?

• YES: Use Wash-Away (Soluble) Stabilizer (Heavy fibrous type, not film). It supports the stitch but dissolves completely, leaving no backing shadow.


The upgrade path that actually saves time: faster alignment, less hoop burn, smoother batching

The method described above is excellent for a single custom garment. However, if you are running a small business or batching multiple items, the "Screw and Hoop" method becomes a bottleneck.

Scenario Trigger 1: "Recalibration Fatigue"

• The Pain: Every time you finish a hoop, you have to unscrew the ring, remove the stabilizer, cut a new piece, screw the ring tight, and pull it taut. This kills your hands and your hourly rate.
• The Diagnosis: Mechanical hoops are slow.
• The Prescription: A magnetic embroidery hoop.
  • Why? The top frame snaps on magnetically. No screws to tighten. It holds stabilizer evenly without you having to "tug" at it. It reduces hooping time by 60%.

Scenario Trigger 2: "Hoop Burn" on Sensitive Fabrics

• The Pain: You are embroidering velvet, corduroy, or performance wear. The standard hoop leaves a crushed ring mark that won't iron out.
• The Prescription: Magnetic frames distribute pressure vertically rather than pinching horizontally. They eliminate hoop burn (shine/crush marks) almost entirely.
• Search Intent: Many users look for pfaff magnetic embroidery hoop specifically to solve this fabric damage issue on high-end garments.

Warning: Magnetic Safety. These are not fridge magnets. Industrial magnetic hoops have a clamping force strong enough to pinch skin severely.
* Keep away from pacemakers and sensitive electronics.
* Never place your fingers between the magnets when they snap together.
* Slide them apart; do not try to pull them directly apart.

Scenario Trigger 3: "I need to do 50 shirts today."

• The Pain: Your single-needle machine is great, but changing threads and re-hooping is taking all day.
• The Prescription: Production scale-up. Moving to a multi-needle machine (like Sewtech offerings) with a tubular arm allows you to hoop the garment faster and run colors without manual changes.


Final stitch-out results: what “good” looks like, and how to keep it that way next time

The video wraps with a shot of the finished placket: 5 buttonholes, zero distortion, perfect vertical alignment.

Success is defined by repeatability. If you save this file in your machine, next month when you sew the same shirt in a different color, you don't need to remeasure. You just load the file, hoop the stabilizer, and float the fabric.

Operation checklist (The Final Inspection)

• Continuity: Did all 5 buttonholes stitch without thread breaks?
• Density: Are the satin columns solid (fabric not showing through)?
• Cutting: Use a buttonhole chisel (not a seam ripper!) to open the holes. A chisel gives a clean cut and prevents slicing through the bar tacks at the ends.
• Clean Up: Remove the jump stitches (if any) and tear away the stabilizer from the back.

Mastering the Shape Creator buttonhole function transforms the machine from a passive tool into an active partner. Whether you are using the standard hoop or looking into a pfaff endless hoop for even longer runs, the principle remains: Digitize the layout, standardize the stabilization, and trust the math.

FAQ

• Q: Which Pfaff Creative Icon needle type prevents skipped stitches and thread shredding during high-density satin stitch buttonholes?
  A: Use a Topstitch 80/12 or an Embroidery 75/11 instead of a Universal needle for Pfaff Creative Icon buttonholes stitched in the hoop.
  • Install a Topstitch 80/12 for thicker placket fabrics, or an Embroidery 75/11 for general buttonhole work.
  • Re-thread with the presser foot up to ensure the thread seats correctly before testing.
  • Success check: the top thread runs smoothly with no “fuzzy” abrasion and the satin columns look clean, not frayed.
  • If it still fails, slow the stitch-out speed to a medium range and confirm stabilizer strength (soft backing can worsen distortion and stress the thread).
• Q: How can Pfaff Creative Icon users stop the “Please check the upper thread” message when starting buttonholes in the hoop?
  A: Pull the bobbin thread up and create initial thread tension—Pfaff Creative Icon often triggers this message when there is no uptake resistance, not because the top thread is truly broken.
  • Do not rethread the top thread first; check whether the bobbin is low and replace it if needed.
  • Hold the top thread tail and turn the handwheel to make one stitch, then pull the bobbin loop up through the needle plate.
  • Hold both thread tails for the first 3 stitches to stabilize tension.
  • Success check: the machine starts stitching without stopping, and the first satin stitches form without looping.
  • If it still fails, re-seat the bobbin correctly and rethread the top thread completely.
• Q: What is the correct stabilizer choice for floating a buttonhole placket on a Pfaff Creative Icon embroidery hoop to prevent tunneling and distortion?
  A: Match stabilizer strength to fabric type—buttonholes are dense satin stitches, so under-support is the main reason for tunneling and misshapen buttonholes on Pfaff Creative Icon.
  • Choose tearaway for stable woven fabrics (cotton/linen/denim), cutaway (mesh or standard) for unstable fabrics (knits/rayon/silk), and heavy fibrous wash-away for sheer fabrics.
  • Hoop only the stabilizer, not the placket, to reduce hoop marks and keep the fabric relaxed.
  • Success check: the buttonhole columns stay flat (no “pinching in” at the center slit) and the fabric does not pucker after unhooping.
  • If it still fails, switch to a stronger stabilizer option from the same category and reduce stitch density only if thread build-up is visible.
• Q: How can Pfaff Creative Icon users verify stabilizer hooping tension before stitching a floating buttonhole placket?
  A: Hoop the stabilizer drum-tight before floating fabric—loose stabilizer is a direct cause of distorted buttonholes and alignment drift on Pfaff Creative Icon.
  • Hoop stabilizer only, then tighten until the surface is evenly taut across the full hoop.
  • Tap the hooped stabilizer to confirm tension before attaching the hoop to the embroidery arm.
  • Success check: the stabilizer “sounds like a drum skin” when tapped and does not look wrinkled or baggy.
  • If it still fails, re-hoop from scratch and avoid partially tightening one side (uneven tension can skew the layout).
• Q: How do Pfaff Creative Icon users fix birdnesting under the needle plate when stitching buttonholes in the hoop?
  A: Rethread the upper thread with the presser foot up and secure the floating fabric with basting—birdnesting on Pfaff Creative Icon commonly comes from the thread not sitting in tension discs or fabric “flagging.”
  • Raise the presser foot, fully rethread the top path, and confirm the thread is seated correctly.
  • Use the basting function to tack fabric firmly to stabilizer before the satin stitches begin.
  • Success check: the underside shows controlled bobbin formation (no large tangles), and the fabric stays flat without bouncing during stitching.
  • If it still fails, add light temporary adhesive (spray or tape) to prevent micro-shifts and verify the correct embroidery foot is installed (not a standard buttonhole foot).
• Q: How do Pfaff Creative Icon users prevent crooked multi-buttonhole rows when using Shape Creator and the floating method?
  A: Prevent fabric shift between the placement basting and the second basting pass—crooked buttonholes usually mean the fabric moved after the first alignment map on Pfaff Creative Icon.
  • Stitch the first basting box on stabilizer, then align the placket using a marked center line (more reliable than eyeballing checks).
  • Lightly secure the fabric with temporary adhesive or embroidery tape before running the second basting pass through the fabric.
  • Success check: the placket strip stays fixed when the hoop starts moving, and the buttonholes stitch in a straight, consistent vertical line.
  • If it still fails, re-run alignment using the needle center point (drop needle manually) before committing to the main stitch-out.
• Q: What needle-area safety rules should Pfaff Creative Icon users follow when floating fabric and running basting passes for in-the-hoop buttonholes?
  A: Keep hands and tools out of the moving hoop zone—Pfaff Creative Icon can run at very high stitch speeds and does not forgive hesitation near the needle.
  • Keep fingers, scissors, and loose thread tails at least 3 inches away from the needle bar during basting and stitch-out.
  • Use a sewing stiletto or the eraser end of a pencil to guide fabric instead of fingertips.
  • Success check: hands never enter the hoop travel area while the machine is running, and fabric is guided from outside the motion path.
  • If it still fails, stop the machine completely before repositioning anything, then restart only after clearing the hoop zone.
• Q: When should garment makers upgrade from a screw-tightened Pfaff-style hoop workflow to a magnetic embroidery hoop or a multi-needle embroidery machine for faster batching?
  A: Upgrade when hooping time, hoop burn, or daily volume becomes the bottleneck—optimize technique first, then consider magnetic hoops, then consider multi-needle production.
  • Level 1 (technique): Float fabric and use double-basting plus Monochrome to run all buttonholes continuously with fewer stops.
  • Level 2 (tool): Choose a magnetic embroidery hoop when repeated screw-tightening causes “recalibration fatigue” or when sensitive fabrics show hoop burn marks.
  • Level 3 (capacity): Move to a multi-needle machine when volume is high (for example, dozens of shirts) and re-hooping/thread changes dominate the workday.
  • Success check: batching time per garment drops and alignment becomes more repeatable with less physical effort.
  • If it still fails, track where time is lost (hooping vs. thread handling vs. alignment) and upgrade the step that is actually limiting throughput.
