From Bobbin to USB Import: Run Your Computerized Home Embroidery Machine Without the Usual Thread Breaks and Hoop Drama

You are not alone if a new computerized household embroidery machine feels “smart” right up until it throws a thread nest, snaps a needle, or refuses to read your USB file. This is the "Embroidery Gap"—the space between the perfect digital simulation on screen and the messy physical reality of thread, tension, and fabric.

As someone who has trained thousands of operators, I can tell you the good news: the workflow in the operation video is solid. However, to get professional results, we need to add veteran checkpoints that manuals usually leave out.

Below is the process, rebuilt into a repeatable "Studio Standard" routine. Follow this to move from frustration to effortless production.

The Calm-Down Primer for a Multifunction Computerized Household Embroidery Machine: What *Actually* Goes Wrong First

Most early problems on a dual-function sewing/embroidery machine stem from a misunderstanding of Sensor vs. Mechanics. The screen might say "Ready," but if the physical thread path is off by one millimeter, the machine will fail.

Troubles usually originate from three "Silent Killers":

1. Invisible Tension Drag: A bobbin that looks full but is wound too loosely.
2. The "False Threading": Upper thread that missed the tension discs because the foot was down.
3. Hoop Physics: Fabric that is "drum tight" but distorted off-grain.

The Golden Rule: When something feels "off" or sounds "crunchy," stop immediately. Never force the machine. Reset the basics.

The “Hidden” Prep Before You Touch the Start/Stop Button: Bobbins, Thread Tails, and a Clean Path

Before you wind a single bobbin, we need to establish a "Clean Deck" protocol. This prevents the #1 cause of bird nests: debris in the shuttle race.

• The "Foot Up" Law: Always lift the presser foot before threading. Why? Lifting the foot opens the tension discs. If you thread with the foot down, the thread floats on top of the discs, creating zero tension and a massive knot on your first stitch.
• Needle Position: Use the handwheel to bring the needle to its highest point. This aligns the take-up lever for threading.
• Thread Hygiene: The video specifies a 10 cm thread tail. This isn't arbitrary. A tail shorter than 10 cm can be sucked into the bobbin case. A tail longer than 15 cm can get whipped around and sewn into your design.

Pro Tip: Keep a "Sidecar Kit" next to your machine: fine-point tweezers, a small lint brush, and texturizing snippers. You will need them.

Prep Checklist: The "Pilot's Walkaround"

• Power Check: Machine is powered off for any needle/foot changes.
• Tension Open: Presser foot is LIFTED (Critical!).
• Lever Position: Needle is at the highest position (turn handwheel toward you).
• Bobbin Check: You have an empty, clean bobbin (no old thread remnants).
• Visual Scan: The bobbin area is free of lint/dust bunnies.


Bobbin Winding on the Top Spindle: The 80–90% Rule That Prevents “Random” Tension Issues

The video’s bobbin winding sequence is simple, but the nuance determines your stitch quality.

1. Place the bobbin on the winding shaft/spindle.
2. Route the thread following the numbered path 1 to 4.
3. Engage: Push the bobbin winder shaft to the right. Listen for a distinct click.
4. Action: Press Start/Stop (red light turns to green/amber).
5. The Sweet Spot: Stop winding when the bobbin is 80% to 90% full.

Why not 100%? An overfilled bobbin can drag against the plastic bobbin cover. This friction acts like "phantom tension," causing the upper thread to pull to the bottom. If your bobbin looks like a bulging mushroom, unwind it.

Drop-In Bobbin Installation: Seat It Counterclockwise, Then Let the Cover Do Its Job

Drop-in bobbins are convenient, but they demand specific orientation.

1. The Visual Check: Hold the bobbin up. The thread should hang down off the left side, forming the letter "P" (for Perfect). If it looks like a "q", flip it.
2. The Drop: Place it into the case.
3. The Anchor: Place a finger gently on the bobbin to stop it from spinning.
4. The Route: Pull the thread through the slit (guide) and around the curve.
5. The Sensory Test: As you pull the thread through the final guide, you should feel a tiny "bump" of resistance. No resistance = No tension.

Warning: Keep fingers, seam rippers, and loose objects away from the needle plate when testing. A stray finger on the Start button can drive a needle through a fingernail instantly.

Upper Threading + Automatic Threader: The 3–5 mm Loop Trick That Makes It Work Every Time

Upper threading follows the printed route 1 to 5.

Sensory Check: As you pull the thread down channel 3 and up channel 4, hold the thread taut with your right hand near the spool. You should feel a sensation similar to flossing your teeth as the thread slips between the tension plates.

For the automatic threader:

1. Lower the presser foot (to secure the thread).
2. Hook the thread on the device guides.
3. The Secret Sauce: Pull the thread through the side cutter to form a small 3–5 mm loop.
4. Release the lever gently.

If the lever feels "jammed," stop. The hook inside is microscopic and bends easily. Re-align and try again.

Double Needle Sewing Without Snapping Needles: The One Screen Icon People Forget

Using a distinct Double Needle is great for decorative hems, but it changes the machine's geometry.

• The Risk: A double needle is wider. If the machine tries to do a wide zig-zag, the needle will smash into the metal throat plate. Shrapnel can damage the timing or injure your eyes.
• The Fix: You must activate Double Needle Mode on the screen. This tells the computer to limit the stitch width to a safe zone.

Note: The automatic threader does not work with double needles. You must thread them manually, front to back.

Buttonhole Presser Foot Setup: Let the Gauge Do the Measuring, Then Cut from the Middle

The automated buttonhole process relies on the physical "Button Gauge" at the back of the foot.

1. Insert your specific button into the rear holder of the foot. Squeeze it tight.
2. Install the foot.
3. Pull down the Buttonhole Lever (located behind the threader usually). If you forget this lever, the machine will sew in place forever.
4. Align fabric, select stitch, and Go.

The "Safety Cut" Technique: When opening the buttonhole with a seam ripper, place a pin at the end of the stitch (the bar tack). This stops the ripper from slicing through the end of your beautifully sewn buttonhole.

Switching to Embroidery Mode: Remove the Extension Table, Click in the Embroidery Unit, Change the Foot

Now we transition from Sewing (Transportation) to Embroidery (Creative).

1. Power Off. (Safety first).
2. New Foot: Install the Embroidery Presser Foot (often labeled 'U' or 'Q').
3. Remove Table: Slide off the accessory box.
4. Insert Unit: Push the embroidery module in until you hear a solid CLICK.

Commercial Insight: This switch-over process is the "workflow friction" point for many users. If you find yourself switching back and forth constantly, or if you struggle with keeping fabric straight during the next step, consider upgrading your environment. A dedicated hooping station for embroidery machine can save massive amounts of time by holding the frame steady while you align the fabric.

Hooping Fabric in a Standard Plastic Embroidery Hoop: Tension Physics That Prevents Wrinkles and Design Drift

Hooping is where 80% of embroidery failures happen. The video shows the mechanical steps, but here is the art:

• The Goal: You want "Drum Tight" tension, but Neutral Grain.
• The Error: Pulling the fabric after the hoop is tightened. This creates a "stretched skin" effect. When you un-hoop later, the fabric snaps back, and your perfect circle becomes an oval.
• The Fix: Finger-tighten the screw. Gently pull the fabric smooth before full tightening.

The Upgrade Calculation: If you notice "hoop burn" (shiny crushed rings) on delicate fabrics like velvet or performance polyesters, or if your wrists hurt from tightening screws all day, you have outgrown standard hoops. Many professionals search for a magnetic embroidery hoop at this stage. Magnetic systems clamp instantly without the "screw-torque" that damages fabric fibers, solving the hoop burn issue at the source.

Warning: Magnetic Frame Safety. These utilize industrial-strength neodymium magnets. They can pinch fingers severely. Never place them near pacemakers, credit cards, or magnetic storage media.

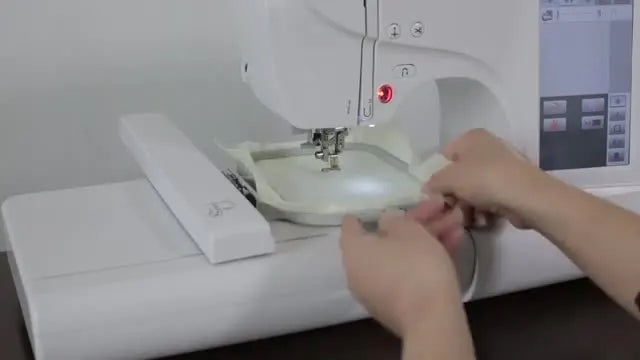

Attaching the Embroidery Hoop to the Carriage Arm: The “Snap-In” Moment You Must Feel

1. Raise the presser foot high.
2. Slide the hoop under the needle.
3. Align the connector with the carriage slot.
4. The Anchor: Push firmly until it snaps. Verify by giving it a gentle wiggle. It should feel like a solid part of the machine.

If you are researching correct hooping for embroidery machine techniques, remember that a loose connection here leads to "layer shifting"—where the outline doesn't match the fill.

Touchscreen Pattern Selection & Editing: Rotate in 1°, 10°, or 90°—Then Always Run the Frame Preview

Digital setup prevents physical failure.

• Edit: Use the 1° rotation for minor alignment corrections; use 90° for orientation changes.
• The "Trace" (Boundary Preview): This is the most important button on the screen. Tap the Frame/Boundary Preview icon.
• Watch the Needle: As the carriage moves, watch the needle's position relative to your hoop edge. Ensure the foot doesn't hit the plastic frame.

Pro Habit: Always preview. The screen shows you the ideal world; the preview shows you the real world.

Embroidery Execution at 450 SPM: Start, Stop After a Few Stitches, Trim, Then Let It Run

The video sets the speed to 450 SPM (Stitches Per Minute).

• Beginner Sweet Spot: 400–600 SPM.
• Danger Zone: 800+ SPM (on delicate threads/metallic threads).

The " Trim-and-Go" Maneuver:

1. Press Start.
2. Let it sew 4-5 stitches.
3. Press Stop.
4. Trim the starting thread tail close to the fabric.
5. Press Start again to finish.

Why? If you don't trim, the foot will eventually catch that tail and sew it into a messy lump in your design.

If you are struggling with fabric slipping during high-speed stitching, check your equipment. Standard hoops rely on friction. An upgraded embroidery frame with magnetic clamping force provides vertical pressure that holds slick fabrics (like satin) much more securely than friction alone.

Setup Checklist: The "Green Light" Protocol

• Foot Check: Embroidery foot installed?
• Fabric: Is it "drum tight" but not stretched?
• Obstruction: Is the area behind the machine clear for the hoop to move?
• Trace: Did you run the boundary preview?
• Speed: Is speed set to a safe interval (450-600 SPM)?


Bobbin Thread Run-Out Recovery: Use Advance/Retreat to Back Up (Up to 100 Stitches)

When (not if) the bobbin runs out:

1. Don't panic. The machine will auto-stop.
2. Remove hoop, refill bobbin, replace hoop.
3. The Critical Step: Use the Advance/Retreat (-/+) key. Back up about 10-15 stitches.
4. Resume sewing.

Result: The new stitches overlap the old ones, locking them in. No holes, no unraveling.

USB Import Without the “Why Won’t It Read?” Headache: Size Limit + Filename Rules

The machine is not a PC; it has strict rules.

• Capacity: Max pattern layout usually 100 mm × 235 mm (standard area).
• Naming: "Flower.dst" is good. "Flower_design_final_v2_@.dst" is bad. Use 8 characters or less, letters and numbers only.
• Format: Ensure you are using the format your machine reads (usually .DST or .PES - check manual).

The Commercial Reality: If you find yourself spending 20 minutes fiddling with USBs and thread changes for every single shirt, you have hit the "Single-Needle Ceiling." This is normal. When production volume hits 50+ items a week, the business solution is often moving to a SEWTECH multi-needle machine, which holds all colors precisely and reads complex files natively.

Maintenance After Embroidery: Clean the Bobbin Area and Re-Seat the Parts Like You Mean It

Embroidery generates 10x more lint than sewing.

1. Remove the Throat Plate: Use the dedicated screwdriver.
2. Brush Out: Use the brush to sweep lint out, not blow it in.
3. The Drop of Oil: (Check manual) Usually one single drop of sewing machine oil on the hook race race is all that's needed after 8 hours of use.

Stabilizer & Fabric Decision Tree (The "What Do I Use?" Guide)

Wrong stabilizer = Ruined project. Use this logic gate:

1. Is the fabric stretchy? (T-shirts, Knits, Spandex)

• YES: Use Cutaway Stabilizer. (Tearaway will tear during wear, ruining the stitches).
• NO: Proceed to question 2.

2. Is the fabric visible/sheer? (Towels, Handkerchiefs)

• YES: Use Wash-away (Water Soluble) Stabilizer.
• NO: Proceed to question 3.

3. Is it standard woven cotton/heavy material? (Denim, Canvas)

• YES: Tearaway Stabilizer is usually sufficient.

4. Is the project high-volume? (20+ identical items)

• YES: Consider magnetic embroidery hoops. They allow you to float the stabilizer and clamp the fabric instantly, speeding up your workflow by 30-40%.


Troubleshooting the Scary Stuff: Symptom → Cause → Fix

The Upgrade Path: Fix the Bottleneck You’re Feeling

Embroidery is a journey of removing friction.

• Friction 1: Hooping Pain. If you dread hooping or get hoop burns, Magnetic Hoops are the logical Level 2 upgrade. They are safer for fabric and faster for you.
• Friction 2: Color Change Fatigue. If you are tired of swapping thread spools every 2 minutes, you are ready for Level 3: A Multi-Needle Machine.

Operation Checklist (Shutdown)

• Thread Control: Trim all tails close to the project.
• Recovery: Did you back up stitches after any thread breaks?
• Hoop Care: Loosen the screw on your plastic hoop before storing (keeps it from warping). If using magnetic hoops, store them separated with spacers.
• Power Down: Switch off at the main switch, not just the wall.

FAQ

• Q: How do I stop a computerized household embroidery machine from making bird nesting loops under the fabric right after pressing Start/Stop?
  A: Re-thread the upper thread with the presser foot lifted, because threading with the foot down often creates zero upper tension and instant nesting—this is common.
  • Lift the presser foot fully, then completely remove and re-thread the upper thread along the printed path.
  • Turn the handwheel to bring the needle to the highest position before threading for a cleaner path.
  • Pull and hold a 10 cm top thread tail at the start, then sew 4–5 stitches, stop, and trim the tail close.
  • Success check: The thread should feel like “flossing your teeth” as it seats between the tension discs, and the underside should not form loose loops.
  • If it still fails: Open the bobbin area and brush out lint/debris in the shuttle/hook area, then re-seat the bobbin and cover.
• Q: What is the correct drop-in bobbin direction for a computerized household embroidery machine, and how can I confirm the bobbin has tension?
  A: Install the drop-in bobbin so the thread hangs like a “P” (not a “q”), then pull through the guides until a small bump of resistance is felt.
  • Hold the bobbin up first: thread off the left side forms a “P”; if it looks like a “q,” flip the bobbin.
  • Place the bobbin into the case, gently finger-stop the bobbin from spinning, then route the thread through the slit and around the curve.
  • Pull through the final guide slowly.
  • Success check: A tiny “bump” of resistance should be felt when the thread passes the last guide; no resistance usually means no bobbin tensioning in the path.
  • If it still fails: Rewind a fresh bobbin and avoid overfilling, because drag from an overfull bobbin can create “phantom tension” problems.
• Q: Why should a computerized household embroidery machine bobbin be wound only 80–90% full, and what problems happen at 100% full?
  A: Stop winding at about 80–90% full, because an overfilled bobbin can rub the bobbin cover and create friction that looks like random tension trouble.
  • Engage the bobbin winder until a clear click is heard before winding.
  • Watch the bobbin profile and stop before it bulges like a “mushroom.”
  • Replace any bobbin that has old thread remnants or dirt before winding again.
  • Success check: The bobbin should sit flat under the cover and spin freely without scraping sounds or drag.
  • If it still fails: Unwind the bobbin slightly and reinstall; then re-check upper threading with presser foot lifted.
• Q: How do I make a computerized household embroidery machine automatic needle threader work reliably without jamming the hook?
  A: Form a small 3–5 mm loop at the cutter before releasing the threader lever, and stop immediately if the lever feels jammed.
  • Thread the upper path first, then lower the presser foot to secure the thread for the threader step.
  • Hook the thread into the threader guides as designed.
  • Pull the thread through the side cutter to create a 3–5 mm loop, then release the lever gently.
  • Success check: The threader lever moves smoothly and a loop is pulled through the needle eye without force.
  • If it still fails: Re-align and try again—do not force the lever, because the internal hook is very small and can bend.
• Q: How can a computerized household embroidery machine operator prevent needle breaks when using a double needle on a multifunction sewing/embroidery machine?
  A: Turn on Double Needle Mode on the machine screen before sewing, because the wider needle can hit the throat plate if stitch width is not limited.
  • Install the correct double needle and thread both needles manually (the automatic threader does not work with double needles).
  • Activate Double Needle Mode on-screen so the machine restricts stitch width to a safe range.
  • Avoid wide zig-zag settings unless the machine is explicitly limiting width.
  • Success check: The needle clears the needle plate without ticking, striking, or “crunchy” collision sounds during the first slow stitches.
  • If it still fails: Stop immediately and re-check that Double Needle Mode is still enabled and the needle is seated correctly.
• Q: How do I hoop fabric in a standard plastic embroidery hoop to prevent wrinkles, design drift, and “hoop burn” on delicate fabrics?
  A: Tighten the hoop to “drum tight” while keeping the fabric grain neutral—do not pull the fabric after fully tightening the screw.
  • Finger-tighten the hoop screw first, smooth the fabric into position, then tighten to final tension.
  • Avoid stretching the fabric off-grain; focus on flat and centered rather than over-stretched.
  • If delicate fabric shows shiny crushed rings (hoop burn) or wrists hurt from tightening, consider switching to a magnetic hoop to clamp without screw-torque.
  • Success check: The fabric feels drum tight but not distorted, and the design does not shift between outline and fill.
  • If it still fails: Use an appropriate stabilizer (often cutaway for stretchy fabrics) and re-check that the hoop is firmly snapped into the carriage.
• Q: What safety precautions should be followed when using a magnetic embroidery hoop/frame with strong neodymium magnets?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from pacemakers and magnetic-sensitive items.
  • Separate and join magnets slowly and deliberately; keep fingertips out of the closing gap.
  • Keep magnetic hoops away from pacemakers, credit cards, and magnetic storage media.
  • Store magnetic hoops separated with spacers to reduce sudden snapping and impact.
  • Success check: The hoop closes without finger pinches, and the fabric is clamped evenly without needing extra force.
  • If it still fails: Pause use and switch back to a standard hoop until safe handling and storage can be set up.
• Q: If a home computerized embroidery machine workflow feels slow due to constant hooping, thread changes, or USB file reading issues, what is a practical upgrade path?
  A: Start with technique fixes, then upgrade to magnetic hoops for hooping friction, and consider a multi-needle machine when weekly volume and color changes exceed the practical limits—this is a common progression.
  • Level 1 (technique): Standardize prep (clean bobbin area, correct threading with foot up, 10 cm thread tails, boundary preview, safe 400–600 SPM).
  • Level 2 (tooling): Use magnetic hoops to reduce hooping time, reduce hoop burn, and improve grip on slick fabrics where friction hoops slip.
  • Level 3 (capacity): If frequent color changes and USB handling dominate time at higher volumes (often around 50+ items/week), a multi-needle machine may be the better production fit.
  • Success check: Setup time drops and the machine runs longer without stops for re-hooping, re-threading, or repeated file-import attempts.
  • If it still fails: Tighten file hygiene (short simple filenames, correct format) and re-check hoop snap-in and boundary preview before committing to hardware changes.
