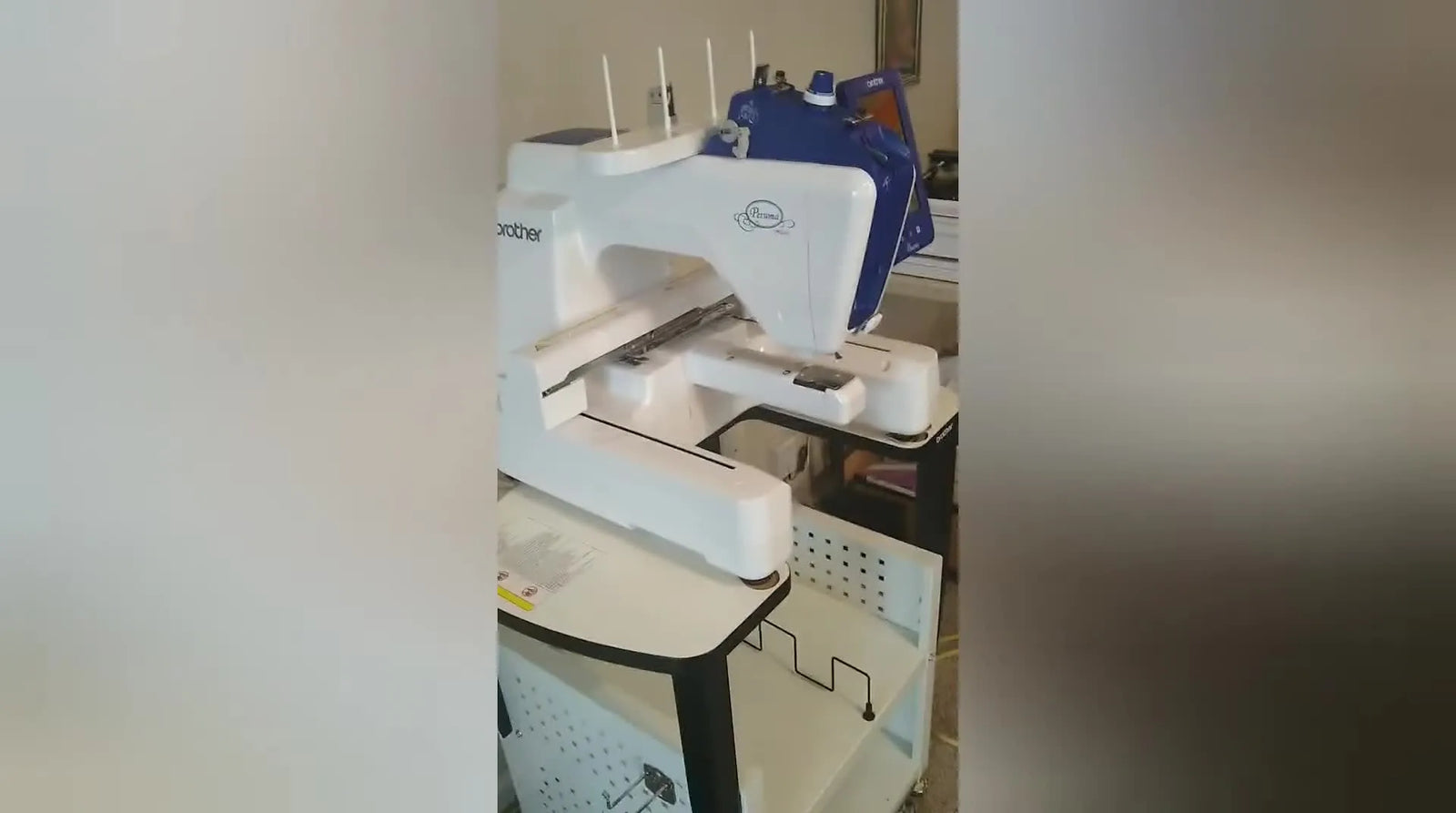

From Box to First Stitch on the Brother PRS100 Persona: Stand Setup, Hoop Holder Install, and the “Check Upper & Bobbin Thread” Tension Trap

The Unboxing Reality Check: Transforming Your Brother PRS100 from "Fragile Cargo" to "Production Workhorse"

If you just unboxed a Brother PRS100 Persona and your brain is bouncing between excitement and a quiet terror of "please don’t let me break this expensive machine," stop right there. You are not alone. I have set up hundreds of embroidery machines over the last 20 years, and I can tell you this: the difference between a nightmare first day and a profitable workflow isn't magic—it’s physics.

The first hour is where most avoidable mistakes happen—usually from rushing the stand assembly, under-stabilizing the machine, or trusting factory tension settings as gospel.

This guide rebuilds the standard unboxing process into a "zero-friction" workflow. We aren’t just setting up a machine; we are building a mini-factory in your spare room.

Don’t Panic: The Heavyweight Paradox

A brand-new tubular single-needle machine like the PRS100 looks intimidating because it borrows DNA from industrial floor units. It is heavy, it is rigid, and it demands respect.

The two emotional spikes I see on Day One are:

1. Fear (Physical): "This machine is a tank—one slip and I crush my foot or the machine."
2. Frustration (Technical): "Why did I get a 'check upper and bobbin thread' error on my very first stitch?"

Both are normal. Both are fixable. Let’s tackle the physical foundation first.

The Foundation Ritual: Locking Down the "Seismograph"

Embroidery is a game of vibration management. A machine running at 1,000 stitches per minute (SPM) creates kinetic energy. If your stand isn't dead-silent, that energy goes into your needle bar, causing registration errors (where outlines don't match the fill).

Agnes starts by inspecting the included stand. You will see top brackets that grab the machine's feet, locking wheels, and adjustable leveling feet.

The Stability Test (Do Not Skip)

Most manuals tell you to "assemble the stand." They don't tell you the standard of success.

• Action: Assemble the stand brackets and tighten the bolts until you feel significant resistance.
• Sensory Check: Once assembled, grab the top corners of the stand and try to shake it.
• Success Metric: It should feel like a solid block of granite. If you hear a rattle or feel a shimmy, you are not ready to mount the machine.

Veteran Protocol:

1. Engage Locks: depressing the wheel locks is step one.
2. Level the Feet: Spin the adjustable feet down until they take the weight off the wheels. The wheels are for transport; the feet are for stitching.
3. Bracket Alignment: Ensure the receiving cups on top are perfectly square.


The "Command Center" Setup: Organizing for Flow

Agnes installs the wire racks and hooks. This seems trivial, but in a production environment (even a home one), "friction" kills your joy. Friction is looking for scissors for 30 seconds. Friction is stepping on a hoop.

If you plan to stitch regularly, you need a dedicated "Hooping Zone." While the machine comes with standard hoops, many professionals eventually integrate hooping stations to ensure that every shirt is hooped in the exact same spot, eliminating the "crooked logo" anxiety.

Prep Checklist: The "Pre-Flight" Inspection

Before you even look at the heavy box, clear your runway.

• Stand Check: Stand is leveled; feet are grounded; wheels are locked.
• Hardware Check: No loose nuts left in the stand assembly bag.
• Accessory Home: Wire racks installed. Do not put tools on the floor.
• Consumables Audit: Do you have cutaway stabilizer, embroidery thread, and bobbin thread ready? (These are often not enough in the box).
• Tool Readiness: Place the screwdriver and scissors on the rack.

Warning: Physical Safety
The PRS100 is "massively heavy" (approx. 60+ lbs / 27 kg).
* Do not lift it naturally like a box.
* Do not lift by the plastic tension knobs or the LCD screen.
* Do not try to "deadlift" this alone if you have back issues. Back surgery costs more than an embroidery machine. Get a spotter.

Inventory Diagnosis: What You Have vs. What You Need

Inside the box, Agnes reveals the ecosystem:

• User Manual: (Keep this within arm's reach for the first month).
• Tubular Hoops: Small and medium sizes are visible.
• Embroidery Arm: The robotic limb that moves the hoop.
• Maintenance Kit: Oil and scissors.
• Hat Bracket: A specialized jig.

People obsess over hoop sizes immediately. You will often see discussions about brother prs100 hoop sizes. The included hoops are great for chest logos, but they have limitations for large jacket backs or very tiny items. For Day One, your goal is simple: Pick one hoop that fits your test fabric comfortably.

The "Box-Open" Transfer Method

Never lift the machine straight up out of a tall box—that is how people drop machines. The Safe Method (as seen in the video):

1. Cut the Corners: Slice the cardboard box sides vertically so the box folds down flat.
2. Strip Packaging: Remove the styrofoam while the machine is still sitting on the box base.
3. The Grip: Grab the machine by the metal chassis/handholds at the bottom designated for lifting.
4. The Seat: Lift and lower it onto the stand.
5. Sensory Check: You should feel the rubber feet "thud" into the stand brackets. Give it a shove. If it slides, it’s not seated.


Surgical Assembly: The Embroidery Arm and Thread Tree

This is the moment where precision matters. Agnes attaches the embroidery arm and the thread guide antenna.

The Thread Antenna (Crucial)

The telescoping pole at the back isn't just a holder; it aligns the thread for the tension discs.

• Action: Extend the antenna fully.
• Visual Check: The guides on top must be directly above the spool pins. If the antenna is twisted, the thread will drag against the plastic, adding invisible tension that causes breaks.
• Tactile Check: When tightening the screws, stop when you feel firm resistance. Do not "gorilla tight" these screws—you will crack the plastic housing.


The Hoop Frame Holder: Nuts-Off, Nuts-On

The "Frame E Arm" connects your hoop to the machine. Agnes demonstrates removing the factory nuts from the drive bar and installing the holder.

Step-by-Step:

1. Locate: Find the two bolts on the moving drive bar (the X-axis arm).
2. Remove: Unscrew the knobs/nuts.
3. Install: Slide the Frame Holder onto the bolts.
4. Secure: Tighten the knobs back down.
5. Sensory Check: Wiggle the holder up and down. Is there play? There should be zero wiggling. It must be rigid.


The First Stitch Strategy: Taming the T-Shirt

Agnes hoops a gray T-shirt with white stabilizer. She loads it, selects a floral design, locks the machine, and hits start.

Cognitive Pause: T-shirts are the hardest thing for a beginner to start with because knits stretch. You are playing on "Hard Mode" immediately.

The "Lock" Feature: On the screen, you must tap the Lock icon to unlock the machine's motor. This is a safety gate. It prevents you from accidentally sewing through your finger while threading the needle. Always keep the machine locked until your hands are clear of the needle zone.

Pain Point: If you find hooping a T-shirt difficult (getting it straight, fighting the stretch), this is where mechanical upgrades come in later. Many users eventually switch to a brother prs100 magnetic hoop because the magnets clamp the fabric instantly without the "tug of war" required by traditional screw-tighten hoops.

Setup Checklist (The "Green Light" Protocol)

Before you press that flashing green button:

• Hoop Seating: Push the hoop into the holder until you hear a mechanical "CLICK". No click = disaster.
• Clearance: Rotate the handwheel (slowly) to ensure the needle drops into the hoop area without hitting the plastic frame.
• Tail Check: Hold the excess top thread tail for the first 3 stitches, then trim it.
• Speed Limit: For your first run, lower the speed on the screen to 400-600 SPM. Speed hides problems; slowness reveals them.


Troubleshooting the "Check Upper Thread" Error

Agnes hits a common wall: The machine stops and yells, "Check upper and bobbin thread." She fixes it by loosening the upper tension.

The "Why" (Expert Insight): Factory tension is often set very high (tight) for testing. When you run a soft thread on a soft T-shirt, that tight factory settings acts like a brake. The sensor thinks the thread is broken because it’s not feeding smoothly.

The "Fox Test" for Tension: Don't just turn knobs blindly.

1. Thread the machine.
2. Pull the thread through the needle eye by hand (with presser foot down).
3. Sensory Check: It should feel like pulling dental floss through teeth—firm but smooth. If it feels like dragging a fishing line through concrete, it’s too tight.
4. The Fix: Loosen the tension knob (turn left) by two clicks. Test again.


The Logic of Control: Stabilizer Decision Tree

The video shows a white stabilizer, but doesn't elaborate. In the professional world, "stabilizer" is the variable that saves you from ruining expensive garments.

Use this Decision Tree for every project:

Project: Knit T-Shirt (Stretchy)

1. Is the design dense (lots of stitches, >10,000)?
   • YES: Use Cutaway Stabilizer (2.5oz or 3.0oz). Must use cutaway or the shirt will warp.
   • NO: Go to step 2.
2. Is the fabric unstable (very thin/stretchy)?
   • YES: Use Cutaway.
   • NO: (e.g., a thick Polo) You might get away with Tearaway, but Cutaway is safer.

Rule of Thumb: "If you wear it, don't tear it." Use Cutaway for wearables to prevent the design from scratching the skin or deforming in the wash.

The Physics of "Hoop Burn" and Distortion

Hooping is a mechanical act of violence against fabric. You are crushing the fibers to hold them still.

• The Problem: Traditional hoops rely on friction. You have to pull the fabric tight (causing "burn" marks) and tighten a screw. On T-shirts, this stretching creates "puckering" once the fabric relaxes.
• The Level 1 Fix: Don't pull the fabric after the ring is tightened.
• The Level 2 Solution (Tool Upgrade): This is where professionals pivot to magnetic embroidery hoops. They use vertical magnetic force to clamp the fabric without friction drag. This eliminates hoop burn and is significantly faster for production runs.


Addressing the Comment Section: Myths & Realities

Agnes's video comments highlight confusion about what you actually get. Let’s clarify the buying landscape.

"Where’s my Hat Hoop?"

• Reality: The PRS100 typically includes the Hat Jig (for prep) but not the Hat Driver (the machine attachment) or the Hat Frame itself in the base box.
• Upgrade Path: If caps are your business model, you will need to purchase the brother prs100 hat hoop kit separately. Tip: Master flats (shirts) first before attempting hats. Hats are technically more difficult.

"Did you get a free stand?"

• Reality: Many dealers bundle stands during promotions (like New Year's). If buying used or box-only, the stand is often separate. Always check the "In the Box" manifest.


Anatomy of a Good Stitch

Agnes finishes with a floral design and a monogram. How do you know if yours is "good"? The QC (Quality Control) Scan:

1. Registration: Do the outlines line up perfectly with the color fill? (If not, your stability/hooping was loose).
2. Looping: Look closely at the top. Do you see loops of thread? (Upper tension too loose).
3. Bobbin Show: Look at the back. You should see 1/3 white bobbin thread in the center of the satin column. (This is the industry standard).


The Professional Growth Path: When to Upgrade?

You are now running a single-needle machine. It’s fantastic for personalization. But embroidery is a business of efficiency.

The Workflow Trap: Eventually, you will hit a wall. You’ll be doing a 6-color logo on 50 shirts. That means you have to manually change the thread 300 times. Your hands will cramp, and your profit per hour will plummet.

The "Scene Trigger" for Upgrading:

• Trigger: You turn down an order because you don't have time to baby-sit the thread changes.
• Diagnosis: Your machine is the bottleneck.
• The Solution Path:
  1. Level 1 (Efficiency): Get a magnetic hooping station to prep shirts faster while the machine runs.
  2. Level 2 (Capacity): This is the moment to look at SEWTECH Multi-Needle Machines. A multi-needle machine holds 10-15 colors at once. It changes colors automatically. It cuts your labor time by 80%.

Warning: Magnet Safety
If you upgrade to Magnetic Hoops, be aware they use industrial Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise or break fingers.
* Medical Device Safety: Keep strong magnets at least 6 inches away from pacemakers.
* Electronics: Keep them away from credit cards and mechanical hard drives.

Final Post-Op Checklist

After your first successful session:

• Record Data: Write down the Tension Setting (e.g., "4.2") that worked for this thread/fabric combo.
• Maintenance: Clear the bobbin area of lint using the brush (not canned air—it blows lint into the sensor).
• Power Down: Unthread the needle before turning off to prevent the thread from springing back into the machine.

Chief Education Officer’s Closing Thought: Agnes proved that a "Check Thread" error isn't a failure—it's calibration. Your Brother PRS100 is a precise instrument, not a toaster. Treat the setup with respect, use the right stabilizers, and don't be afraid to upgrade your tools (like hoops) when your skills outgrow the basics. Now, go make some noise.

FAQ

• Q: What is the correct stability test for the Brother PRS100 stand before mounting the machine?
  A: The Brother PRS100 stand is ready only when it feels rock-solid with no rattle or shimmy after locking and leveling—do not mount the machine until it passes.
  • Tighten: Assemble the stand and tighten bolts until you feel significant resistance.
  • Lock: Depress the wheel locks first.
  • Level: Spin the adjustable leveling feet down until they take weight off the wheels (wheels are for transport, feet are for stitching).
  • Success check: Grab the top corners and shake—the stand should feel like a solid block with zero rattle.
  • If it still fails: Re-check bracket alignment and any missed/loose hardware from the assembly bag.
• Q: How do I safely lift and transfer a Brother PRS100 Persona out of the box onto the stand without dropping it?
  A: Do not lift the Brother PRS100 straight up from a tall box; fold the box down and lift from the metal chassis handholds with help if needed.
  • Cut: Slice the box corners vertically so the sides fold down flat.
  • Strip: Remove packaging while the machine is still on the box base.
  • Grip: Hold the machine by the designated metal chassis/handholds at the bottom (never by tension knobs or the LCD).
  • Seat: Lower onto the stand until the rubber feet “thud” into the brackets.
  • Success check: Push the machine gently—if it slides, it is not seated correctly.
  • If it still fails: Stop and get a spotter; the machine is heavy and awkward to control solo.
• Q: What should be on the Brother PRS100 “pre-flight” checklist before the first stitch to avoid missing accessories and setup mistakes?
  A: Before stitching on a Brother PRS100, confirm the stand is grounded and tools/consumables are staged—most first-day problems come from skipping this.
  • Verify: Stand is leveled; leveling feet are grounded; wheels are locked.
  • Organize: Install wire racks/hooks and keep tools off the floor.
  • Stage: Have cutaway stabilizer, embroidery thread, and bobbin thread ready (the box may not be enough).
  • Success check: You can reach screwdriver/scissors and supplies without stepping away or searching mid-setup.
  • If it still fails: Pause the run and build a dedicated hooping zone so hooping and trimming don’t interrupt stitching.
• Q: How do I prevent a Brother PRS100 hoop from coming loose—what is the correct hoop seating “click” check?
  A: Always push the Brother PRS100 hoop into the holder until you hear a clear mechanical “CLICK”—no click is a high-risk setup.
  • Insert: Push the hoop straight into the frame holder until it locks.
  • Rotate: Turn the handwheel slowly to confirm needle clearance before pressing start.
  • Hold: Hold the top thread tail for the first 3 stitches, then trim.
  • Success check: You hear/feel the “CLICK,” and the hoop does not shift when lightly tugged.
  • If it still fails: Remove and re-seat the hoop; do not run the design until the lock engagement is unmistakable.
• Q: How do I troubleshoot the Brother PRS100 “Check upper and bobbin thread” error on the first stitch?
  A: This is common on a new Brother PRS100; factory upper tension can be too tight, so slightly loosen upper tension and re-test thread pull.
  • Thread: Re-thread the upper path carefully.
  • Pull-test: With presser foot down, pull thread through the needle eye by hand.
  • Adjust: Loosen the upper tension knob (turn left) by two clicks and test again.
  • Success check: Thread pull feels “firm but smooth,” like dental floss—not jerky or stuck.
  • If it still fails: Check bobbin thread path and confirm the thread antenna is fully extended and aligned above the spool pins to prevent drag.
• Q: What stabilizer should I use on a knit T-shirt with the Brother PRS100 to avoid distortion and puckering?
  A: For Brother PRS100 embroidery on knit T-shirts, cutaway stabilizer is the safe choice—especially for dense designs or unstable fabric.
  • Choose: Use cutaway stabilizer for wearables (a safe starting point is 2.5 oz or 3.0 oz when the design is dense).
  • Decide: If the shirt is thin or very stretchy, default to cutaway even for lighter designs.
  • Remember: “If you wear it, don’t tear it” (cutaway supports the design through washing and wear).
  • Success check: After stitching, the design lies flat without the shirt snapping back into waves or ripples.
  • If it still fails: Re-check hooping method and reduce stretching during hooping; tension and hooping errors can mimic stabilizer problems.
• Q: How do I reduce hoop burn and fabric distortion on T-shirts when using Brother PRS100 tubular hoops, and when should I switch to magnetic embroidery hoops?
  A: To reduce hoop burn on Brother PRS100 T-shirt work, stop over-stretching in the hoop first; if speed and consistency are still problems, magnetic embroidery hoops are often the next tool upgrade.
  • Level 1: Hoop smoothly and do not pull/stretch the fabric after the ring is tightened.
  • Level 2: Switch to magnetic embroidery hoops when traditional hoops cause burn marks, puckering, or slow “tug of war” hooping on knits.
  • Level 3: If the real pain is volume (many items, many repeats), add a hooping station for prep flow before considering a machine upgrade.
  • Success check: Fabric comes out of the hoop without crush marks and the stitched area stays true-to-shape after it relaxes.
  • If it still fails: Slow the first run to 400–600 SPM to reveal whether the issue is hooping stability, tension, or stabilizer choice rather than speed.
