From “Messy Doodle” to a Clean Monogram Frame in Hatch: Swirls, Triple Stitch, and Zero Jump Stitches

Mastering the Spiral Monogram: From Digital Design to Production Reality

You’re staring at a "nothing" doodle on your screen, thinking, How is this supposed to become a clean embroidery design? I’ve been there—both as a digitizer fighting with nodes and as the production manager watching a machine shred a t-shirt because the design was poor.

This guide acts as the bridge between software theory and physical reality. We will take a spiral template in Hatch, digitize it for stability, and optimize it for production. Whether you are a hobbyist afraid of ruining a garment or a shop owner looking to reduce trim time, this workflow is your blueprint.

The Calm-Down Moment: Why Free-Handing Fails (and Templates Save You)

Swirls are deceptively hard. Your hand wants to wobble, and your software wants to bunch nodes together in tight curves. In the physical realm, bunched nodes equal thread nests and needle deflection.

The fastest way to get a smooth, repeatable swirl is to stop free-handing. We will build a "structure" first using a Ripple Stitch circle. This isn't the final stitch; it is a digital ruler that guarantees symmetry.

Step 1: Build the Template (Circle + Ripple Stitch)

In Hatch, we need a guide. We aren't digitizing the final object yet; we are building the scaffolding.

Action Steps:

1. Select the Circle Tool: Draw a simple circle.
2. Apply Ripple Stitch: This creates concentric rings.
3. Adjust Spacing: Sue (the tutorial demonstrator) starts at 2.0mm to see the structure, then tightens it to 1.0mm.

The Expert Sweet Spot: For standard monogram frames (approx. 4-5 inches), a 1.0mm to 1.5mm spacing is ideal. Anything tighter than 1.0mm becomes hard to trace visually; anything wider than 2.0mm leaves too much guesswork for your curves.

Prep Checklist: The "Pre-Flight" Safety Check

Before you drop a single anchor point, ensure your workspace is safe.

• Contrast Check: Change the template color to a light gray or soft pink. You need to see your active tracing line (usually black or blue) clearly against it.
• Scale Verification: Check the template size (video shows ~5.00 x 5.00 in). Hidden Consumable: Use a physical ruler against your screen or the software's measure tool to ensure the gap isn't too tight for a needle to pass.
• Workspace Hygiene: Move the template slightly away from the center crosshair so your start/stop points don't get buried under icons.

Step 2: Trace with Rhythm (Digitize Open Shape)

Now, switch to Digitize Open Shape. We are going to trace over the ripple lines.

Sensory Technique: When placing nodes, listen to the rhythm of your mouse clicks. You need Right-Clicks for curves.

• Too many clicks: Your line will look jagged and "nervous."
• Too few clicks: The curve will look flat.
• The Goal: A smooth, quiet rhythm—Click... (space)... Click... (space)... Click.

Action Steps:

1. Zoom in to at least 200%.
2. Trace the spiral using Right-Click Curve Points.
3. Press Enter only when the shape is complete.


Expert Insight: The Physics of "Micro-Angles"

A template prevents "micro-angles." If you hand-draw a curve, you create tiny jagged edges. On a screen, they look fine. On a machine running at 800 stitches per minute (SPM), those jagged edges cause the X-Y pantograph to jerk, leading to poor registration and loud machine noise. Smooth curves = smooth machine operation.

Step 3: Stitch Selection (Survival of the Fittest)

Not all stitches survive tight spirals. Sue tests three types:

1. Satin: Looks bold, but dangerous on tight inner curves. Use only if you widen the spiral significantly.
2. Calligraphy: Stylish, but often breaks down on sharp angles, creating "gaps" or "balls" of thread.
3. Delicate Triple Stitch (The Winner): This is a line-art stitch. It is crisp, robust, and sinks slightly into the fabric for a polished look.

Configuration Data:

• Stitch selection: Triple Run.
• Stitch Length: set to 2.5mm - 3.0mm. (Default is often smaller; increasing it slightly helps the design flow better on textured fabrics like pique).




Warning: Mechanical Safety
Never run a delicate single or triple run stitch at maximum machine speed (1000+ SPM) on your first test. The rapid back-and-forth motion can cause thread breakage on older needles. Start at 600-700 SPM (the Beginner Sweet Spot) to ensure flow, then ramp up.

Step 4: The "No Jump Stitch" Strategy (Backtrack Tool)

This distinguishes a hobbyist file from a professional one. We want the machine to sew continuously, not stop and trim constantly.

The Problem: The spiral starts at the outside and ends at the inside. To sew the next spiral, the machine has to "jump" back out. The Solution: Use the Backtrack tool.

Action Steps:

1. Identify the Start (Green) and End (Red) markers.
2. Select the Backtrack tool (specifically for open lines).
3. Visual Check: You should see the stitch count double, effectively sewing in and then sewing back out to the start point.




For shop owners, this is critical. If you are using a monogram machine for production, cutting out 10 trims per design can save 2 minutes per shirt. Over 50 shirts, that is nearly two hours of saved time.

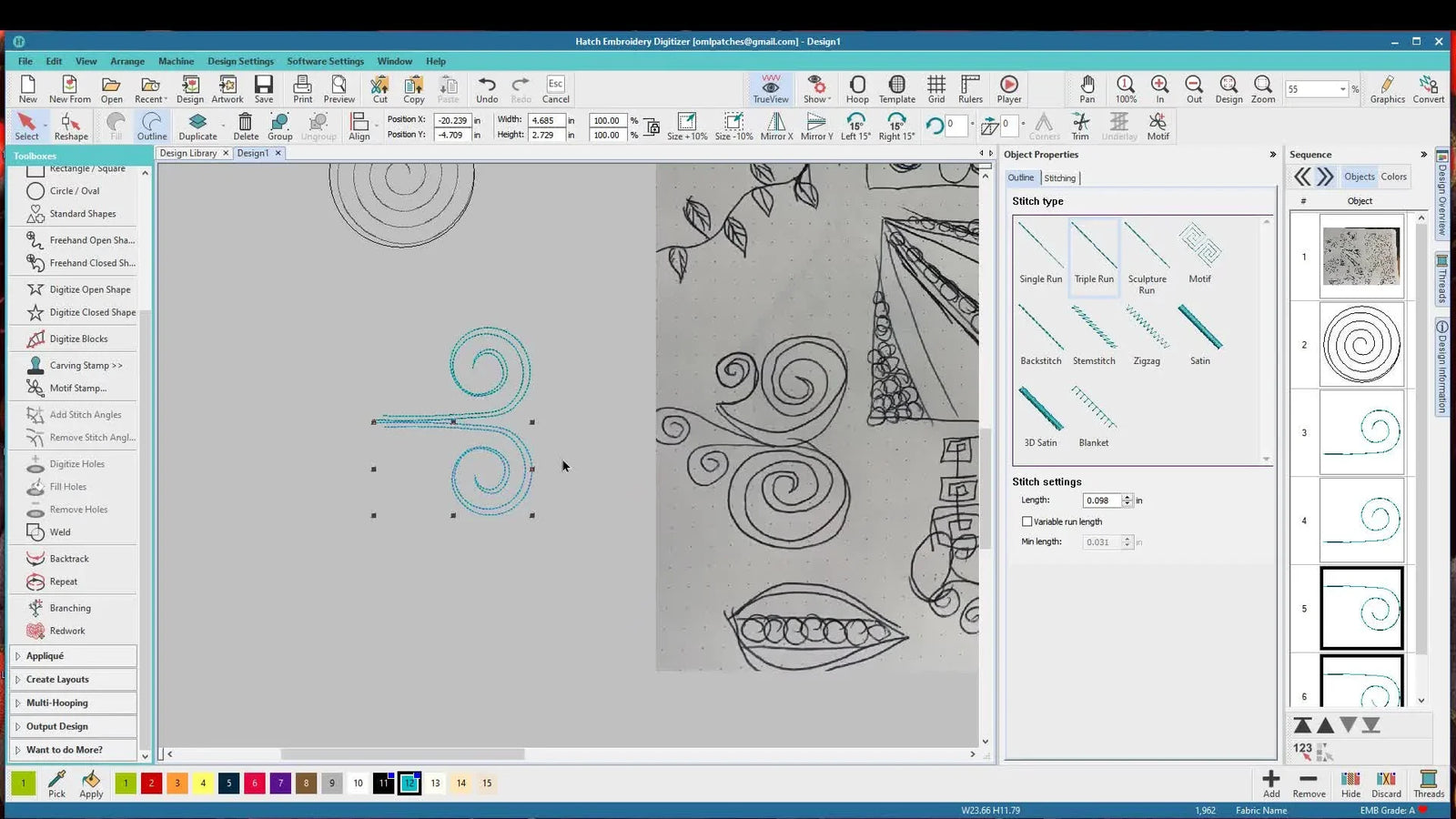

Step 5: Mirror & Connect (Building the Frame)

Sue creates the "Double Swirl" by duplicating and mirroring. Crucially, she swaps the start/end points to create a continuous flow.

Action Steps:

1. Duplicate: Right-click and drag the spiral.
2. Color Code: Change the copy to Turquoise (visual aid only).
3. Swap Points: Adjust the duplicate so it Starts exactly where the first one Ends.
4. Sensory Check: Trace the path with your finger on the screen. It should flow like water—no jumps.


Setup Checklist: Before Assembly

• Stitch Type: Confirm Triple Stitch (Length ~2.5mm).
• Connection: Ensure the Red mark of object A touches the Green mark of object B.
• Pathing: Verify no dashed lines (jump stitches) exist between the two swirls.

Step 6: Refine the Join (Reshape Tool)

When two swirls meet, the overlap can create a hard "knot" of thread. We need to smooth this out.

Action Steps:

1. Enter Reshape Mode.
2. Drag the nodes at the intersection.
3. Success Metric: Create a tapered connection where lines seem to merge, rather than crashing into each other.


Why this matters: On fabric, a knot creates a hard lump. If you are embroidering on delicate materials (like silk or thin cotton), that lump can cause a hole. Tapering distributes the thread stress.

Step 7: Embellishment & Final Assembly

Sue adds small swirls (rotated 15 degrees) and a heart shape to the center. She then duplicates the entire left side to create the right side.

The "Scale" Trap: Note that Sue checks the size (approx 5x5 inches).

• Expert Note: If you scale this down too much (e.g., to 2 inches), a Triple Stitch may become too dense. If you scale up (to 8 inches), you may need to increase stitch length.






Step 8: The Lettering Check

Finally, drop in the monogram. Sue uses a large "B".

Design Logic:

• Ensure the letter doesn't crash into the frame.
• Leave "Negative Space" (breathing room) between the letter and stripes.


Operation Checklist: Ready to Sew?

• Physical Size: Is the design appropriate for your hoop? (e.g., 4x4 vs 5x7).
• Needle Check: Use a 75/11 Sharp needle for crisp line art. (Ballpoint can sometimes make line art look blurry on wovens).
• Underlay: For Triple Stitch, turn off standard underlay. The stitch itself provides the structure.
• Stabilizer: Use Cutaway if the fabric stretches. Line art distorts easily on Tearaway.

Decision Tree: Is Your Design Production-Ready?

Use this logic flow to make your final decisions before hitting "Start."

1. Are there sharp 90° turns in the spiral?
   • Yes: Stick to Triple Stitch/Run Stitch.
   • No (Gentle curves): You can try Satin Stitch (Width 1.5mm - 3.0mm).
2. Is this a one-off gift or a bulk order (20+ items)?
   • Bulk: You must use Backtrack to eliminate trims. Trimming manually on 20 shirts is painful.
   • One-off: You can tolerate a few jump stitches if the layout is tricky.
3. Is the fabric unstable (Jersey/Pique)?
   • Yes: You need a stable hooping surface. Consider upgrading your hooping method.

Troubleshooting: The "Big Three" Failures

The Upgrade Path: Moving from Hobby to Profit

This guide focused on software, but your result depends on hardware. You can have a perfect file, but if your hooping is crooked, the monogram is ruined. Here is how to scale up your results.

Level 1: Eliminate "Hoop Burn" and Pain

Line art frames (like this spiral) are unforgiving. If you tighten a standard plastic hoop too much, you get "hoop burn" (shiny rings on fabric). If you are loose, the registration fails. The Fix: Many operators transition to a magnetic embroidery hoop. These clamp fabric firmly without the friction that causes burn, bridging the gap between ease of use and professional tension.

Warning: Magnet Safety
Magnetic Hoops are powerful industrial tools. They pose a pinch hazard to fingers. Always slide them apart; do not pry. Crucially, keep them away from pacemakers and sensitive electronics.

Level 2: Speed and Consistency

If you struggle with alignment, searching for how to use magnetic embroidery hoop tutorials can reveal techniques for faster re-hooping. For small businesses, time is money. A dedicated embroidery hooping station ensures that every spiral frame lands in the exact same spot on every shirt, removing the "eyeball" guesswork.

Level 3: Production Scalability

When you move to designs with 10,000+ stitches or complex pathing like this spiral, single-needle machines become the bottleneck. Upgrading to multi-needle setups allows for pre-loading hoops. magnetic hoops for embroidery machines, particularly those designed for multi-needle systems, allow for rapid swaps, letting you run continuous production cycles while you prep the next garment.

FAQ

• Q: In Hatch Embroidery, what Ripple Stitch spacing should be used to build a spiral monogram template for a 4–5 inch frame?
  A: Use 1.0–1.5 mm Ripple Stitch spacing as the most reliable tracing guide for a standard 4–5 inch monogram frame.
  • Start: Set spacing to about 2.0 mm first if the structure is hard to see, then tighten to 1.0–1.5 mm for tracing.
  • Adjust: Change the template color to light gray or soft pink so the tracing line stays visible.
  • Verify: Confirm the template scale (example shown around 5.00 × 5.00 in) before placing nodes.
  • Success check: The ripple rings are easy to follow without “guessing” the curve path, and the tracing line stands out clearly.
  • If it still fails: Zoom to 200%+ and re-check contrast and scale before adding more nodes.
• Q: In Hatch Embroidery Digitize Open Shape, how can Hatch curve points be placed to avoid jagged spiral monogram curves?
  A: Place fewer, cleaner Right-Click curve points in a steady rhythm to keep the spiral smooth.
  • Zoom: Work at 200% or more before placing points.
  • Trace: Use Right-Click curve points along the ripple guide instead of free-handing.
  • Stop: Press Enter only after the spiral path is complete (don’t “finish” early and reconnect).
  • Success check: The curve looks calm and continuous (not nervous/jagged), and the machine motion sounds smoother when stitched out.
  • If it still fails: Rebuild the guide with Ripple Stitch and re-trace to remove “micro-angles.”
• Q: For tight spiral monogram frames in Hatch Embroidery, which stitch type is safest: Satin Stitch, Calligraphy, or Triple Run (Delicate Triple Stitch)?
  A: Choose Triple Run (Delicate Triple Stitch) for tight spirals because it holds sharp turns cleanly with fewer gaps and failures.
  • Set: Use Triple Run with a stitch length around 2.5–3.0 mm.
  • Avoid: Do not default to Satin on tight inner curves unless the spiral is widened significantly.
  • Watch: Calligraphy may break down on sharp angles and show gaps or “balls” of thread.
  • Success check: The stitched spiral line stays crisp through the tight inner curves without gaps or bulky thread build-up.
  • If it still fails: Re-check the spiral for unintended sharp turns and keep the design as smooth curves rather than micro-zigzags.
• Q: On a multi-needle embroidery machine, what is a safe first-test speed for Triple Run spiral monogram line art to reduce thread breaks?
  A: Start at 600–700 stitches per minute (SPM) for the first test run before increasing speed.
  • Start: Run the first sample at 600–700 SPM instead of maximum speed.
  • Inspect: Check the stitch flow and needle behavior before speeding up.
  • Adjust: Increase speed only after the line runs smoothly with no repeated thread breaks.
  • Success check: The stitch-out runs continuously without frequent thread breaks or harsh back-and-forth stress sounds.
  • If it still fails: Slow down again and check needle condition; follow the machine manual for needle and speed guidance.
• Q: In Hatch Embroidery, how can the Backtrack tool be used to remove jump stitches and reduce trims in a spiral monogram frame?
  A: Use Backtrack on open lines so the spiral sews in and then sews back out to the start point, eliminating a jump back to the outside.
  • Identify: Locate the Start (green) and End (red) markers on the spiral.
  • Apply: Choose the Backtrack tool designed for open lines.
  • Verify: Confirm the stitch count increases (often roughly doubling) because the line is sewn out and back.
  • Success check: The design shows no dashed jump line for returning to the outside, and the machine runs the spiral with fewer stop/trim events.
  • If it still fails: Swap start/end points and re-check object connections so the path flows continuously.
• Q: When connecting two mirrored spiral objects in Hatch Embroidery, how can start/end points be set to prevent jump stitches between the swirls?
  A: Make the red end point of the first swirl touch the green start point of the second swirl so the stitch path flows continuously.
  • Duplicate: Copy and mirror the spiral to build the double swirl.
  • Swap: Adjust the duplicate so it starts exactly where the first spiral ends.
  • Check: Look for dashed connector lines; dashed lines usually indicate jump stitches.
  • Success check: Tracing the path with a finger feels like one continuous “water flow” with no breaks.
  • If it still fails: Enter reshape/point editing and move the endpoints until the connection is exact.
• Q: What magnetic embroidery hoop safety rules should be followed when using magnetic hoops to prevent finger pinch injuries and electronic risks?
  A: Treat magnetic embroidery hoops as industrial-strength magnets: slide them apart to avoid pinching, and keep them away from pacemakers and sensitive electronics.
  • Handle: Slide the magnetic hoop sections apart—do not pry them apart with fingertips in the pinch zone.
  • Plan: Keep hands clear when the magnets pull together during placement.
  • Protect: Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: The hoop closes under control without snapping onto fingers, and the fabric is clamped evenly without excessive friction marks.
  • If it still fails: Stop and reposition calmly—rushing magnet closure is what causes most pinches.
• Q: When spiral monogram line art keeps showing birdnesting underneath, messy curves, or visible tails, what is the step-by-step escalation from technique fixes to magnetic hoops to multi-needle production?
  A: Start with re-threading and pathing fixes, then upgrade hooping stability (often magnetic hoops), and only then consider multi-needle production for throughput.
  • Level 1 (Technique): Re-thread the upper path with the presser foot up, confirm the fabric is drum-tight, switch to Triple Run for sharp turns, and fix pathing to remove jumps (swap start/end + use Backtrack).
  • Level 2 (Tool): If unstable fabric keeps flagging or hoop tension is inconsistent, use a more stable hooping method (magnetic hoops often reduce hoop-burn risk while clamping firmly).
  • Level 3 (Capacity): If trims and slow changeovers limit output on bulk work, move to a multi-needle workflow to reduce bottlenecks.
  • Success check: The stitch-out shows a clean underside (no looping nests), smooth curves, and minimal trims/tails across multiple items.
  • If it still fails: Run a slower test (600–700 SPM) and re-check needle choice and stabilizer choice for the fabric before scaling production.
