Generations Embossed Embroidery Done Right: The Raised Effect Workflow That Won’t Fall Apart When You Resize

Engineering the Perfect "Puff": A Master Class in Generations Embossed Digitizing

Embossed embroidery is the "heavy lifter" of the digitizing world. When executed correctly, it looks expensive, tactile, and architectural—giving your garments that premium, high-density aesthetic that clients love to touch. When done poorly, it looks like a bulletproof vest: stiff, puckered, and painfully amateurish.

If you are using Generations software, you have a powerful engine under the hood, but the workflow is counter-intuitive. It requires you to think like a structural engineer, not just an artist.

This guide rebuilds the entire process from the perspective of a 20-year veteran. We will move beyond simple button clicks to understand the physics of stitch displacement, the necessity of rigorous prep, and the specific "Sweet Spot" parameters that keep your machine—and your sanity—intact.

The "Don't Panic" Primer: Understanding Stitch Architecture

Embossed embroidery in Generations isn't magic; it is a calculated manipulation of stitch density and light. The software alters the underlay and top stitching to create ridges and valleys.

Why does your design look completely different when you paste it into View Embossed? Because you are no longer editing vector shapes; you are editing a stitch recipe.

The Mental Shift:

• Traditional Digitizing: Filling a shape with color.
• Embossed Digitizing: Sculpting a 3D surface.

If your base geometry (the blueprint) is flawed—off-center by 1mm or using an angle that fights the fabric grain—the embossing process will amplify that error by a factor of ten.

Phase 1: The Foundation (Physical & Software Prep)

Before we touch the "Circle" tool, we must establish a safe environment. Embossed designs are density-heavy. They generate more friction and heat than standard logos.

The "Sweet Spot" Machine Settings

New operators often destroy good files with aggressive machine settings.

• Speed (SPM - Stitches Per Minute): Do not run embossed files at 1000+ SPM.
  • Beginner Safe Zone: 600–700 SPM.
  • Why? High speed increases thread tension variability. Slower speeds allow the thread to lay down aggressively for that "puffy" look without snapping.
• Needle Choice: Use a fresh 75/11 Ballpoint (for knits) or Sharp (for wovens). A dull needle will struggle to penetrate the accumulated density of embossed layers.
• Tension: You want the top thread to "loft." If your tension is too tight (drum-skin tight), you will flattening the effect. Loosen your top tension slightly (test until you see a 1/3 bobbin strip on the back).

The Hidden Prep in Manual Tools

In the video, the instructor starts in Manual Tools with the Circle icon. The critical veteran move happens before the click.

1. Select "Area": In the mini control panel, engage Area.
2. Kill "Auto Judge": Switch specifically to Complex Fill. Never let the software "Auto Judge" an embossed base. Auto-judging is guessing, and in high-density work, guessing leads to needle breaks.
3. Visual Contrast: Change the thread color to Pink (or any high-contrast neon). This isn't for the final design; it is so your eyes can clearly see the edges against the grid.
4. The Draw: Create your 80 mm circle.


Prep Checklist: The "No-Fly" Zone

Do not proceed until every item is checked.

• Machine: Speed lowered to 650 SPM.
• Needle: Fresh 75/11 installed. (Consumable Check)
• Software: Tool set to Manual > Circle.
• Algorithm: Auto Judge disabled; Complex selected.
• Visuals: High-contrast color selected (e.g., Pink).
• Geometry: Base circle drawn at exactly 80 mm.
• Safety: Drawing tool released (Double-click) to prevent accidental phantom objects.


Phase 2: Structural Engineering (Angles and Geometry)

Now we apply the physics. The direction of your stitches determines how the fabric pulls.

The 140° Stitch Direction Trick

The instructor sets the Complex Fill stitch direction to 140 degrees. This is not a random number.

• The Physics: Standard 45° or 90° fills often align with the weave of commercial pique polos or twill. This causes the stitches to "sink" into the fabric trenches.
• The 140° Advantage: By cutting across the grain at an obtuse angle, the thread sits on top of the fabric surface. Additionally, this specific angle reduces the calculation of "long stitches" (jumps) that the software would otherwise have to crudely chop up later.

Action: Right-click the circle -> Press Spacebar -> Complex Tab -> Set Angle to 140.

Dropping the Anchor (The Logo Element)

Using My Blocks, drop your logo (the "G") onto the workspace.

• Sensory Check: When you place the logo, do not just "eyeball" it. Watch for the snap-to-grid or alignment guides. If the logo is even 0.5mm off-center, the concentric embossed rings we create later will look warped, like a spinning coin wobbling on a table.


Phase 3: The "Expensive" Border Technique

This is the differentiator between a "patch" and a "design." A raw edge on an embossed circle looks unfinished. We need an engineered internal border.

1. Create Outline: Use Create Outline from Area Edges -> Select Satin Border.
2. The Offset: proper settings are Offset: -5.0 mm.
   • Why Negative? You want the border to sit inside the circle, creating a "framed" effect.
3. The Conversion: Switch to Outline/Area workflow. Use Create Area from Line.
   • Width: 1.0 mm.
4. Cleanup: This creates a duplicate line in the film strip. Delete the original line. You only want the new 1.0mm area object.

This creates a distinct, raised ridge that contains the eye and prevents the edge stitches from unravelling visually.

The Alignment Ritual

Never trust your mouse hand. We use the software's math to ensure perfection.

1. Box Select all objects.
2. Vertical Center: Edit > Align and Distribute > Vertical Center.
3. Horizontal Center: Edit > Align and Distribute > Horizontal Center.
4. The Lock: Click Group.

Why Group? In embossing, we are about to perform a "dimension jump" into the Emboss View. If objects are not grouped, they may shift relative to each other during the copy/paste process, destroying your meticulous alignment.

Setup Checklist: The Integrity Test

• Alignment: Objects aligned Vertical AND Horizontal Centers?
• Grouping: Do you see a single selection node when clicking the design?
• Border: Is the border an Area Object (not a line)?
• Offset: Is the border inset by exactly 5.0 mm?
• Consumable Check: Do you have Cutaway Stabilizer ready? (Never use Tearaway for embossed designs—the perforation will cause the high-density design to pop right out of the fabric).


Phase 4: The Dimension Jump (View Embossed)

This workflow feels "backwards" to beginners, which causes anxiety. Follow this sequence blindly until it becomes muscle memory.

1. Copy the grouped design.
2. Delete the design from the screen. (Yes, make the screen empty).
3. Activate View Embossed (Menu > View > View Embossed).
   • Visual Cue: Look for the Blue Capture Circle. If you don't see the blue circle, you are not in the right mode.
4. Paste the design back in.

The objects will lose their original fill appearance. This is normal. You are now looking at the "skeleton" of the emboss effect.

Defining the Texture: "Raised" vs. "Recessed"

Select the pasted object and press Spacebar to open Embossed Property.

The Decision Tree: Which Type Do I Choose?

The Expert Choice: For this logo optimization, choose Raised.

• Crucial Step: Check the box for Break Long Stitch.
• Why? Embossing creates long jumps over the curvature of the design. If you don't break them, your machine will slow down, trim, and jump repeatedly, or leave loose loops that snag on buttons.


Phase 5: Verification (The 3D Reality Check)

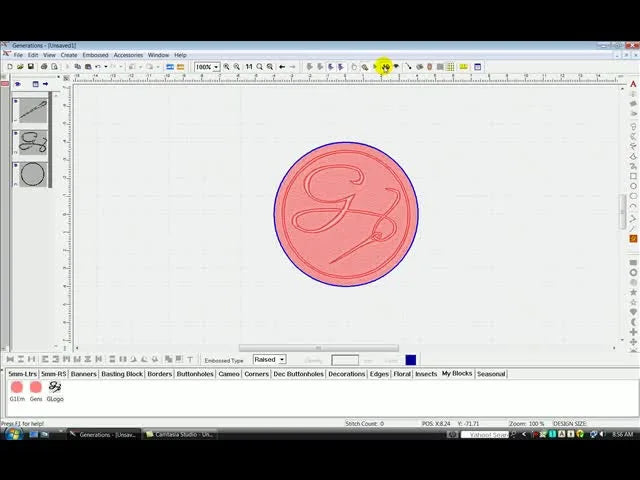

Click Generate. Then, immediately turn on 3D View.

What to look for (Sensory Scan):

• Visual: Does the light catch the ridges? It should look like a relief map.
• Density: Do the areas look "solid"? If you see gaps in the 3D view, you will see fabric showing through in the real stitch-out.
• Texture: The 140° angle you set earlier should create a smooth sheen, not a choppy, step-ladder texture.


Phase 6: The Production Scalability Test

A file that only works at 80mm is a hobby file. A file that works at 100mm is a production asset.

1. Resize: Change dimension from 80mm to 100mm.
2. Regenerate: You must click generate again. The software needs to calculate the new stitch count for the larger area.
3. Node Inspection: Switch to Stitch View (toggle off 3D). Look for the needle penetration points (nodes).
   • The Check: Ensure "Break Long Stitch" hasn't created a chaotic mess of needle points in the center of your smooth areas. It should look organized.


Operation Checklist: The Final Countdown

• Property: Emboss Property set to Raised.
• Safety: Break Long Stitch is CHECKED.
• Visual: 3D View confirms smooth ridges and no gaps.
• Scale: Design resized to target size and Regenerated.
• Pathing: Stitch points inspected for logical flow.


The Real-World "Hooping" Variable

You have now engineered a perfect digital file. However, in the physical world, embossed designs are ruthless. Because they are high-density, they pull the fabric inward with significant force (the "Pull Effect").

The Common Failure: If you use a standard plastic hoop and tighten the screw by hand, a dense embossed design will likely pull the fabric toward the center, causing the dreaded "puckering" or "dishing" around the circle.

The Solution Hierarchy:

1. Level 1 (Technique): Use Cutaway Stabilizer (2.5oz or 3.0oz). Bond it to the garment with temporary spray adhesive (like 505 spray) to prevent shifting.
2. Level 2 (Tool Upgrade): If you struggle with hand strength or hoop burn, magnetic embroidery hoops are the industry standard for this type of work.
   • The Advantage: They clamp the fabric vertically with immense, even pressure around the entire ring, preventing the "fabric creep" that ruins embossed circles.
   • Many professionals search for how to use magnetic embroidery hoop videos specifically to solve the issue of puckering on dense circular logos.
3. Level 3 (Production): If you are running 50+ shirts, screw hoops are slow. magnetic embroidery frames allow for faster re-hooping sequences, keeping your machine running and your profits ticking up.

Warning: Magnet Safety
Magnetic hoops use industrial-grade neodymium magnets. They can snap shut with crushing force.
* Pinch Hazard: Keep fingertips completely clear of the closing path.
* Interference: Keep these hoops away from pacemakers, credit cards, and hard drives.

Troubleshooting Guide: From Symptom to Cure

When things go wrong, do not guess. Follow this diagnostic table.

The Production Mindset: Scaling Up

If you master this workflow, you aren't just making one shirt; you are preparing for volume. Embossed logos are highly profitable because they look premium but don't require expensive specialty supplies like 3D foam—just good digitizing usage.

However, volume reveals weaknesses in your workflow.

• Consistency: If you are hooping 100 polos, alignment is your enemy. A hooping station is often the first investment a shop makes to ensure the logo hits the exact chest placement on every size: Small through 3XL.
• Stability: Combining a station with a magnetic hooping station setup reduces operator fatigue. Your wrists will thank you after the 20th shirt.
• Precision: Standardizing your placement with a system (often referred to in the industry alongside terms like hoop master embroidery hooping station) eliminates the "Is this crooked?" guesswork that slows down production.


The Hardware "Unlock"

Software skill is the first step. But if you find yourself waiting on your machine during color changes, or struggling to hoop thick jackets for embossing, your hardware might be the bottleneck.

Single-needle machines struggle with the friction of embossed designs. Upgrading to a multi-needle platform (like the SEWTECH series) provides:

1. Better Feeding: Professional tubular arms handle the drag of heavy garments better.
2. Stability: Heavier chassis reduce vibration at the 600-700 SPM "Sweet Spot."
3. Efficiency: Combined with magnetic framing, you turn a struggle into a manufacturing process.


Final Reality Check: The "Green Light" Criteria

Before you press start on that machine, run this mental simulation. If you can answer "Yes" to all, you are ready.

• Preview: Does the 3D view look smooth, not lumpy?
• Mechanics: Is the machine speed capped at 700 SPM?
• Stability: Are you using Cutaway stabilizer and a clean, sharp needle?
• Geometry: Did you verify the angle is 140° to avoid trenching?
• Scale: Did you regenerate stitches after your final resize?

If yes, you are ready to stitch. Trust the physics, trust the prep, and let the machine do the work.

FAQ

• Q: In Generations Embossed digitizing, why does the design look “wrong” immediately after pasting into View Embossed mode?
  A: This is normal—Generations switches from editing filled shapes to editing an embossed stitch “skeleton,” so the original fills will not display the same.
  • Copy the grouped design, delete it from the screen, then switch to View > View Embossed, and paste back in.
  • Confirm the Blue Capture Circle is visible before pasting; if not, exit and re-enter View Embossed.
  • Open Embossed Property (Spacebar) and set the intended type (for logos/borders, choose Raised).
  • Success check: The objects appear as an embossed structure rather than standard fills, and the mode shows the blue capture circle.
  • If it still fails: Re-check that all objects were Grouped before copying so nothing shifts during the mode change.
• Q: In Generations Complex Fill for embossed embroidery, what is the safest setup to avoid needle breaks caused by Auto Judge?
  A: Disable Auto Judge and force Complex Fill before drawing the base shape, because guessing algorithms often fail in high-density embossed work.
  • Go to Manual Tools, choose Circle, and set Area in the mini control panel.
  • Switch specifically to Complex Fill (do not use Auto Judge for the embossed base).
  • Change the working thread color to a high-contrast color (for visibility only), then draw the 80 mm circle.
  • Success check: The object is clearly an Area with Complex selected, and edges are easy to visually confirm against the grid.
  • If it still fails: Double-click to release the drawing tool to prevent accidental “phantom” objects, then redraw cleanly.
• Q: In Generations embossed embroidery, why does a 140° stitch direction reduce “trenching” on fabrics like pique polos or twill?
  A: A 140° Complex Fill angle often keeps stitches sitting on top of the fabric by cutting across the grain instead of sinking into weave channels.
  • Right-click the base circle, press Spacebar, go to the Complex tab, and set Angle = 140.
  • Keep the base geometry accurate (off-center placement will be amplified in embossing).
  • Success check: In preview, the fill sheen looks smooth rather than “step-ladder,” and the surface doesn’t look like stitches are dropping into fabric grooves.
  • If it still fails: Re-check hooping stability and top tension, because physical pull and overtight tension can mimic trenching.
• Q: In Generations Embossed Property, when should Raised be used, and why must Break Long Stitch be checked for curved embossed logos?
  A: Use Raised for narrow lines, detailed logos, and borders, and check Break Long Stitch to prevent long jumps that cause trims, slowdowns, or snag-prone loops.
  • Select the pasted object in View Embossed, press Spacebar, and choose Raised in Embossed Property.
  • Enable Break Long Stitch before generating stitches.
  • Generate, then immediately check 3D View to confirm the ridge forms cleanly.
  • Success check: No long loose loops appear in the preview pathing, and the 3D ridges look continuous and “satiny.”
  • If it still fails: Inspect Stitch View nodes after generating—if the center becomes chaotic, regenerate carefully after any size change.
• Q: For embossed embroidery production in Generations, what is the correct way to resize from 80 mm to 100 mm without ruining stitch quality?
  A: Resize and then Regenerate—Generations must recalculate stitch count and structure for the new size.
  • Resize the design from 80 mm to 100 mm.
  • Click Generate again (do not skip this step).
  • Toggle off 3D and inspect Stitch View nodes to confirm logical penetration points and organized flow.
  • Success check: The larger size still shows solid coverage in 3D View with no visible gaps, and stitch points look orderly (not a tangled cluster).
  • If it still fails: Re-check that Break Long Stitch is enabled and that grouping/alignment was done before the View Embossed copy/paste.
• Q: On dense embossed circular logos, what causes puckering or a circle turning oval when using a standard screw embroidery hoop, and what is the step-up fix?
  A: The high-density pull effect can drag fabric inward in a standard screw hoop, so stabilize first, then upgrade clamping if the fabric still creeps.
  • Use Cutaway stabilizer (2.5oz or 3.0oz) and bond it with temporary spray adhesive to reduce shifting.
  • Slow the machine to the 600–700 SPM range to reduce tension variability during dense stitching.
  • If fabric creep persists, move to magnetic embroidery hoops for more even vertical clamping pressure around the ring.
  • Success check: The stitched circle stays round (no “dishing” around the edge) and the fabric remains flat after stitching.
  • If it still fails: Increase pull compensation in software and verify the design is perfectly centered before generating embossed stitches.
• Q: What are the key machine safety rules when using magnetic embroidery hoops on dense embossed embroidery jobs?
  A: Treat magnetic hoops as pinch hazards—industrial magnets can snap shut with crushing force.
  • Keep fingertips completely clear of the closing path when seating the magnetic ring.
  • Keep magnetic hoops away from pacemakers, credit cards, hard drives, and similar sensitive items.
  • Close the hoop deliberately (do not “let it slam”) to maintain control and avoid fabric shifting.
  • Success check: The hoop closes without finger contact risk, and the fabric is clamped evenly with no sudden slip.
  • If it still fails: Stop and reset the hooping process—never fight a mis-seated magnetic ring while it is pulling itself closed.
