Happy Japan HCU (15-Needle) Review, From a Production Shop Lens: The Fast Setup Habits That Actually Protect Quality at 1500 SPM

The Production Mindset: Mastering the Happy Japan HCU and High-Speed Workflow

If you are upgrading to a flagship multi-needle machine, you are not just buying a faster motor. You are buying a new philosophy of work. In a single-needle environment, you babysit the machine. In a multi-needle production environment, the machine works for you—but only if you speak its language.

Lauren from Pink Bird Originals reviews the Happy Japan HCU (15-needle) as a productivity beast. I am going to take her walkthrough and overlay it with twenty years of shop-floor reality. We will move beyond "features" and look at flow: how fast you thread, how consistently you hold fabric, and how you prevent the two most expensive problems in this industry: rework and downtime.

The "Flagship Panic": Calibrating Your Expectations for the Happy Japan HCU

Lauren frames the HCU as a serious business tool: 15 needles, a blistering 1500 stitches per minute (SPM), and a massive 600 × 400 mm sewing field. For a hobbyist, these numbers are exciting. for a business owner, they are terrifying if you don't have the skills to control them.

If you are transitioning from a domestic machine, the "Flagship Panic" is real. The machine is louder, faster, and unforgiving of sloppy preparation. To master this, we need to change how we evaluate success. It is not about top speed; it is about recoverability.

When researching a 15 needle embroidery machine, ask these questions instead:

• Can I recover from a thread break in under 30 seconds?
• Can I hoop a slippery performance polo without "hoop burn"?
• Can I run 15 colors without a bird's nest?

One critical note from the community: Lauren identifies the laser positioning system as standard on her UK unit. However, global distribution varies. Verify with your dealer. In production, a laser isn't just a toy; it is your "trace" verification tool to prevent needle strikes on hoops.

Anatomy of Flow: The Thread Tubes and Static Control

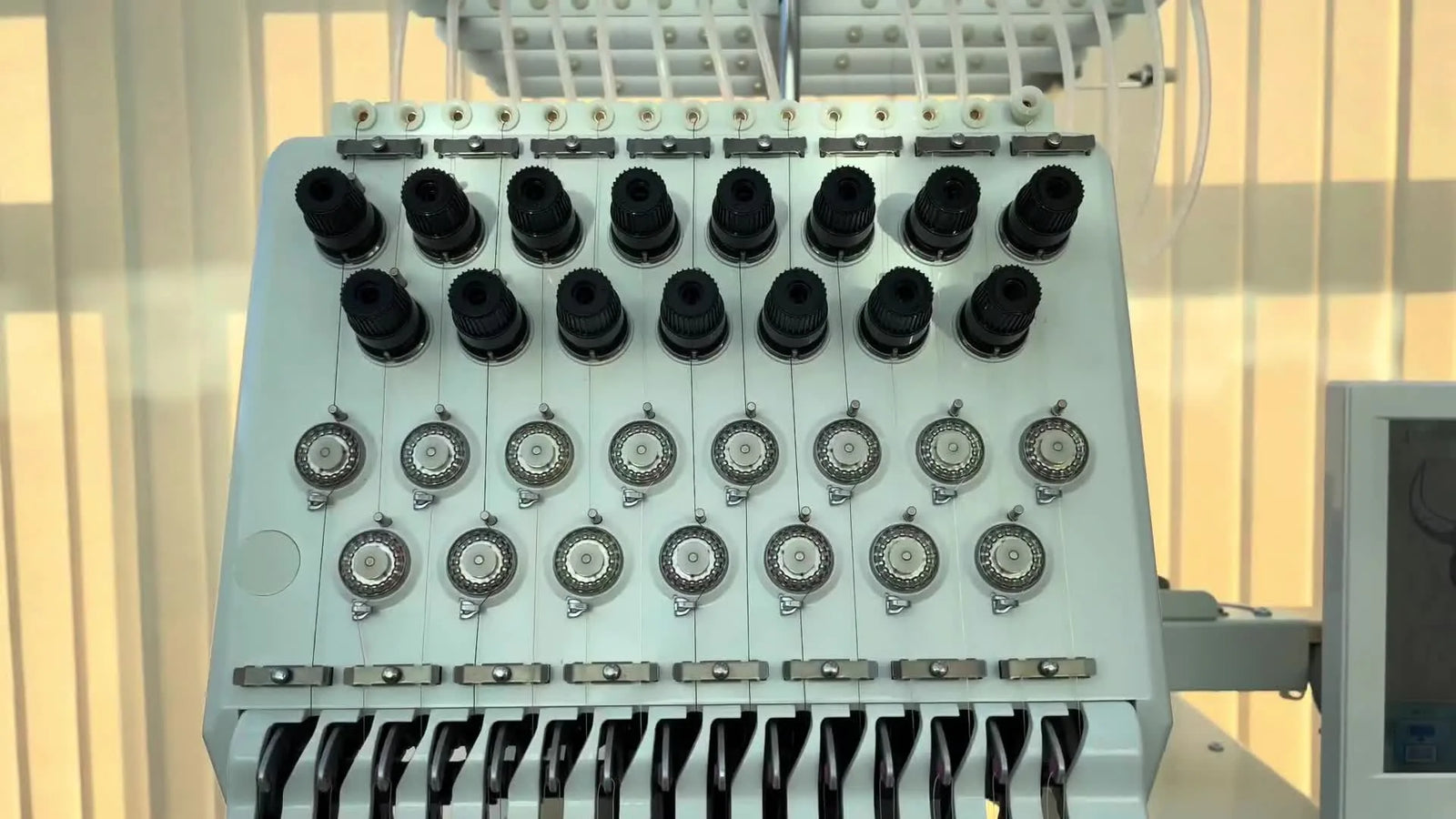

Lauren points out the clear plastic tubes at the top of the thread stand. To a novice, they look like decoration. To a pro, they are static isolation chambers.

The Physics of Failure: When embroidery thread (especially polyester) is pulled rapidly off a cone, it generates static electricity. This static makes threads cling to each other. If Thread 1 clings to Thread 2, they twist together before they hit the tension disk. The result? A "false tension" snap, a shredded thread, or a needle unthreading.

The Fix: The tubes force mechanical separation. But you must maintain them.

• Visual Check: Ensure no lint has built up inside the tubes (use canned air).
• Environmental Control: If your shop humidity drops below 40%, static spikes. Consider a humidifier near the machine, not just the tubes.

Pro Tip: If you see threads "whipping" or vibrating excessively between the cone and the tube, use a thread net on the cone. This adds slight drag and calms the thread "memory" before it enters the high-speed path.

The "Hidden" Consumable: Bobbin Management

The HCU features a built-in bobbin winder. Lauren highlights this as a convenience. I highlight it as downtime insurance.

In a production run, running out of bobbin thread is the number one cause of "micro-stops."

• The Golden Rule: Never start a large jacket back design with a half-full bobbin.
• The Sensory Check: When winding bobbins, touch the winding thread. It should feel firm, like a ripe grape, not squishy. A soft bobbin causes tension loops on the back of your garment.

Service as a Feature: Lauren correctly pushes users to contact Happy Japan directly for distributor connections. Do not buy industrial equipment from "box shifters" who cannot send a technician. When you buy a machine like this, you are marrying the service department.

Cognitive Load: The 10.5-Inch Interface and Staff Training

The 10.5-inch touchscreen is not just about size; it is about cognitive consistency. Lauren notes that Happy Japan maintains a consistent UI across models.

Why This Matters for Business: When you are tired, or when you hire your first employee, "muscle memory" prevents crashes. If every machine requires a different menu dive to change a color, you will make a mistake.

• Visual Anchor: The on-screen thread order display is crucial. Always cross-reference the screen colors with the physical cones.
• Safety Protocol: Teach staff to look at the screen's "Next Color" prompt before they hit start, every single time.

If you are evaluating a happy japan embroidery machine, factor in the training time. A unified ecosystem saves weeks of onboarding.

Tension Philosophy: The "One Knob" System

Lauren observes that the HCU utilizes a single row of major tension knobs, omitting the pre-tensioners found on older industrial setups. This is a "modern" approach designed for speed and simplicity.

The Double-Edged Sword: Fewer knobs mean faster setup, but less granular control. You cannot "cheat" a bad thread path with pre-tension. Your fundamental path must be perfect.

The "Floss" Test: How do you know your tension is right without a gauge?

1. Thread the machine through the needle.
2. Pull the thread toward you.
3. Sensory Check: It should feel like pulling waxed dental floss between your teeth—consistent resistance, no jerking, and the needle should deflect slightly (about 1-2mm) but not bend dangerously.


Pre-Flight Protocol: The "Save Your Sanity" Checklist

You are about to run a machine at speeds that can drive a needle through your finger. Respect the machine. Before you touch "Start," perform this sequence.

**PREP CHECKLIST (Required before every session)**

• Fluid Check: Hook assembly oiled? (One drop every 4-8 hours of running).
• Needle Audit: Run your finger gently over the needle tips. Any burr? Change it. A $0.50 needle can ruin a $50 jacket.
• Path Clearance: Check the entire thread path for "pigtails" (twisted thread) caused by recoil.
• Bobbin Area: Open the bobbin case. Blow out lint. A single piece of lint can change your tension by 20%.
• Emergency Stop: Locate the E-Stop button physically. Know where it is without looking.

Warning: Keep Hands Clear. Never reach into the sewing field while the machine is running. At 1500 SPM, the needle moves faster than your reflex. If you must trim a thread, STOP the machine first.

The Game Changer: Digital Presser Foot Control

Lauren demonstrates the HCU’s independent, digitally controlled presser feet. This is the single most valuable feature for modern embroidery styles like 3D Puff.

The Physics of Puff: Standard presser feet are spring-loaded. They slam down on the fabric. If you are sewing over 3mm foam (puff), a standard foot crushes the foam before the needle penetrates, killing the 3D effect.

The HCU Advantage: With a digital presser foot embroidery machine, you can set the foot to "hover" just above the material (e.g., 2.5mm height).

• Result: The foam stays lofty.
• Reduction of Flagging: "Flagging" is when fabric bounces up and down with the needle. By dialing the foot height specifically to the fabric thickness, you eliminate bounce, resulting in laser-sharp text.


The Decision Matrix: Hooping, Stabilizer, and Workflow

Buying a fast machine does not solve "hoop burn" (the ugly ring left on fabric) or crooked placement. In fact, a fast machine just ruins shirts faster if your hooping is bad.

Commercial Reality: If you are struggling to hoop thick items, or if you are leaving marks on delicate performance wear, you have hit a hardware limit, not a skill limit.

**The Stabilizer & Hoop Decision Tree**

Use this logic to choose your weapon:

1. Is the fabric stable? (e.g., Denim, Canvas)
   • System: Standard tubular hoop.
   • Backing: Tearaway (2oz).
2. Is the fabric unstable/stretchy? (e.g., Performance Polo, T-shirt)
   • System: Magnetic Hoop (prevents stretching during hooping).
   • Backing: Cutaway (2.5oz or 3oz). Must hold the stitches forever.
3. Is it a production run (50+ items)?
   • Bottleneck: Wrist fatigue and consistency.
   • Solution: Industrial Magnetic Frames.

This is where magnetic embroidery hoops transition from a luxury to a necessity. They allow you to clamp without forcing the inner ring, which eliminates hoop burn. For high-volume runs, they reduce operator wrist strain significantly.

Warning: Magnet Safety. Industrial magnetic hoops use N52 Neodymium magnets. They can pinch fingers severely (blood blister risk) and can interfere with pacemakers. Keep them 6 inches away from electronic devices and medical implants.

Startup Velocity: 3 Seconds to Live

Lauren notes the 3-second boot time. This seems trivial until you have a power flicker in the middle of a rush order. Fast reboot means you don't lose the "flow state" of the shop. It allows you to get back the registration point immediately and salvage the garment.

Mastering Speed: The "Sweet Spot" Strategy

Lauren mentions the top speed of 1500 SPM and a "cruising" speed of 1300 SPM. Stop. Do not run your machine at 1500 SPM on day one.

The "Experience Curve" Speed Limit:

• Novice (Weeks 1-4): Cap your speed at 800 SPM. Learn to hear the machine rhythm.
• Intermediate: 1000 SPM. This is the safety zone for most polyester threads.
• Pro (Cruising): 1200 SPM. This is often the "Sweet Spot" where production creates profit, but vibration is manageable.
• Max (1500 SPM): Reserve this only for low-density fill stitches on stable canvas or denim. Never run satin columns (text) at max speed; the centrifugal force widens the stitches, reducing sharpness.


Tubular Mastery: The Cylinder Arm and Accessories

The HCU’s narrow arm (4cm x 4.5cm) is critical for small items. If you are forcing a baby onesie or a sock onto a standard arm, you are stretching the fabric, which distorts the final design.

The Accessory Trap: Lauren mentions optional caps. Caps are the hardest discipline in embroidery.

• Sock Strategy: If you plan to do socks, do not improvise. Search for a dedicated sock hoop for embroidery machine. These clamp the ankle ribbing without over-stretching.
• Cap Strategy: A specific cap hoop for embroidery machine (cap driver) is required. The HCU’s clearance is good, but cap embroidery requires you to run the machine slower (600-800 SPM) because the flag frame bounces more than a flat hoop.


The Large Field: Economy of Scale

The 600 × 400 mm field allows for full jacket backs or batching. Batching Strategy: Instead of hooping 4 patches individually, hoop one large piece of fabric and run 4 patches in one file. This cuts your "load/unload" time by 75%.

Bulky Items: The Raised Chassis Advantage

The HCU raises the head to clear bulky bags. But gravity is your enemy here. The "Table Trick": If you are embroidering a heavy suitcase or golf bag, you must support the weight of the item. If the bag drags, the hoop will shift, and your registration will drift. Place a table or adjustable stand under the item to take the weight off the pantograph.

For these difficult items, standard hoops often fail to grip. This is a prime scenario for a machine embroidery hooping station combined with high-grip magnetic frames to ensure the heavy canvas doesn't slip during the run.

Compatibility: Don't Reinvent the Wheel

Lauren notes that standard hoops from smaller machines may fit. This is great, but ensure your "trace" settings are accurate. A small hoop on a big arm is the easiest way to break a needle bar if you hit the plastic frame. Always trace.

We are seeing more shops adopt magnetic hoops for happy embroidery machine systems because they are often compatible across different brands if the arm width matches.

Troubleshooting: The "Quick Fix" Protocol

Lauren identifies static (thread tubes) and crushed puff (presser foot) as key points. Let’s formalize the troubleshooting logic.

**Troubleshooting Matrix**

Conclusion: The Upgrade Path

The Happy Japan HCU is a production workhorse. It offers the speed and digital controls necessary to scale a business. But a machine is only one part of the equation.

If you find yourself bottlenecked, diagnose the root cause:

1. Is it skills? Follow the "Sweet Spot" speed guide and focus on tension.
2. Is it handling time? If you spend more time hooping than stitching, upgrade your tooling. Swapping to Magnetic Hoops or specialized Clamping Systems is the fastest way to increase ROI without buying a second machine.
3. Is it pure volume? If your HCU is running 24/7 and you still have orders, then (and only then) do you look at scaling up to multiple heads or SEWTECH multi-needle solutions to parallel process your orders.

**SETUP CHECKLIST (Final confirmation)**

• Correct Hoop Size selected on Screen?
• Trace Function run successfully? (Laser checked?)
• Presser Foot Height confirmed for fabric thickness?
• Thread Tree free of tangles?
• Bobbin has enough thread for the job?
• GO.

Embroidery is a science of variables. Control the variables, and you control the profit.

FAQ

• Q: What is the safest pre-flight checklist to run before starting a Happy Japan HCU at high speed (up to 1500 SPM)?
  A: Run a short, repeatable safety-and-quality check every session to prevent needle breaks, tension chaos, and avoidable downtime.
  • Oil: Add one drop of oil to the hook assembly every 4–8 hours of running (then wipe any excess).
  • Inspect: Feel needle tips gently for burrs and replace any questionable needle before stitching.
  • Clean: Open the bobbin area and blow out lint; clear the full thread path for twists (“pigtails”).
  • Locate: Physically confirm the Emergency Stop position before pressing Start.
  • Success check: The machine runs the first 30–60 seconds without abnormal noise, looping, or sudden thread snaps.
  • If it still fails: Re-thread the entire top path and re-check the bobbin area for hidden lint.
• Q: How do I set a safe starting embroidery speed on a Happy Japan HCU to avoid thread breaks and messy satin text?
  A: Start slow and earn speed—running 1500 SPM too early is a common cause of vibration issues and poor satin clarity.
  • Cap: Limit to 800 SPM for the first weeks while learning machine rhythm and recovery.
  • Increase: Move to 1000 SPM as a stable “safety zone” for most polyester thread work.
  • Cruise: Use ~1200 SPM as the typical sweet spot once results stay consistent.
  • Reserve: Use 1500 SPM only for low-density fills on stable fabrics; avoid max speed on satin columns/text.
  • Success check: Satin edges stay crisp and the machine sound remains steady (no harsh rattling or surging).
  • If it still fails: Slow down one step and confirm backing choice and hoop tightness before changing tension.
• Q: How can I check upper thread tension on a Happy Japan HCU “one knob” system without a tension gauge?
  A: Use the floss-feel pull test to confirm consistent resistance before you chase settings.
  • Thread: Thread the machine fully through the needle (do not skip any guide points).
  • Pull: Pull the thread toward you in a smooth motion.
  • Compare: Aim for a “waxed dental floss” feel—steady drag with no jerks; the needle deflects slightly (about 1–2 mm) without bending dangerously.
  • Success check: The pull feels consistent from start to finish, not grabby or suddenly loose.
  • If it still fails: Re-thread the entire top path to eliminate a missed take-up/guide point causing false tension.
• Q: How do I stop embroidery thread shredding or fraying on a Happy Japan HCU during production runs?
  A: Change the needle first—this fixes a large share of shredding complaints faster than adjusting knobs.
  • Replace: Swap in a fresh needle (75/11 is a common standard starting point).
  • Check: Verify thread condition and remove any sticky contamination in the stitch path.
  • Control: Stabilize shop conditions if heat/humidity swings are extreme (static and friction often worsen shredding).
  • Success check: The thread passes several thousand stitches without fuzz buildup at the needle eye or repeated breaks.
  • If it still fails: Re-check threading for twists (“pigtails”) and confirm thread feeds cleanly through the upper tubes.
• Q: How do I fix birds nesting on the bobbin side on a Happy Japan HCU (loops/balling under the fabric)?
  A: Re-thread the upper path completely first, because birds nests commonly come from the top thread missing a critical point (like the take-up lever).
  • Stop: Halt the machine and cut the jammed thread cleanly—do not keep stitching through a nest.
  • Re-thread: Re-thread from cone to needle, ensuring the thread is seated correctly through the machine’s path (including the take-up lever).
  • Verify: Confirm the top tension is not overly loose after re-threading.
  • Success check: The underside shows controlled stitches (no big loose loops forming after the first color change).
  • If it still fails: Open and clean lint from the bobbin area, then test again on scrap before returning to the garment.
• Q: How do I prevent hoop burn ring marks when hooping performance polos on a multi-needle embroidery machine like the Happy Japan HCU?
  A: Treat hoop burn as a clamping method problem—magnetic hoops often prevent the over-tightening that creates rings.
  • Reduce: Avoid forcing the inner ring and over-tightening on delicate performance fabric.
  • Support: Use cutaway backing (2.5 oz or 3 oz) for unstable/stretchy garments so the stitches stay supported long-term.
  • Upgrade: Switch to a magnetic hoop when consistent ring marks happen despite careful hooping.
  • Success check: After unhooping, the garment shows minimal to no visible ring and the design registration stays stable.
  • If it still fails: Steam the garment to help relax marks, then reassess hoop choice and clamping pressure for that fabric.
• Q: What magnet safety rules should operators follow when using industrial magnetic embroidery hoops or magnetic frames?
  A: Treat N52 magnetic hoops as pinch-hazard tooling and keep them away from sensitive devices and medical implants.
  • Handle: Keep fingers clear when closing magnets—pinch injuries and blood blisters are a real risk.
  • Separate: Keep magnetic hoops at least 6 inches away from electronic devices and medical implants (including pacemakers).
  • Train: Assign one consistent loading/unloading method so staff don’t “snap” magnets closed unpredictably.
  • Success check: Operators can mount and remove the frame without finger pinches and without magnets slamming together.
  • If it still fails: Stop using that frame until the team retrains handling technique and the work area is cleared for safe placement.
