Refining Density, Overlaps, and Texture in Hatch Embroidery (Part 4)

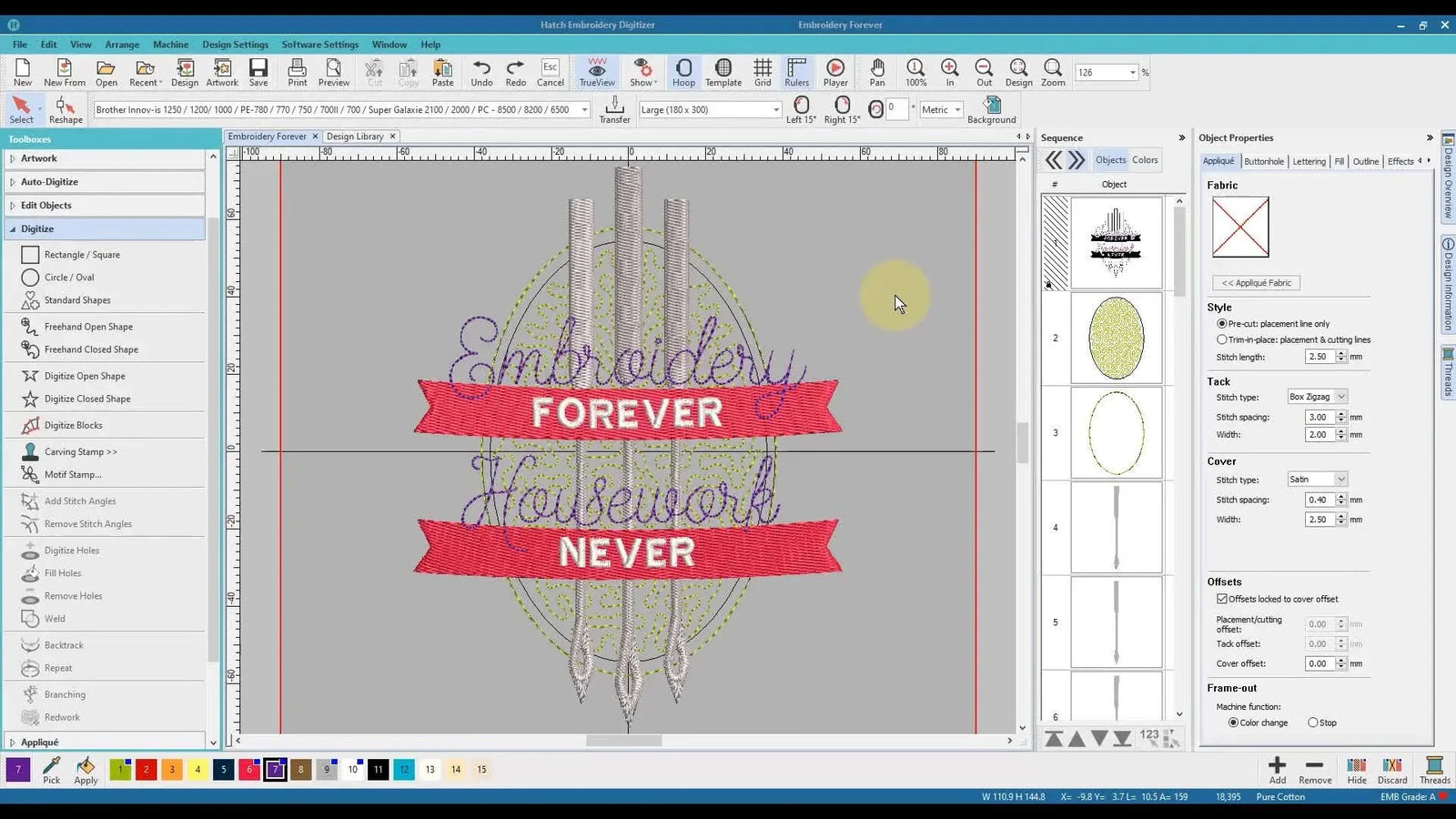

Video reference: “Embroidery Digitizing Series Part 4 - Fiddling About” by gentlemancrafter.com

The difference between a design that merely stitches and one that stitches beautifully often comes down to subtle refinements: stitch density, overlaps, angles, and texture. This guide walks you through the exact adjustments used to clean up banners, flatten overlaps, simplify angled fills on needle elements, and refresh the oval background with a motif fill—all inside Hatch Embroidery Digitizing software.

What you’ll learn

• How to set stitch spacing for banners so they read crisply without bulk

• When and how to use Remove Overlaps to eliminate hidden stitches

• Why removing stitch angles on specific elements can produce a cleaner fill

• How to audition and select a motif stitch for the oval background

Introduction to Design Refinement in Hatch Embroidery

Understanding the ‘Fiddling About’ Phase Refinement is what you do after your shapes and sequencing exist but before you commit to a stitch-out. In this stage, you tune density, clean overlaps, and finalize texture choices. These small changes pay huge dividends at the machine: flatter layers, fewer thread buildups, and more legible details.

Why Density and Overlaps Matter in Embroidery Every layered object adds stitches. Over time, those layers compound thickness and can distort fabric, create thread nests, or simply look heavy. Refining stitch spacing and removing overlapped stitches keeps the design neat without sacrificing coverage. In Hatch, you can dial in spacing for fills and use Remove Overlaps to eliminate what you’ll never see anyway.

Quick check

• Do your filled banners look heavy where they cross other elements?

• Do overlapping areas feel visually dense in the preview?

• Is the background texture competing with foreground details?

Prep

Tools and files

• Hatch Embroidery Digitizing software

• Your existing digitized design file with banners, needle elements, and an oval background

Workspace and familiarity

• Work at a comfortable screen scaling that lets you evaluate spacing clearly

• Know where Object Properties and the Edit tab live in Hatch

What you’re optimizing

• Banner fill spacing for balanced coverage

• Overlaps under banners to reduce bulk

• Needle element angles for a tidier Tatami appearance

• Oval background texture with a motif fill

Pro tip Preview at both full-size and zoomed-out views. A spacing that looks perfect at 300% may read too heavy at true size.

Prep checklist

• Design file opened and saved as a new version

• Object Properties and Edit tab visible

• TrueView enabled for realistic preview

Setup

Create a safe sandbox

• Save As a new version so you can compare before/after

• Turn on outlines and TrueView to see object boundaries and realistic stitches together

Select your working objects

• Banners grouped or selected together for density edits

• Banners are the selection base when applying Remove Overlaps

• Needle elements isolated for angle changes

• Oval background selected for motif trials

Watch out Before using Remove Overlaps, confirm which objects will be trimmed. You want to remove only what’s truly hidden beneath the banners.

Setup checklist

• Saved a duplicate working file

• Banners, needle objects, and oval background easy to select

• TrueView on, outlines visible

Adjusting Stitch Spacing for Banners

Reducing Density for Cleaner Embroidery The goal is to retain an almost opaque fill while reducing bulk where banners cross text and the needle elements. In practice, this meant moving from a tighter spacing to a more open spacing, then settling at a refined middle value that balanced coverage and softness.

Step-by-Step Stitch Spacing Modification 1) Select banner objects. In Object Properties, locate the stitch spacing for the fill. 2) Increase spacing to reduce density. The sequence shown: a test at 0.70 mm to open the fill, then a refined setting at 0.50 mm for the final look.

3) Inspect in TrueView. Confirm the fill still appears nearly opaque but not heavy. 4) Compare against other overlapped areas (text, needles) to ensure harmony.

Quick check

• Spacing at 0.50 mm yields a cleaner fill with less visual weight

• Edges look tidy without gaps or obvious grid

Pro tip Change spacing in small increments and check the entire banner path. Localized curves can look sparser than straights at the same setting. If needed, split the object logically and set different spacings.

Decision point

• If the banner still feels dense at 0.50 mm, test a slight increase, then reassess coverage

• If the banner looks sparse at 0.50 mm, step down incrementally until coverage returns

Operation checklist (for this subsection)

• Spacing revised and previewed in context

• No visible thread buildup in overlaps

• Banner still reads as nearly opaque

Mastering the 'Remove Overlaps' Tool

Eliminating Unnecessary Under-Stitching When banners sit above other objects, the stitches hidden underneath don’t contribute to the final look—but they do add thickness. In Hatch, select the banner objects, go to the Edit tab, and apply Remove Overlaps. This splits the underlying objects (oval background, border, needle elements) and deletes the stitches that will be covered by the banners.

Why this matters By clearing those hidden stitches, you flatten the design where it stacks most. That improves handling and can reduce the chance of bulk-related imperfections. Apply, then inspect: confirm only the covered portions were removed.

Quick check

• In TrueView, the areas directly beneath the banners show as open in the underlying objects

- Foreground banners remain visually unchanged, but the preview shows fewer stitches below them

Watch out If you accidentally include objects that shouldn’t be trimmed, undo immediately and re-select only the banner-related overlaps. Keep a saved version handy so you can roll back.

Operation checklist (for this subsection)

• Correct objects selected before Remove Overlaps

• Visual confirmation in TrueView that under-banners stitches are gone

• No critical elements unintentionally removed

Rethinking Stitch Angles on Needle Elements

When to Remove or Replan Stitch Angles The overlap adjustments may change how angles behave in related objects. Here, the needle elements’ stitch angles were removed. The result was a clean Tatami look without the original radial effect. If you prefer the radial styling, you can replan angles; otherwise, the simplified fill may look more consistent—and in this case, it did.

Achieving Desired Visual Effects

• Select needle objects and use Remove Stitch Angles (Edit tab)

- Inspect the Tatami fill after removal; confirm it still looks coherent and smooth

Quick check

• The needles have a uniform Tatami texture

• You’re comfortable losing the radial effect in exchange for a cleaner fill

Pro tip If you later miss the sculpted feel, reapply angles strategically only where they aid form or readability. Removing all angles is reversible—use Undo or reopen your saved version.

Operation checklist (for this subsection)

• Stitch angles removed on selected needle parts

• Post-change preview is clean and legible

• A saved version allows easy revert if desired

Exploring Motif Stitches for Backgrounds

Enhancing Design Texture with Motifs The original oval background used a stipple single run, which felt less satisfying once the other refinements were in place. Browsing motif stitches offered textures that better supported the foreground without overwhelming it. Select the oval background and test motifs directly in Object Properties.

Selecting the Perfect Stitch Type 1) With the oval selected, open motif stitch options 2) Try several motifs and preview how they interact with banners, text, and needles

3) Choose the motif that provides a fresh texture while keeping the foreground dominant

4) Confirm the final selection across the whole design (zoom in for stitch flow; zoom out for overall balance)

Quick check

• The background texture supports, rather than competes with, the banners and text

• At true size, the motif reads as texture—not as noise

Watch out Highly ornate motifs can steal attention or complicate stitch-out in busy designs. Favor patterns that offer rhythm without visual clutter.

Operation checklist (for this subsection)

• Multiple motif options previewed at actual size

• Final motif chosen for balance with the foreground

• Visual hierarchy maintained (banners/text stay primary)

Quality Checks

What good looks like

• Banner fills: nearly opaque at 0.50 mm spacing; edges clean; no visible clumping

• Overlaps: underlying stitches are gone where banners cover them; design looks flatter

• Needle elements: Tatami is tidy; no unintended distortion after angle removal

• Background: motif texture is present but subtle; foreground remains readable

Quick ways to validate

• Toggle outlines: confirm edges align after overlap trims

• TrueView at 100%: judge density and motif clarity at stitch size

• Compare before/after files to ensure each change added clarity

Results & Handoff

What you’ve changed and why it matters

• Banner spacing moved from heavier to refined at 0.50 mm: less bulk, cleaner read

• Remove Overlaps cleared hidden stitches beneath banners: flatter stack-up

• Needle angles removed: a clean Tatami with consistent flow

• Oval background motif selected: texture that supports the design

Handoff considerations

• Keep both versions (pre- and post-refinement) for reference

• You’re ready to proceed to color selection as a separate creative pass

Troubleshooting & Recovery

Symptoms and fixes

• Banner looks patchy after spacing change

• Likely cause: spacing too open relative to shape curvature

• Fix: step down spacing slightly and recheck TrueView; split object if necessary

• Puffiness persists under banners

• Likely cause: overlaps not fully removed

• Fix: reselect banners and reapply Remove Overlaps; verify in TrueView

• Needle elements lost desired shaping

• Likely cause: removing angles flattened the contour

• Fix: replan angles for those areas only; keep the rest simplified

• Background motif overwhelms foreground

• Likely cause: motif too bold or dense for the design’s scale

• Fix: choose a lighter motif; verify at 100% zoom

If-then decision points

• If your banners still feel heavy after 0.50 mm, nudge spacing up; if they look thin, nudge down

• If Remove Overlaps affects the wrong objects, undo and refine selection

• If motif conflicts with text readability, switch to a subtler pattern

Operation checklist (global)

• Density adjusted, overlaps removed, angles revised, motif selected

• All checks performed at true size and with outlines toggled

• Before/after files saved for future reference

From the studio bench: hooping context Your refinement work in Hatch will pay off at the machine, whether you use traditional frames or alternatives. Balanced density and clean overlaps reduce thickness—and that makes hooping and stitch-out more predictable. If you prefer hardware like embroidery magnetic hoops, the flatter stack-up you created here helps fabrics sit truer through the whole run.

Pro tip Consistency beats perfection. Apply small, purposeful changes and validate each one in context. It’s easier to keep a design balanced by iterating than by making big swings.
