Mastering the "Manage Designs" Workflow: From Digital Chaos to Production Precision

When your design library starts to feel like a junk drawer—files missing, hoops not matching, printouts wasting paper—it’s not just annoying. It is the silent killer of your stitch quality and your profit margin.

In my 20 years on the production floor, I have seen more projects fail at the computer screen than at the needle. A file sent with the wrong hoop coordinates creates a frame collision. A design printed at 95% scale causes a logo to be embroidered on a pocket seam, ruining the garment.

This guide rebuilds the exact workflow shown in Hatch Embroidery Software’s Manage Designs toolbox. We aren't just clicking buttons; we are building a production-grade protocol. We will cover how to split designs safely, correct hoop sizing boundaries, transfer the correct format to your machine, and print 1:1 templates that act as your safety net against placement errors.

The "My Files Are Gone" Moment: What Manage Designs in Hatch Embroidery Software Really Controls

If you’ve ever opened Hatch and thought, “I know I have that file,” take a deep breath. You aren't losing your mind, and you (probably) didn't delete the file. You are simply viewing your assets through the wrong lens.

Think of the Manage Designs toolbox not as a storage folder, but as Mission Control. It is where you transition from "Artist" to "Engineer." This panel controls:

• Asset Isolation: Creating new, clean design files from selected objects without breaking the master file.
• Physical Constraints: Choosing a hoop size so the design fits inside the "Red Boundary" (your machine's hard limit).
• Translation: Transferring a design to a machine-specific format (JEF, PES, DST) and location.
• Verification: Printing true 1:1 templates to physically test placement on the garment.
• Organization: Mapping folders into your Embroidery Library so you stop searching and start stitching.

The Mindset Shift: Software organization is not "office work." It is pre-production work. A clean file flow is the only way to avoid the dreaded "Unknown Format" error when you plug your USB into the machine.

Split One Element Cleanly: Using "New From Selected" Without Wrecking Your Original Design

In the video, the instructor selects a single object (a bird) from a larger composition and uses New From Selected to create a standalone design file.

Why this is a Critical Safety Habit: New digitizers often "Save As" and delete unwanted parts. This is dangerous. One accidental "Save" and you have destroyed your complex, multi-object master file. New From Selected protects your original asset.

The Execution Protocol:

1. Select: In the design browser, click the specific object you want to isolate (e.g., the bird). You should see the selection nodes appear around it.
2. Isolate: Click New From Selected.
3. Verify: A new tab opens. Look at the file name. It takes the name of the object, not the file.

Expected Sensory Outcome:

• Visual: A new tab appears at the top of the workspace.
• Visual: The workspace shows only the bird, sitting inside a default red hoop boundary.

If you are managing customer jobs, this is where Naming Discipline begins. Hatch will honor the object name. If you keep generic names like "Bird 2" or "Design 1," you will eventually overwrite a client's file. Rename this new tab immediately (File > Save As) with a descriptive convention (e.g., ClientName_Bird_Small_v1).

Fix the Red Boundary Problem: Choosing Hoop SQ14 (140 × 140) So the Design Actually Fits

The video shows the classic warning sign: the design sits outside the red hoop boundary. If you send this file to your machine, the machine will likely refuse to load it, or worse, it will trace the design and hit the plastic frame.

The Machine Logic: The software hoop is a "Digital Twin" of your physical plastic hoop. If the design touches that red line, you are in the danger zone.

The Fix:

1. Diagnose: Look at the red boundary. If any stitch extends beyond it, you must change the hoop or shrink the design.
2. Select: Open the hoop dropdown on the top toolbar.
3. Action: Select the appropriate hoop. The instructor selects Hoop SQ14 (140 × 140 mm).
4. Confirm: Watch the red boundary expand. The design must be fully contained with a visual buffer.

Expert Calibration (The Safety Buffer): Do not rely on the exact millimeter limit. Real-world fabric pulls and pushes. Just because it fits on screen doesn't mean it fits on the machine.

• Rule of Thumb: Always ensure you have at least a 10mm to 15mm margin between your design edge and the physical hoop edge.

The Physical Pain Point: If you find yourself constantly fighting to fit designs into standard 4x4 or 5x7 hoops, or if you struggle with "hoop burn" (the shiny ring left on crushed fabric) because you have to hoop so tightly to maximize space, this is a hardware signal.

Traditional plastic hoops rely on friction and muscle power. If hoisting heavy garments or delicate fabrics is slowing your production, this is the trigger to investigate a magnetic embroidery hoop. Unlike standard hoops that require significant hand force and can distort fabric near the edges, magnetic frames hold fabric flat with vertical pressure, often buying you a few extra millimeters of usable sewing field and significantly reducing framing marks.

Keep Your Tabs Under Control: Closing the "Blank Design 1" Tab Before You Save the Wrong Thing

The instructor points out a subtle trap: Hatch often opens a blank tab by default (shown as “Design 1”).

The Cognitive Friction: When you are moving fast, it is incredibly easy to hit "Save" or "Export" on the wrong tab. I have seen seasoned operators export a blank file to a USB drive, walk to the machine, load the file, and stare in confusion as the machine says "0 Stitches."

The Discipline:

• Audit: Look at your top bar. You see "Design 1" (Blank), "Design 2" (Source), "Bird 2" (New File).
• Purge: Right-click the header of the blank "Design 1" tab and select Close.
• Focus: Keep only the files you are actively editing open.


Transfer Selected Design the Safe Way: Picking Janome MC500E and the Right Destination Folder

The video demonstrates Transfer Selected Design, which acts as a bridge between your PC and your embroidery machine.

Exact Steps:

1. Click Transfer Selected Design.
2. Machine Match: In the dialog, select your specific machine model (e.g., Janome MC500E). This ensures the file is formatted with the correct header information your machine expects.
3. Destination: Choose where the file goes (USB drive or Direct Connection).

The USB "Landmine" Check: If transferring to a USB:

• Format: Ensure your stick is formatted to FAT32 (especially for older machines).
• Capacity: Avoid massive 64GB+ drives; many embroidery machines struggle to read them. A 4GB stick is the "Goldilocks" size for stability.
• Structure: Don't dump files in the root. Create a folder named EMB_FILES.

Note for Janome Users: If you are running a janome embroidery machine, selecting the exact model number in Hatch is vital. It prompts the software to add specific JEF+ or JEF header codes that tell the machine exactly where the center point is, saving you from manual centering headaches later.

Print Templates Like a Pro: Preview First, Then Remove Color Sequence and Extra Design Information

The printout is your Proof of Truth. The screen has zoom factors and pixels; the paper has inches and centimeters. However, default print settings are wasteful.

Optimizing for Production:

1. Click Print Selected.
2. Select your printer.
3. Critical Step: Click Preview. Do not hit print yet.
4. Declutter: Click Options. Uncheck Color Sequence and Design Information if you only need a placement guide.
5. Verify: Watch the preview update from a 3-page report to a single, clean sheet.

Why this matters: In a busy shop, a multi-page printout is a liability. Pages get separated. An operator might tape the "Color Sequence" page to the shirt instead of the "Placement" page, leading to alignment errors. You want One Page, One Truth.

The 1:1 Placement Trick: Using Zoom 1:1 (100%) So Your Template Is True Actual Size

This is the most crucial step in the entire tutorial. A template that is printed at 95% scale is worse than no template at all—it is a lie that will ruin your garment.

The Workflow:

1. In print Options, locate the Zoom setting.
2. Select Zoom 1:1 (or ensure the box says 100%).
3. Print.

The Physical Validation (Sensory Check): Once printed, take a physical ruler. Measure the design on the paper. Does the 100mm line actually measure 100mm?

• Fail: If it’s 98mm, check your printer settings (uncheck "Fit to Page").
• Pass: It matches exactly.

Decision Tree: When do I need a 1:1 Template?

• Scenario A: The "Eyeball" Job.
  • Item: Fluffy bath towel, corner placement.
  • Tolerance: High (± 1 inch is okay).
  • Action: Mark center with water-soluble pen, hoop visually. No template needed.
• Scenario B: The "Professional" Job.
  • Item: Left chest corporate logo.
  • Tolerance: Low (Must be exact).
  • Action: Print 1:1 template. Cut it out. Tape it to the shirt. Hoop so the template aligns with the hoop's plastic grid.
• Scenario C: The "Production" Run (50+ items).
  • Item: Team uniforms.
  • Tolerance: Zero (Must be identical).
  • Action: Use the 1:1 template to set up a dedicated hooping station for machine embroidery. These devices use the template to create a fixed jig, allowing you to slide the shirt on and clamp the hoop in the exact same spot 50 times in a row without measuring each one.


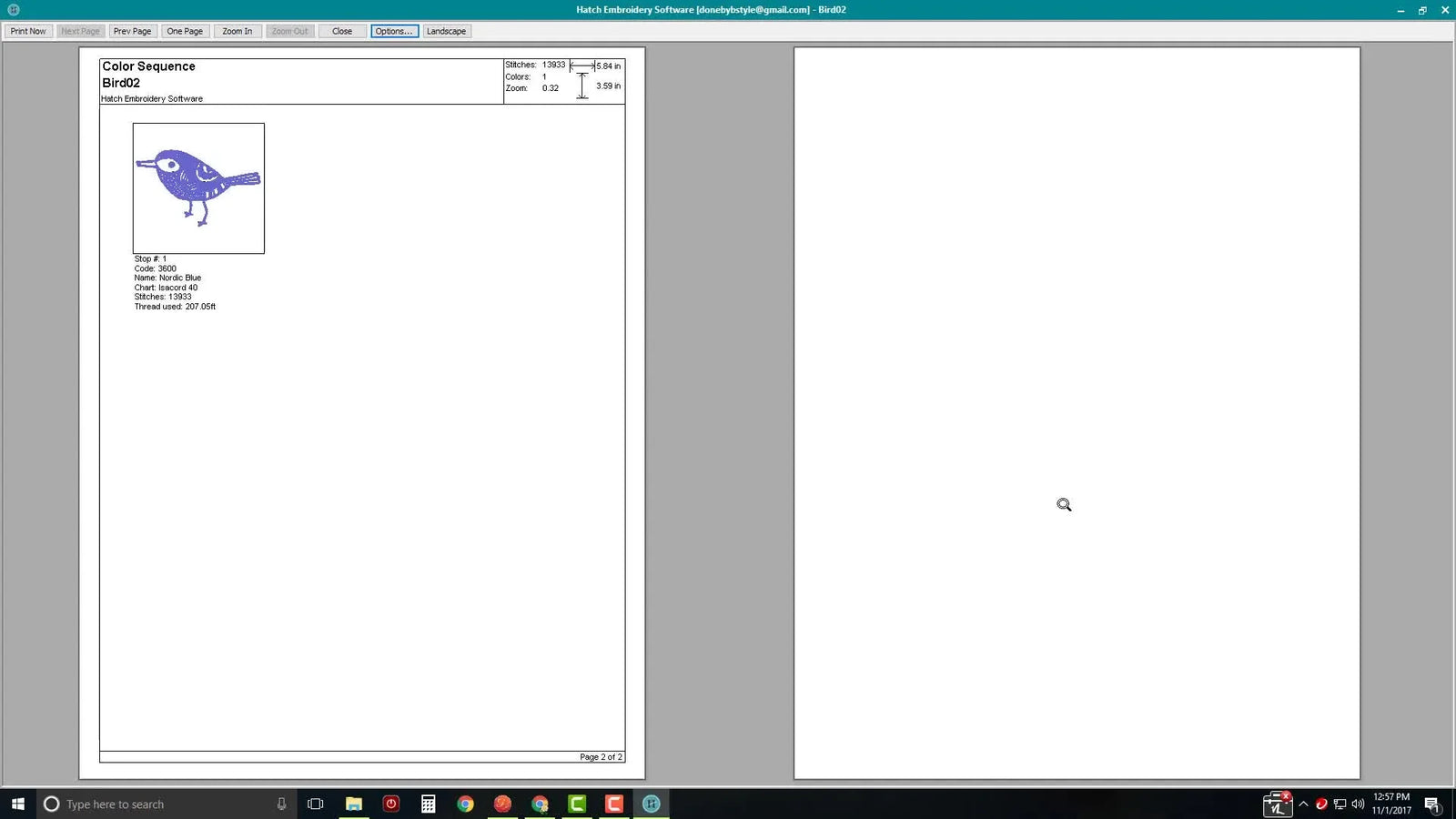

The Clean One-Page Worksheet: What Your Final Print Preview Should Look Like

In the video, the optimized preview becomes a clean single-page layout: the design at 1:1 with supporting data arranged neatly.

The "Job Bag" Standard: This sheet should be stapled to your work order or taped to the wall next to the machine. It should contain:

• The Design Visual (Actual Size).
• The X/Y Dimensions.
• The Color Stops (if you didn't remove them).
• The Filename.

This simple piece of paper is the cheapest insurance policy you will ever buy.

Warning: Mechanical Safety. Keep hands, hair, and loose clothing clear of the needle bar and moving drivers. While templates help with placement, never try to adjust a template or trim a thread while the machine is running. Always STOP the machine completely before reaching into the hoop area.

Export Design List to CSV: The Quiet Superpower for Shops That Quote Jobs and Track Inventory

The instructor demonstrates Export Design List, creating a CSV file readable by Excel.

From Hobby to Business: Expert embroiderers trade on data, not guesses.

• Quoting: Use the stitch counts in the CSV to calculate thread usage and machine run-time costs accurately.
• Inventory: Use the file list to verify that you have digitized all sizes (S, M, L, XL) for a specific client order.


"Find Embroidery Designs" Without Regret: When to Run the Global Scan (and When to Walk Away)

The video details Find Embroidery Designs, which scans your entire hard drive for embroidery formats.

The Trap: If you have a cluttered computer with backup drives connected, a global scan can take 20+ minutes and populate your library with temporary files, corrupted downloads, and duplicates.

The Expert Advice: Use this feature once if you are setting up a new computer and truly don't know where your files are. Otherwise, use the Manual Add method layout below. It is faster, cleaner, and gives you control.

Add Folder to Library Like a Technician: Map Only the JEF/PES Folder You Actually Need

The instructor clicks Add Folder to Library, navigates the Windows tree, and selects a specific target folder.

The Strategy: Segmentation. Don't just add "My Documents." Structure your folders on your hard drive first:

• C:EmbroideryMasters (EMB)
• C:EmbroideryProduction Files (PES/JEF)

Then, add these specific folders to the Hatch Library.

This is particularly important if you operate a mixed-fleet studio. For example, if you have a brother embroidery machine for samples and a multi-needle for production, keep their file folders distinct. Adding only the relevant folders prevents you from accidentally sending a PES file to a machine that only reads JEF, which speeds up your workflow and reduces "Data Error" messages.

The Filter That Hides Your Work: "All Machine Files" vs "All Embroidery Files" (Why EMB Disappears)

This is the "Aha!" moment that resolves 90% of "Lost File" support tickets.

The Mechanism:

• All Machine Files: This filter shows stitch files (PES, JEF, VP3, DST). These are instruction sets for the machine. It hides the .EMB master files.
• All Embroidery Files: This shows everything, including the native .EMB object files.

The Fix: If you save a design and it immediately "vanishes" from the library view, do not panic. Look at the dropdown menu in the top right. It has likely defaulted to "All Machine Files." Switch it back.

Remove Folder from Library Without Fear: Clean Up the Left Pane When It Gets Noisy

The video shows how to select a folder and click Remove Folder from Library.

Clarification: This does not delete the folder from your computer. It simply removes the shortcut from the Hatch Library view. Use this to trim the fat. If you finished the "Christmas 2023" project, remove that folder from the view so you don't have to scroll past it in July.

The "Hidden" Prep That Prevents Rework: Before You Transfer, Print, or Stitch Anything

Even though the Hatch video focuses on software, the software is only the map; the territory is your workstation. Before you commit to the stitch, you need to ensure your physical environment is ready.

Essential "Hidden" Consumables:

• Temporary Spray Adhesive (e.g., 505): For holding templates or floating stabilizers.
• Disappearing Ink Pen / Tailor's Chalk: For marking the crosshairs from your 1:1 template onto the fabric.
• Ruler: To verify the 1:1 printout scale.

Prep Checklist (The "Pre-Flight" Protocol):

• Tab Check: Are you on the active design tab, not the blank "Design 1"?
• Boundary Check: Is there a 10mm visual safety margin inside the red hoop line?
• Format Check: Is the Library Filter set to "All Embroidery Files" so you aren't working on a stitch file by mistake?
• Scale Check: Did the template print at exactly 1:1? (Measure it).
• Target Check: Is the USB drive formatted (FAT32) and empty of non-embroidery junk?

Setup That Scales: Turning a Hobby Workflow Into a Repeatable Production Workflow

If you only stitch one item a week, you can afford to be messy. But if you are trying to turn a profit, friction is the enemy. The workflow described above—Manage, Split, Hoop, Print, Transfer—must be muscle memory.

Scaling Your Physical Tools: As your software workflow speeds up, your bottleneck will shift to the physical hooping process.

• Hooping: If you are struggling to align logos on shirts consistently, a hooping station is the industry standard solution. It converts the variable "human hands" into a fixed mechanical process.
• Framing: If you are fighting with thick jackets or delicate silks, standard plastic hoops may be costing you money in rejected garments. Upgrading to stronger, easier-to-use embroidery machine hoops (specifically magnetic variants) allows you to frame faster and with less stress on your wrists and the fabric.
• Machine: If you find yourself spending more time changing thread colors than running the machine (Hatch shows 12 color stops, and you have a single-needle machine), this is the reliable indicator that you have outgrown your hardware.

Setup Checklist (Standardize Once, Use Forever):

• Folder Tree: Create separate folders for Master (EMB) and Machine (Pulse/Stitch) files.
• Naming Convention: Use Name_HoopSize_Version (e.g., Logo_4x4_v2).
• Template Standard: Always print 1:1 with crosshairs enabled.
• Hooping Aid: Have a clean, flat surface with a marking mat or station ready.

Troubleshooting the Three Most Common Manage Designs Headaches

The Upgrade Path That Actually Makes Sense: Software Organization First, Then Physical Speed

Mastering the Hatch "Manage Designs" toolbox is step one. It gives you clean data. But clean data sent to an inefficient physical setup is just a faster way to be frustrated.

Once your software workflow is clean—correct hoop selection, correct file visibility, correct transfer, and clean 1:1 templates—evaluate your physical blockers:

1. Alignment Drift: If prints are clean but shirts are crooked, look at a hooping station for embroidery.
2. Hoop Burn/Fatigue: If hooping takes longer than stitching, investigate magnetic frames.
3. Output Drag: If you are perfectly organized but simply cannot stitch fast enough, it is time to consider moving from a single-needle home machine to a multi-needle production machine (like SEWTECH models). Multi-needle machines allow you to queue up the colors shown in your Hatch "Sequence" tab and walk away, turning your time into profit.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware of their extreme force. They can pinch skin severely. Critically, keep strong magnets away from pacemakers, ICDs, and insulin pumps. Maintain a safe distance (usually 6 inches+) as specified by the manufacturer.

Operation Checklist (The Final "Go" Status):

• You can see the files you expect (Filter = All Embroidery).
• The hoop boundary matches the physical hoop you have in your hand.
• The transfer dialog has the specific machine model selected (e.g., Janome MC500E).
• The print template lands on the garment exactly where you want the stitch.
• You have physically verified the machine path is clear. GO.

FAQ

• Q: In Hatch Embroidery Software Manage Designs, why do .EMB master files disappear when the library filter is set to “All Machine Files”?
  A: Switch the library filter from All Machine Files to All Embroidery Files to reveal the hidden .EMB master files—this is a common view/filter issue, not deletion.
  • Open the filter dropdown in the top-right of the library panel.
  • Select All Embroidery Files (not All Machine Files).
  • Re-check the same folder location in the library tree.
  • Success check: The .EMB files reappear immediately in the list without re-scanning the drive.
  • If it still fails: Use Windows/File Explorer to confirm the .EMB files exist in the mapped folder, then re-add that specific folder to the library (mapping does not delete files).
• Q: In Hatch Embroidery Software, how do I fix a design that is outside the red hoop boundary when selecting Hoop SQ14 (140 × 140 mm)?
  A: Select a hoop size that fully contains the design and keep a safety margin; stitches touching the red boundary are in the collision risk zone.
  • Open the hoop dropdown on the top toolbar and select Hoop SQ14 (140 × 140 mm) (or another hoop that matches your physical hoop).
  • Confirm every part of the design sits inside the red boundary with a visible buffer.
  • Keep a safe starting point of 10–15 mm margin between the design edge and the hoop limit.
  • Success check: Visually confirm no stitches cross the red line and the design “breathes” inside the boundary.
  • If it still fails: Reduce the design slightly or choose a larger hoop; do not export a file that touches/crosses the boundary.
• Q: In Hatch Embroidery Software Print Selected, how do I stop templates printing as 3+ pages and wasting paper?
  A: Use Print Selected → Preview → Options and remove non-essential sections like Color Sequence and Design Information so the template becomes one clean page.
  • Click Print Selected, then click Preview before printing.
  • Open Options and uncheck Color Sequence and Design Information if you only need placement.
  • Re-check the preview and print only after it collapses to a single page.
  • Success check: Preview shows a single page with the design view as the primary content (no extra report pages).
  • If it still fails: Re-open Options and verify only the placement/template elements are selected before printing again.
• Q: In Hatch Embroidery Software, how do I print a true 1:1 (100%) embroidery placement template so the design is not scaled to 95%?
  A: Set the print Zoom to 1:1 (100%) and verify with a ruler; “Fit to Page” style scaling can silently distort size.
  • In print Options, set Zoom 1:1 (or confirm it shows 100%).
  • Print one test page and measure a known dimension on the paper with a physical ruler.
  • Disable any printer scaling that changes output size (commonly shown as fit/shrink/expand settings).
  • Success check: A 100 mm reference measures 100 mm on paper (not 98 mm or 95 mm).
  • If it still fails: Check printer driver settings for scaling overrides and re-print after forcing 100% output.
• Q: In Hatch Embroidery Software, how do I prevent exporting a blank “Design 1” tab and getting “0 Stitches” on an embroidery machine?
  A: Close the blank default tab and export only from the active design tab; this mistake is common when working fast.
  • Look across the top tab bar and identify the blank tab labeled like Design 1.
  • Right-click the blank tab and select Close.
  • Confirm the correct design tab is active before you hit Save/Export/Transfer.
  • Success check: The exported file loads on the machine showing an actual stitch count (not 0).
  • If it still fails: Re-open the exported file in software and verify the design is visible and not an empty workspace before transferring again.
• Q: In Hatch Embroidery Software Transfer Selected Design, how do I transfer to a Janome MC500E safely and avoid USB “Unknown Format” or read issues?
  A: In the transfer dialog, select Janome MC500E and use a simple, machine-friendly USB setup (often FAT32 and smaller capacity works best).
  • Click Transfer Selected Design and choose Janome MC500E as the machine model.
  • Choose the correct destination (USB drive or direct connection) and export to a clearly named folder (for example, EMB_FILES).
  • Use a USB stick that is commonly compatible with embroidery machines (often FAT32 and not oversized).
  • Success check: The Janome MC500E recognizes the file and displays the design normally instead of an “Unknown Format” style message.
  • If it still fails: Try a different USB stick, simplify folder structure (avoid dumping in the root), and re-transfer after confirming the correct machine model was selected.
• Q: What pre-flight consumables and safety checks should be done before transferring, printing, or stitching an embroidery design to prevent placement mistakes and machine hazards?
  A: Do a quick pre-flight: confirm tab/hoop/filter/scale/USB checks, and keep hands clear of moving parts—stop the machine fully before reaching into the hoop area.
  • Gather the basics: temporary spray adhesive (for holding templates or floating stabilizer), disappearing ink pen/tailor’s chalk, and a ruler for 1:1 verification.
  • Verify on-screen: active design tab (not blank), design fully inside red boundary with margin, and library filter shows the correct file types.
  • Verify physical: measure the printed template for true 1:1 and confirm the machine path is clear before pressing start.
  • Success check: The template aligns on the garment as intended and the machine runs without needing last-second hand adjustments near the needle.
  • If it still fails: Stop immediately, re-check hoop boundary and 1:1 print scale, then re-position using the template marks rather than “eyeballing” placement.
